5 answers

•
  KFZ-Schule 11 months ago

  I made a small tutorial. more hints for similar problems you will finde here..
  https://www.youtube.com/watch?v=6X5cP6br99U

  I you like subscribe, and give a "like it"

  greetings

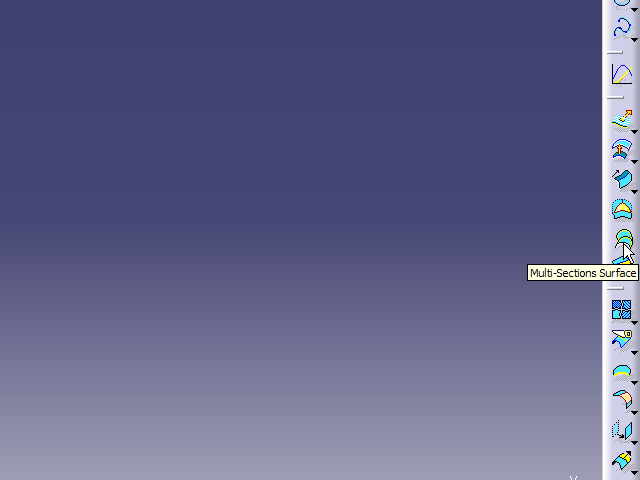

  1. Step 1

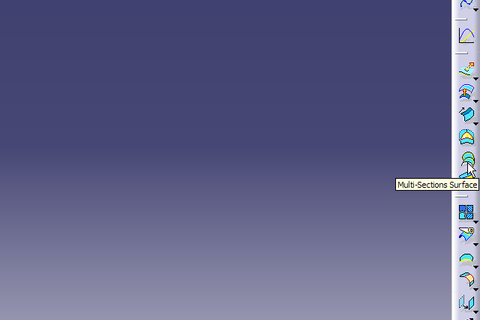

     use GSD and multisection surface

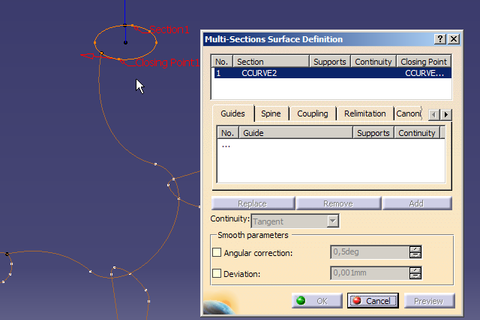

  2. Step 2

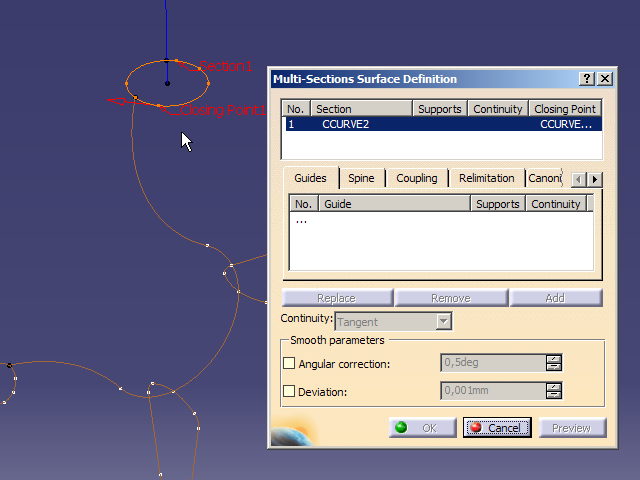

     select the vurves

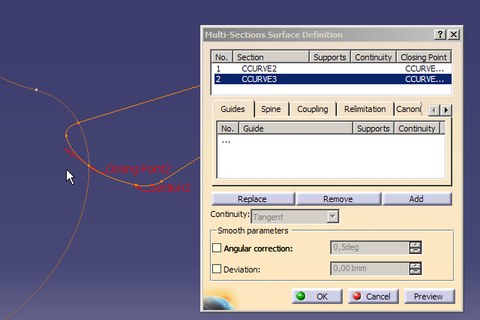

  3. Step 3

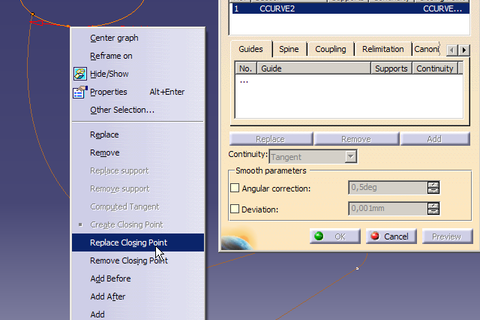

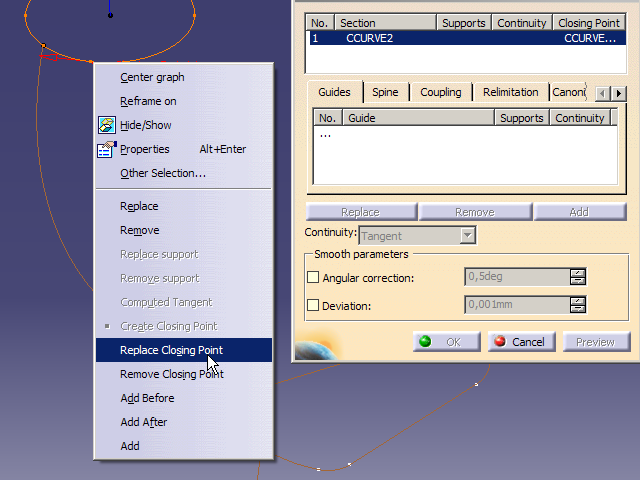

     replace the closing points



  4. Step 4

     look at the orientation of red arrow, complete all 4 sketchs

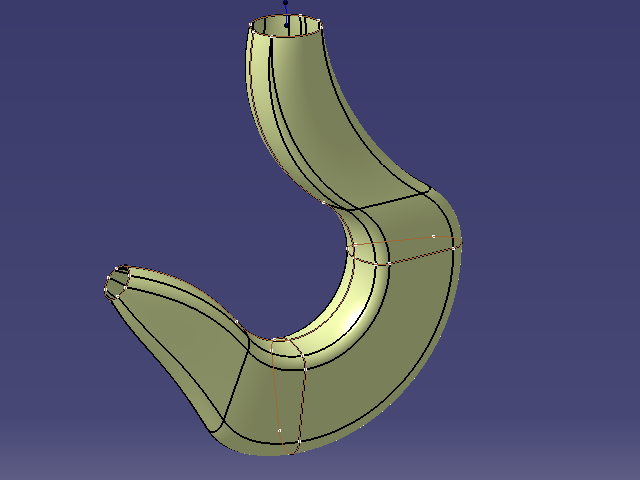

  5. Step 5

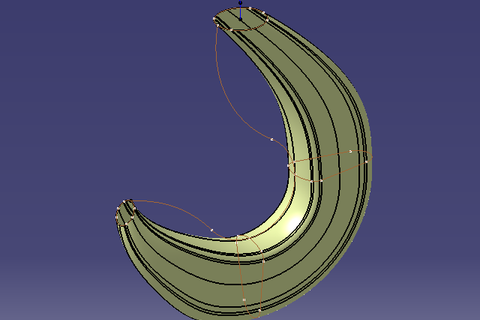

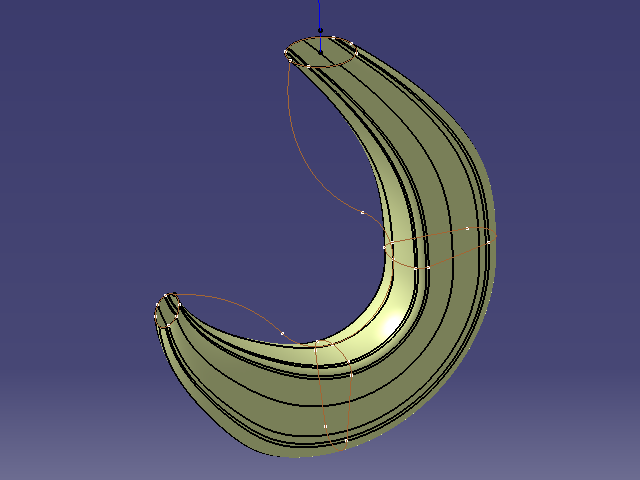

     first result

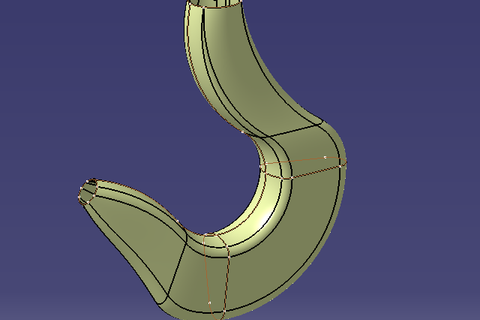

  6. Step 6

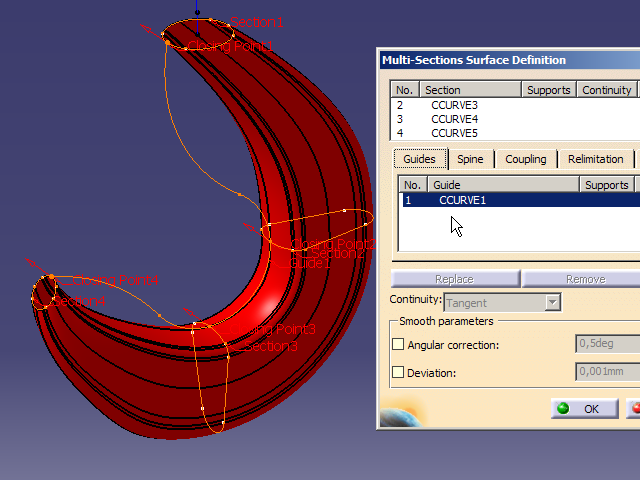

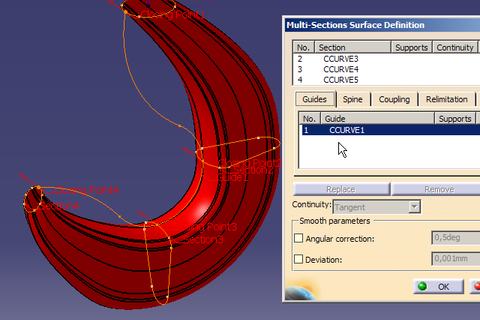

     use a guide curve for a better result



  7. Step 7

     use couplings for even more better result.
     Your sample didn´t do that, you can see a bad surface in the middle.



  1.
     Jinto A J 11 months ago

     keep it up and I appreciate your work

  2.
     Amer Fetic 11 months ago

     Thanks man !!!

•
  hare 11 months ago

  thanks frend.

•
  JAYDEEP 8 months ago

  just add video will be awesome..

•
  belinsca romeo 6 months ago

  Hello, may I suggest you to have a look to this Crane hook built by me:
  HOOK_Catia_Killer_TEST.CATPart,
  it has all the history.

•
  belinsca romeo 6 months ago

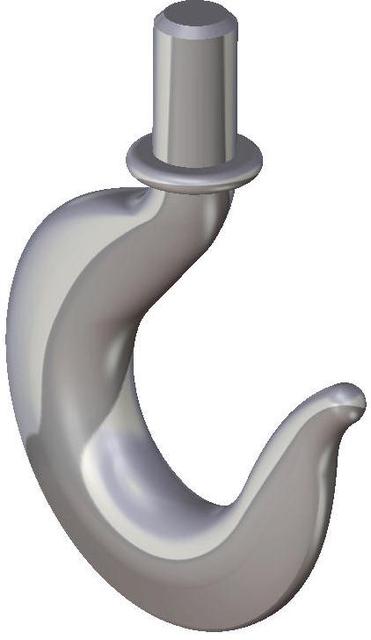

  Here a photo of the model

  Added images
