Tutorial:How to model Hook in Pro/ENGINEER?

3 answers

•
  Dusan Tijanic 3 months ago

  Here's the answer for it..
  Step 1

  Added images



  1. Step 1

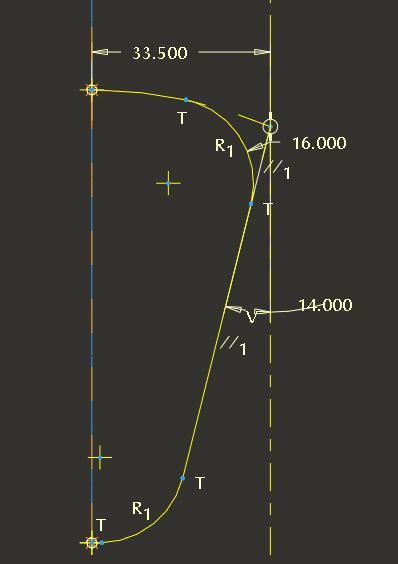

     Sketch tool



  2. Step 2

     Plane tool



  3. Step 3

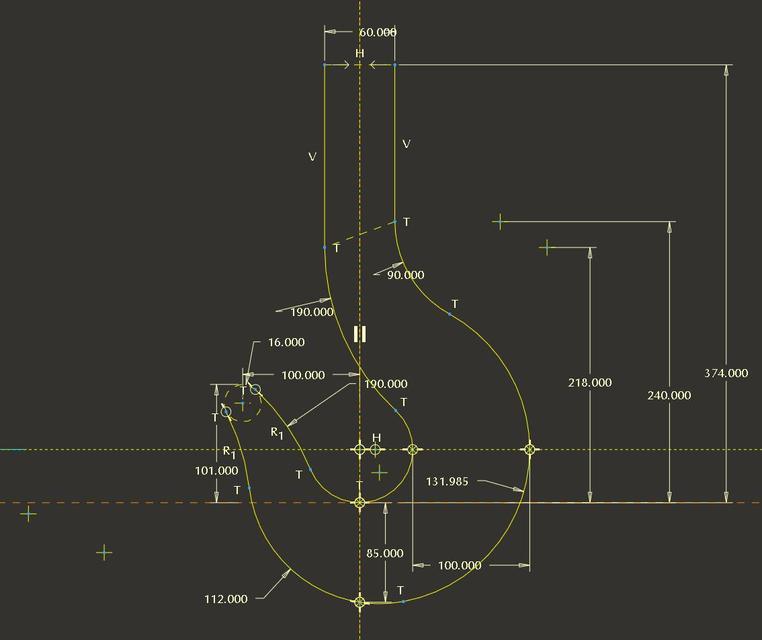

     3



  4. Step 4

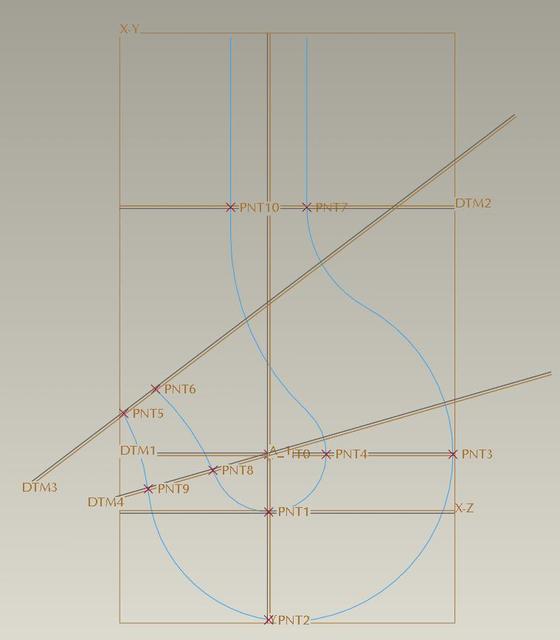

     4



  5. Step 5

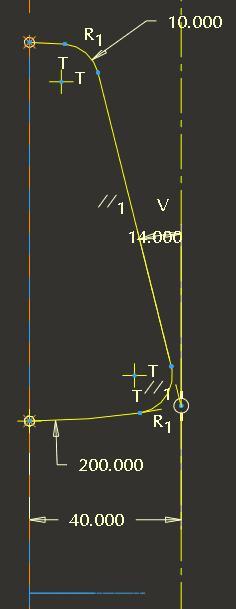

     5



  6. Step 6

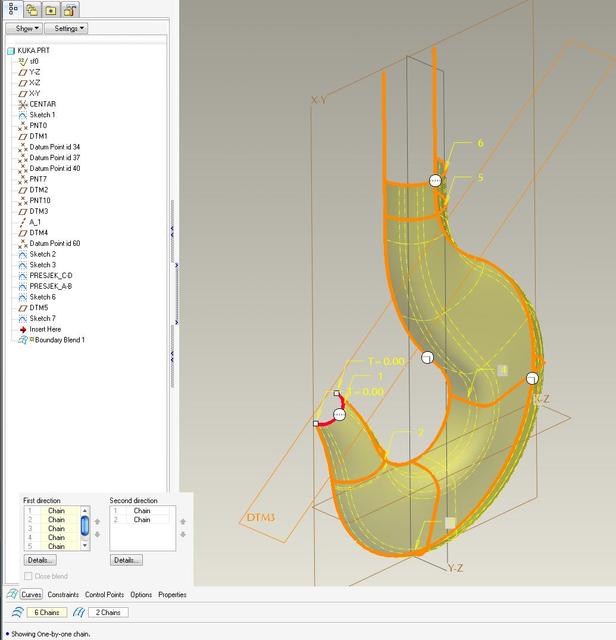

     boundary blend tool



  7. Step 7

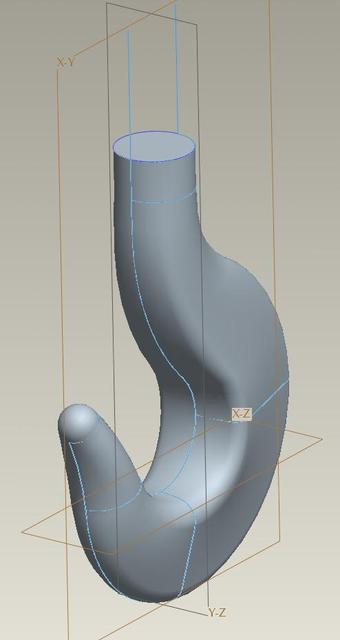

     Surface



  8. Step 8

     merge tool



  9. Step 9

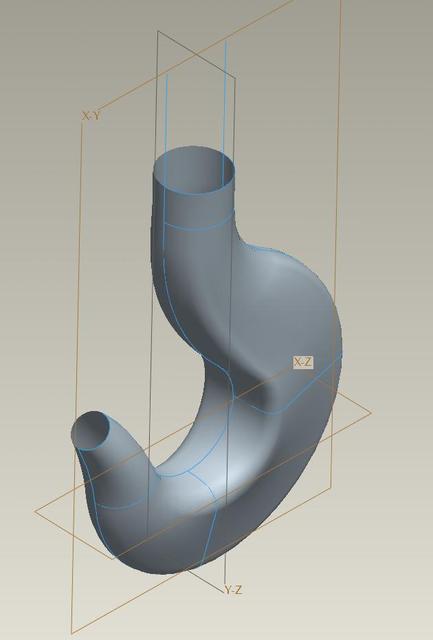

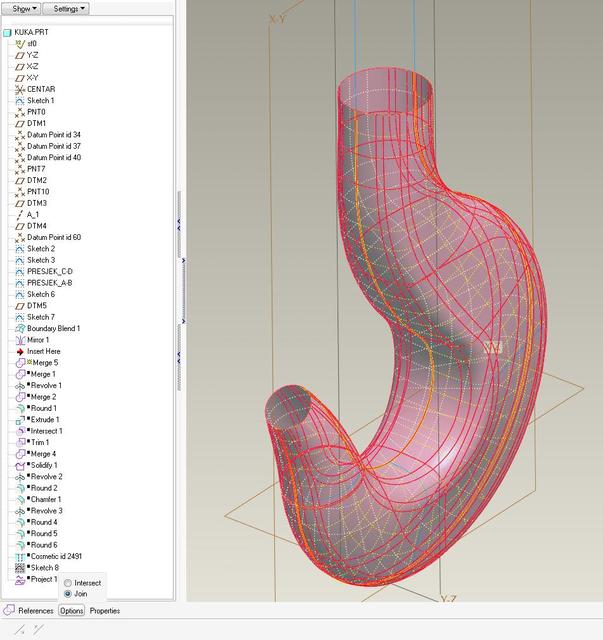

     hook full surface



  10. Step 10

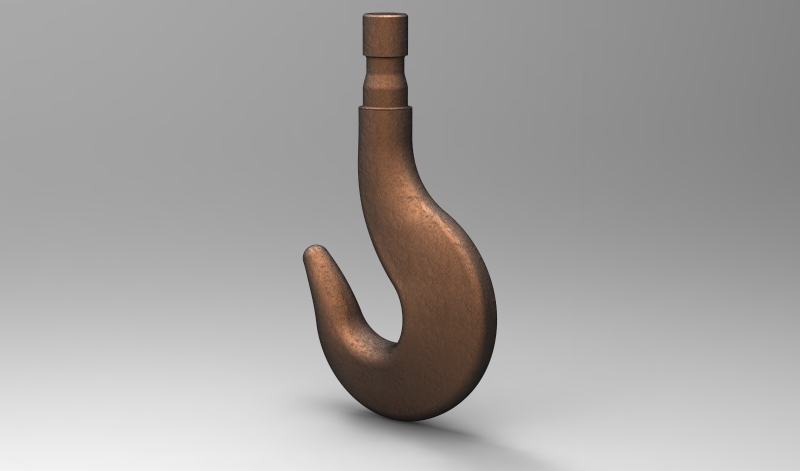

      hook final



  Comment (1)

  1.
     Rahul Kapoor 10 days ago

     i don't understand step 3 and 4

•
  murugan about 1 month ago

  ITS USE FUL BUT PLS GIVE MORE ON VARIABLE SWEEP BLEND
