  I think that you can't get any better than this unless you move the boundaries of the sketch for the rib all the way to the edge of the main solid part on which you created the sketch. That way, the line that appears at the end of the fillet would be collinear with the edge of the sword. Since I can't open the file (I'm still with SW2010) I can suggest another method of creation, and that would mean drawing the profile of the sword at the handle and extrusion into length, and instead of using a parallelogram and editing it with a fillet, use a spline (one quarter of the profile and use mirror to get the left/right and then, again a mirror to get the other half, extrude to desired length and at the tip, do a drawing of the swords tip shape and cut-extrude... That leads to the small problem with the tip itself and the third approach is to create the main body of the blade, do a spline drawing at one end (@ handle) and draw a line around the whole blade to act as a path for a swept cut. That would probably be the best. I made a quick example of the spline based creation of the sword blade.

  Added images



  Attachments

  sword blade - spline extrude.SLDPRT, 188 KB
  Download

•
  Robert Stein over 1 year ago

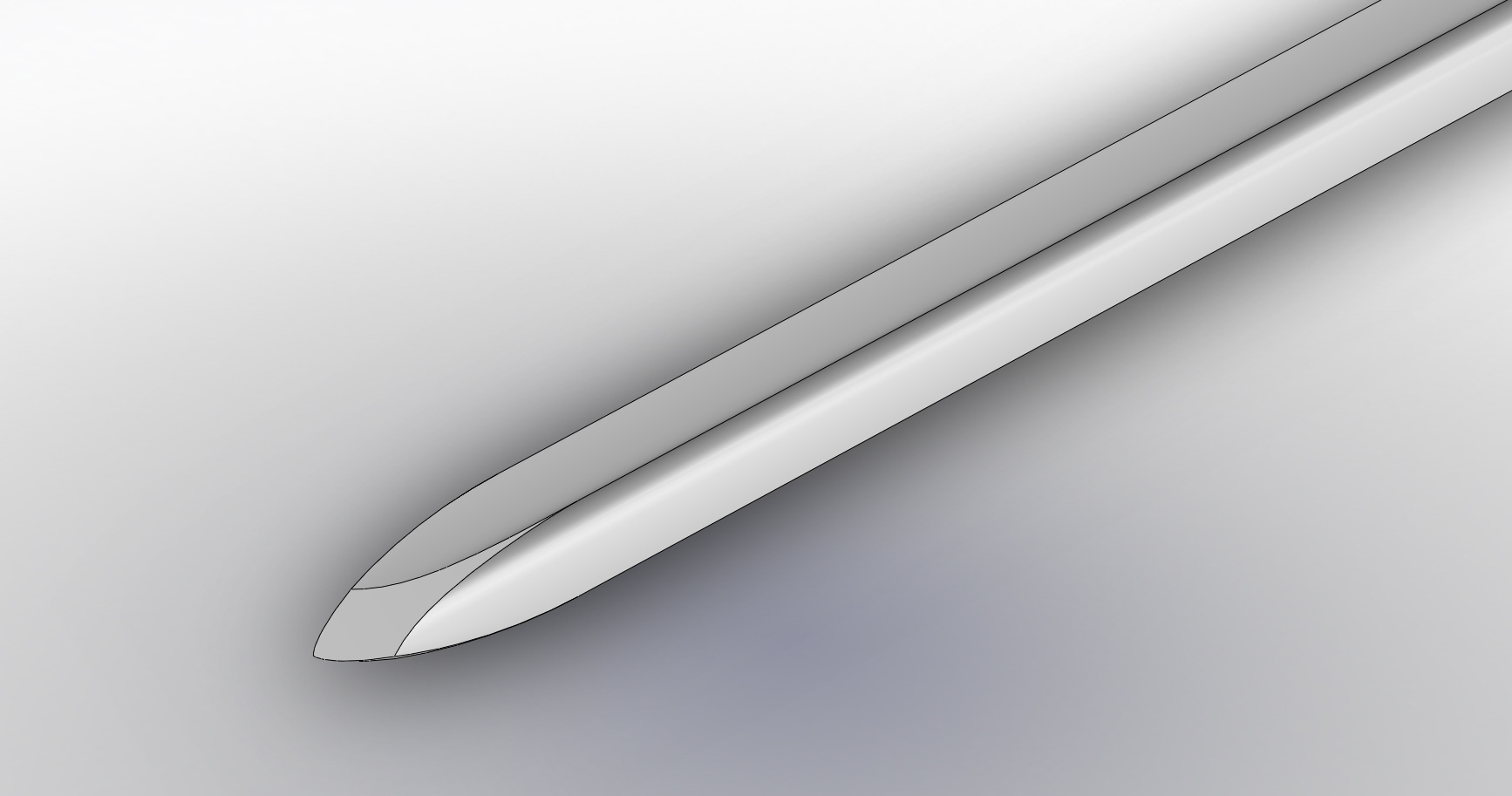

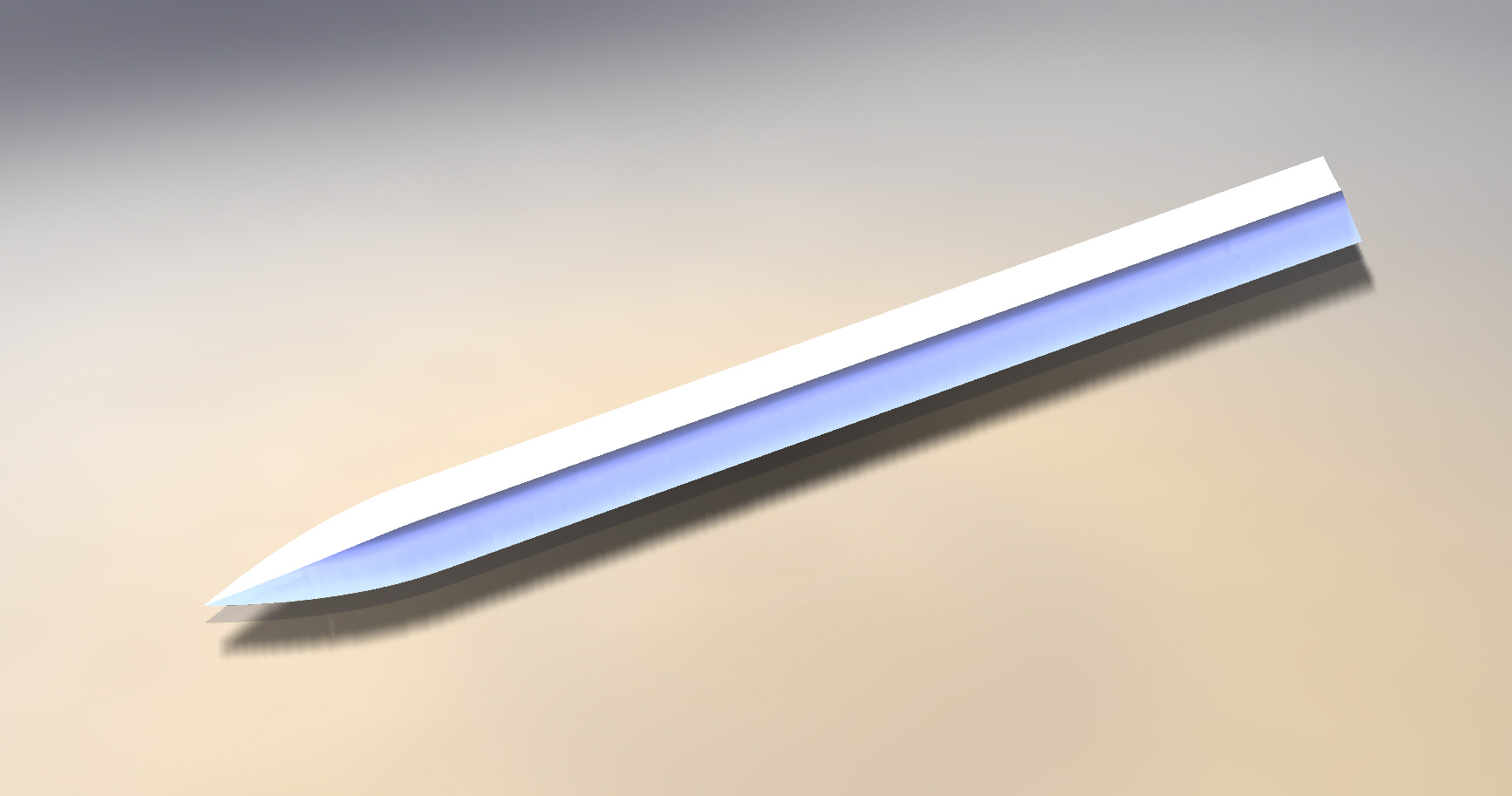

  Here is the result of the third method, probably what you expected to get: swept cut around the solid body, swept profile created with spline.
  You owe me a beer if you like the result of the method. ;)
  I draw the path (sketch) along the body edge. By moving the path outside or giving it a different curved shape at the tip, various results can be achieved. It's a matter of having some patience and do some trial-error game... The method is important.

  Added images



  Attachments

  sword blade - sweep cut.SLDPRT, 192 KB
  Download

  1.
     Andreas Gkertsos over 1 year ago

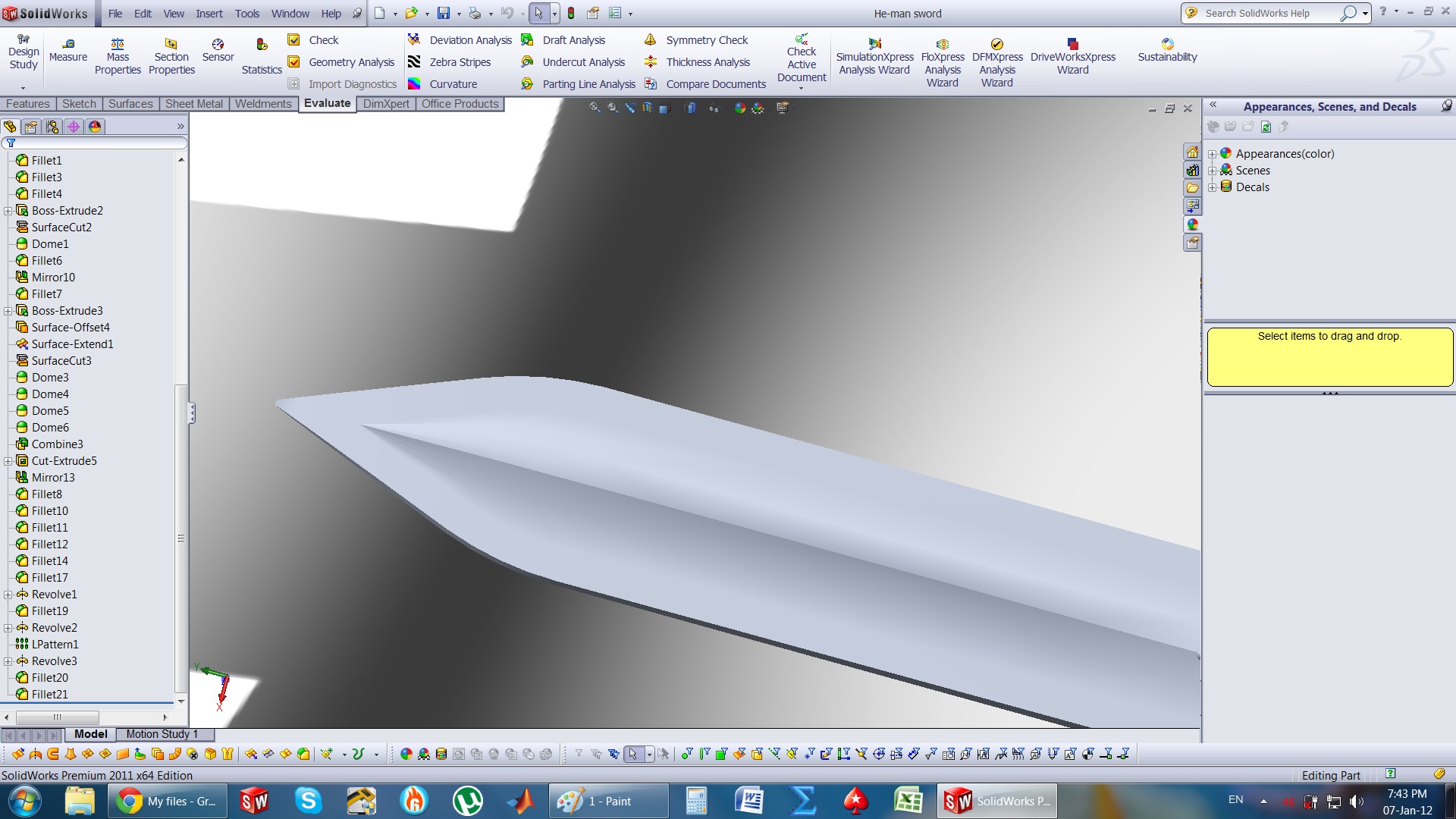

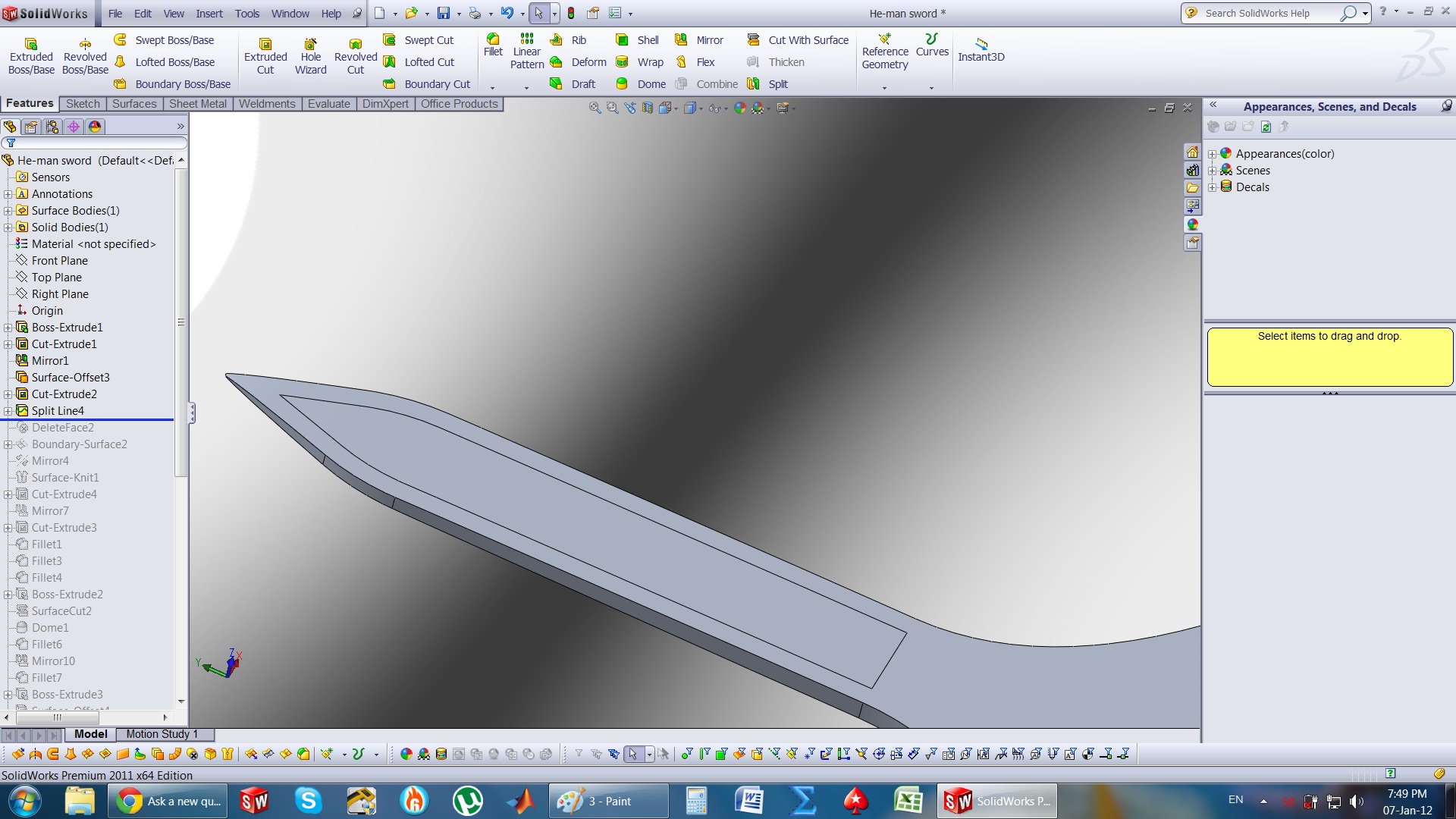

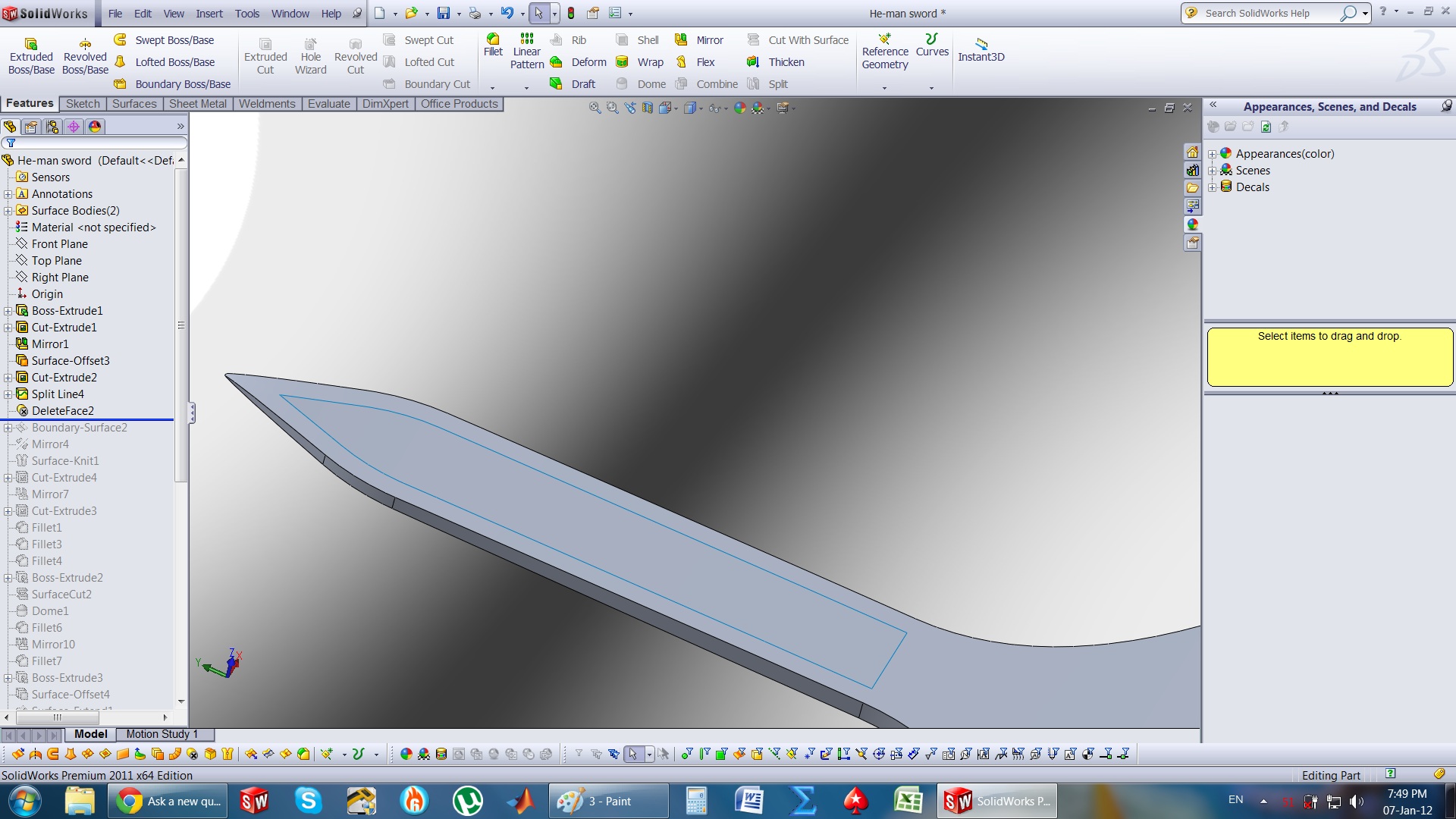

     thats realy nice robert... but the rib doesn;t start from the edge of the blade... it starts from a lower point. I'm adding a picture of the sword i used to model this...

•
  Andreas Gkertsos over 1 year ago

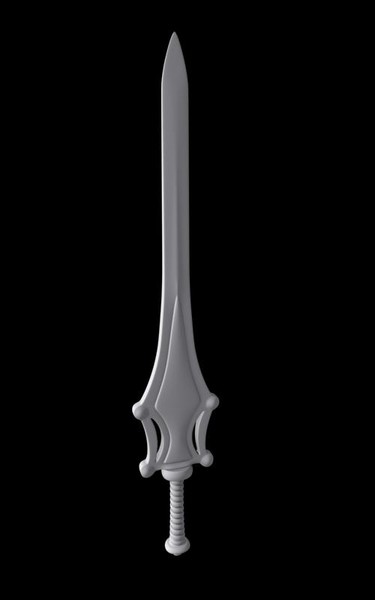

  This is the model i used... I found it on google pictures..

  Added images



•
  Andreas Gkertsos over 1 year ago

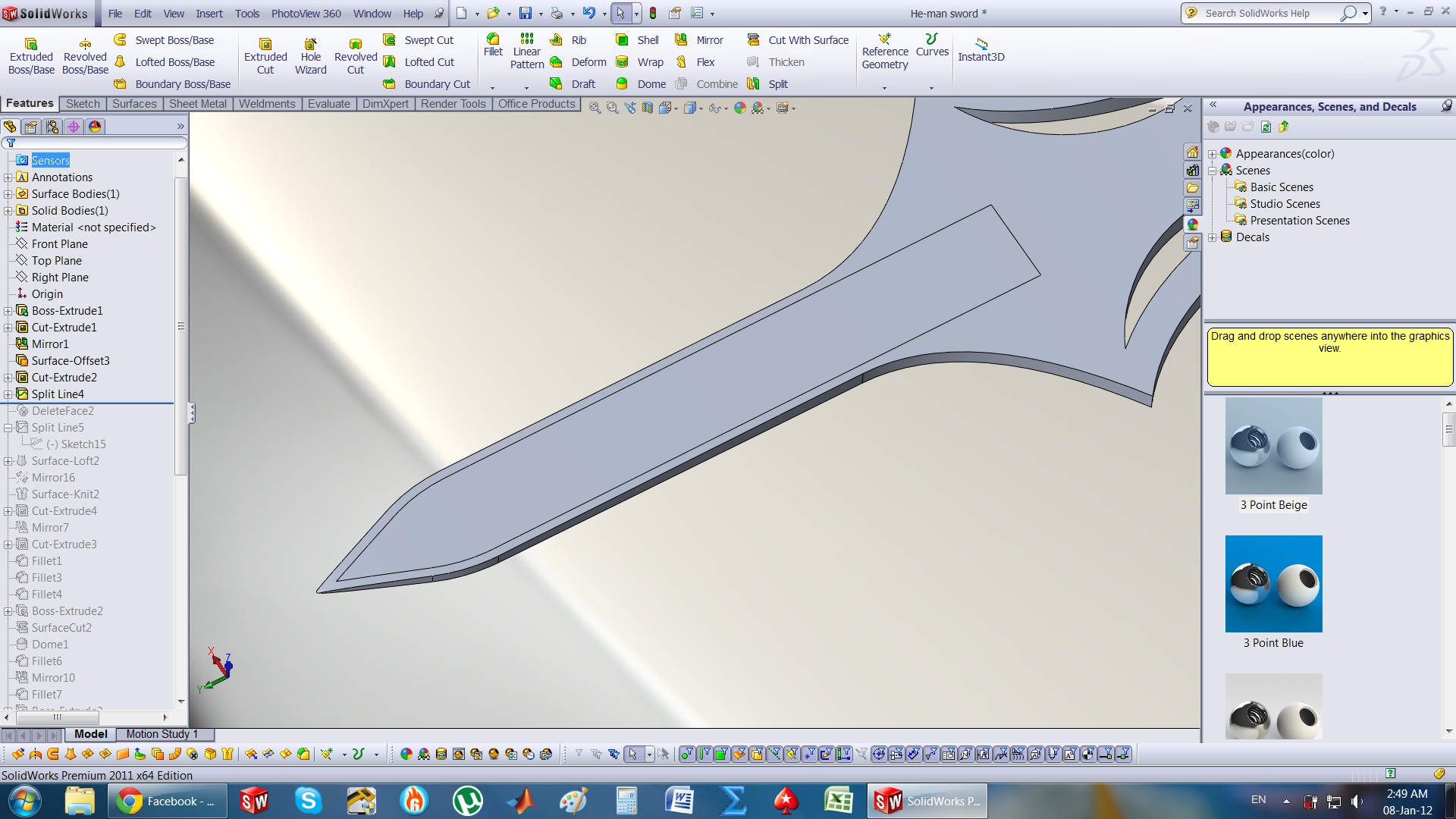

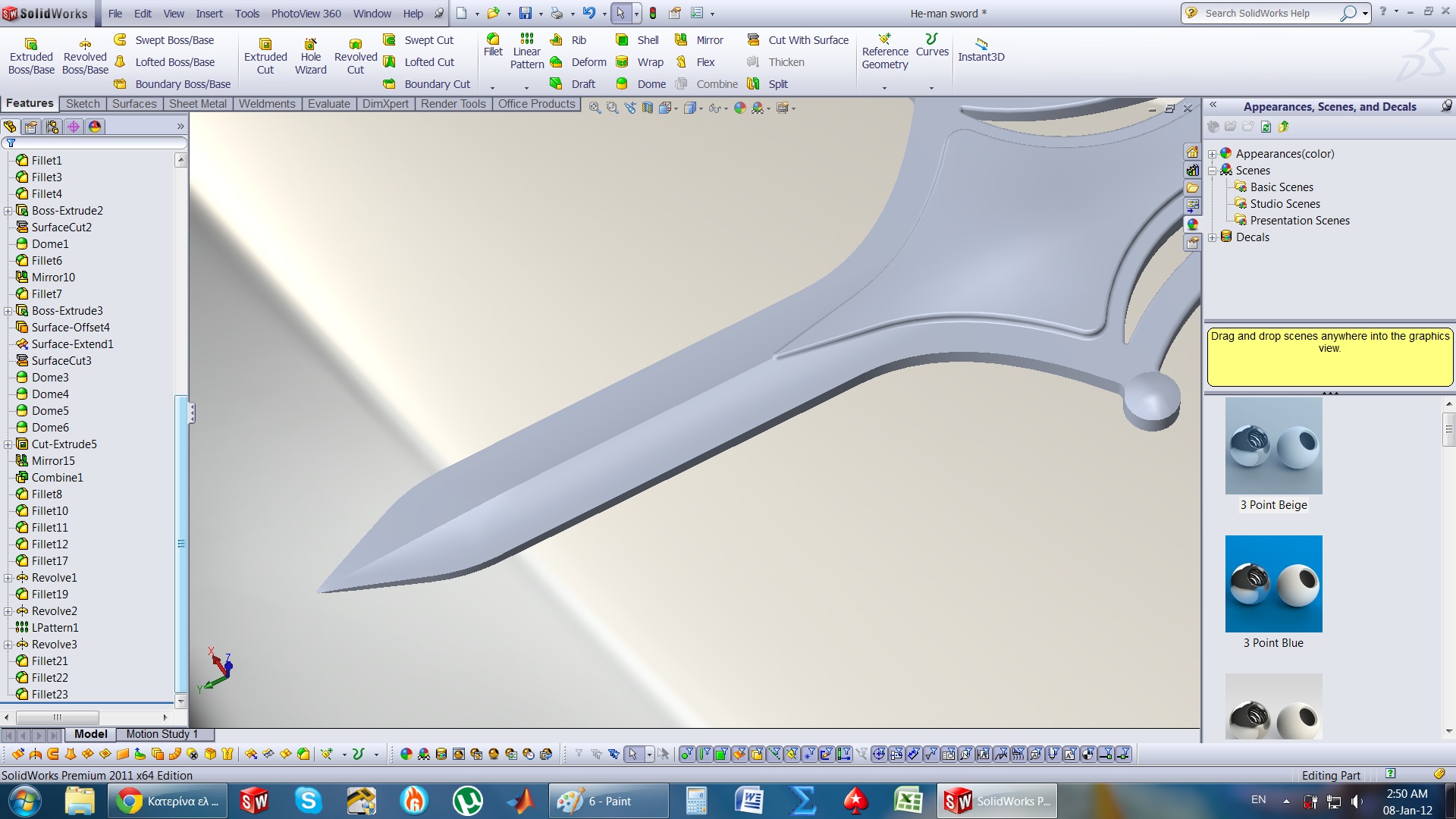

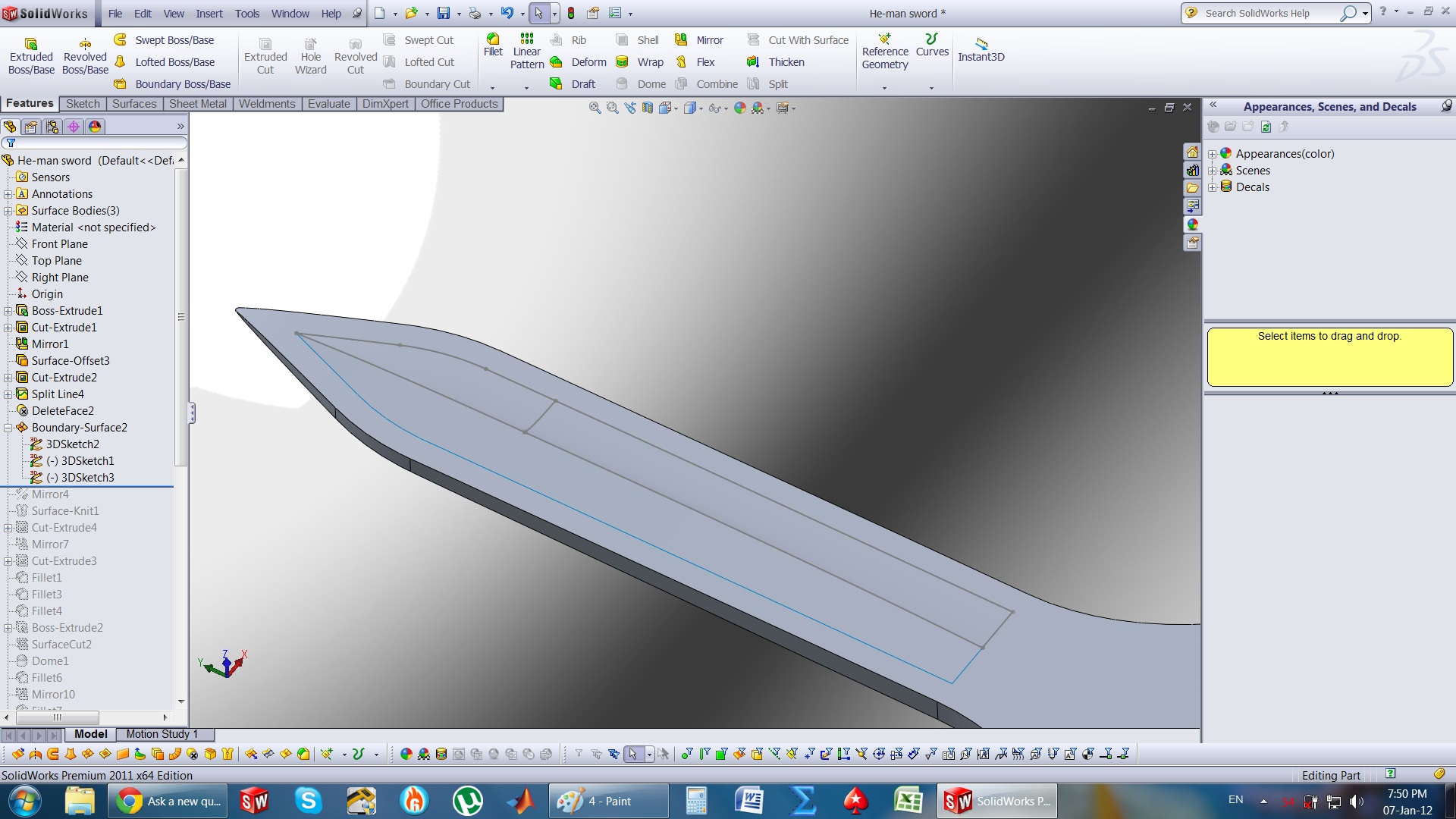

  i got it right Bobert... i took your advice of enlarging the split line area... but instead of using boundary surface, i used loft and it came out much smoother... Thanks you your advice though!!

  Added images



  1.
     Robert Stein over 1 year ago

     I'm glad you got the desired result.
     The most important thing to remember is that there is always more than one way to create something. Sometimes you find it instantly, sometimes you have to try more times with different methods. As long as you know what the end result should look like, you'll find a way :)

  2.
     Andreas Gkertsos over 1 year ago

     thats why we are enginneers... to find different ways:) Thanks Robert!
