Fateh MERRAD over 1 year agoyou will see some of the advanced method for creating surfaces of a car BMW X6
-
Step 1

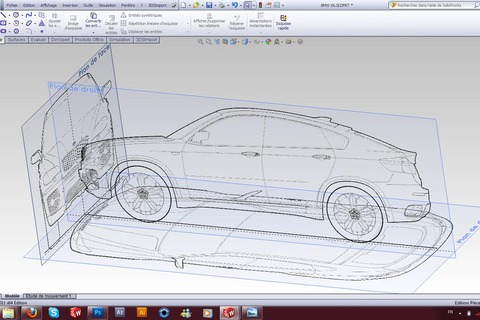

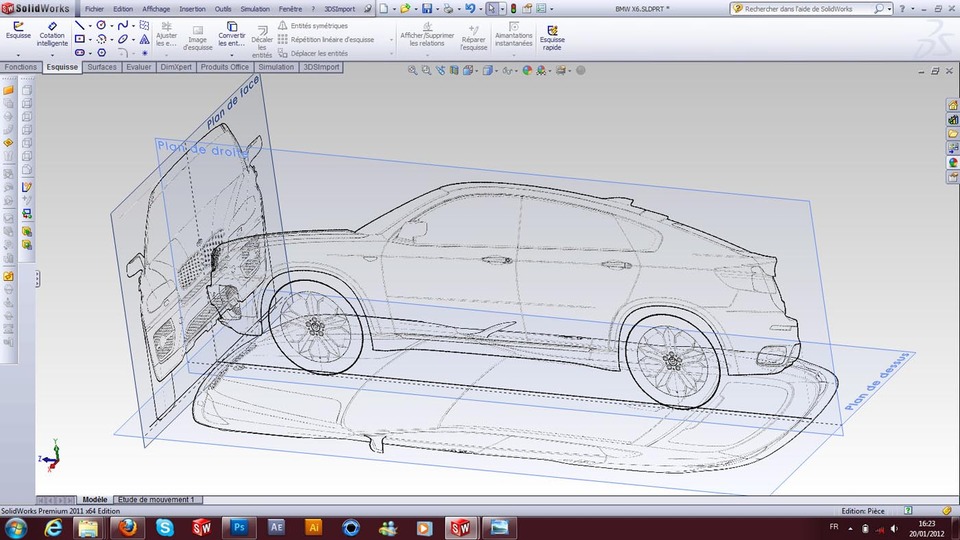

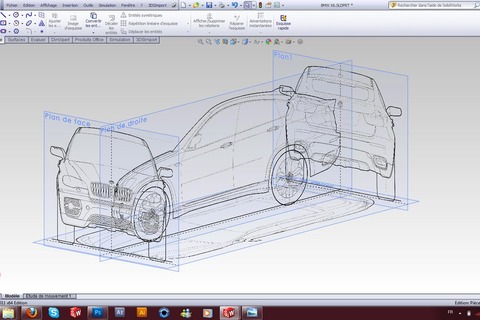

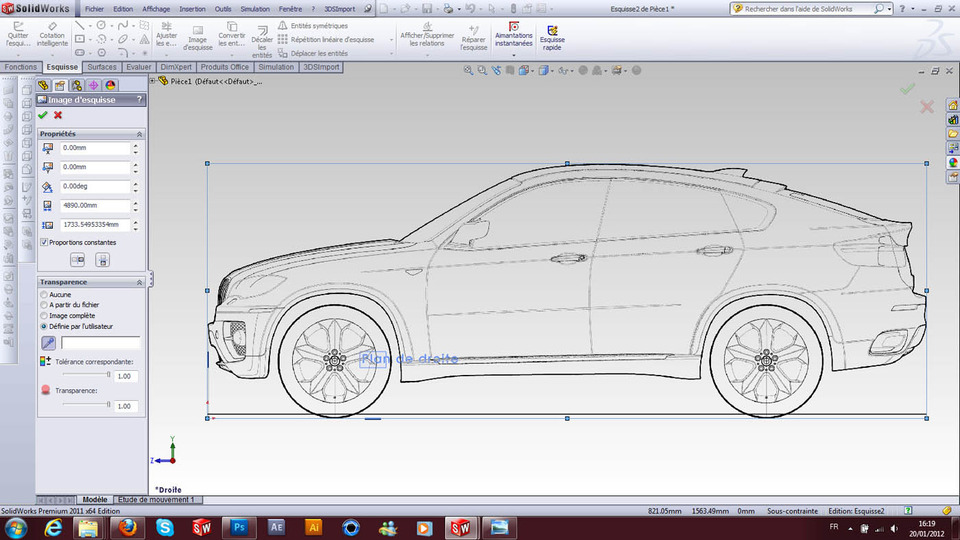

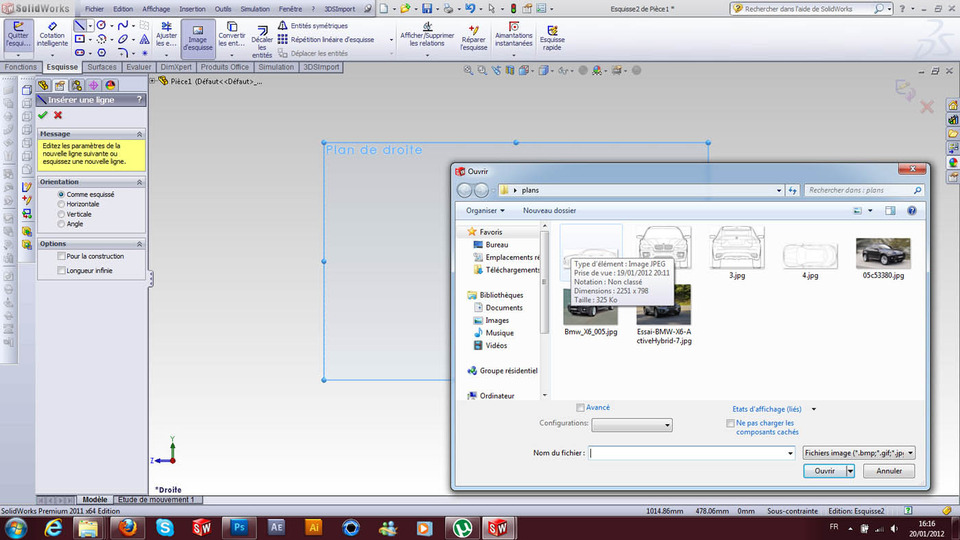

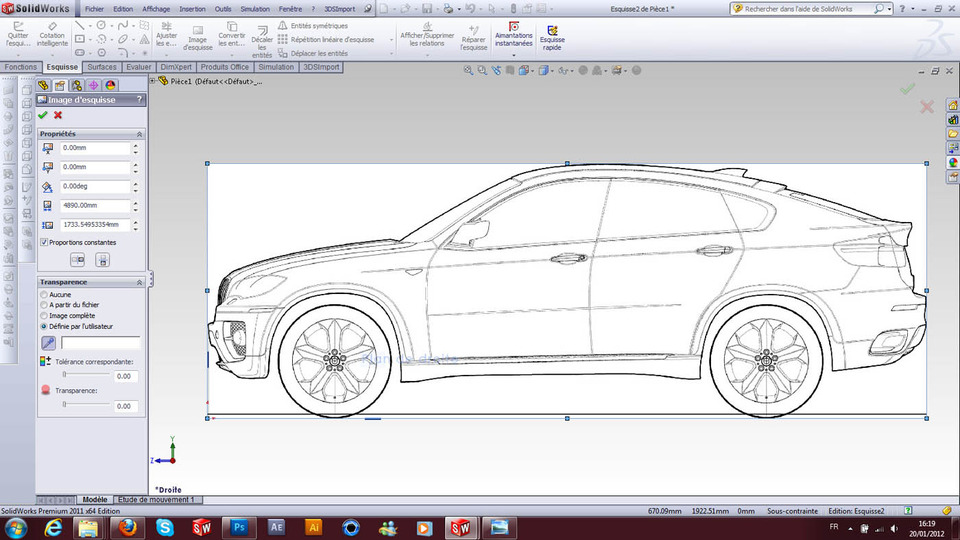

1 - open a new file and choose the right plan and click on sketch image
-
Step 2

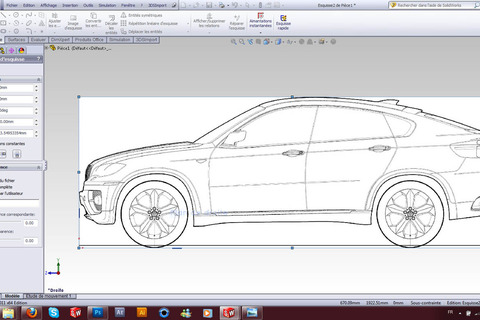

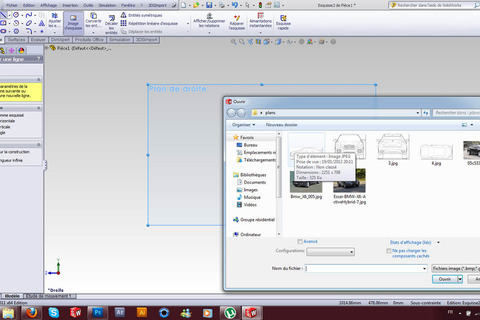

2 - but we must prepare images before, we choose the image
-
Step 3

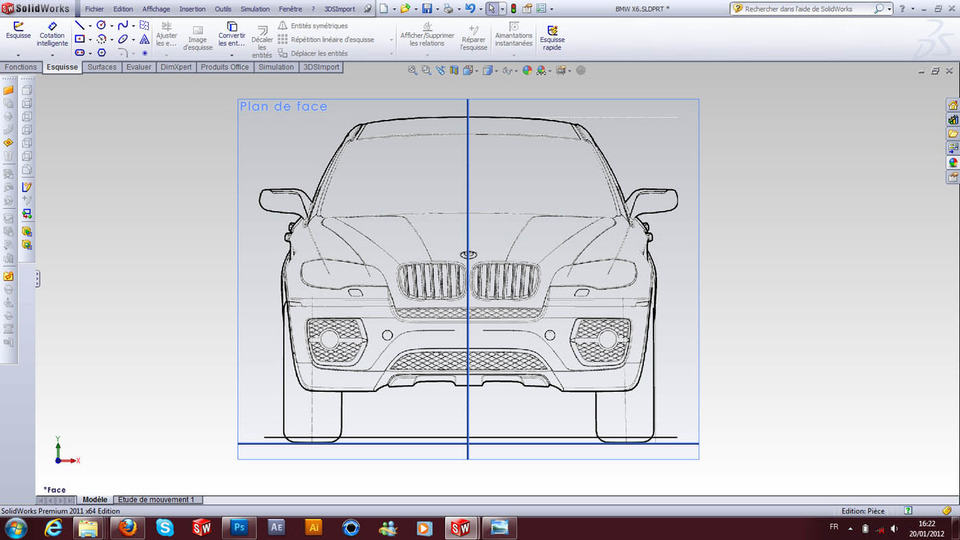

3 - we put on the transparent image by clicking on the color of the image bleached by the pipette is left to bottom
-
Step 4
4 - and we do the same steps for other pictures
-
Step 5
5 - .
-
Step 6

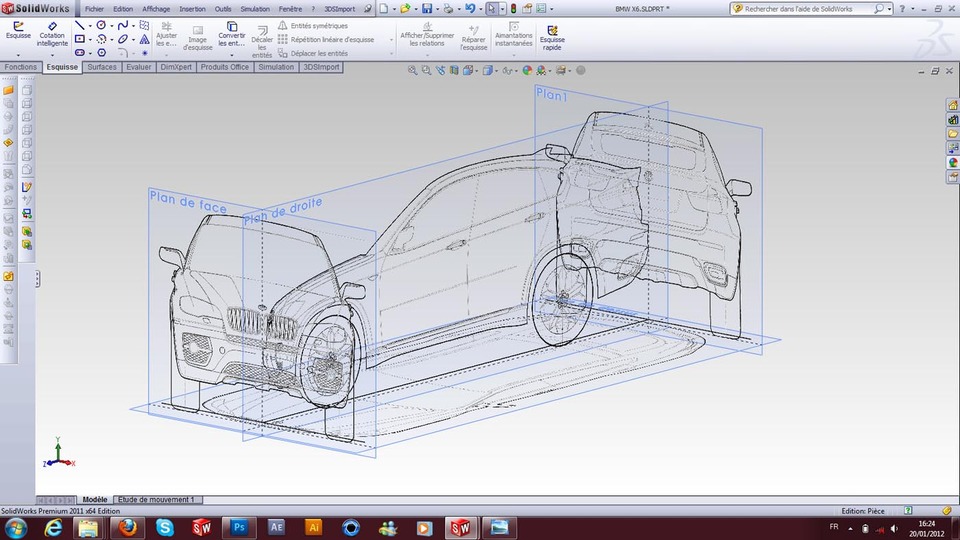

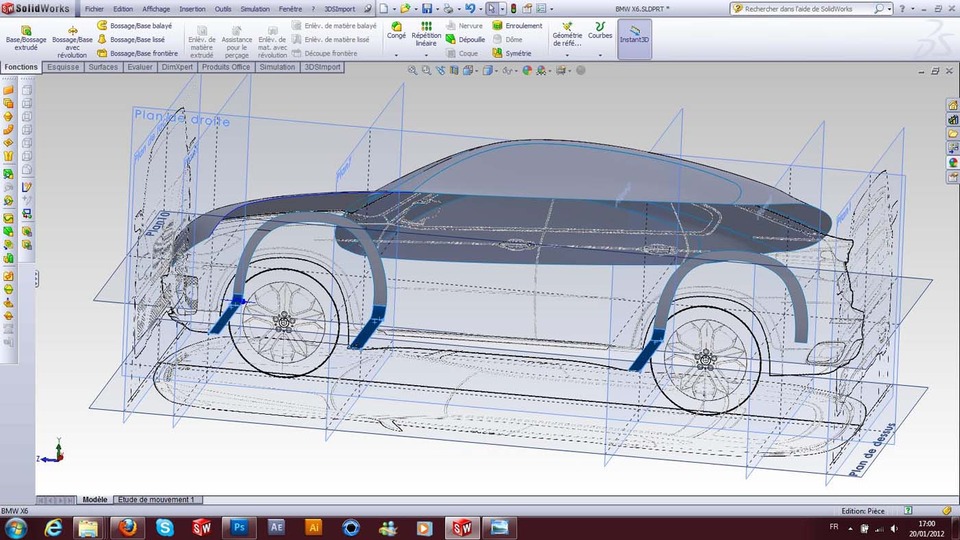

6 - and to plan the back by creating a parallel range plan to plan ahead
-
Step 7

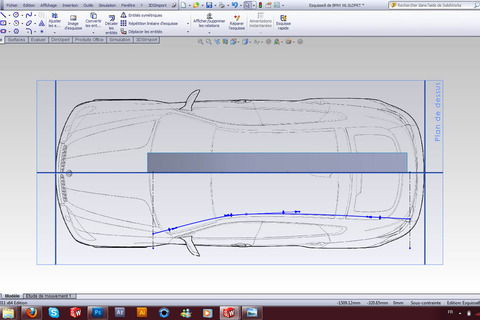

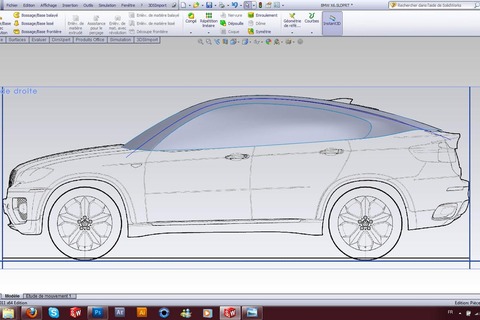

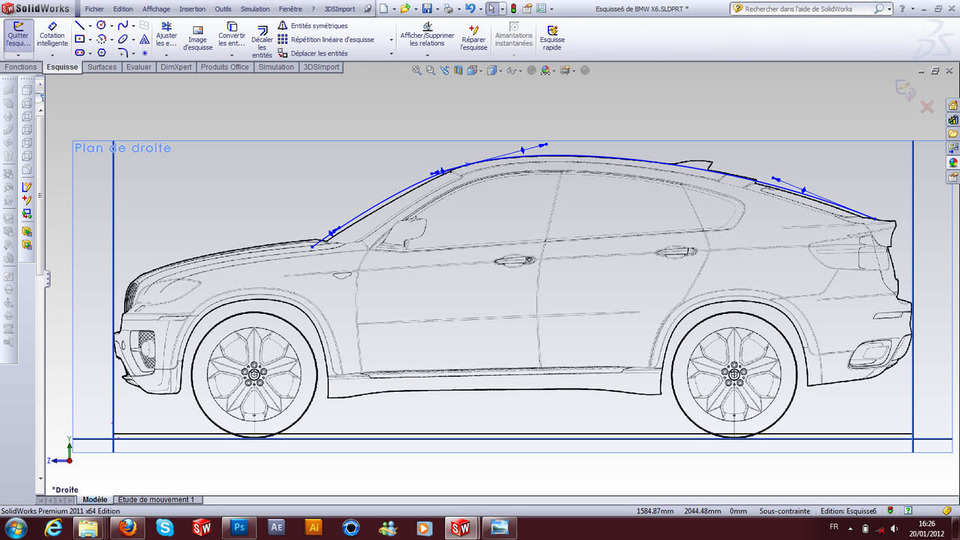

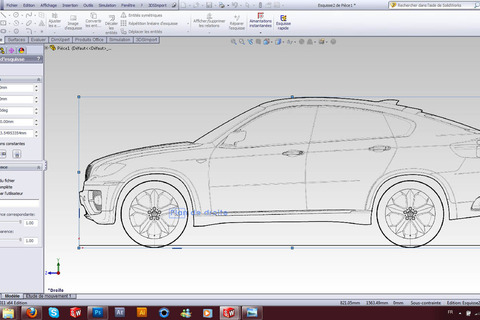

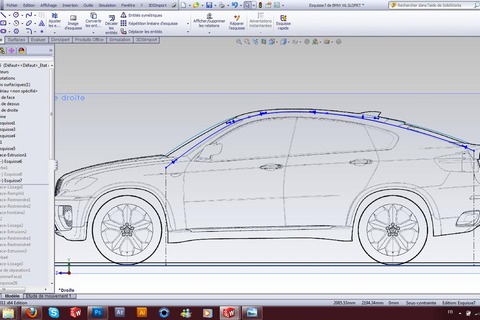

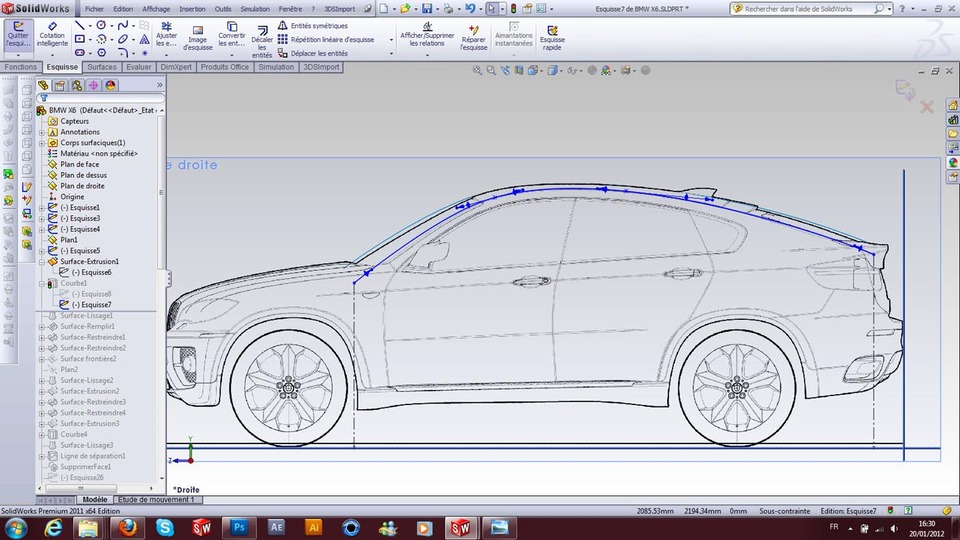

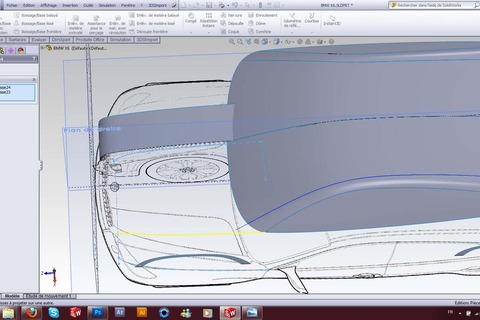

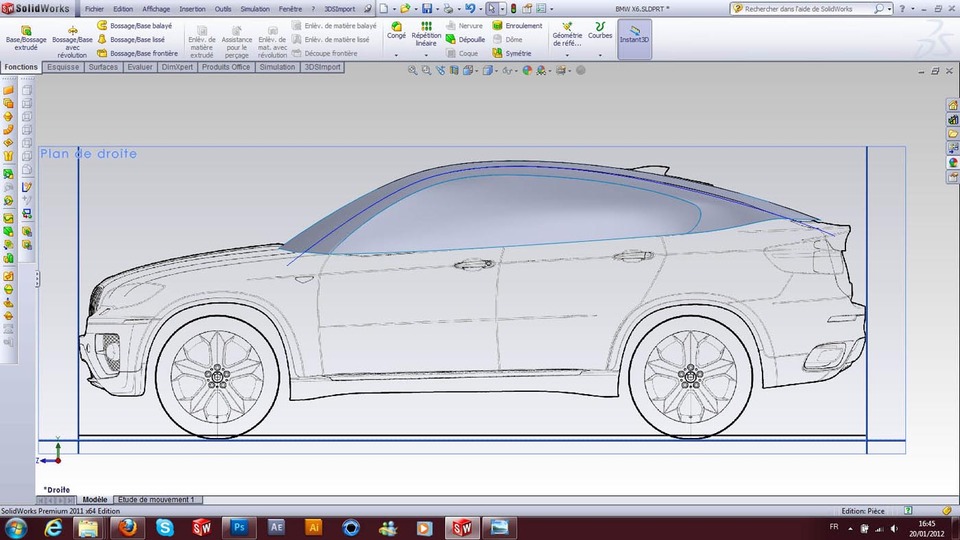

7 - After I draw a spline on the image to the right plan
-
Step 8

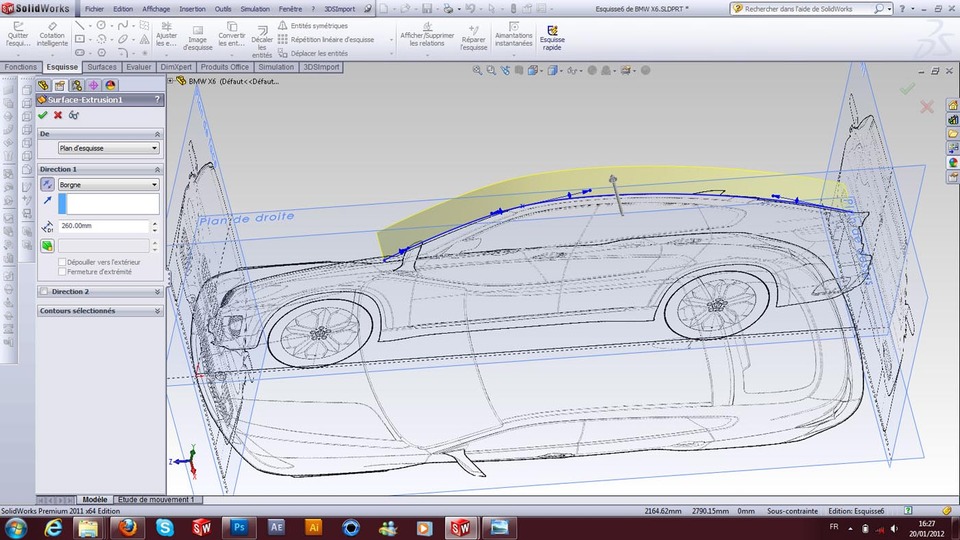

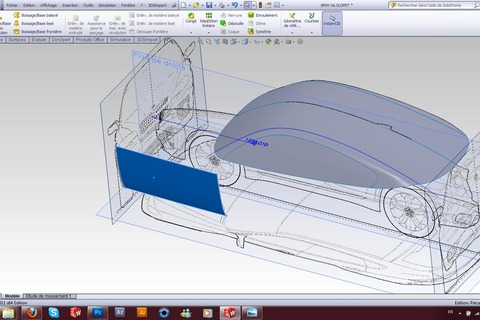

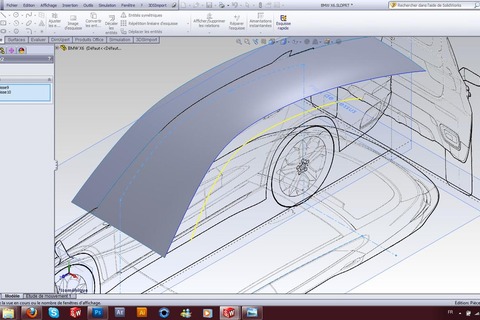

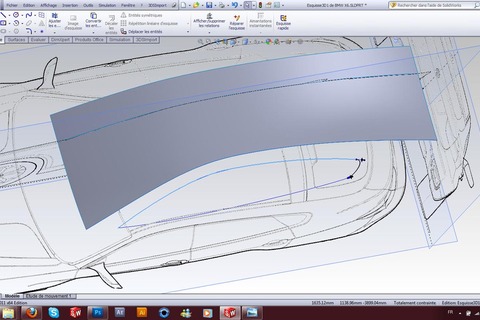

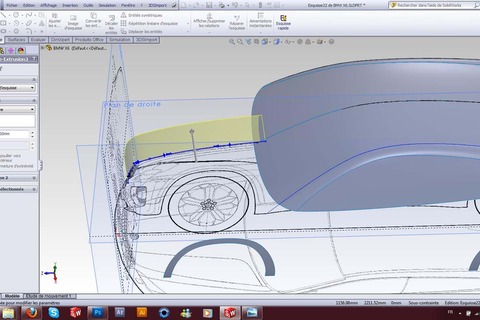

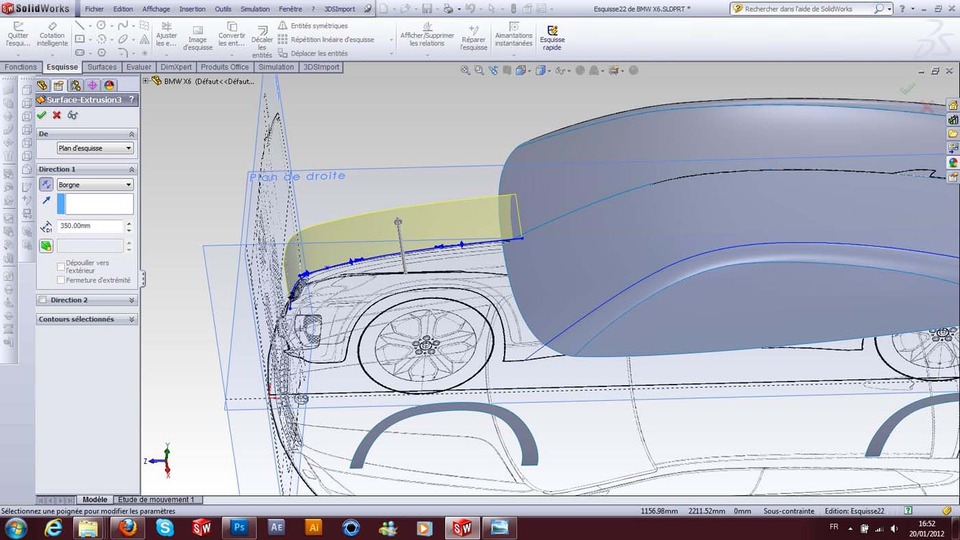

8 - and extruding the spline
-
Step 9

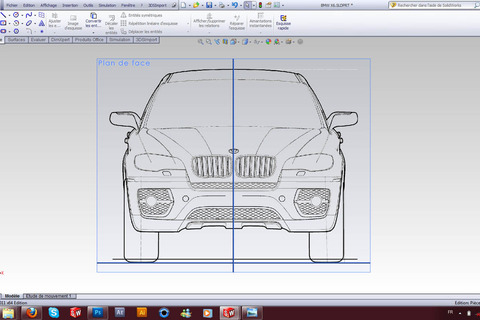

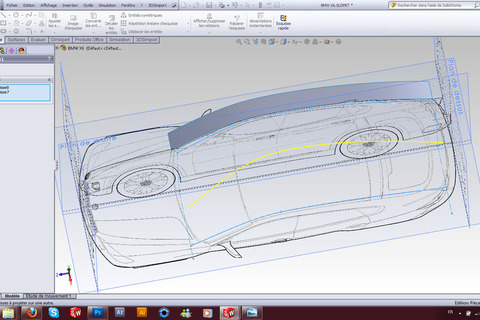

9 - drawing a sketch on the plane below and we put two lines of construction until the mid plane
-
Step 10
10 - and the same operation on the right plan
-
Step 11

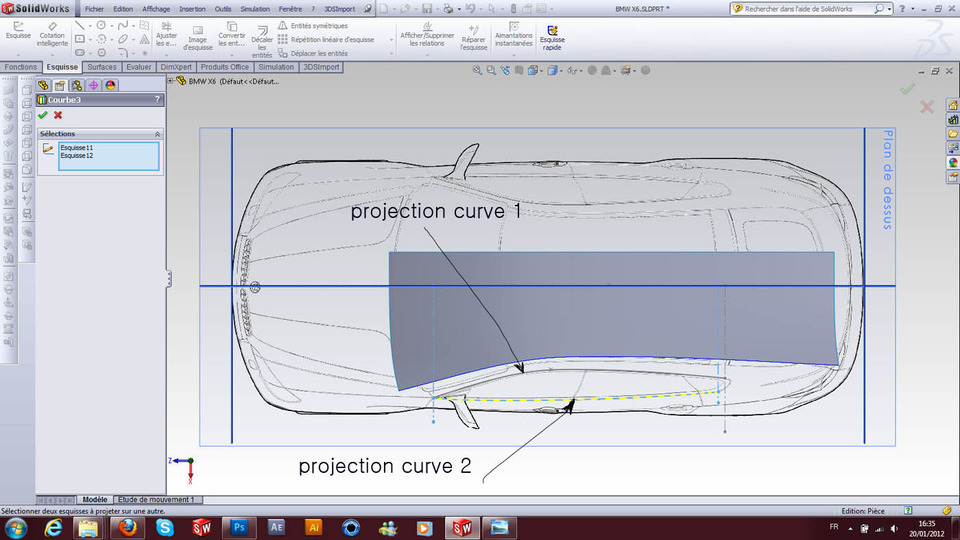

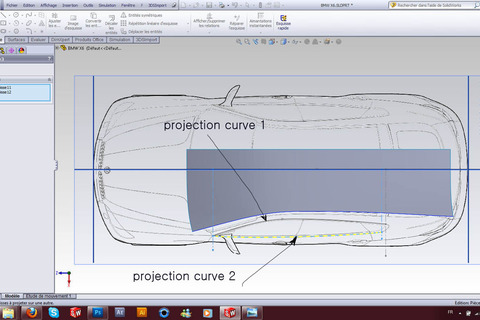

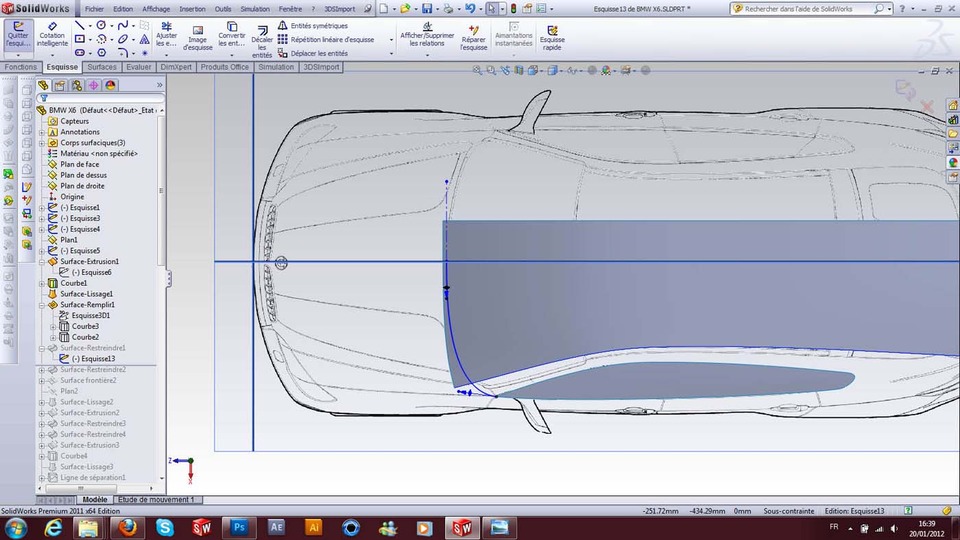

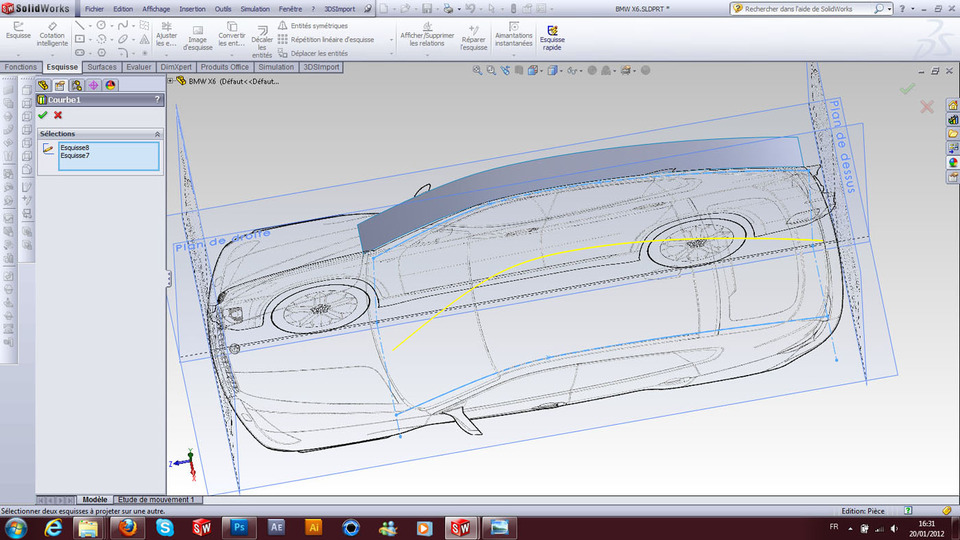

11 - after we make a projection for the two curves
-
Step 12
12 - After you connect the surface created with the projected line
-
Step 13

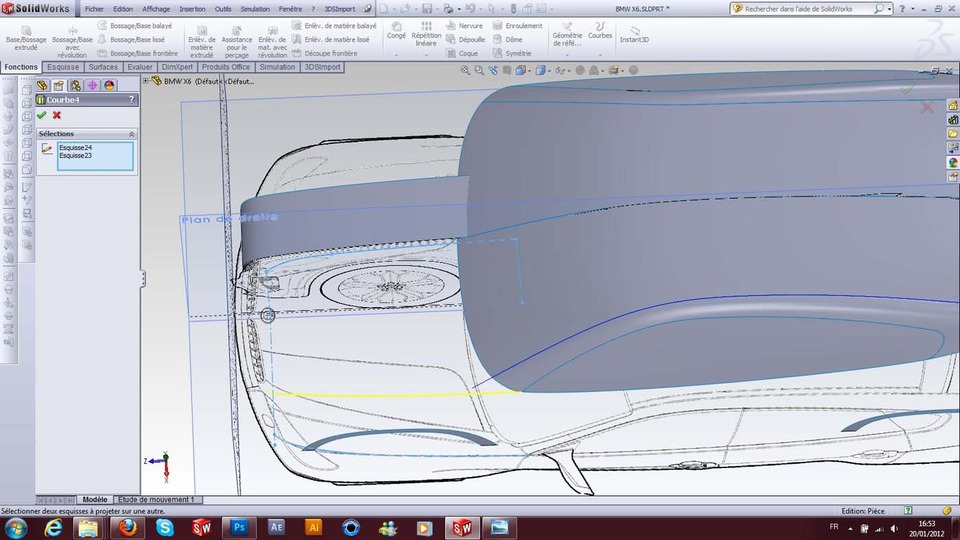

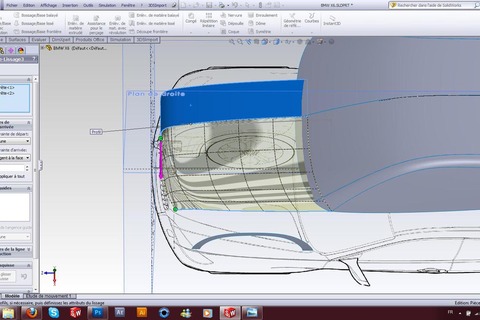

13 - we create another line near the first projection
-
Step 14
14 - Another projection curve
-
Step 15

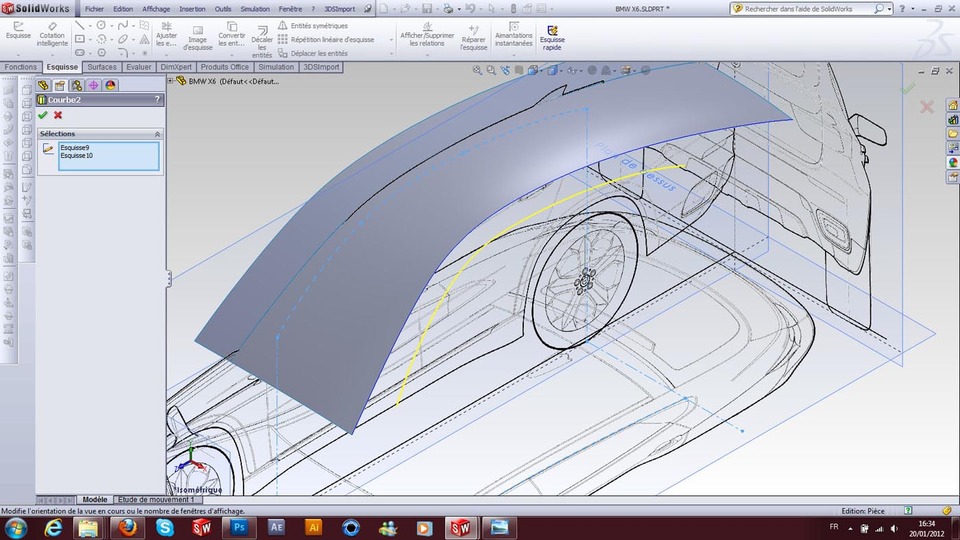

15 - After you connect the two spline curve by a closed 3D sketch
-
Step 16
16 - and we perform the sketch
-
Step 17

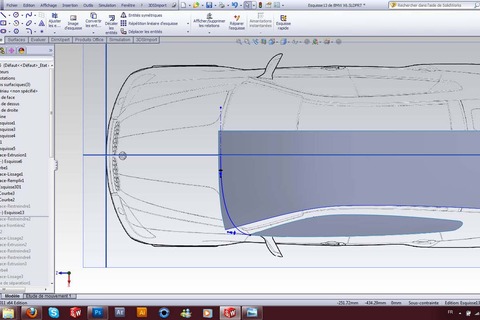

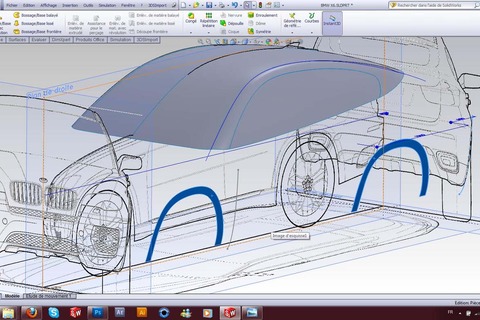

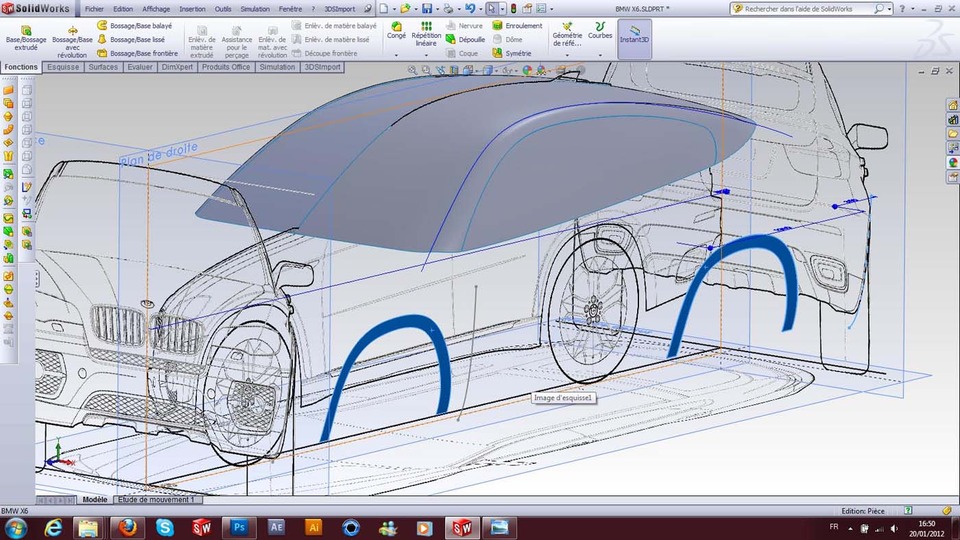

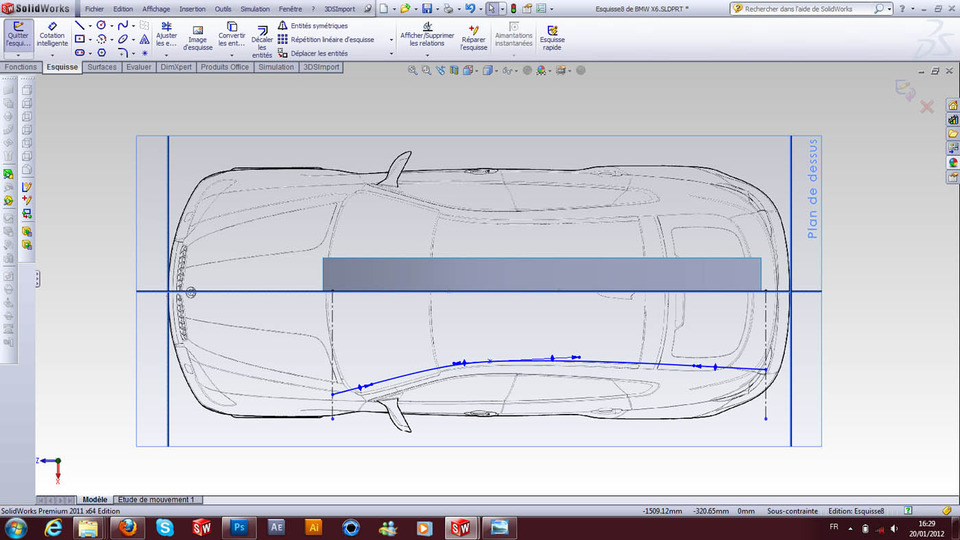

17 - After we create a sketch on the plane as in the picture below
-
Step 18

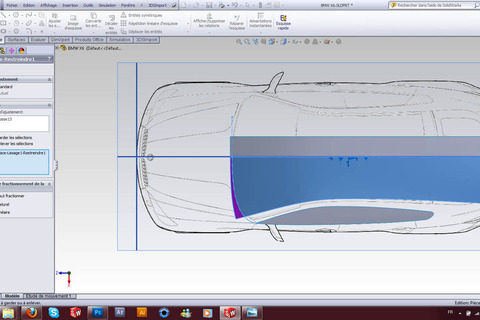

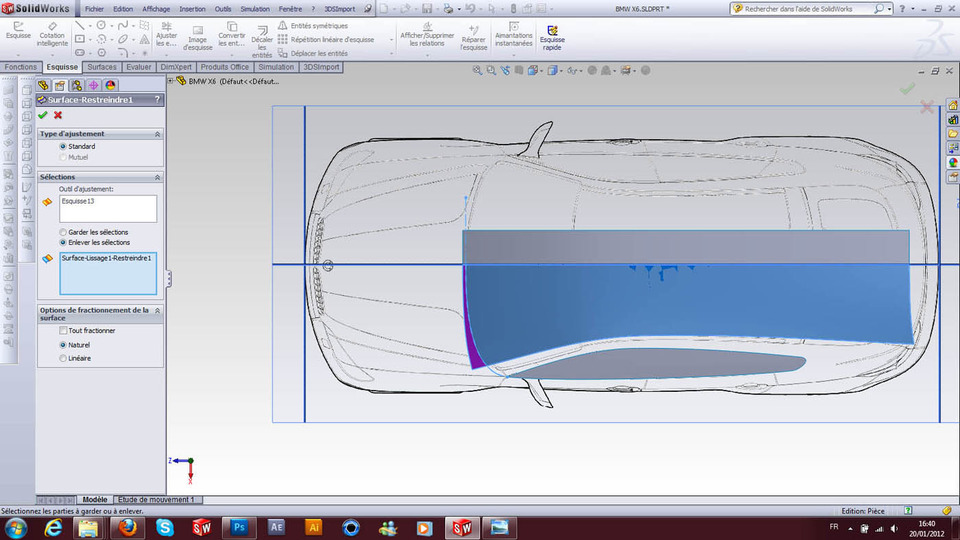

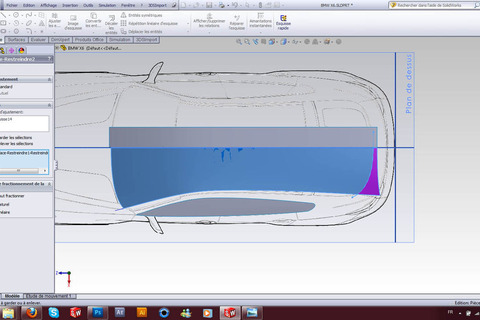

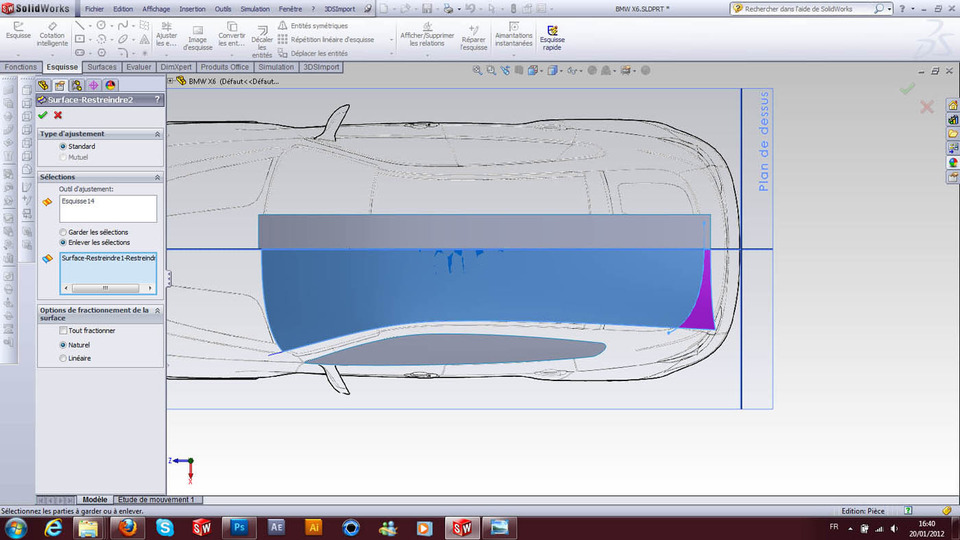

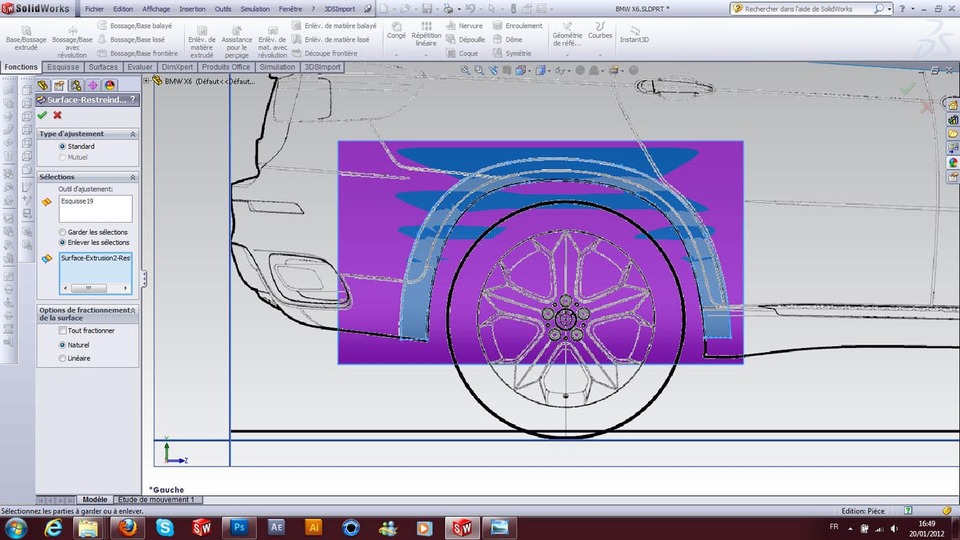

18 - and we restrict the part we do not need
-
Step 19

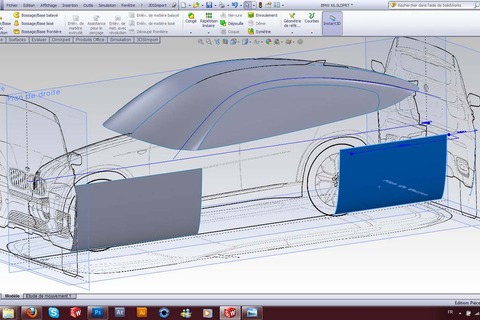

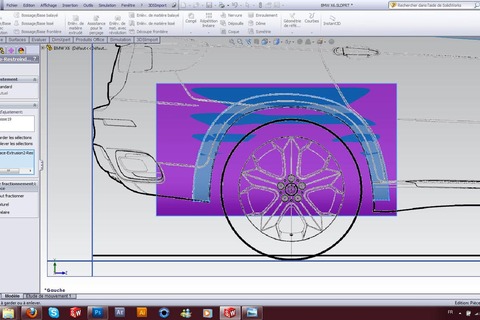

19 - the same goes for the rear side of
-
Step 20

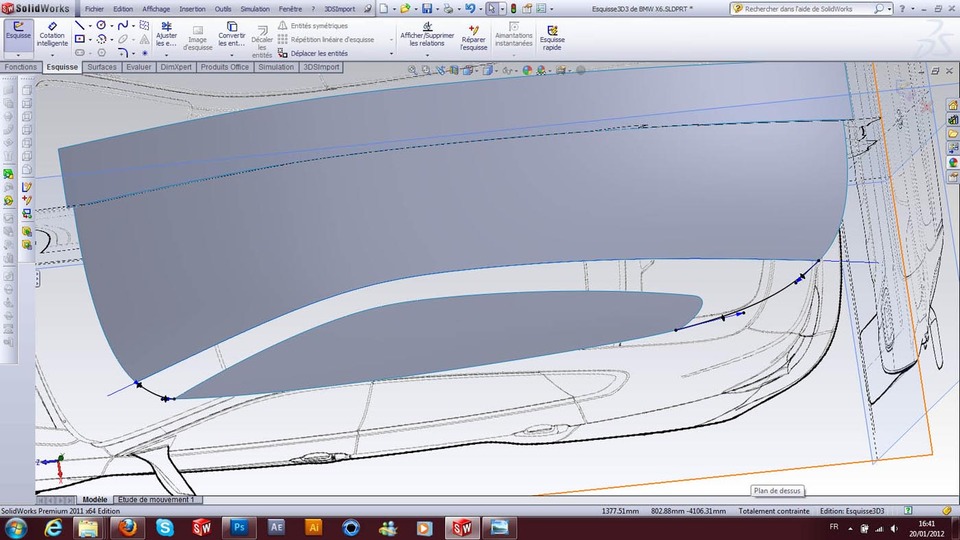

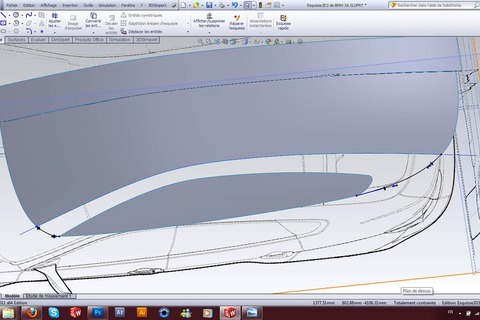

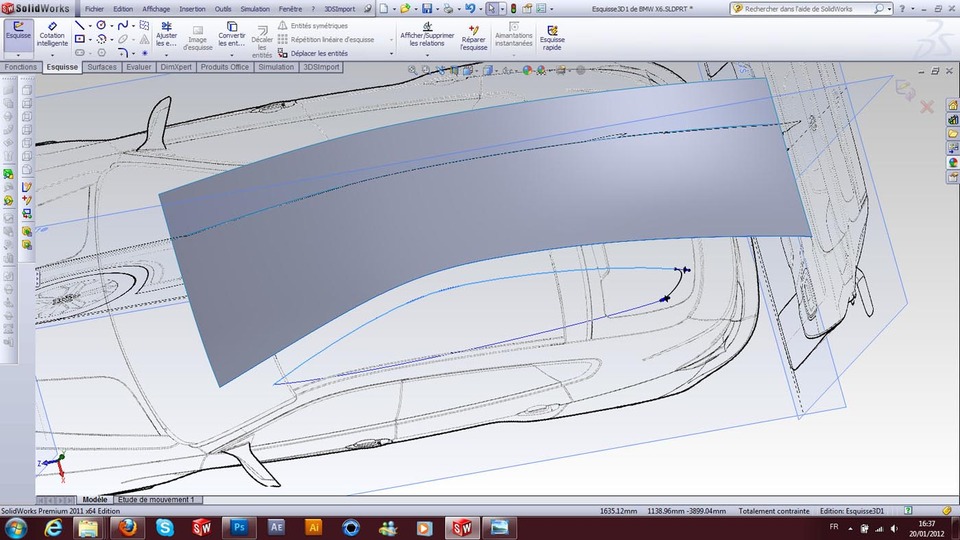

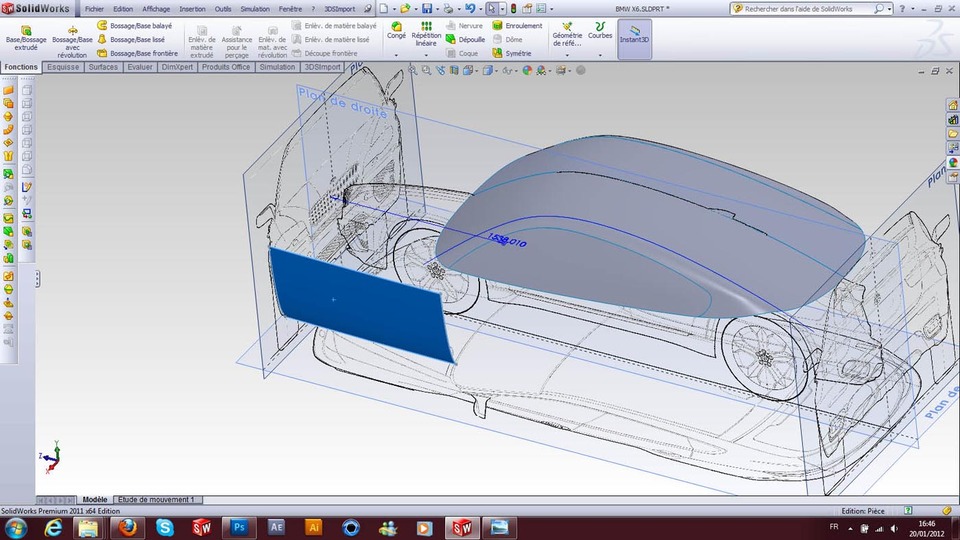

20 - We connect the two surfaces with a 3D spline
-
Step 21

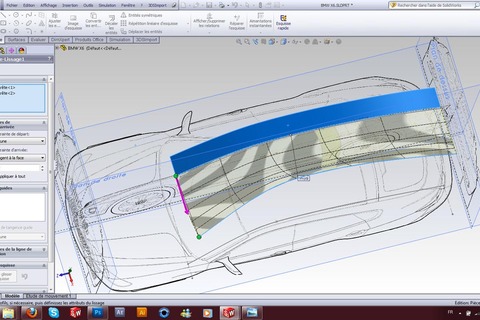

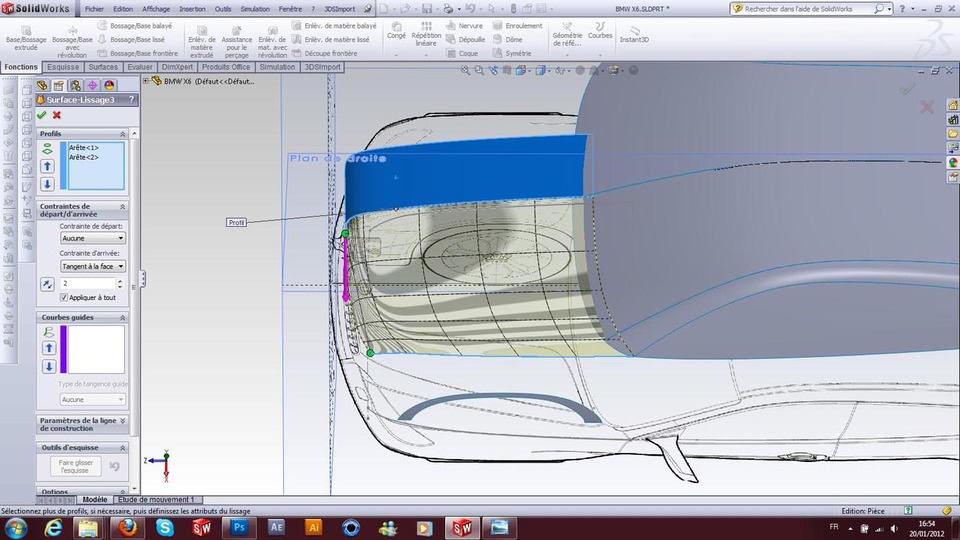

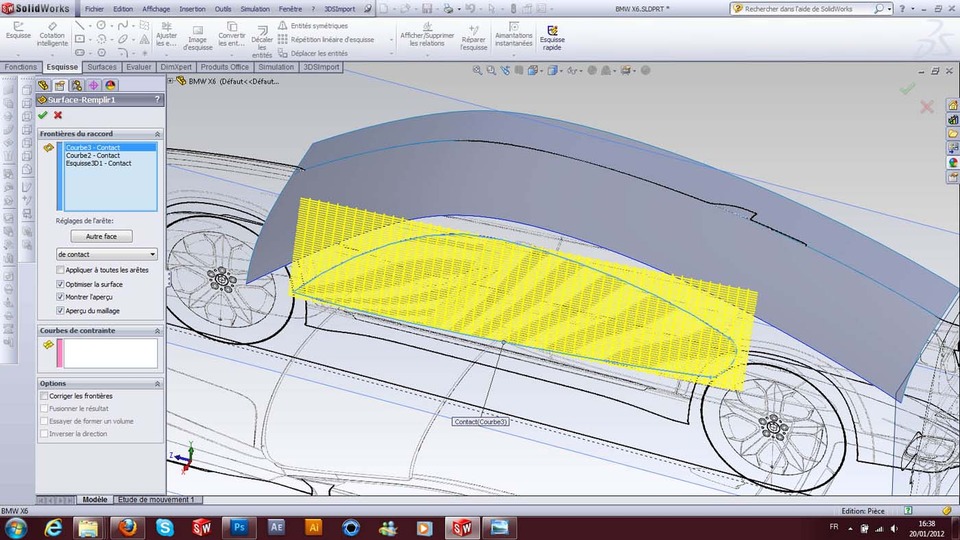

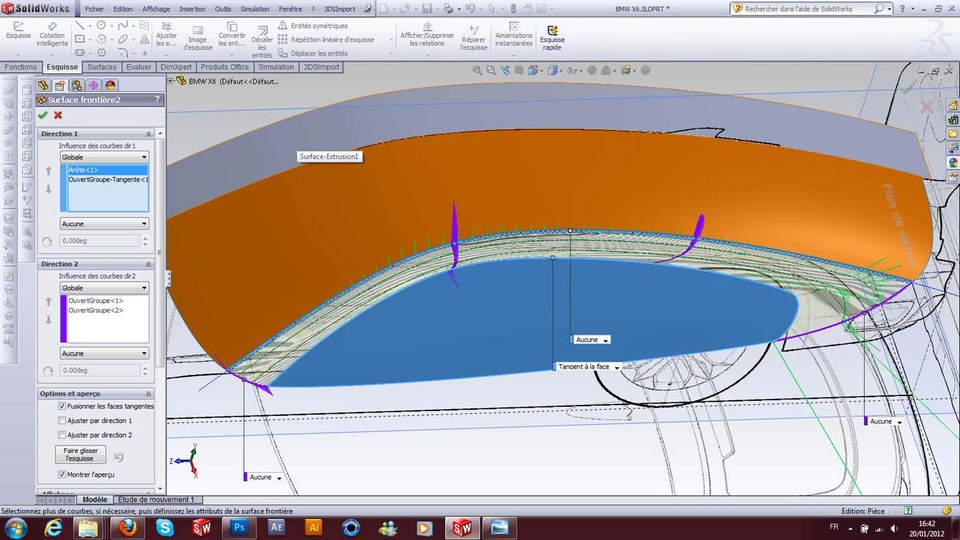

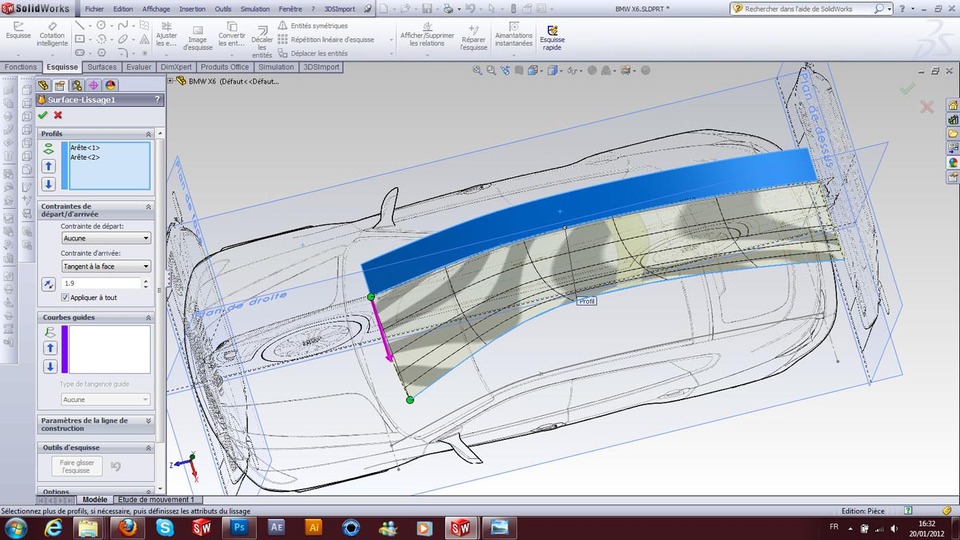

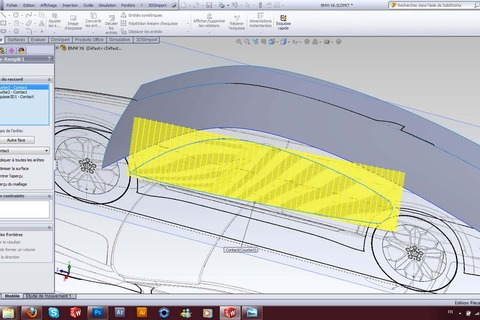

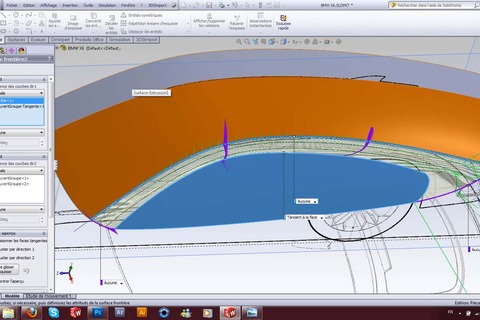

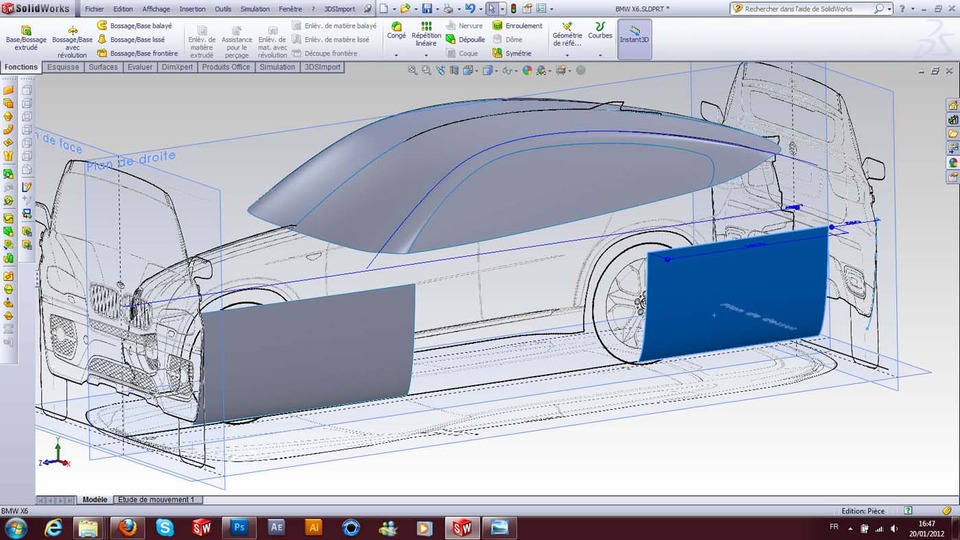

21 - we create a boundary surface as in the picture
-
Step 22
22 - we hide the first area created
-
Step 23

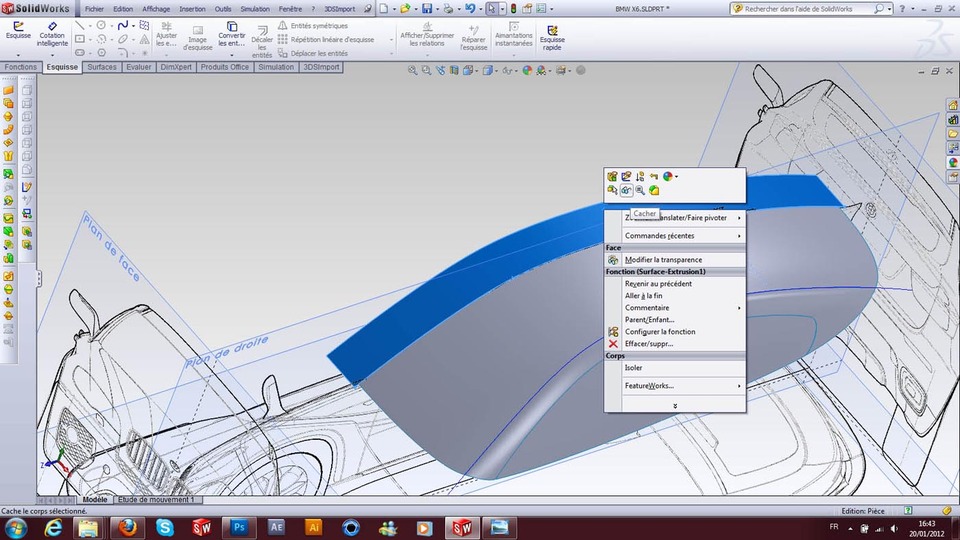

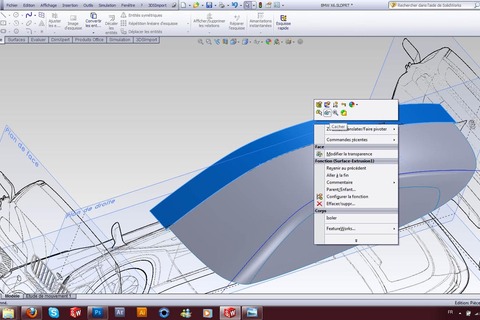

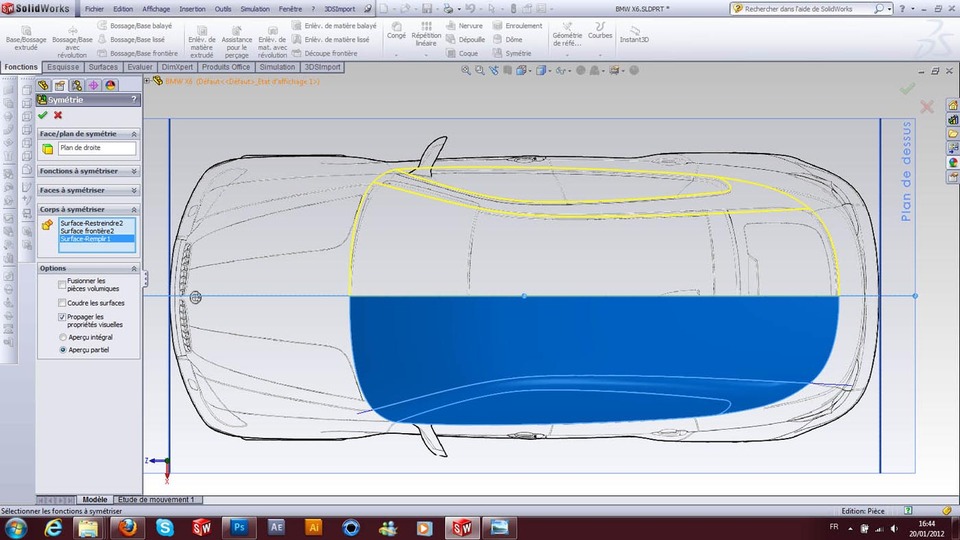

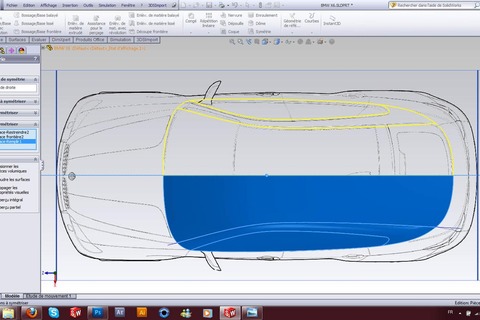

23 - we can create the symmetry
-
Step 24
24 - and we note that the surfaces created are well established in terms
-
Step 25
25
-
Step 26
26
-
Step 27
27
-
Step 28
28
-
Step 29
29 -
-
Step 30
30 -
-
Step 31

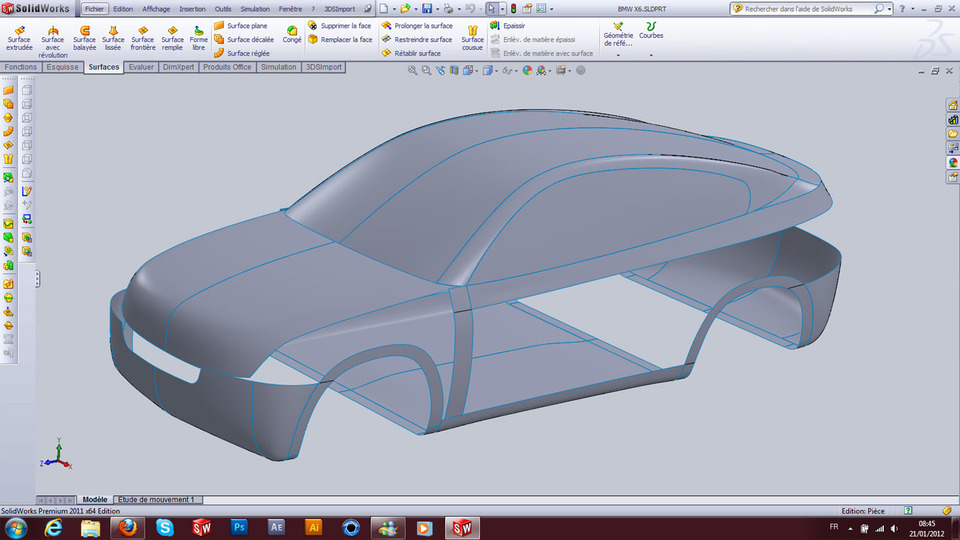

31 - We connect the surface created with the projected curve
-
Step 32
32 -
-
Step 33
33 - you will find the model with other steps in How to create some surfaces of a car BMW X6 ?
-
-
-
