  Bricscad Platinum has X-Hardware library included. You can find shapes, bolts, nuts, washers and other parts inside.

  1. Step 1

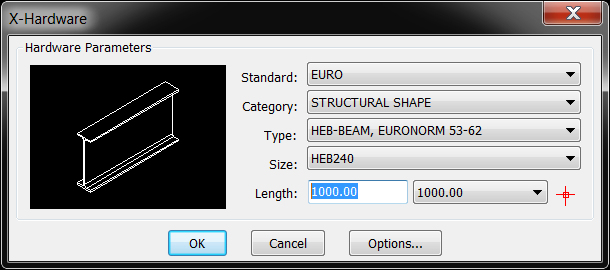

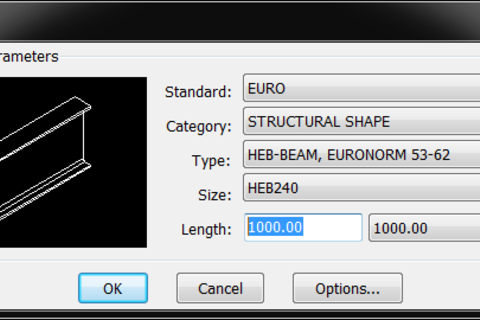

     To draw structural shape, just call XHARDWARE command, choose any kind of object, standard, size and length. After picking of insertion point on screen requested shape will be created.



  2. Step 2

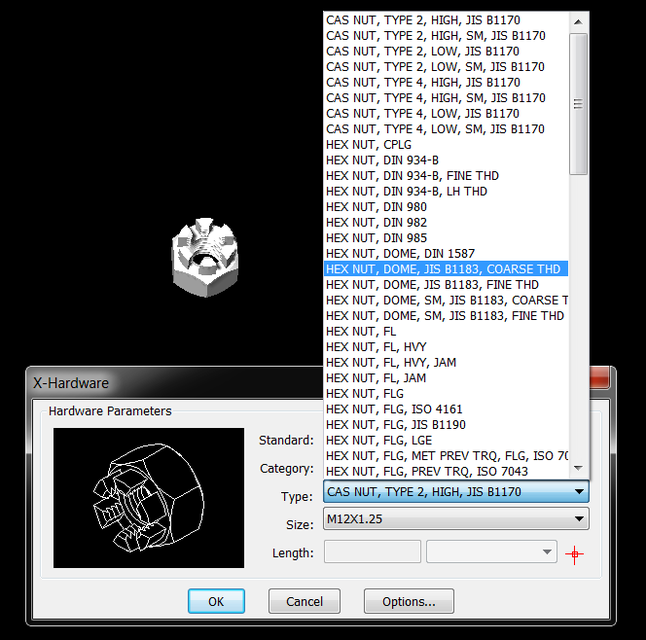

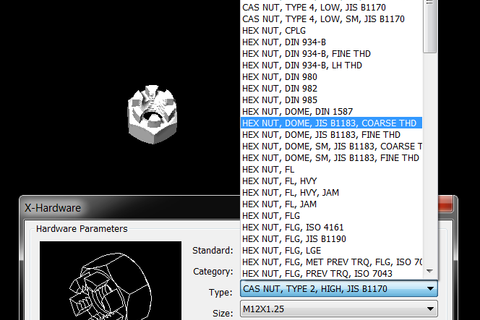

     You can edit inserted X-Solid object at any time by calling XSOLIDEDIT command. All parameters are available to edit, even upgrade of wide flange to any other kind of other object from X-Hardware library even bolt or nut.



  3. Step 3

     Look at sample file I created with X-Hardware in minutes when tested X-Solids.

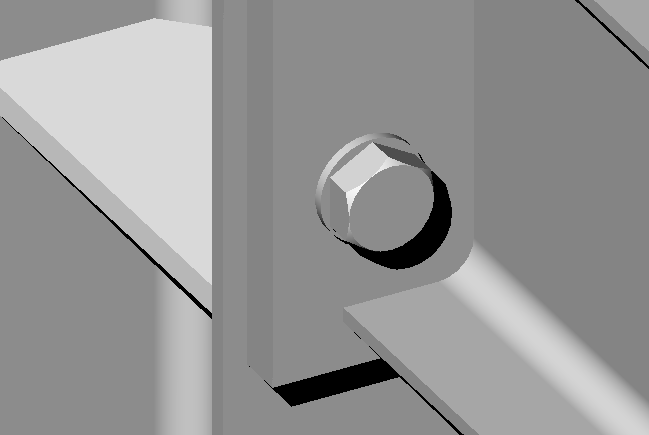

     Structural steel joint
