4 answers

•
  w.wolf over 1 year ago

  Here you go ...

  1. Step 1

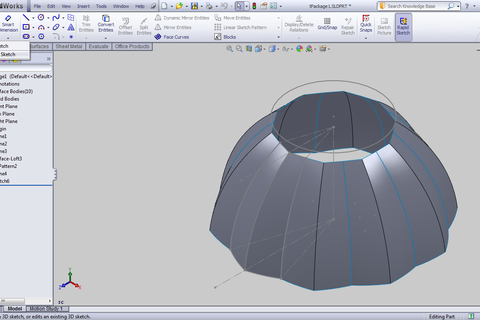

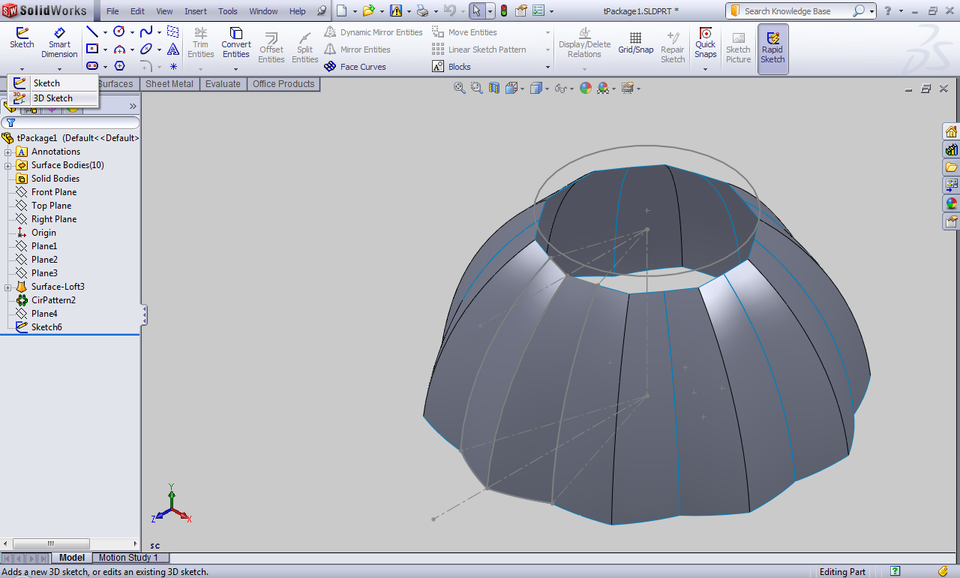

     Open the file, make a new 3D sketch, 2D sketch works too in this case ...



  2. Step 2

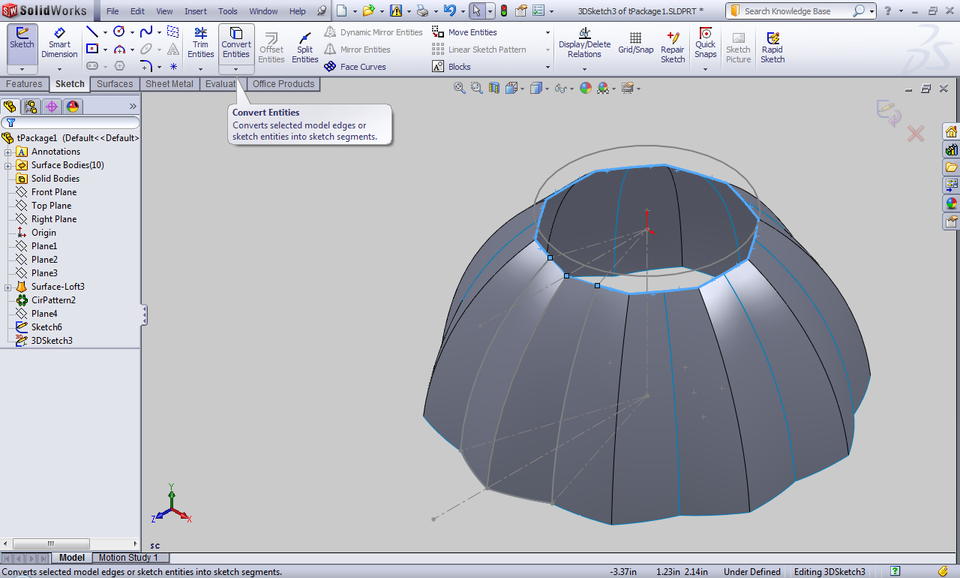

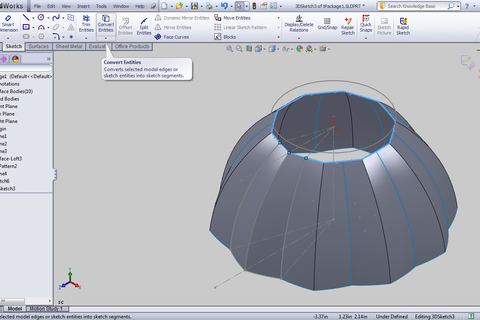

     Select the edges you want to loft then click on Convert Entities ...

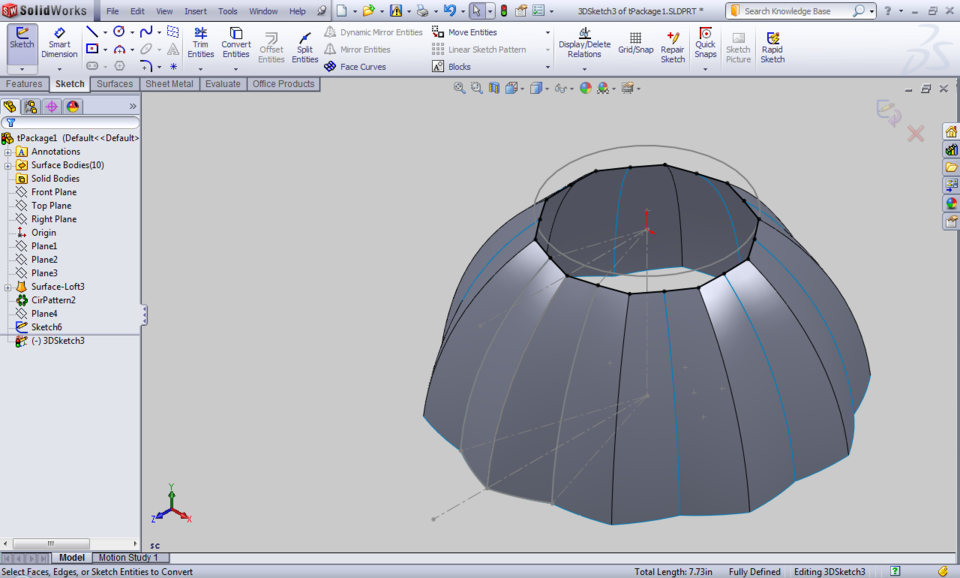

  3. Step 3

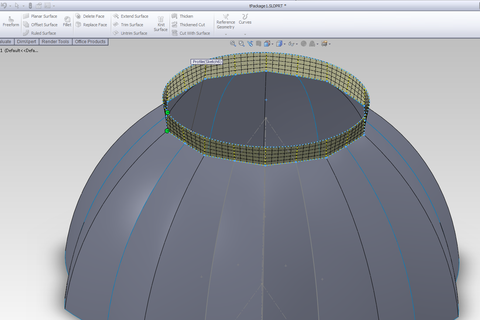

     Your model should look like this; now close the sketch ...



  4. Step 4

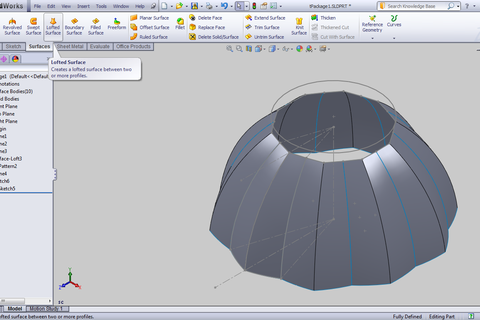

     Click on Lofted Surface ...



  5. Step 5

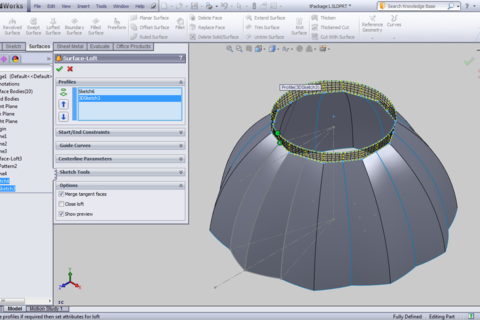

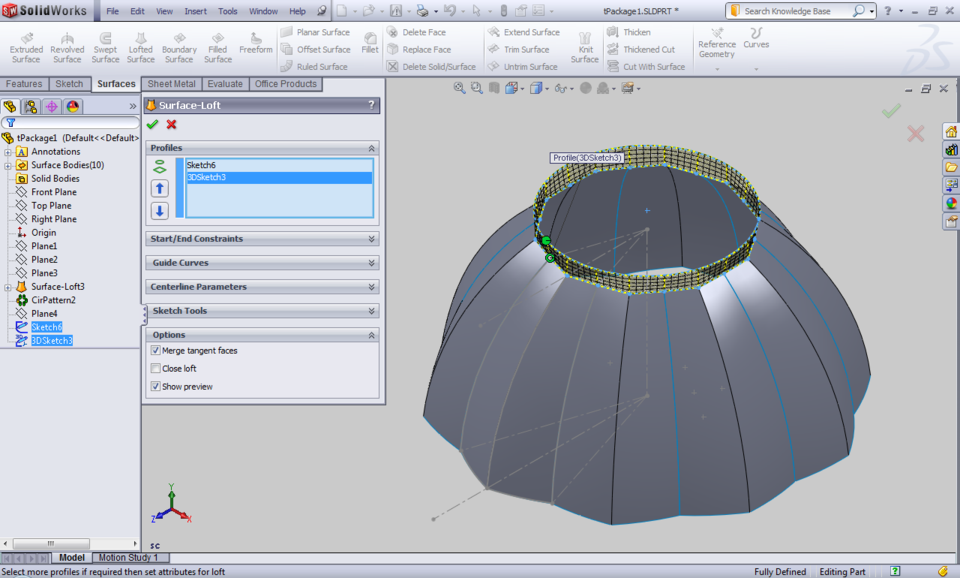

     Select the two sketches either from the model window or feature tree and click the green arrow ...



  6. Step 6

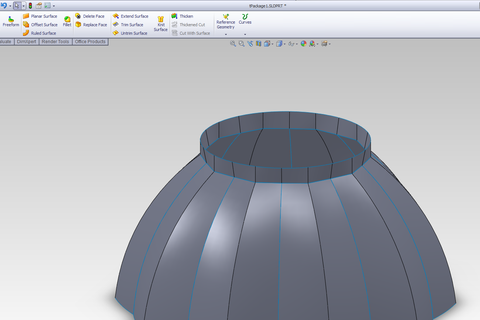

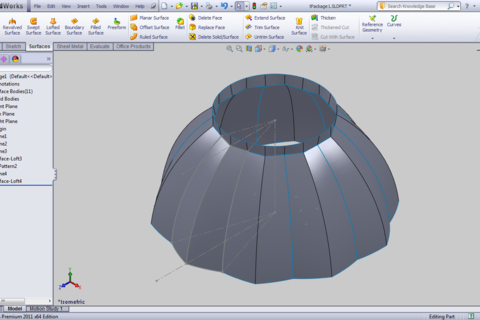

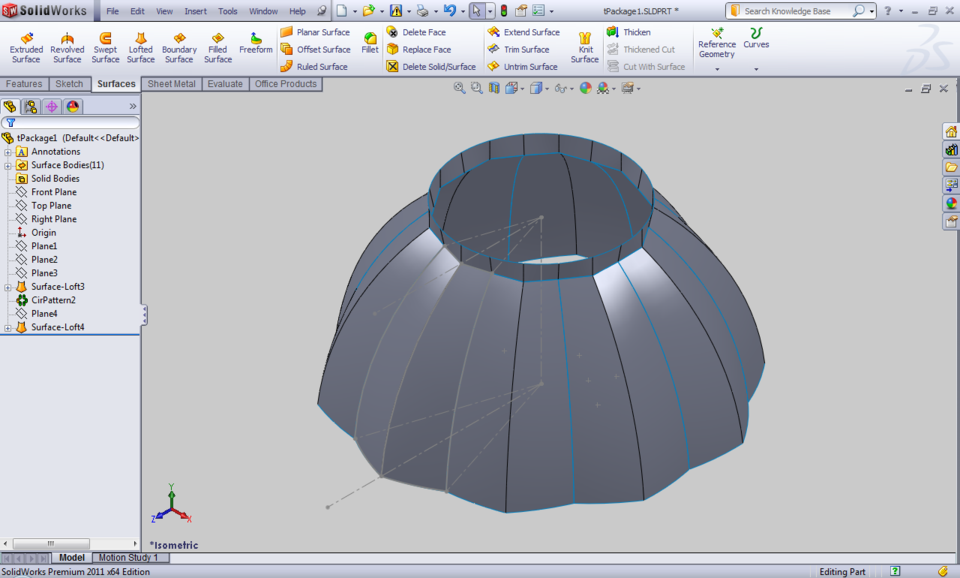

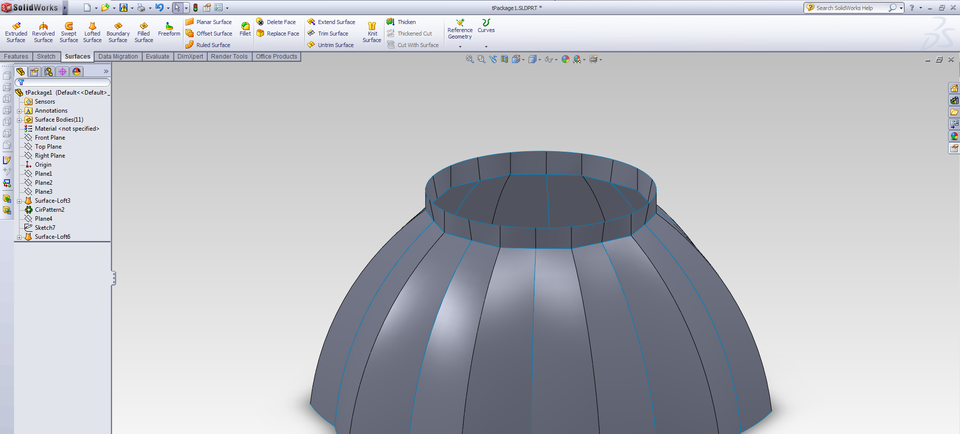

     And you model is finished, it should look similar to this ...



  1.
     Cemal Uslu over 1 year ago

     LoL we think in the same way. As you said and i did, 2d sketch works on this model.

  2.
     Cemal Uslu over 1 year ago

     What is that "convert entities" for?

  3.
     w.wolf over 1 year ago

     It makes the sketch for you from existing edges, here it makes lines from the edges you selected rather than redrawing them ... it's very useful when you want complex edges redrawn ...

•
  w.wolf over 1 year ago

  Wow, I don't believe I missed it ... You don't need sketches for lofting edges, open your file ... click on Lofted Surface, right click the Profiles box and choose SelectionManager ... choose all the edges then the green arrow, click on the circle sketch and you're done ...

  1.
     Cemal Uslu over 1 year ago

     This one is better!

•
  Cemal Uslu over 1 year ago

  There is no direct way to do it i see. Just redraw the shape of the top again and Loft the surfaces.

  Attachments

  lofted surfacetPackage1.SLDPRT, 428 KB
  Download

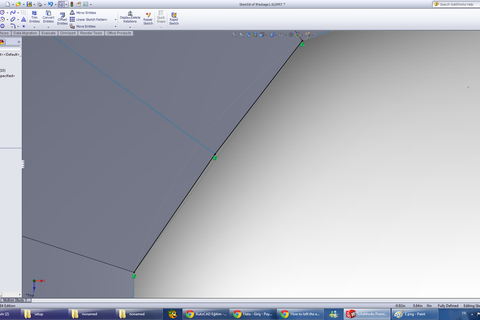

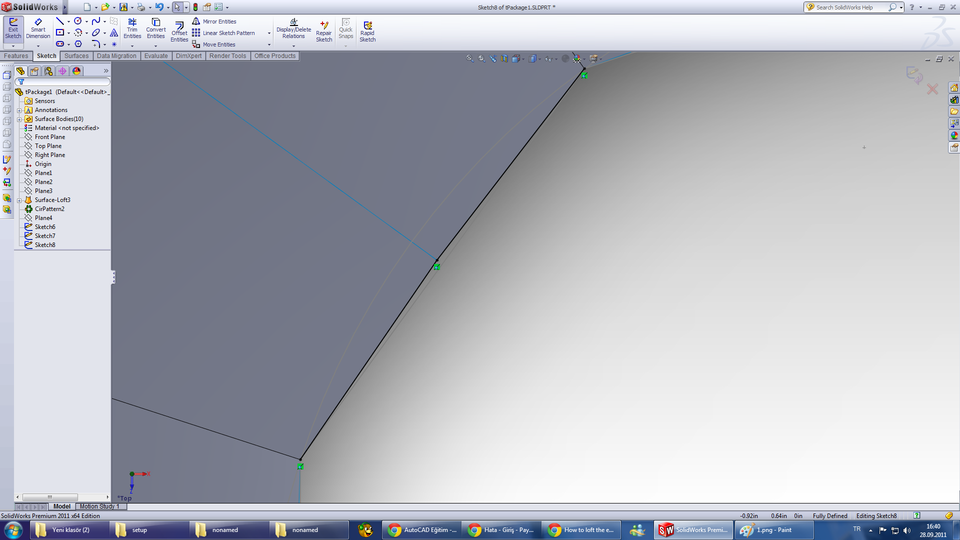

  1. Step 1

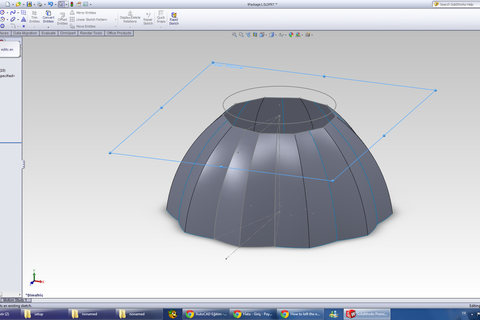

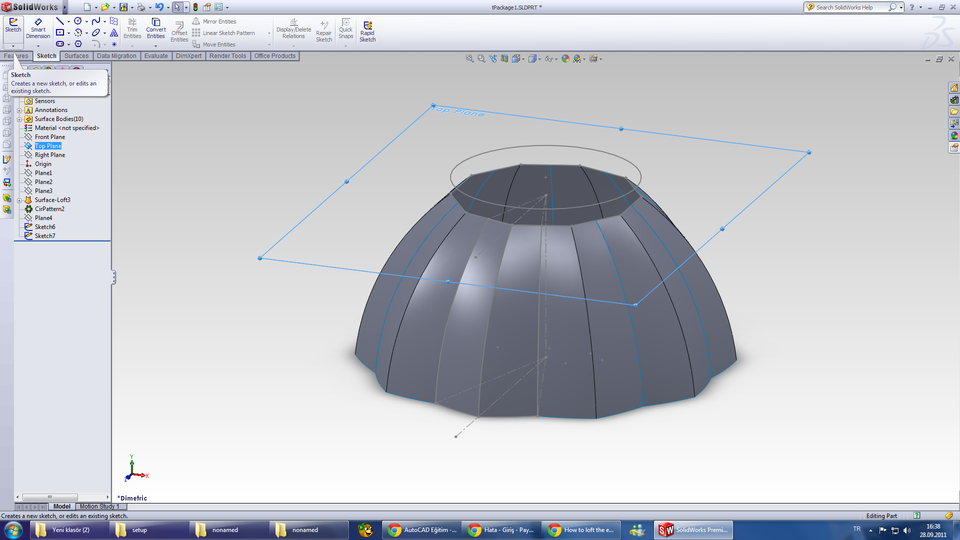

     Select Top Plane Which is the top of the shape too. Open a scetch.



  2. Step 2

     Draw a sketch just like the shape of the top. Be sure there are 20 edges not 10.



  3. Step 3

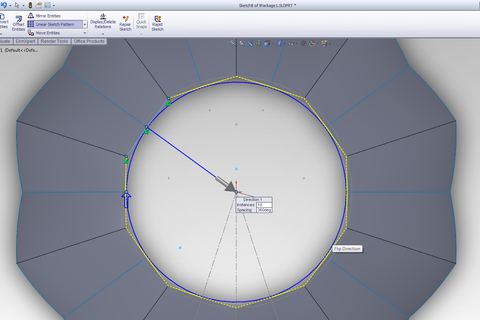

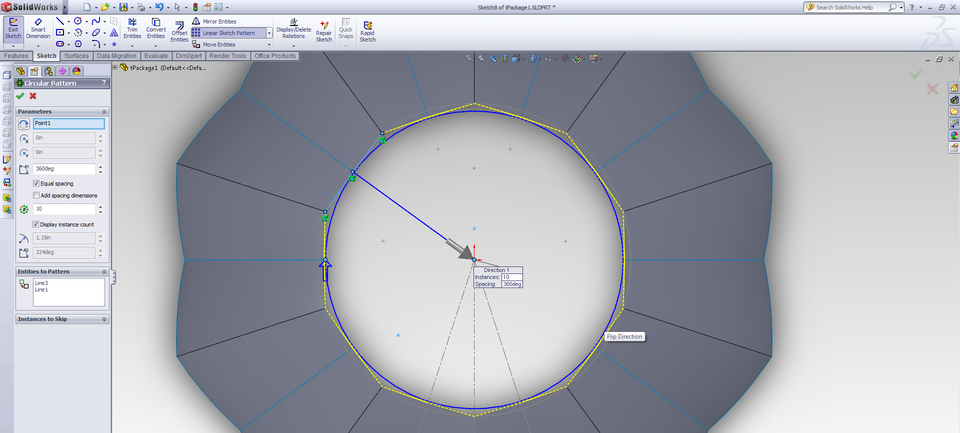

     You can draw 2 of them and circle pattern them 10 times.



  4. Step 4

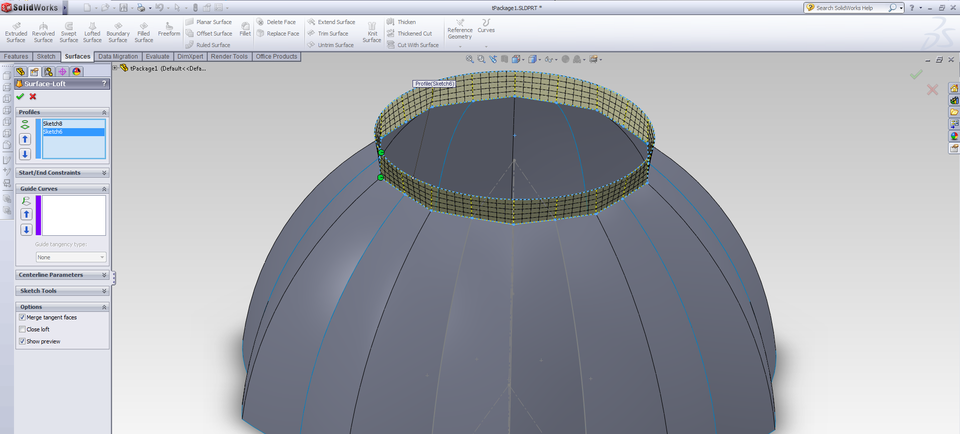

     Select Lofted Surface and fill in other options.



  5. Step 5

     Everything looks just fine.



  1.
     w.wolf over 1 year ago

     You're welcome ...

  2.
     Cemal Uslu over 1 year ago

     There is a few more way to do that. If he is not happy with this one. We have to go back a little bit on his design ;)

  3.
     w.wolf over 1 year ago

     Sorry Cemal, I didn't see that you already answered this when I posted ...

  4.
     Hardi Meybaum over 1 year ago

     wow guys, that was quick. Thanks a lot.

•
  Rye Crowen over 1 year ago

  Yes, thanks everyone for answering this. I'll post the model and render of it soon. Cheers.

  1.
     Hardi Meybaum over 1 year ago

     Love to see your project information and actual file.

  2.
     Hardi Meybaum over 1 year ago

     Just saw it here tPackage

     Looks interesting
