How to make a connection with two worm gears on Catia v5

Taoufik
Taoufik
21 Jun, 2012 07:43 PM

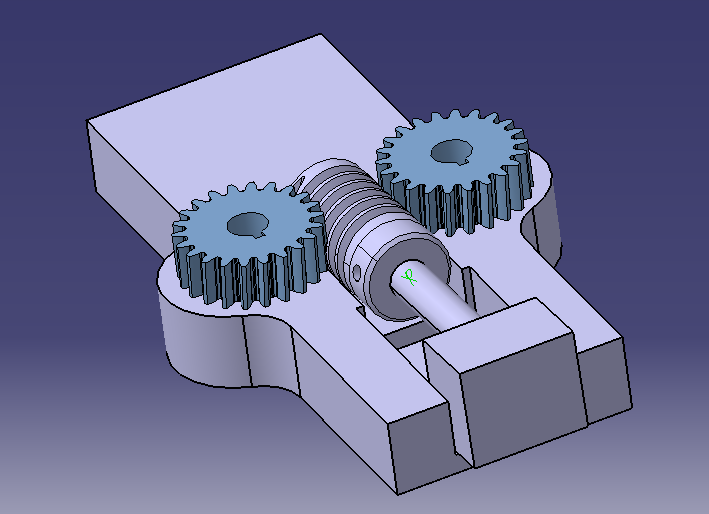

I want to simulate this mechanism ensures that the two gears rotate depending on the worm

Capture11.PNG Capture11.PNG

1 Answer

G15
G15
Answered on 21 Jun, 2012 08:41 PM

First Set a gear junktion between the worm and the First gear (ratio 1:30 number of the teeth) then a gear junction between the both gears (Ratio 1:1) Look for the Rotation diection.

Best regards

PS I hate the autocorrect of my iPad
