  Follow the steps below...

  1. Step 1

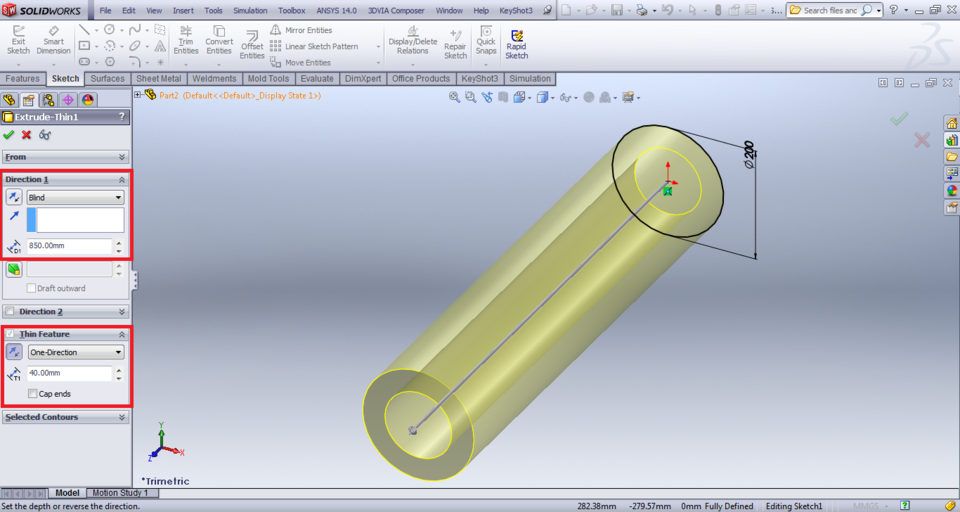

     Using front plane to sketch a circle, 200mm in Dia. and extrude it according the setting as shown...



  2. Step 2

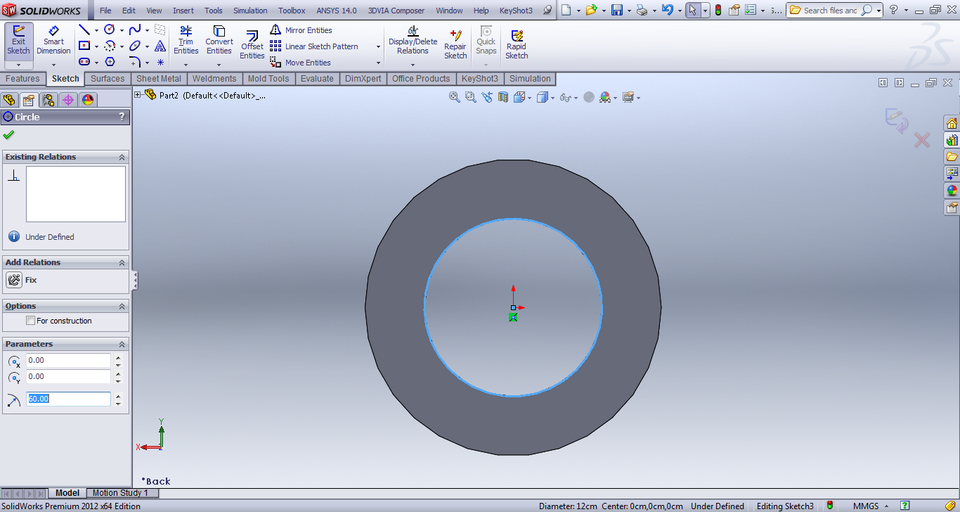

     Sketch a circle on the front plane that snap with the inner circle of the tube (same Dia. with inner circle).....and exit sketch~



  3. Step 3

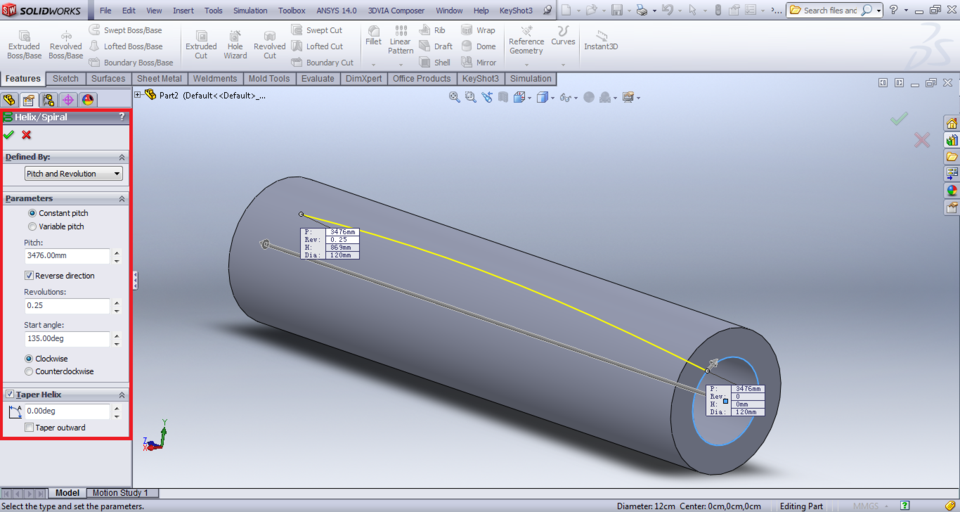

     Click on the "Helix and Spiral" under the Curves command, and select the circle that you had sketched just now.....Next, follow the setting bellow, and OK with it~



  4. Step 4

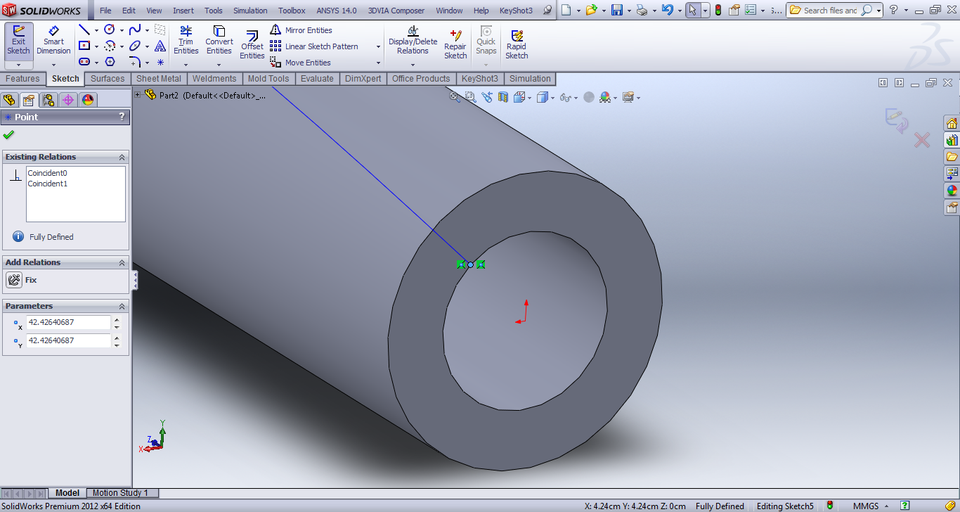

     Sketch a point on front plane as a reference...and follow the next step~



  5. Step 5

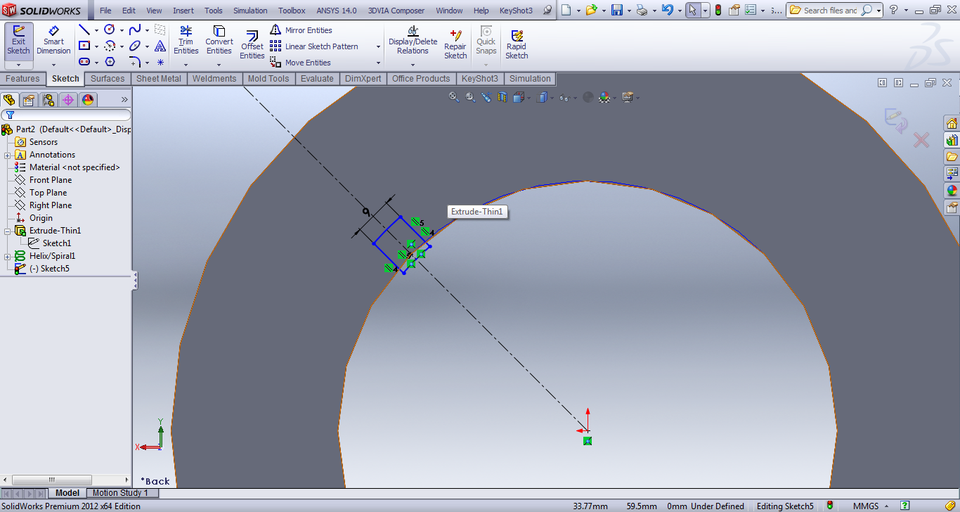

     ...sketch as the pic. shown



  6. Step 6

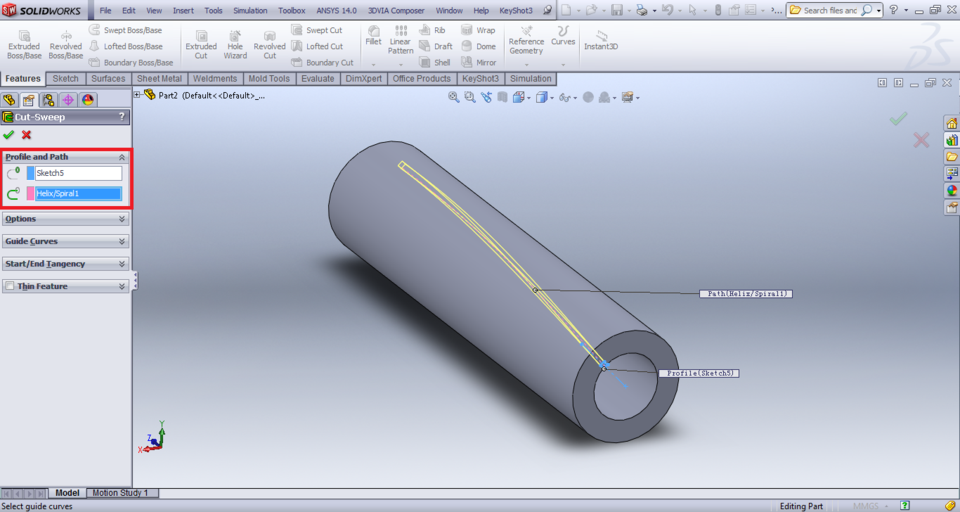

     Click on Swept-cut, and follow the setting bellow...



  7. Step 7

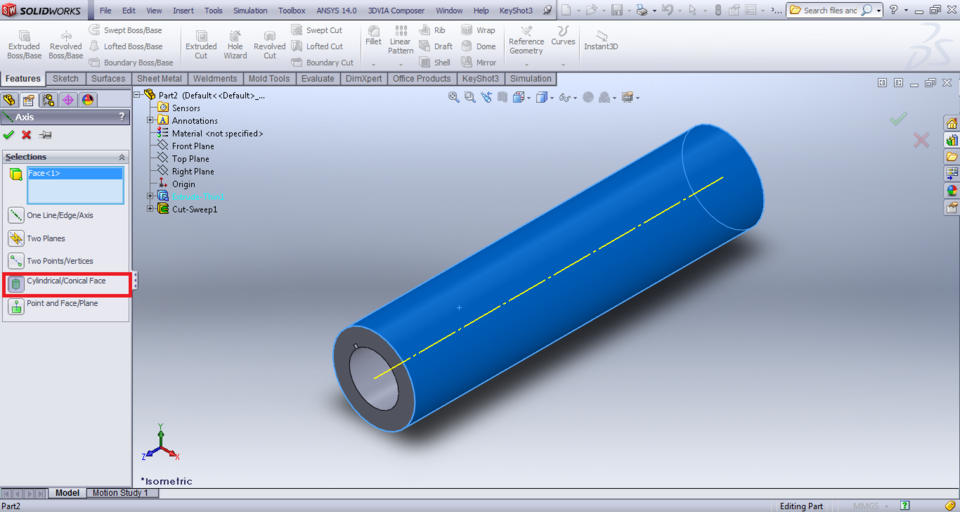

     Next click on the "Axis" under Reference Geo. command....and follow the setting as shown...



  8. Step 8

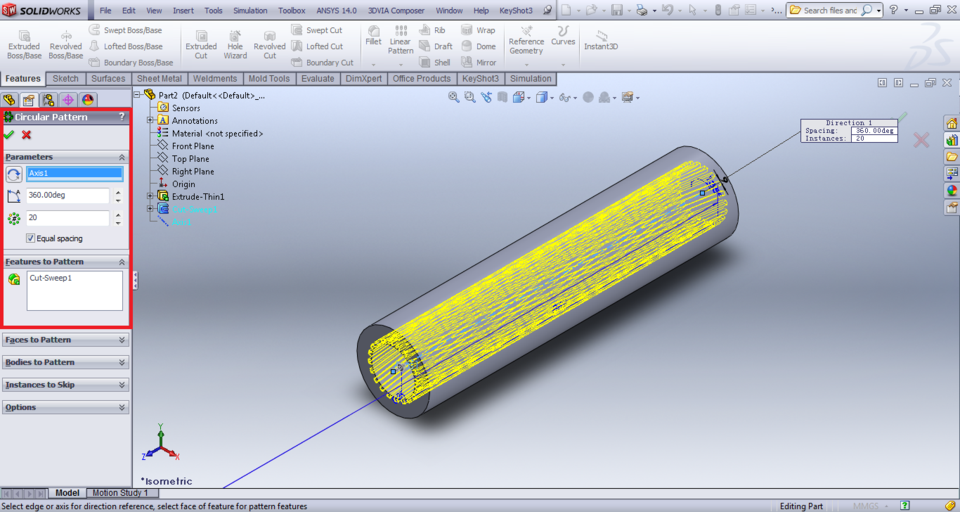

     Click on Circular Pattern and follow the setting....



  9. Step 9

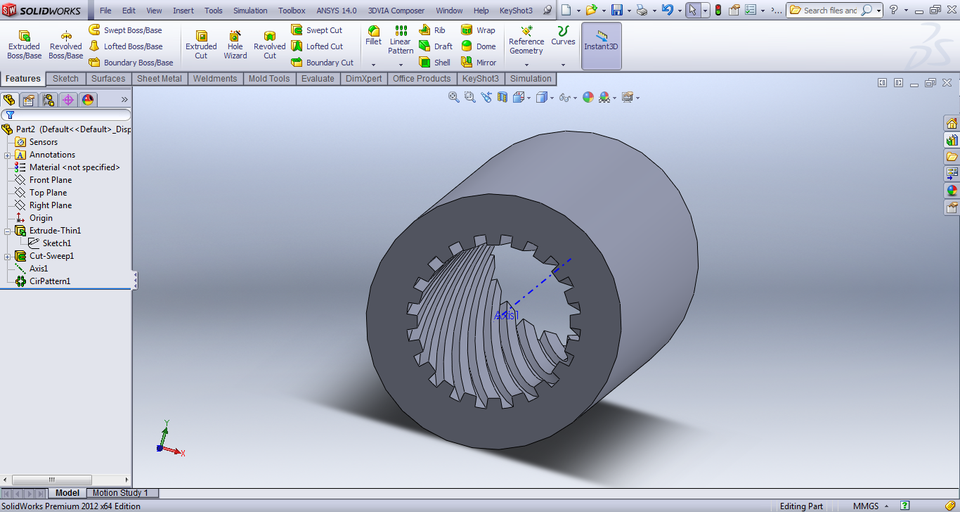

     Finally....Walla!
