How to make single parts from sections?

By joris on 18 Mar 20:07 3 answers 647 views 2 comments

Hello,

I'm using the student version from Solidworks.

I'm modeling a boat hull for my hobby. It will be a radio controlled boat.
First i've made a suface model and then I used 'replace face' to make a solid body.
Then I found a tutorial here to make sections for the beams and that worked.

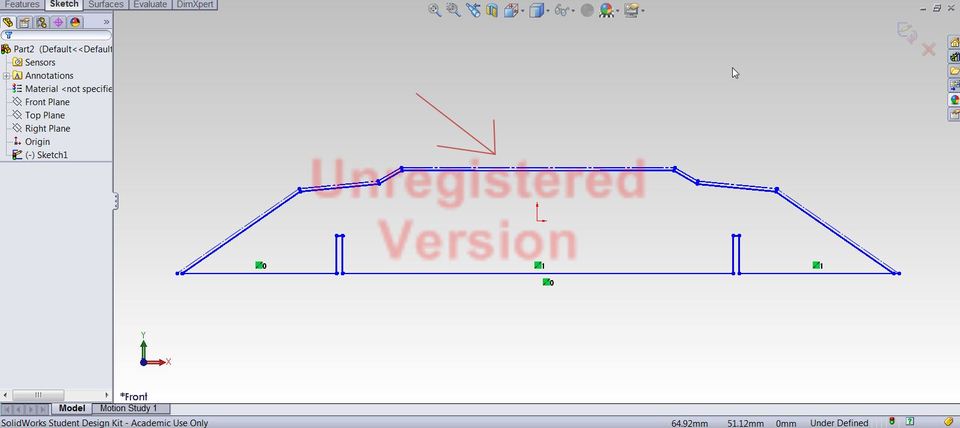

Now I want to make single parts from all the sections. So I've made sketches on the sections using 'convert entities' but when I copy those sketches and paste them in a new part, I can't give the sketch dimensions.
If I give one dimension to any line, the other lines wil move.

Does anyone have a tutorial to make those parts?

Added images

Square Square Square Square

3 answers

  • Robert Stein
    Robert Stein about 2 years ago

    Do you have the Direct Editing option available? If yes, select the split command.

  • Rohit Mitra
    Rohit Mitra about 2 years ago

    Don't recreate them. In the feature manager on the left, there is a solid bodies folder. Right click on each body and select insert into new part. This will create a dumb solid that is still linked to the dimensions in the original part.
