How to make the die and punch in sheetmetal?

By Shivaji K. Bhandwalkar on 09 Jan 08:35 3 answers 3502 views 0 comments

its related with use of punch in designing the sheet metal part.

3 answers

  • arjun
    arjun over 2 years ago

    Well its not that difficult in Pro E 5. I will show how to make a simple punch in sheet metal.

    1. Step 1

      First lets create a flat unattached wall onto which needs to be punched.

      Medium

    2. Step 2

      Once the wall is created we punch the sheet metal. To do this select the punch option as shown.

      Medium

    3. Step 3

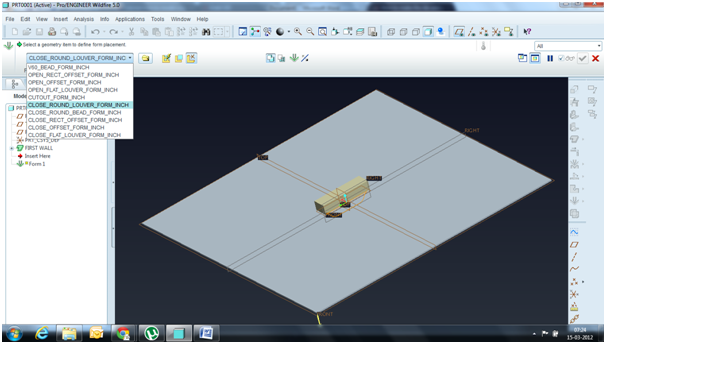

      You can see the different punches available. Select the one required. There are three ways ways of constraining the punch. One is using an interface, i.e CS.
      The second method is using the default position method. Third is manual constraining using constrains similar to that of Pro Assy.

      Medium

    4. Step 4

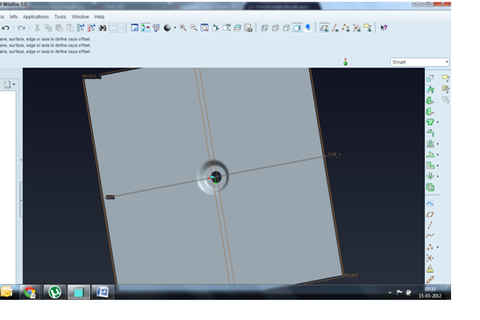

      Once constrained we can create a punch.

      Medium

  • Tomica Vukovic
    Tomica Vukovic over 2 years ago

    In solidworks is very easy - there exist a command forming tools for making a punch and die can maked from forming tool - it depens of sheetmetal material properties.
