2 answers

•
  KFZ-Schule about 1 year ago

  small tutorial

  1. Step 1

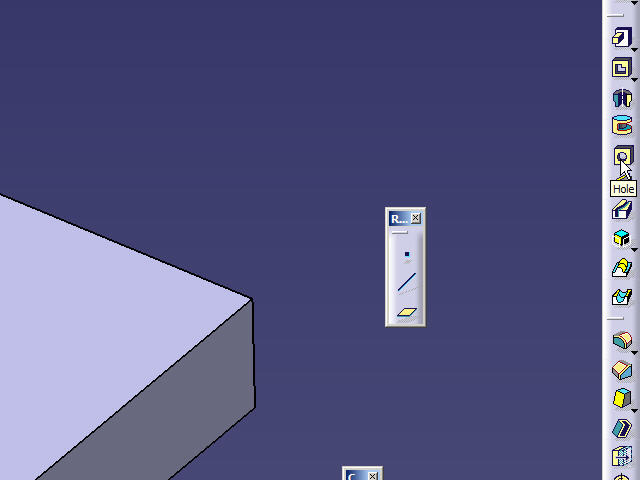

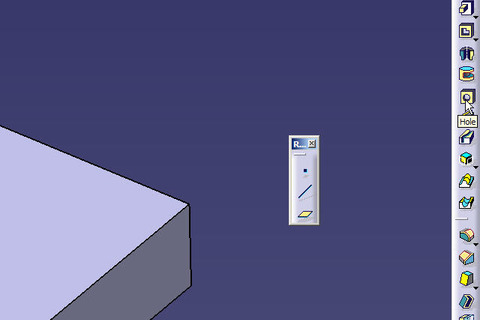

     use hole command in part design



  2. Step 2

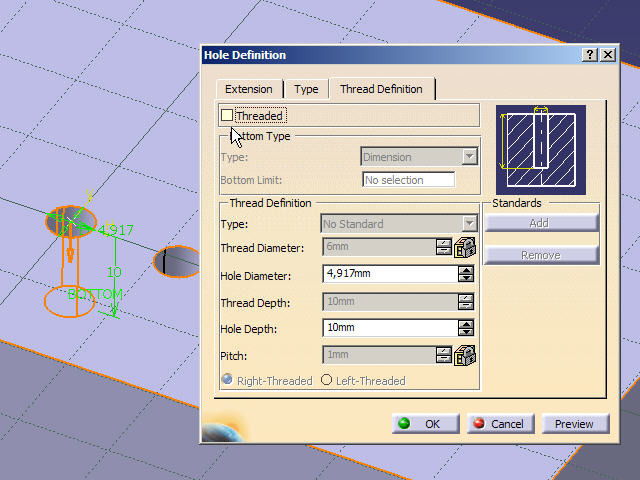

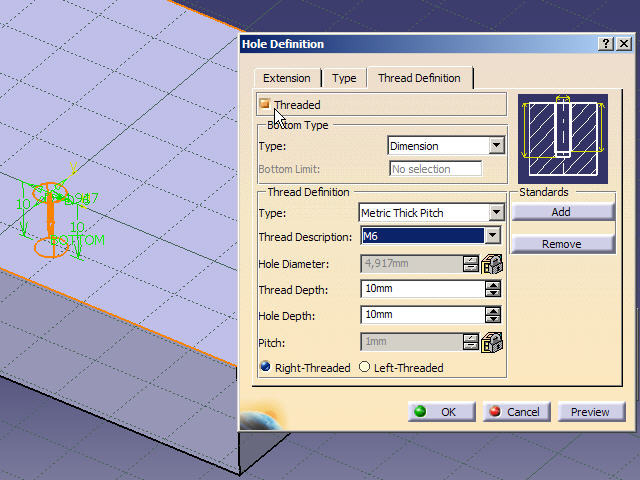

     make a hole with thread, every standard is predefined



  3. Step 3

     compare! hole with NO thread.



  4. Step 4

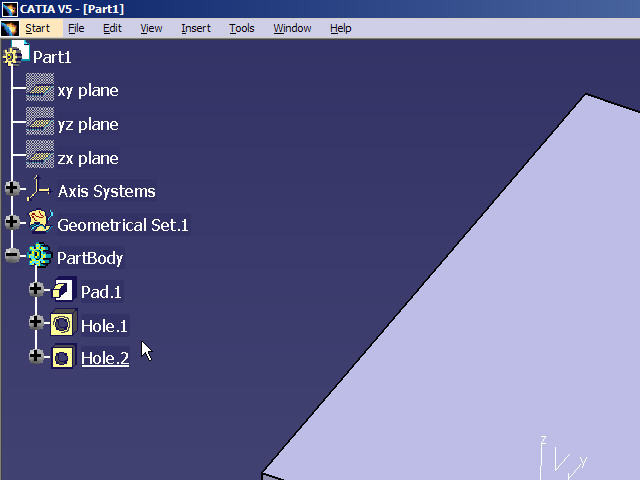

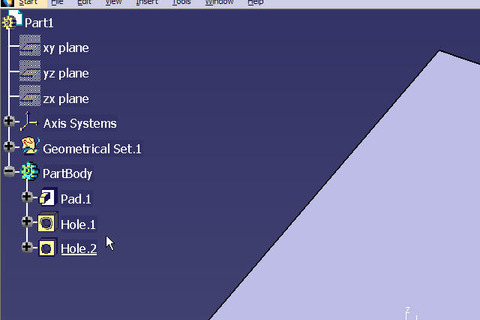

     you can see the difference HERE
     hole.1 thread
     hole.2 no thread



•
  rakesh about 1 year ago

  Here is steps to create M8 shaft.

  1. Step 1

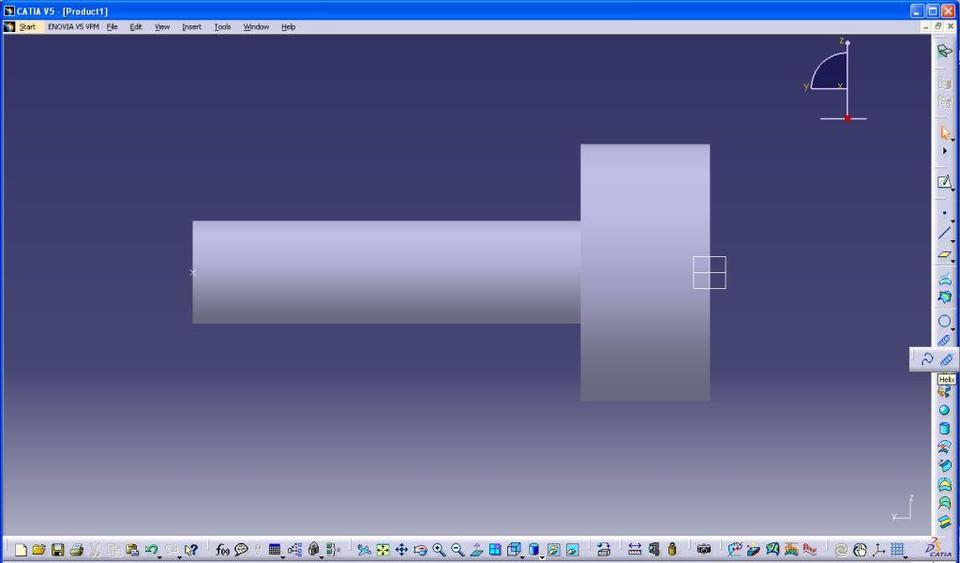

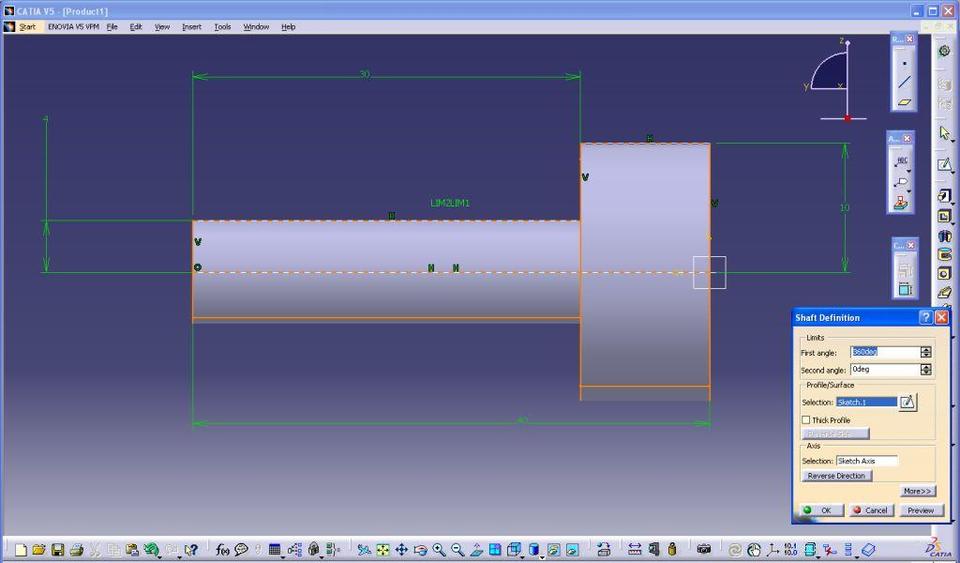

     Create a shaft definition as shown



  2. Step 2

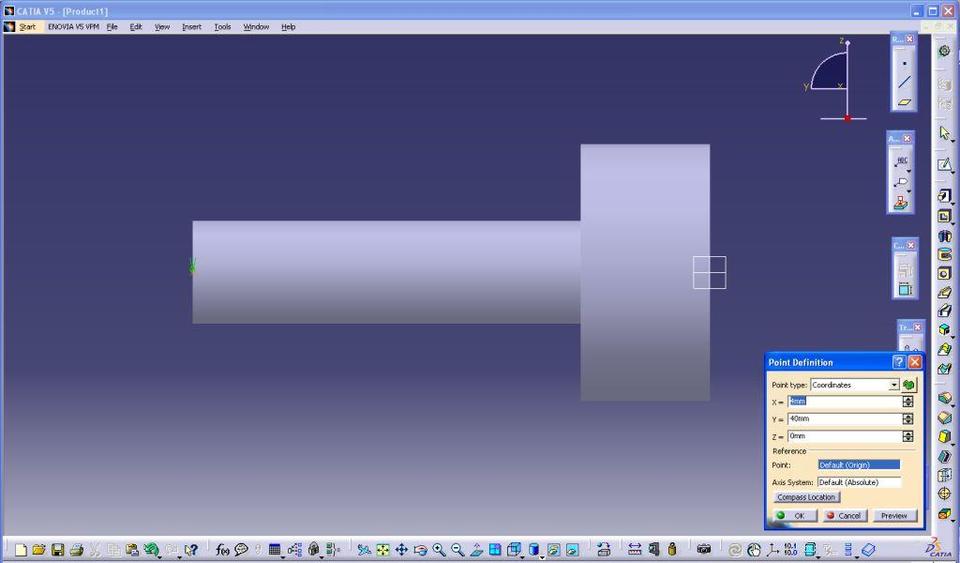

     Create a Point definition as shown



  3. Step 3

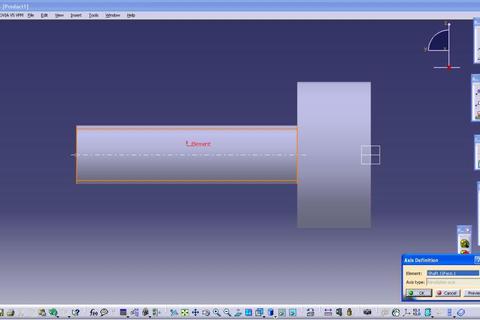

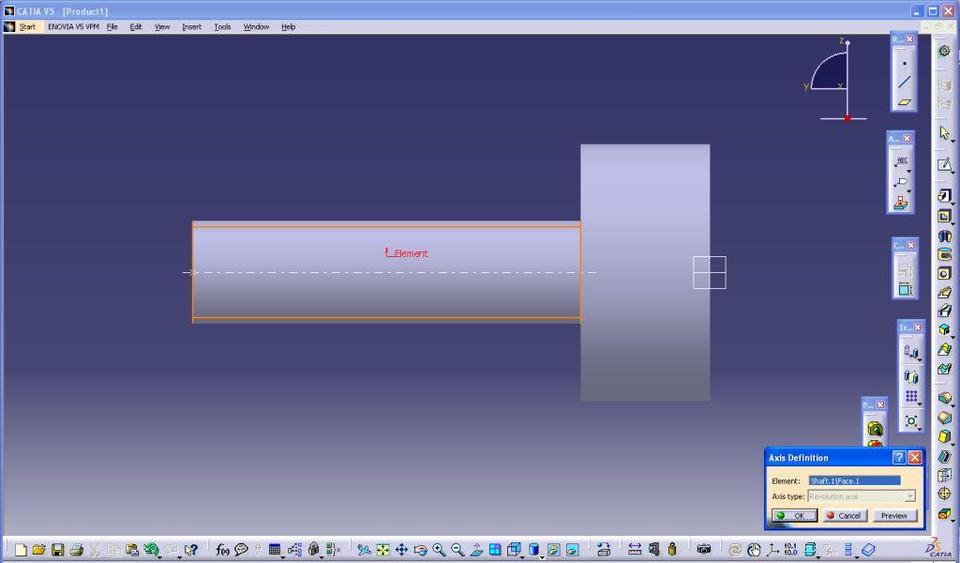

     Create a Axis definition as shown



  4. Step 4

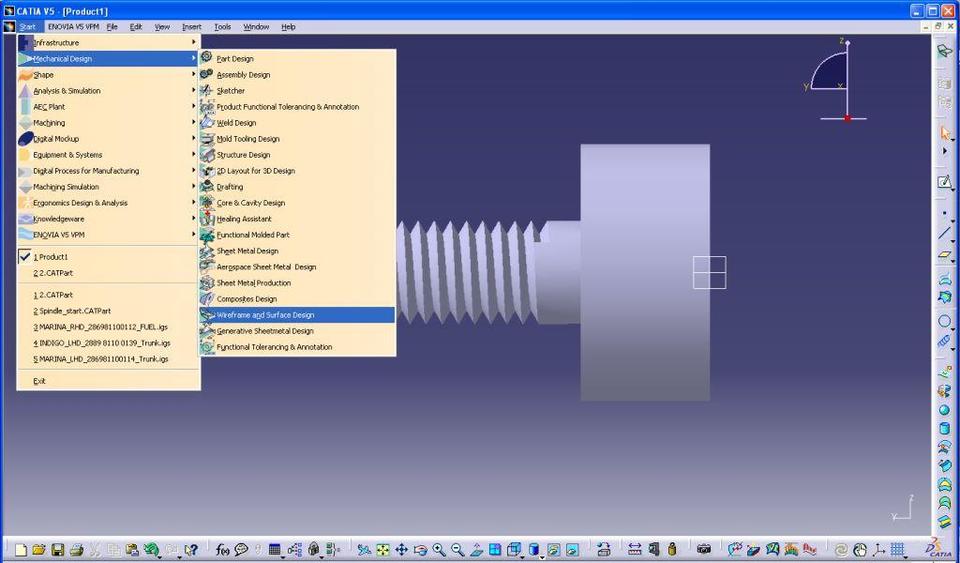

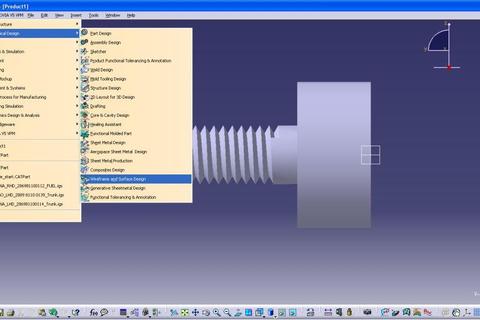

     Go to Wire frame & Surface design



  5. Step 5

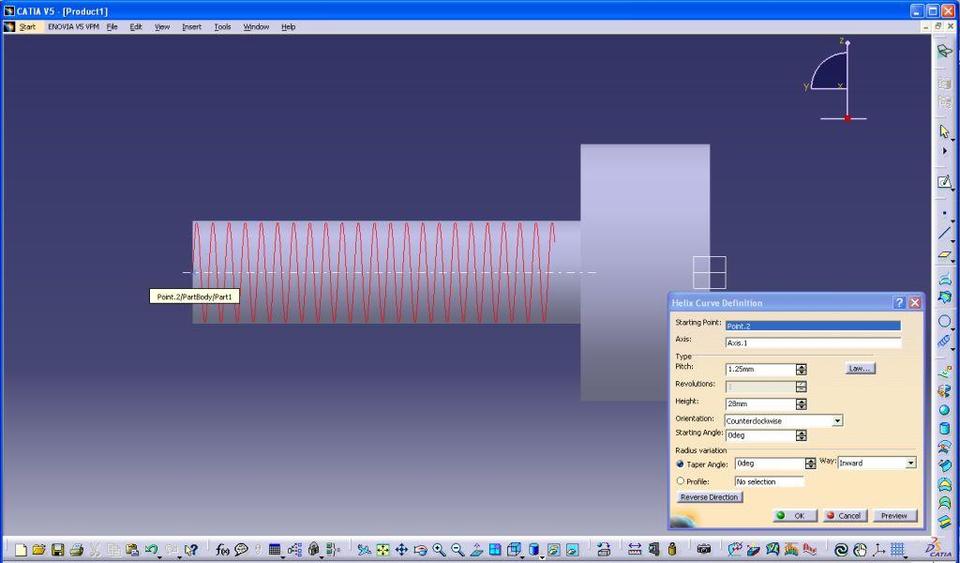

     Create Helical curve.



  6. Step 6

     Create a Helix curve definition as shown



  7. Step 7

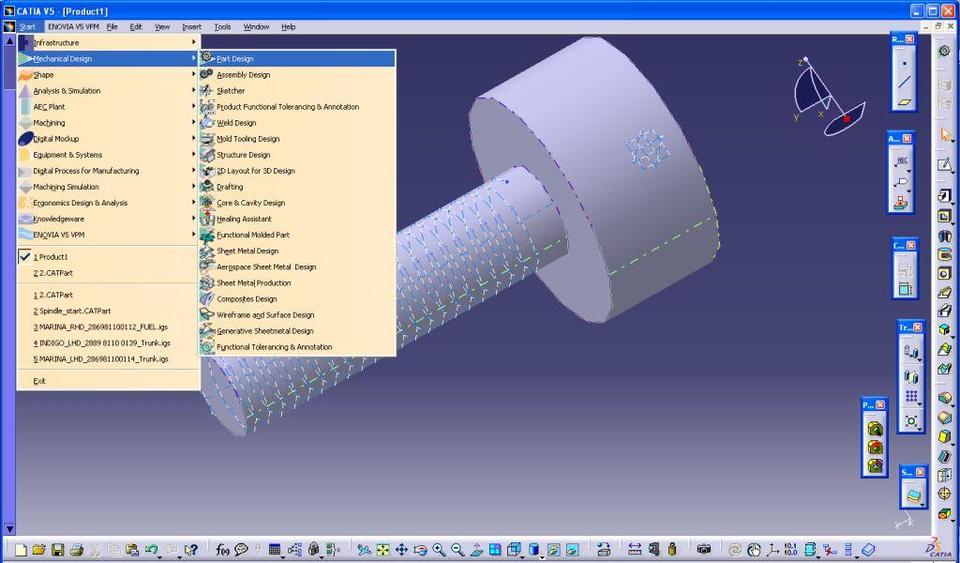

     Switch back to Part design.



  8. Step 8

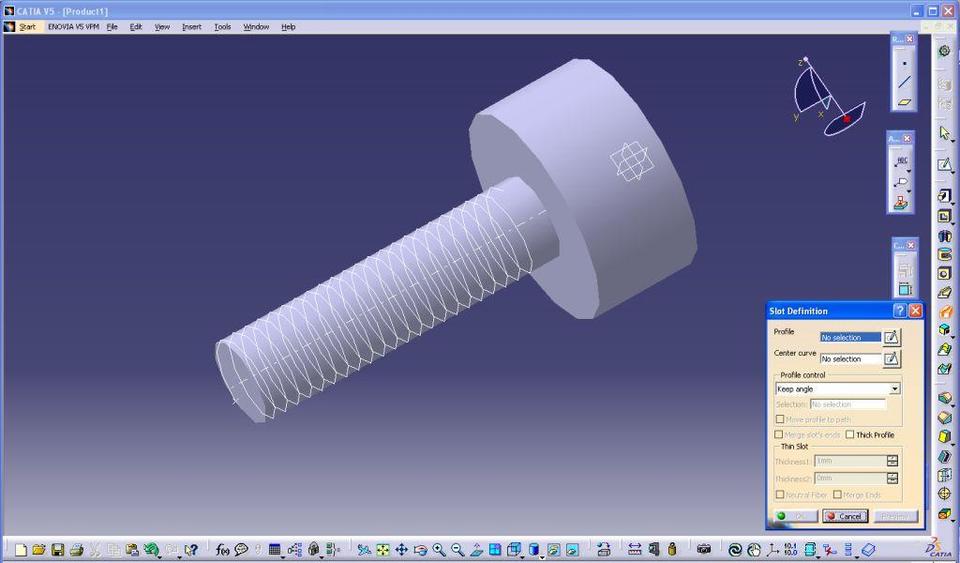

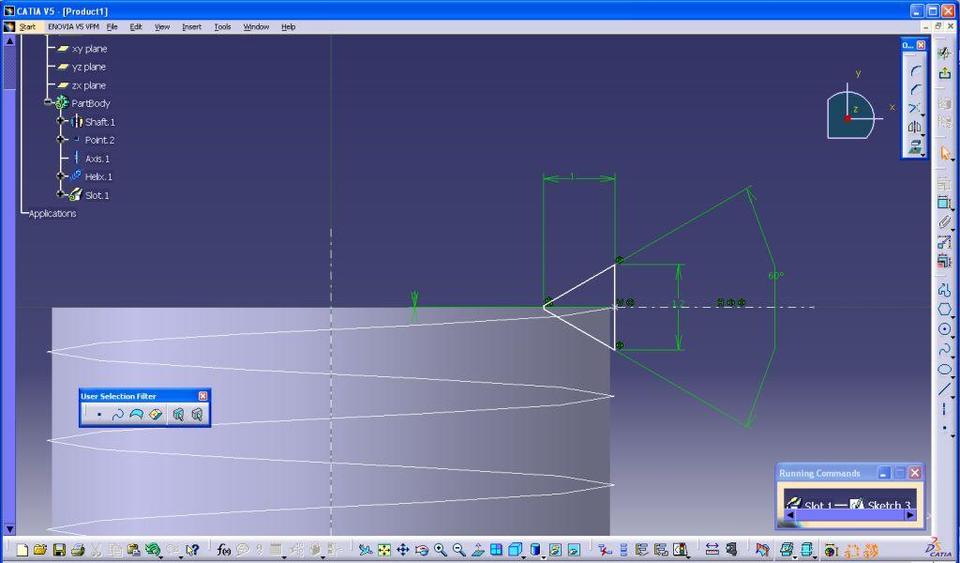

     Create a slot definition and sketch profile.



  9. Step 9

     Sketch as shown



  10. Step 10

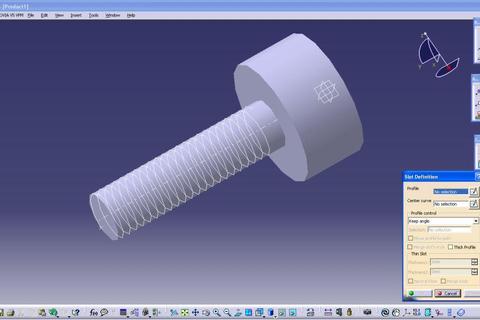

      Select helix as center curve.

      In profile control, check pulling direction & select axis.



  11. Step 11

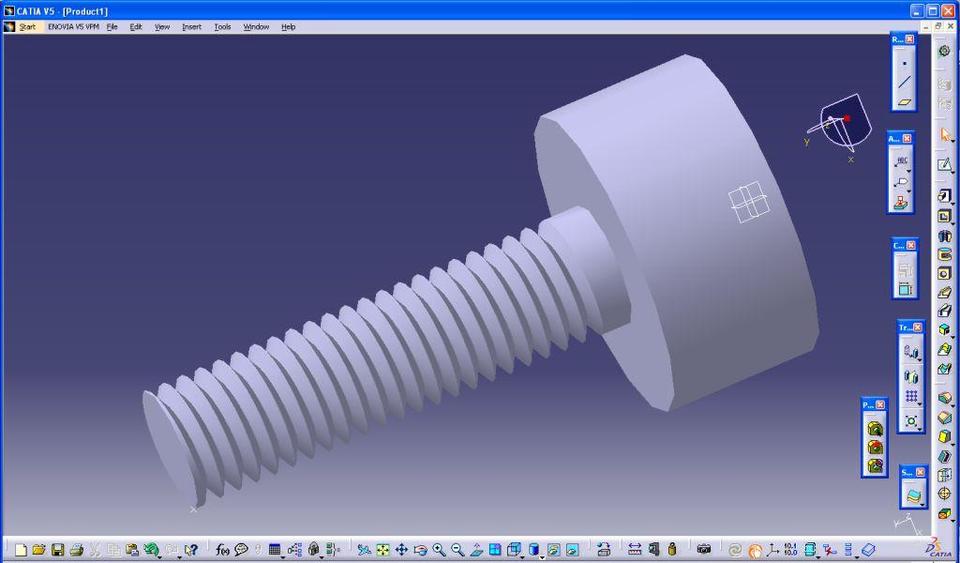

      Finish the part to match the illustration shown.
