How to model Earphone in SolidWorks?

By Sudhir Gill on 16 Feb 15:49 17 answers 2389 views 13 comments

This is a tutorial for the model tutorial competiton and its about the Earphone model I have designed using surfacing methods. The model is here Earphone.

17 answers

Sudhir Gill over 1 year ago
This tutorial illustrates how to model an earphone using surfacing methods. Since a lot of persons doesn't know about surfacing model therefore i tried to perform every function step by step. If you have any problem struggling with that even after my efforts, just let me know. I will help you as much as I can.
1. Step 1

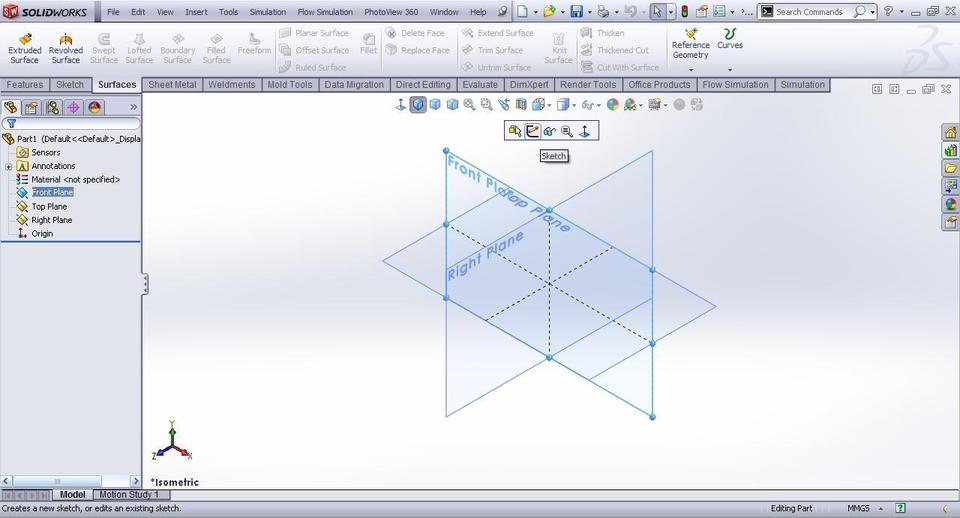

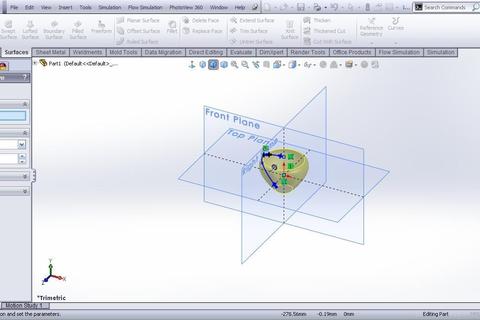

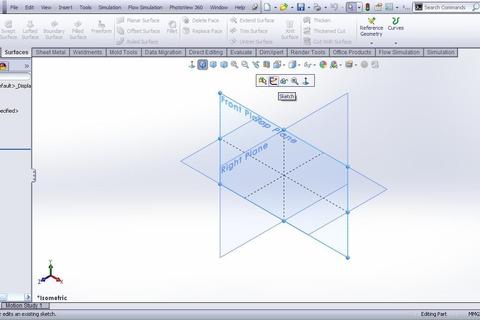

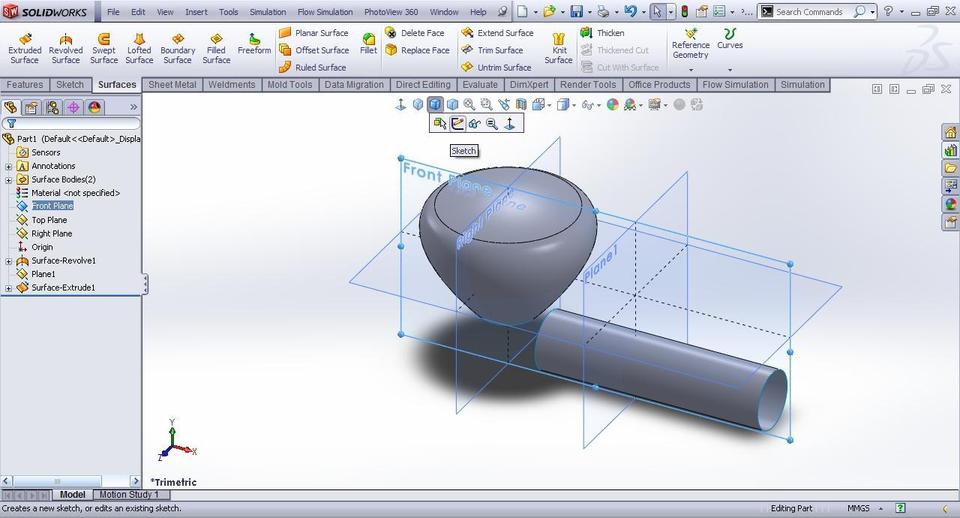

  Start Solidworks in Part mode. Select front plane and then sketch.
2. Step 2

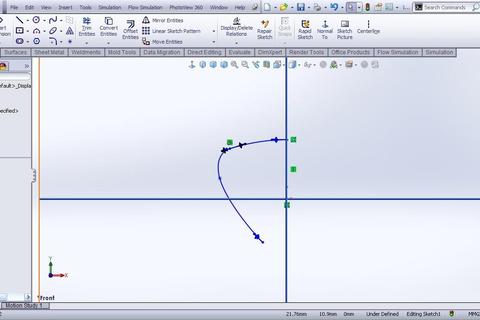

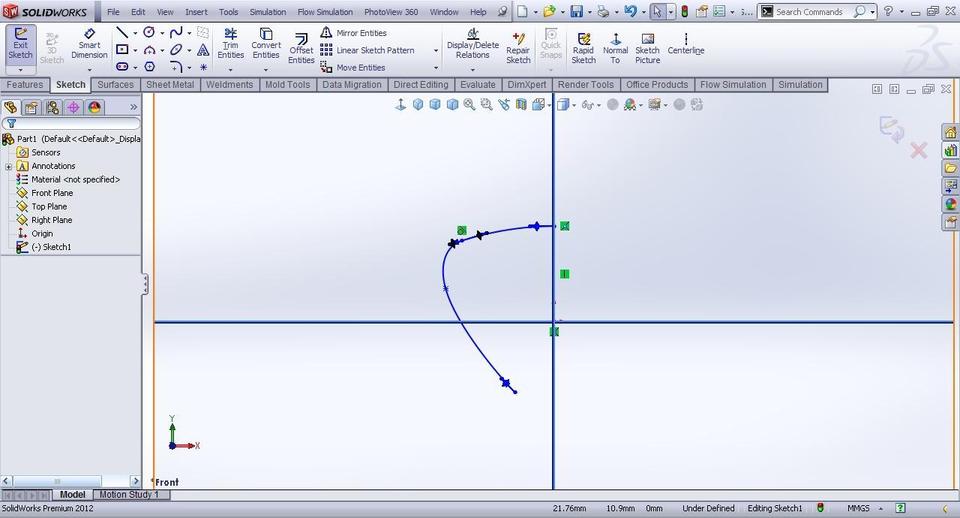

  Draw entity using splines like this one. For this sketch i have used two spline and a centre line along right plane. The two splines are having tangent relation.
3. Step 3

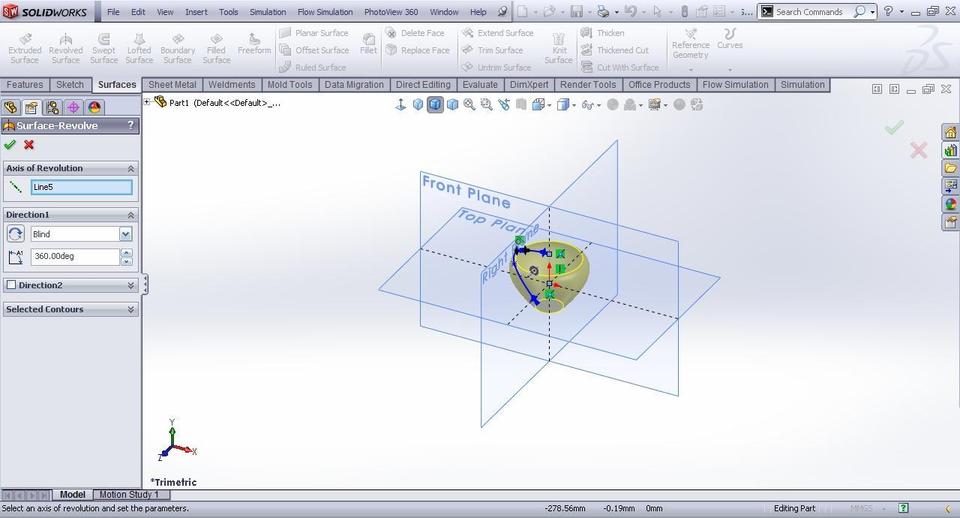

  Now select revolve surface under surfaces tab. Revolve the profile along the centre line.

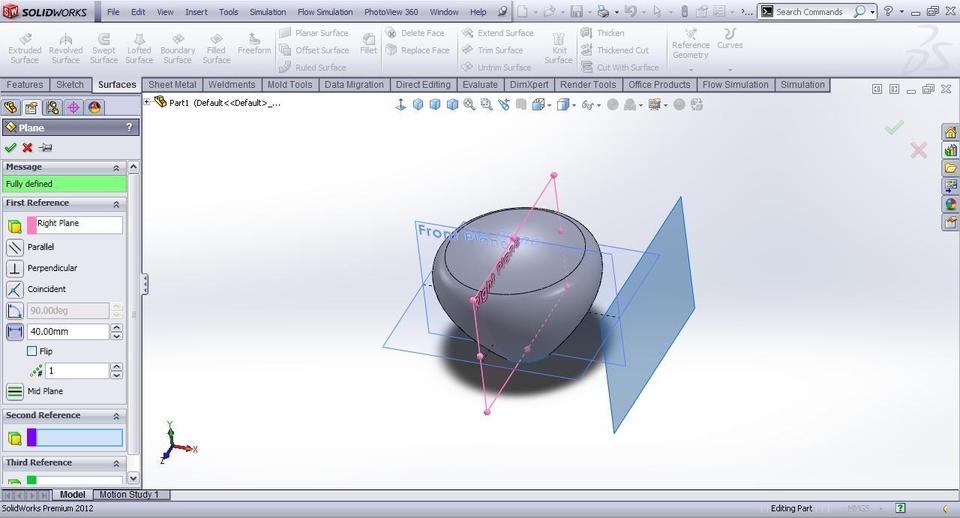

4. Step 4

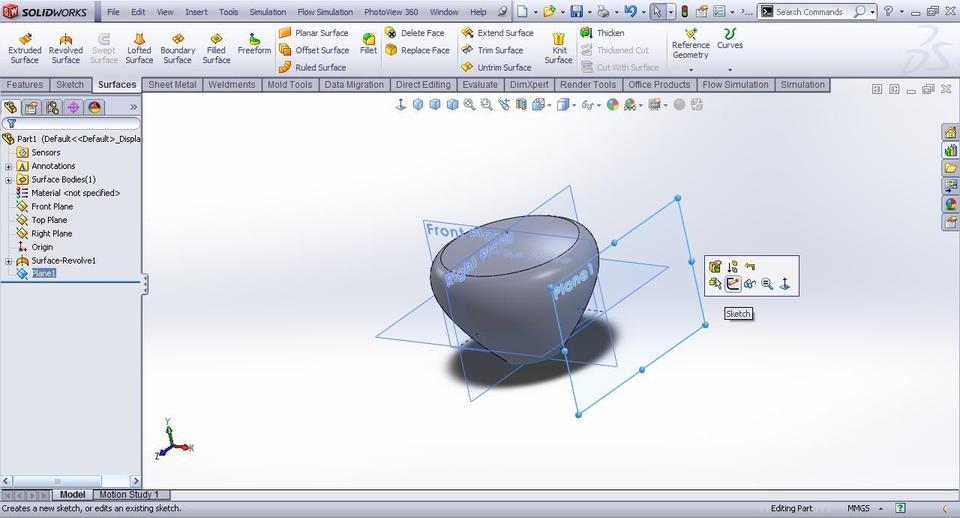

  Under surfaces tab select Reference geometry >> plane. Now select Right plane as the first reference and offset it by considerable distance.
5. Step 5

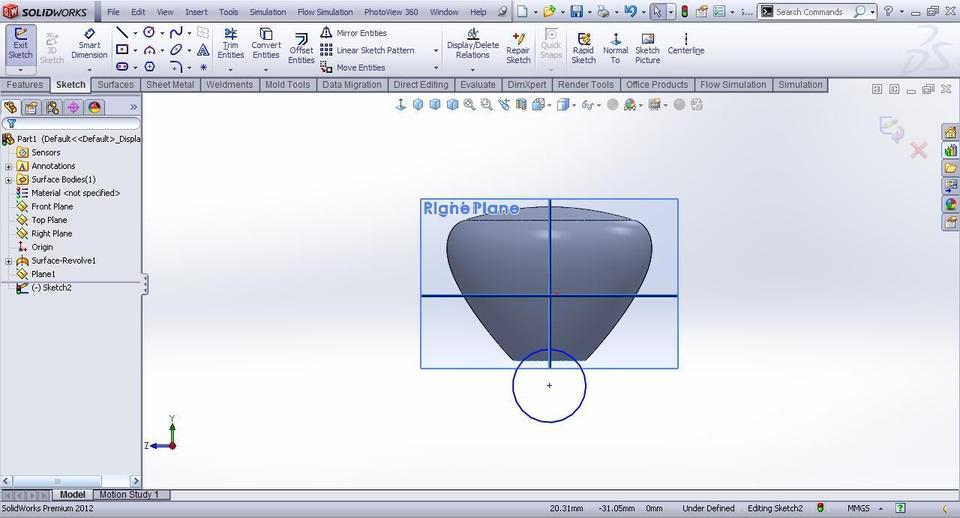

  Now select plane1 and then sketch.
6. Step 6

  Draw a circle like this one.
7. Step 7

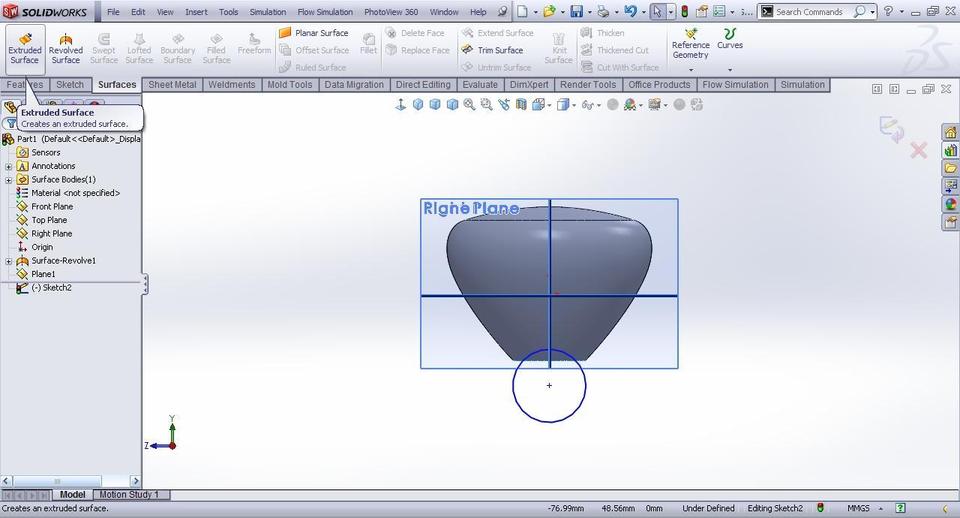

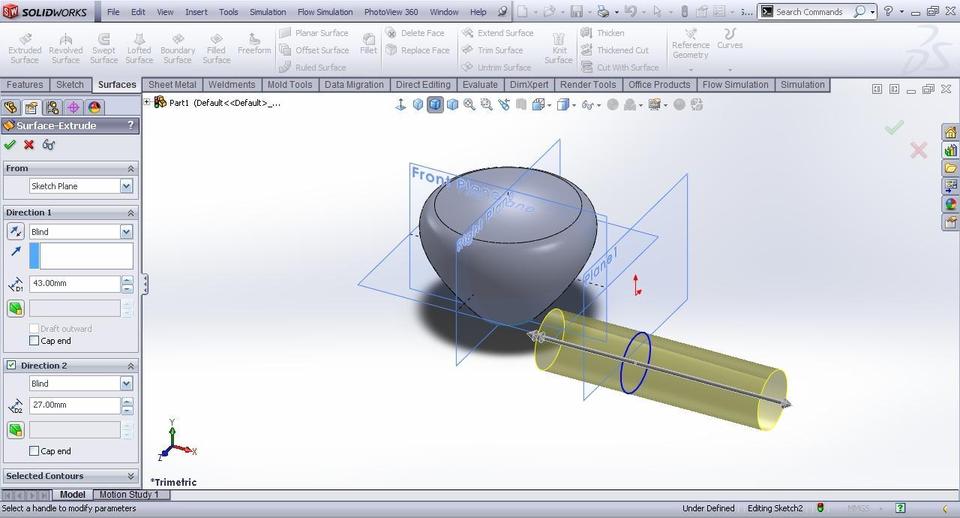

  Under sufaces tab click Extruded surface.
8. Step 8

  Extrude it in both direction with a considerable distance.
9. Step 9

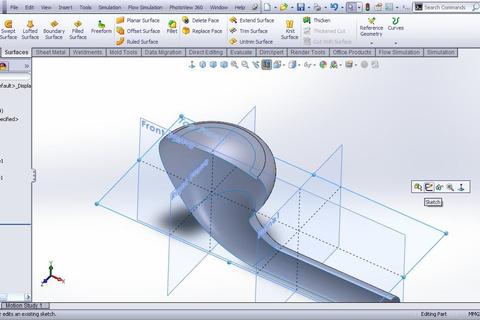

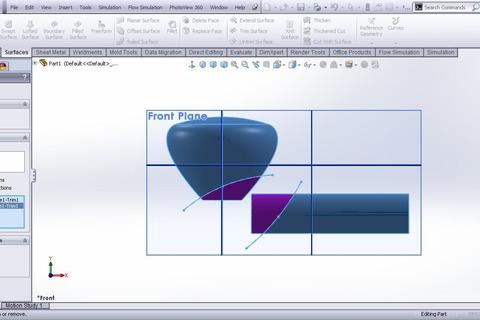

  Now select front plane and then sketch.
10. Step 10

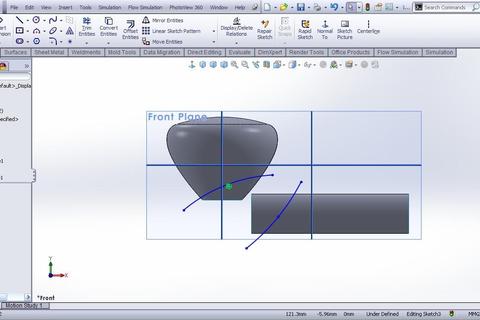

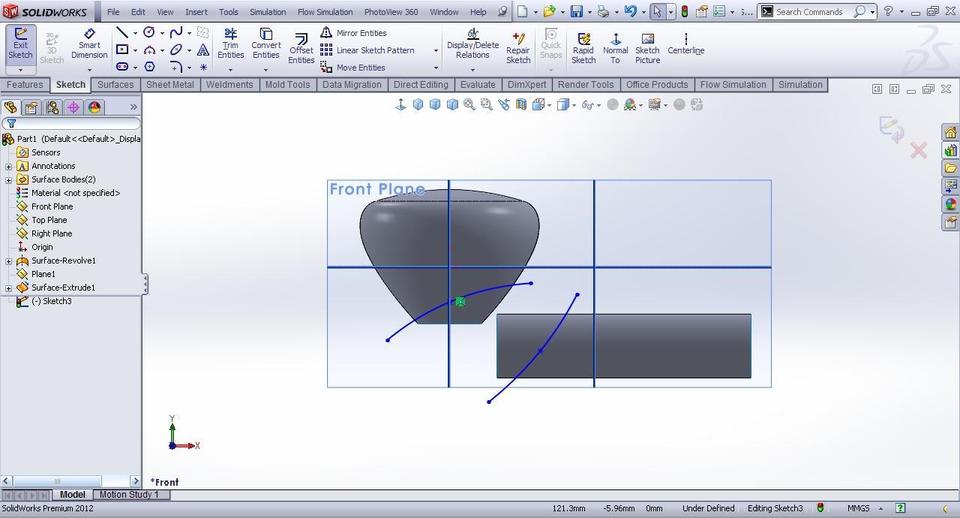

  Draw two spline cutting the surfaces.

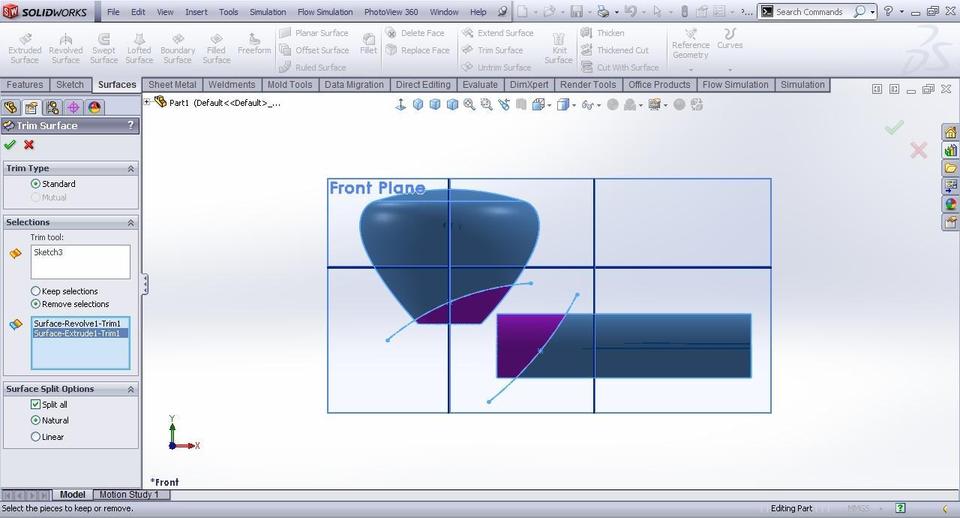

11. Step 11

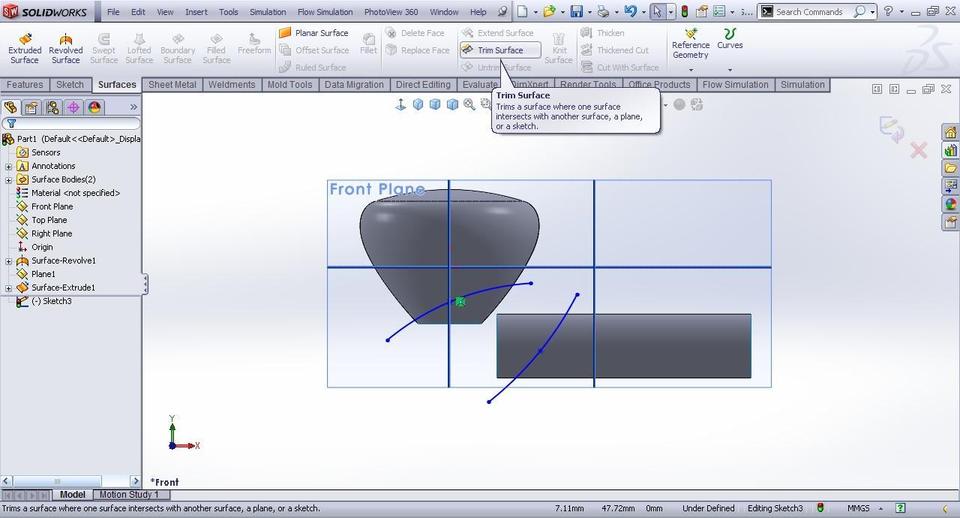

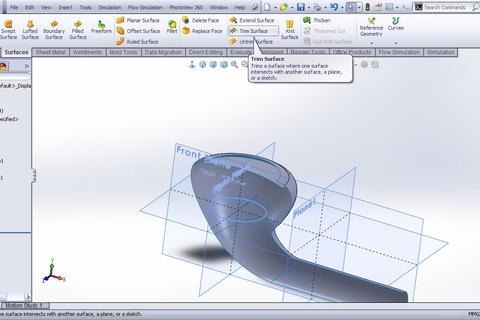

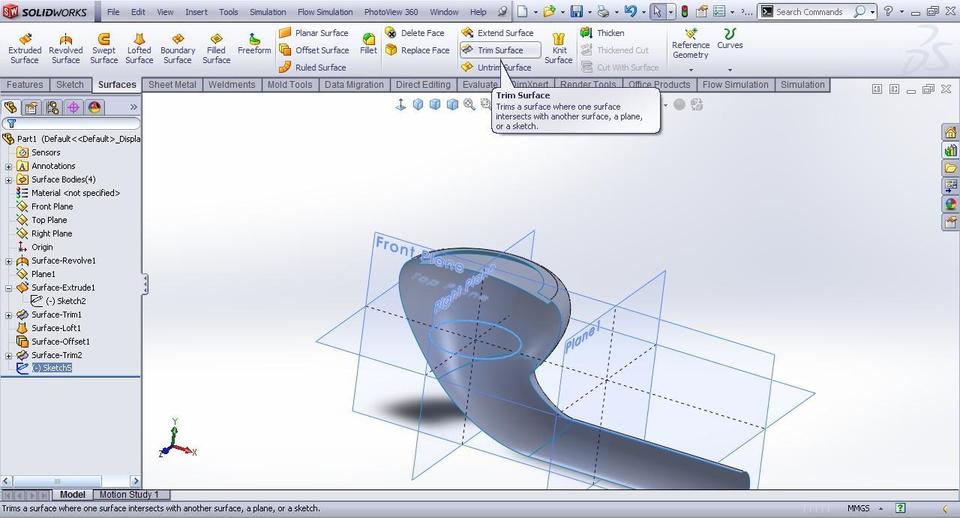

  Under surfaces tab select trim surfaces.
12. Step 12

  Select the surfaces under the splines and remove them.

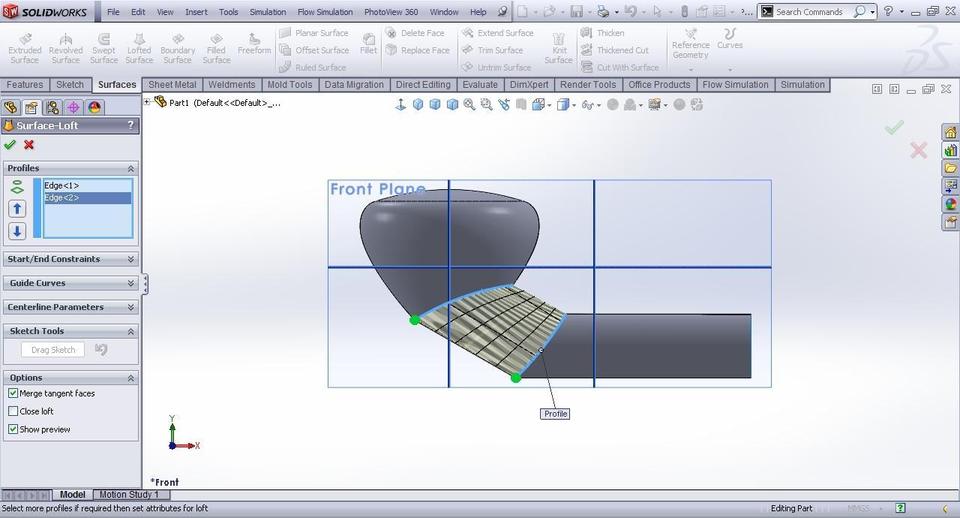

13. Step 13

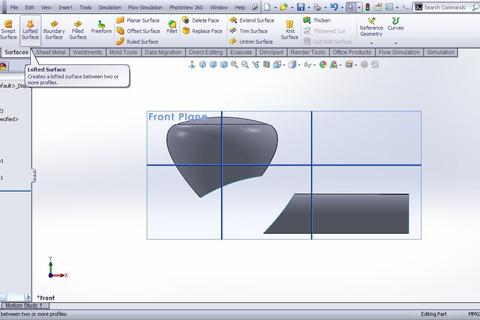

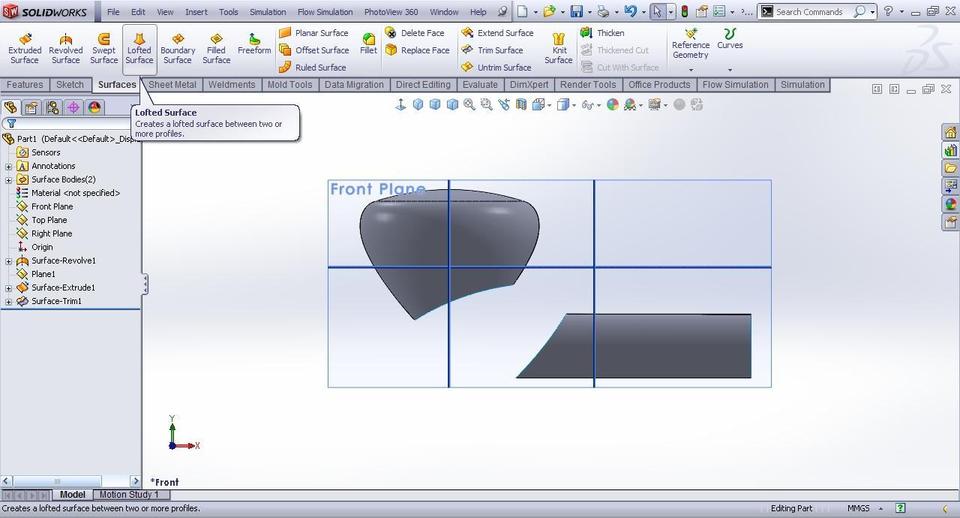

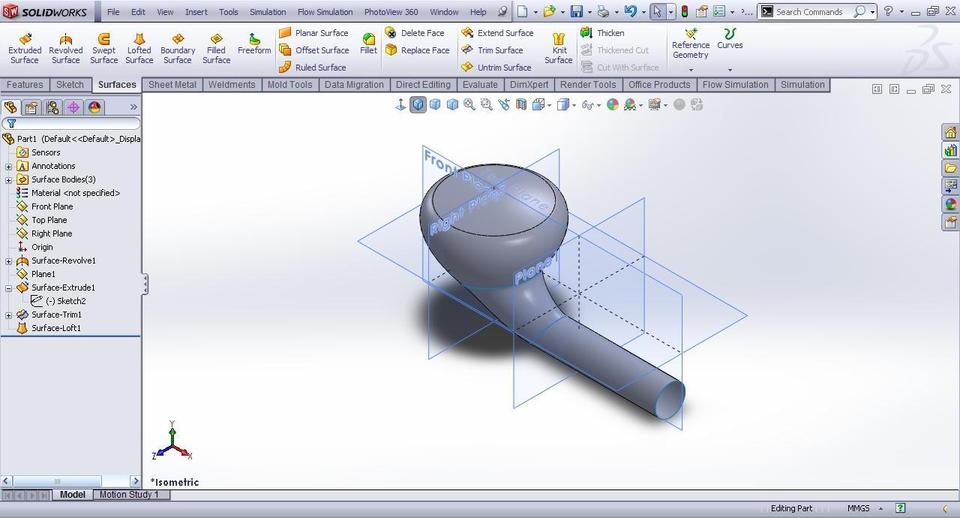

  Under surfaces tab select lofted surface.

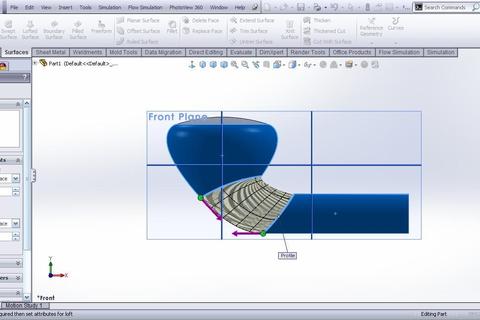

14. Step 14

  Select both edges.
15. Step 15

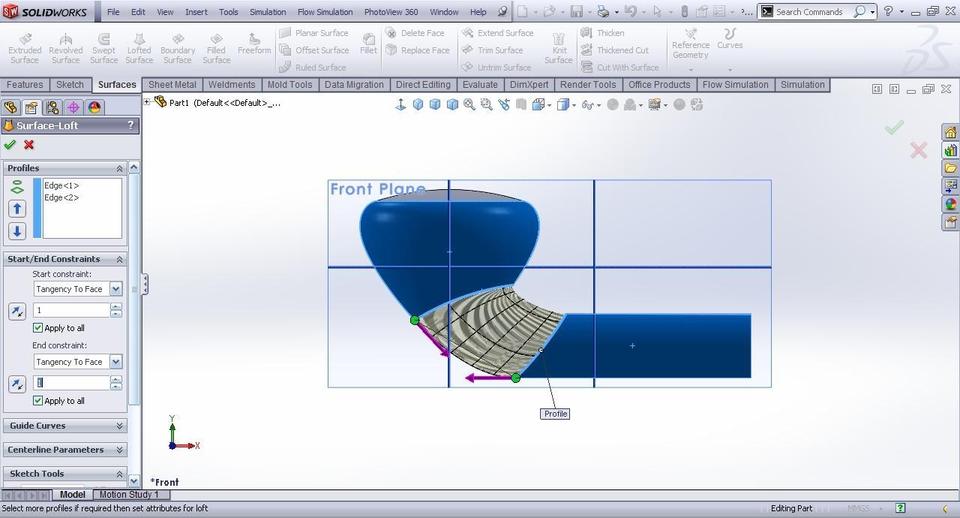

  Under Start/End constraints change start and end constraint to tangency to face. Click OK.
16. Step 16

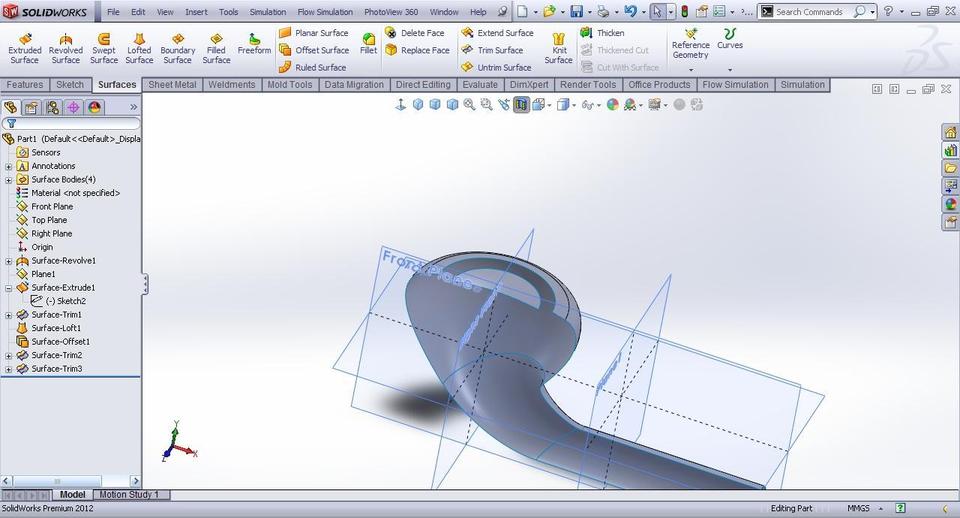

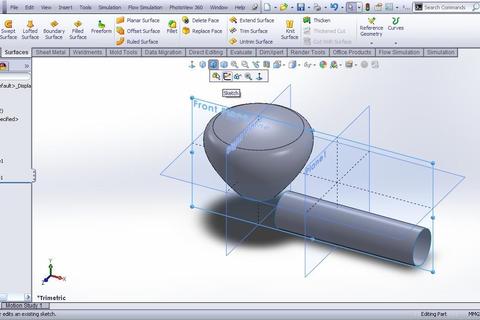

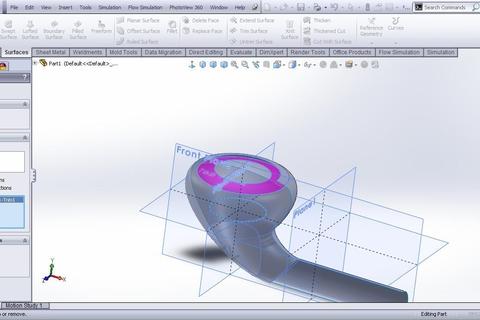

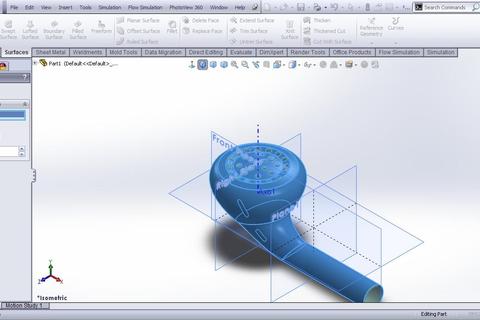

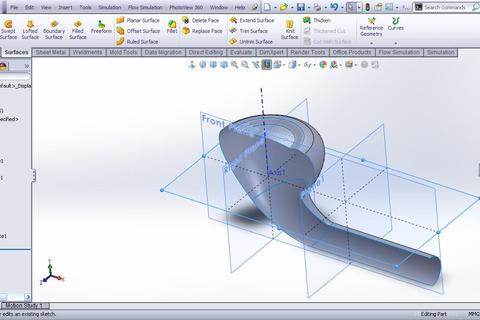

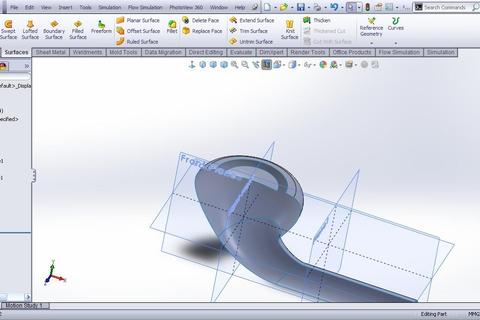

  We have basic shape of the earphone. I have decreased the radius of the extruded surface Because it was a little larger.
17. Step 17

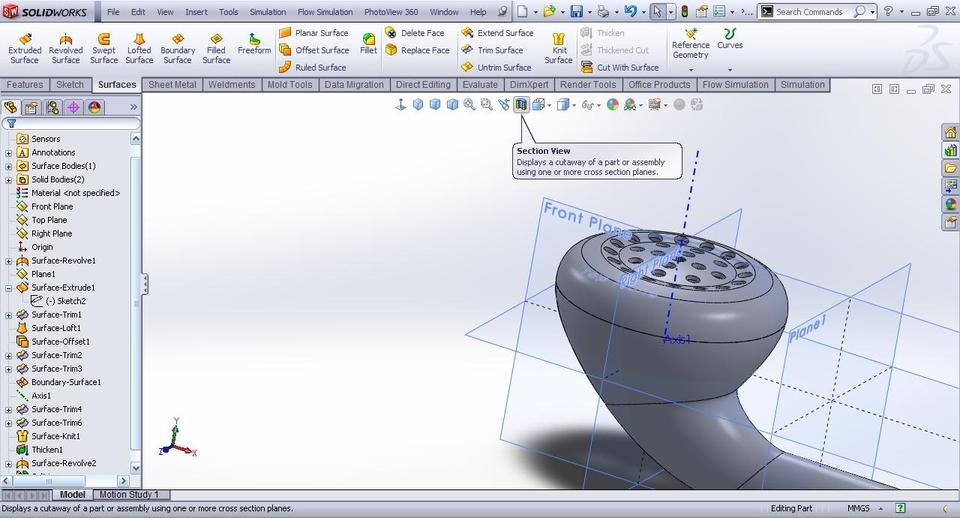

  Select section view in standard views.

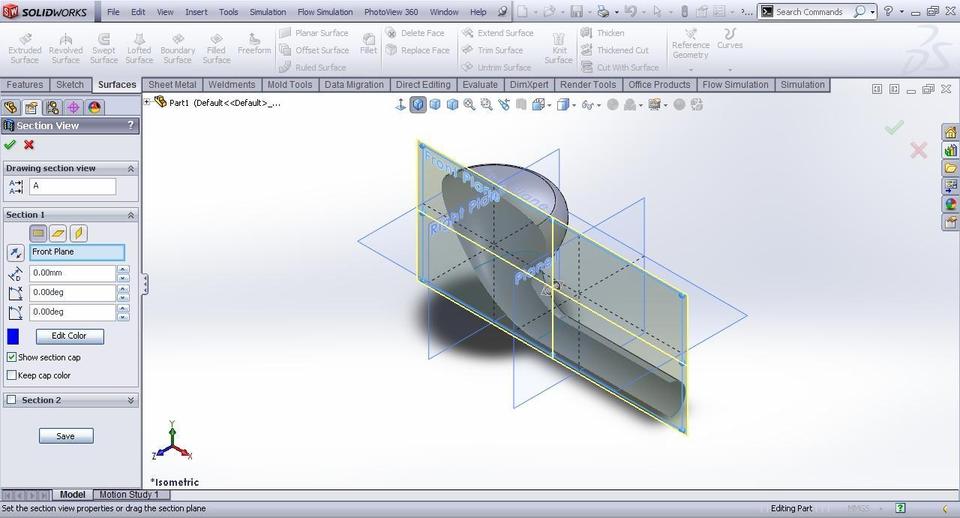

18. Step 18

  Select front plane for section and click OK.
19. Step 19

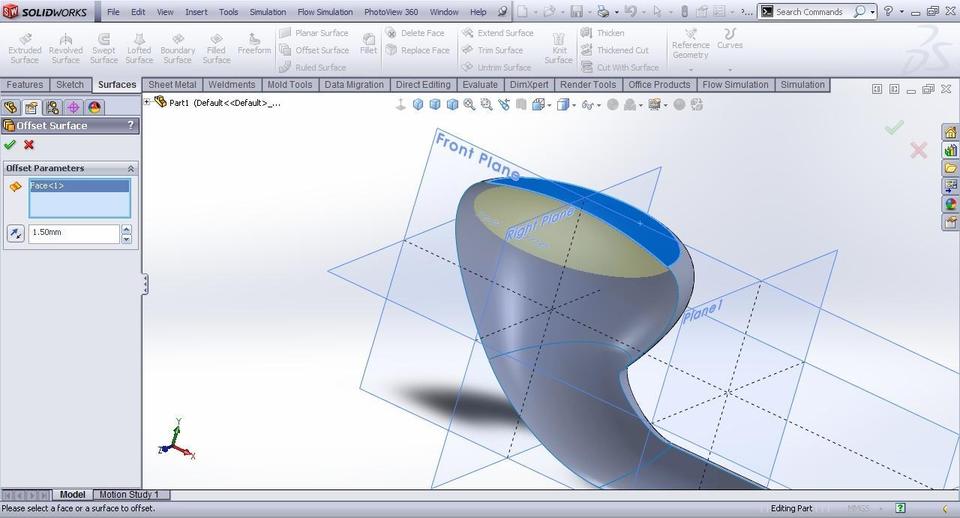

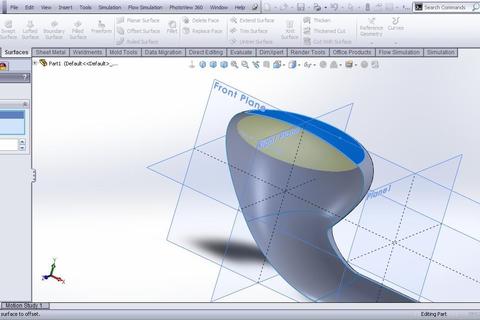

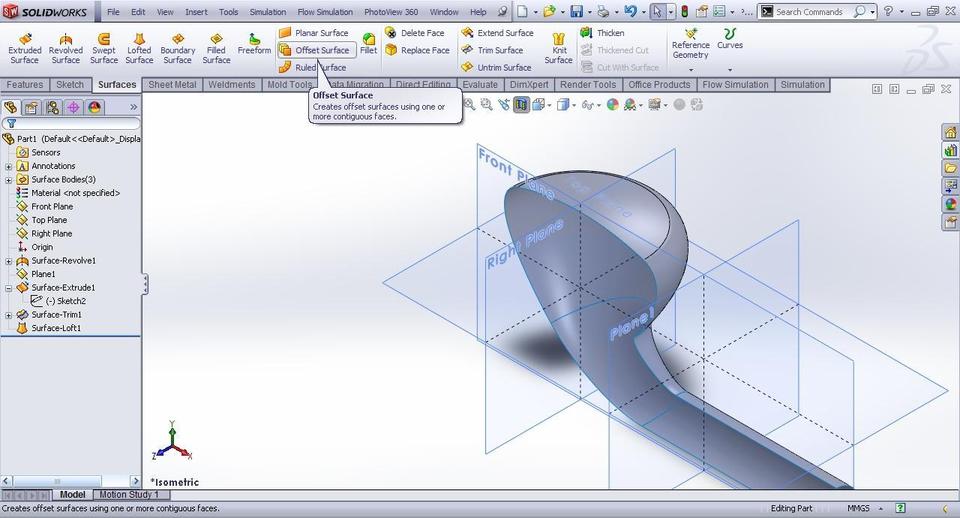

  Under surfaces tab select offset surface.
20. Step 20

  Select the top face and change the distance to minimum i.e. about 1.5mm in my case.
21. Step 21

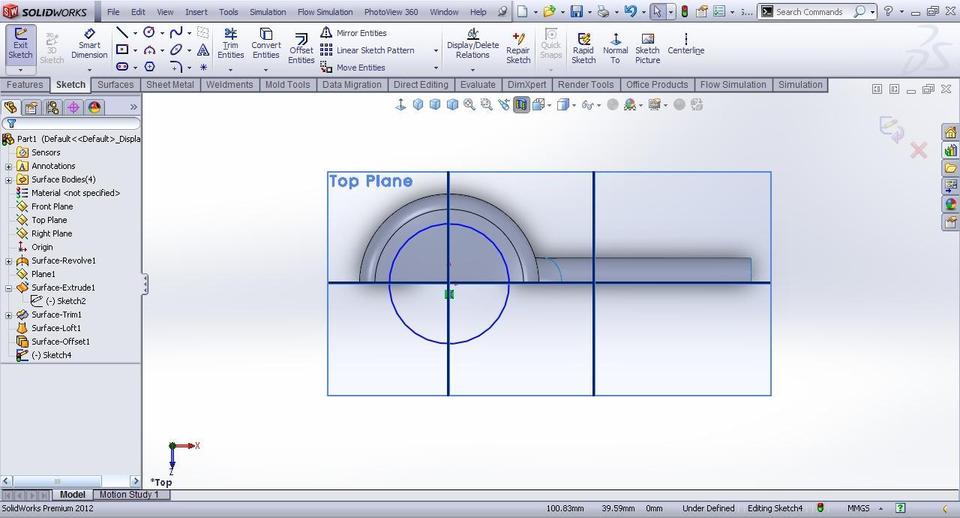

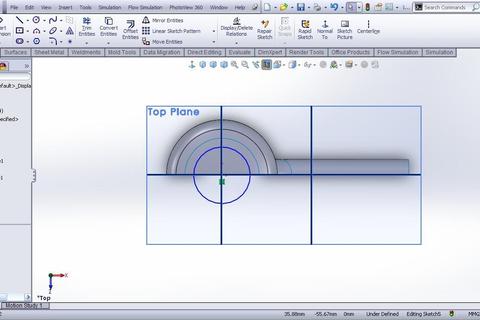

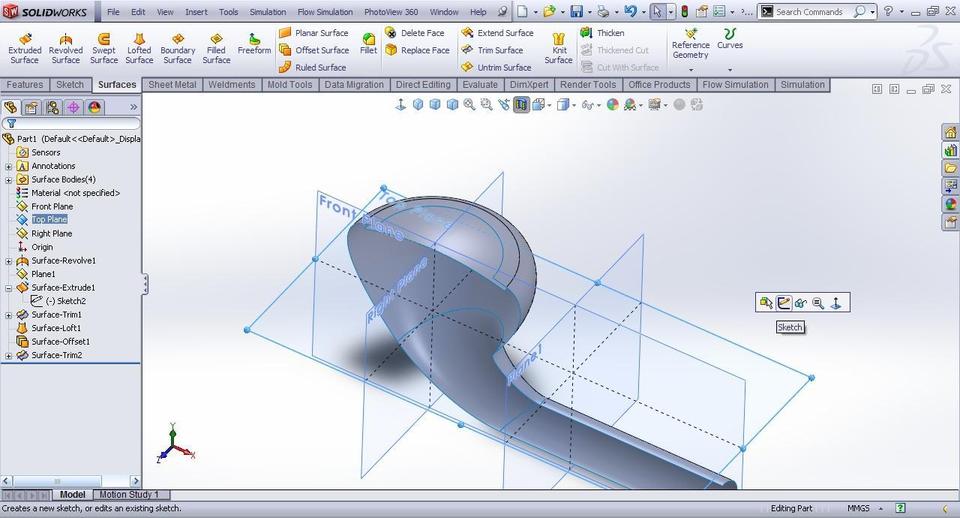

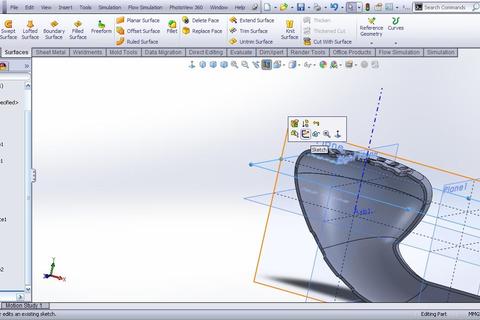

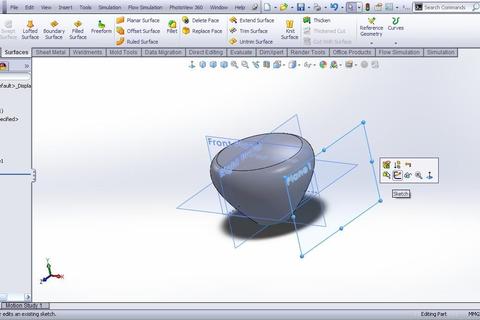

  Now select Top plane and then sketch.
22. Step 22

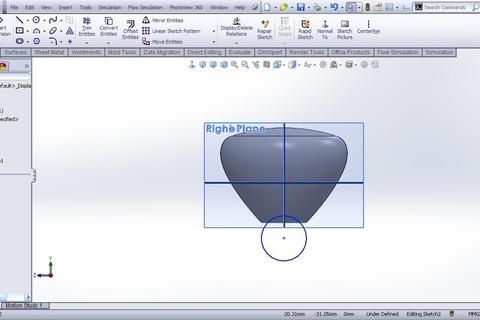

  Draw a circle.
23. Step 23

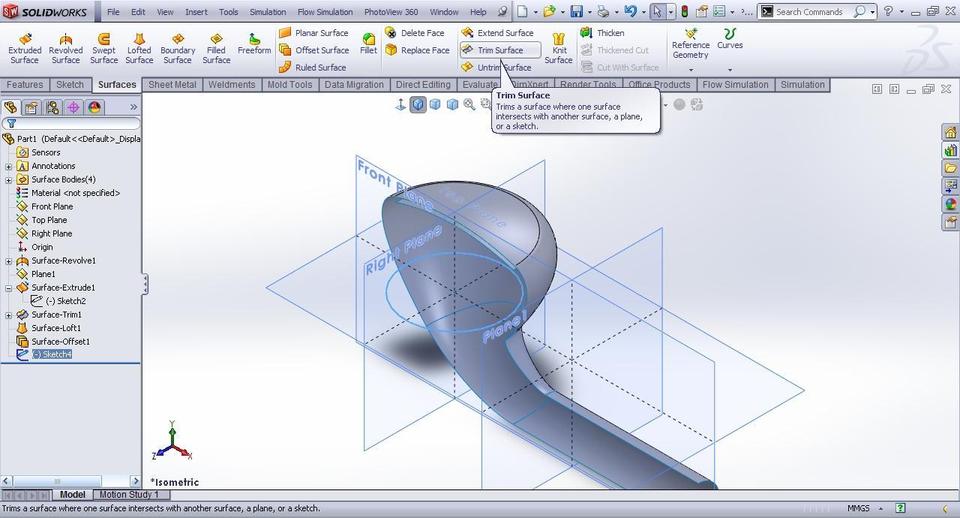

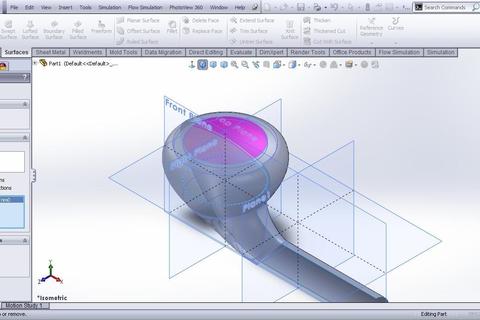

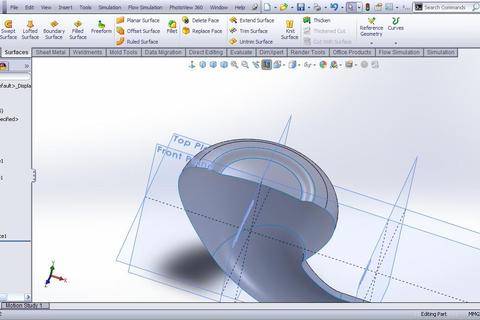

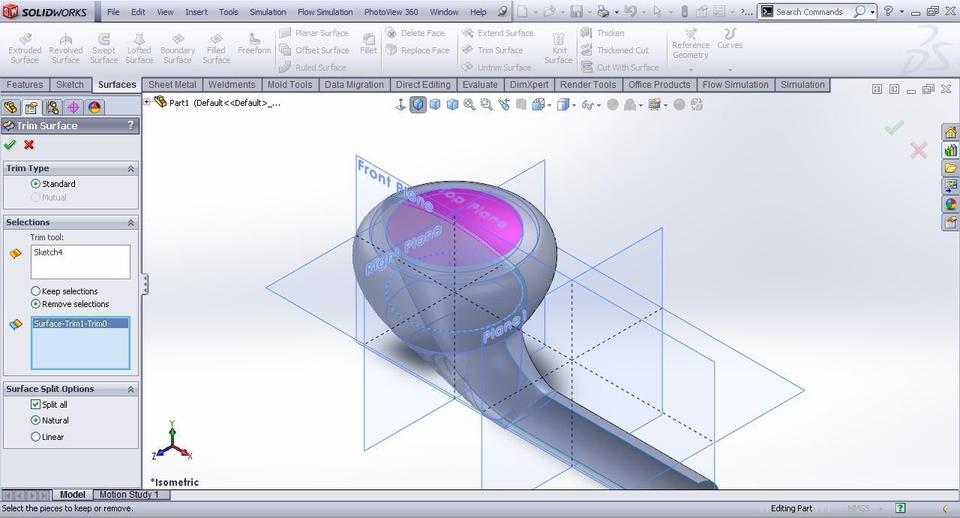

  Under surfaces tab select trim surfaces.
24. Step 24

  Trim the inner portion of the top-most face.
25. Step 25

  Again top plane and then sketch.
26. Step 26

  This time draw a circle considerably smaller than last one.
27. Step 27

  Select trim surface under surfaces tab.
28. Step 28

  Select the outer portion of the offsetted surface.
29. Step 29

  Click OK and the area is trimmed.

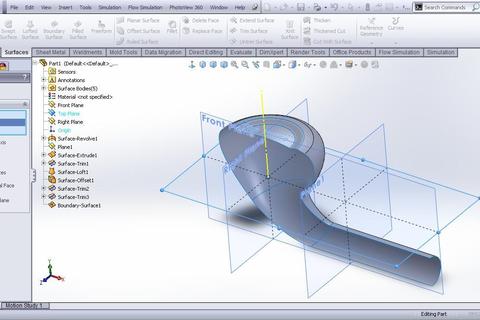

30. Step 30

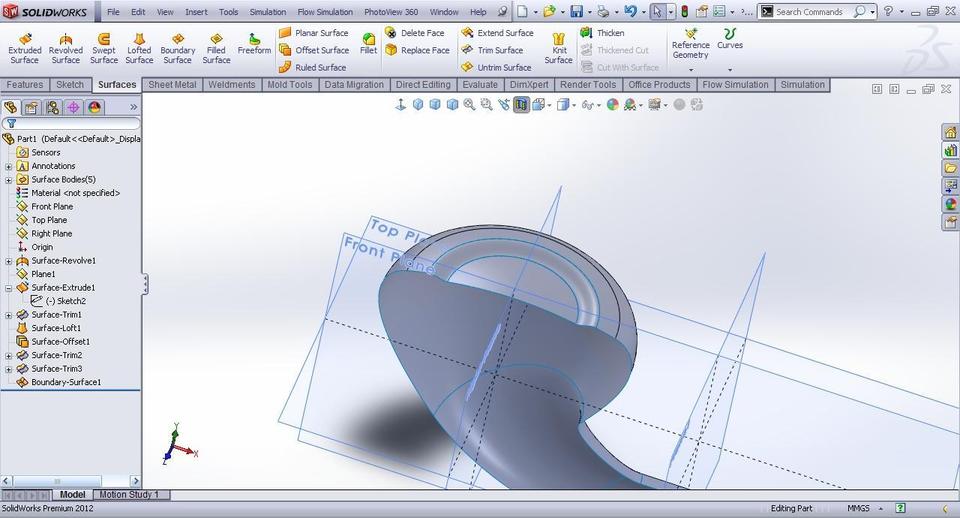

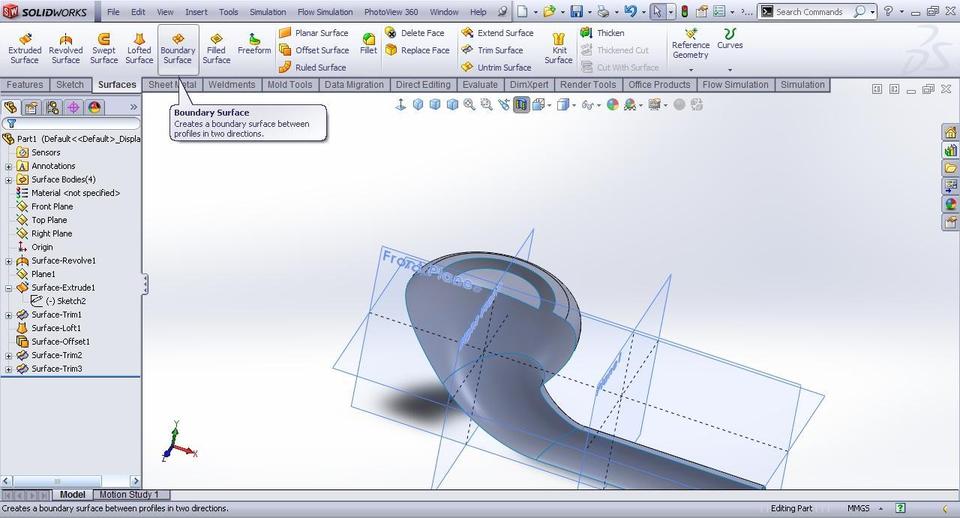

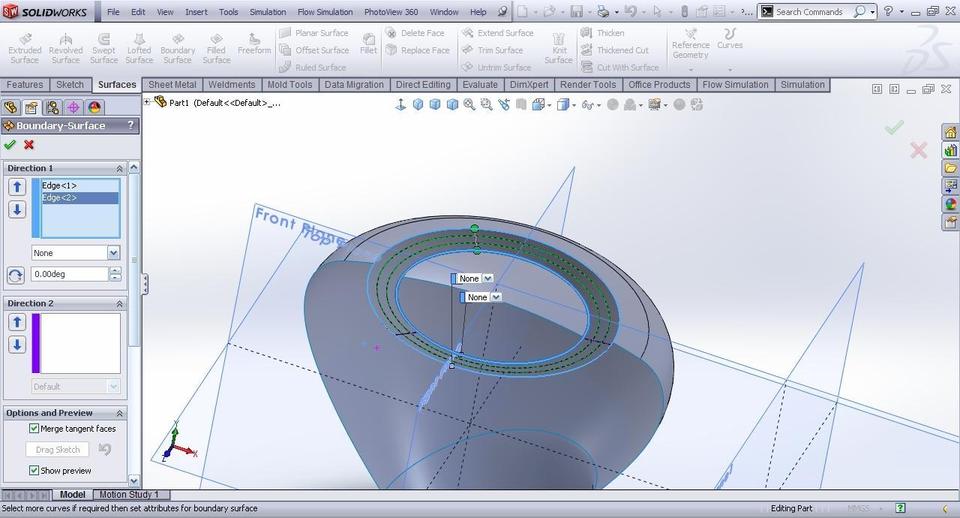

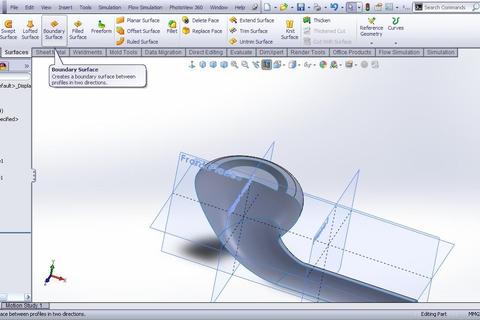

  Under surfaces tab select boundary surface.
31. Step 31

  Select both edges.
32. Step 32

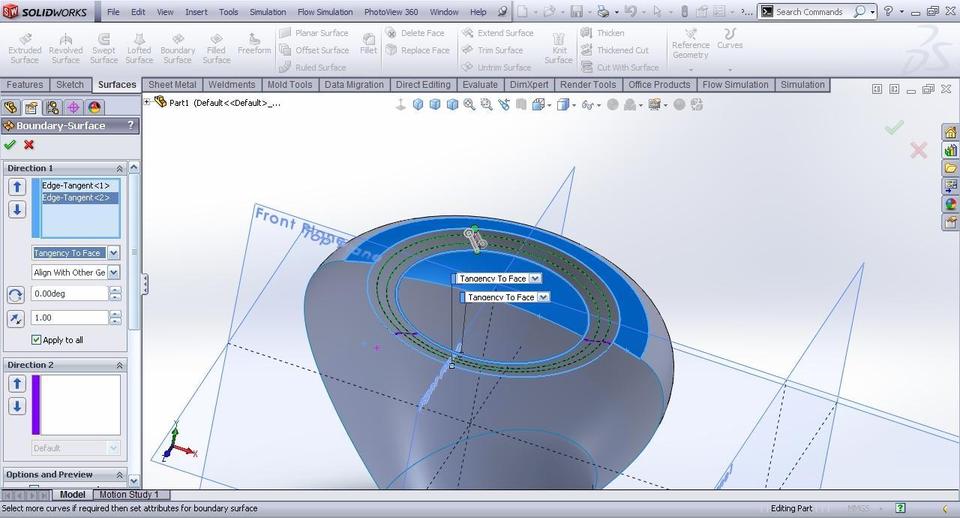

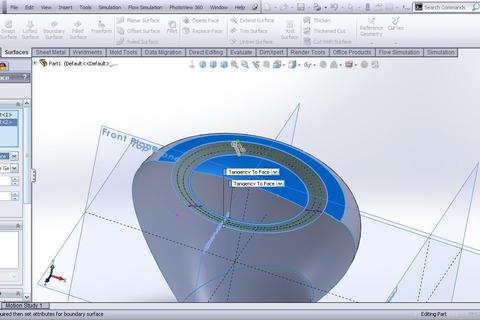

  Select tangency to face for both edges.
33. Step 33

  Click OK.
34. Step 34

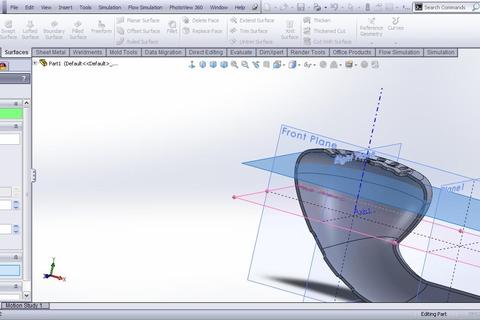

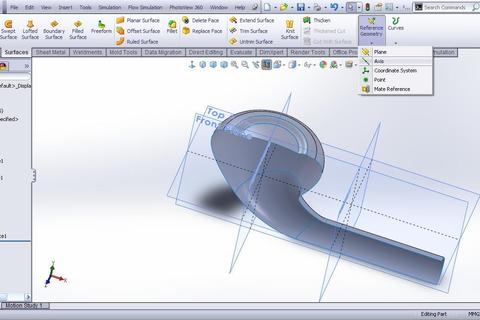

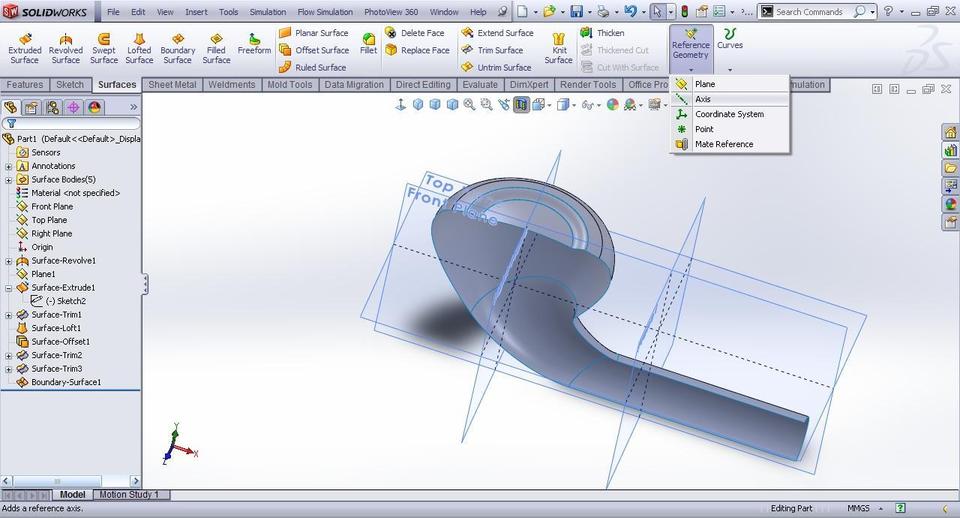

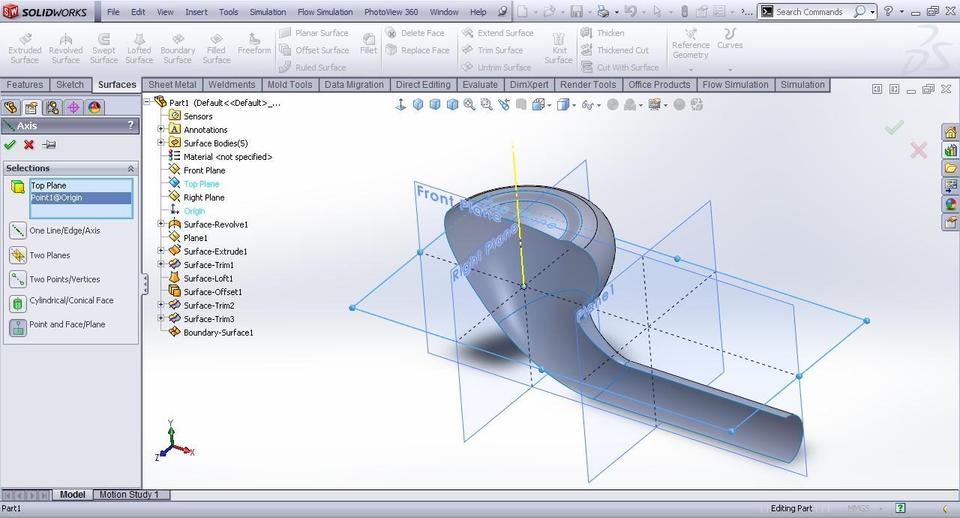

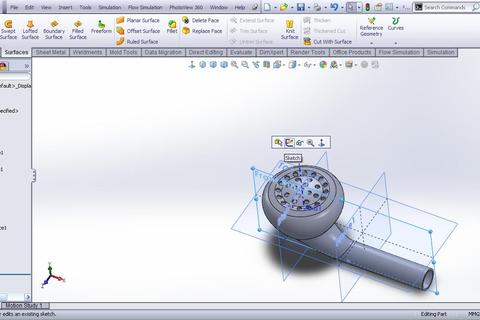

  Now under surfaces or feature tab select reference geometry and then axis.
35. Step 35

  Select top plane and origin. This will create an axis perpendicular to top plane and passing through origin.
36. Step 36

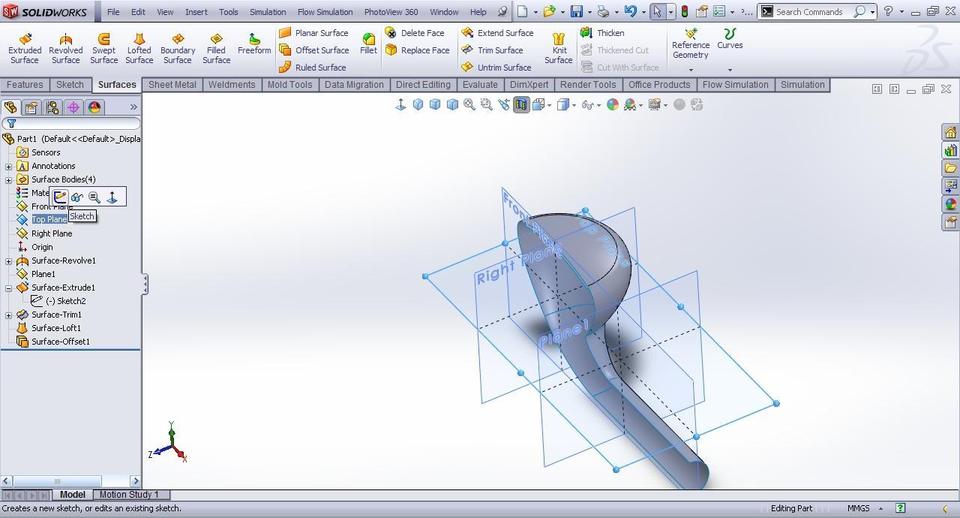

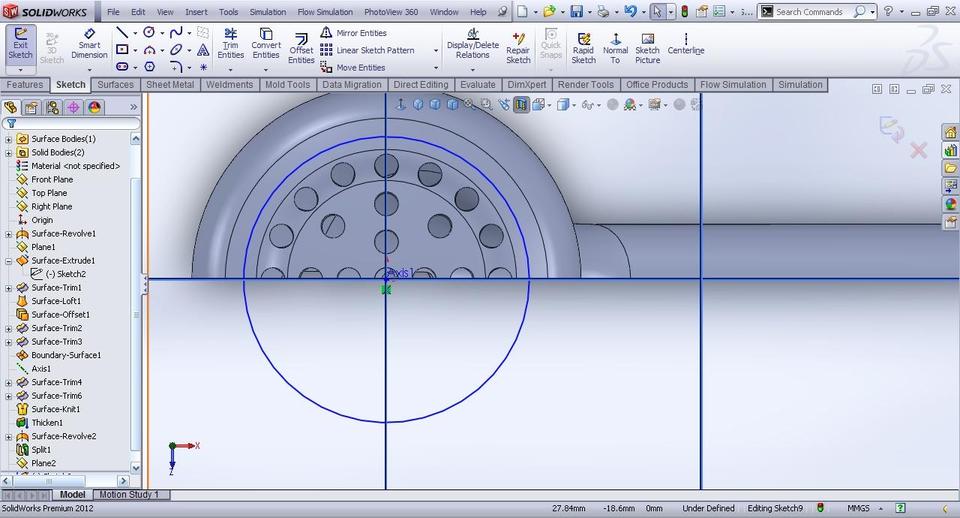

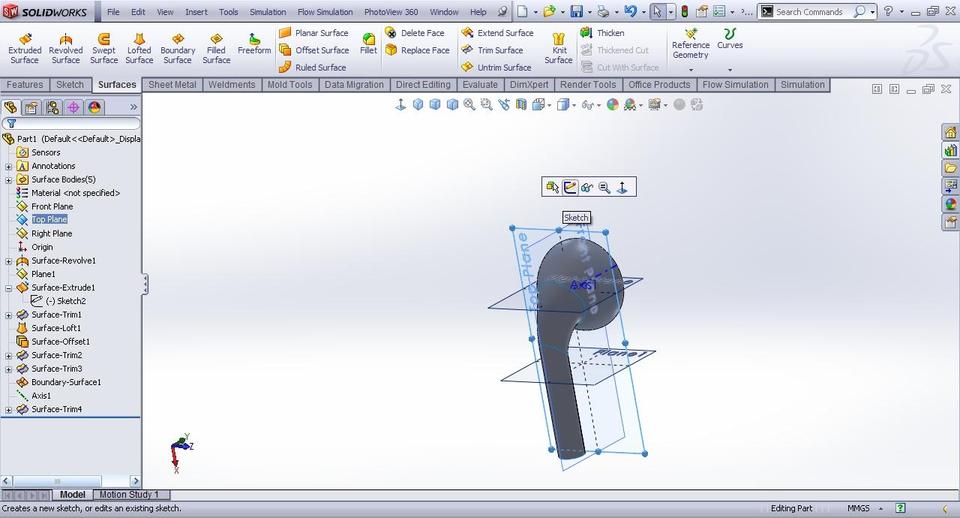

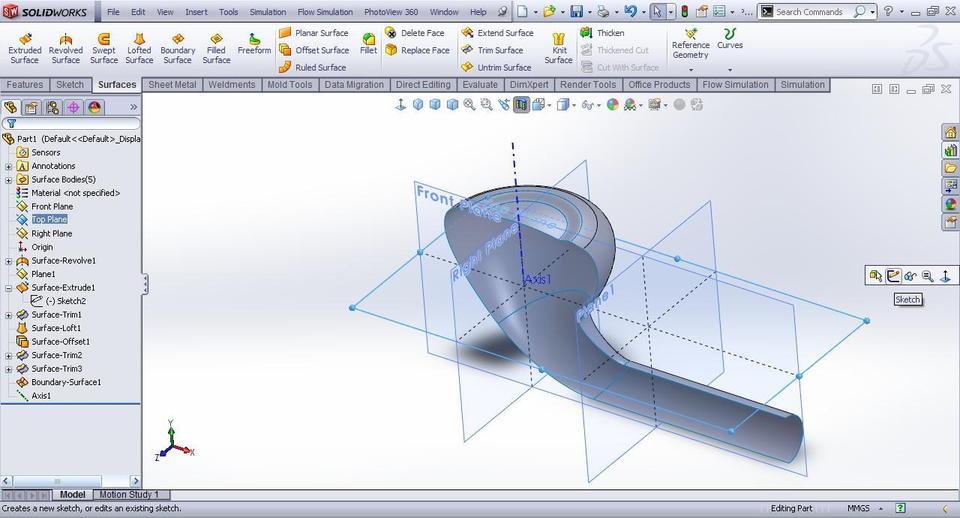

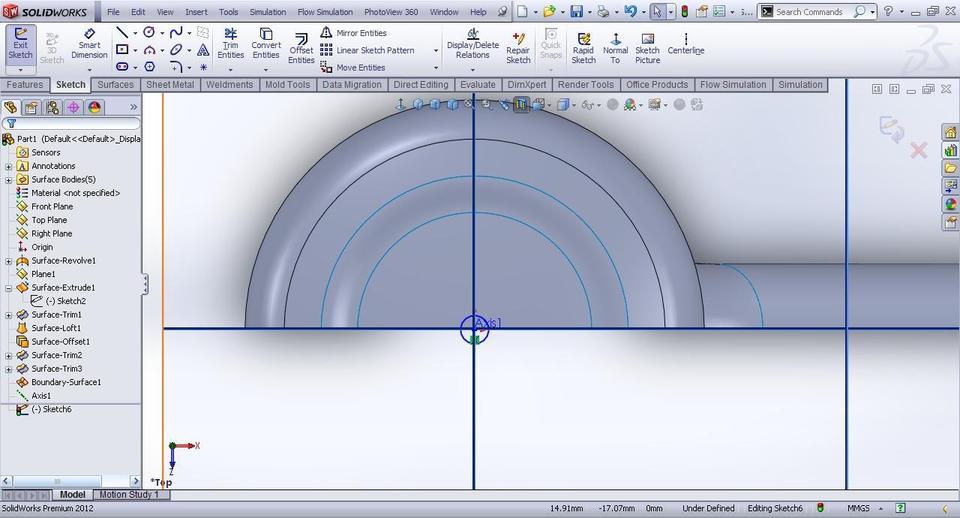

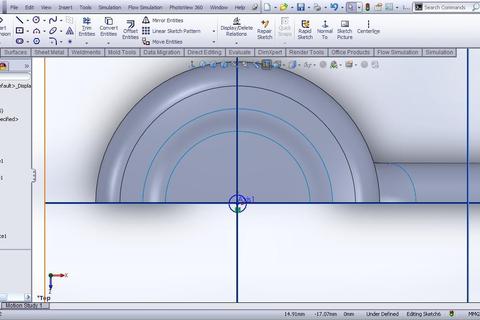

  Now select top plane and then sketch.

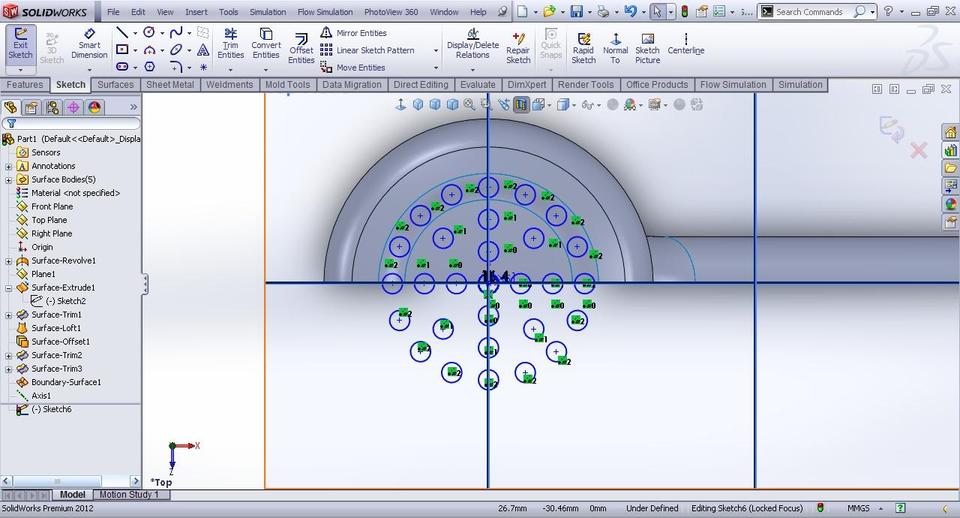

37. Step 37

  Make a circle for hole.
38. Step 38

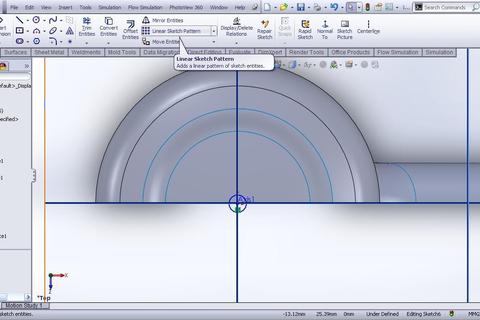

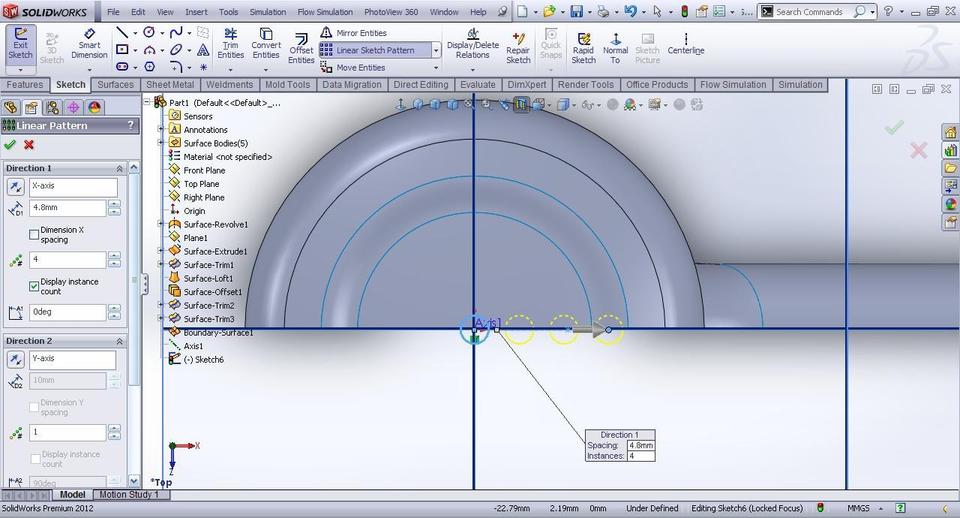

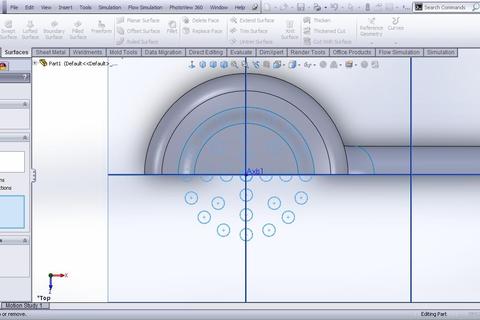

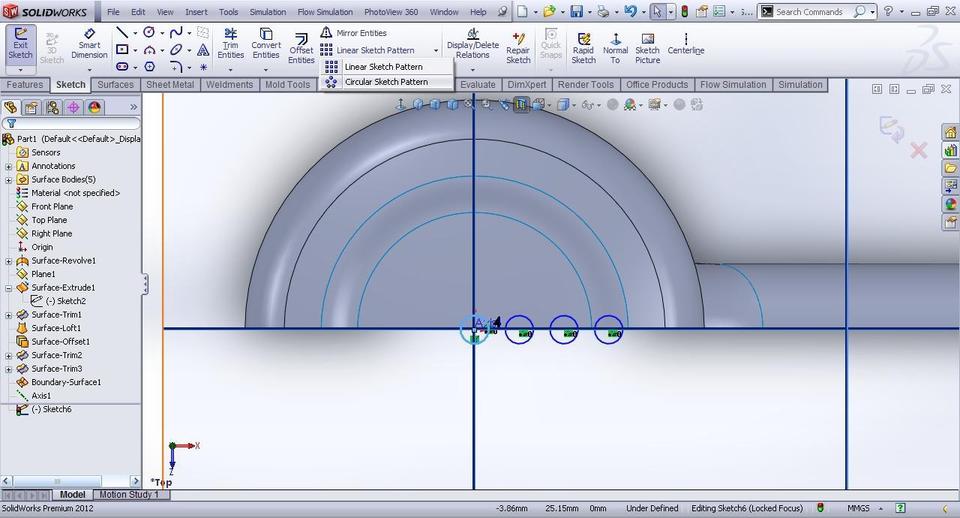

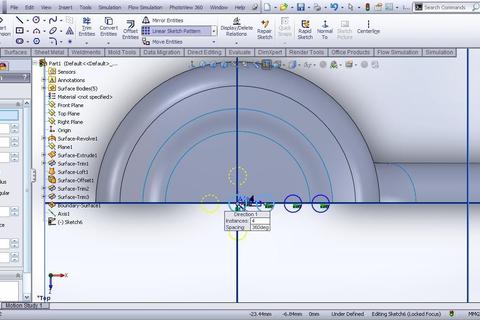

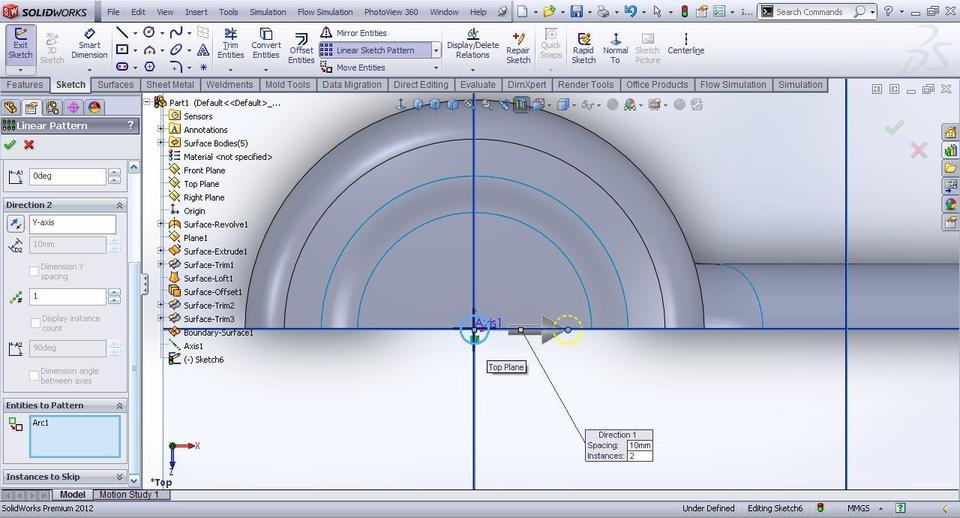

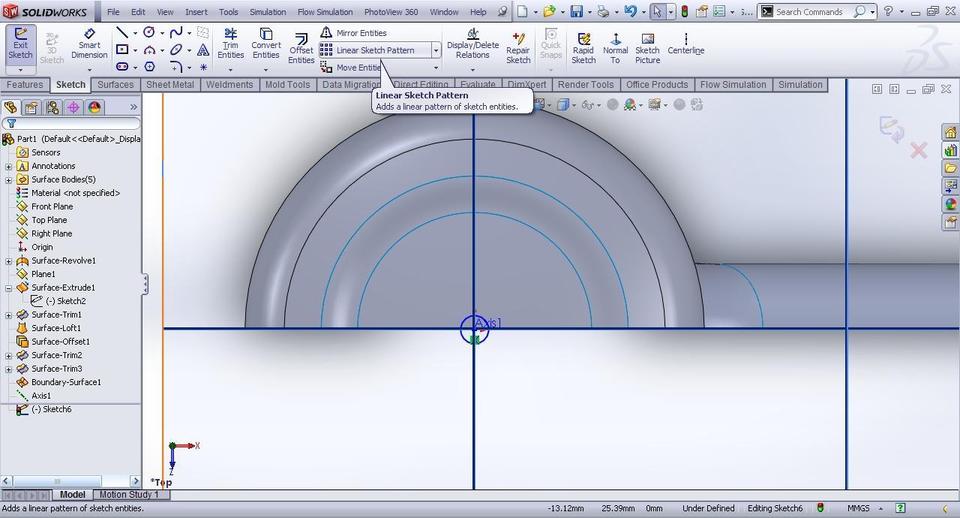

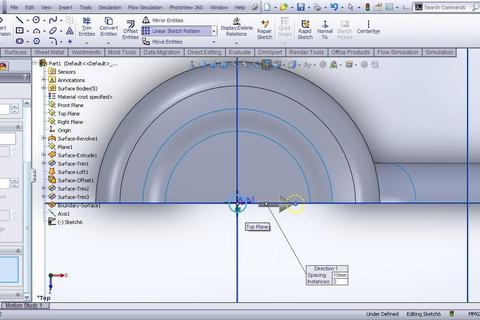

  Now click linear sketch pattern in sketch tab.
39. Step 39

  Select the circle to entity to pattern.
40. Step 40

  Adjust the distance and increase the number of instances.
41. Step 41

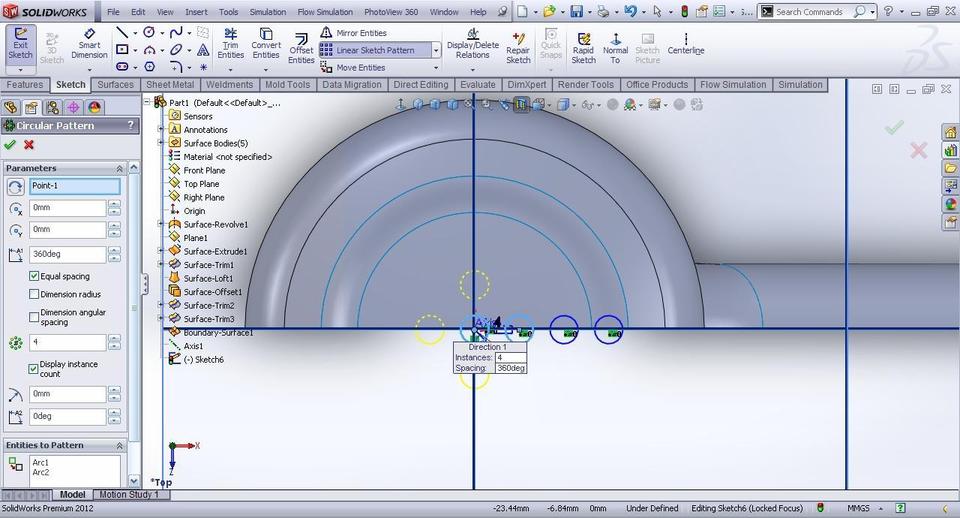

  Now select circular sketch pattern.
42. Step 42

  Now select the 2nd circle to pattern.
43. Step 43

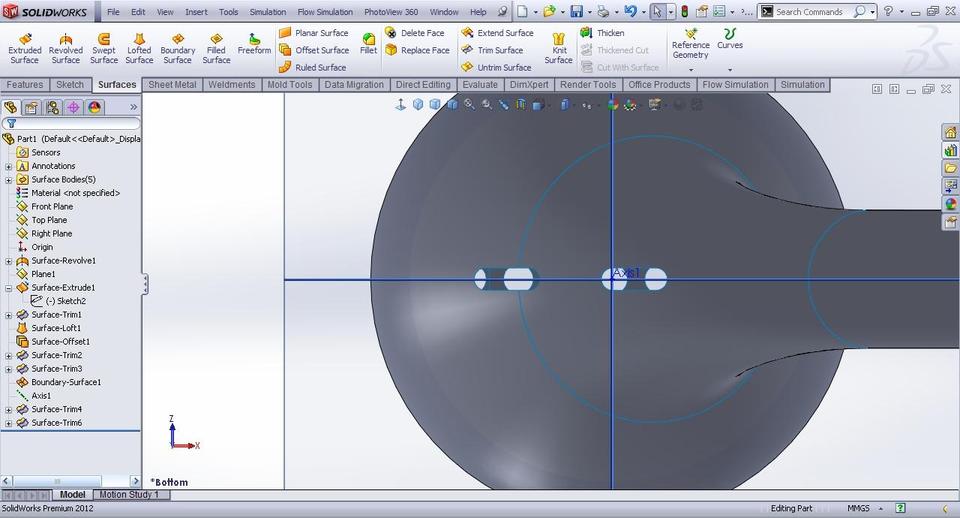

  Repeat the same step for other circles increasing the number of instances each time.
44. Step 44

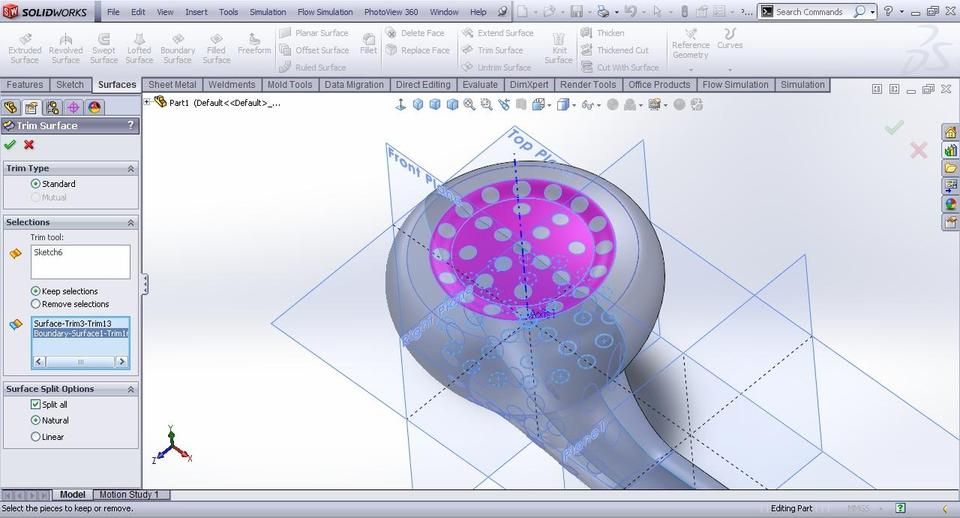

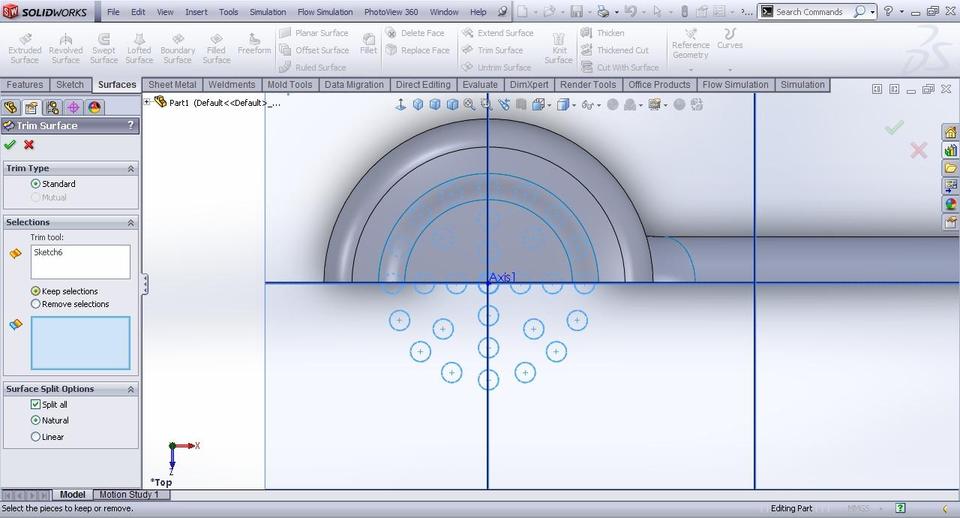

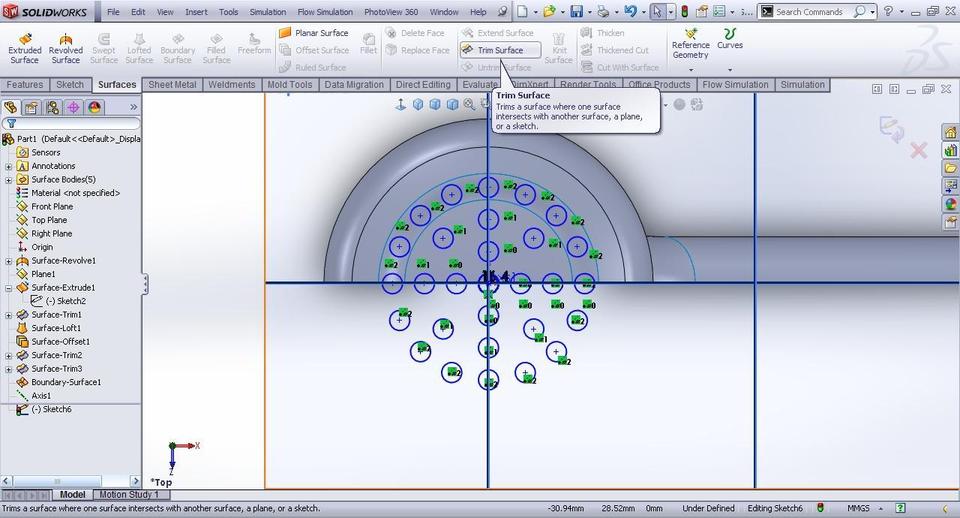

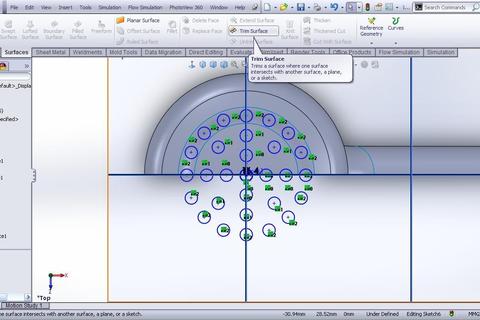

  Under surface tab select trim surface.
45. Step 45

  Now select keep selection.
46. Step 46

  Select the excluded surface of holes.
47. Step 47

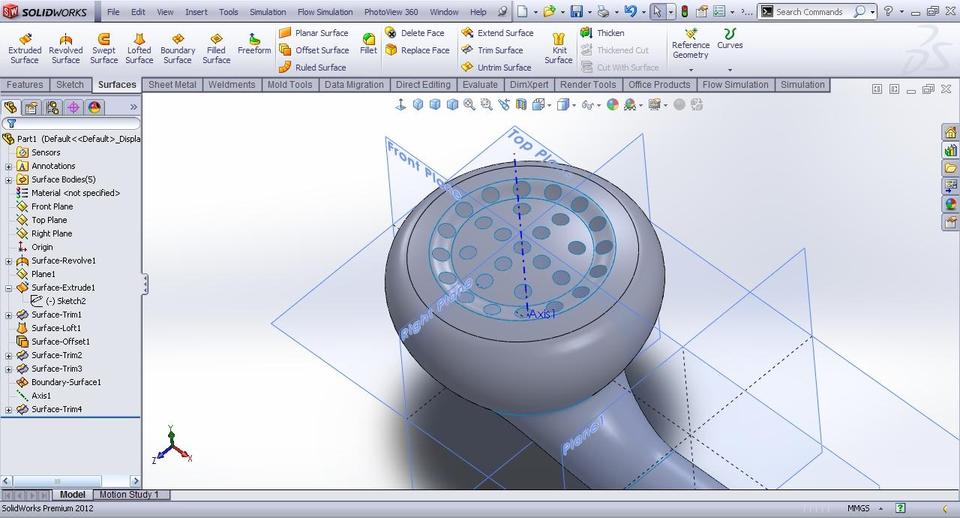

  Click OK and the surface is trimmed.
48. Step 48

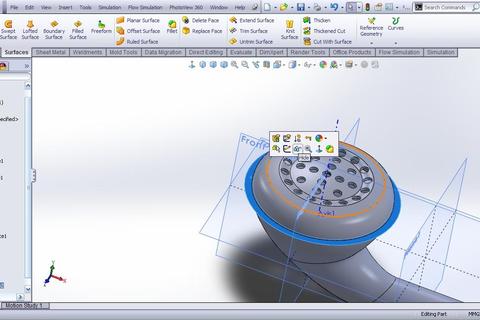

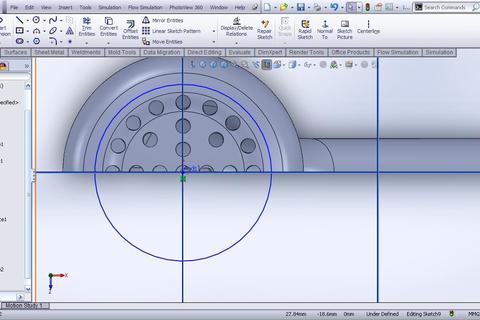

  Now select top plane and then sketch.
49. Step 49

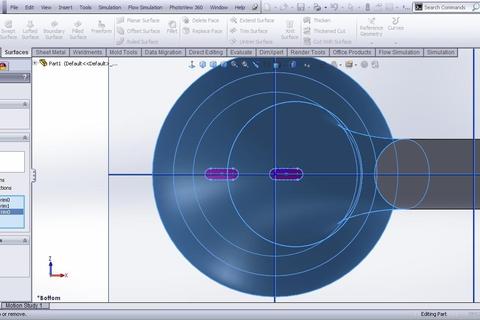

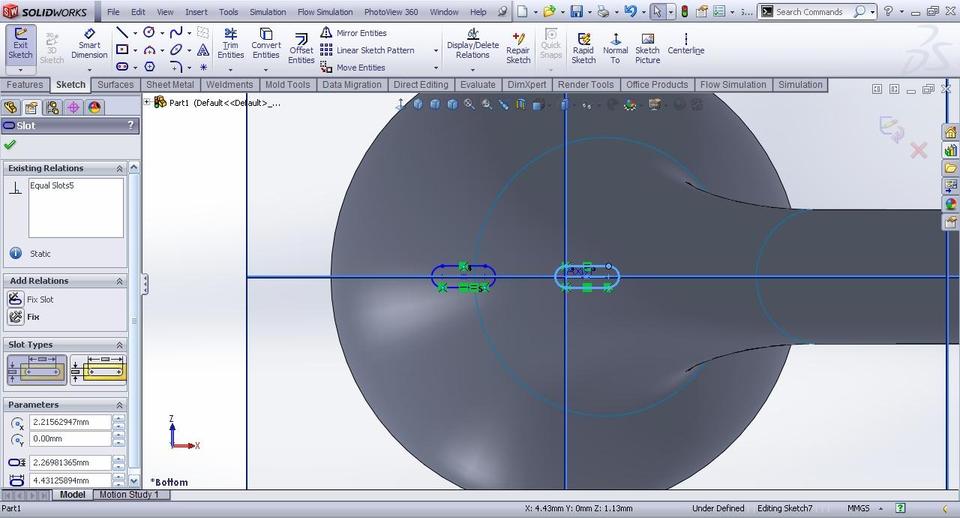

  Use slot tool to make 2 slots.
50. Step 50

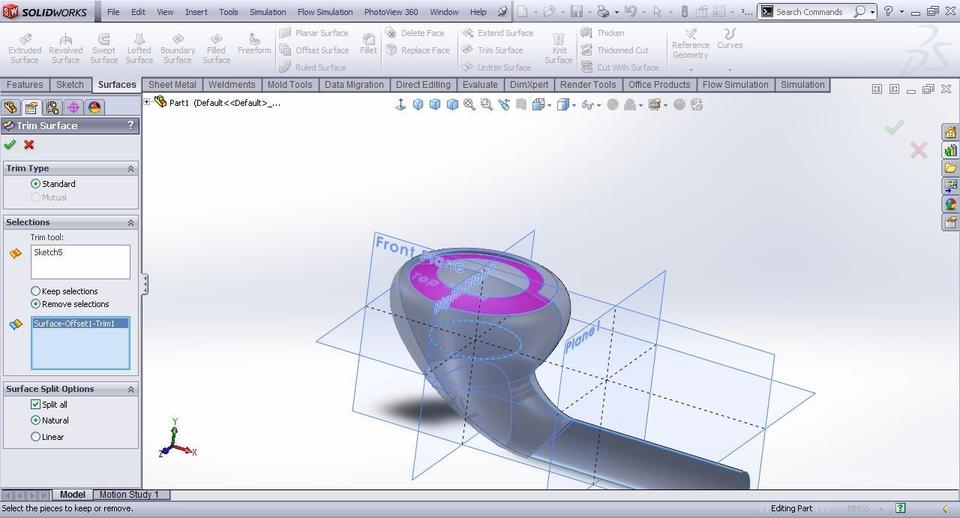

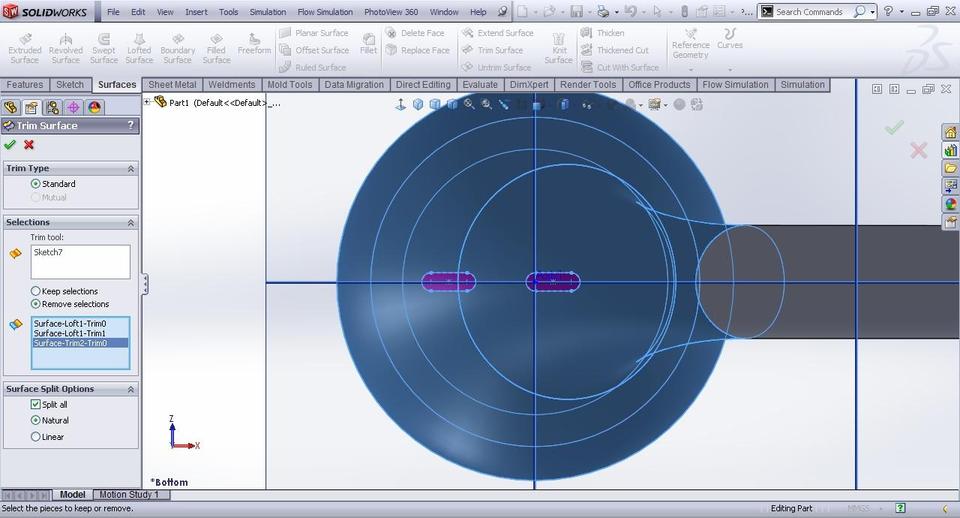

  Now select trim surface in surface tab and select remove selection. Select the surface bounded in slots and click OK.
51. Step 51

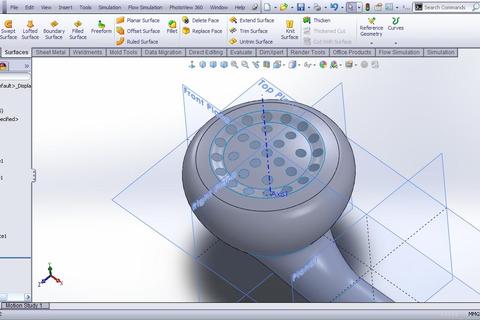

  Now we have the space for the air.
52. Step 52

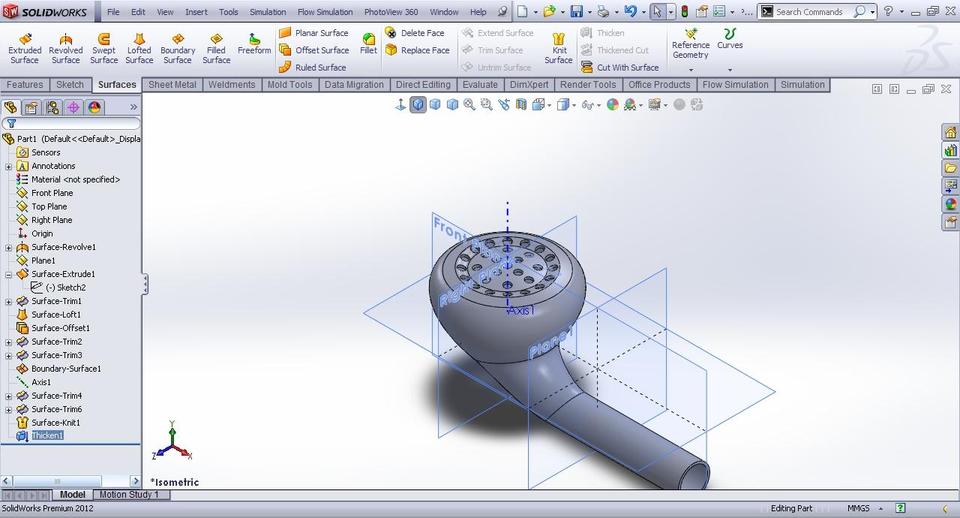

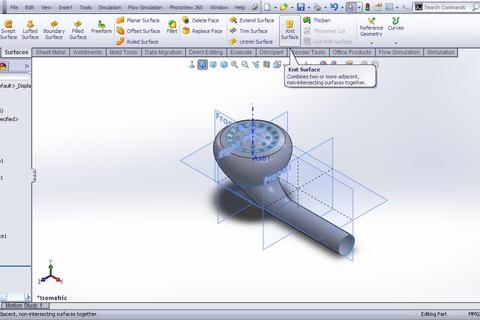

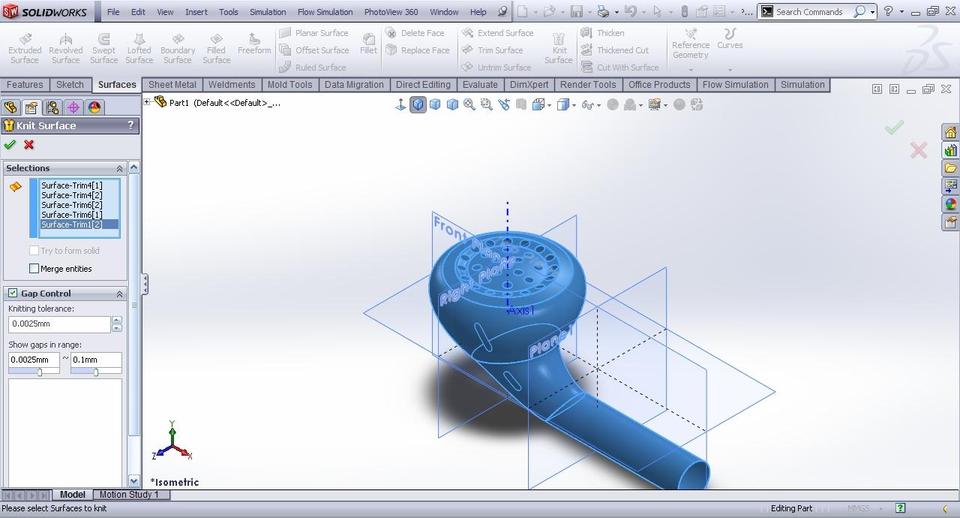

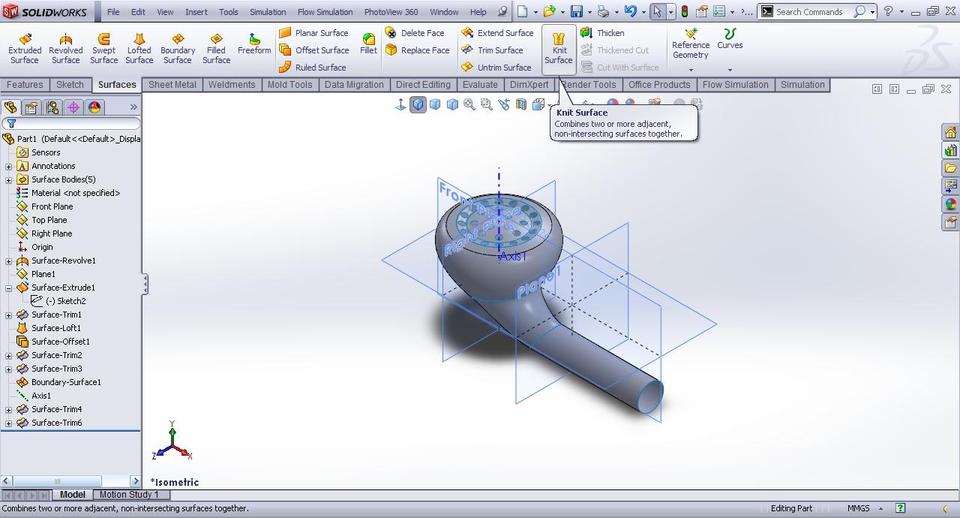

  Select knit surface under surface tab.
53. Step 53

  Select all surfaces one by one and then click OK.
54. Step 54

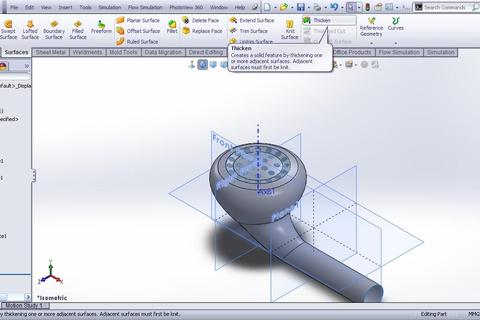

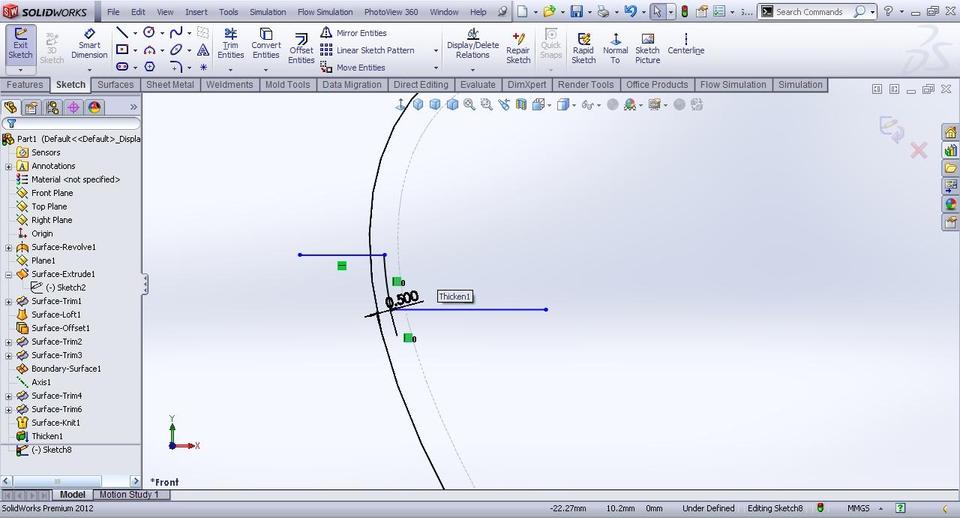

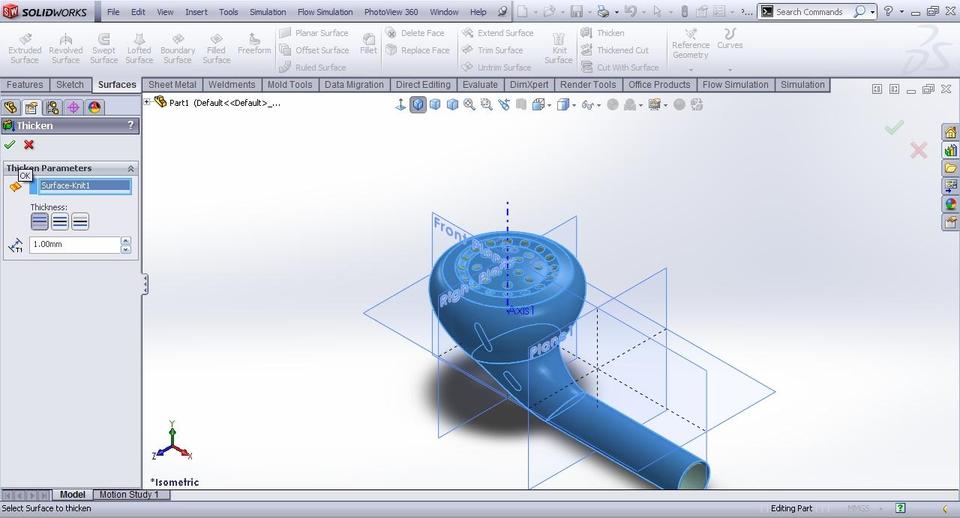

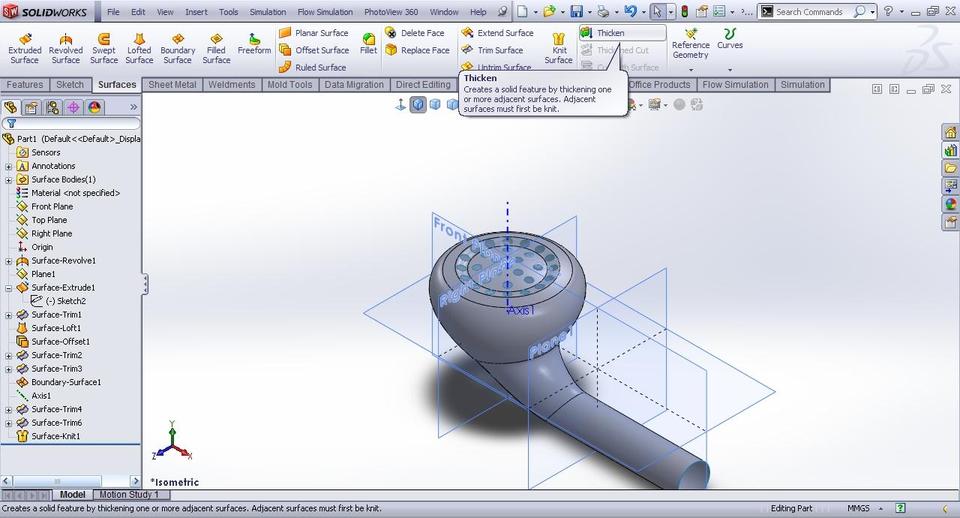

  Under surface tab select thicken.
55. Step 55

  Select the surface. It will select Knit surface feature. Change the thicken distance to 1mm and outside direction. Click OK.
56. Step 56

  Now we have solid body of the earphone. We will now seperate the bodies.
57. Step 57

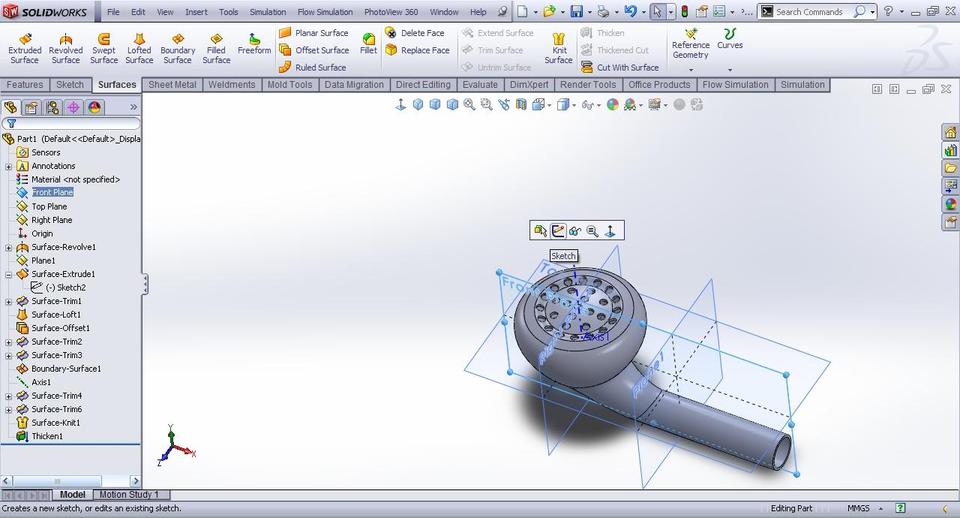

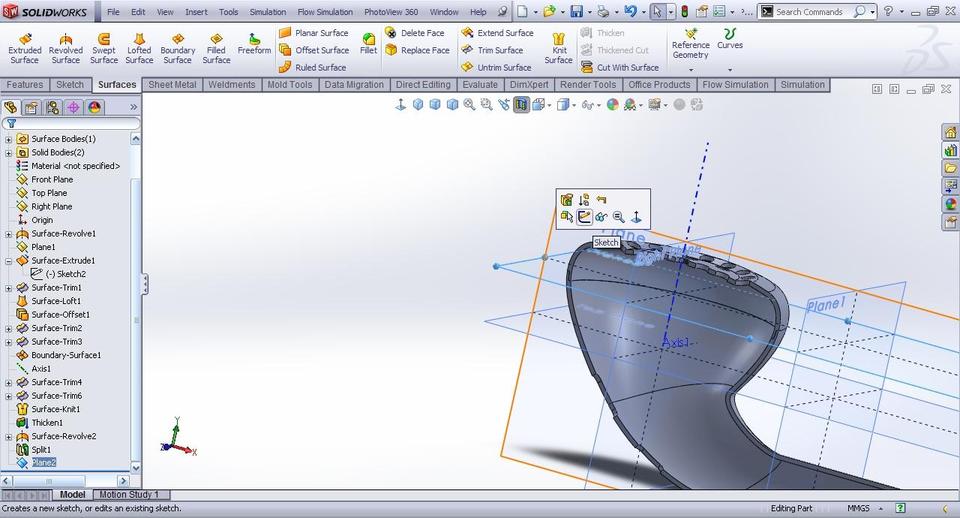

  Select top plane and then sketch.
58. Step 58

  Change view to hidden with shaded line.
59. Step 59

  Offset the edge by 0.50mm and then draw two straight line horizontally. Trim other entities.
60. Step 60

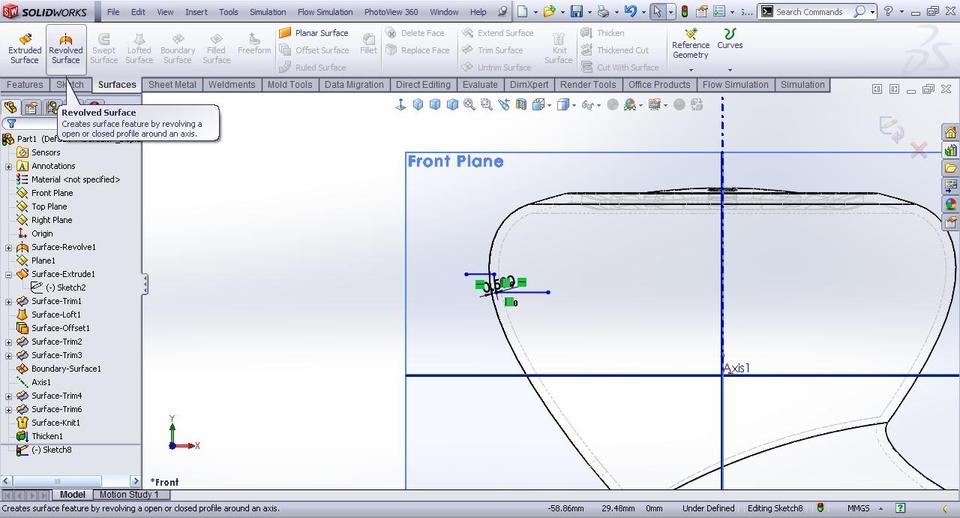

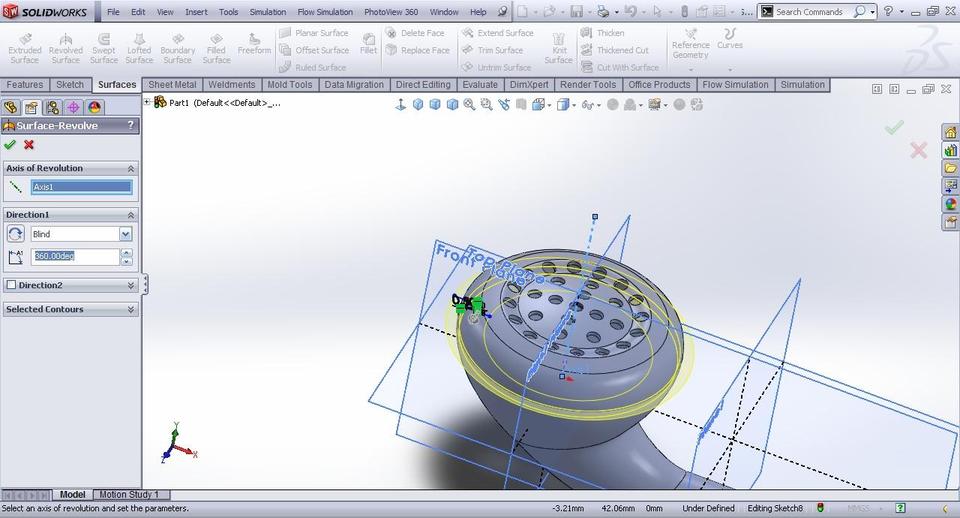

  Select revolved surface in surface tab.
61. Step 61

  Select axis1 and click OK.
62. Step 62

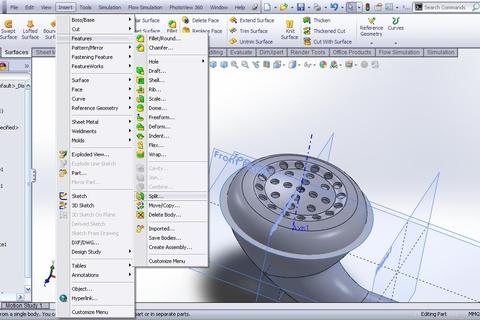

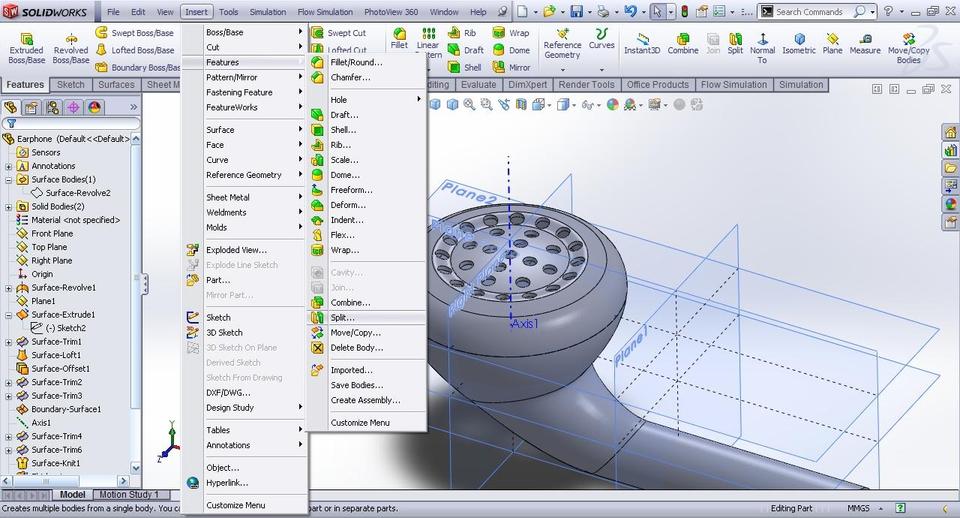

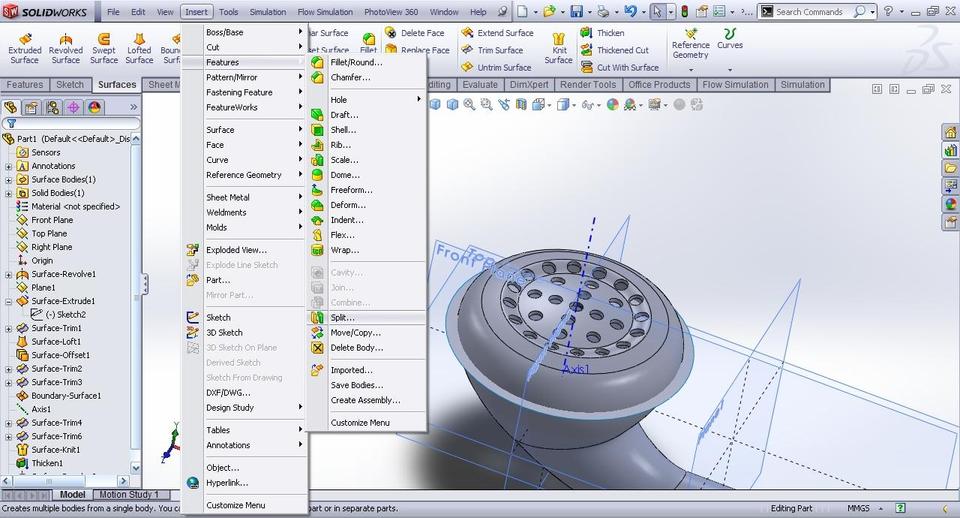

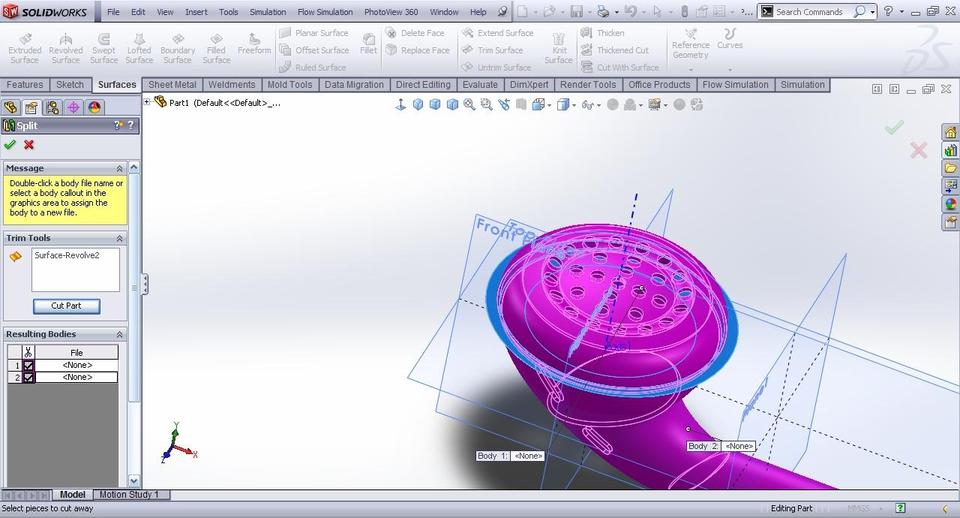

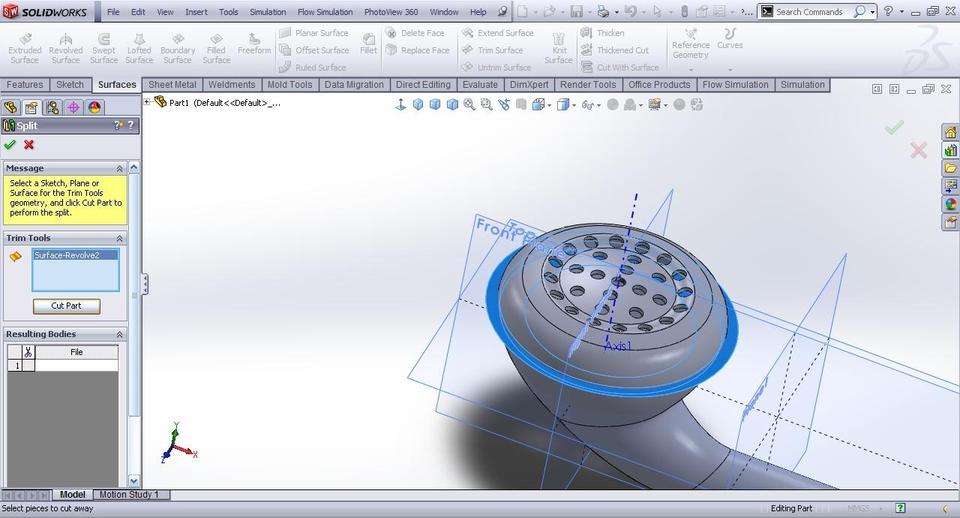

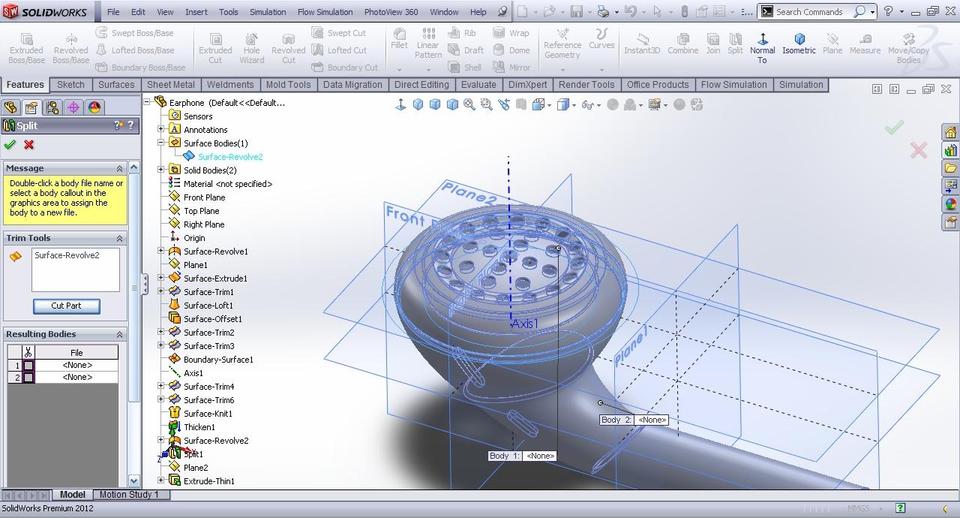

  Go to insert menu then feautres >> split.
63. Step 63

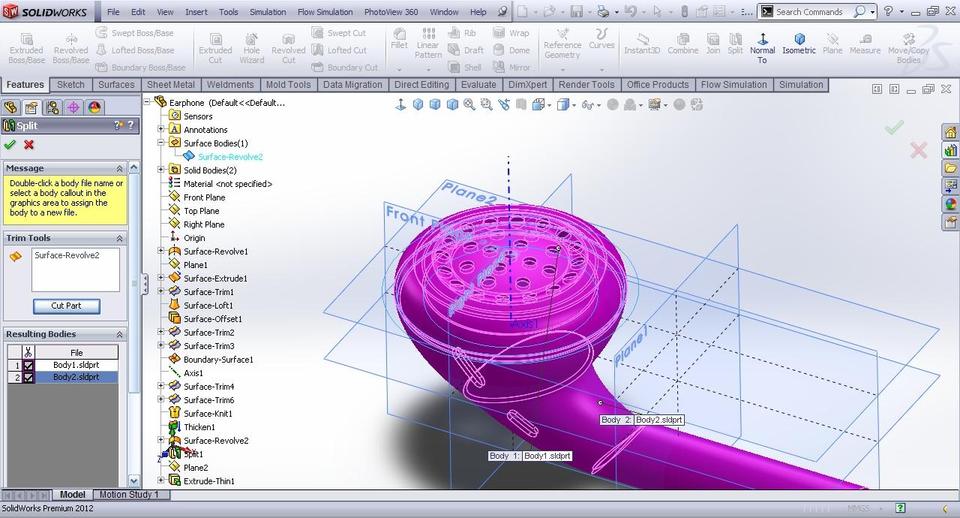

  Select the revolved surface as the trim tool and click cut part.
64. Step 64

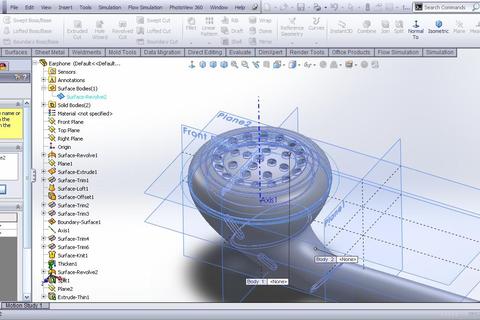

  Now check both the bodies and click OK. This feature will generate two split bodies by the revolved surface.
65. Step 65

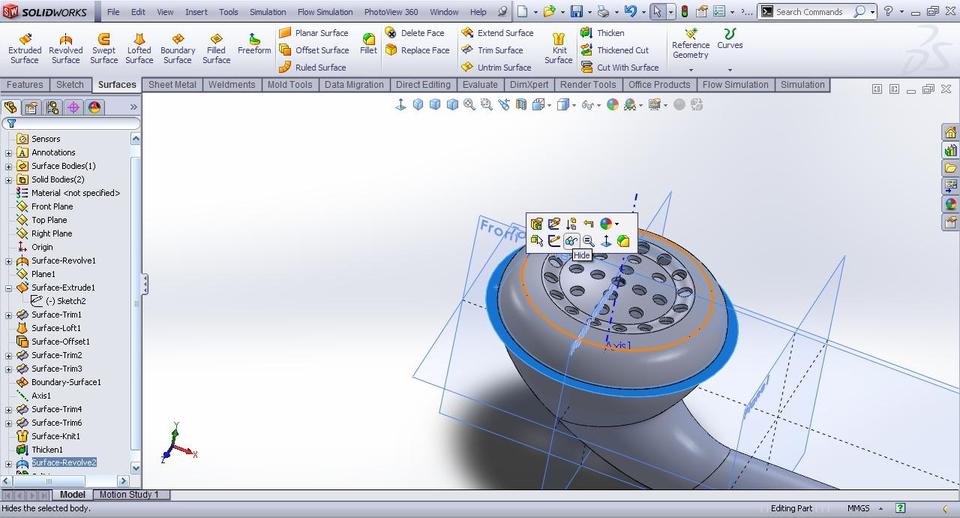

  Now hide the revolved surface.
66. Step 66

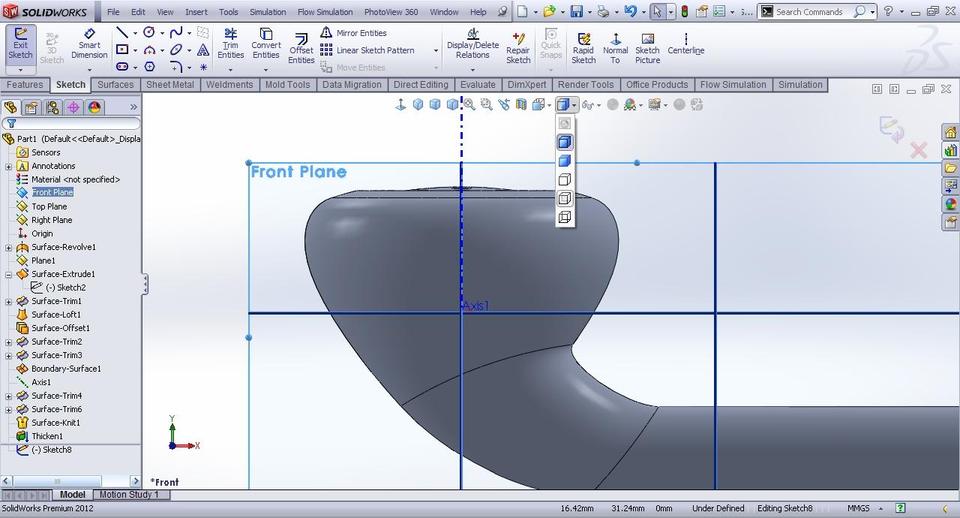

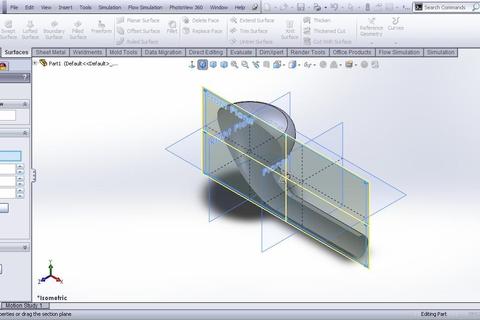

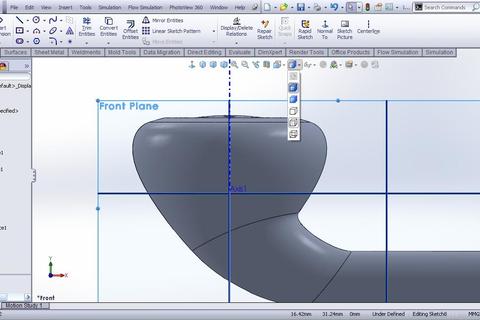

  Again select section view about front plane in standard view toolbar.
67. Step 67

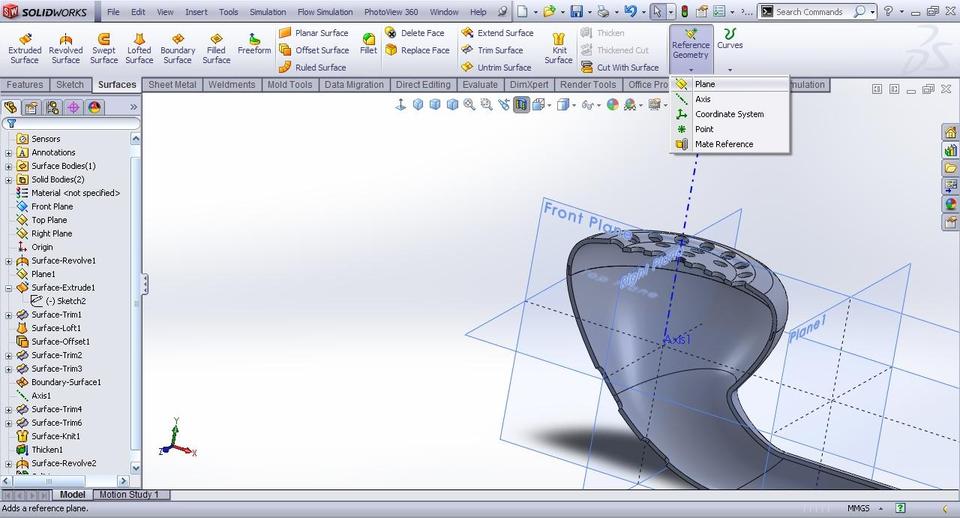

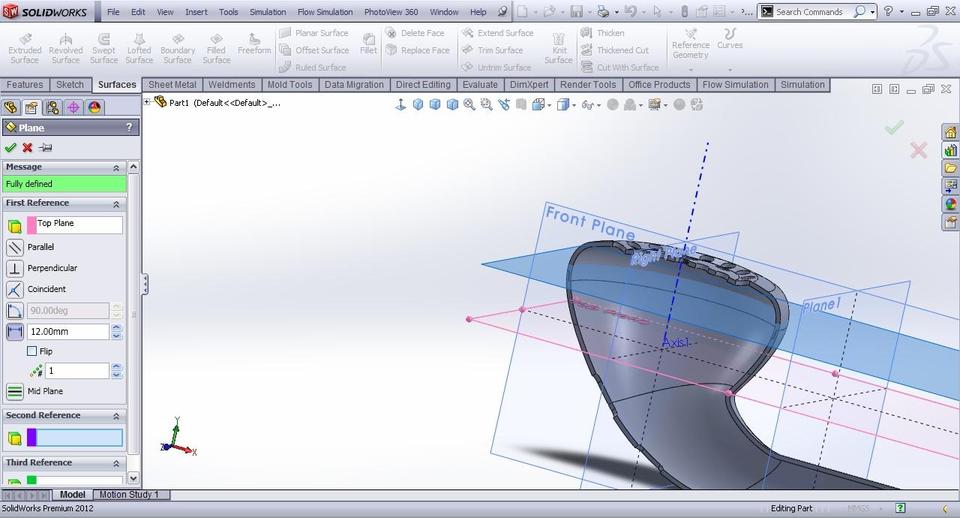

  Select reference geometry and then plane under surface or features tab.
68. Step 68

  Select top plane and then offset it by a distance so that it will lie in the upper body.
69. Step 69

  Select the plane2 and then sketch.
70. Step 70

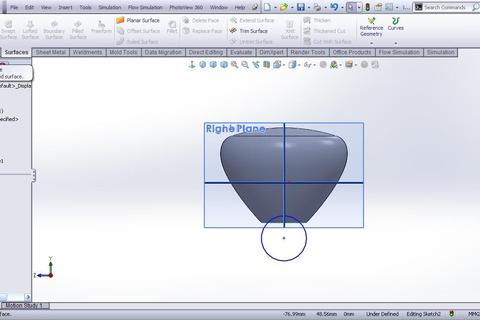

  Draw a circle larger than the region bounded by the holes.
71. Step 71

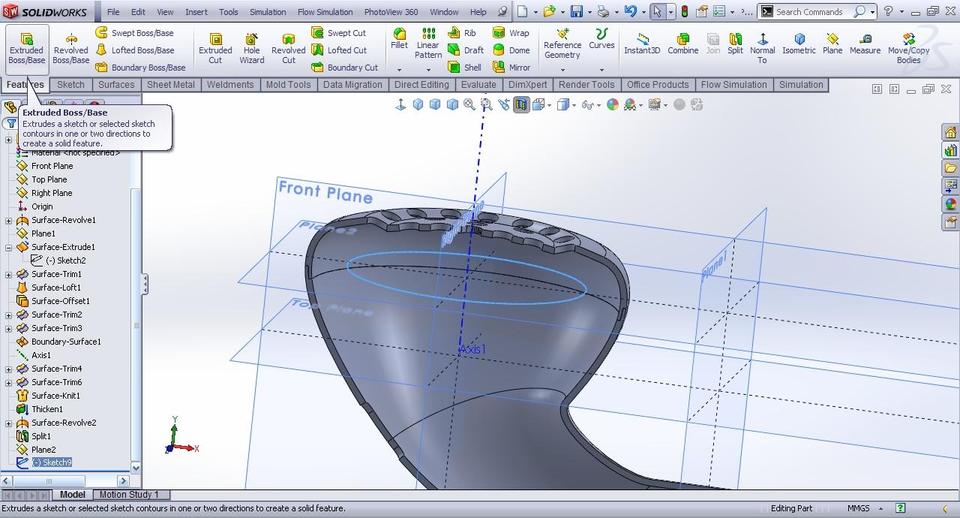

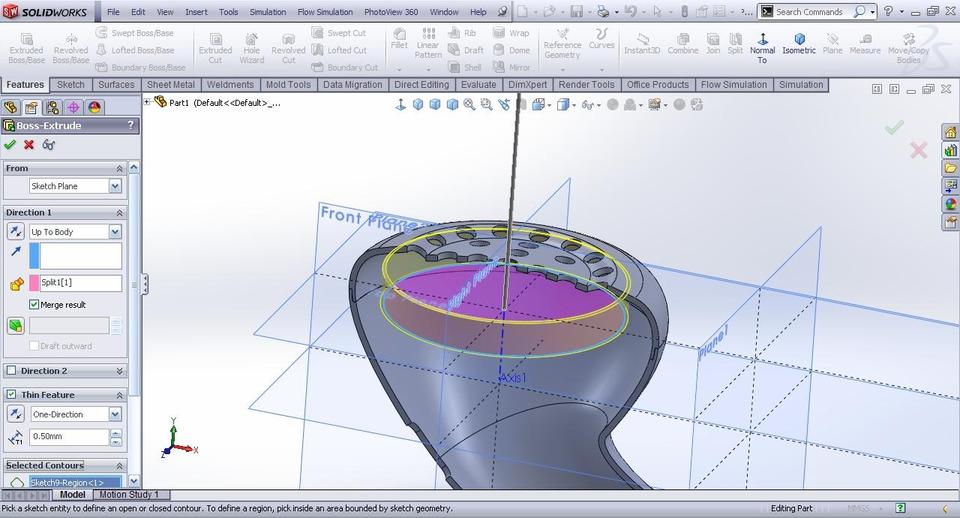

  Under features tab click extruded boss/base feature.
72. Step 72

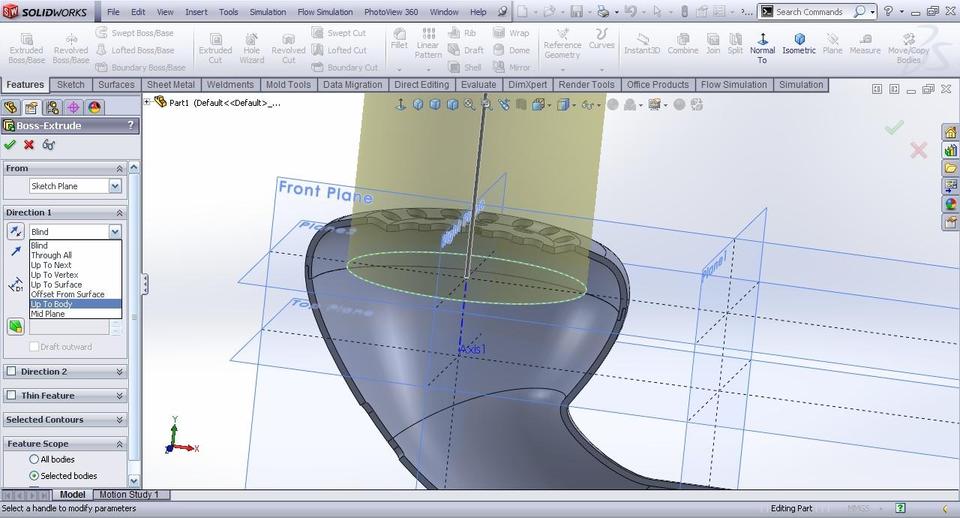

  Under direction1 select up to body.
73. Step 73

  Select the upper body and enable thin feature by a distance of 0.50mm. Click OK.
74. Step 74

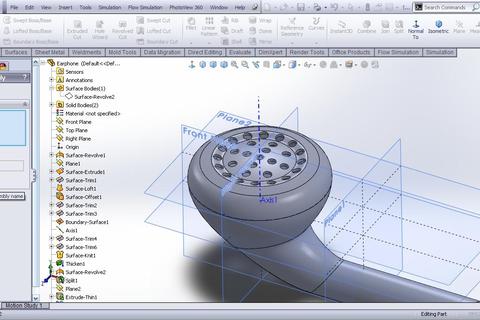

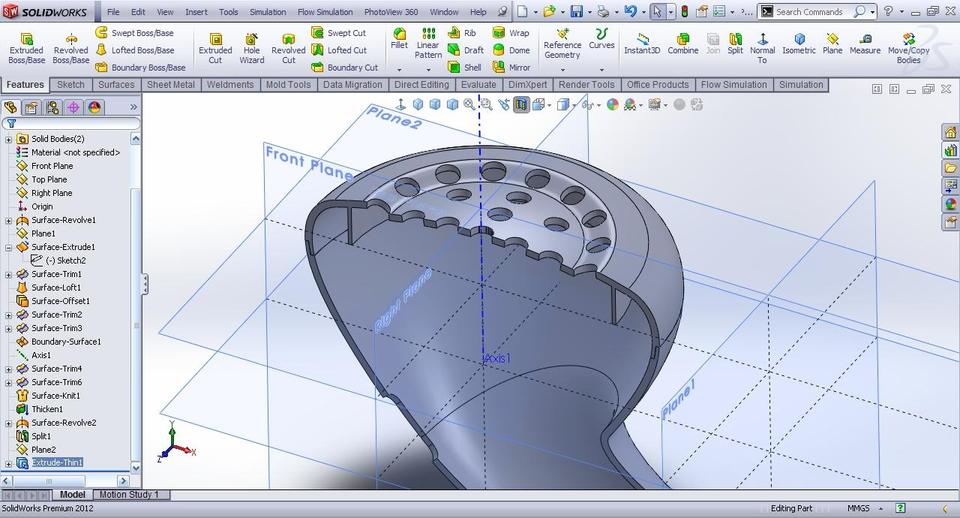

  Now we have the body for the speaker of ear phone.
75. Step 75

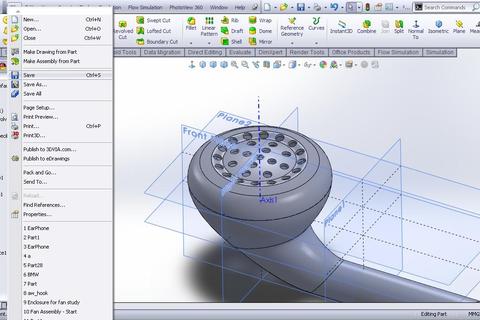

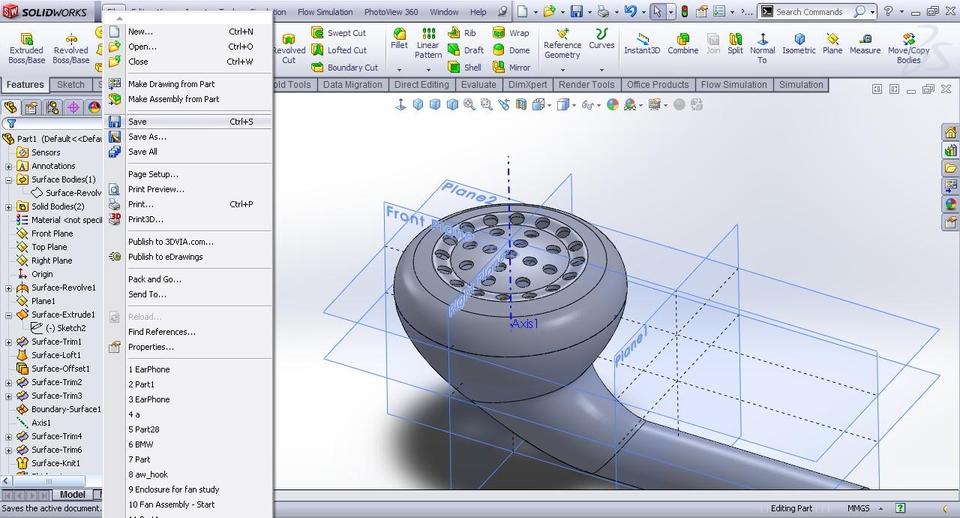

  Now click file save.
76. Step 76

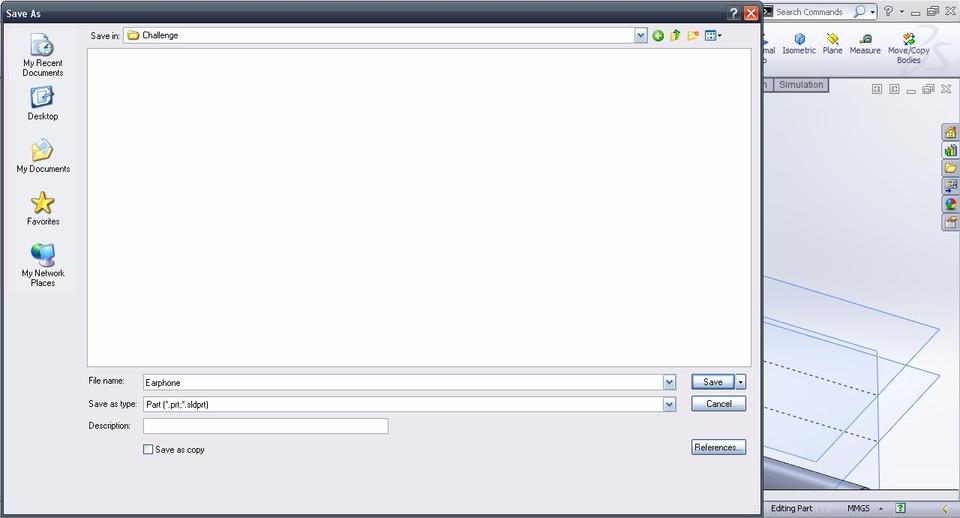

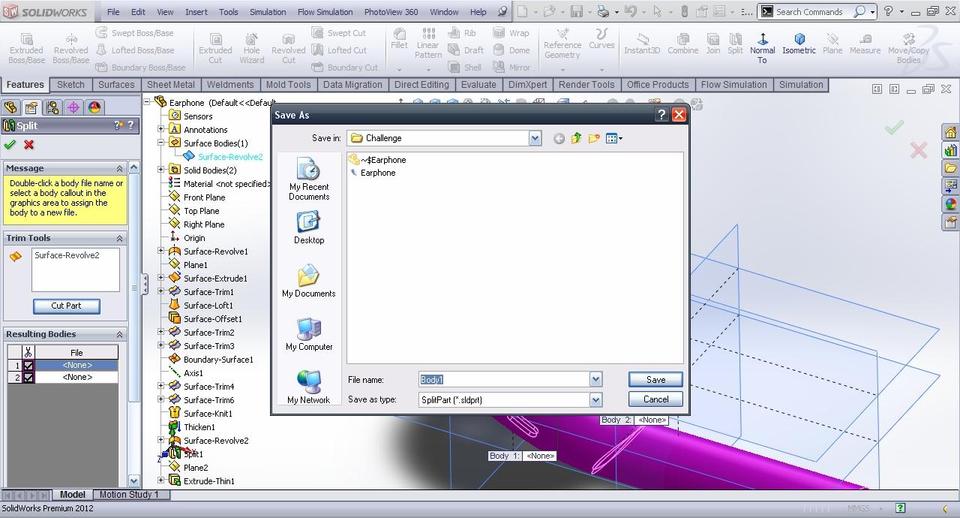

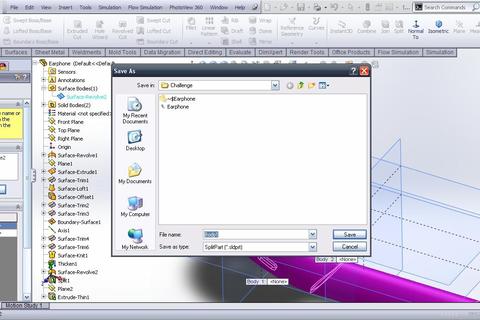

  Enter any file name for the part document. I entered earphone for myself.
77. Step 77

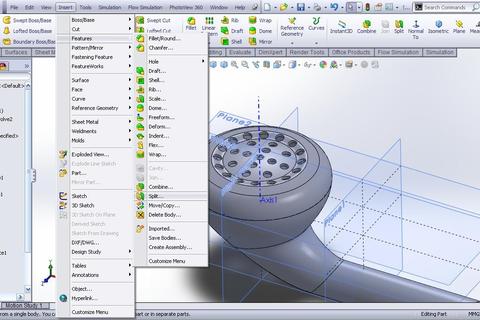

  After saving part click insert>>feature and then split.
78. Step 78

  Again select revolved surface2 from the surface bodies under tree view and click cut part.
79. Step 79

  Double click the cut body1 and save it.
80. Step 80

  Repeat the same step for the other body and click OK.
81. Step 81

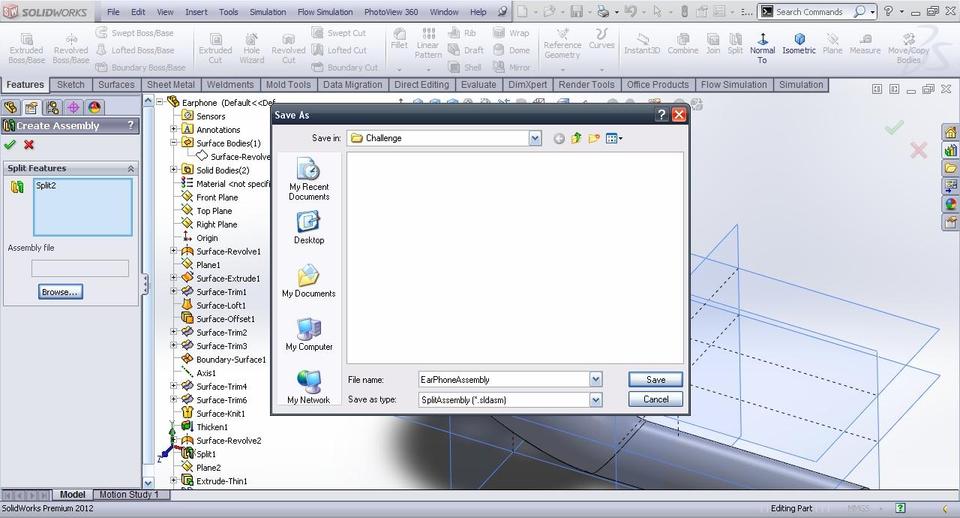

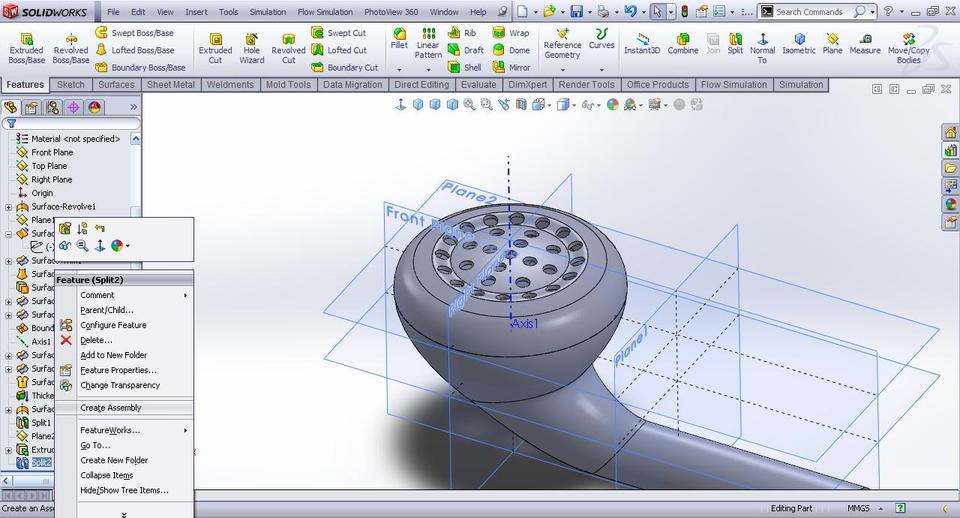

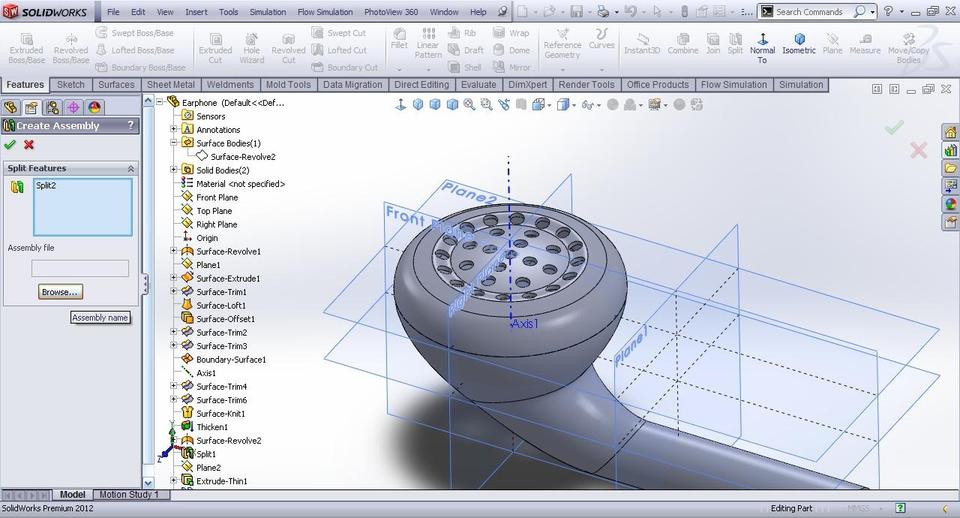

  Now right click the split2 feature and then select create assembly.
82. Step 82

  Click browse.
83. Step 83

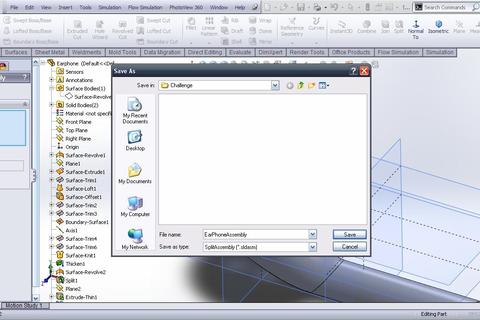

  Now save the assembly file for the splitted part document.
84. Step 84

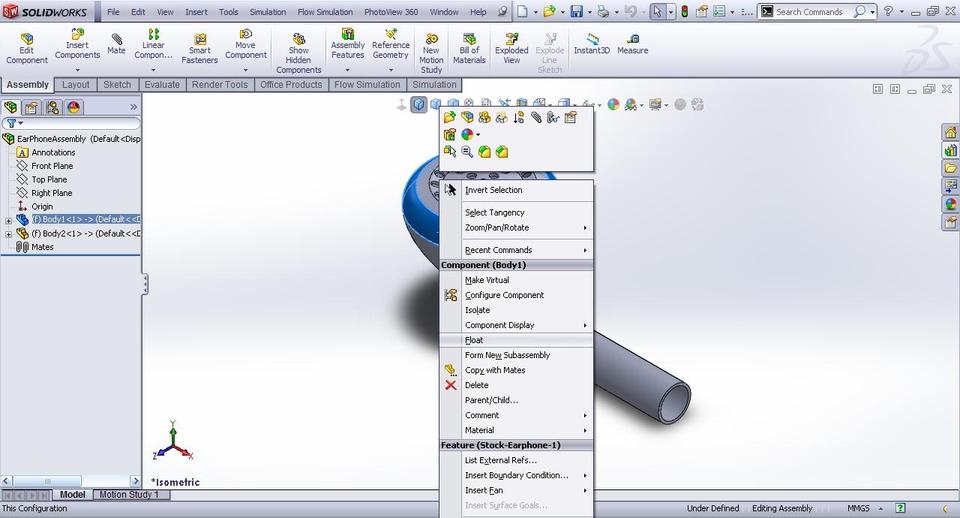

  Now the assembly file will open.
85. Step 85

  Right click the upper body and select float.
86. Step 86

  Move it and then rotate it to have a better view.
87. Step 87

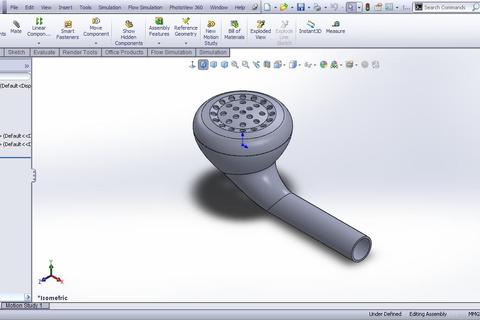

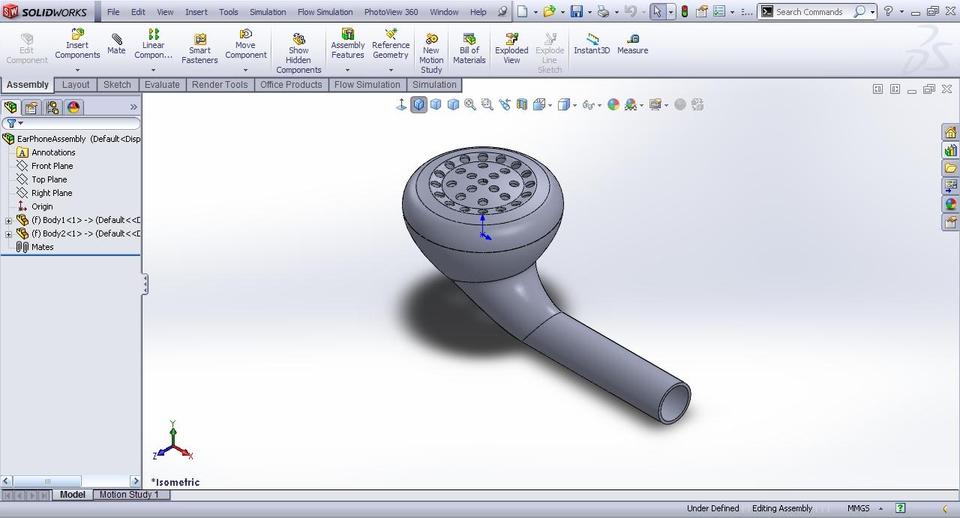

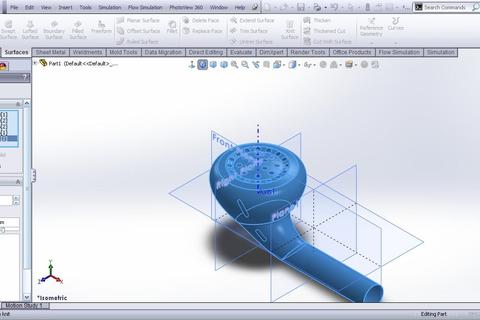

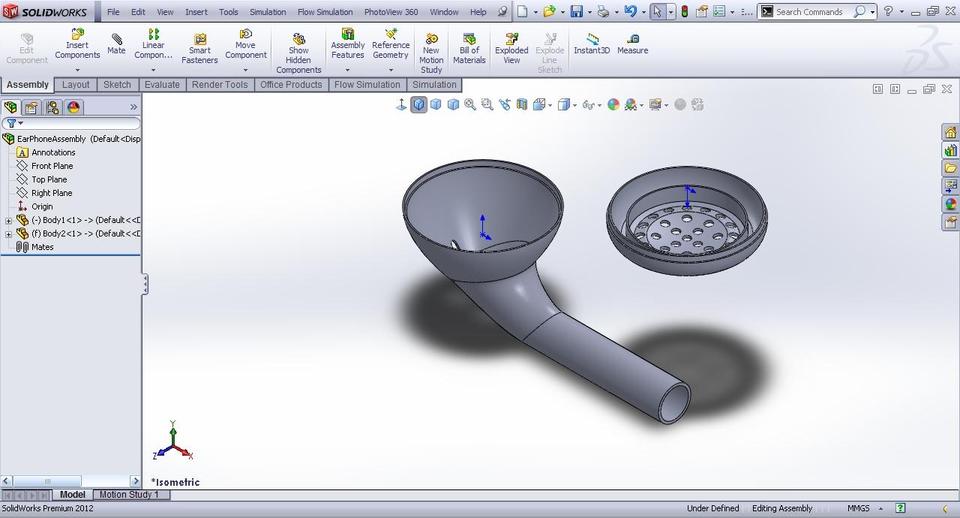

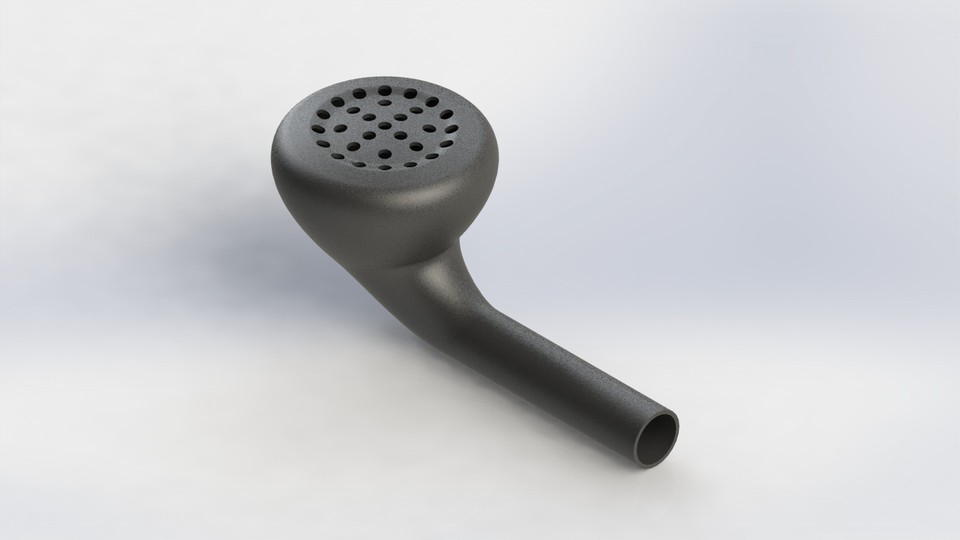

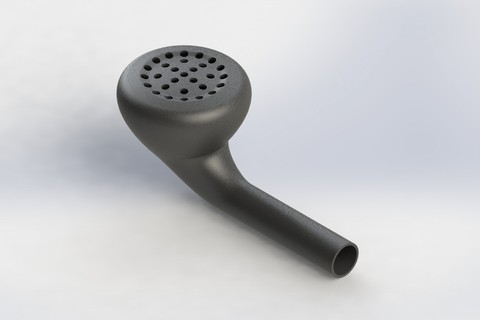

  Here is the rendered image of the earphone. This one is not much better than the last one but you can make one better if done with care.
1. Surajmal over 1 year ago

  What a tutorial ! (Y)
2. shakti singh over 1 year ago

  really helpful....so nice of you gill sir
3. Sudhir Gill over 1 year ago

  thnx
4. rupesh dewangan about 1 year ago

  nice..
5. Sudhir Gill about 1 year ago

  Thanx Rupesh!

Sudhir Gill over 1 year ago
Please Click "it worked" friends :)

Sudhir Gill over 1 year ago
Thanx Everyone!

Sudhir Gill over 1 year ago
Thanx Aykut Dana, Abhijeet & Krishna.
1. deepak over 1 year ago

  really gud one..........

William over 1 year ago
Very good and very well detailed and documented one of the best I have seen yet on GrabCAD
//Handshake for work and effort
:)))))

Surajmal over 1 year ago
Great effort . It is very helpful
1. Sudhir Gill over 1 year ago

  :)

Abhijeet over 1 year ago
really nice one dude!!

deepak over 1 year ago
really gud one............
1. Sudhir Gill over 1 year ago

  Thanx deepak

Aykut Dana over 1 year ago
Great! Very detailed explanation, Thanks :))

krishna over 1 year ago
really cool!

Dev Raut over 1 year ago
Gr8! work. Very nice
1. Sudhir Gill over 1 year ago

  Thanx Sir..

naveen thontepu over 1 year ago
grt tutorial man
hats off
87 steps wow really nice one.
1. Sudhir Gill over 1 year ago

  Thanx Naveen!

Muhammad Bilal Ghaffar over 1 year ago
I found this tutorial very nice and helpful. Thanks for your effort. :-)
1. Sudhir Gill over 1 year ago

  Thanx Bilal.

troy 6 months ago
Very Nice! Winning!!

Cadmaq Yusuf over 1 year ago
Fantastic Tutorial Mate. Best Regards. :-)
1. Sudhir Gill over 1 year ago

  Thank you Yusuf.

frei about 1 year ago
Good tutorial. It worked!
1. Sudhir Gill about 1 year ago

  Thanx Frei

Sumit Balhara about 1 year ago
This is Good Sudhir. Too bad I don't use SolidWorks.
