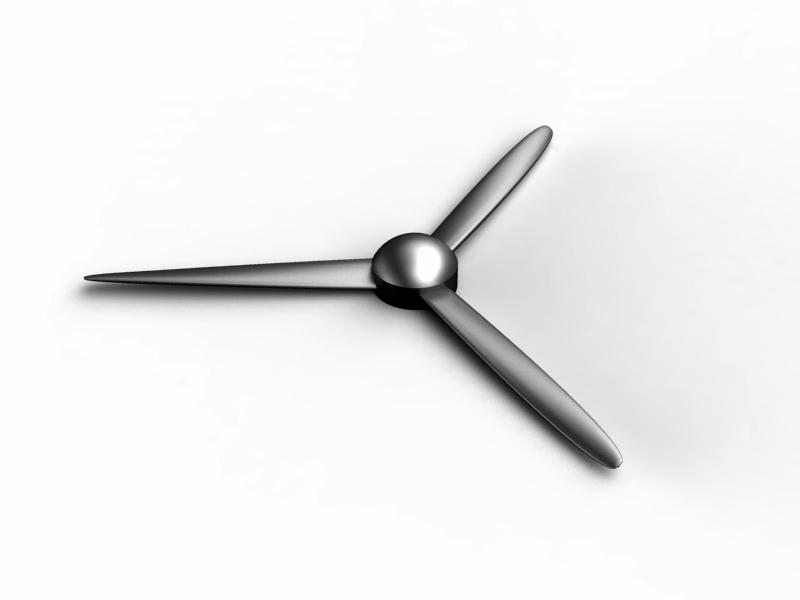

  1. Step 1

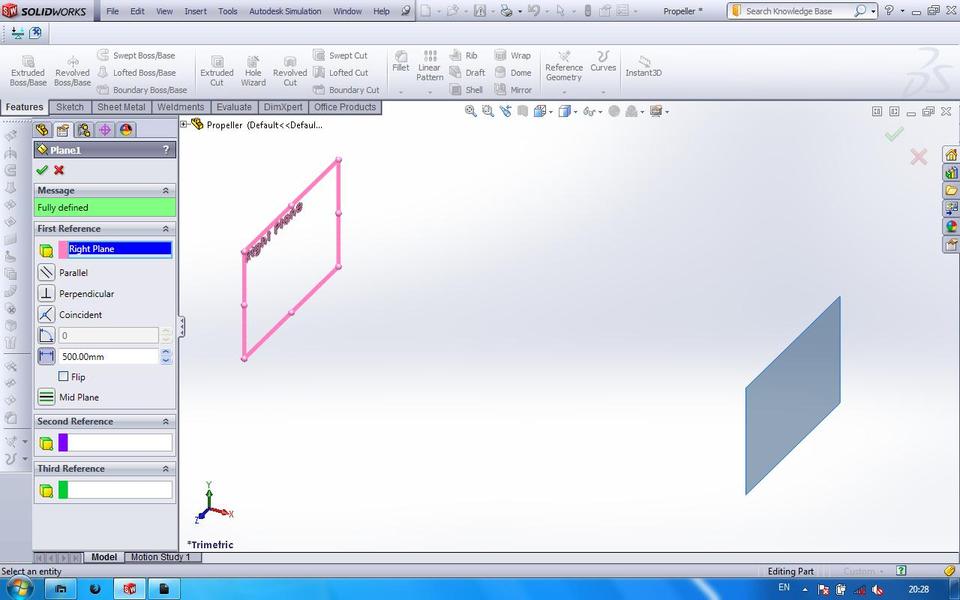

     Create new plane (plane1), choose right plane as first reference and offset=500mm



  2. Step 2

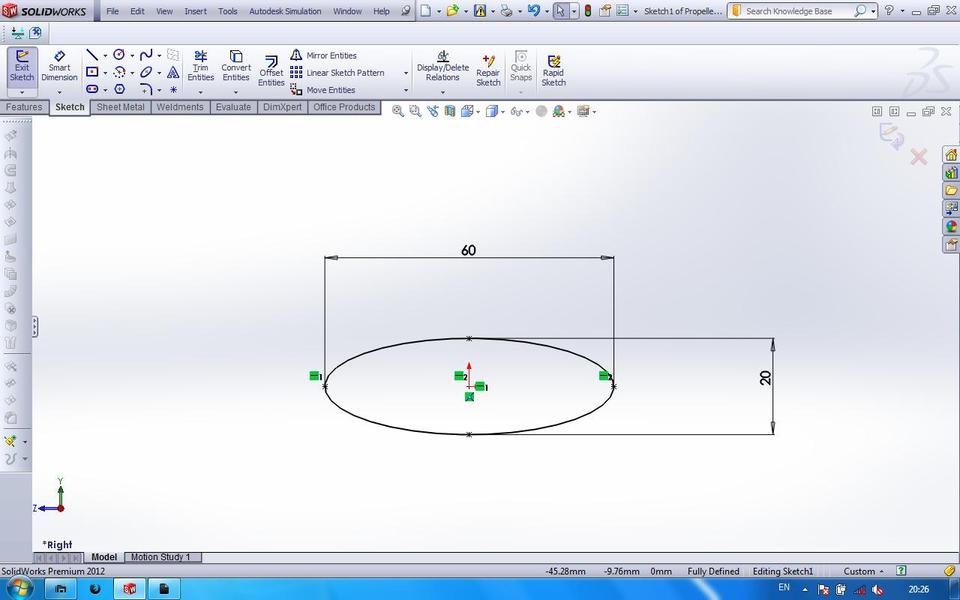

     Sketch a elips with width=60mm and height=20mm on right plane like picture below (sketch1)



  3. Step 3

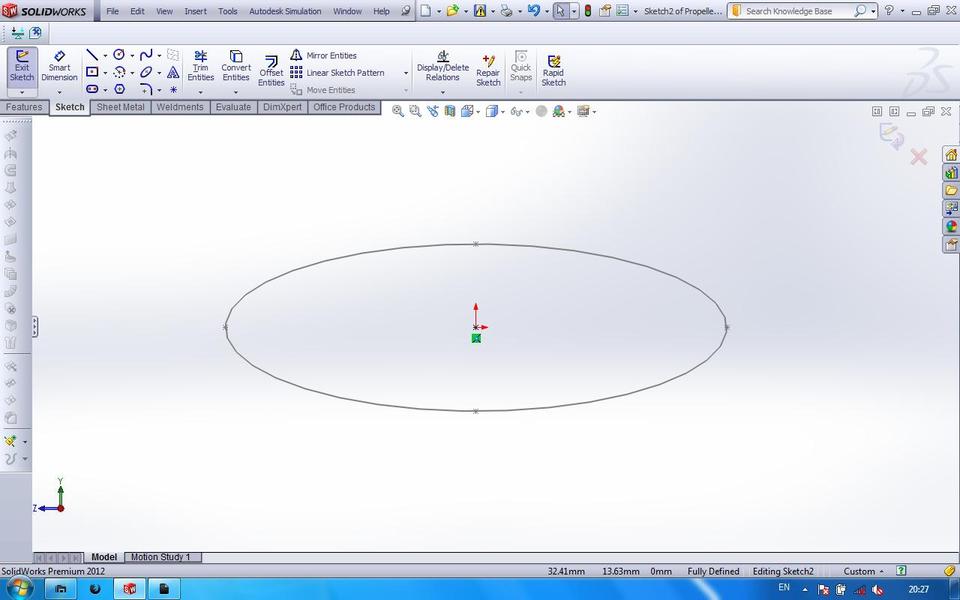

     Sketch a point on plane1, and make this coincident with the origin point (sketch2)



  4. Step 4

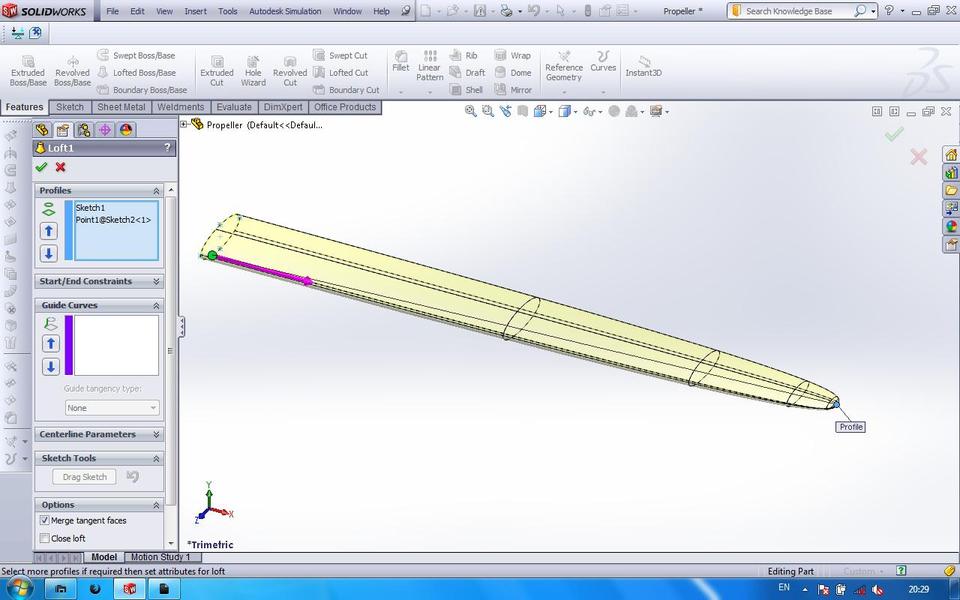

     Create loft from sketch1 and skect2 (Loft1)



  5. Step 5

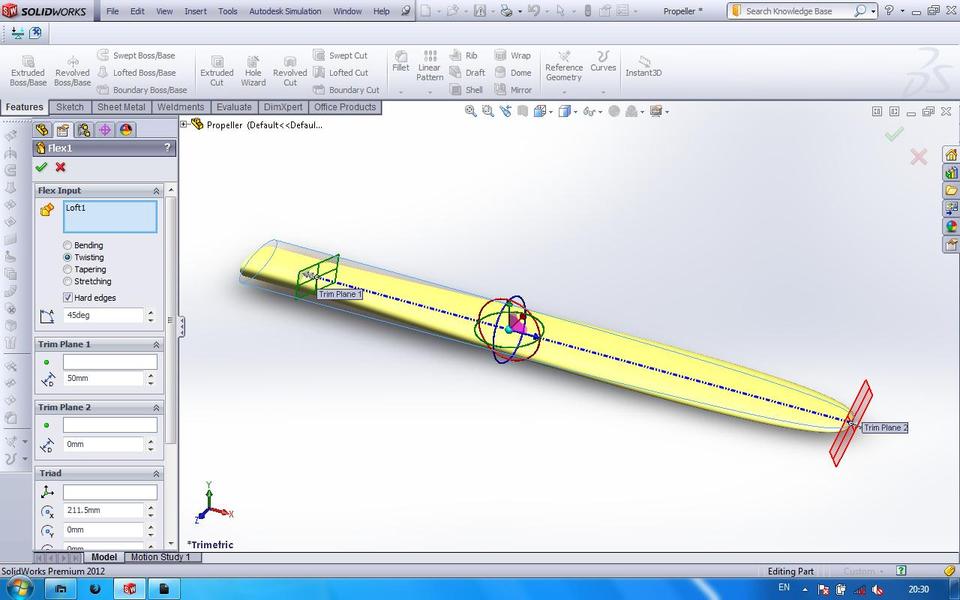

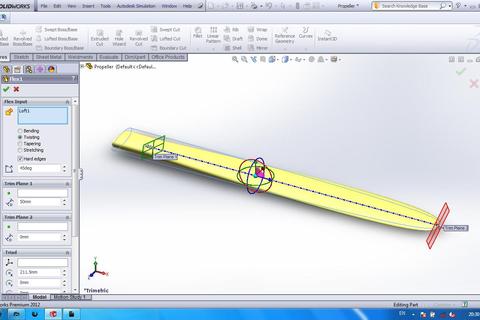

     Create flex from loft 1 (Flex1), choose twisting, checklist hard edge, angle=45 degrees, and trim plane1 distance=50mm



  6. Step 6

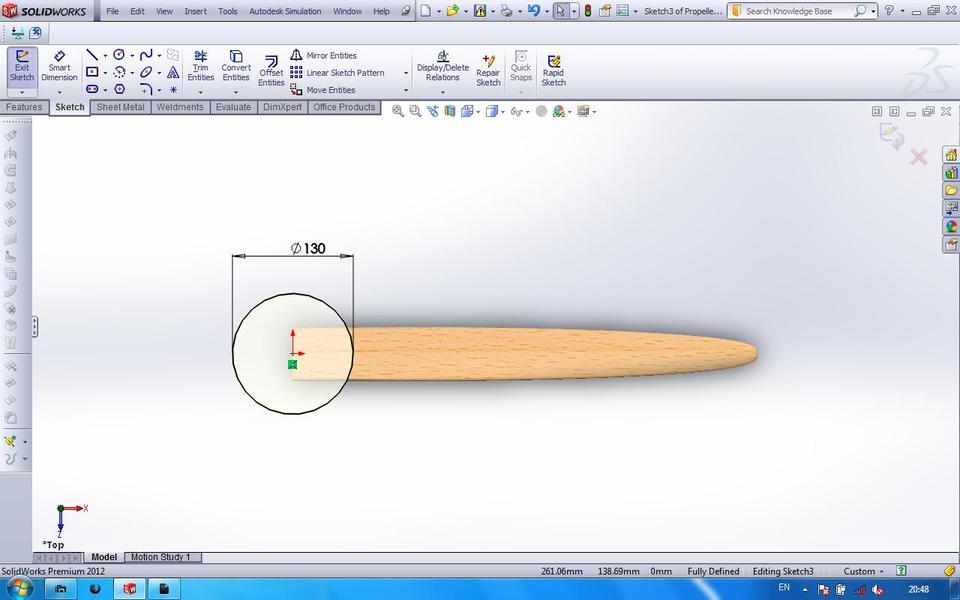

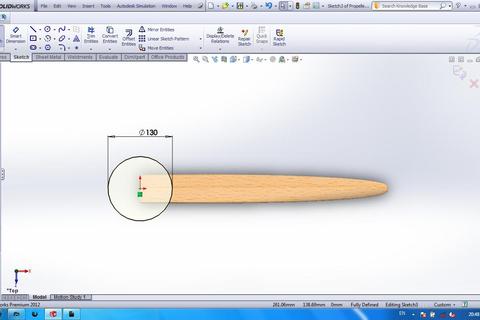

     Create circle with diameter=130mm on top plane like picture below (sketch3),



  7. Step 7

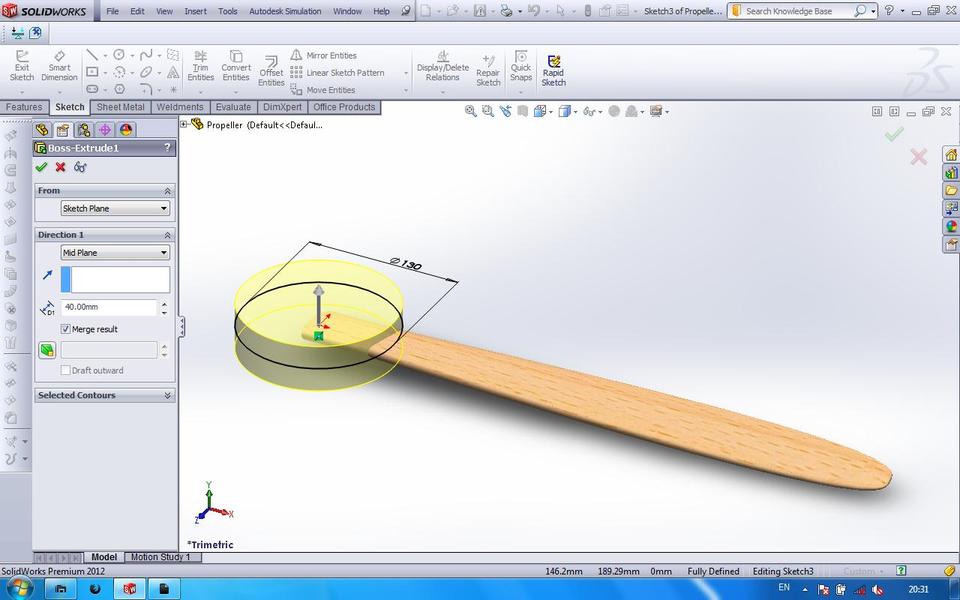

     Create boss-extrude the sketch3 like picture below (boss-extrude1), choose mid plane direction with depth=40mm



  8. Step 8

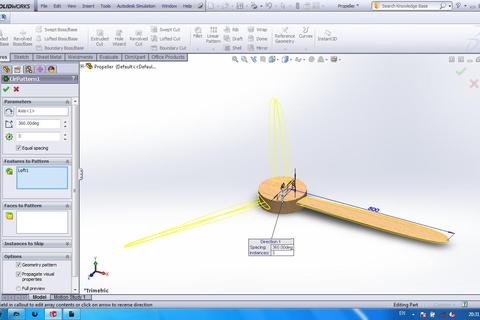

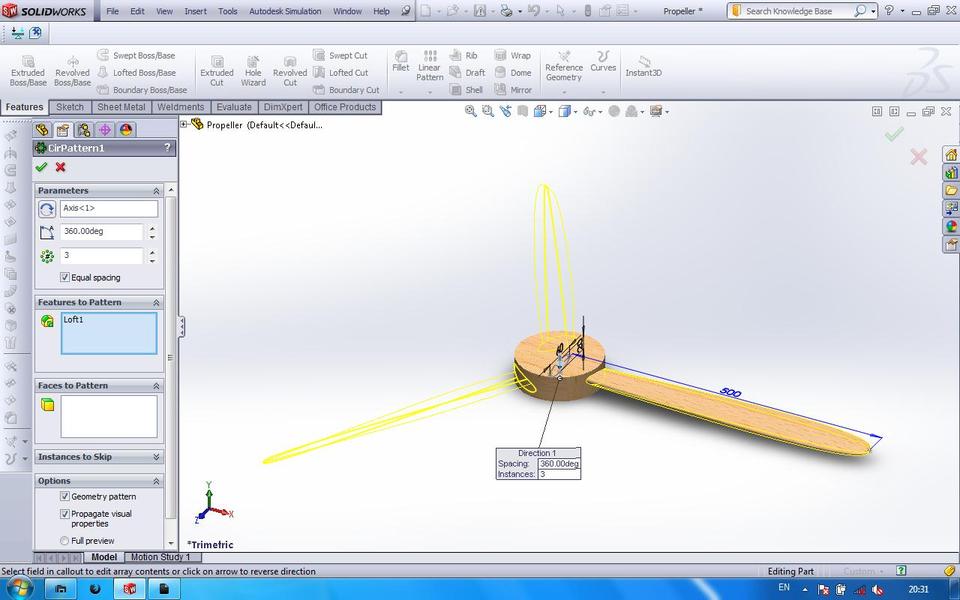

     Create cir-pattern loft1 (cir-pattern1), checklist the equal spacing, spacing=360 degrees, and instances=3.



  9. Step 9

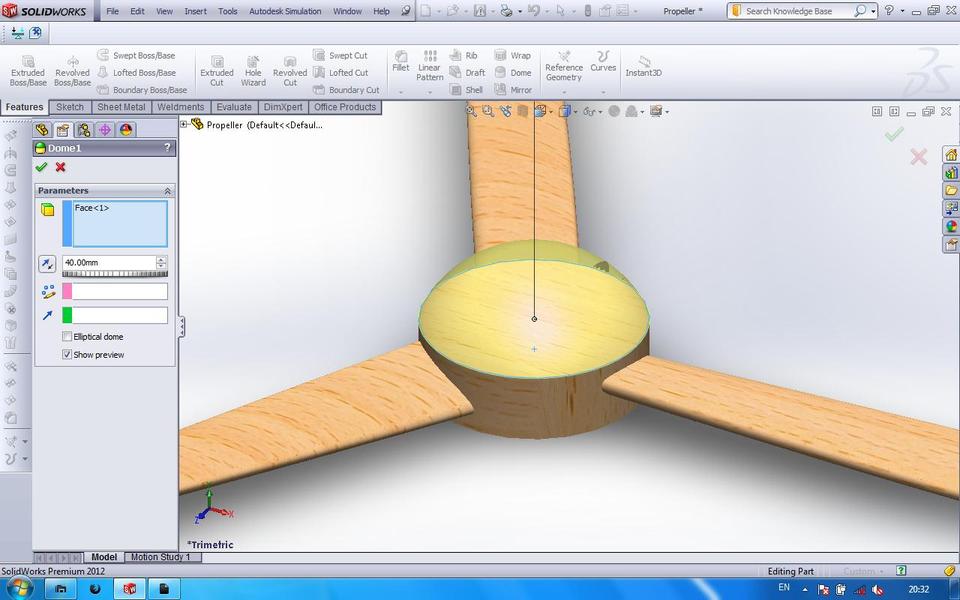

     Create dome with depth=40mm like picture below



  10. Step 10

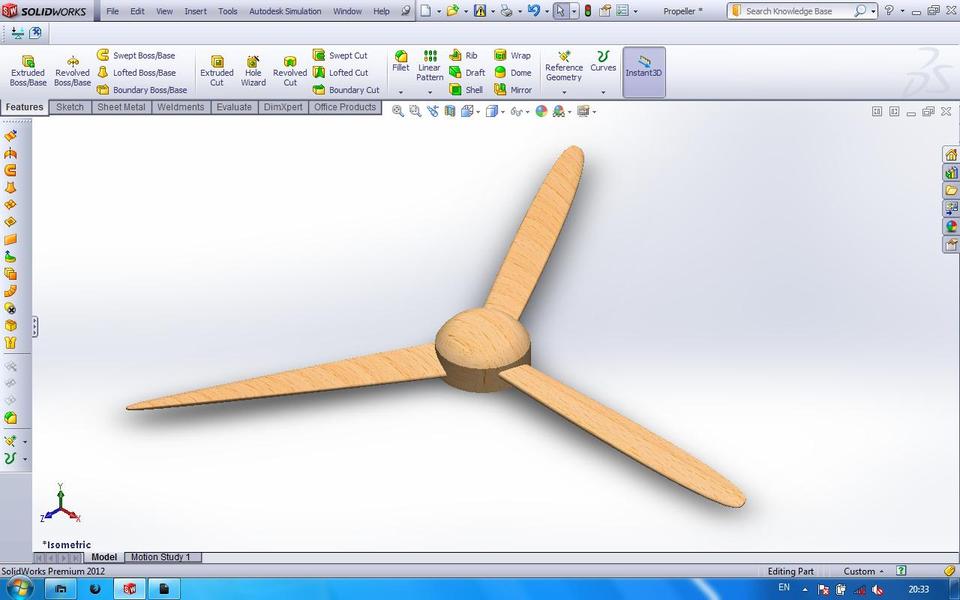

      Finish
