i want to render my piston that i have created in catia v5 ....i m uploading but not able to see it on grab cadd...i also want to render my drawing
first of all rendering completely depends on your perception of how well you know the things you are creating

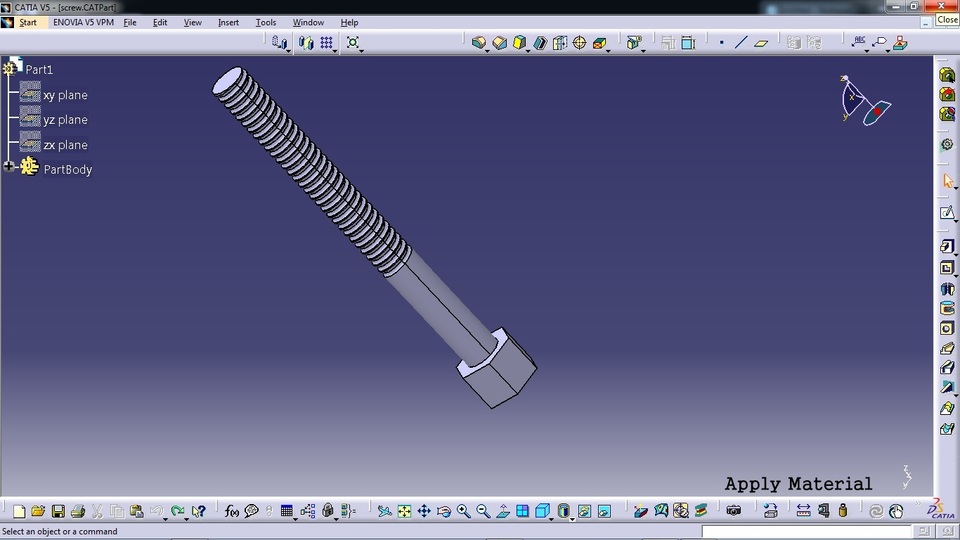

Click on the apply material Button and choose the most suitable material for your model .
It is not necessary that you choose the manufacturing material of your design.

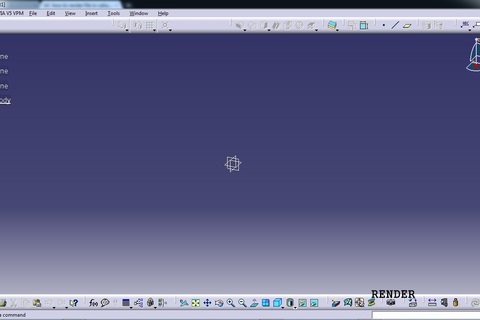

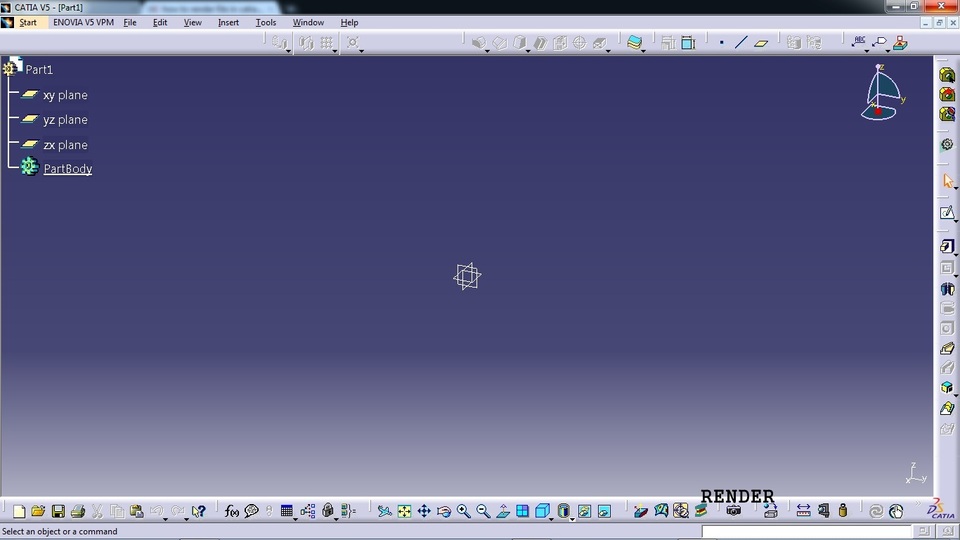

Then click on the camera icon( RENDER )

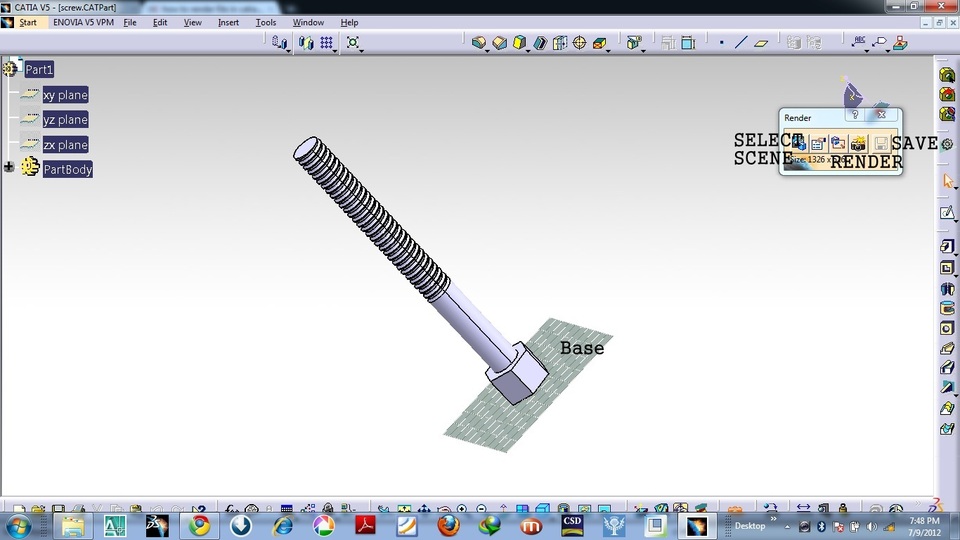

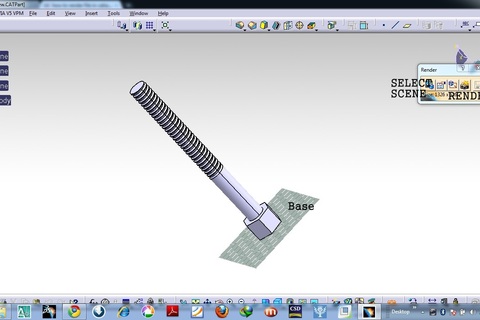

Follow the Instructions thereafter & don't forget to save your rendered image by clicking on the floppy button

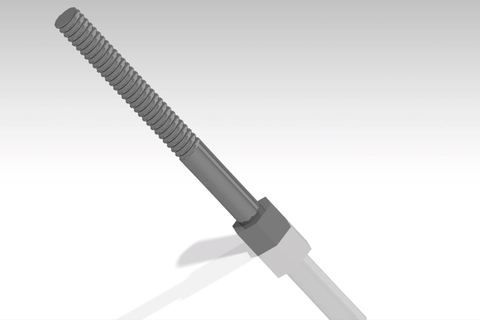

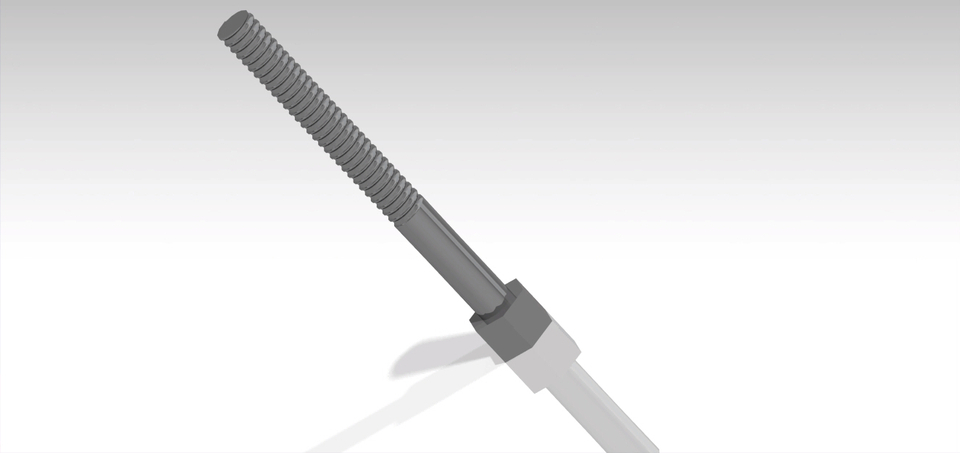

Example of part after rendering .
good work kaushal.
in my catia can,t find camera icon..not in even tool bars. ny suggestion
And, when rendering, don't forget to switch the view mode to "perspective". Otherwise the dimensions and proportions look weird and unnatural.
please put the same in catia v6 and see the render style.......
