10 answers

•
  w.wolf over 1 year ago

  Here you go William, I hope you don't mind Mr. Anneken ...

  Attachments

  Wrap.ipt, 390 KB
  Download

  1.
     William over 1 year ago

     Hahaha nice one Ahmed for doing that as you know I understand IV better than SW your a super start
     //Handshake

  2.
     William over 1 year ago

     Opss super star :)))))

•
  Adan Isais over 1 year ago

  Maybe this file can help you, is another workaround but in this case you have all non-spherical faces aligned with the center of the sphere.

  Now SW 2010 file, listen to w.wolf advise and used thicken cut

  Attachments

  sphere.SLDPRT, 278 KB
  Download

  sphere 2010.SLDPRT, 305 KB
  Download

  1.
     Aaron over 1 year ago

     I got the "future vesion" flag on that.

•
  William over 1 year ago

  Hi Aaron I am sure you can't as it does not work with Inventor and I asked some one if it would work in SW as they were an SW user and they said no....

•
  w.wolf over 1 year ago

  Not in SolidWorks 2011 and I read about the new features of 2012 and spherical wrap wasn't one of them, what is it that you're trying to make?

  1.
     William over 1 year ago

     LoL'ss Ahmed the man that I had the conversation with :)))

•
  Aaron over 1 year ago

  Just trying to deboss on a sphere, but I actually just figured out a different way to do it.

  1.
     William over 1 year ago

     Good stuff Aaron how did you do it? as it might work with IV and that would be very good to know for future work.
     :)

•
  Aaron over 1 year ago

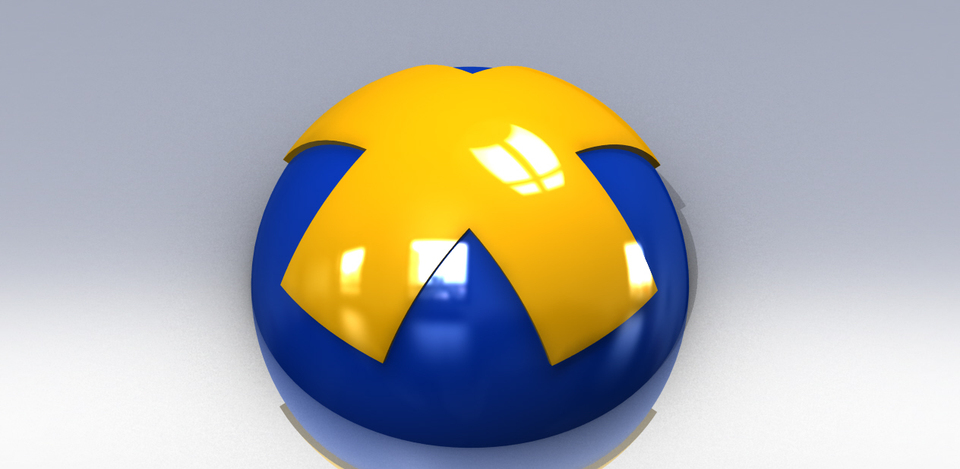

  It was really nothing. I was trying to wrap an X over a sphere and months ago I was trying to "wrap" it and make it harder than it needed to be. I just made two revolves to make the X. It was one of those DUH moments.

  Added images



  1.
     William over 1 year ago

     LoL'ss yeah I think we always
     do that make things harder for our self
     :)))
     Glad you worked it out in the end.

•
  Don Anneken over 1 year ago

  Please see if this is what you want...

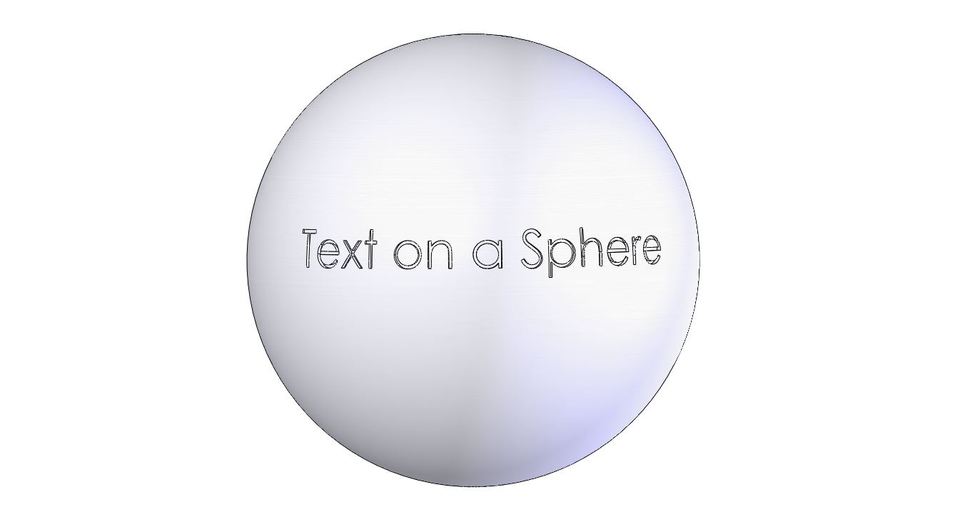

  Text (Wraped) on a Sphere. SolidWorks 2011

  Added images



  Attachments

  Text on a Sphere.SLDPRT, 1.13 MB
  Download

  1.
     William over 1 year ago

     Hi Don, I would be very interested to know how you got the rap to work with SW as if you can get it to work with SW then you will be able to get it to work with IV and there is nothing I have not tried to get a rap on a sphere IV says it is not possible LoL'ss

  2.
     Aaron over 1 year ago

     Could you dumb that down to a 2010 file? :) I posted this for 2011 only cuz I knew there was no solution in 2010...which I have.

  3.
     w.wolf over 1 year ago

     This is a brilliant solution Mr. Anneken, it isn't the same as wrapping on a sphere but it's really close.
     I wonder why I never thought of it.

•
  Aaron over 1 year ago

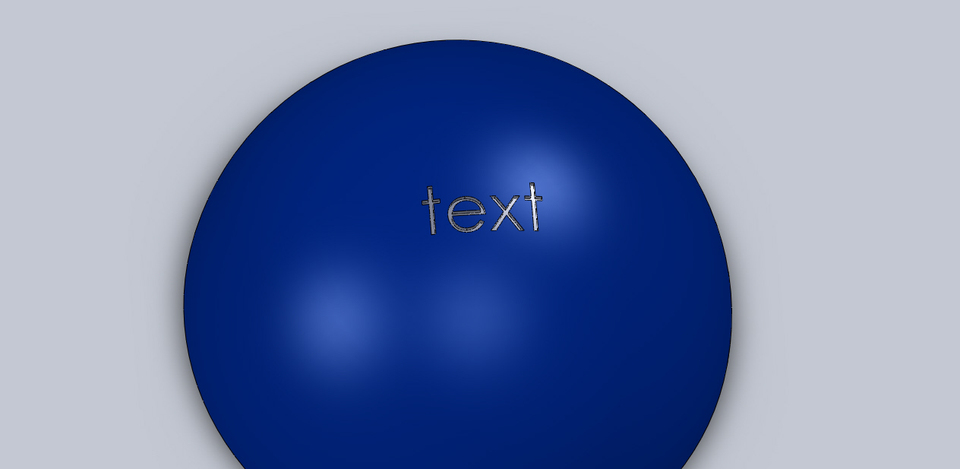

  I did just do this method, maybe the same as what Don did? Can someone verify?

  Added images



  Attachments

  wrap test sphere.SLDPRT, 334 KB
  Download

  1.
     Don Anneken over 1 year ago

     What you have is similar. In your case the cuts will all be perpendicular. In my case that cuts are truly "Wraped" and the cuts will be tangent to the sphere. I tried to put up a Tutorial but it crashed???

  2.
     Aaron over 1 year ago

     hmmm, I see.

•
  Don Anneken over 1 year ago

  Did no know this would be so popular. I tried a tutorial but it crashed. Attached is zip file with tutorial jpg. Should work in SW 2010

  Attachments

  Text on Sphere.zip, 1020 KB
  Download

•
  Tomica Vukovic over 1 year ago

  I solve your problemm.
  See tutorial in doc file and examine model file "text on sphere" in CHALLENGES.
  All is made in SW 2007
  This is a real trick and read a explanations on the end a file!
