1 answer

•
  Danny Tasmakis 11 months ago

  Yes there is.

  1. Step 1

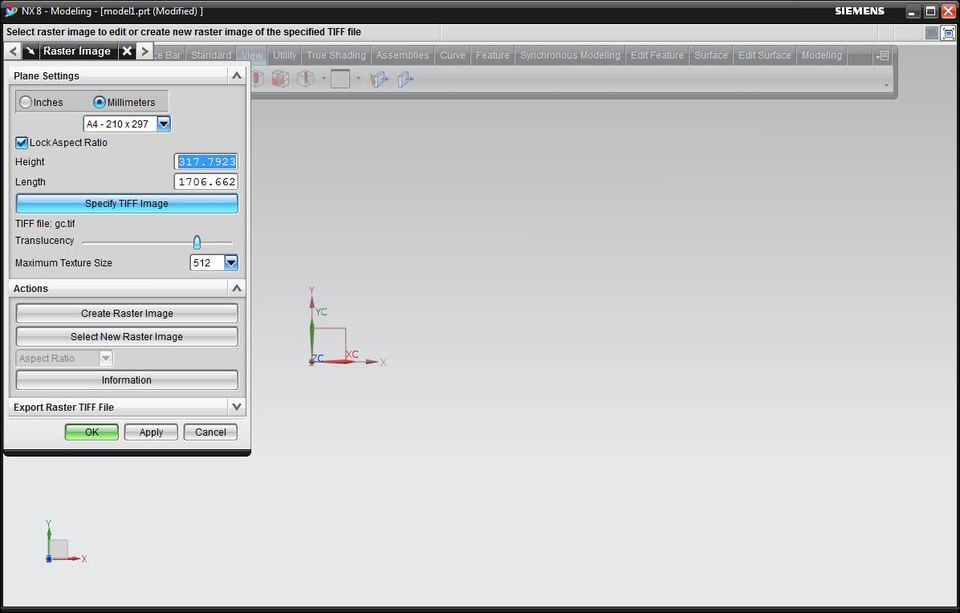

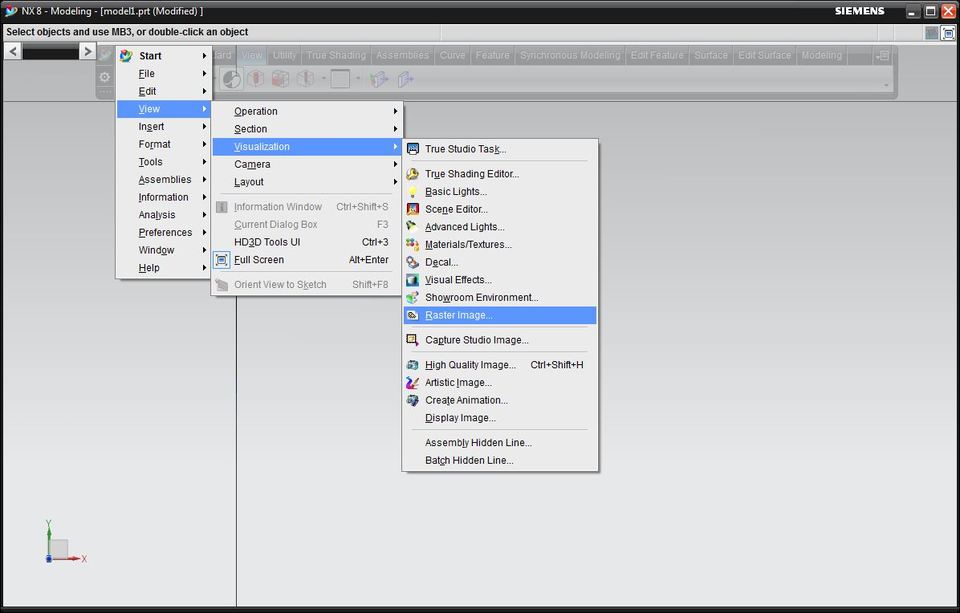

     Go to... View > Visualisation > Raster Image



  2. Step 2

     The Raster Image dialogue box pops up with all the options.

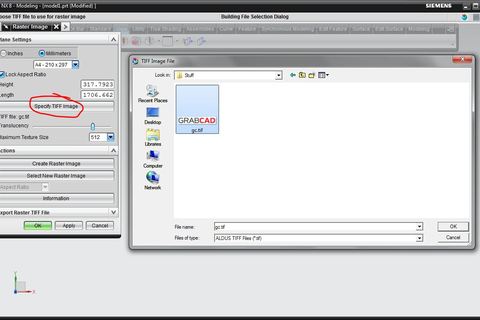

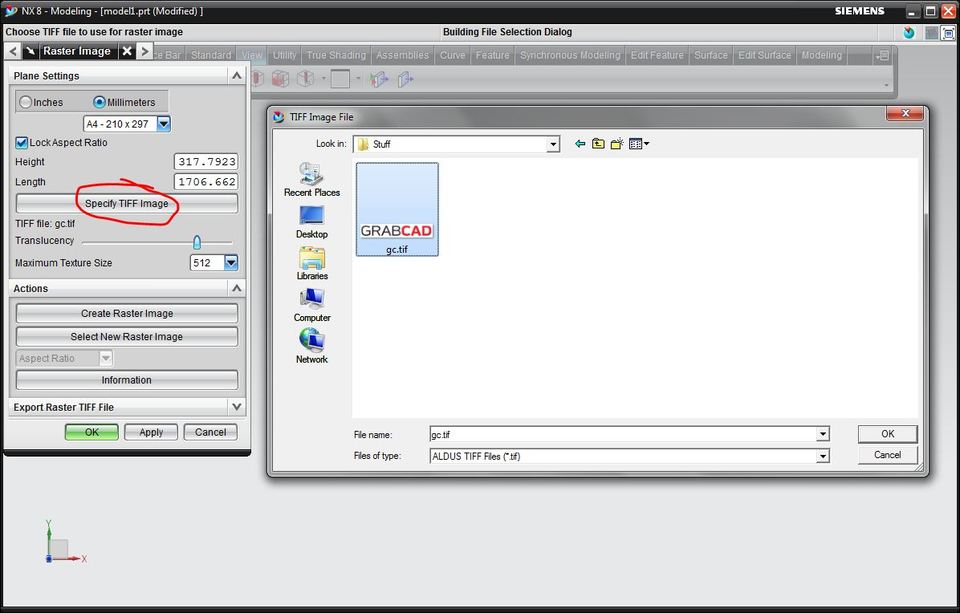

     Click on 'Specify TIFF image'



  3. Step 3

     As you've already noticed only TIFF files are supported, use your favourite image editor to convert your images to TIF format.

     Pick the image you want.



  4. Step 4

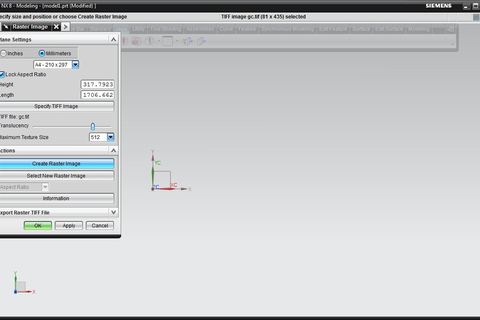

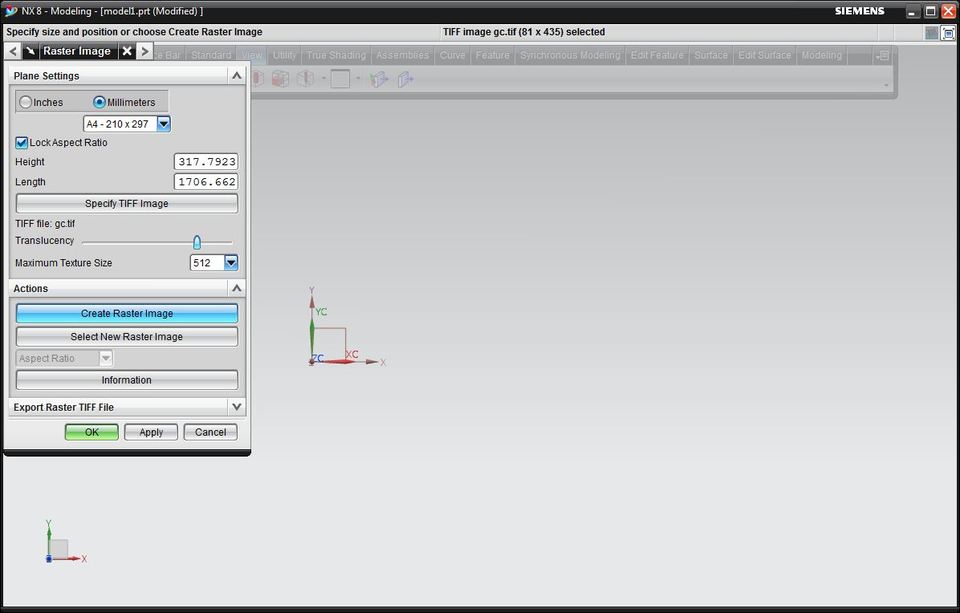

     Now you've chosen the image, you now have to create the Raster image in the model view by clicking on 'Create Raster Image'



  5. Step 5

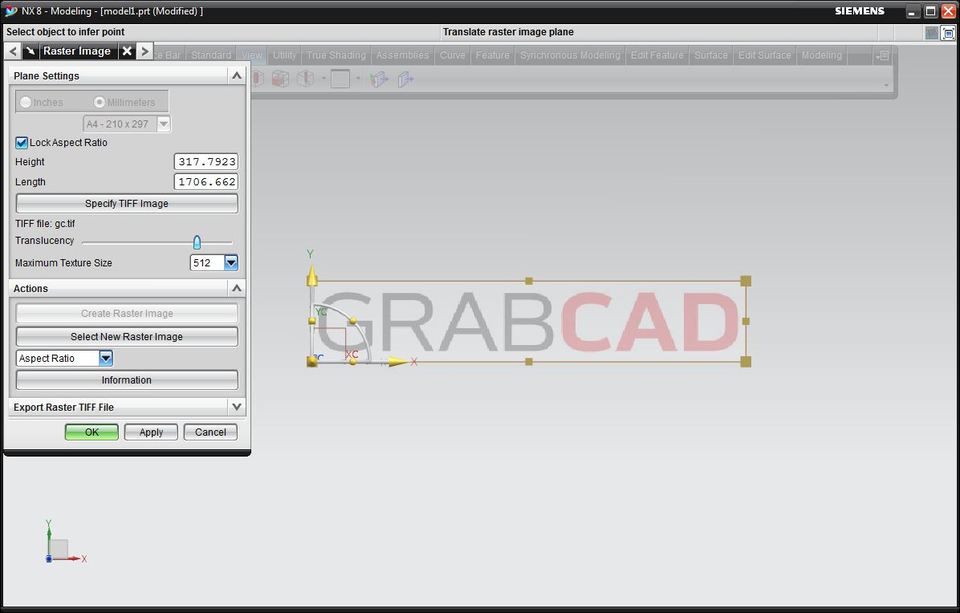

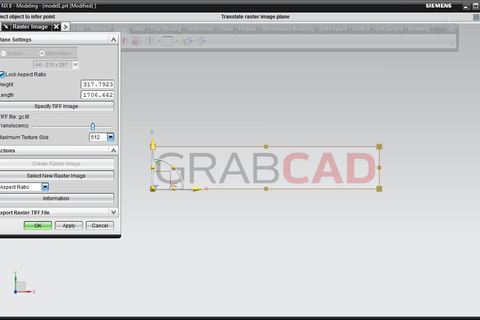

     Then the Image will appear in the model view.
     Use the options to resize, set transparency and manipulate position and angle using the Trident handles.



  6. Step 6

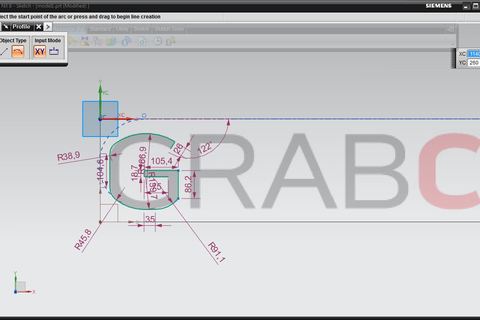

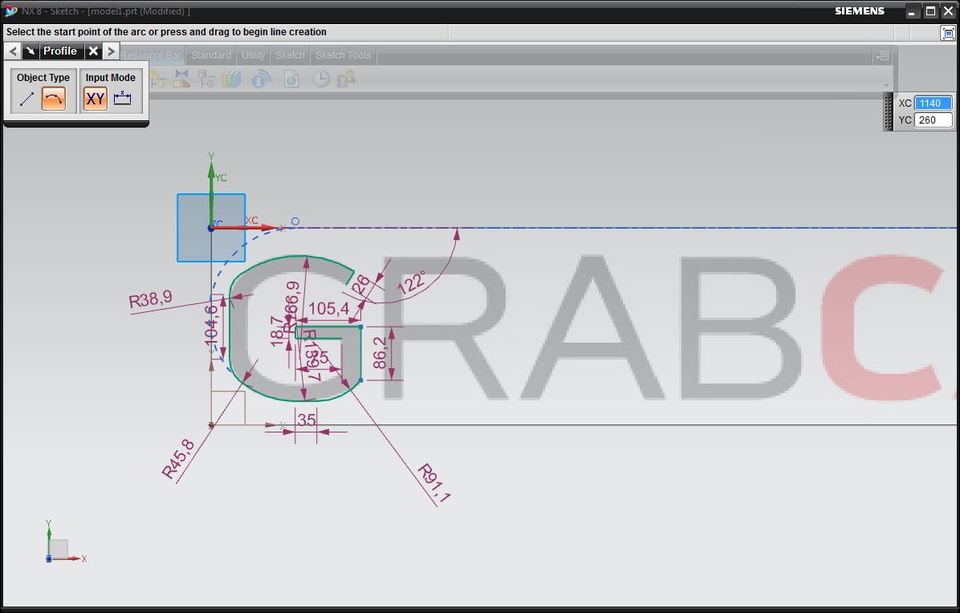

     Apply! Then you're ready to sketch.



  1.
     Danny Tasmakis 9 months ago

     Hi Nitin, the resolution of the tiff file governs the quality, the high the resolution the clearer it will be when you bring it in to NX.

  2.
     e19 11 months ago

     thank you very much

  3.
     NITIN 9 months ago

     Thanks to both of u for sharing nice info

  4.
     NITIN 9 months ago

     but we can not that much accuracy as we in pro-e video,here the drawing image in not that much clean when we zoom it for sketching as compare to pro-e
