  It is not a real tutorial (because if you are a student you should train your skills ;-)

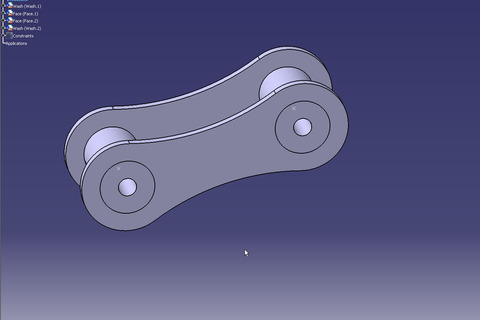

  1. Step 1

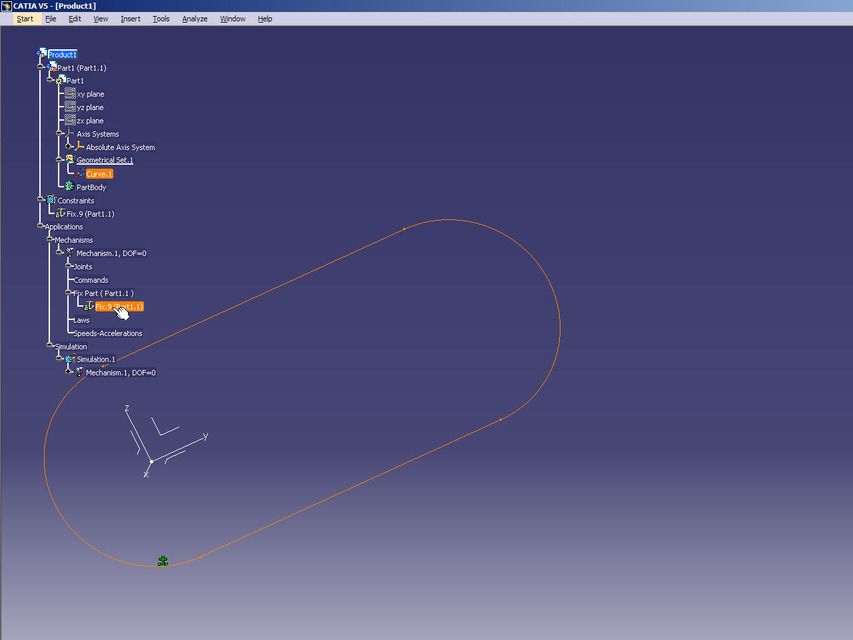

     1. matingpart must be fixed



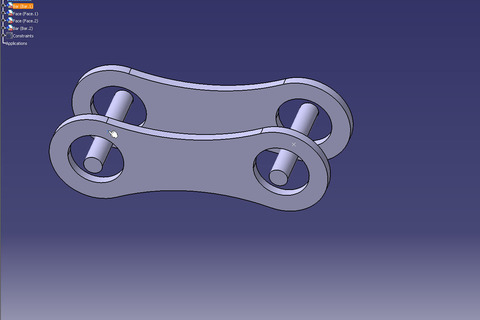

  2. Step 2

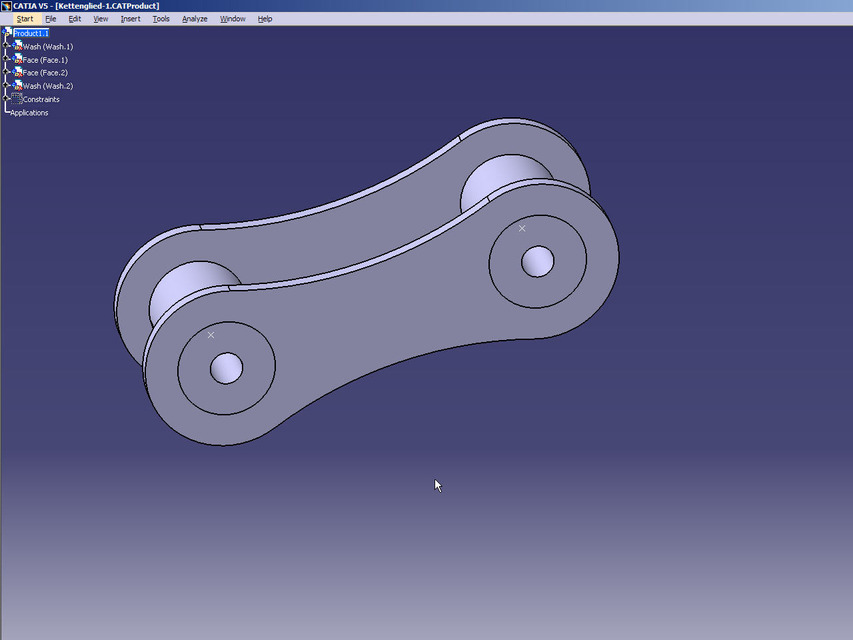

     2. Subassemblies will help



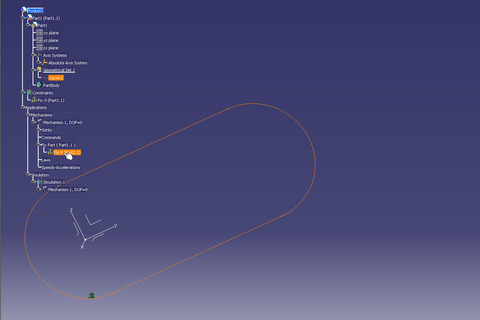

  3. Step 3

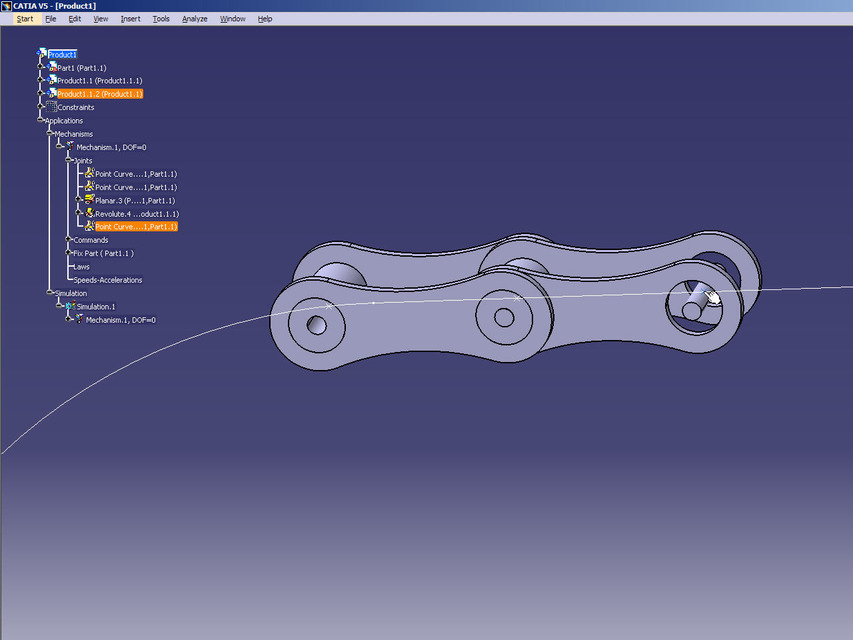

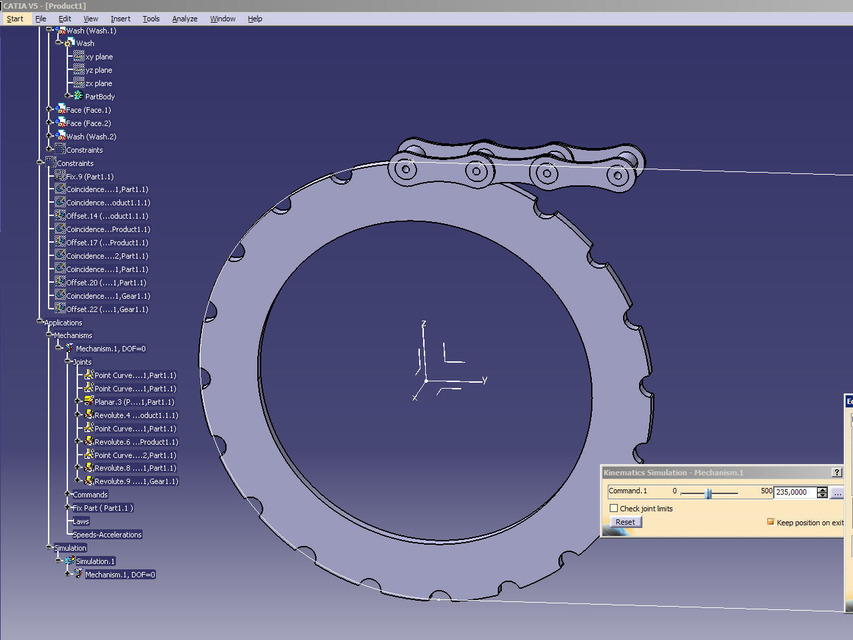

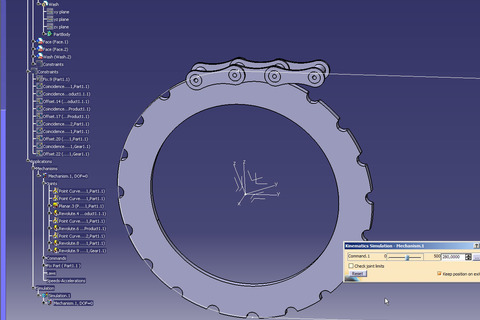

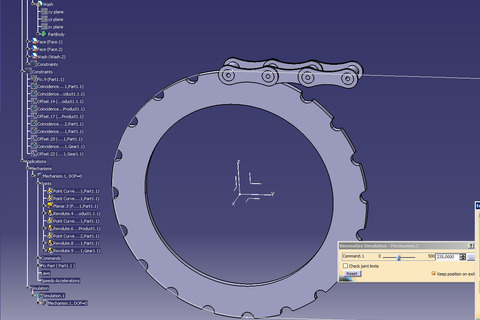

     3. make the three joints and you can simulate. move the part around the chain

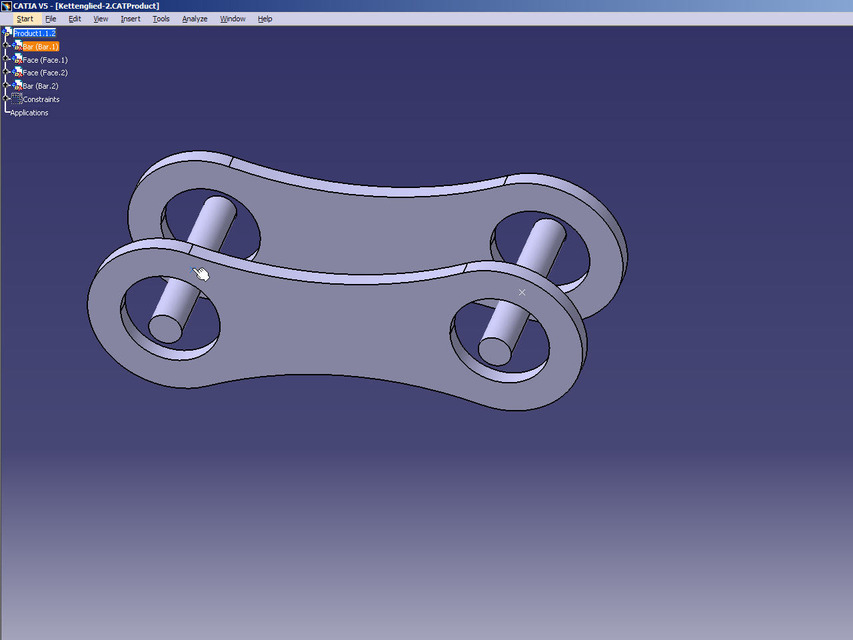

  4. Step 4

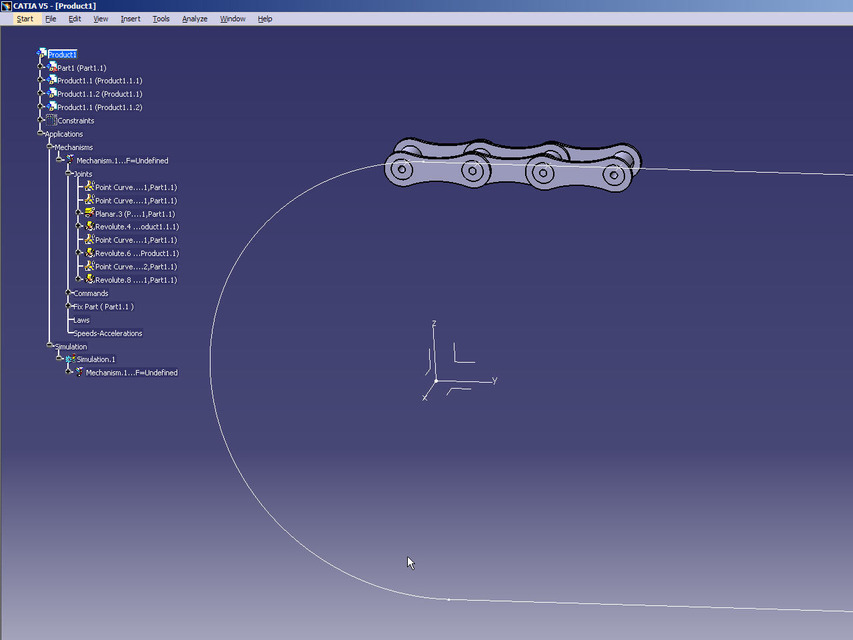

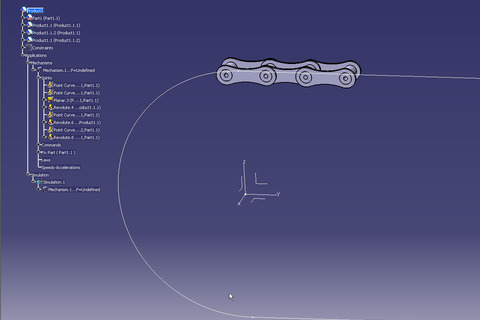

     4. another assembly

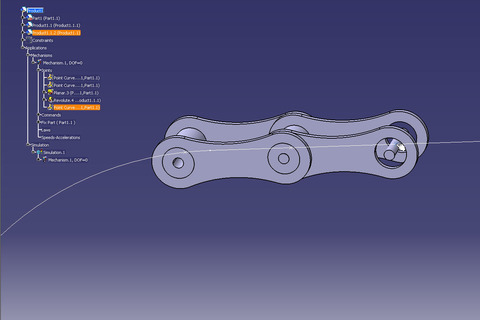

  5. Step 5

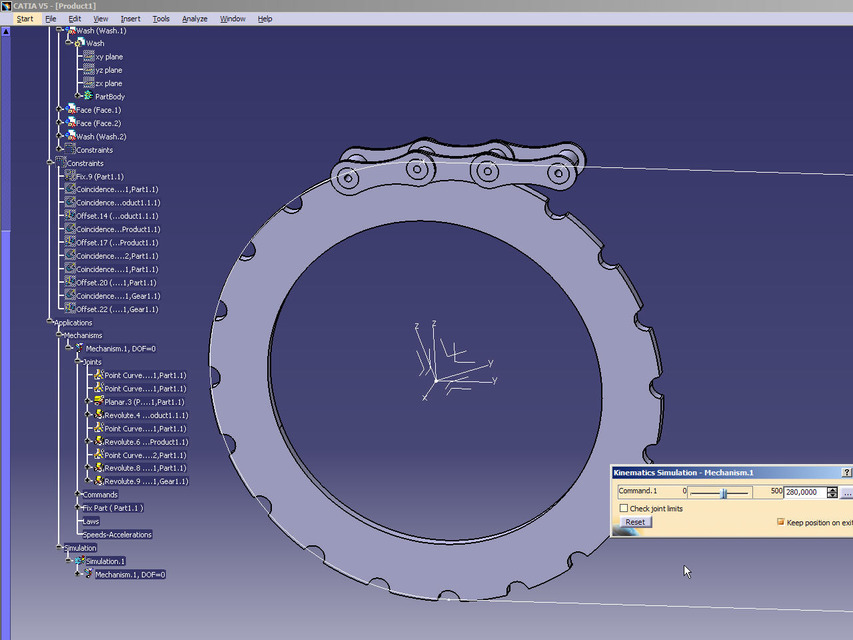

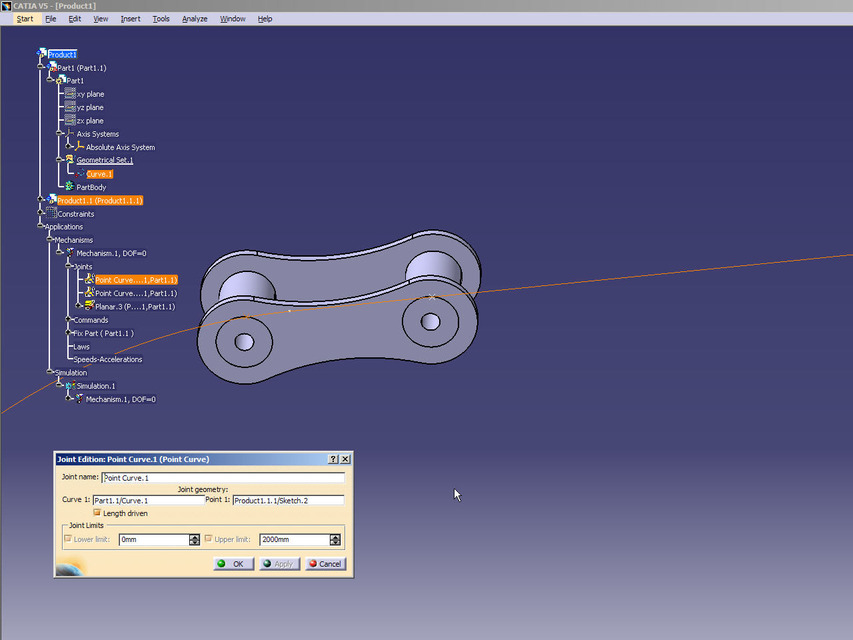

     5. the revolute fixes to asm-1, point curve fixes to mating part



  6. Step 6

     6. - 129873.
     some stupid work ...



  7. Step 7

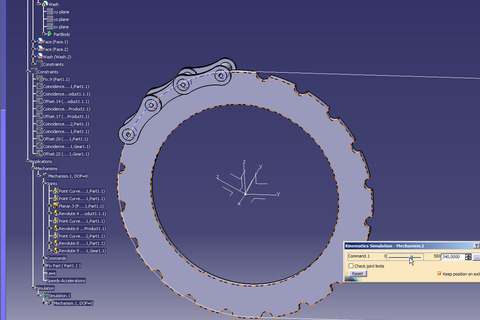

     7. I am not realy shure about the gear, what happens when a chain part "leaves the gear"?



  8. Step 8

     8.



  9. Step 9

     9.



•
  William about 1 year ago

  What software are you working with?

  here is an Auto desk Inventor one
  http://www.youtube.com/watch?v=DiBGYdbBPHo

•
  Moe about 1 year ago

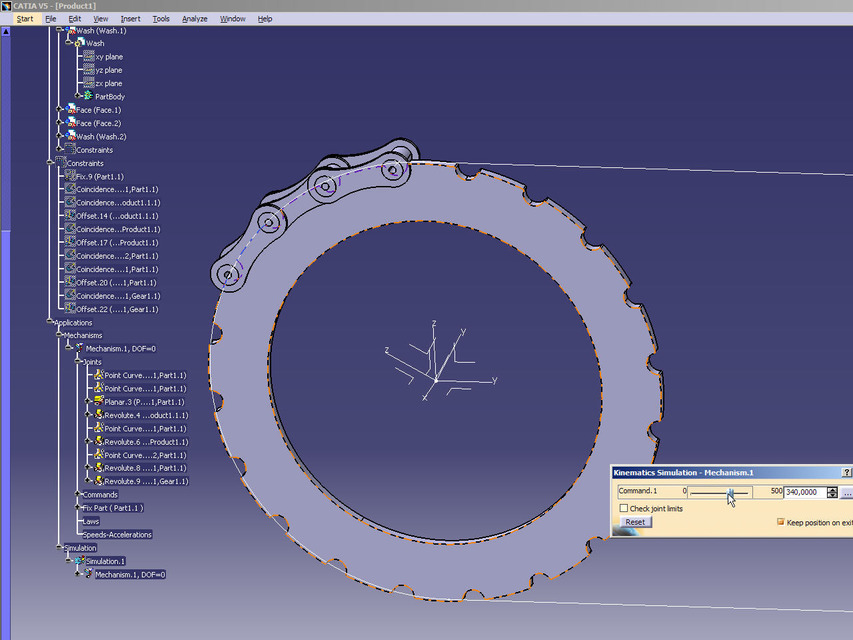

  i am working with CATIA V5

•
  Moe about 1 year ago

  I constructed gear1 based on measurements of face, if adjustments are required feel free to add them

•
  Moe about 1 year ago

  And solutions is dmu kinematic

•
  Moe about 1 year ago

  Thank you so much! im going to give it a go!
