problem with converting a detail from part to sheet metal
I needed to convert this part to sheetmetal (so I could flatten it). I keep getting error telling me something about non-sheet metal faces. Maybe someone knows a way around this?

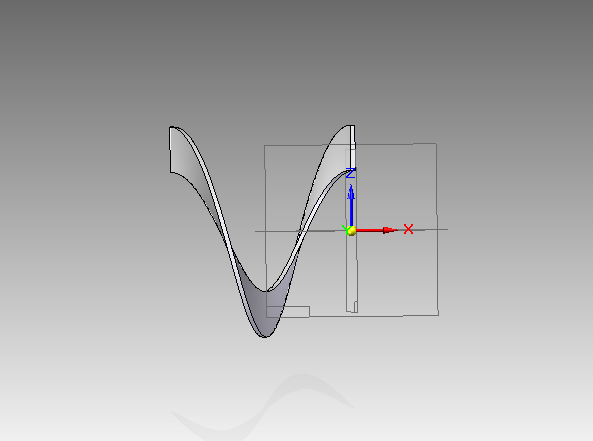

Added images
2 answers
-
Cliff Behrend over 1 year agoSteps
1 new sketch draw circle on plane for outside diameter
2 new sketch draw circle on plane for inside diameter
3 Draw helix using outside diameter (1 revolution or less)
4 Draw helix using inside diameter (1 revolution or less)
5 new 3D skech convety entities outside helix
6 new 3D skech convety entities inside helix
7 Sheetmetal loft between two 3D sketchesMore than one revolution in the helix will not let you flatten pattern
