6 answers

•
  ALI over 1 year ago

  ok

  1. Step 1

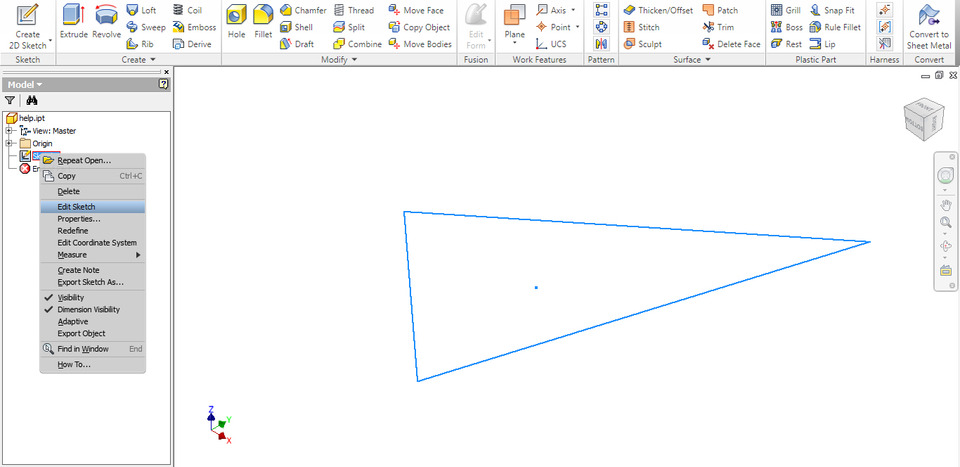

     right click on sketch > edit sketch



  2. Step 2

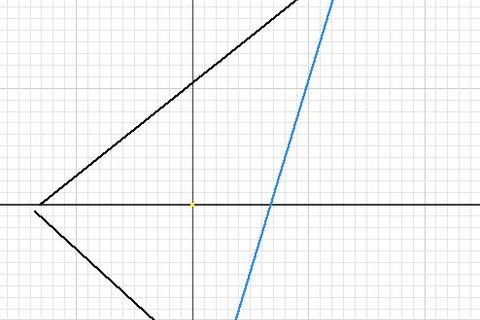

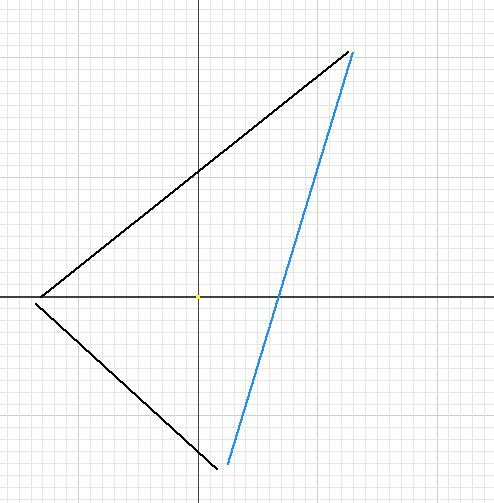

     you will notice that you can move the lines apart (no constraints) so click on them and move them apart a little bit to able to choose the end points.



  3. Step 3

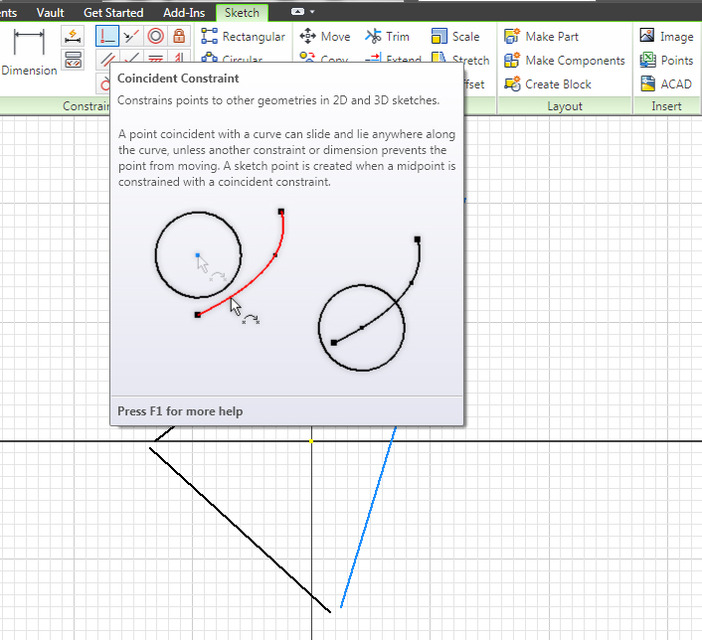

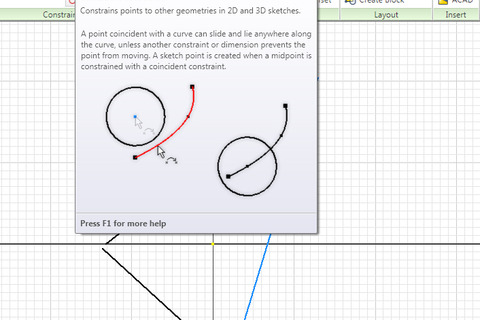

     activate the coincident constraint commend



  4. Step 4

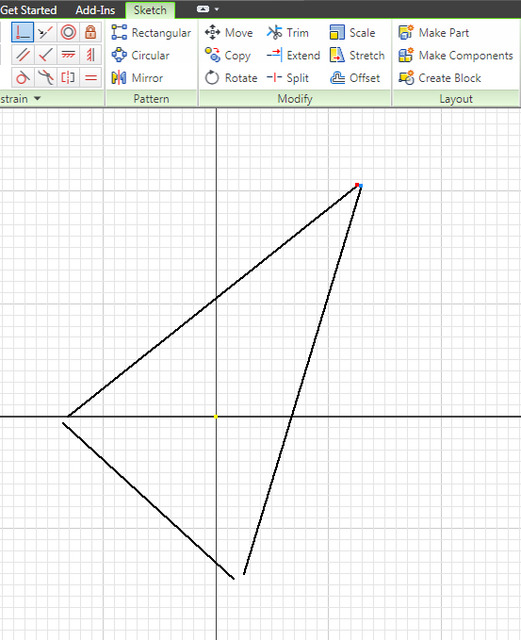

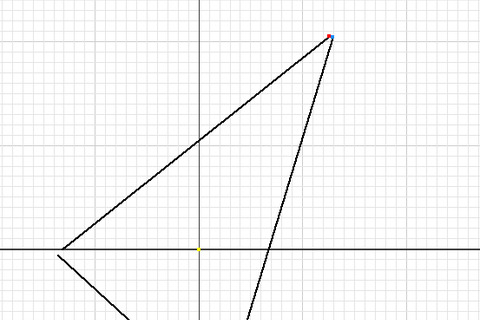

     click on end points to join them.



  5. Step 5

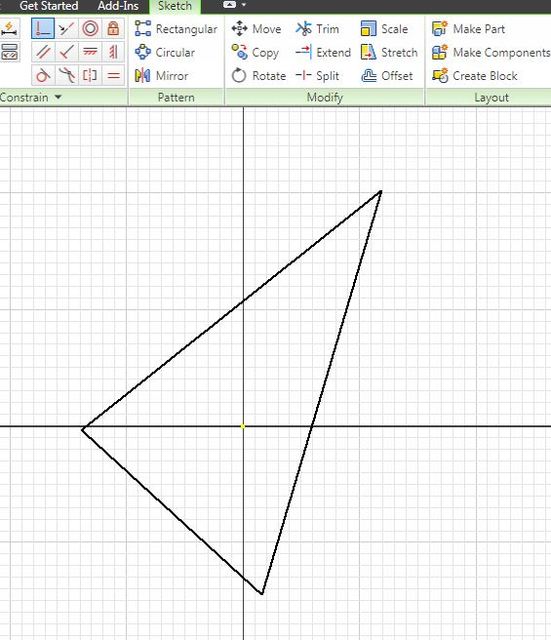

     your final result should be fully constrained, if you try to move any line the whole tingle will be moved.



  6. Step 6

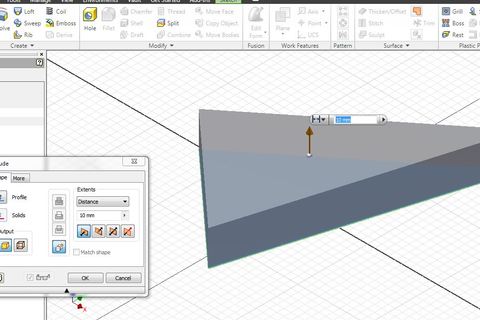

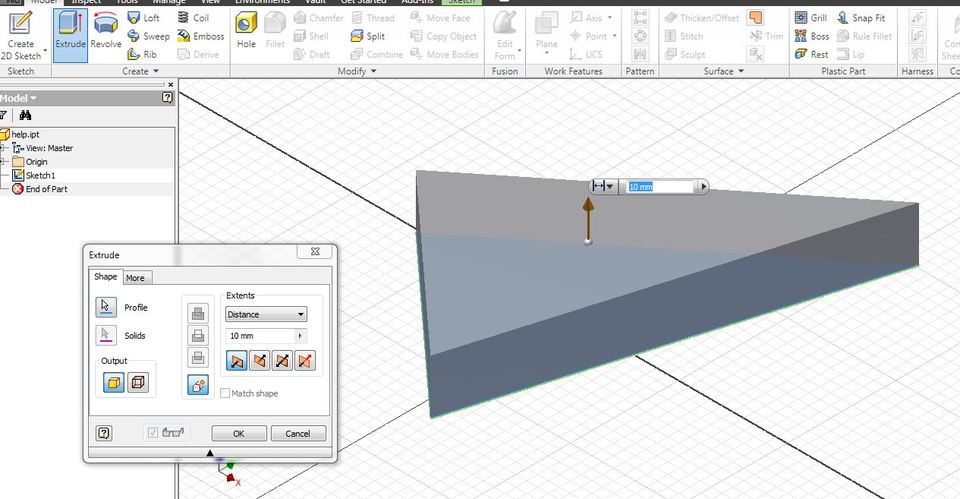

     Ready to extrude!



  1.
     ALI over 1 year ago

     click on pictures to see the whole thing. why don't grabcad resize the pictures to fit properly!. maybe I should resize them myself

•
  William over 1 year ago

  This is another way of getting the problem resolved - This way is for complex sketch shapes.

  Attachments

  Complex shapes - Sketch Doctor.docx, 1.31 MB
  Download

•
  ALI over 1 year ago

  what you have are floating lines. Go edit sketch and use coincident constraint to join the end points and you should be fine.


  1.
     Hardi Meybaum over 1 year ago

     Ali H, can you post step-by-step tutorial?

•
  james lenane about 1 year ago

  You will get a tell tale sign before you even start to extrude,like autocad you get prompts at the bottom of screen,with inventor it will tell you its not fully constrained or you need more dimensions,this is just for other people who may look at this,just to say theirs always dialogue going on between you an the software but thats not to say we dont miss the obvious sometimes,no disrespect intended as I m in that group too!

•
  William Liberty 3 months ago

  Thank you ALi and William, your answers were really helpful to me!!

•
  Sajal about 1 month ago

  So it is very easy..
