  Here is the tutorial.

  1. Step 1

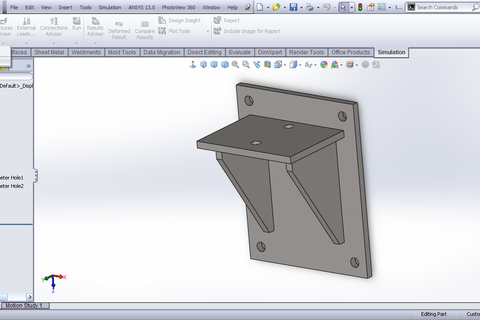

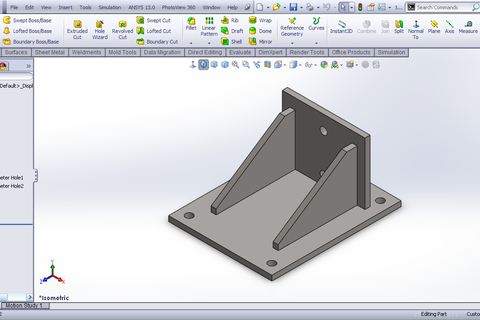

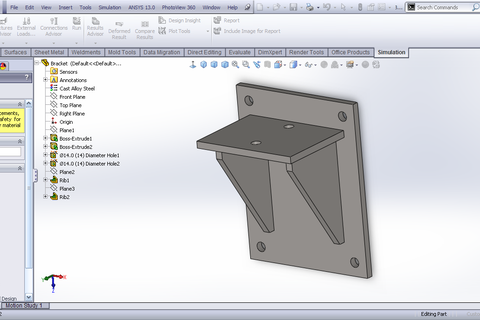

     Open the bracket part in SolidWorks.



  2. Step 2

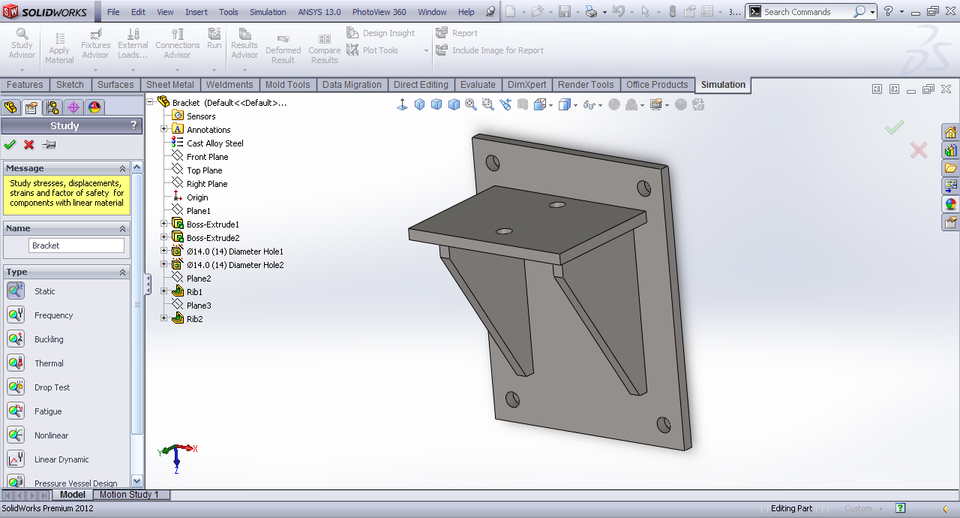

     Click New study under study advisor in Simulation tab.



  3. Step 3

     Input name Bracket and click OK.



  4. Step 4

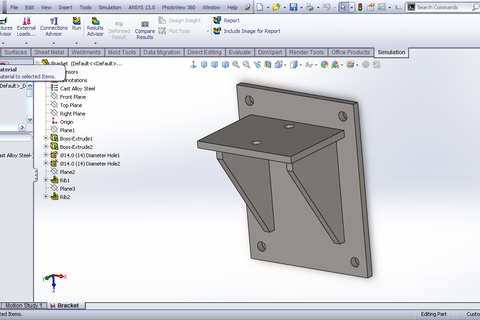

     Click Apply material.



  5. Step 5

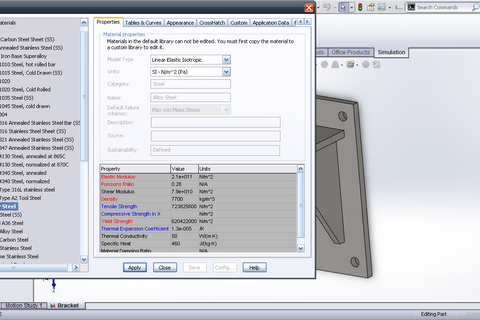

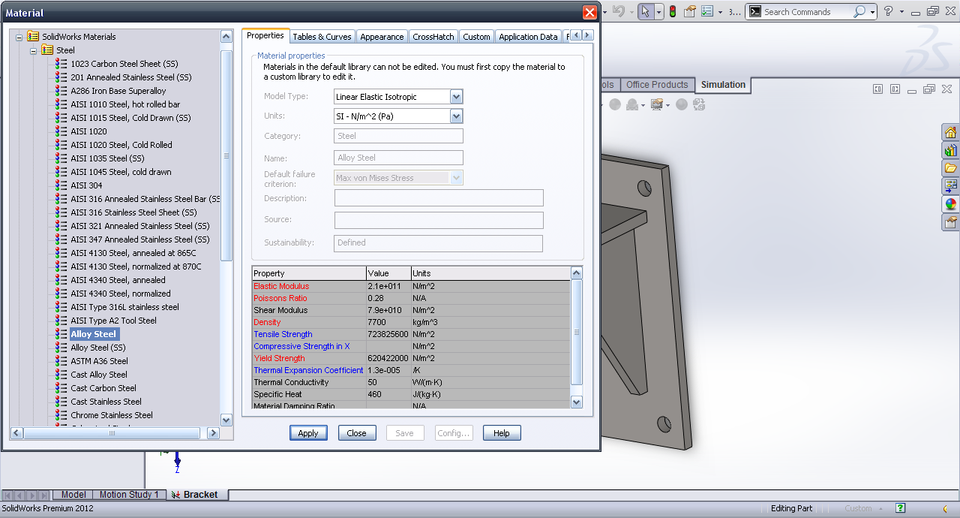

     Select alloy steel. Click apply and then close.



  6. Step 6

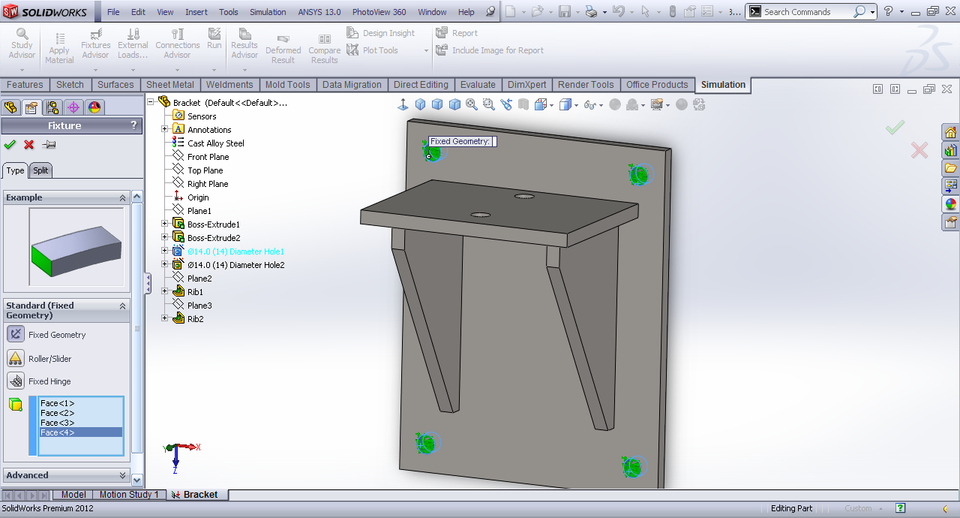

     Select fixed geometry under fixture advisor.



  7. Step 7

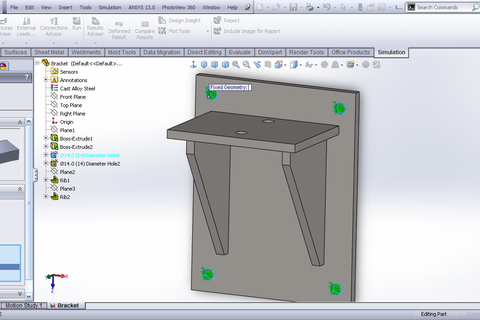

     Select the circular faces of the holes. Click OK.



  8. Step 8

     Select Force under external loads advisor.



  9. Step 9

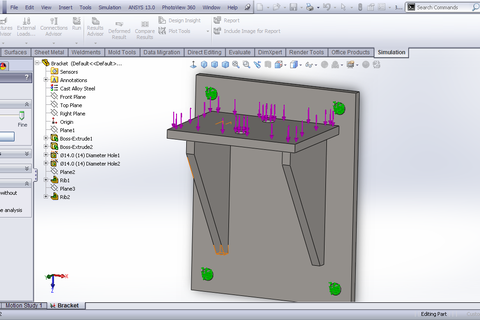

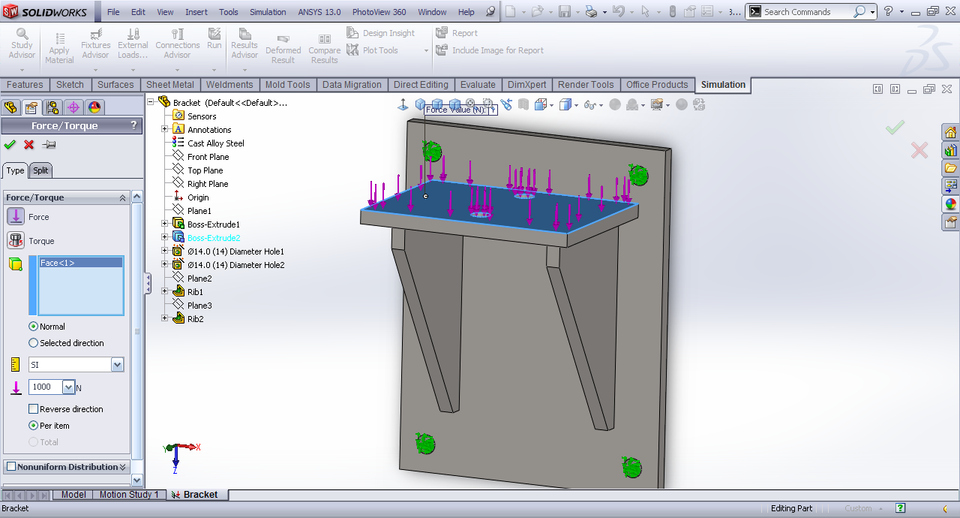

     Select the top face of the bracket and input force of 1000N.



  10. Step 10

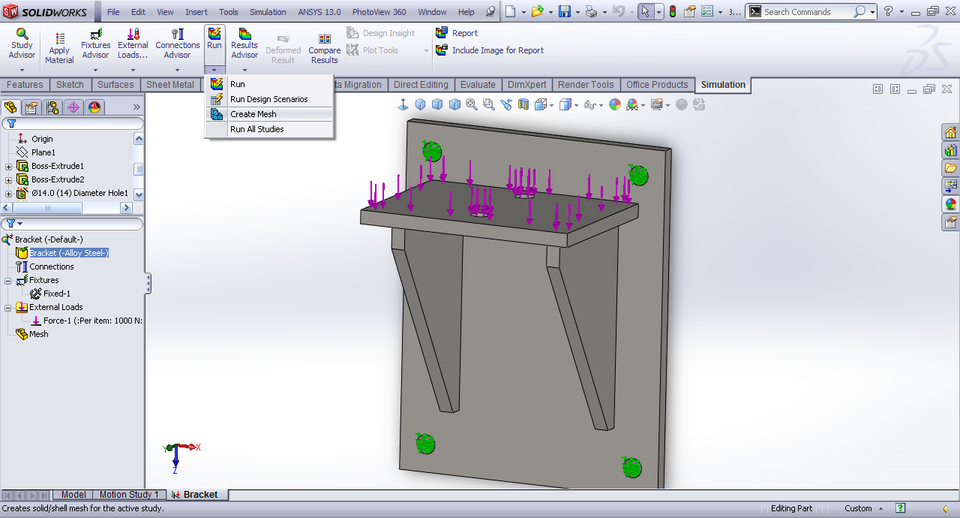

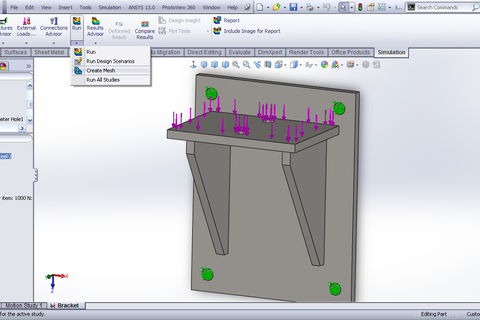

      Select Create mesh under run.



  11. Step 11

      Change mesh density to fine. Since this is not a big geometry we can decrease the mesh size and increase precision. Even then it's upto you to define the mesh size. Click OK.



  12. Step 12

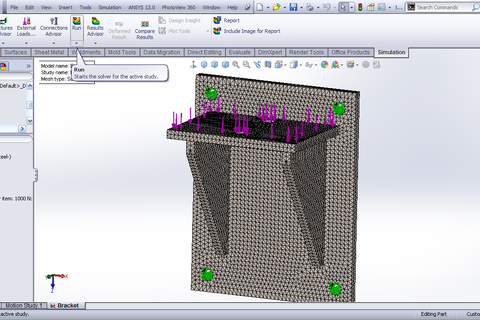

      Now our model is meshed.



  13. Step 13

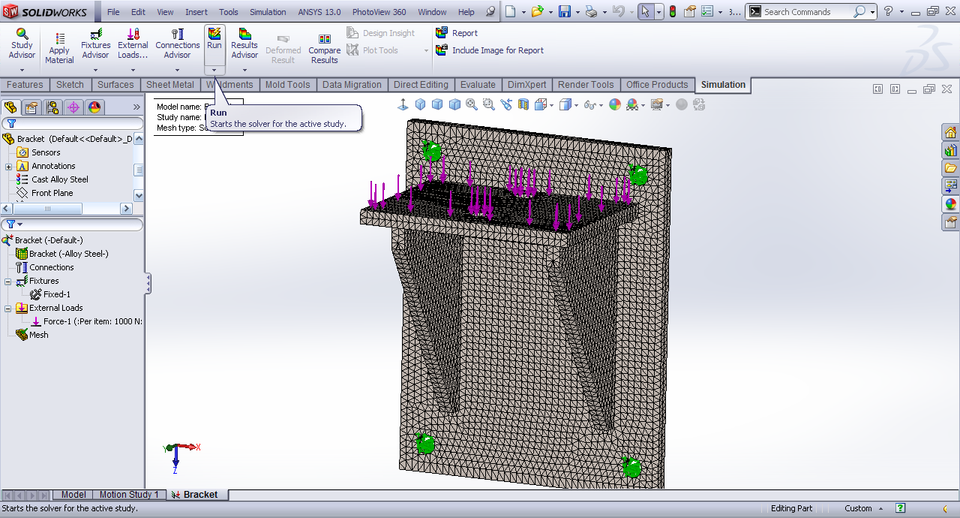

      Click Run to start simulation.



  14. Step 14

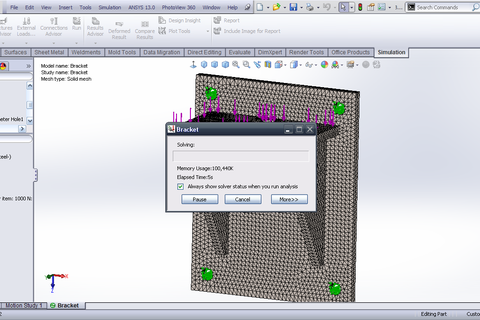

      Now the solver will start solving the problem.



  15. Step 15

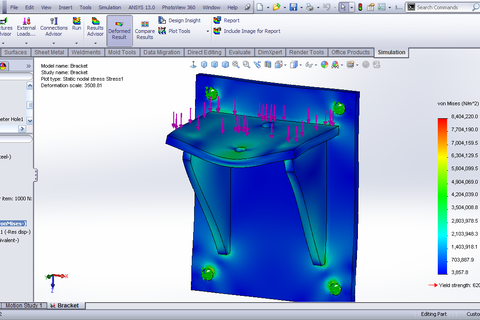

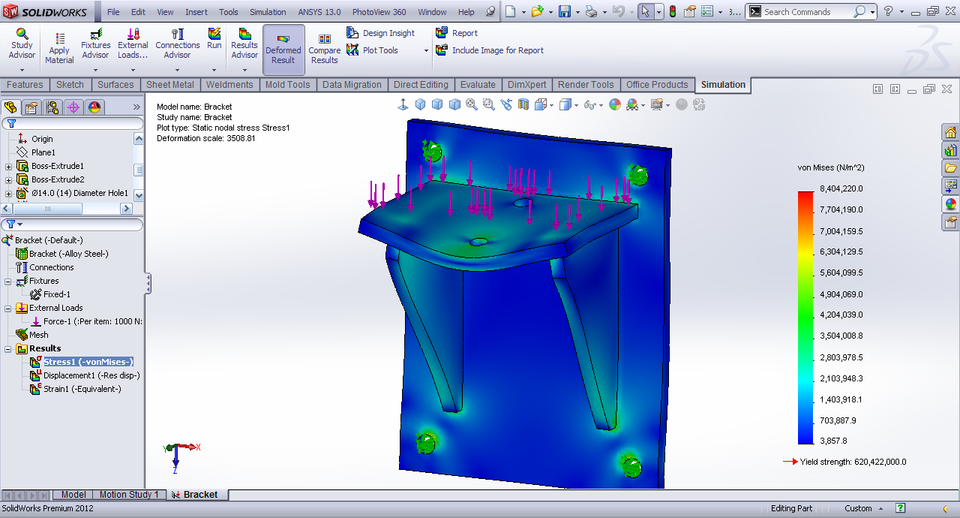

      After solver is finished we have our plots. Default is Stress (von-Mises) plot.



  16. Step 16

      Double click Displacement for displacement plot.



  17. Step 17

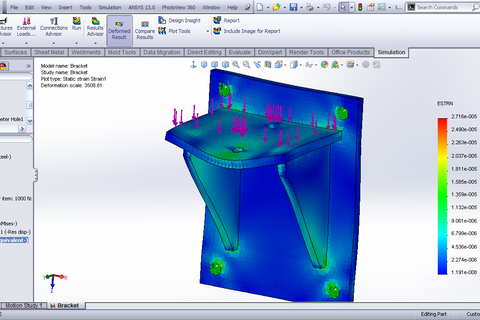

      Double click Strain for strain plot. Now we have successfully completed the analysis of the bracket model in SolidWorks.
