Tutorial - Analyzing the rod for von-mises stress using Mechanica in Creo Elements/Pro?

2 answers

•
  Sudhir Gill 4 months ago

  Here is the tutorial.

  1. Step 1

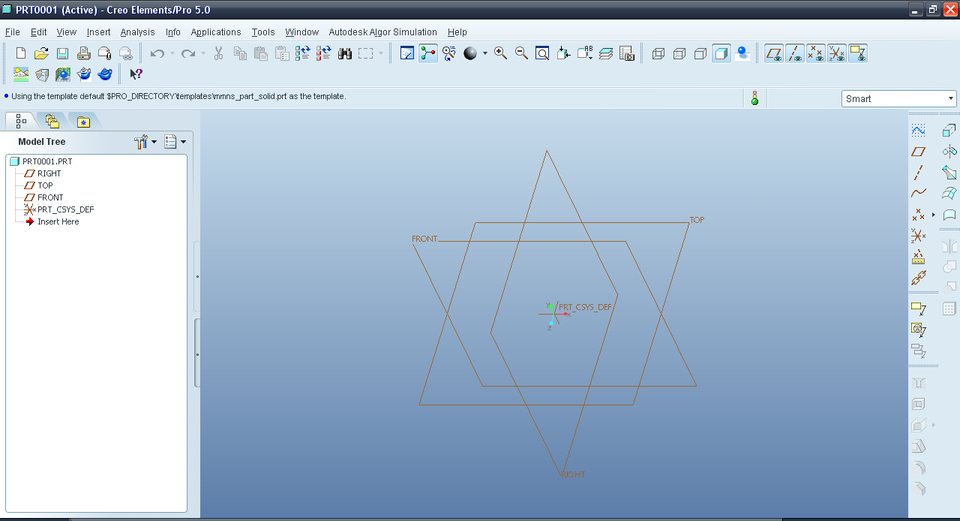

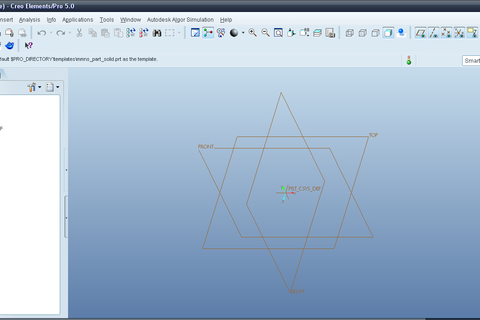

     Start Creo Elements/Pro in Part mode.



  2. Step 2

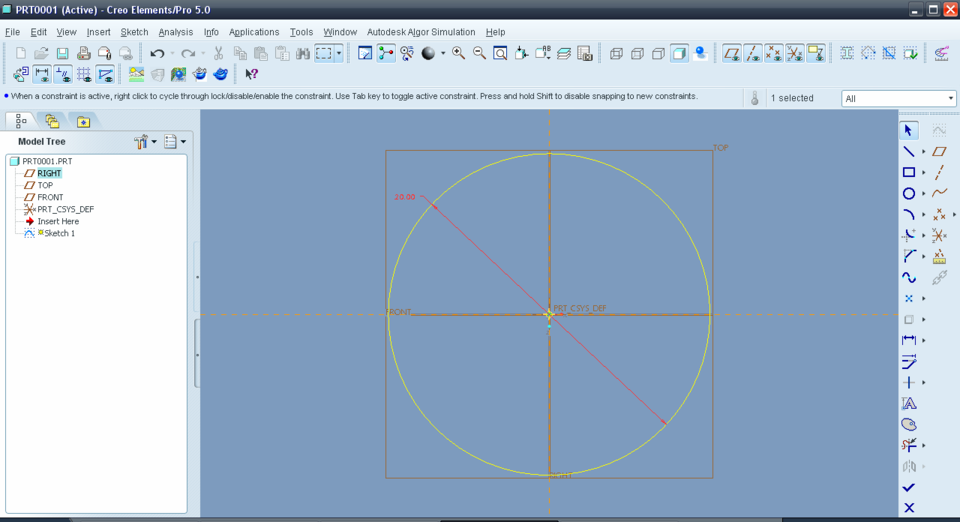

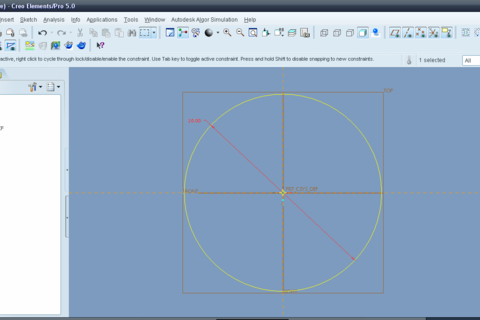

     Sketch>>Top Plane and draw a circle of 20mm diameter.



  3. Step 3

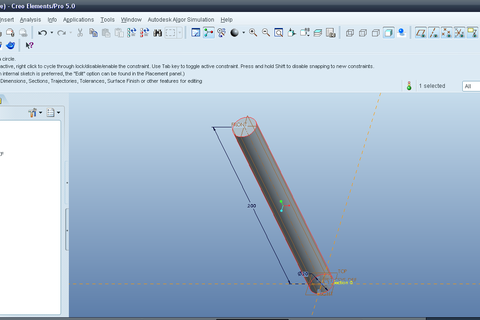

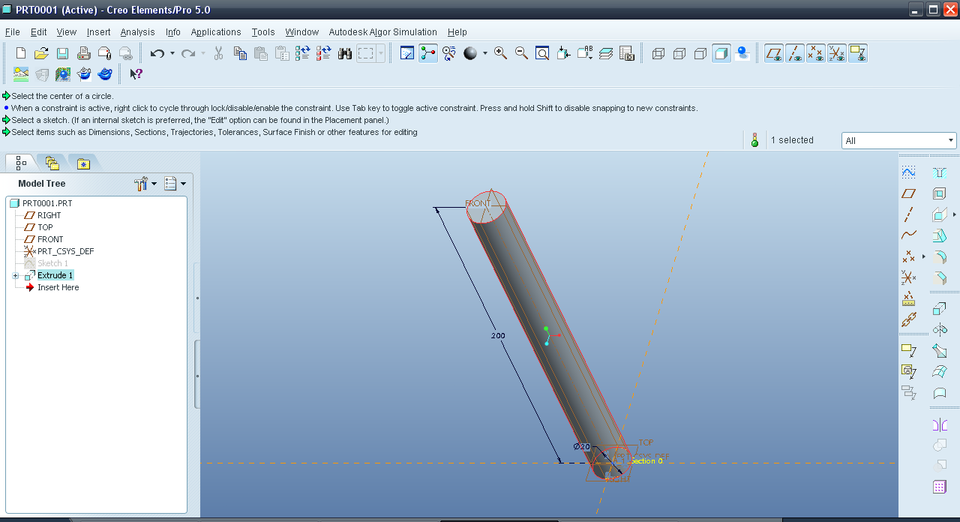

     Extrude it by 200mm.



  4. Step 4

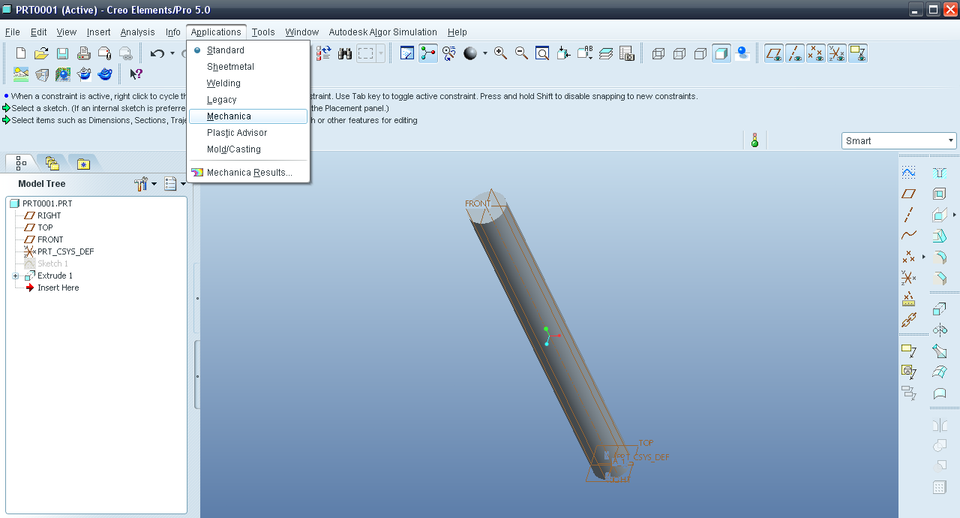

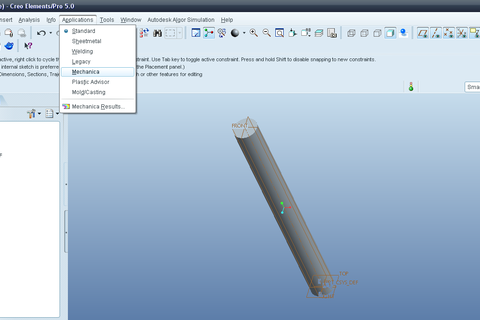

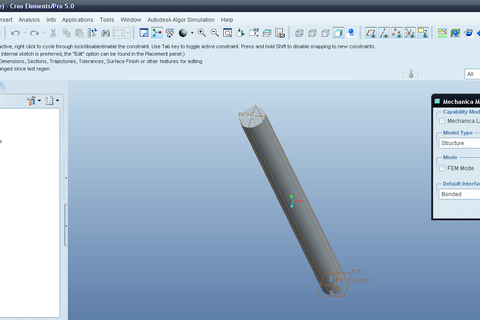

     Applications>>Mechanica.



  5. Step 5

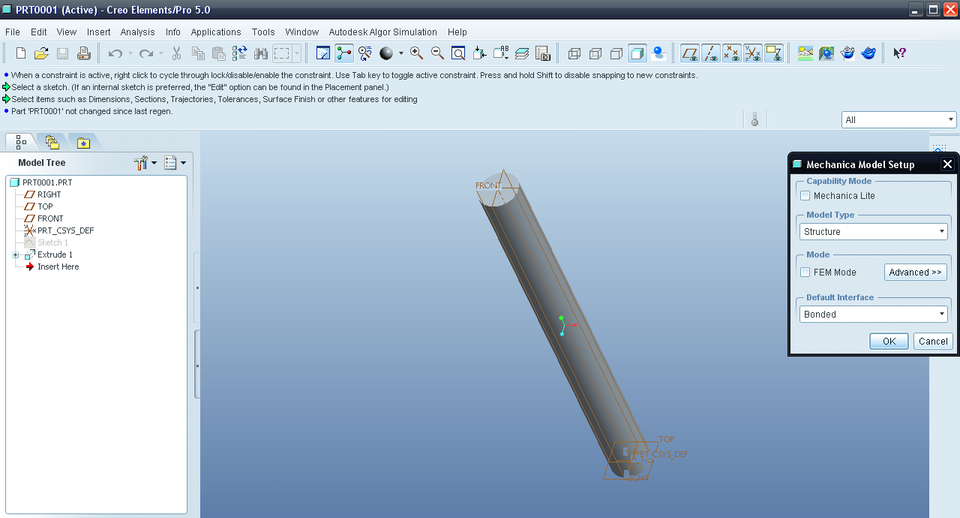

     Click OK with default settings.



  6. Step 6

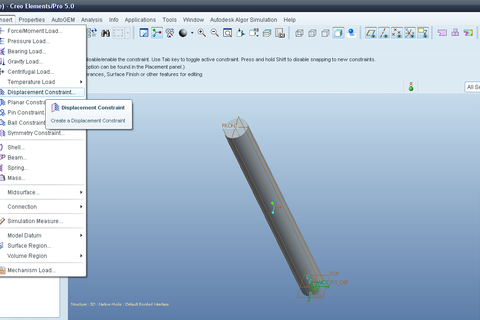

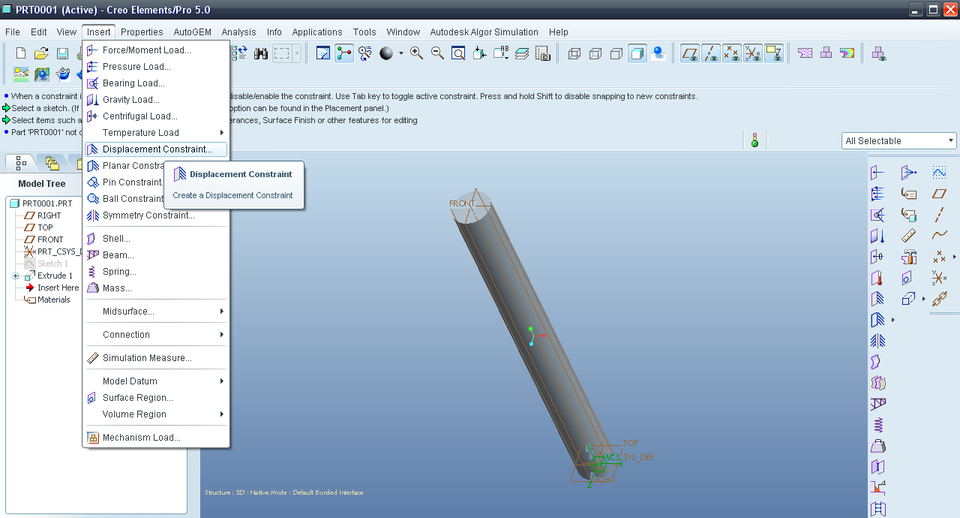

     Insert>>Displacement Constraints.



  7. Step 7

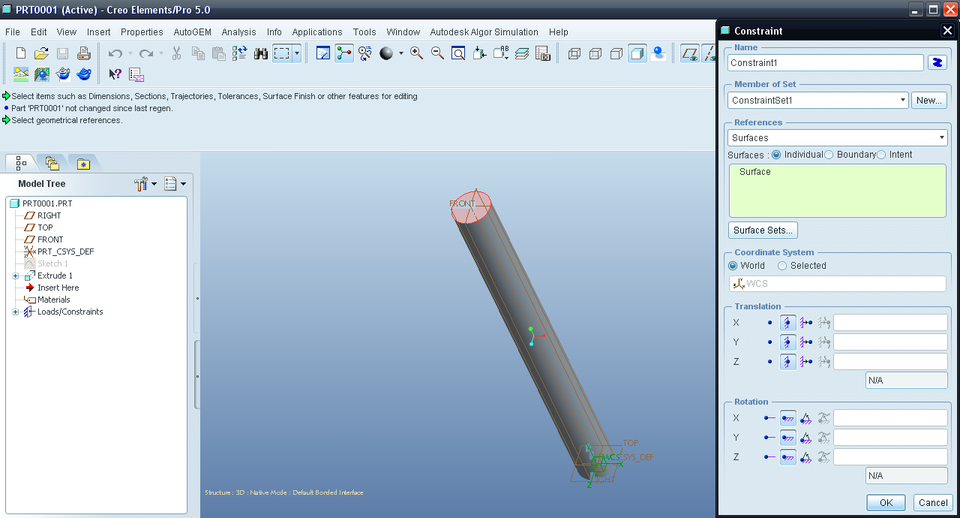

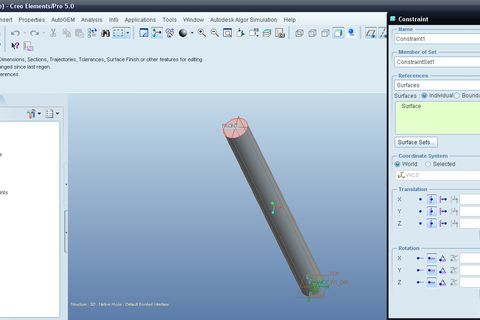

     Select front face and click OK. This will fix all the DOFs of the front face.



  8. Step 8

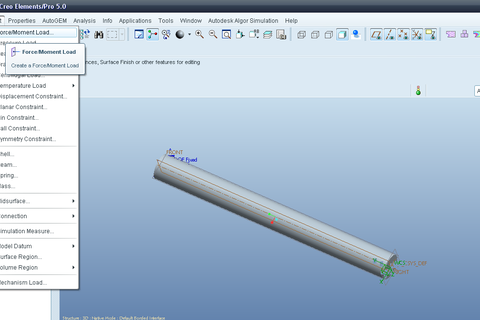

     Insert>>Force/Moment Load.

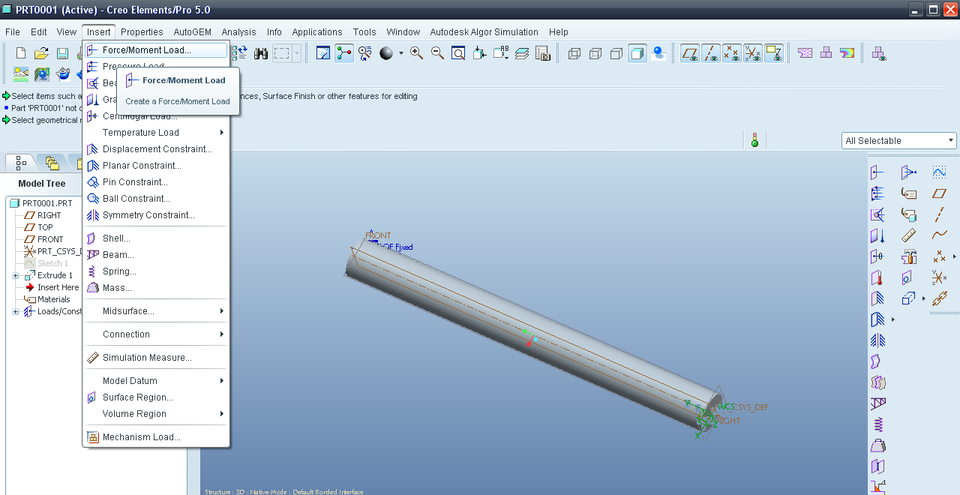

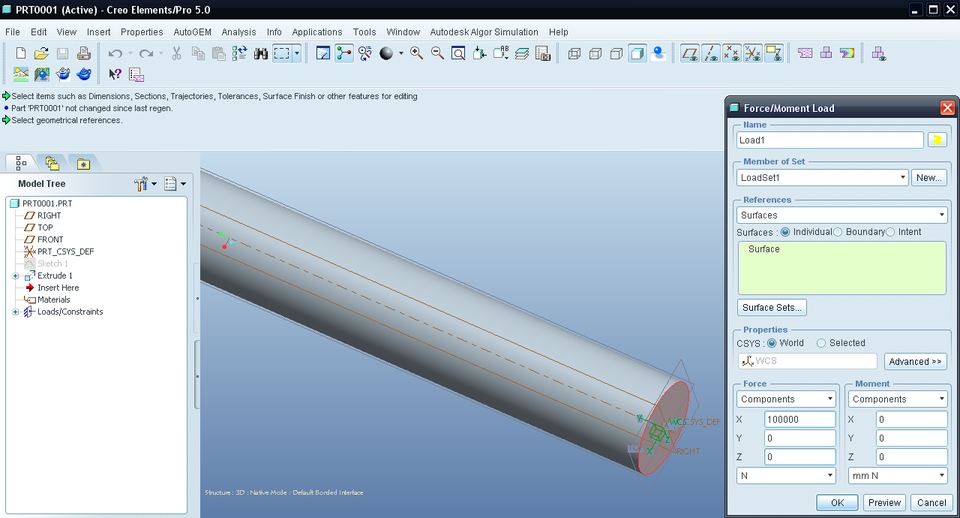

  9. Step 9

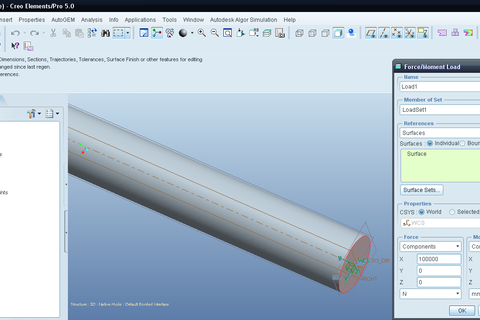

     Select the other face of the rod. And Enter an value of 10000 in X at Force and click OK.



  10. Step 10

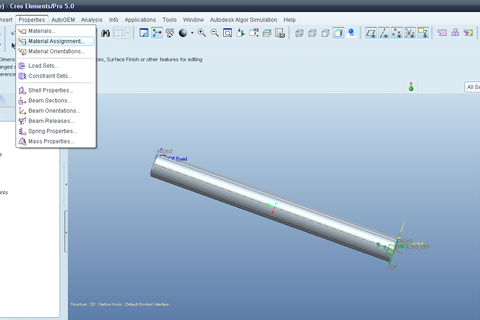

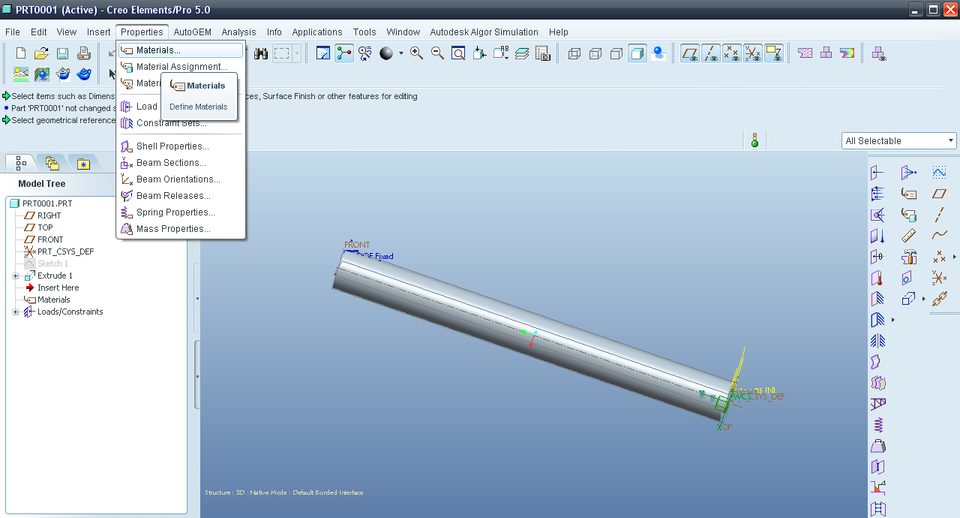

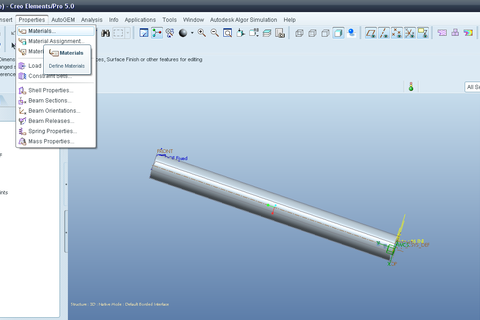

      Properties>>material.



  11. Step 11

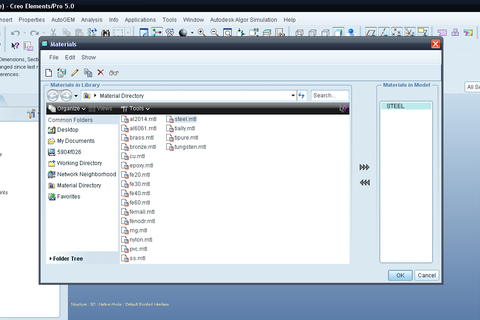

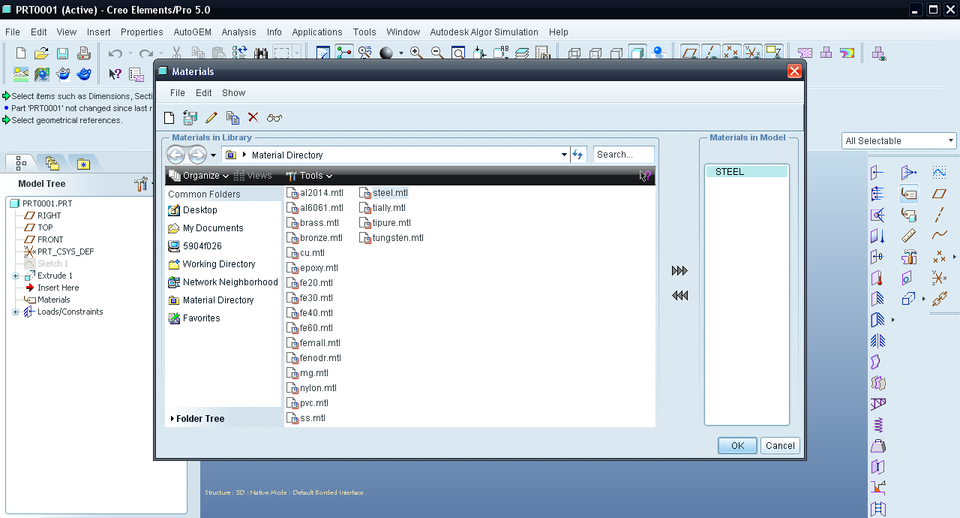

      Select Steel and Click >>> button.



  12. Step 12

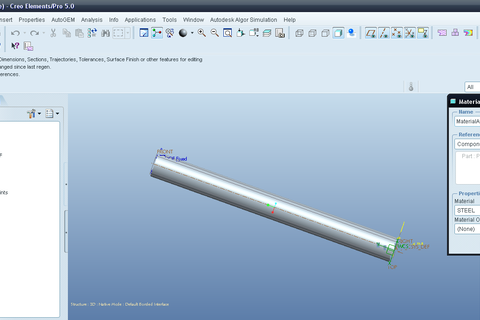

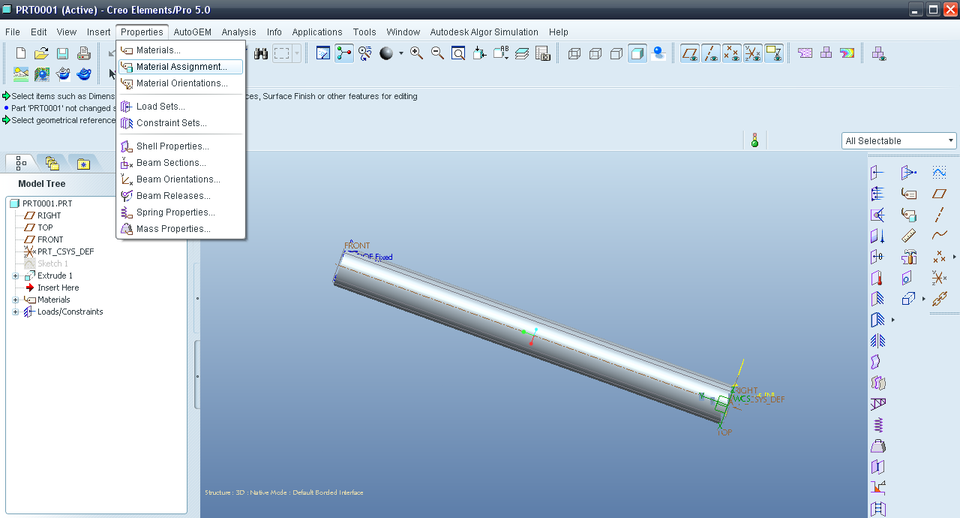

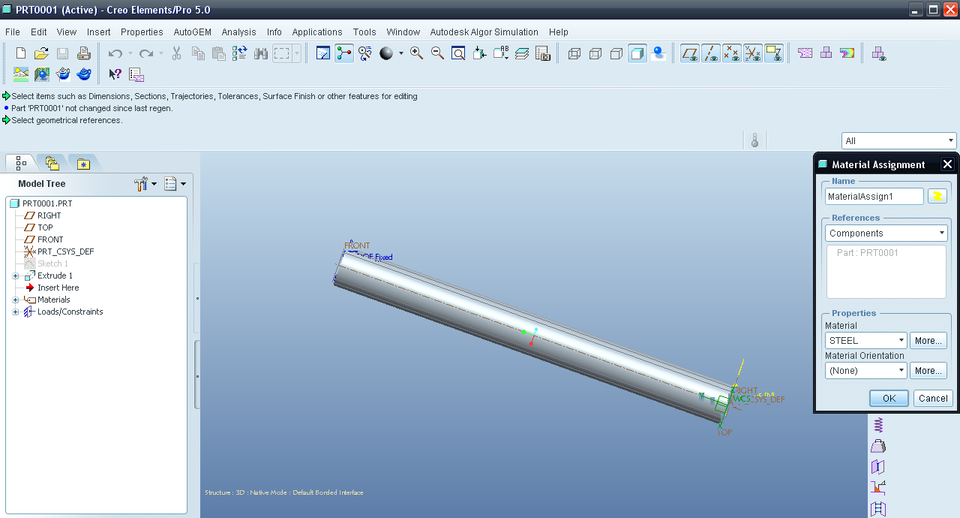

      Properties>>material assignment.



  13. Step 13

      Keep default settings and click OK.



  14. Step 14

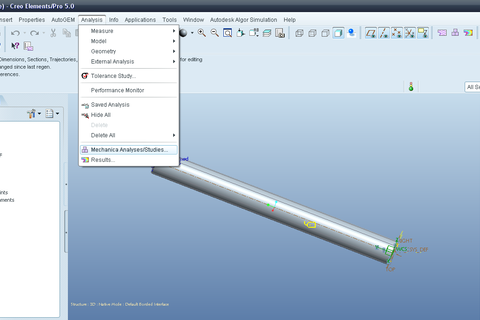

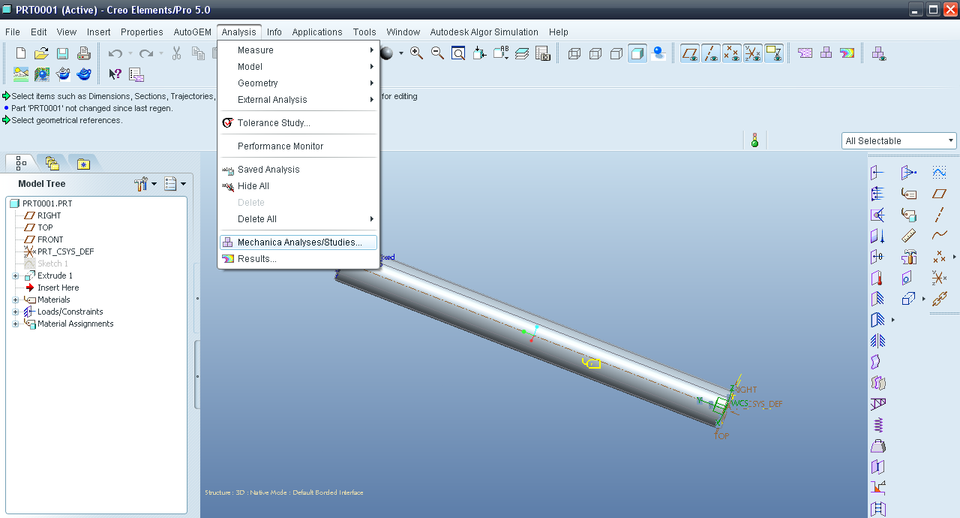

      Analysis>>Mechanica Analysis/Studies.



  15. Step 15

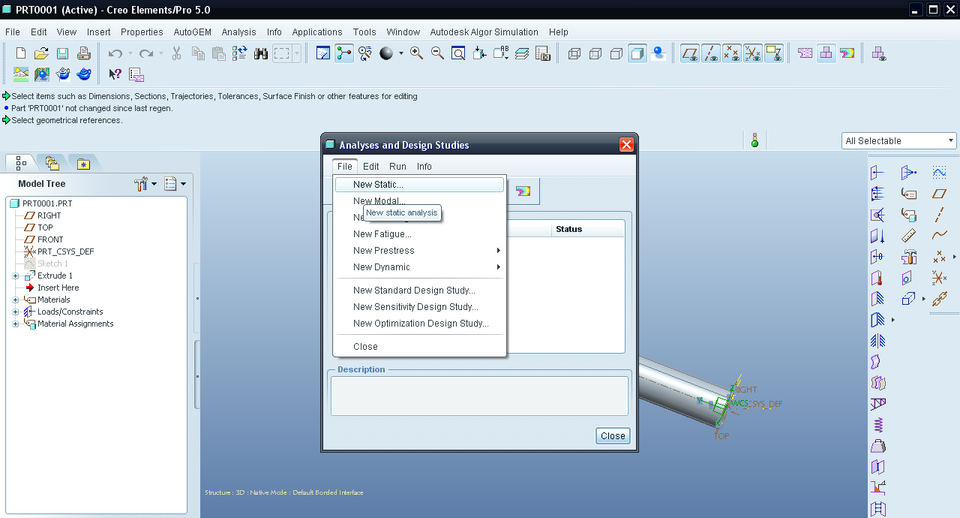

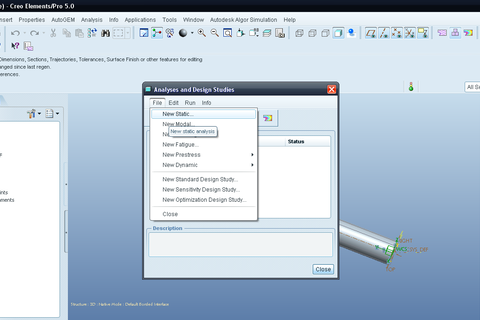

      Click File Menu and then New Static.



  16. Step 16

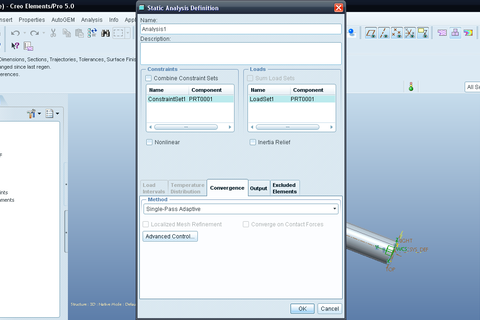

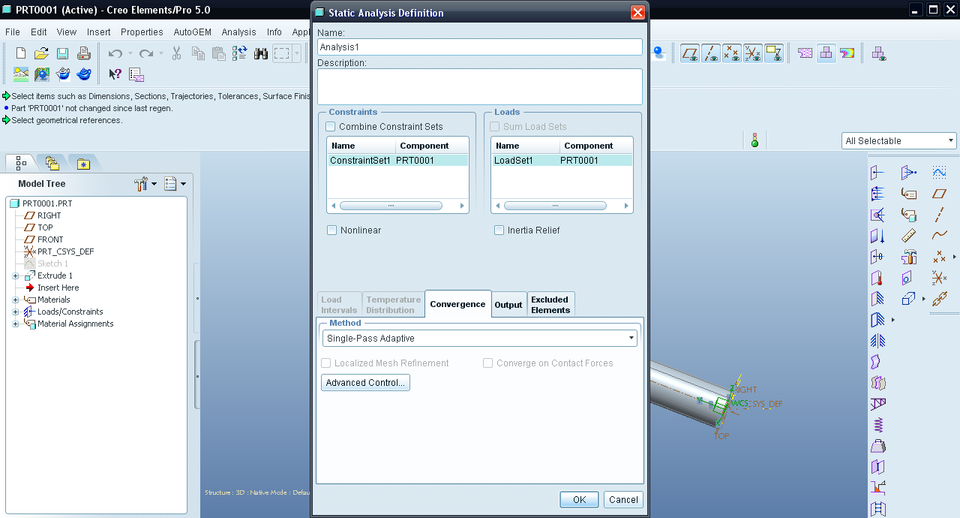

      Keep the default setting for now and click OK.



  17. Step 17

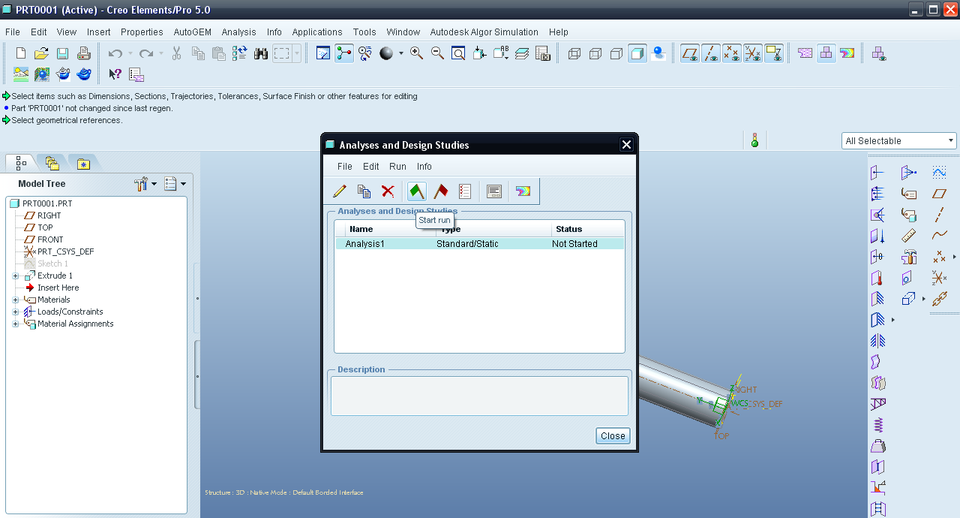

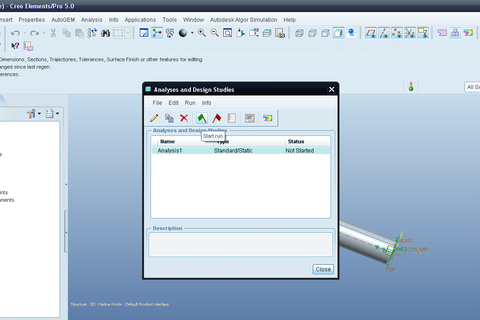

      Click the green flag to run the analysis. OK.



  18. Step 18

      Click Analysis menu and then Results.



  19. Step 19

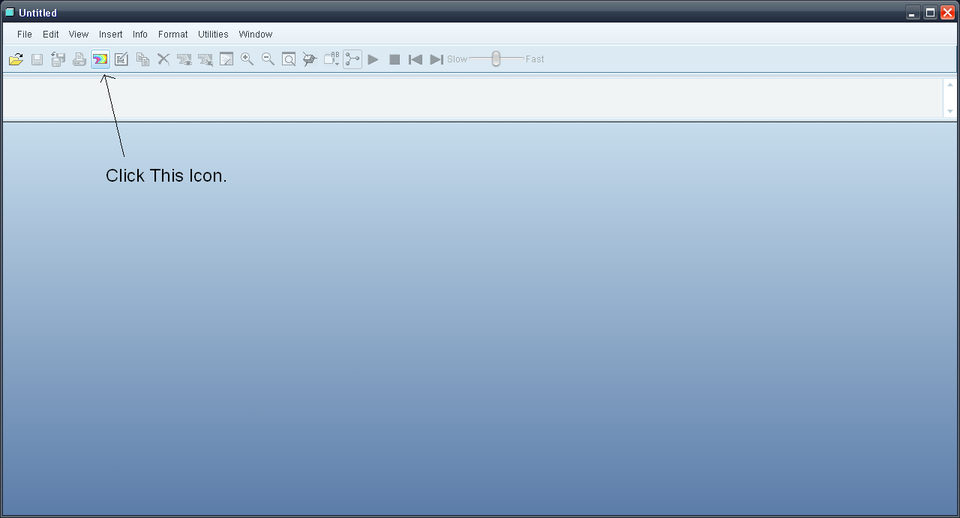

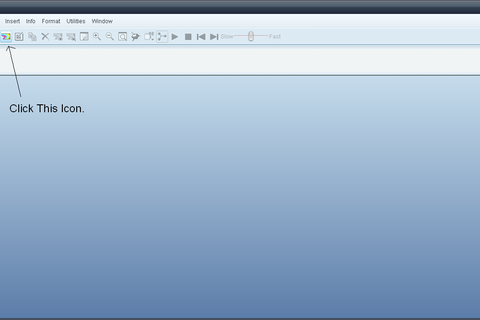

      Click this icon.



  20. Step 20

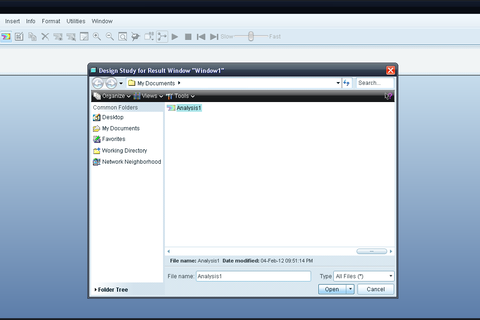

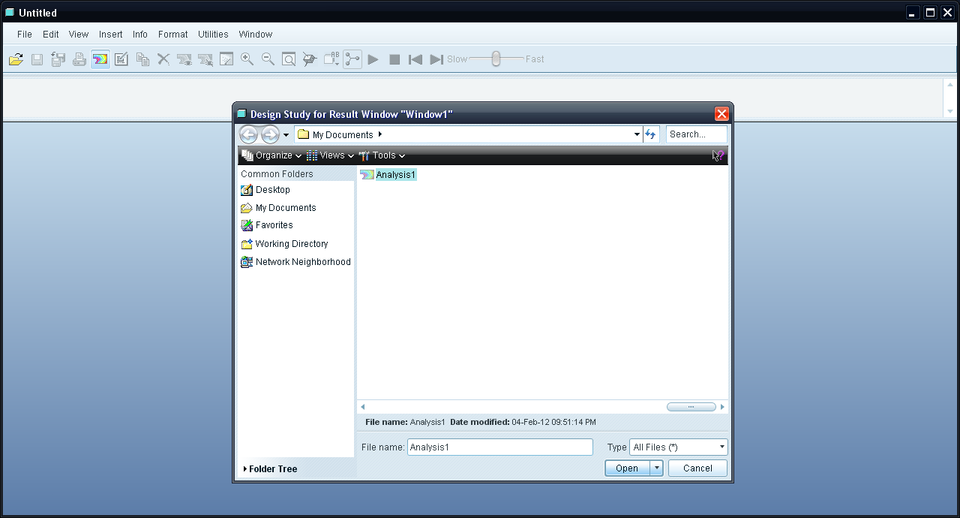

      Select the analysis1 file just created and Click Open. A dialogue window will appear click OK and Show.



  21. Step 21

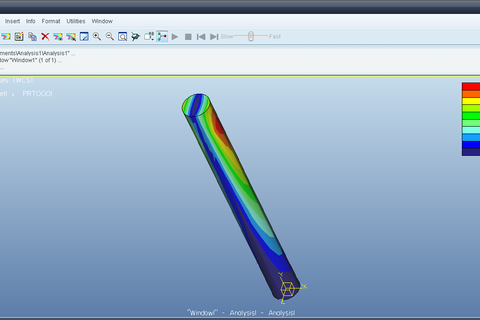

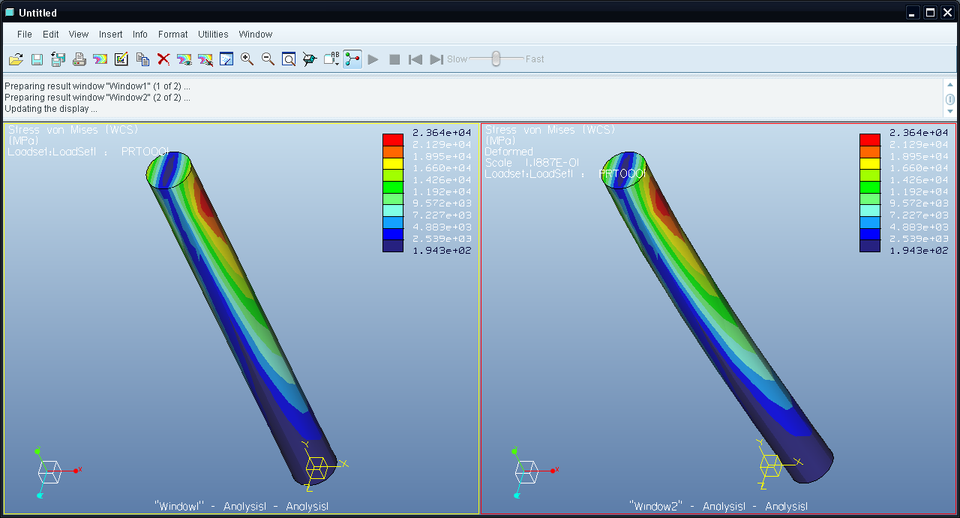

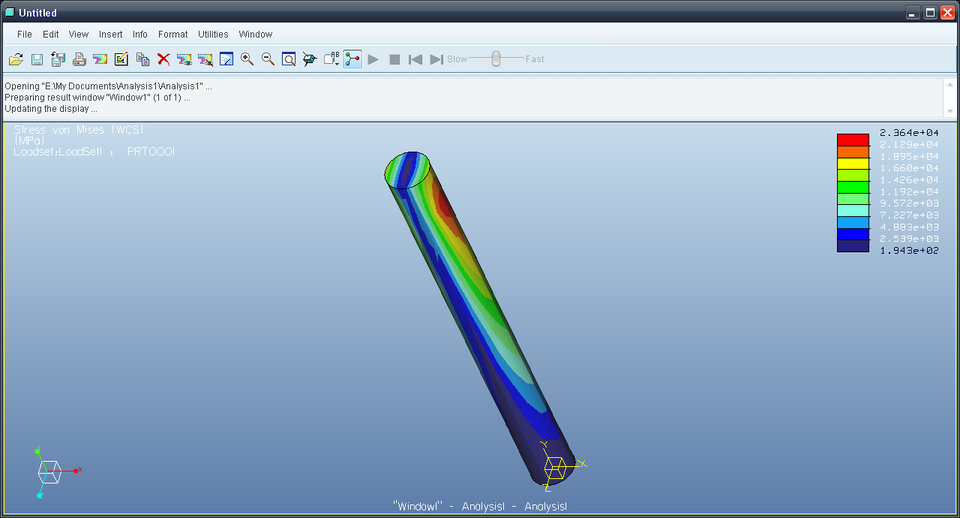

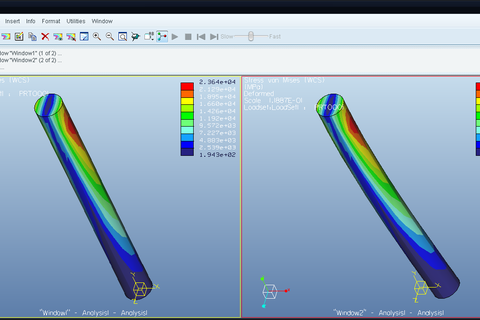

      The von-mises stress distribution is shown.



  22. Step 22

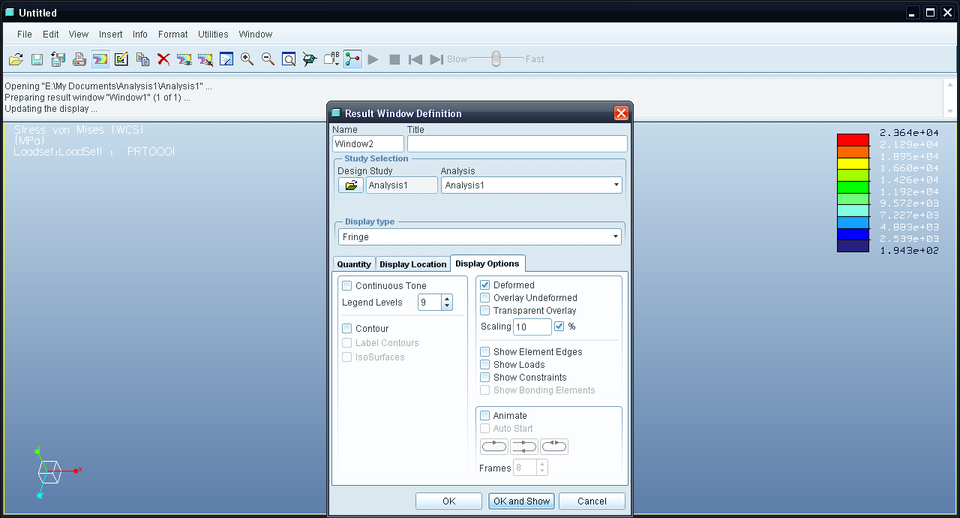

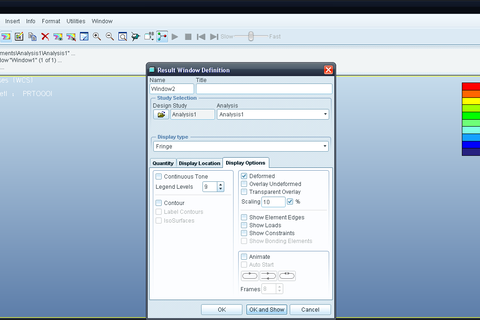

      Click that icon again and under display options check deformed and click OK and Show.



  23. Step 23

      Now we can see the deformed and undeformed state of the rod under load.



•
