  Here is the tutorial.

  1. Step 1

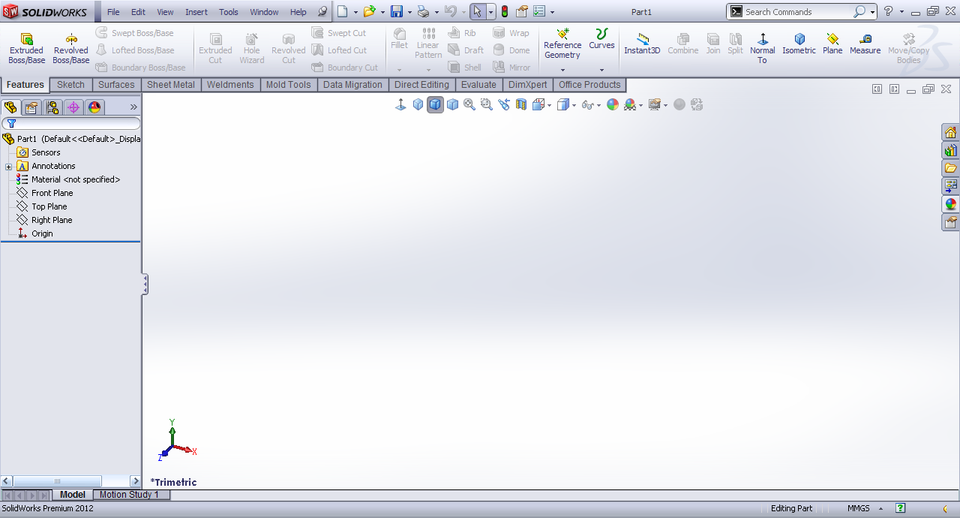

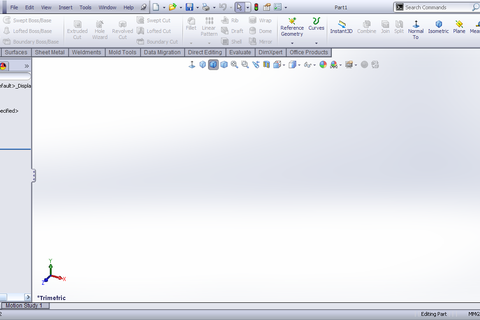

     Start SolidWorks in part mode.



  2. Step 2

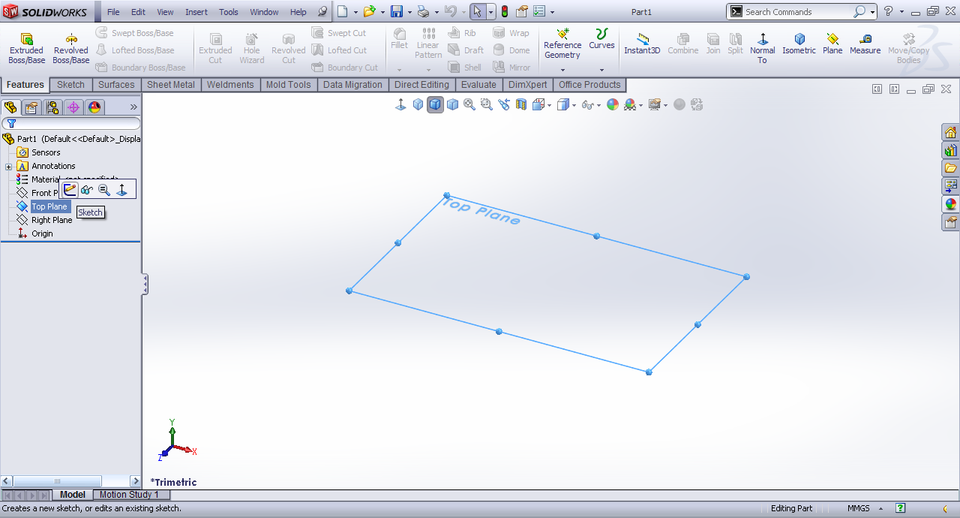

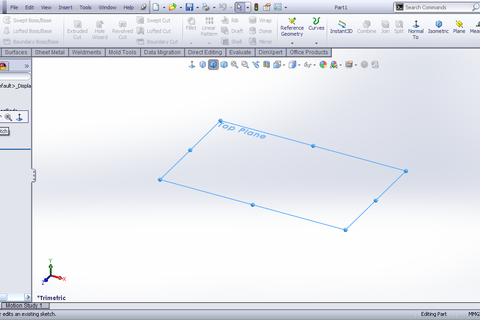

     Top plane>>Sketch.



  3. Step 3

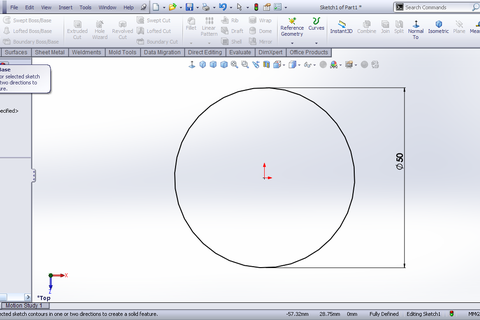

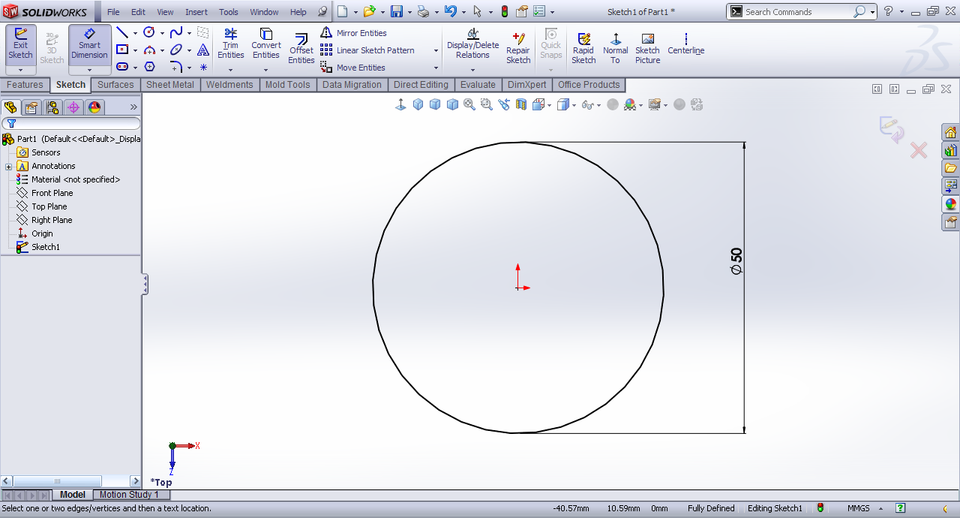

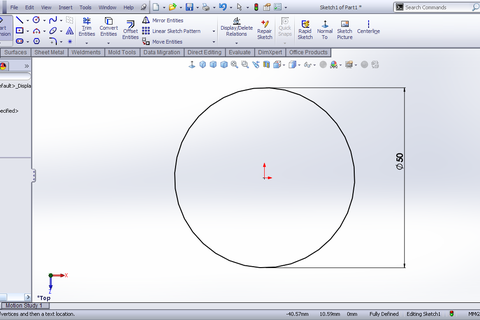

     Draw a circle of 50mm diameter.



  4. Step 4

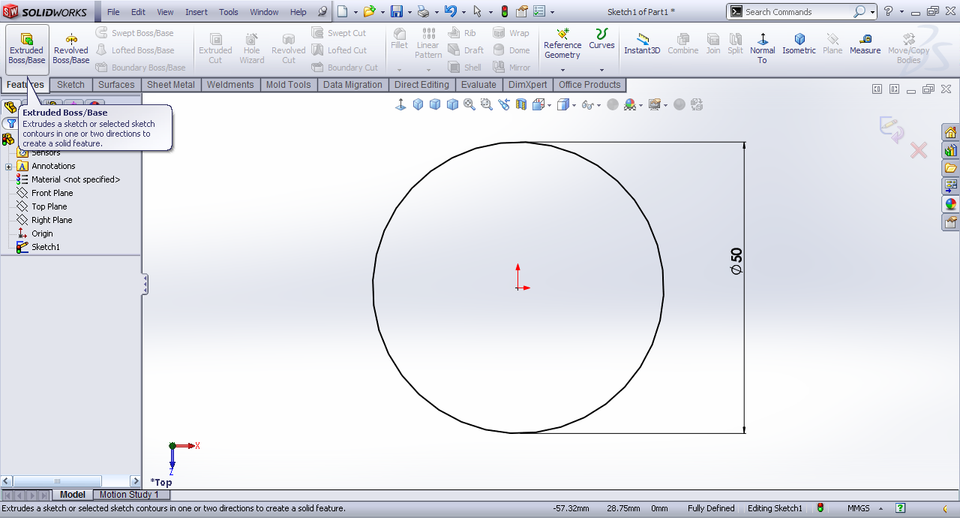

     Under Features tab choose Extruded boss/base.



  5. Step 5

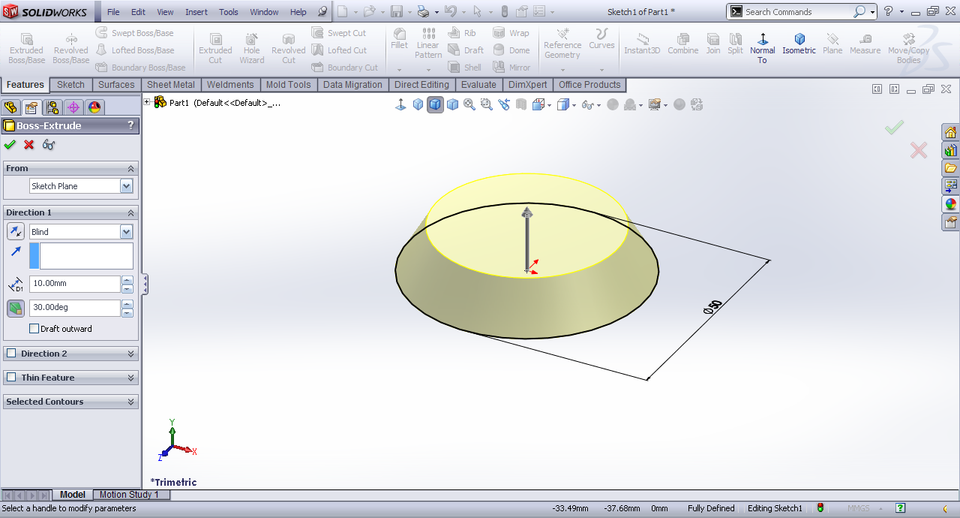

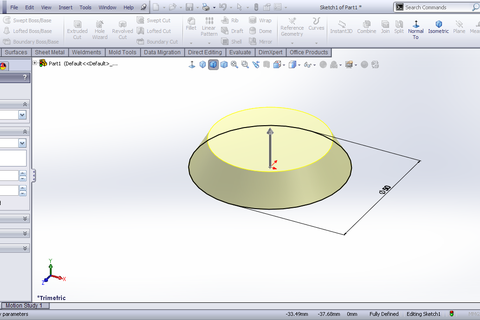

     Choose Draft and enter an angle of 30º. Click OK.



  6. Step 6

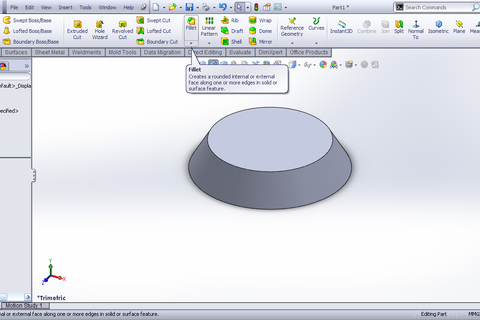

     Under Features tab click Fillet.



  7. Step 7

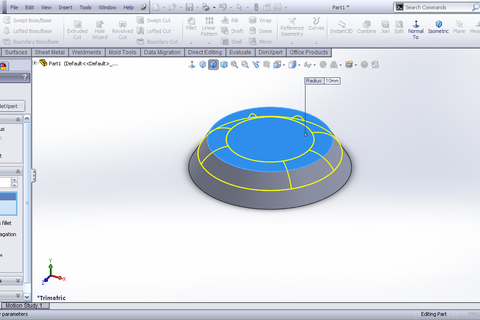

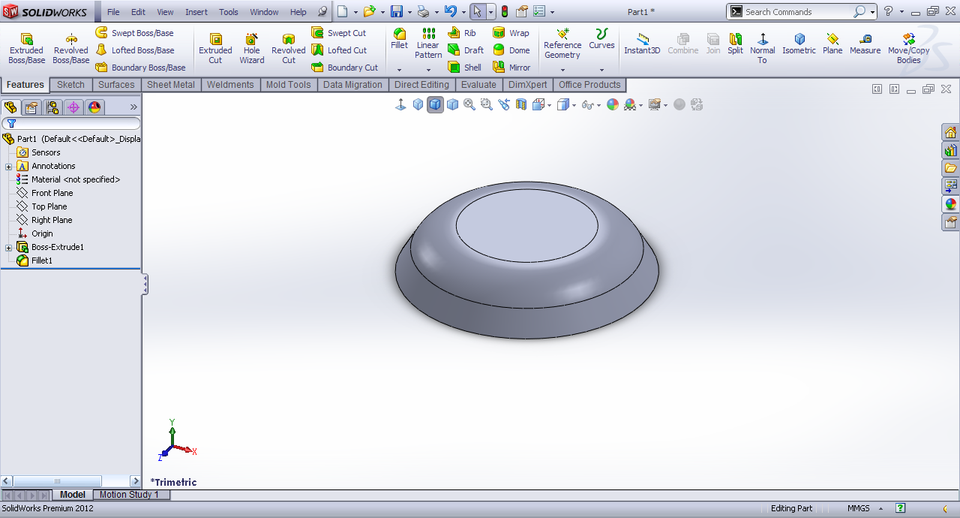

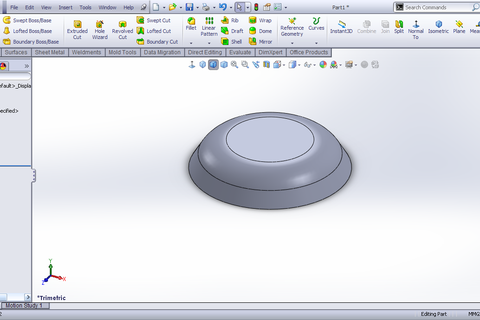

     Select the top face of the part and keep the default radius. Click OK.



  8. Step 8

     Now we have the body of the forming tool. Now we have to define the sketch used for defining the forming tool position.



  9. Step 9

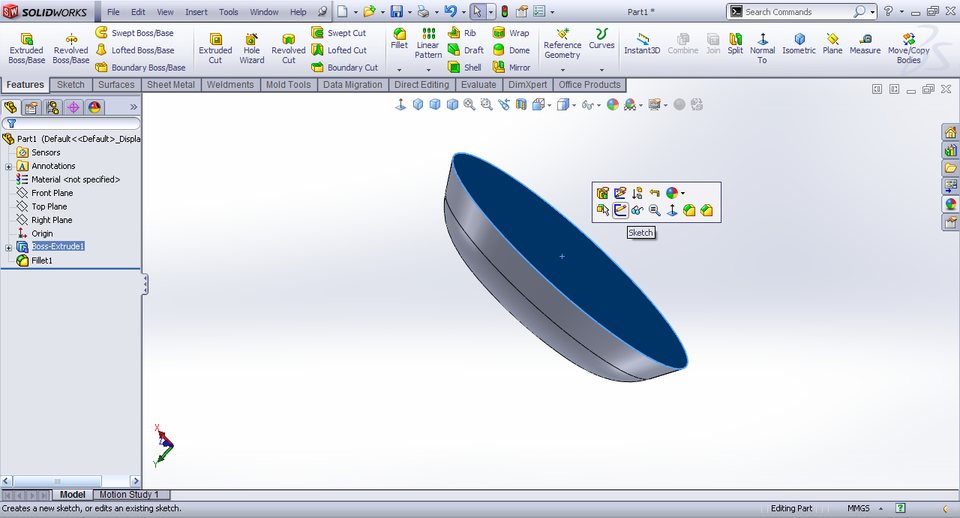

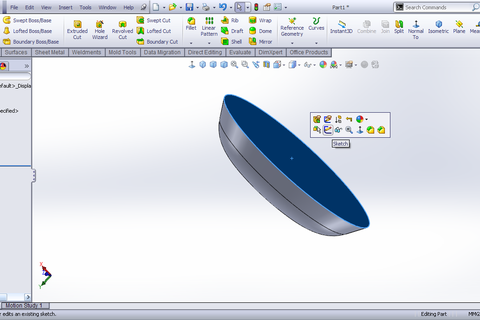

     Bottom face>>Sketch.



  10. Step 10

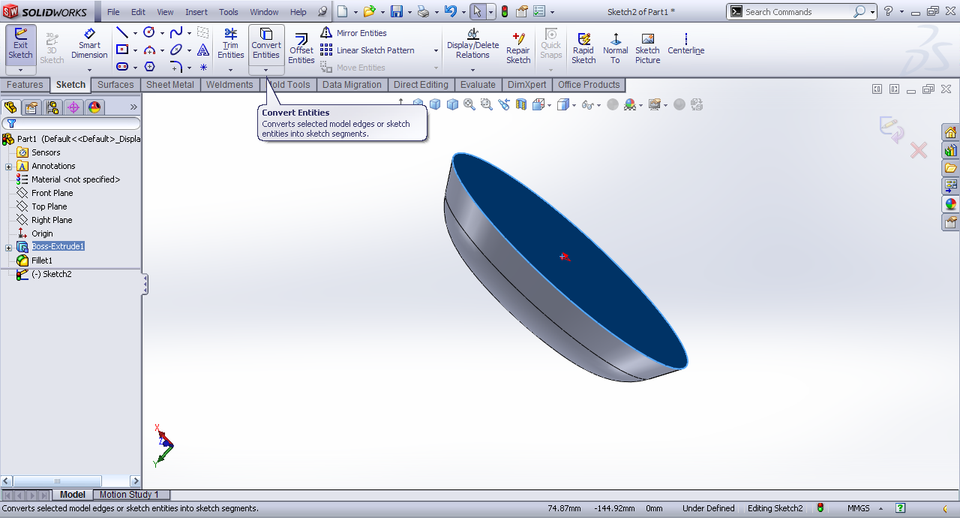

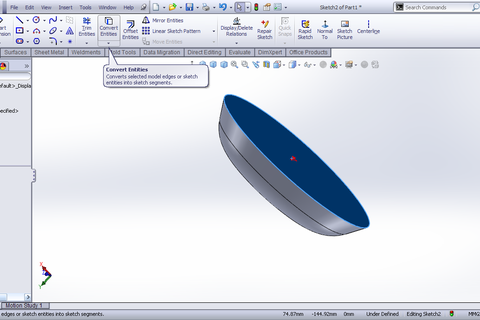

      Under Sketch tab click Convert entities while selecting the bottom face.



  11. Step 11

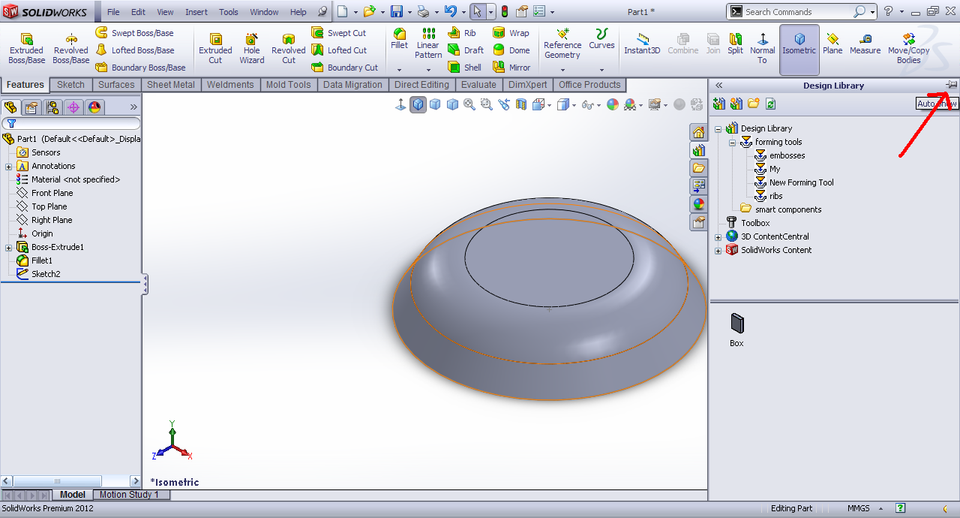

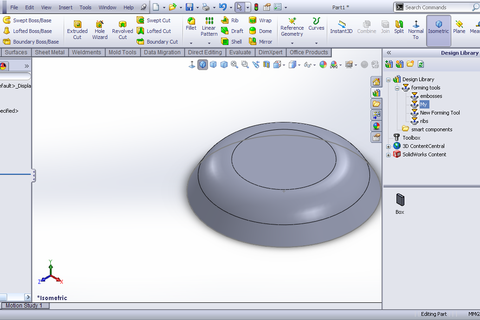

      The base will be converted. Now exit the sketch and open the Design library from the task pane. Point to forming tools.



  12. Step 12

      Click Autoshow to fix the task pane.



  13. Step 13

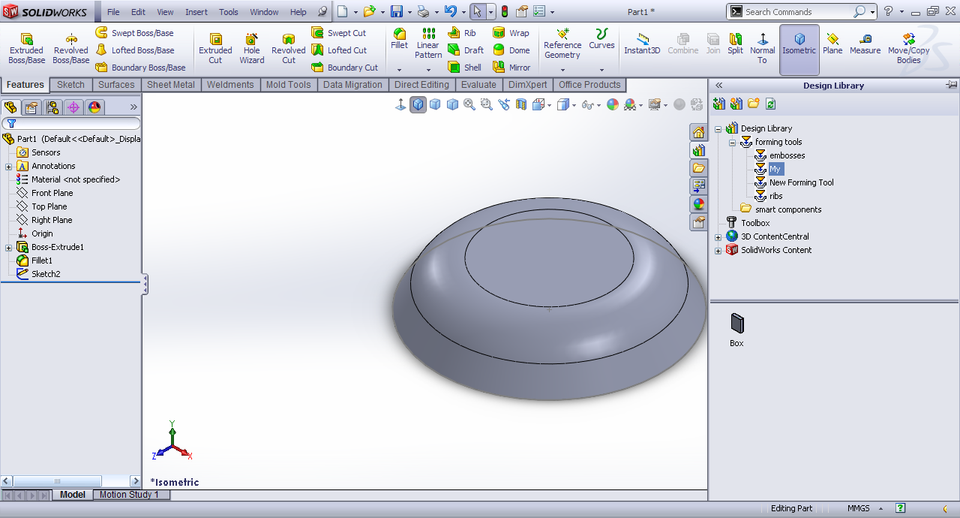

      Now drag the part1 from the tree view to the design library lower window.



  14. Step 14

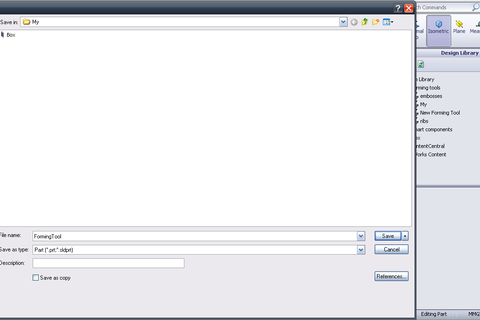

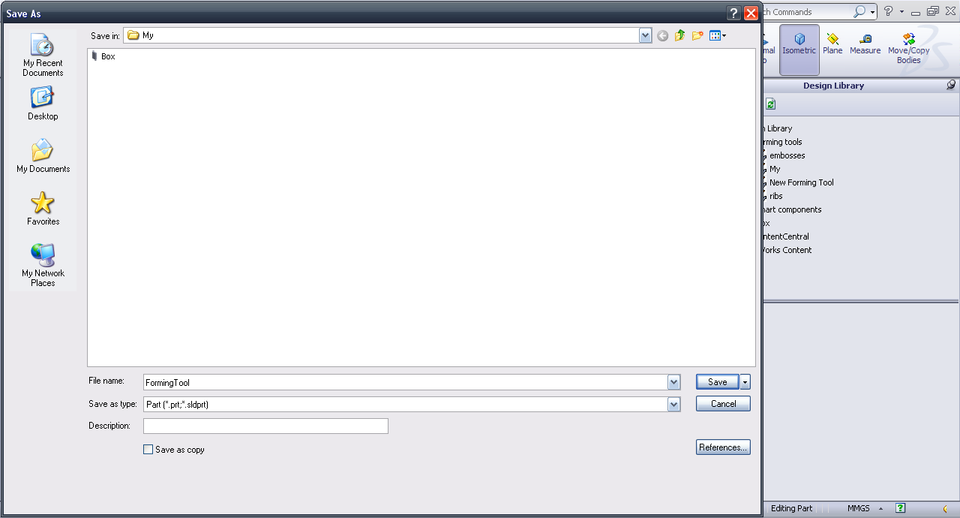

      Enter a name for forming tool & Click Save.



  15. Step 15

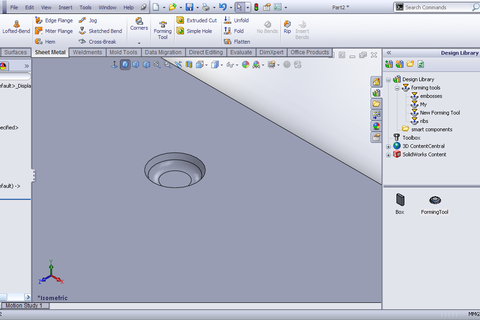

      Now we can use it as forming tool.
