2 answers

•
  Sudhir Gill over 1 year ago

  Here is the tutorial.

  1. Step 1

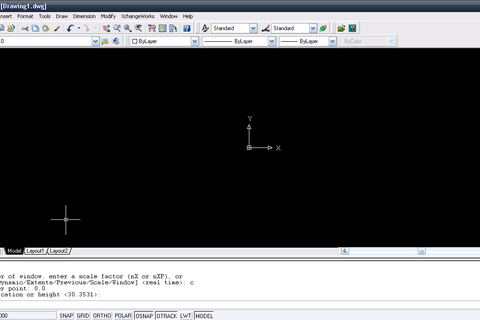

     Start AutoCAD.

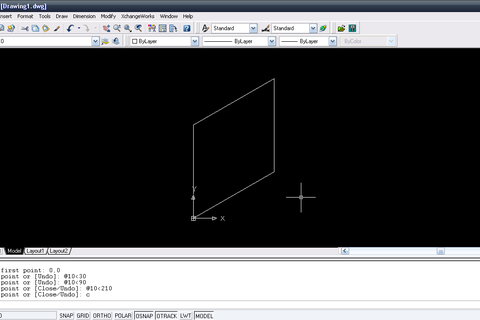

  2. Step 2

     Use line tool and input these values=(0,0),@10<210,c.

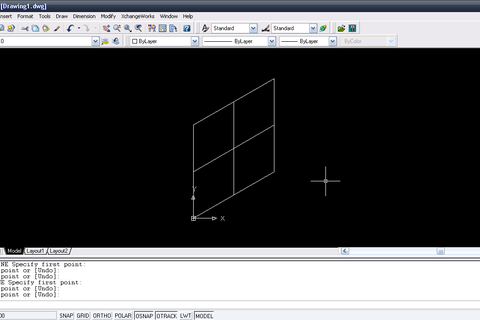

  3. Step 3

     Now draw lines to the mid-points of the the lines.

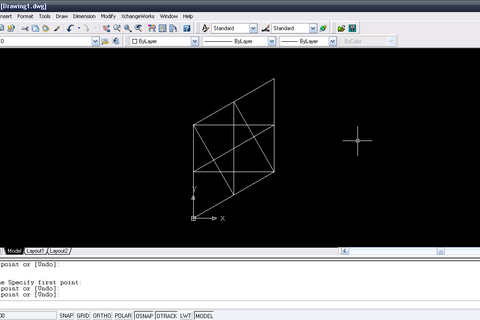

  4. Step 4

     Draw these lines.

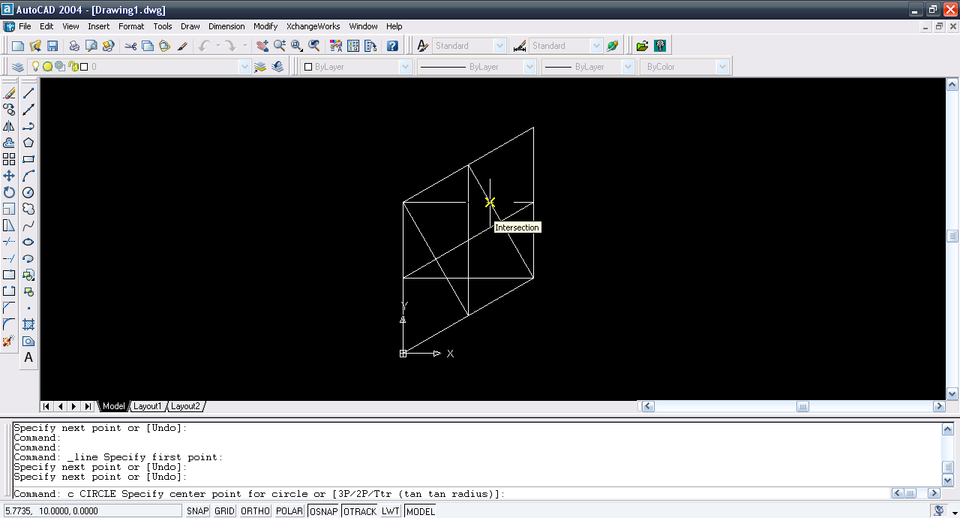

  5. Step 5

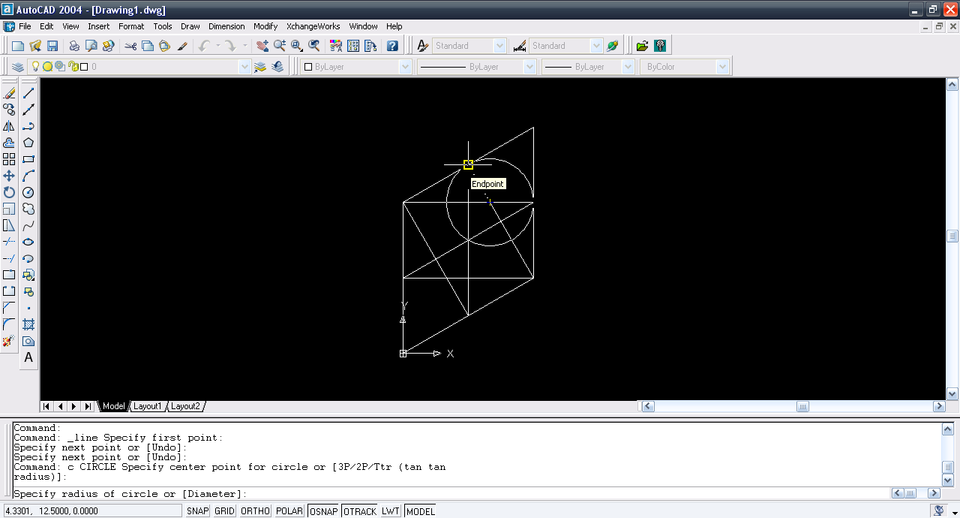

     Use circle tool and then select this intersection as center.



  6. Step 6

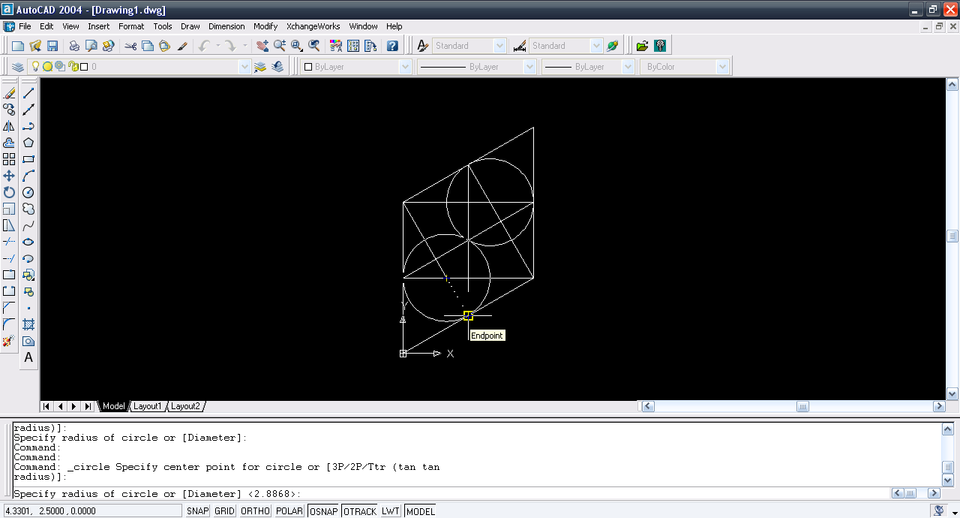

     Select the end point of the line.



  7. Step 7

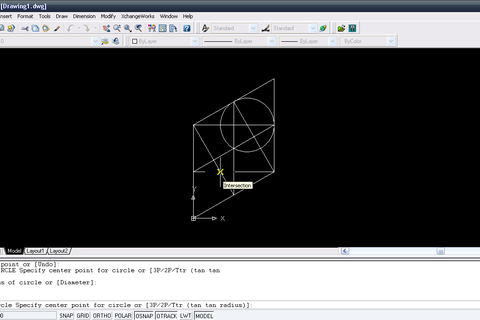

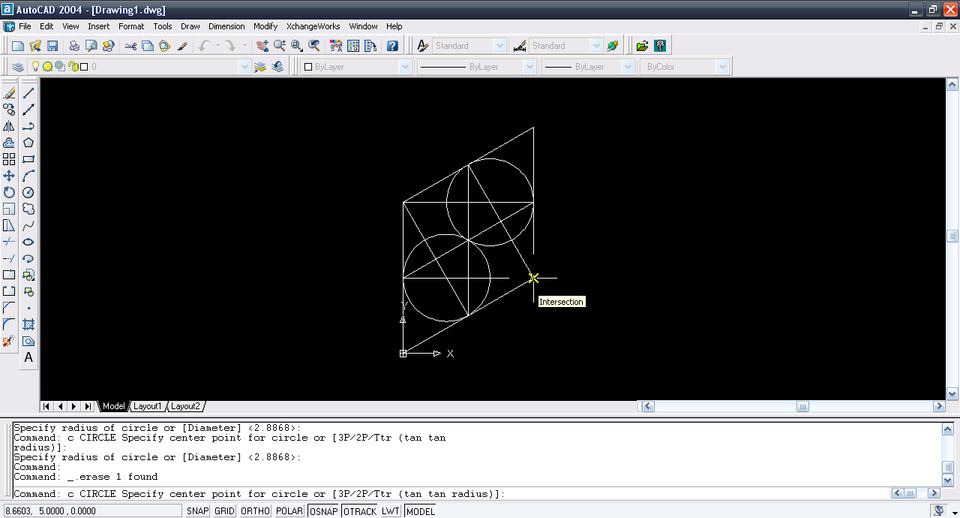

     Again circle tool and select the intersection.



  8. Step 8

     To the end point of the line.

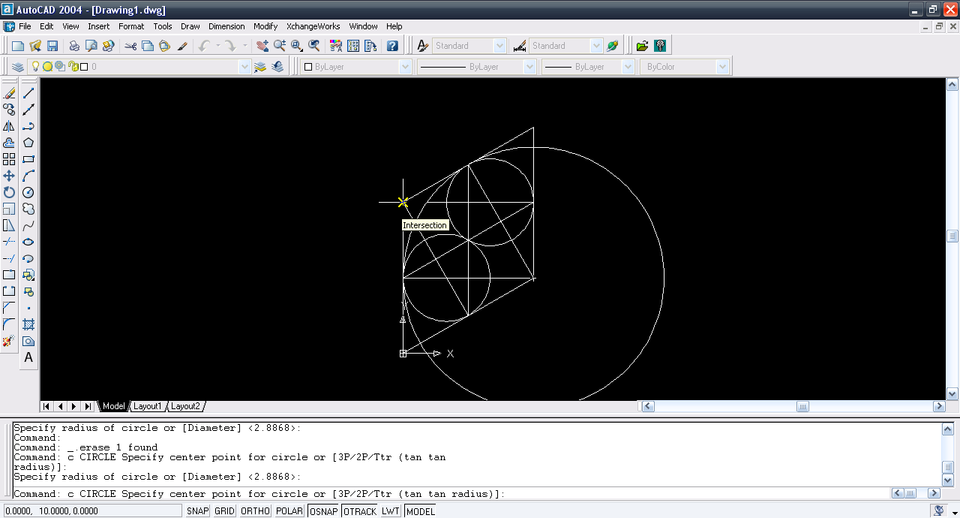

  9. Step 9

     Select circle tool and select the corner.



  10. Step 10

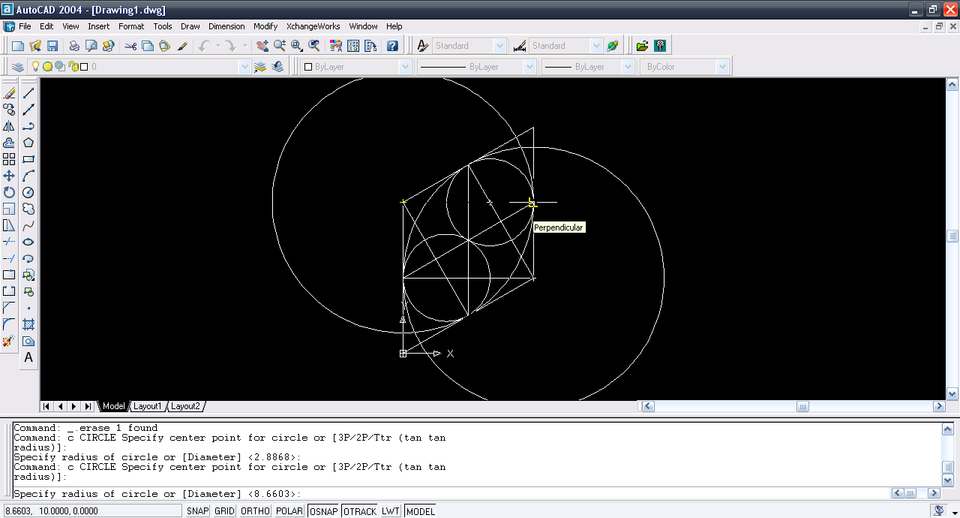

      To the mid-point of the upper line.



  11. Step 11

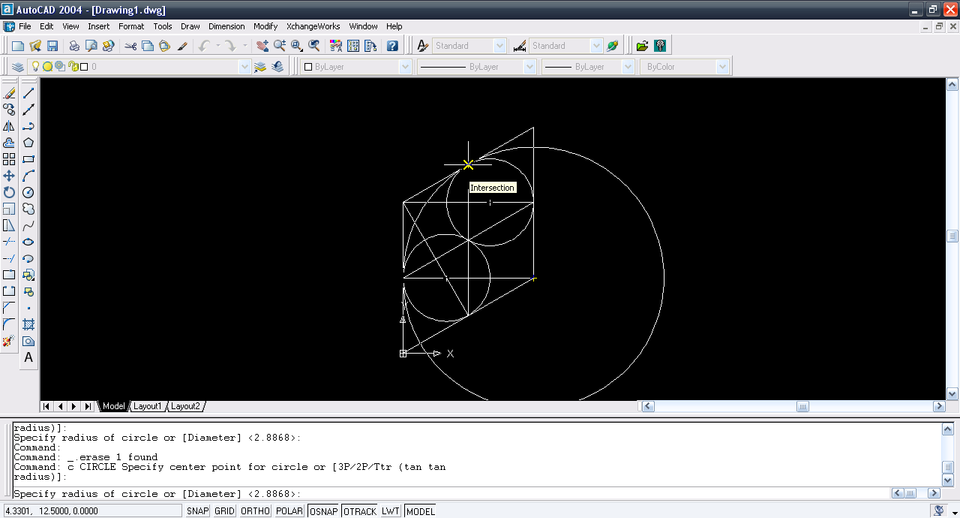

      Again circle tool and end-point.



  12. Step 12

      To the other end-point.

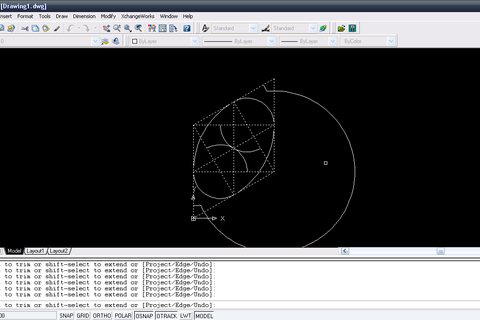

  13. Step 13

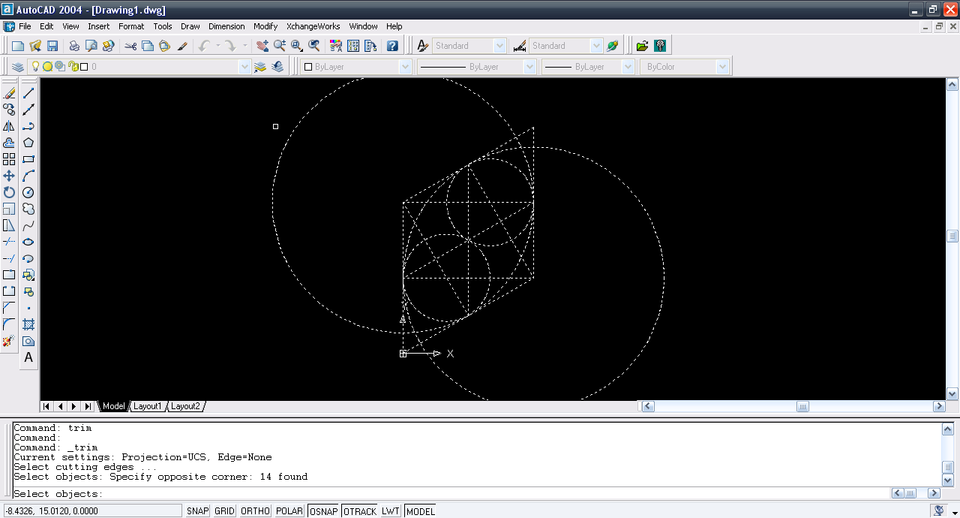

      Trim tool.



  14. Step 14

      Select all.

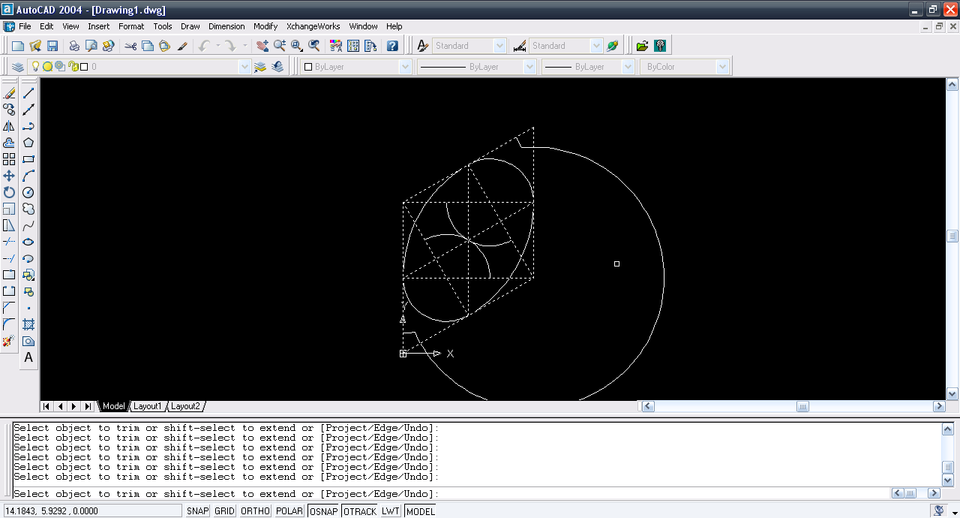

  15. Step 15

      Trim away the components leaving the circles to arcs.

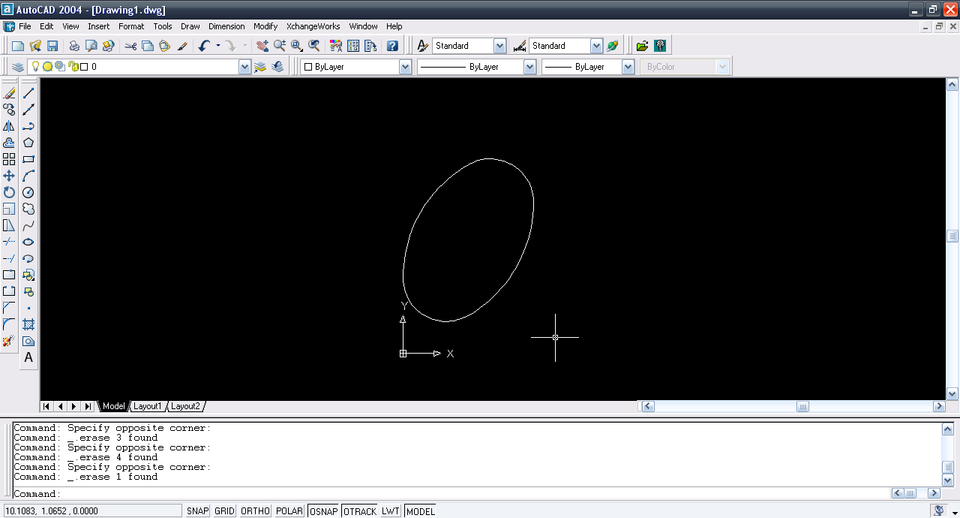

  16. Step 16

      Delete all construction and we have circle.



  1.
     gabriel 11 months ago

     OR YOU COULD USE THE ISO CIRCLE COMMAND

•
  Harsh Soneji 9 months ago

  Step-1 open new file
  Step-2 Snap right click setting & change snap type ( Isometric snap) ok
  Step-3 Now ELLIPSE command enter & choose option Isocircle
  Step-4 Now click center point & radius or diameter
  Note : - For change isoplane press F5 ( Isoplane top , right & left)
