  Here is the tutorial.

  1. Step 1

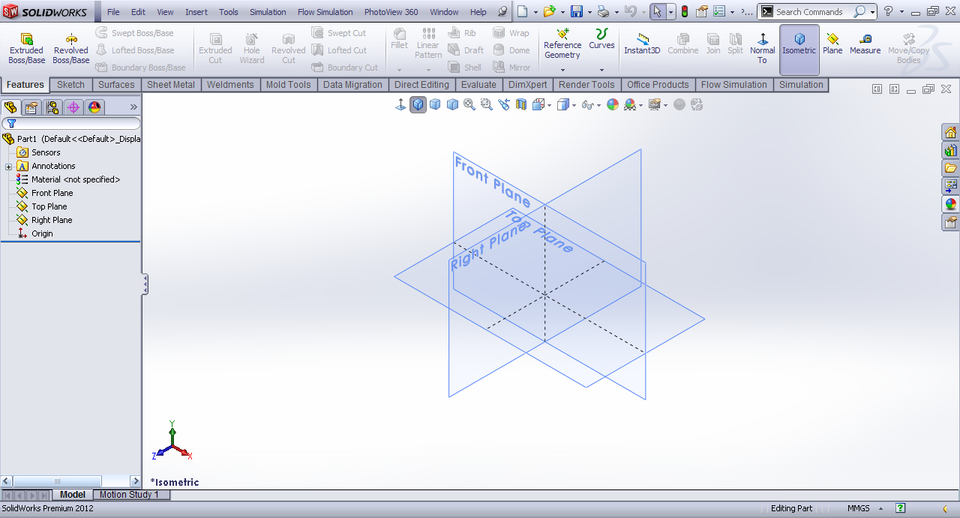

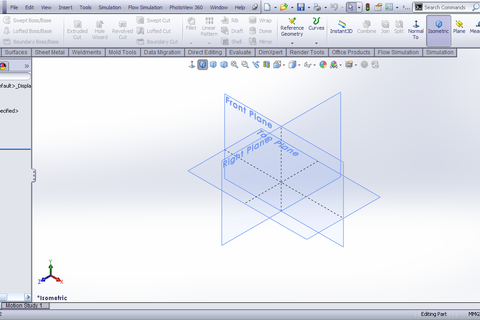

     Start SolidWorks in Part mode.



  2. Step 2

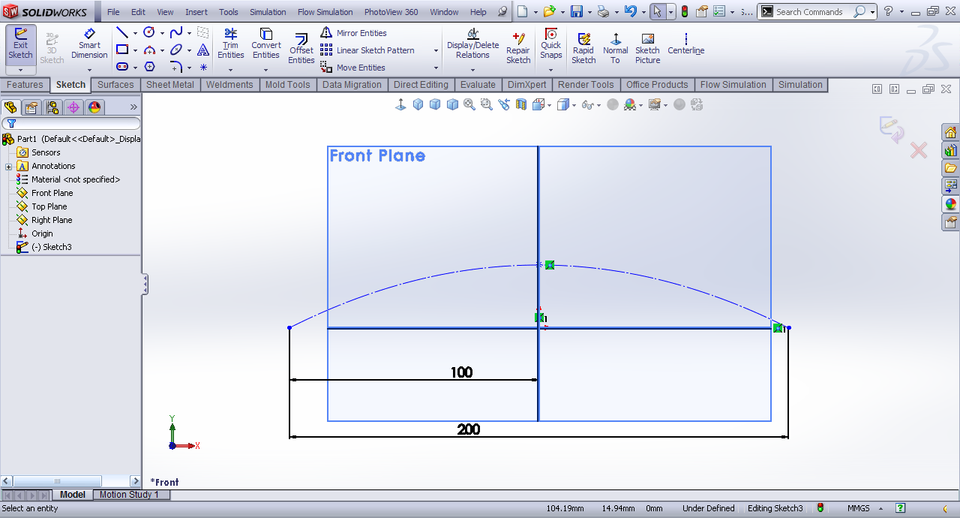

     Draw a spline and make in construction geometry.



  3. Step 3

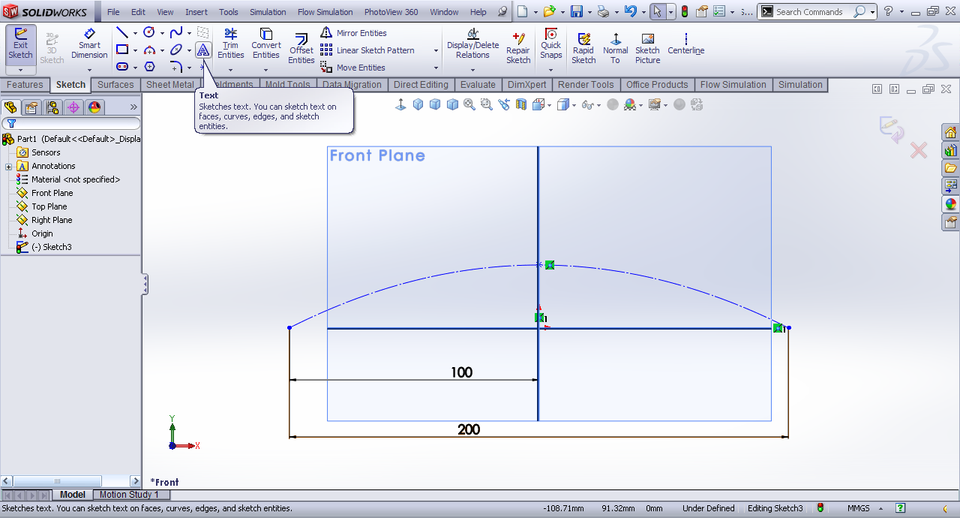

     Click on the text tool under sketch tab.



  4. Step 4

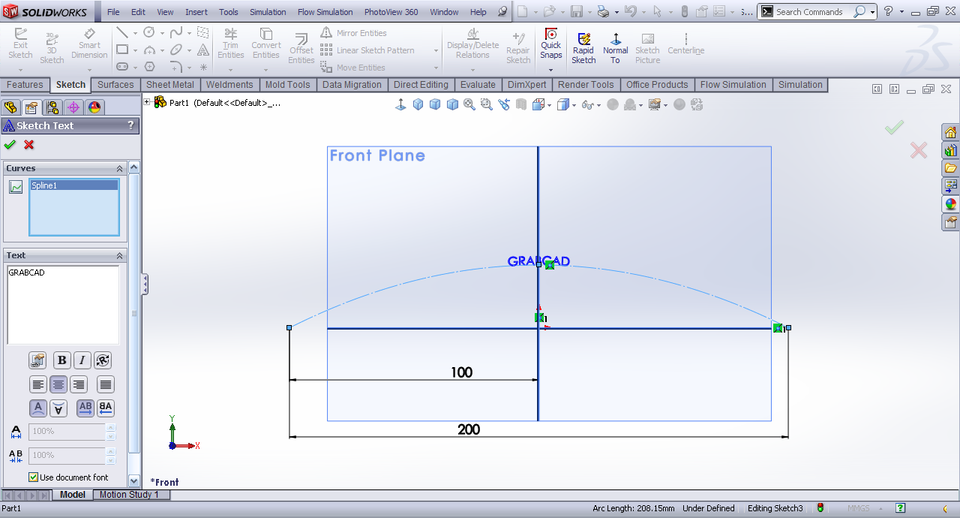

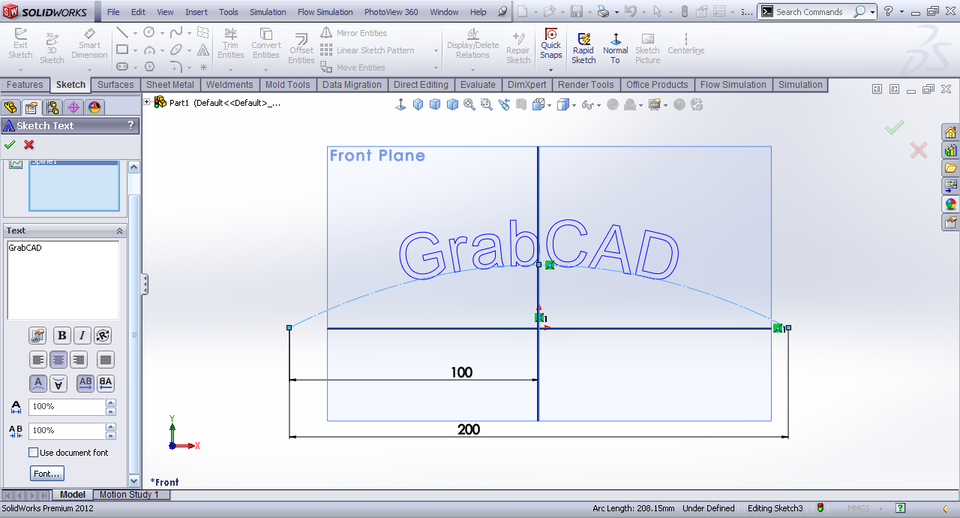

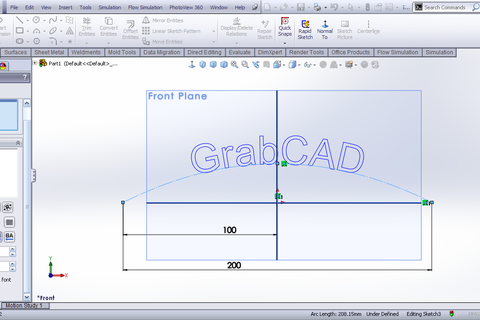

     Select the spline as the curve and write the text. Uncheck the Use Document font and click on font.



  5. Step 5

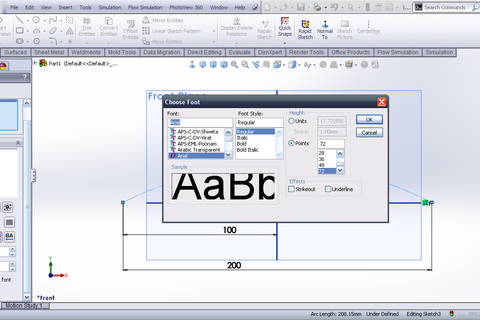

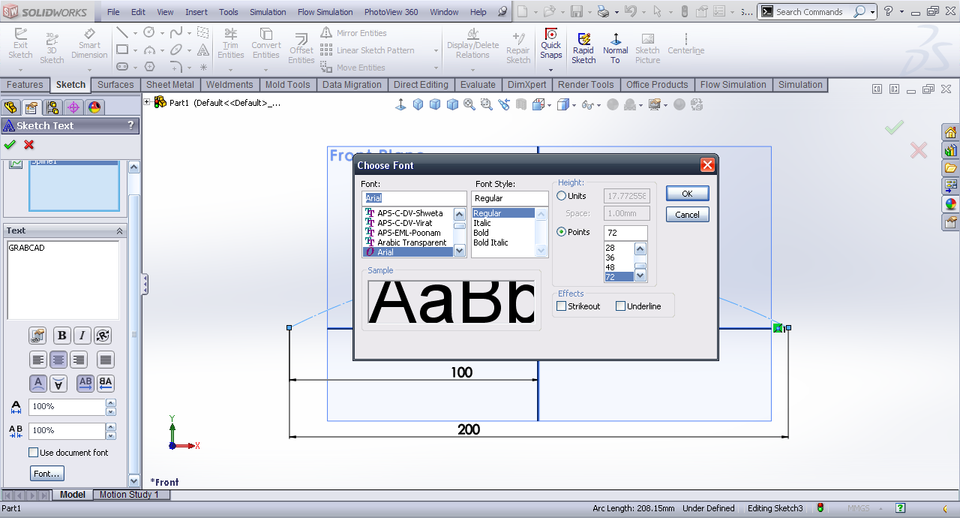

     Select Arial and change height type to points and select 72. & click OK.



  6. Step 6

     I have changed the case of the text. It is not necessary.



  7. Step 7

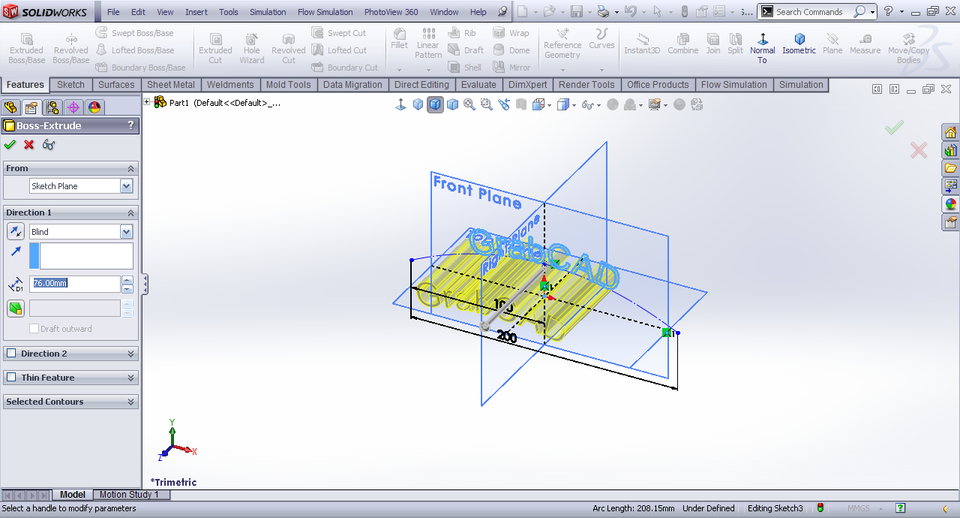

     Extrude it.



  8. Step 8

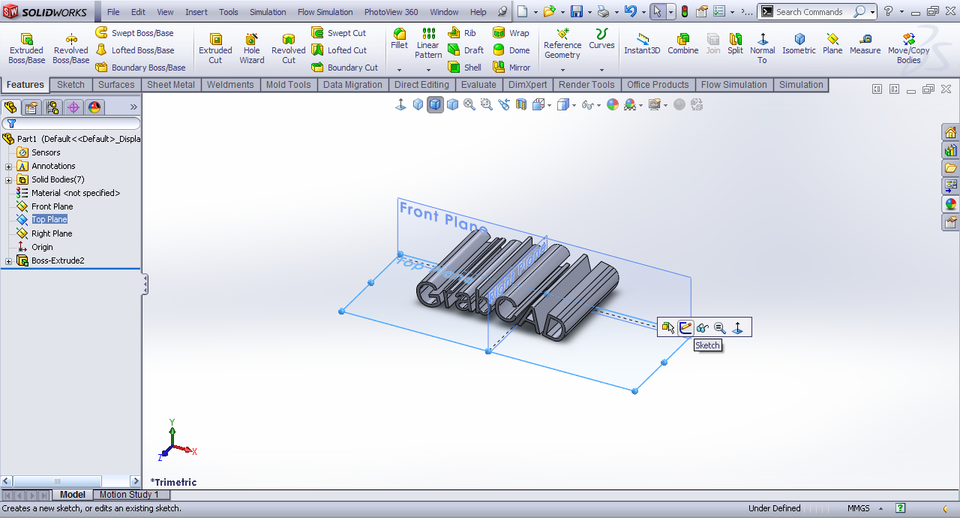

     Top plane>>Sketch.



  9. Step 9

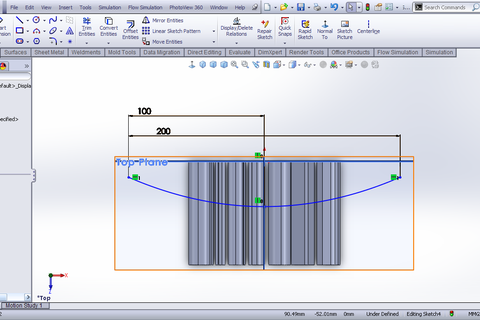

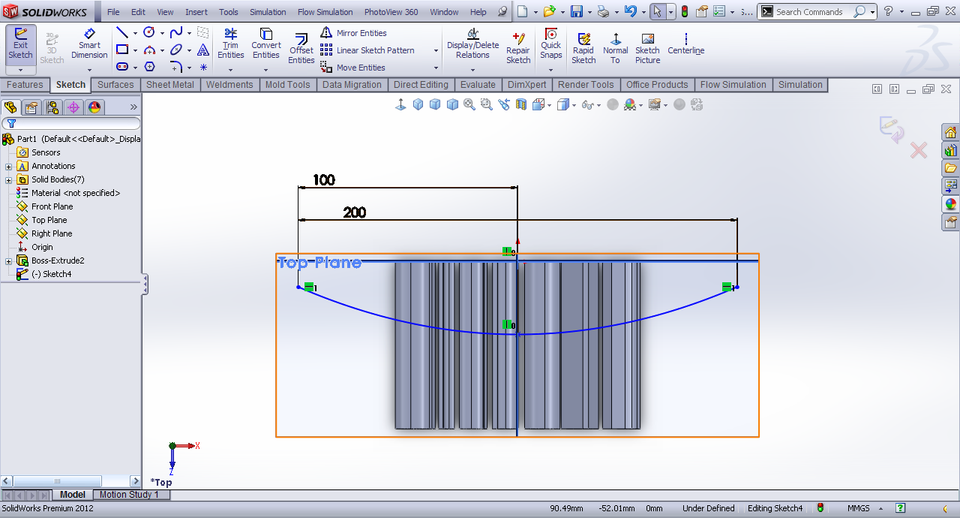

     Draw a spline. This spline will define the curvature of the text.



  10. Step 10

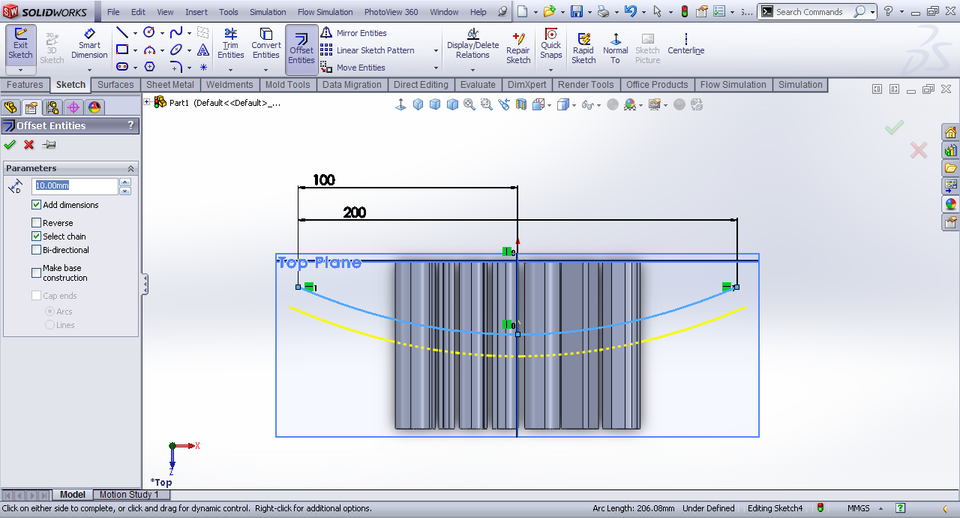

      Offset it.



  11. Step 11

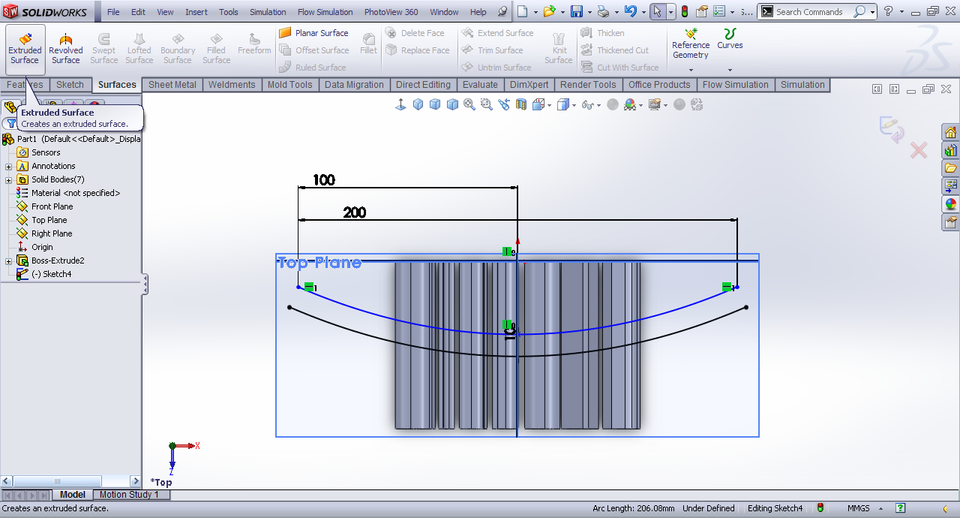

      Now select the extruded surface under surfaces tab.



  12. Step 12

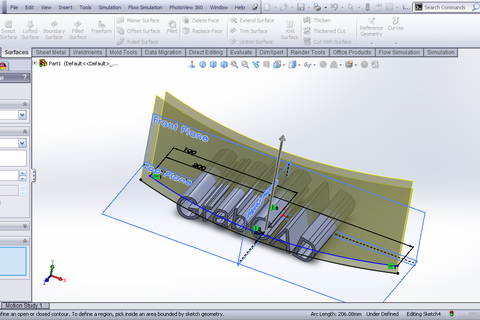

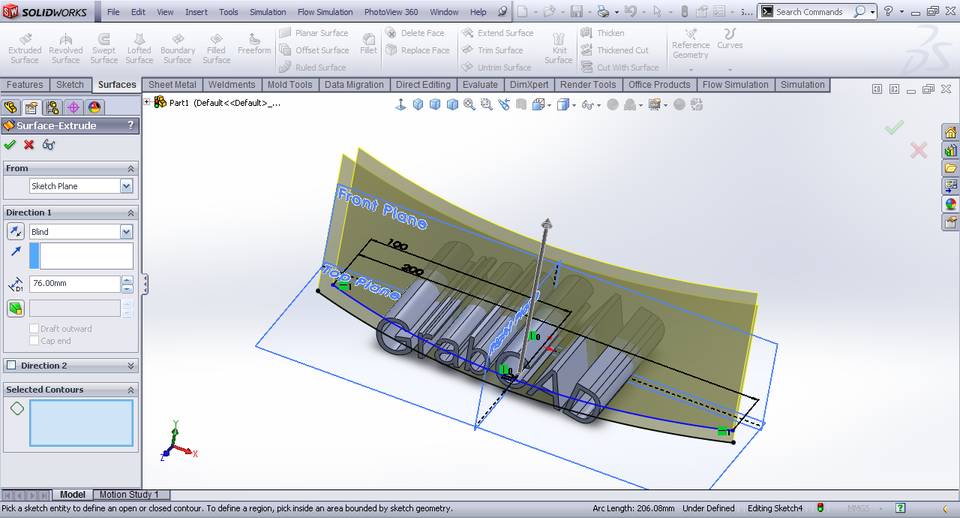

      Extrude the surface by any height.



  13. Step 13

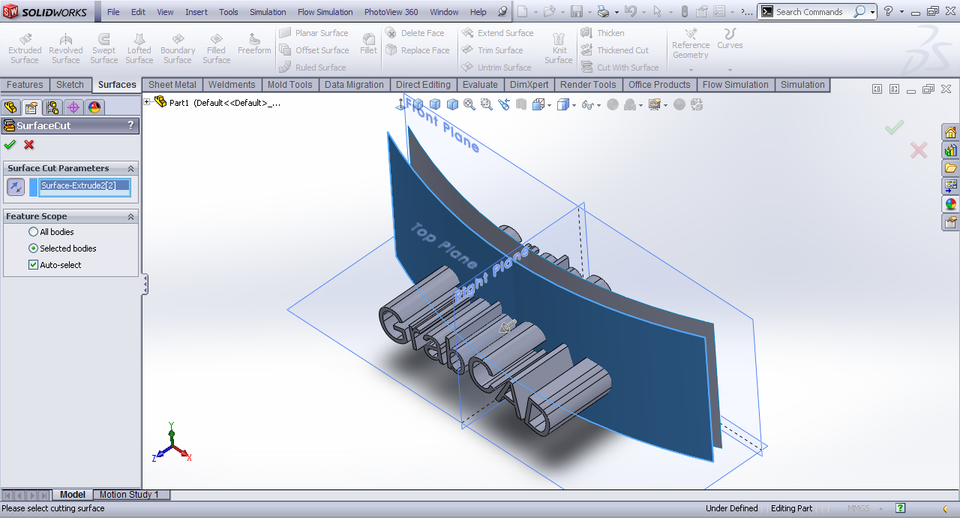

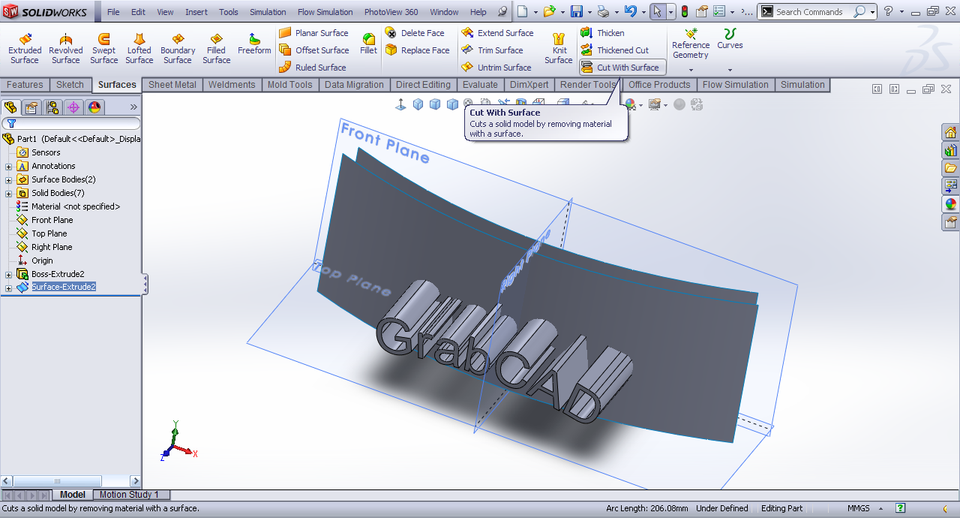

      Under surfaces tab select Cut with surface.



  14. Step 14

      Select the front surface and the direction to be outside and click OK.



  15. Step 15

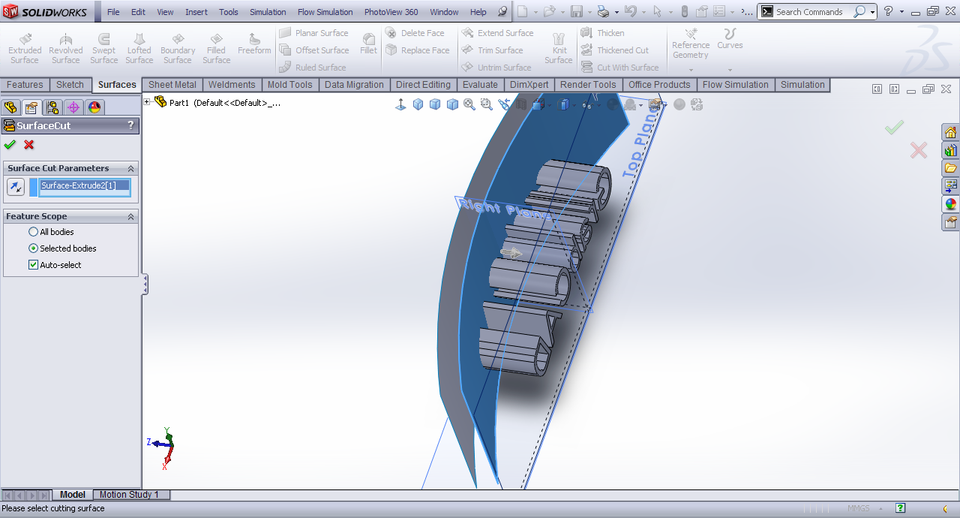

      Repeat the same step for the other surface and keep the direction to be outside the surface.



  16. Step 16

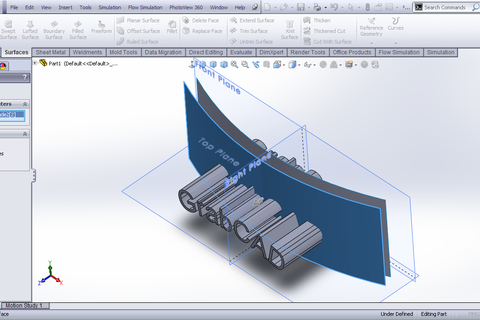

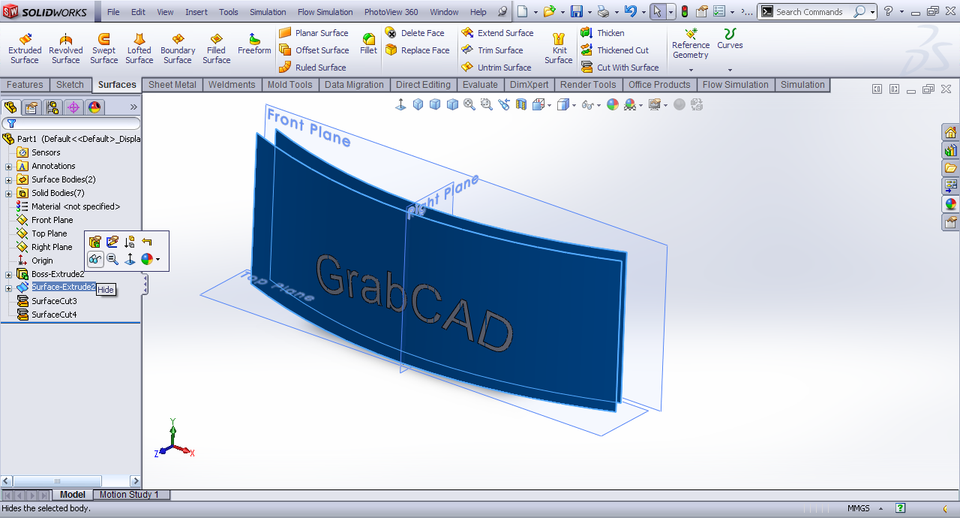

      Hide the extruded surface.



  17. Step 17

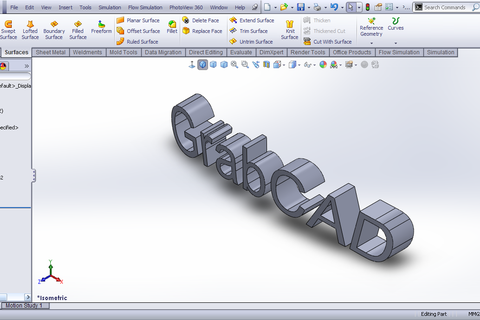

      Now we have the text curved.
