  Here is the tutorial.

  1. Step 1

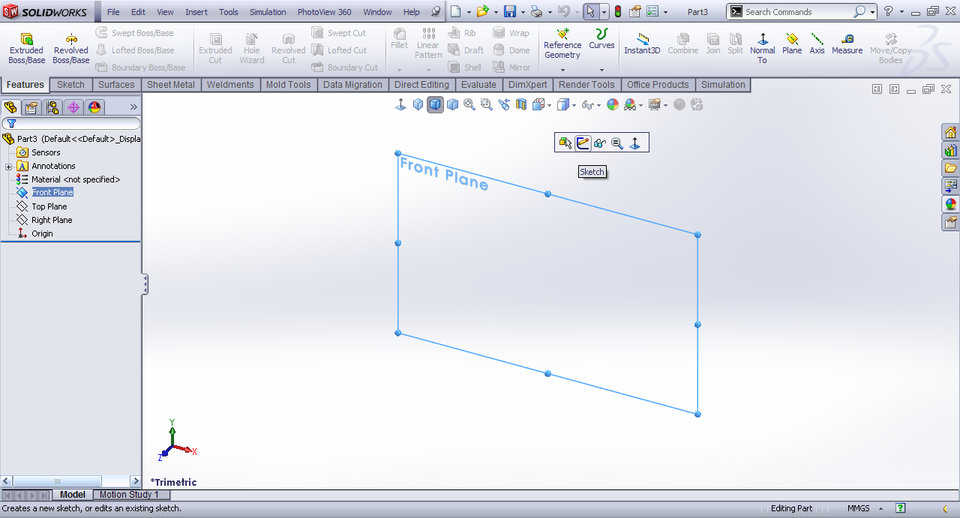

     Front plane>>sketch.



  2. Step 2

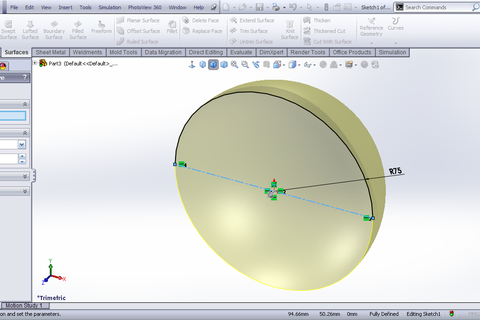

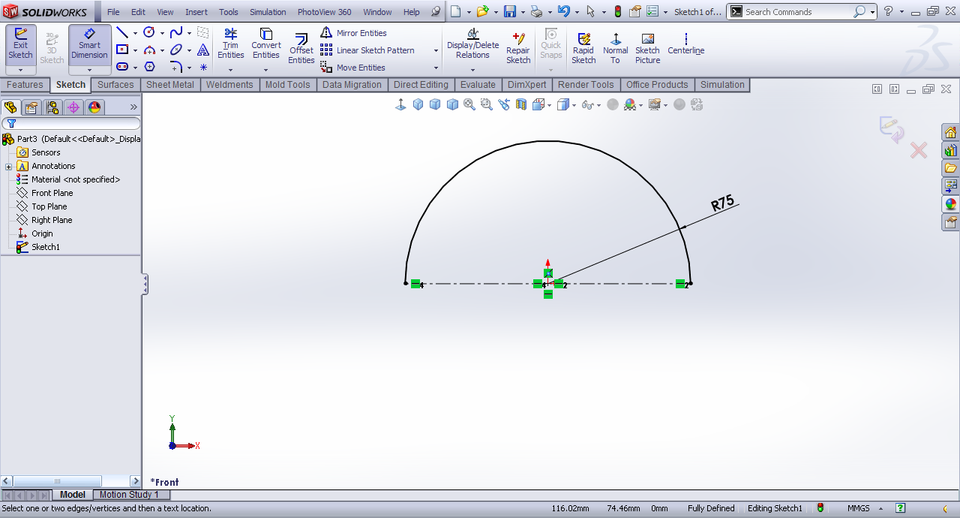

     Draw a semi-circle.



  3. Step 3

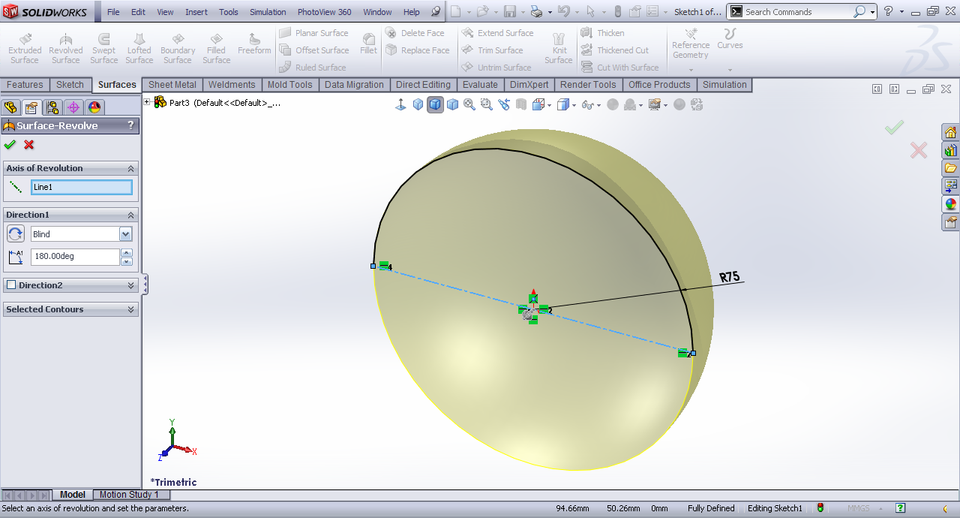

     Revolve it by 180º.



  4. Step 4

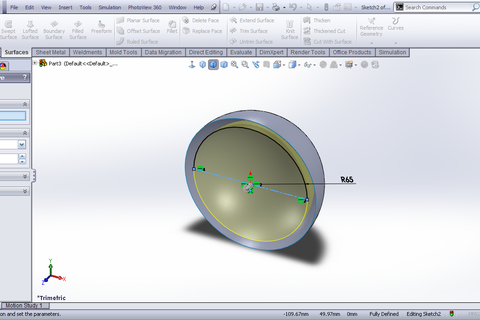

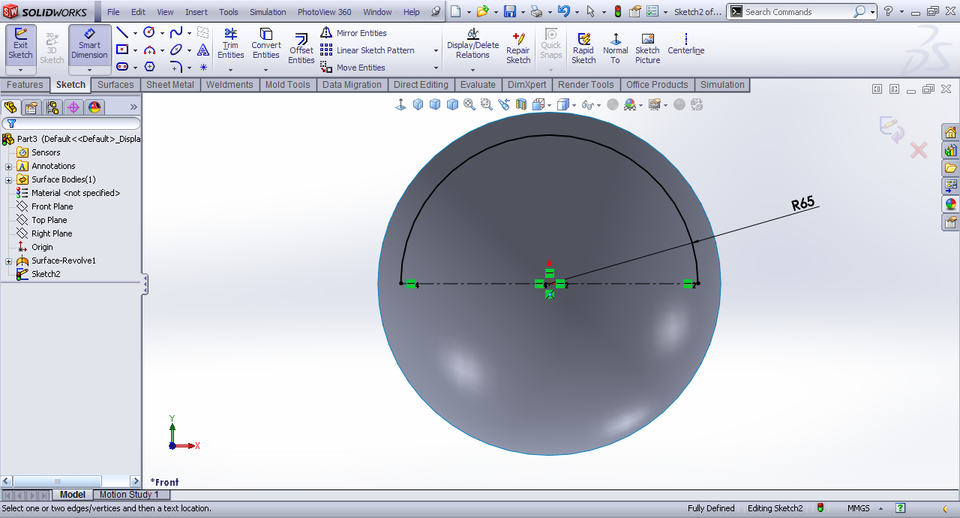

     Again front plane>>Sketch. Draw a semi circle.

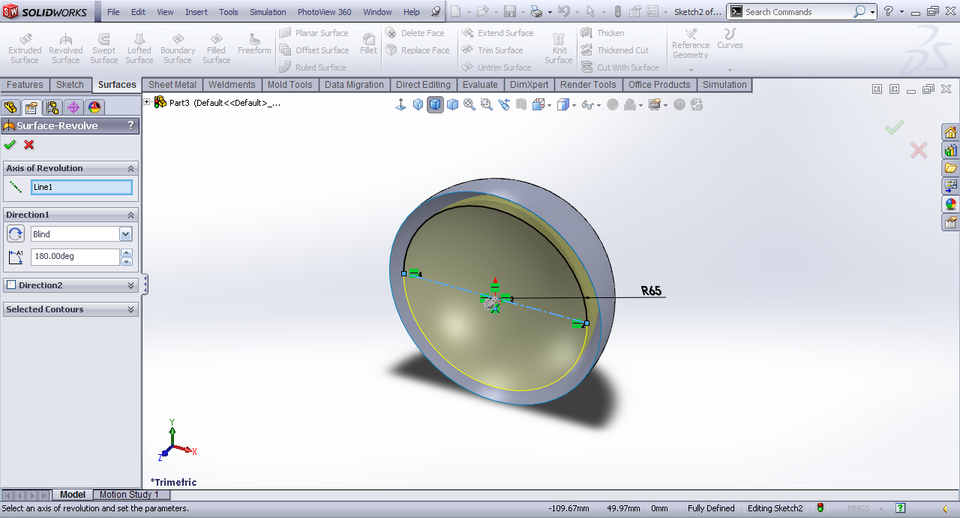

  5. Step 5

     Revolve it by 180º.



  6. Step 6

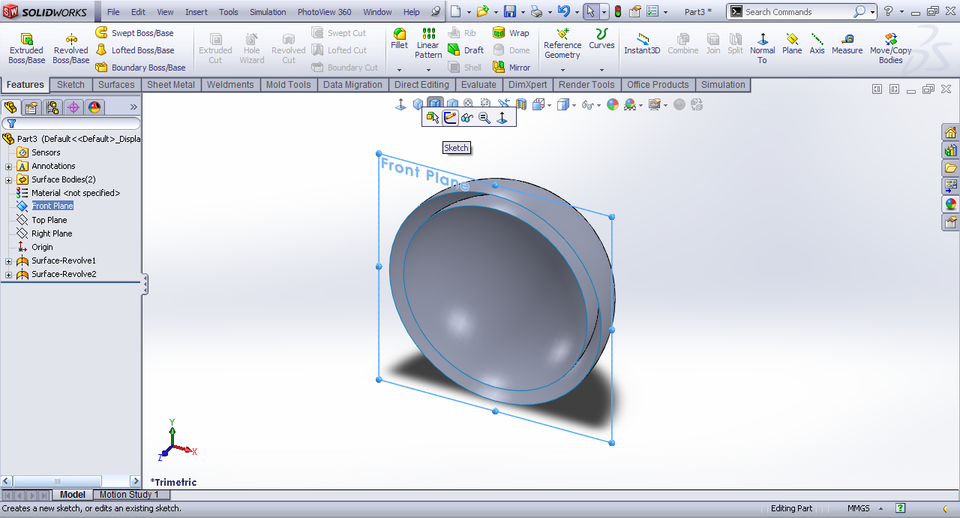

     Front plane >> Sketch.



  7. Step 7

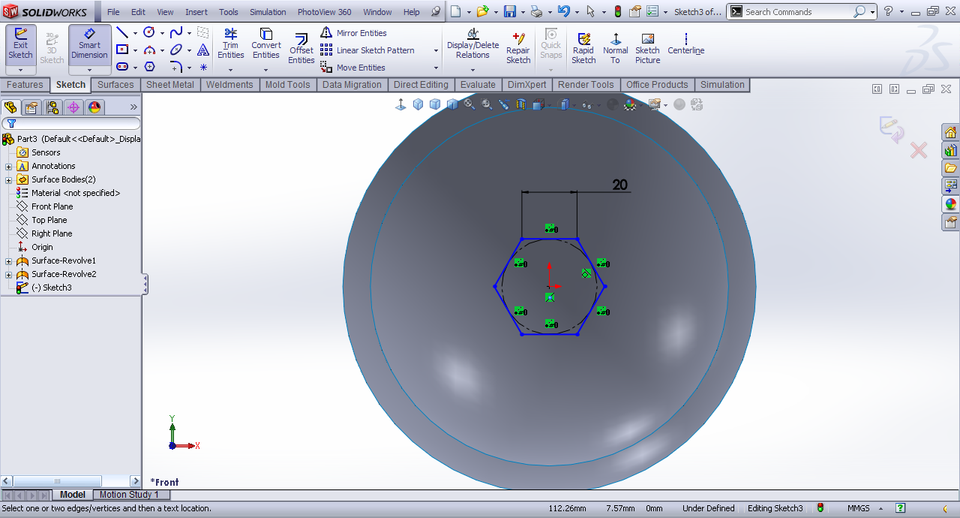

     Draw a polygon.



  8. Step 8

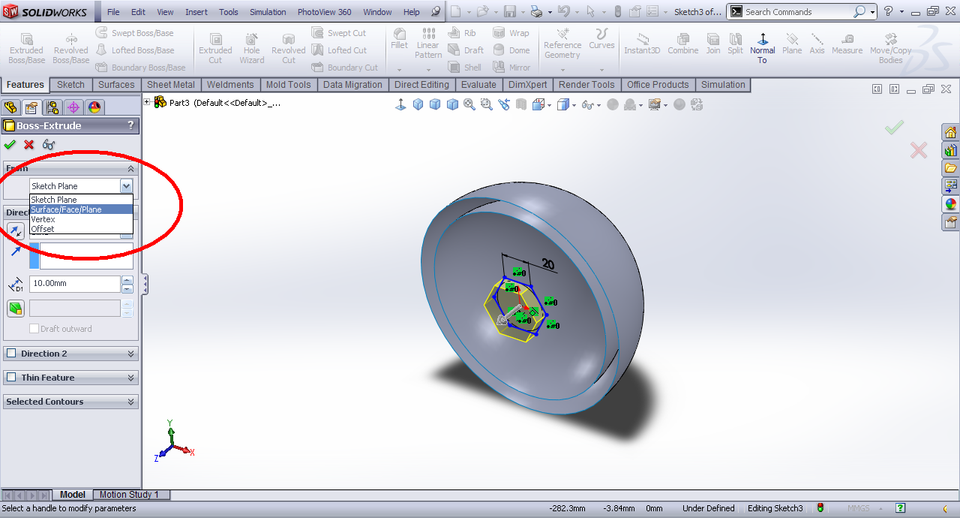

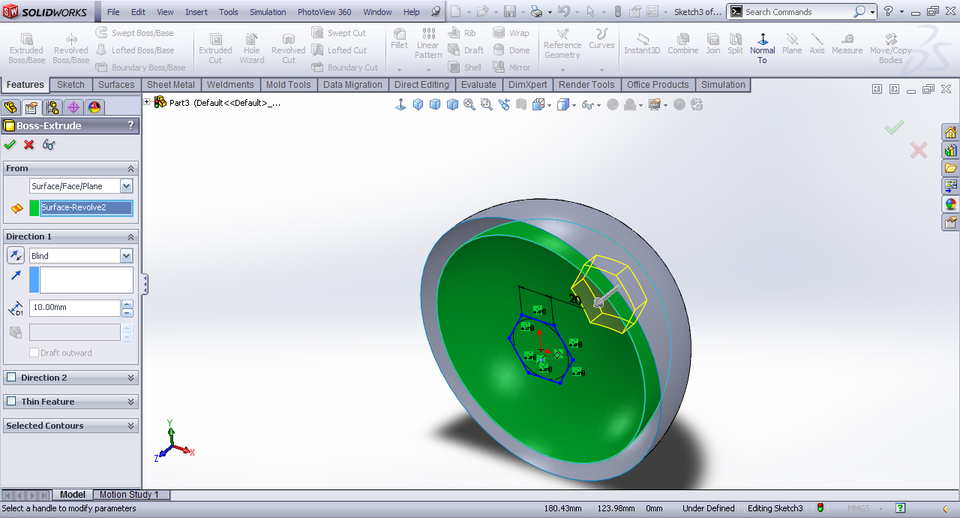

     Extrude. From Surface/Face/Plane.



  9. Step 9

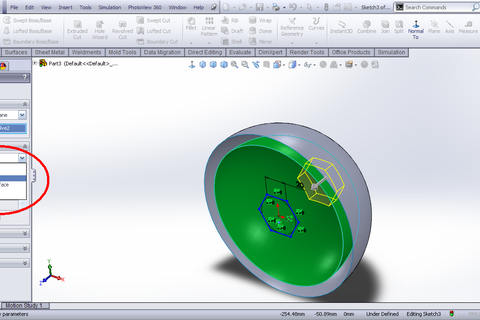

     Select inner face.



  10. Step 10

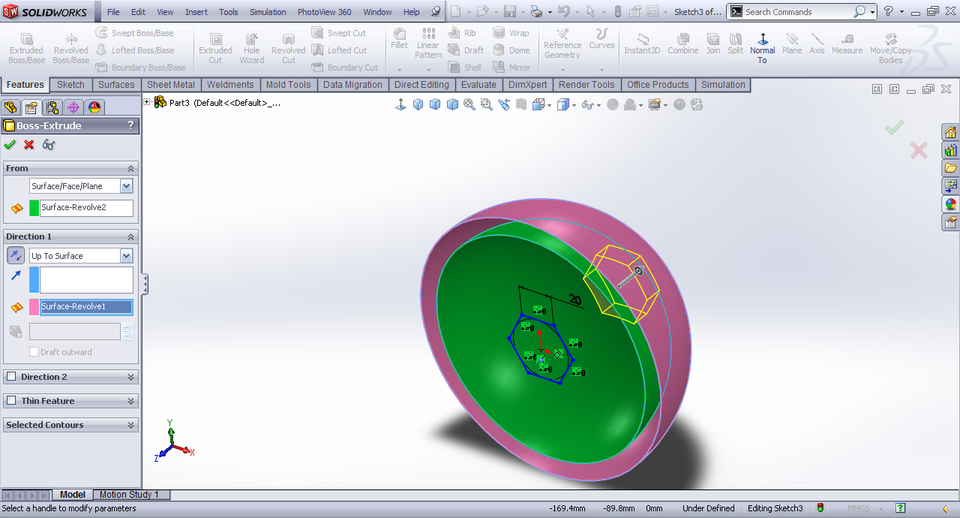

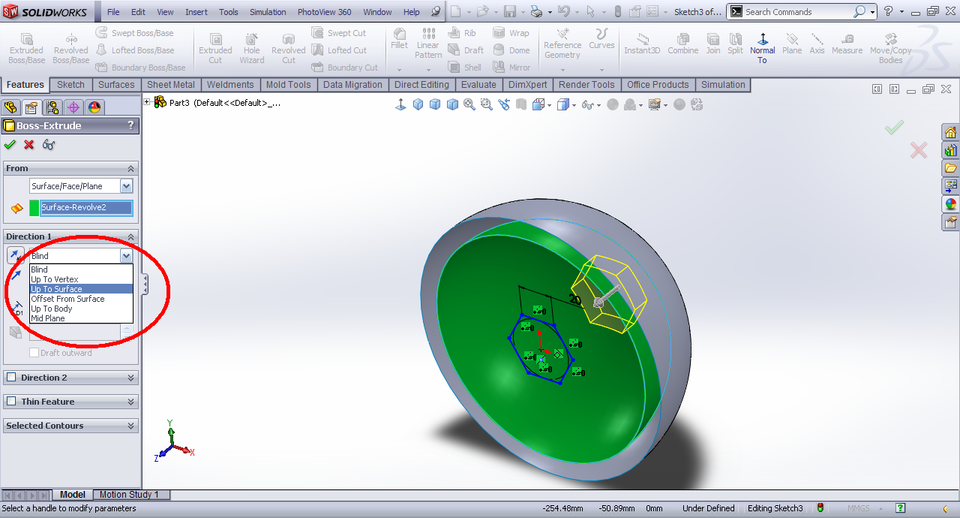

      Select up to surface.



  11. Step 11

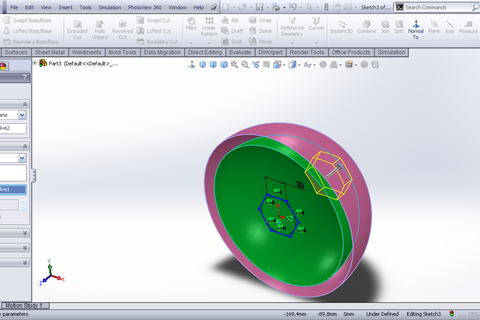

      Select outer surface.

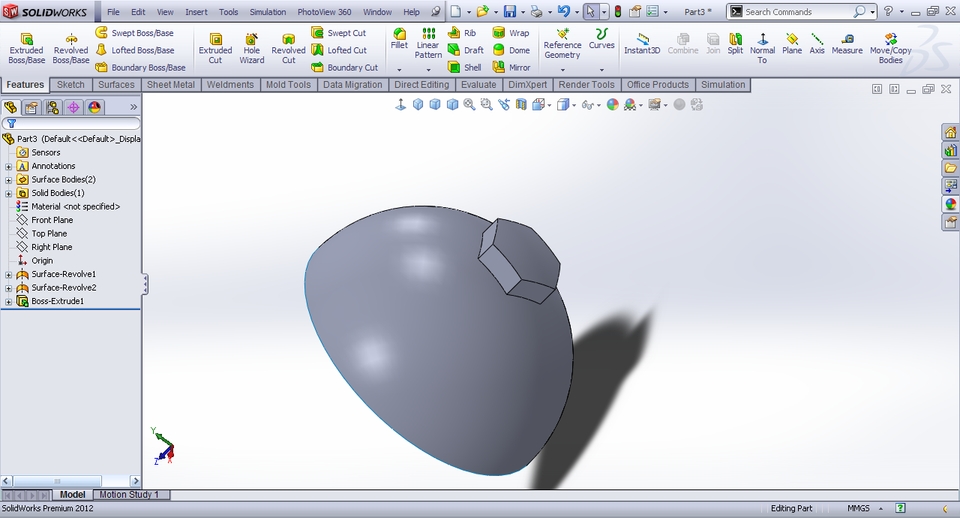

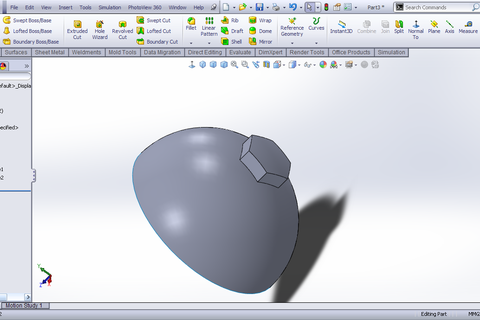

  12. Step 12

      Hide the surface and we have extrusion.
