2 answers

•
  Sudhir Gill over 1 year ago

  Grooves - O-Ring Grooves :- The O-Ring Grooves tab lets you select and create standard O-ring grooves.

  1. Step 1

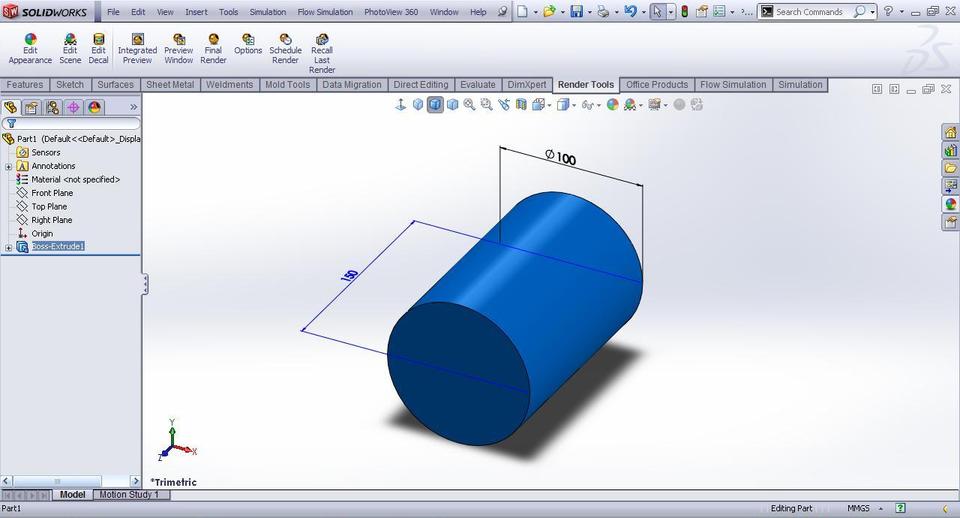

     We have a part of 100mm dia and 150mm length.



  2. Step 2

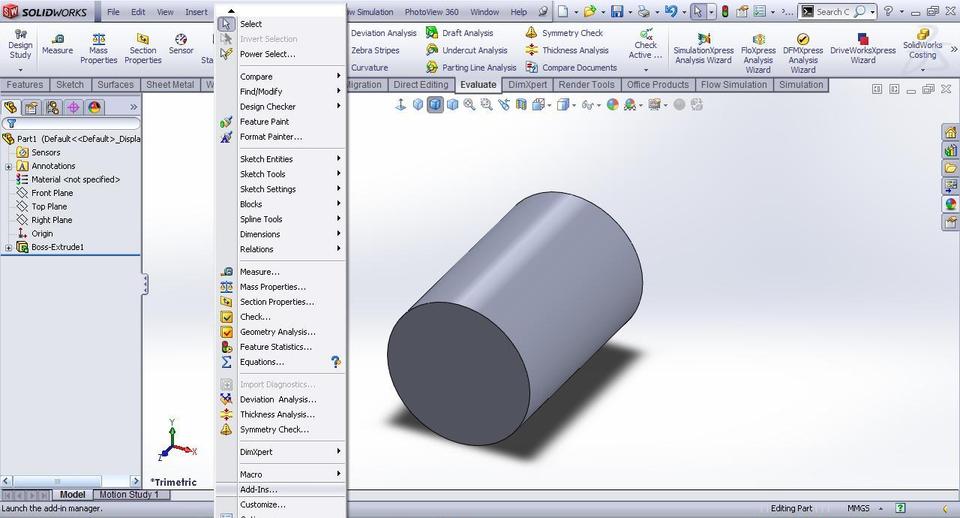

     Tools>>Addins.



  3. Step 3

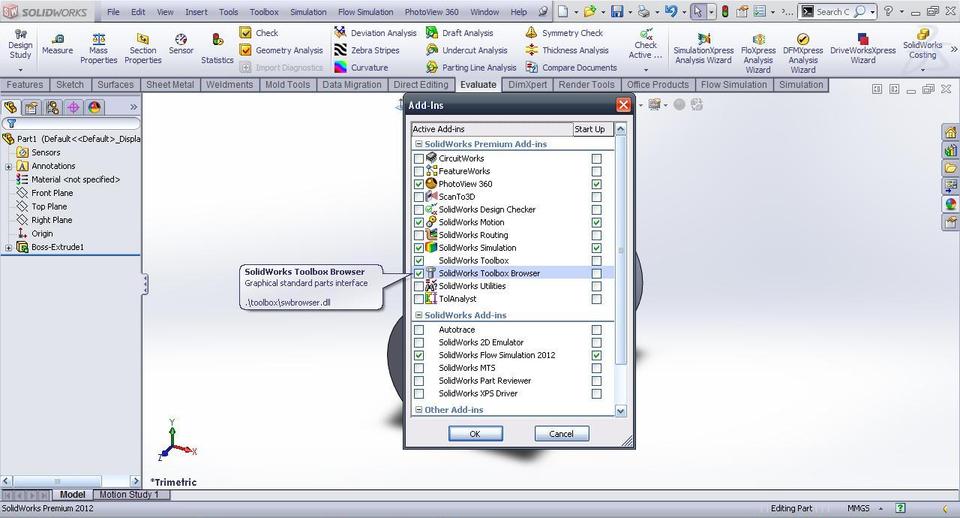

     Enable SolidWorks Toolbox browser.



  4. Step 4

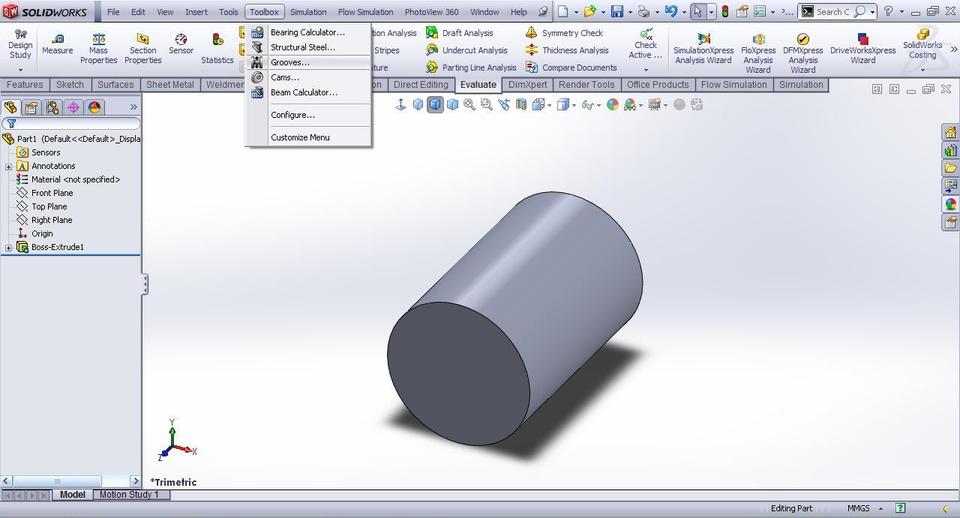

     Toolbox>>Grooves.



  5. Step 5

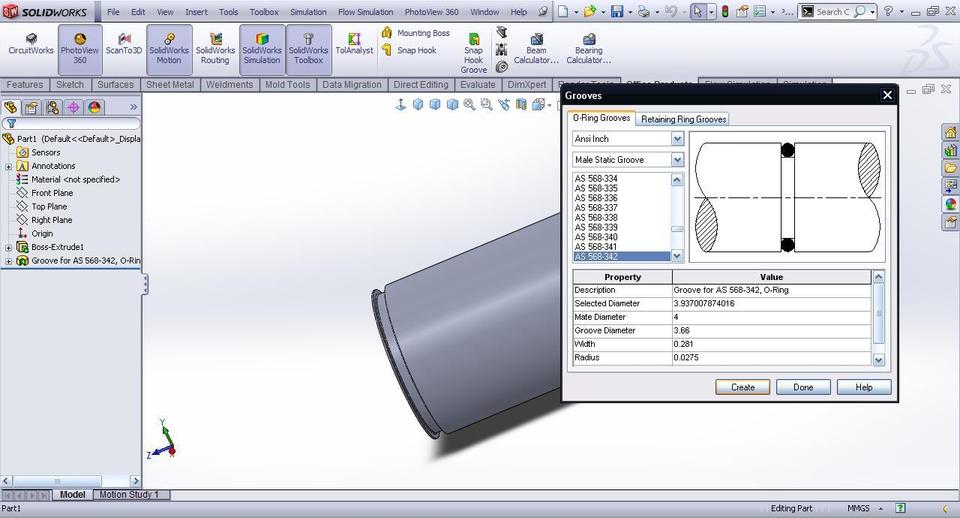

     Click the location where you want to make the groove on the pipe. It will automatically select the type of the groove.



  6. Step 6

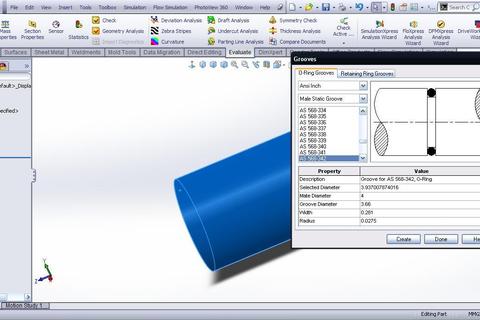

     Click Create and then OK.



  7. Step 7

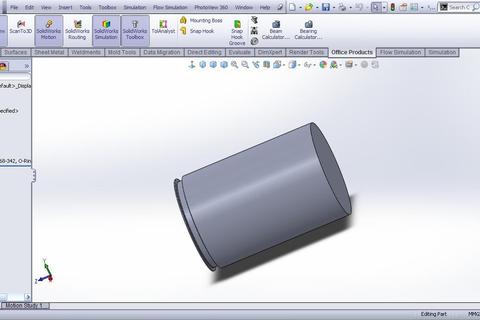

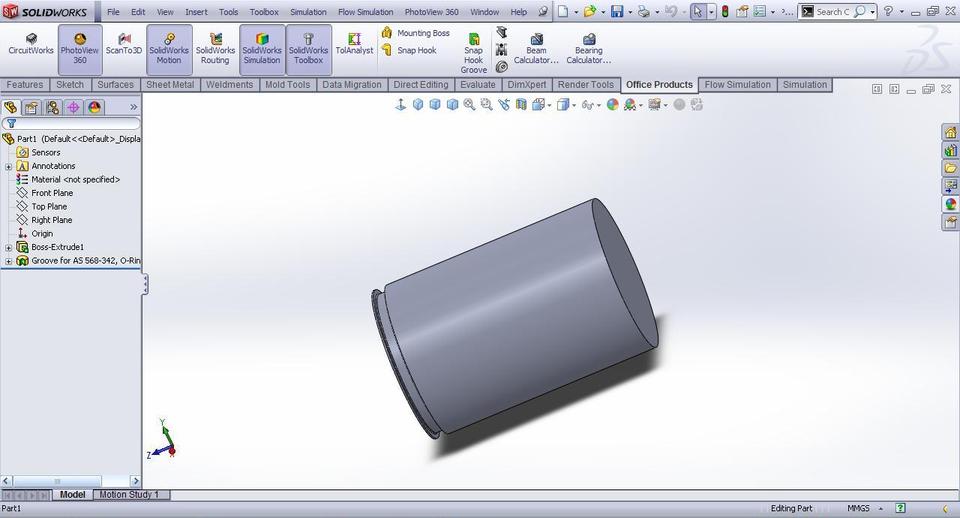

     Now we have the groove.



•
  Aaron over 1 year ago

  Very cool. Never knew we had that.

  1.
     Mattias Robertsson about 1 year ago

     "A new day.. a new feature"

  2.
     Aaron about 1 year ago

     Now if I can just remember it's there when I need it
