2 answers

•
  Sudhir Gill over 1 year ago

  Here is the tutorial.

  1. Step 1

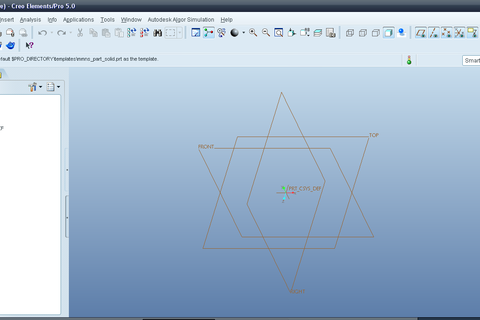

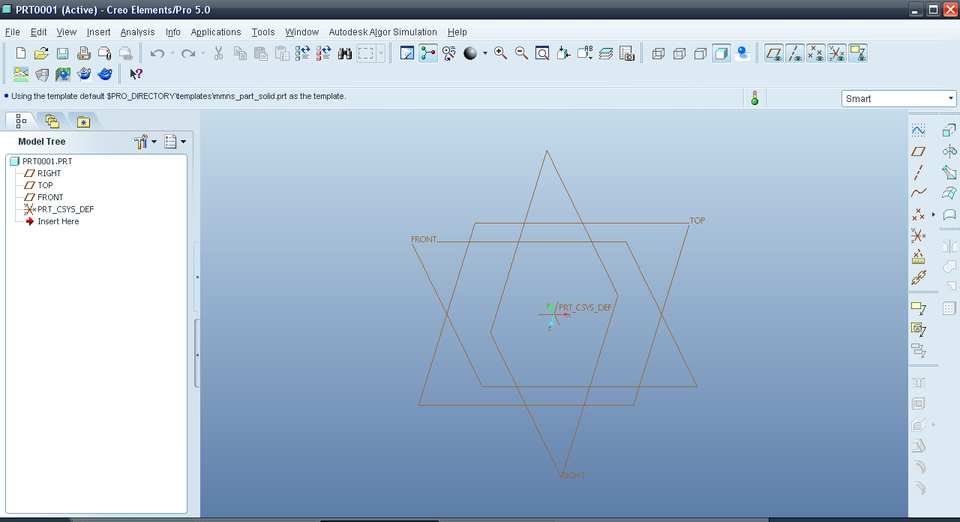

     Start Creo in Part mode.



  2. Step 2

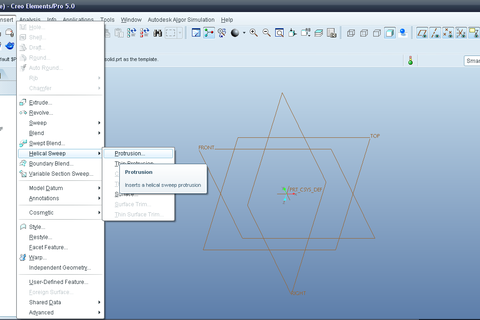

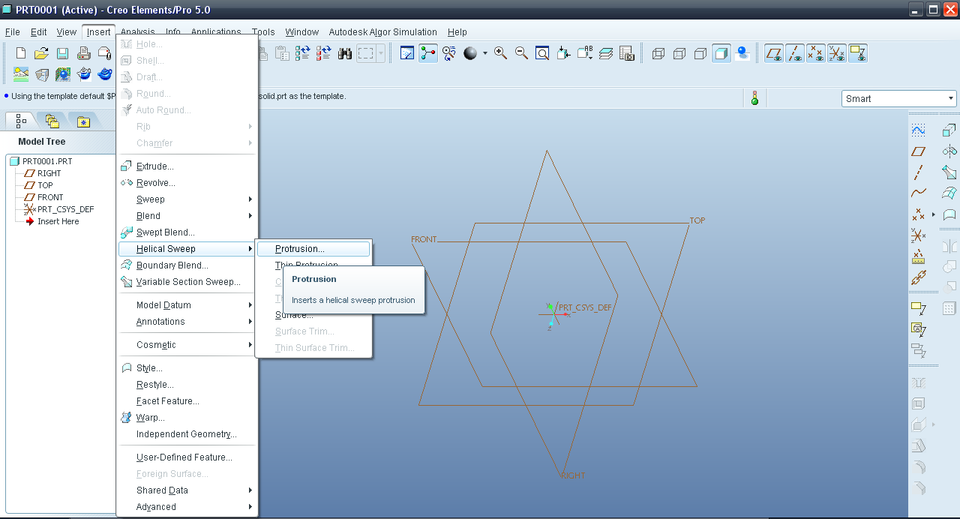

     Insert>>Helical Sweep>>Protusion.



  3. Step 3

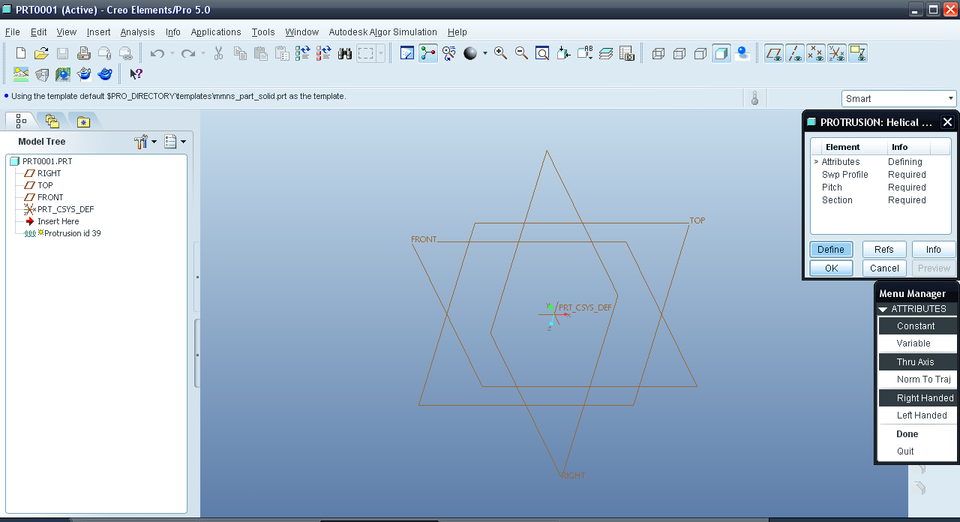

     Keep the default settings and click Done.



  4. Step 4

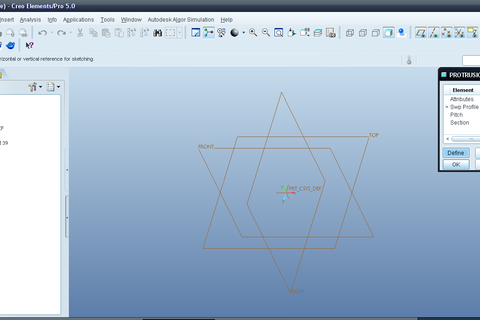

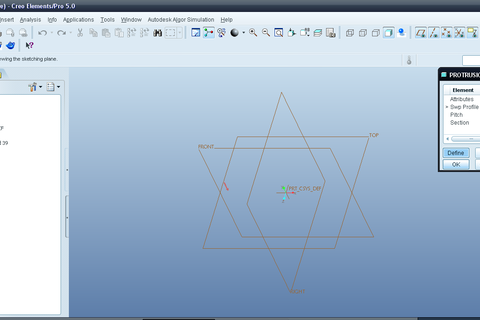

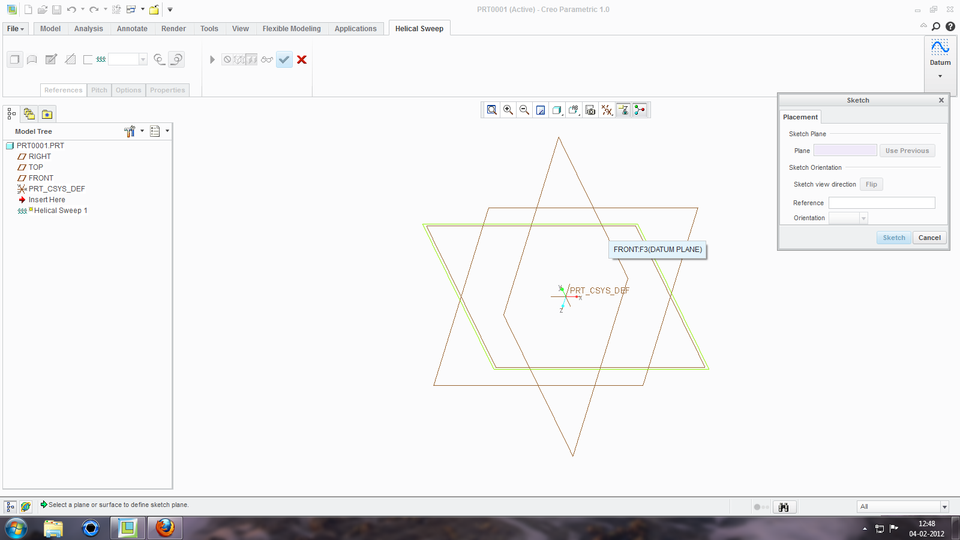

     Select the Top Plane and then press the middle mouse button.



  5. Step 5

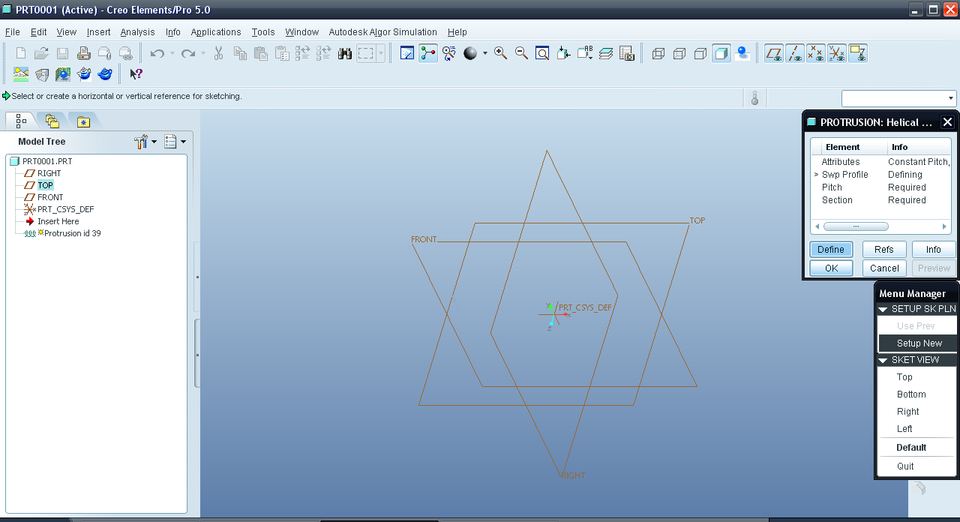

     Choose Default and then press middle mouse button.



  6. Step 6

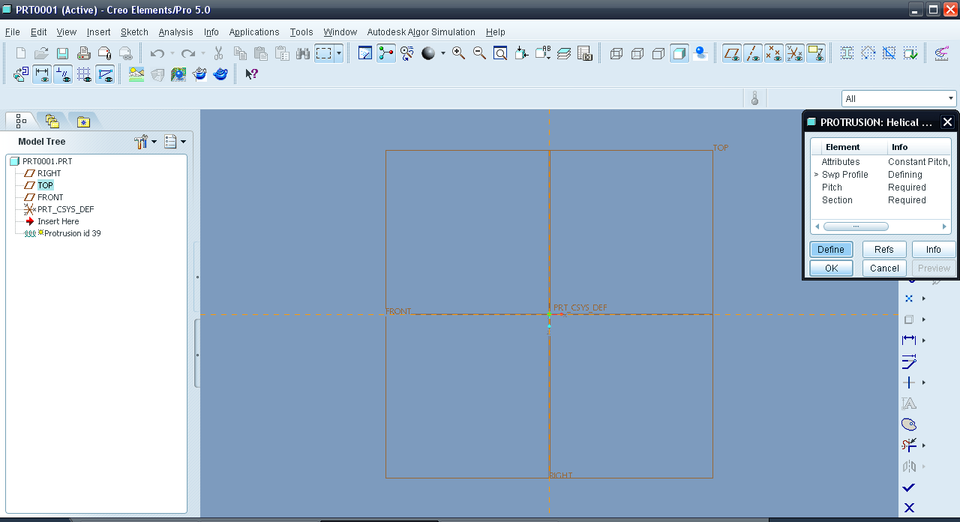

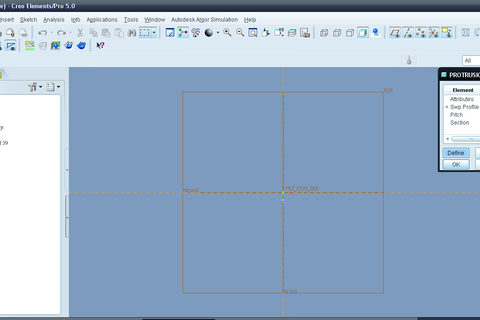

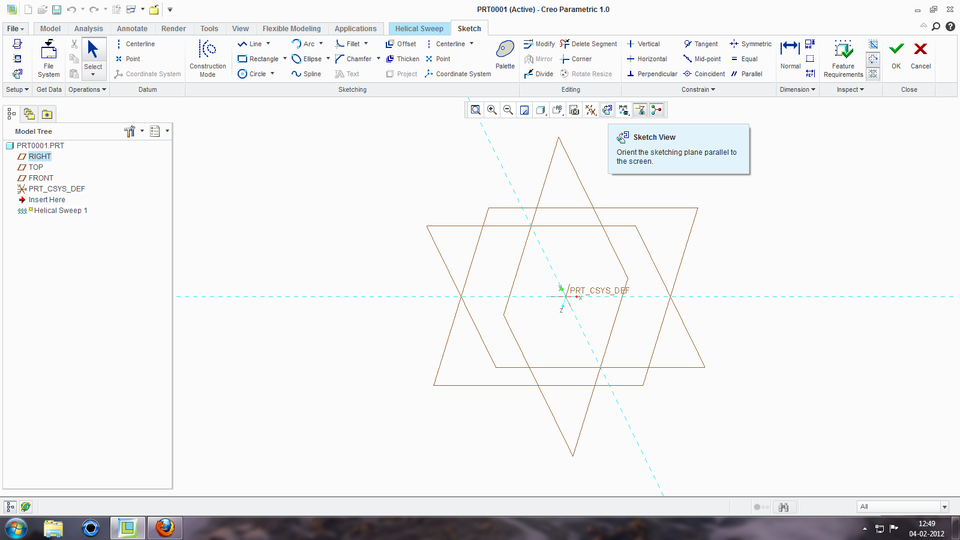

     The Sketcher window appears.



  7. Step 7

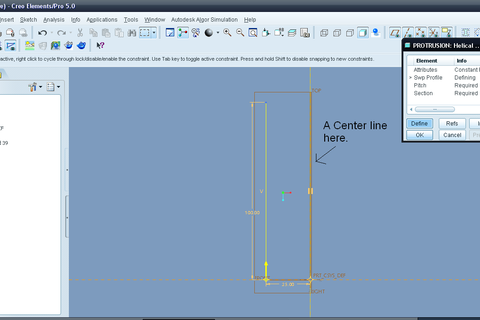

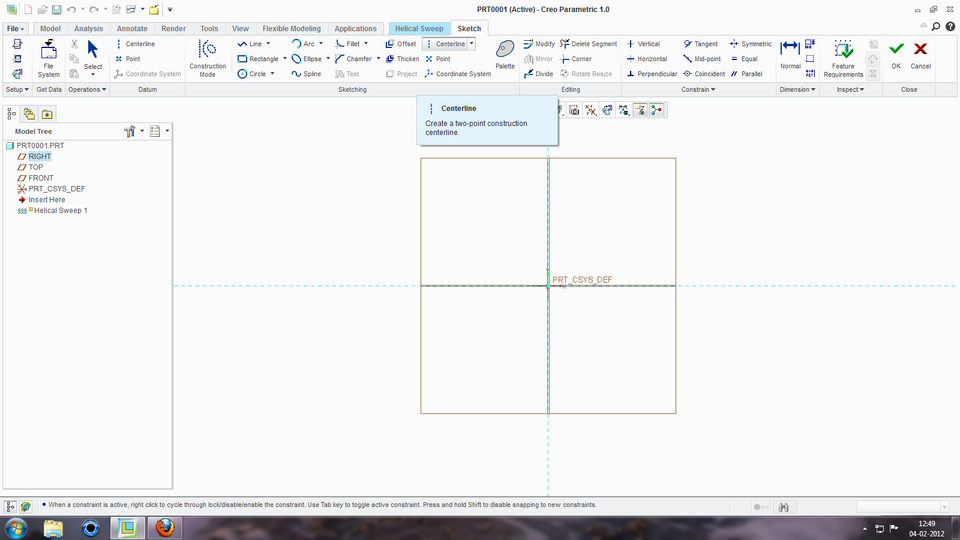

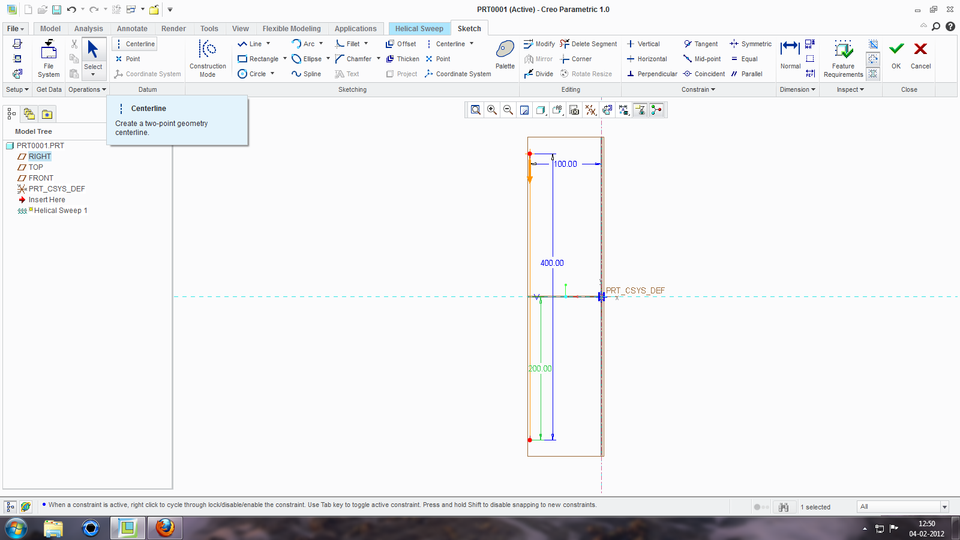

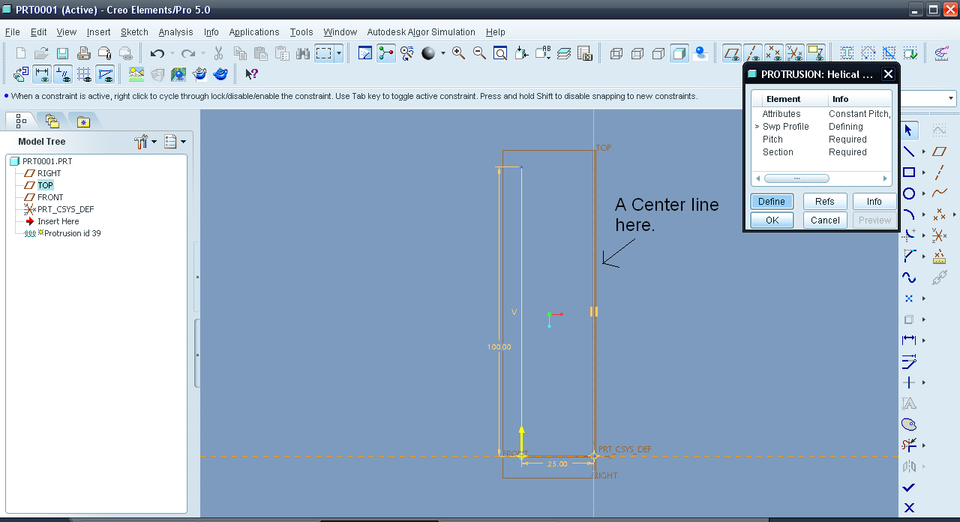

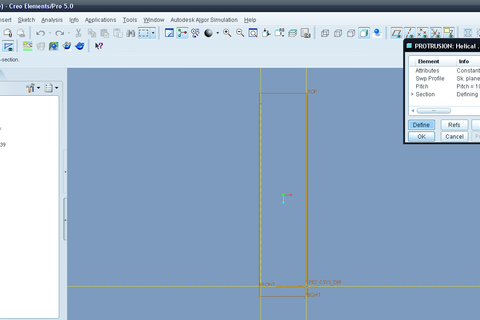

     Make a center line along vertical axis and a line of 100mm at a distance of 25mm with vertical axis.



  8. Step 8

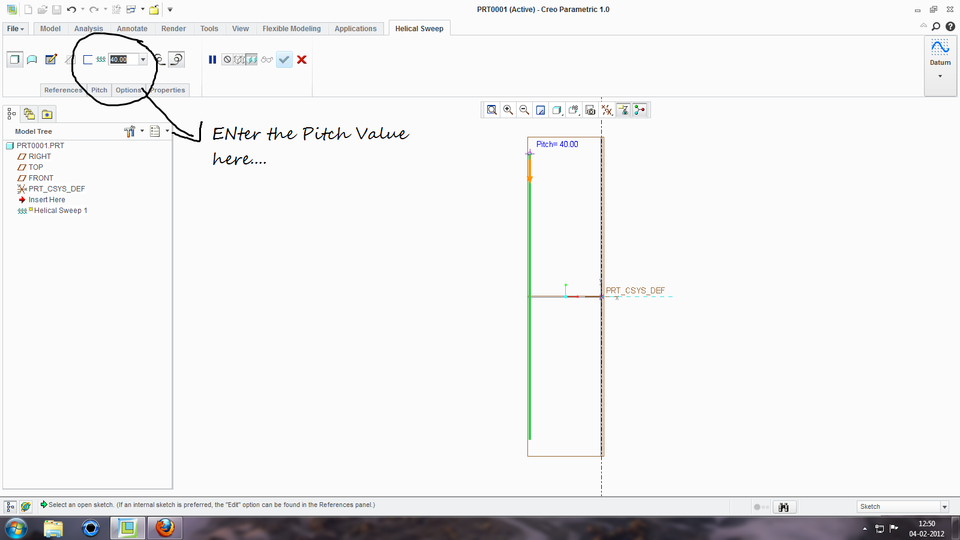

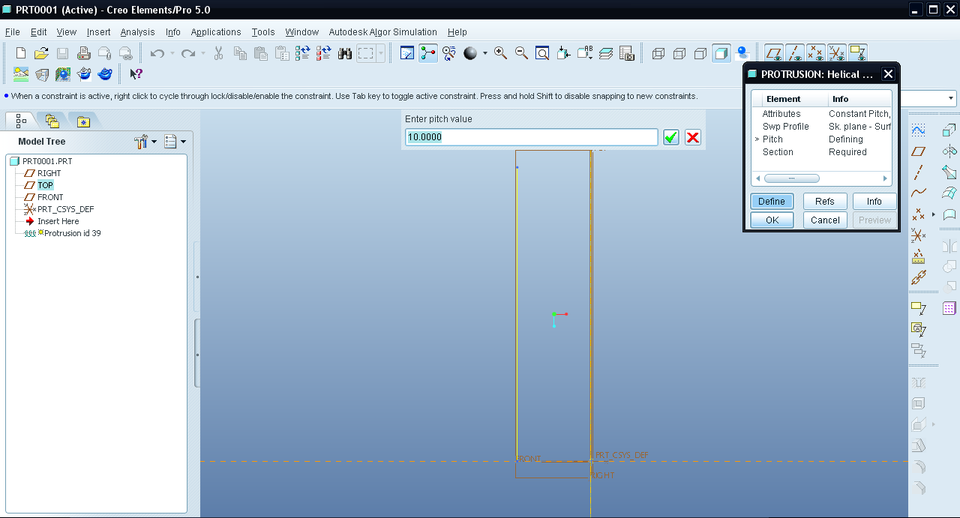

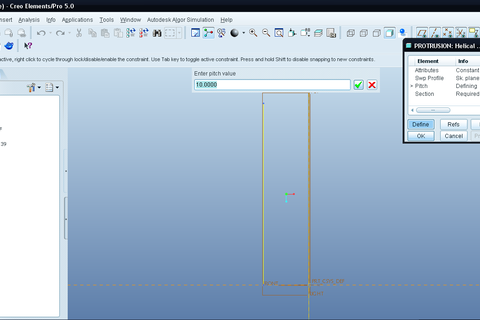

     Click done and keep the default pitch value.



  9. Step 9

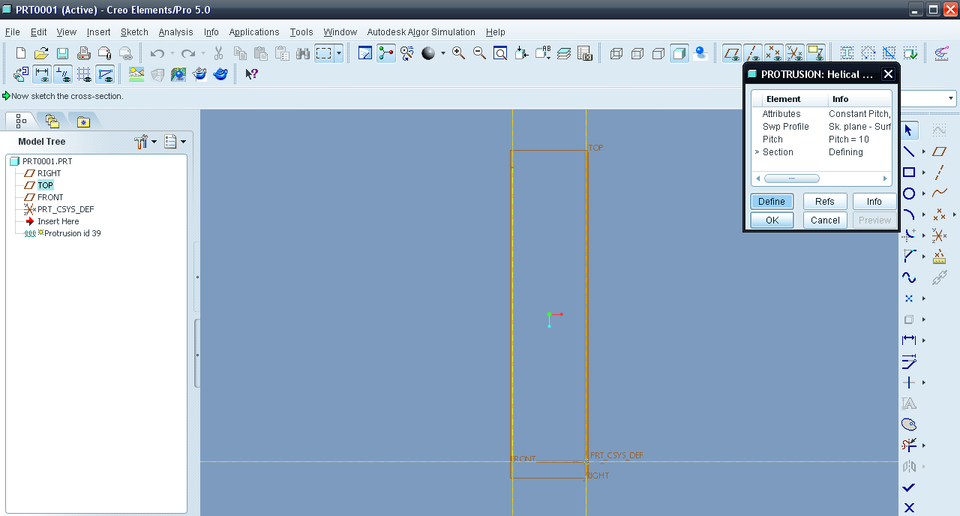

     Now the sketcher again appears.



  10. Step 10

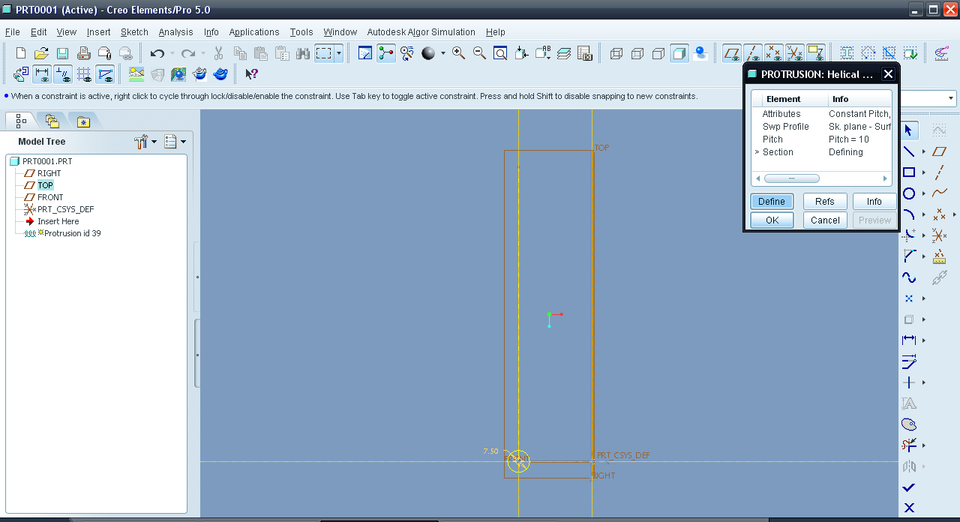

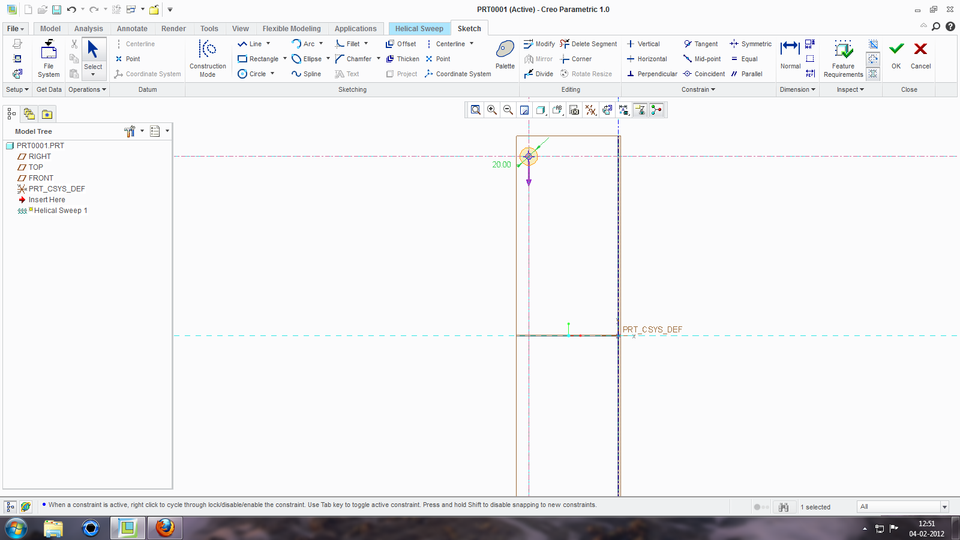

      Draw a circle.



  11. Step 11

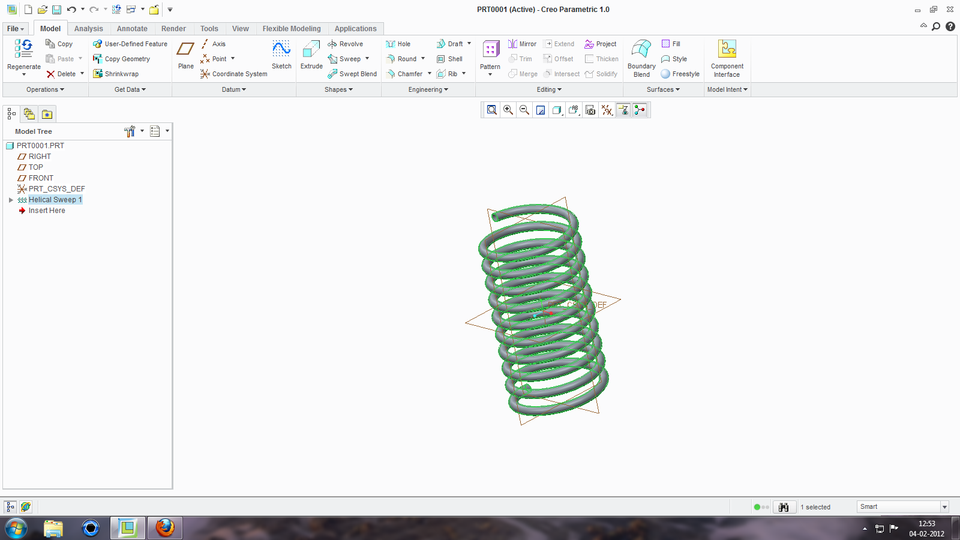

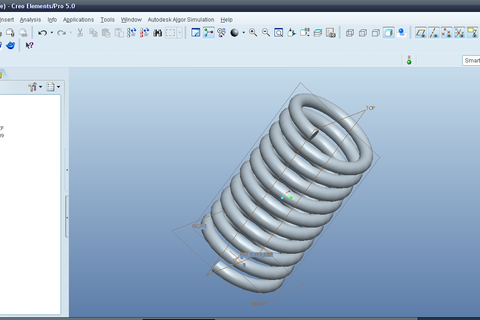

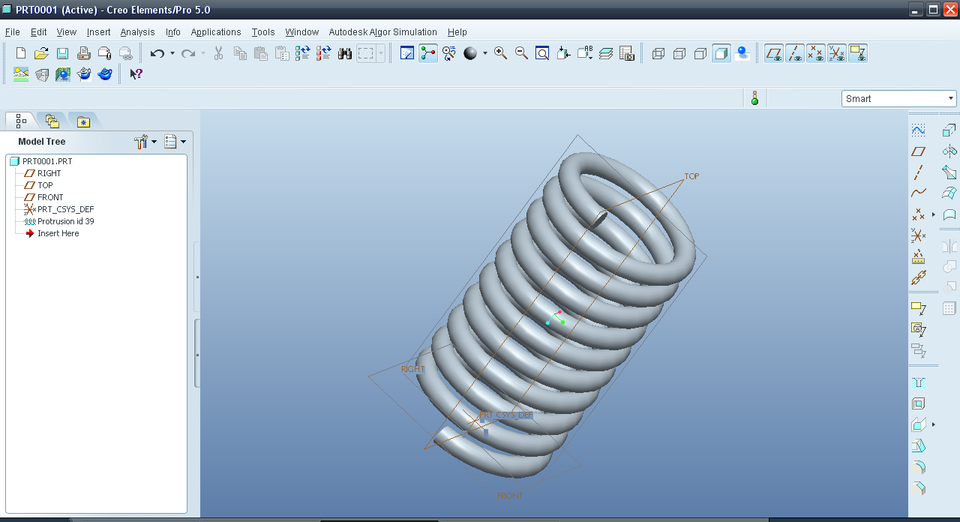

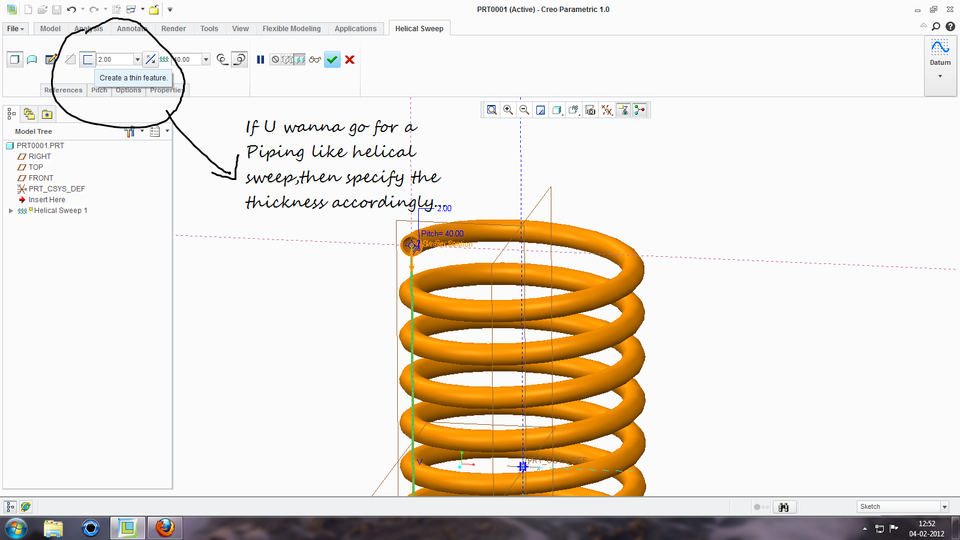

      Exit the sketch and click done. And the helical sweep feature is generated.



•
  Venkatasubramanian over 1 year ago

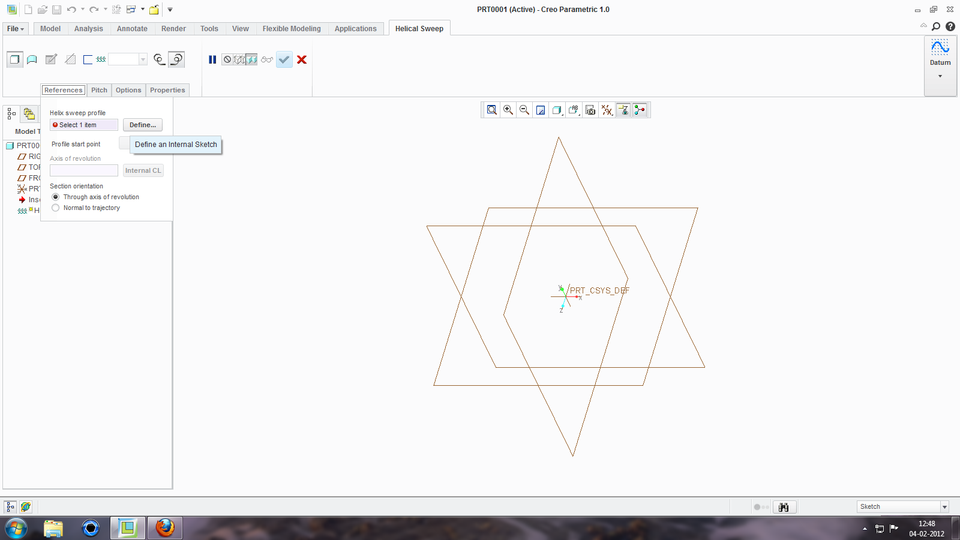

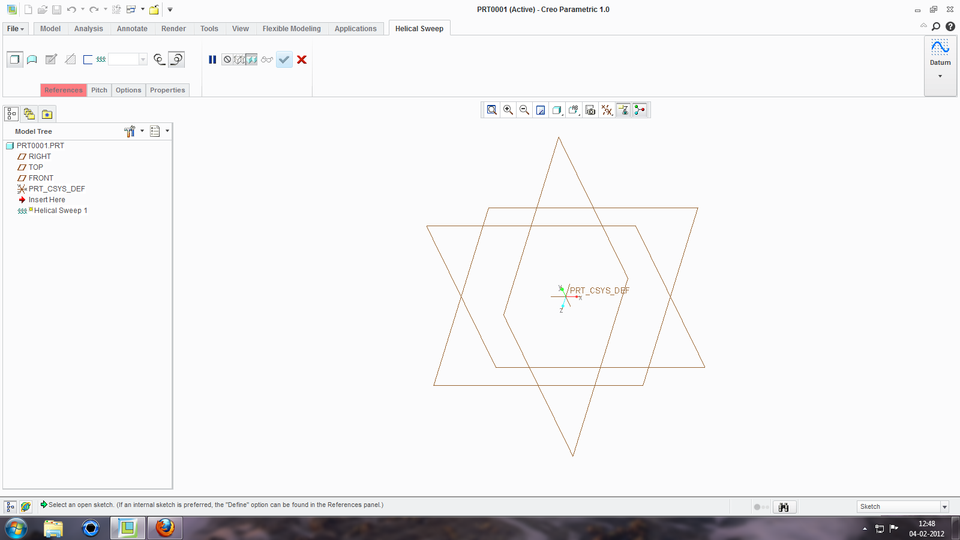

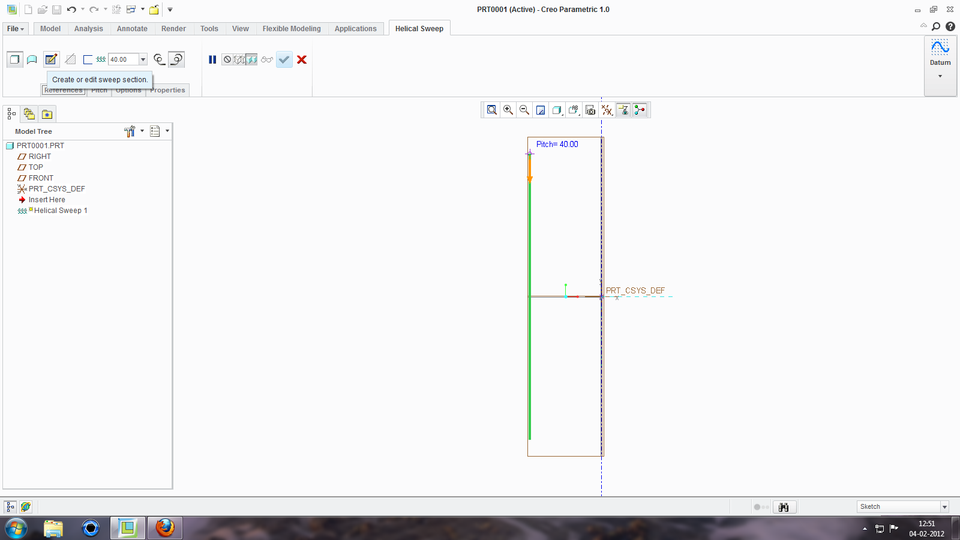

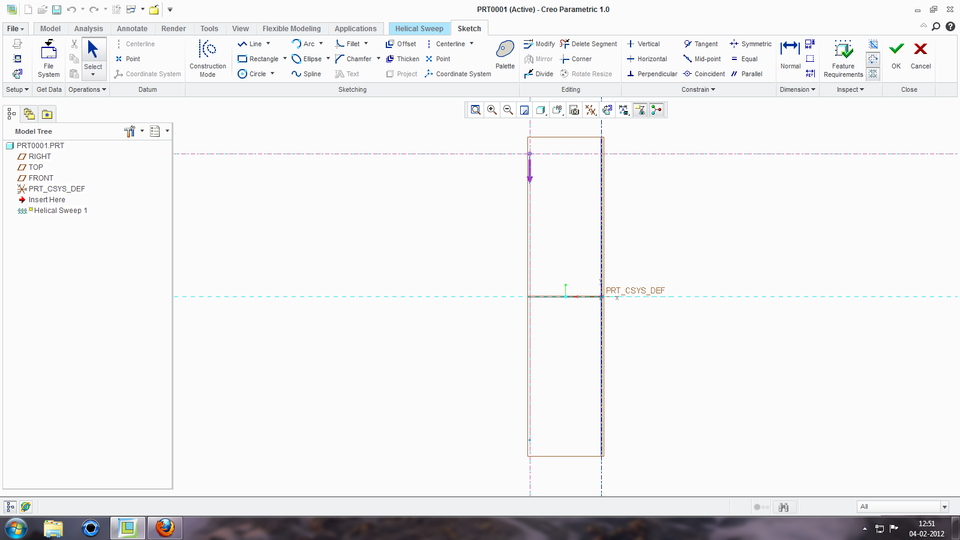

  Tutorial in Creo Parametric Eins..

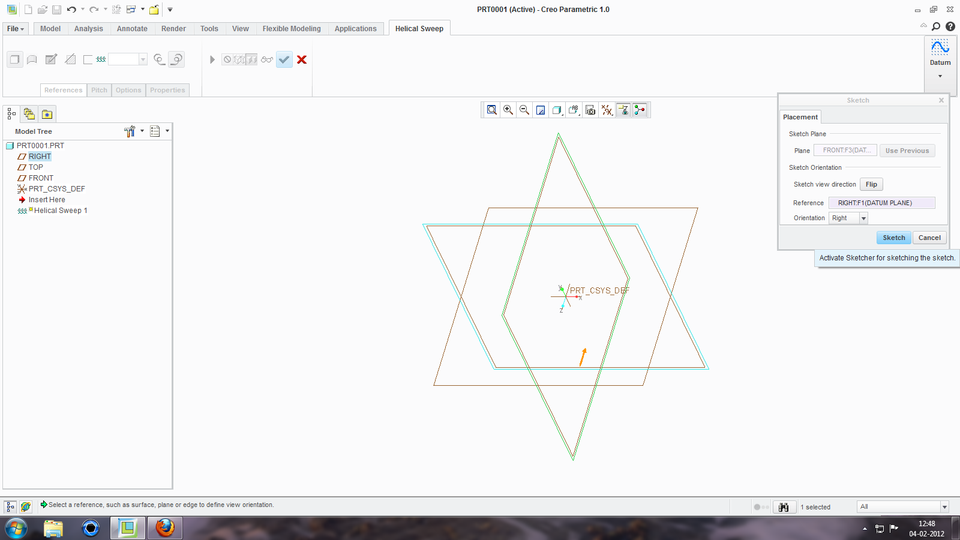

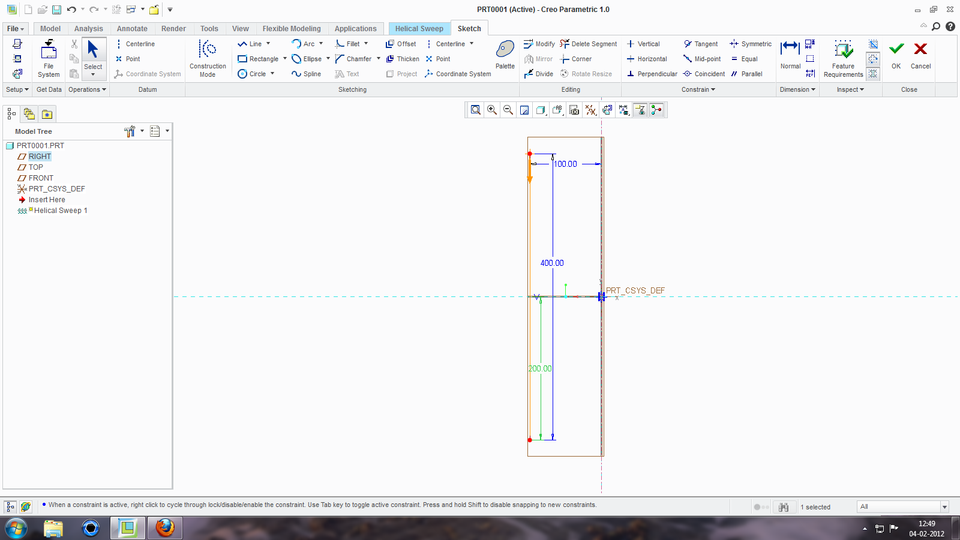

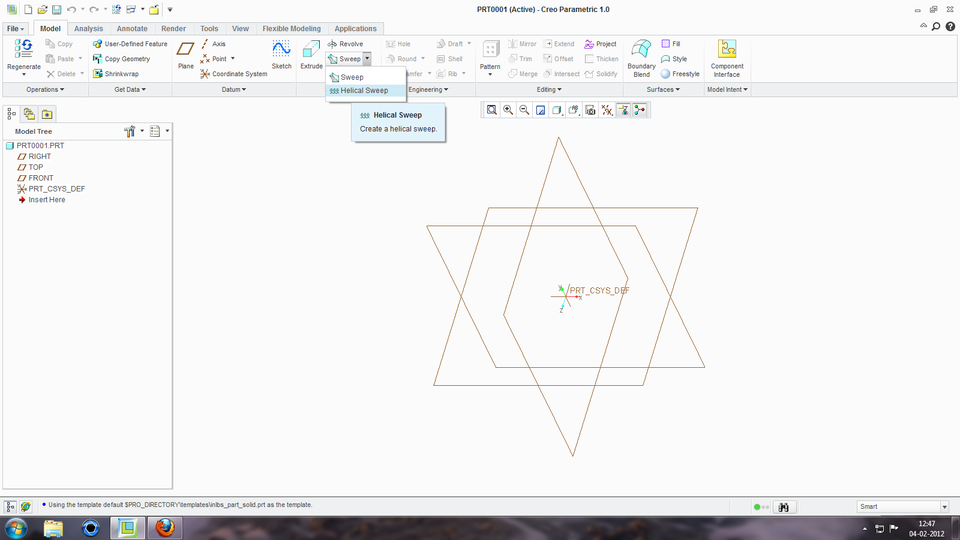

  Added images
