  Tutorial.

  1. Step 1

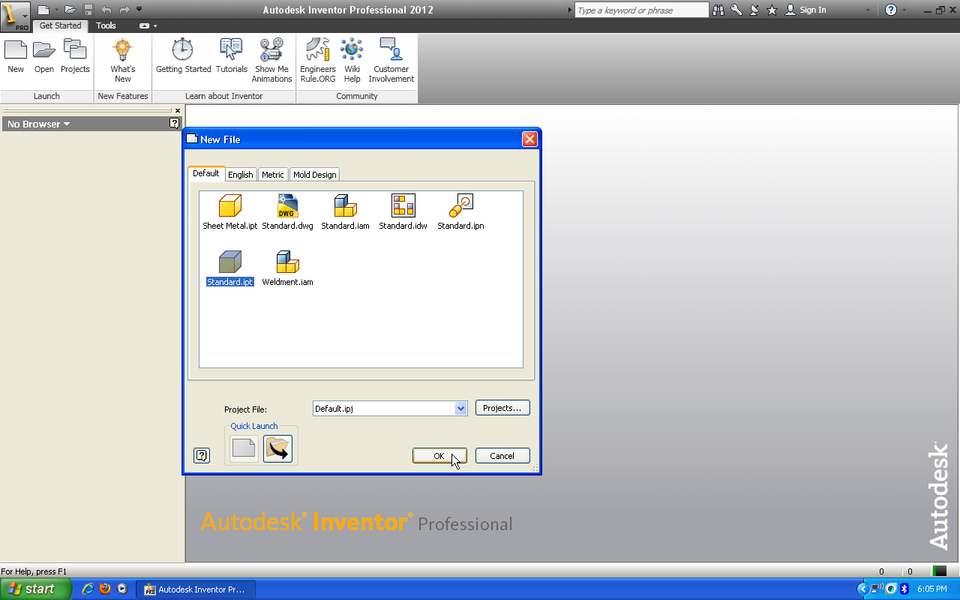

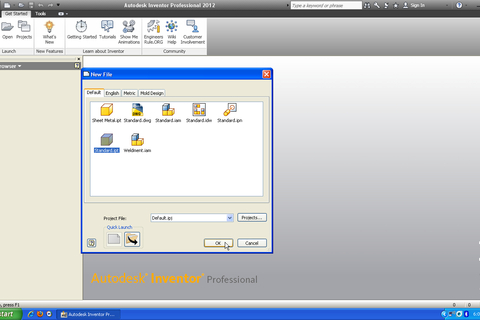

     Create a new part.



  2. Step 2

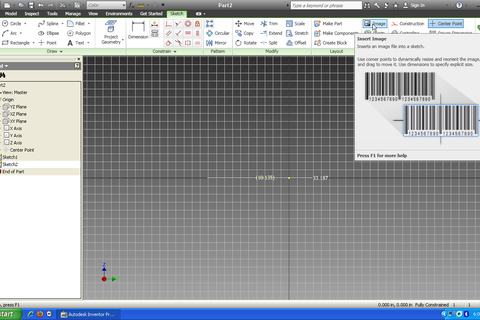

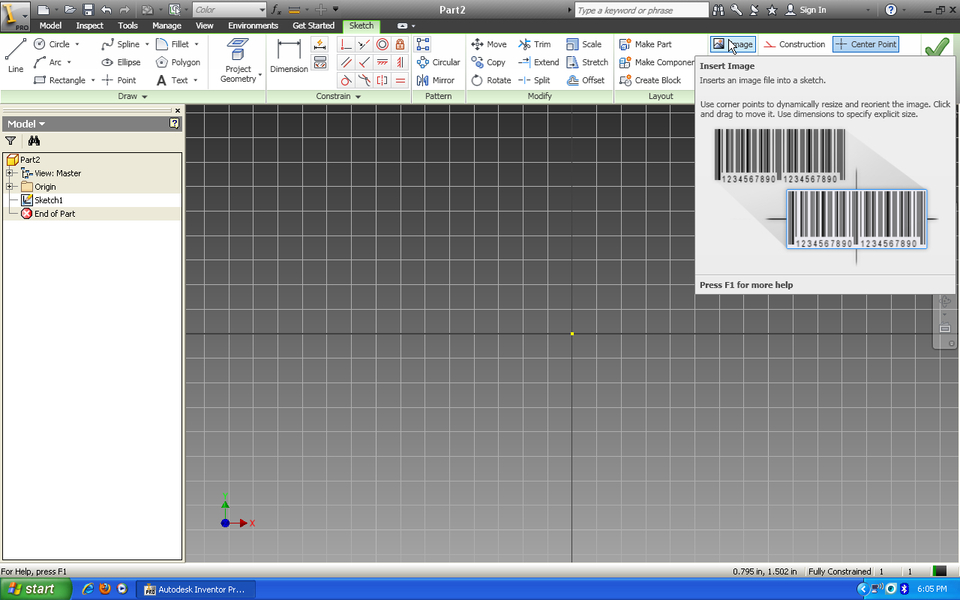

     Click on "image".



  3. Step 3

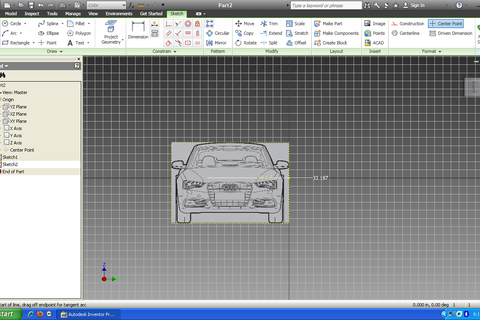

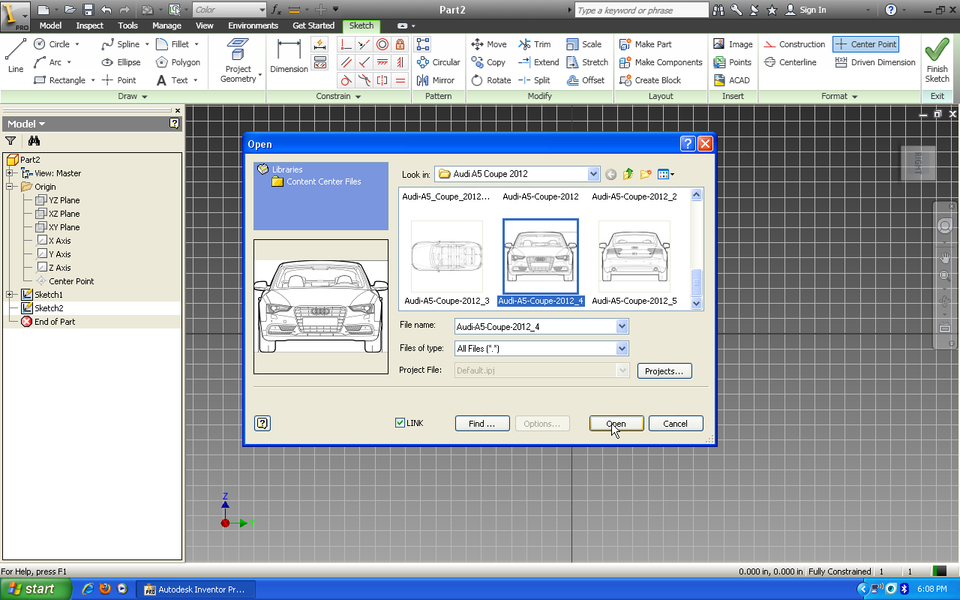

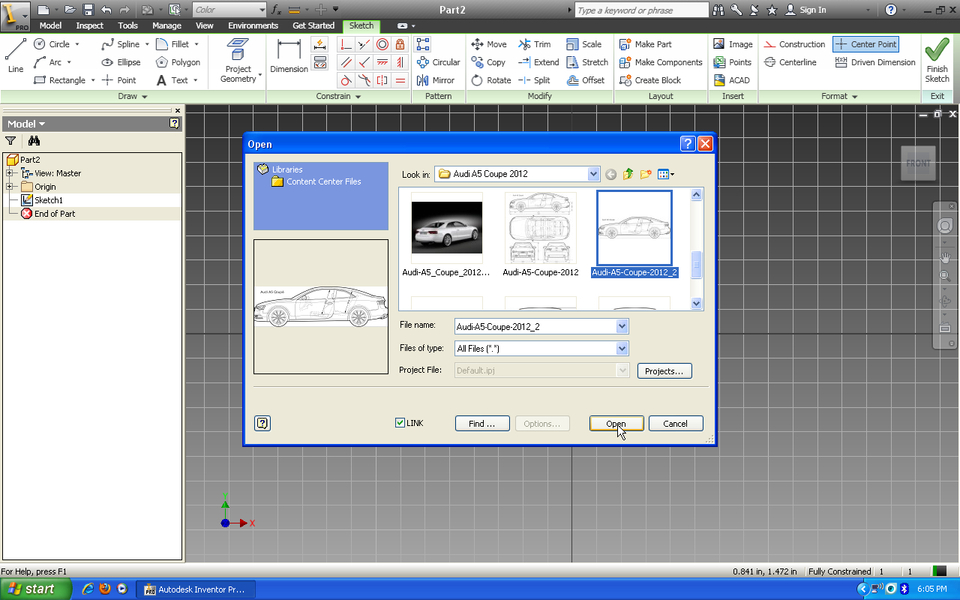

     Browse and search for the image. Click open.



  4. Step 4

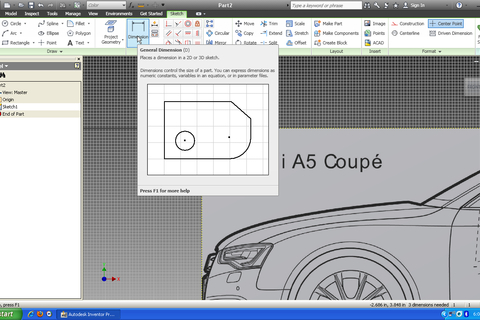

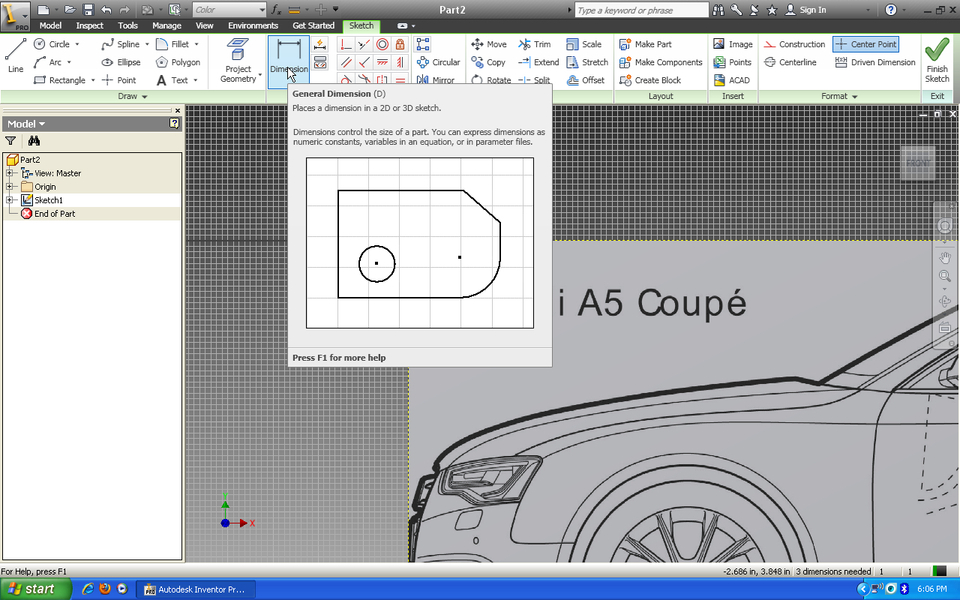

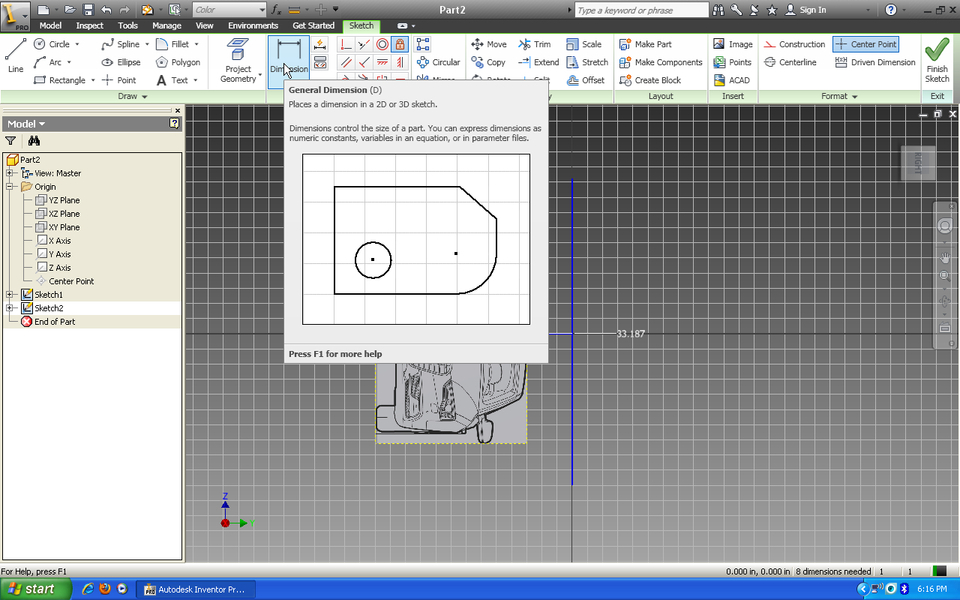

     Click on "dimensions".

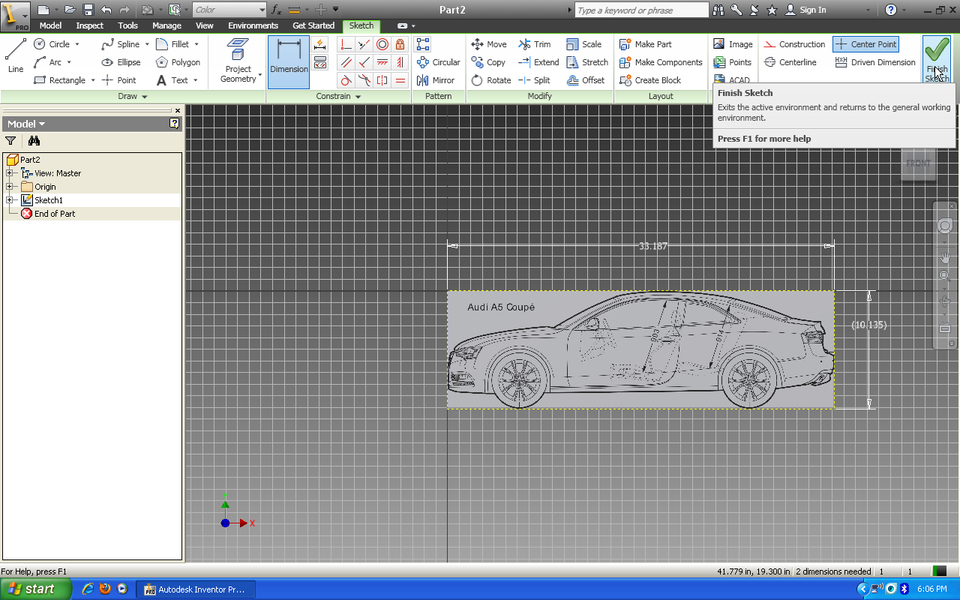

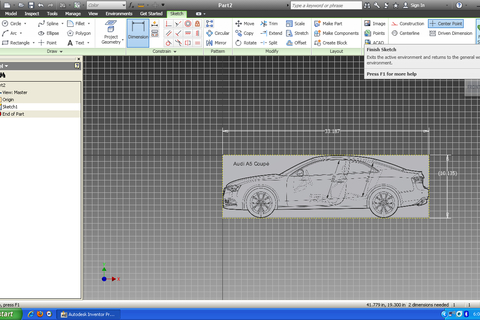

  5. Step 5

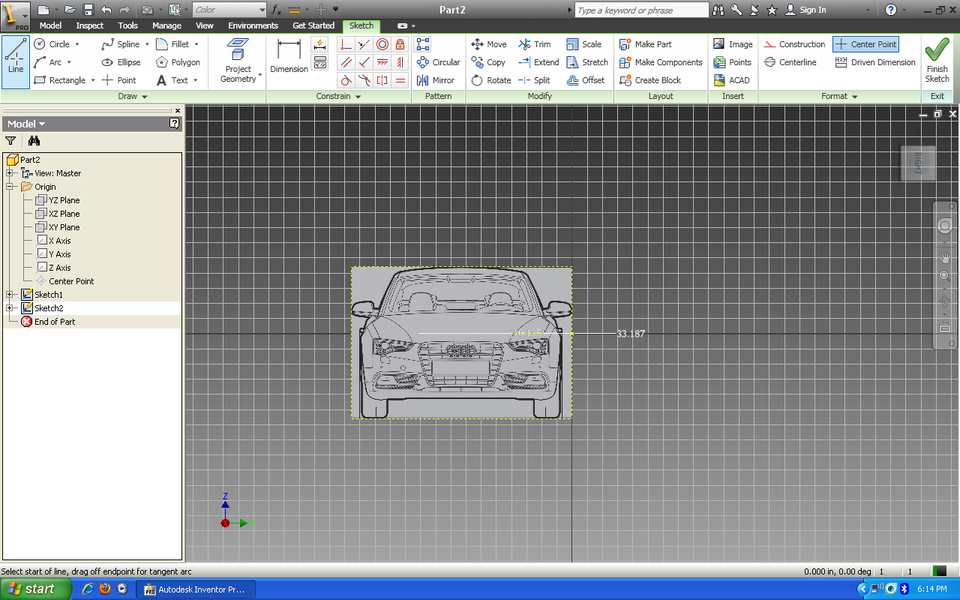

     Dimension the sketch. Click finish.

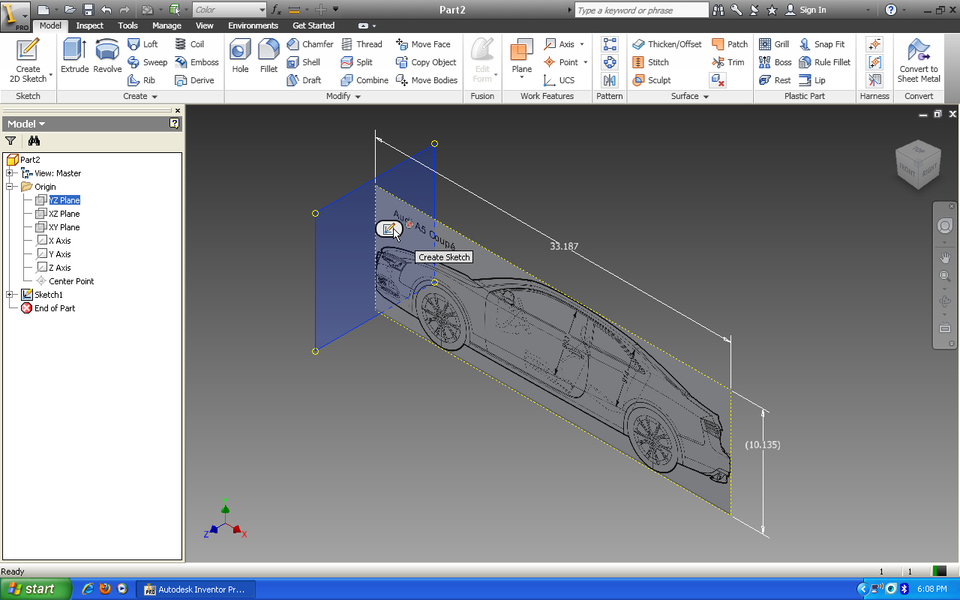

  6. Step 6

     Select yz plane from the browser and invoke a sketch on this plane.

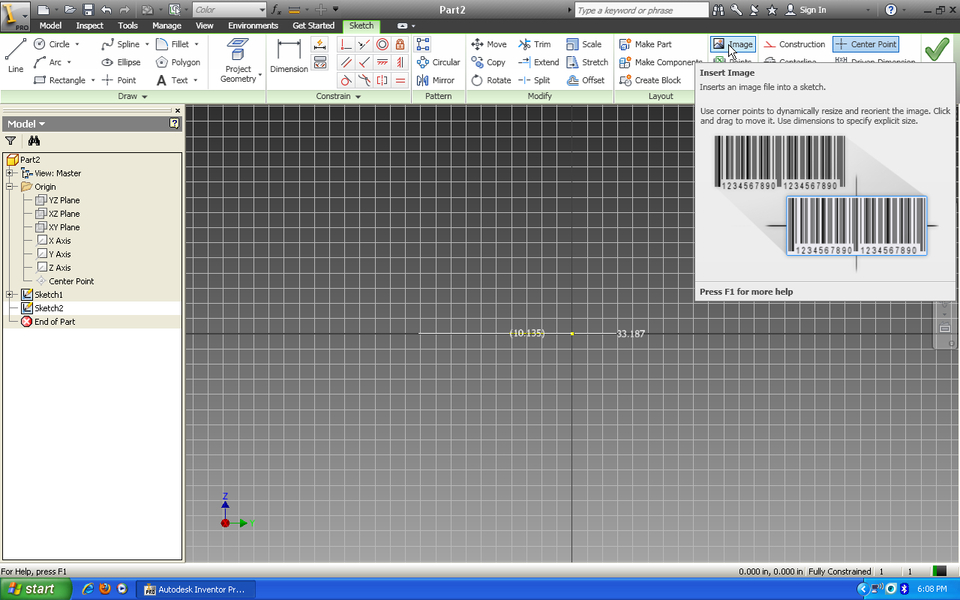

  7. Step 7

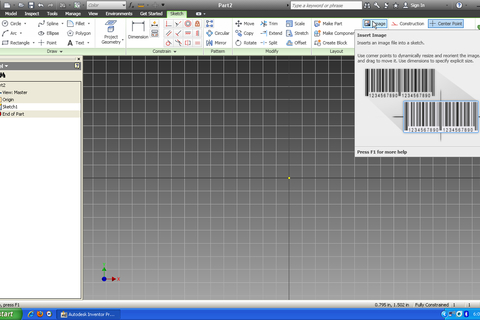

     Click on image.



  8. Step 8

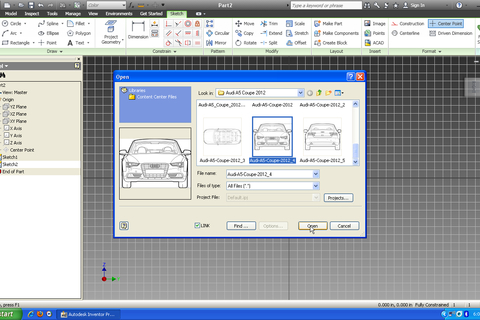

     Browse and open the required image.



  9. Step 9

     Click on line command and make two axes as shown in the below figure.



  10. Step 10

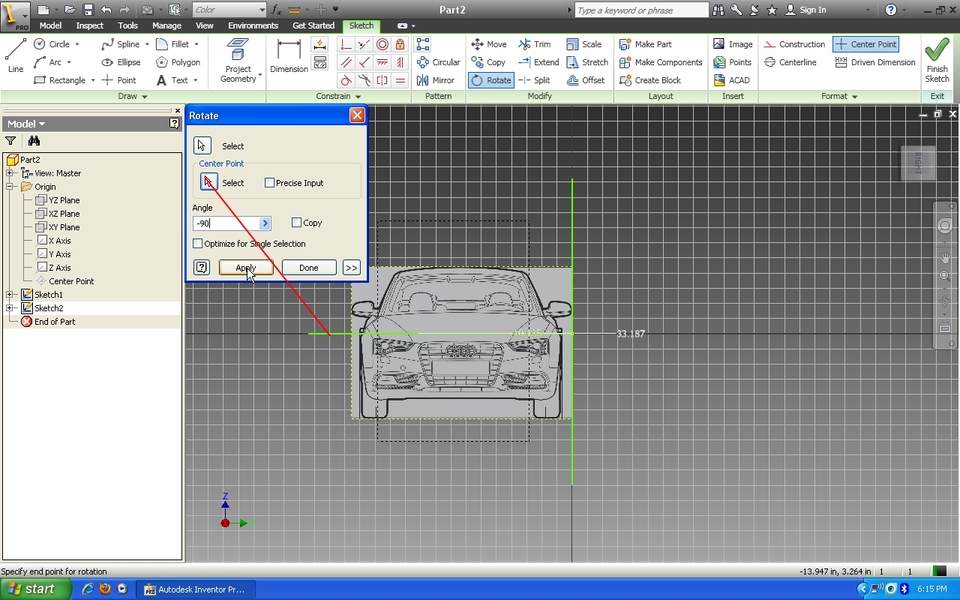

      Click rotate.

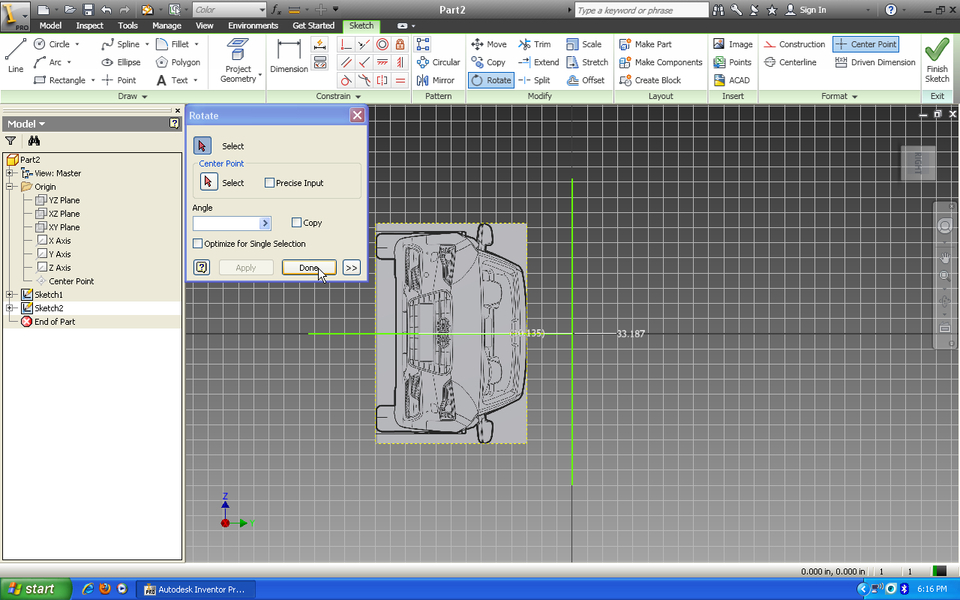

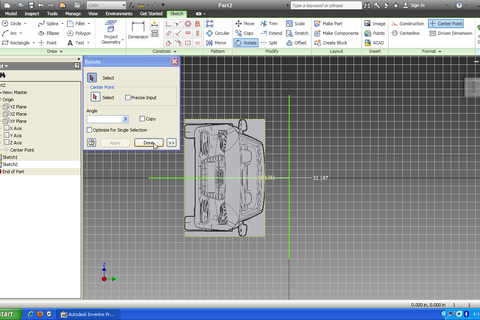

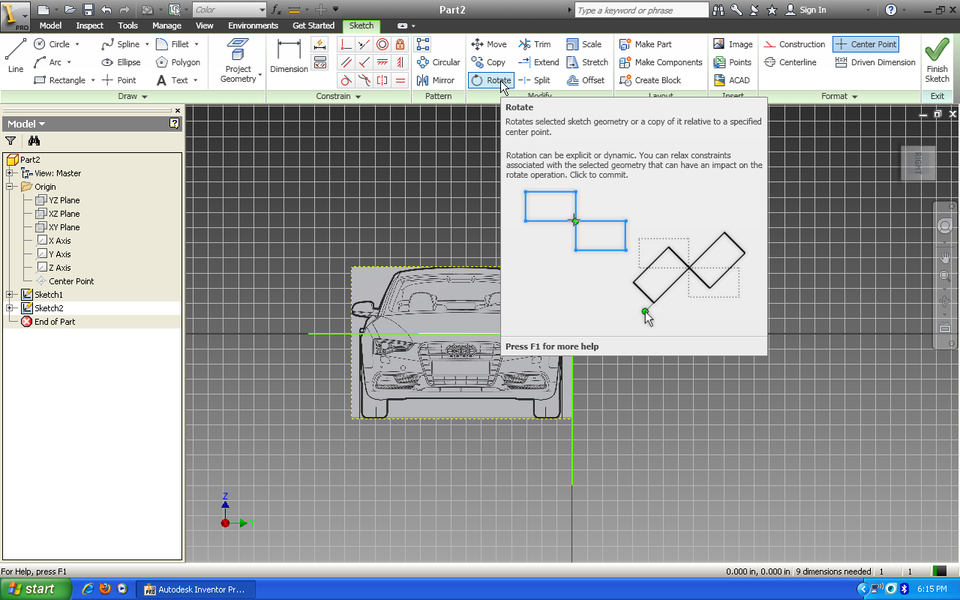

  11. Step 11

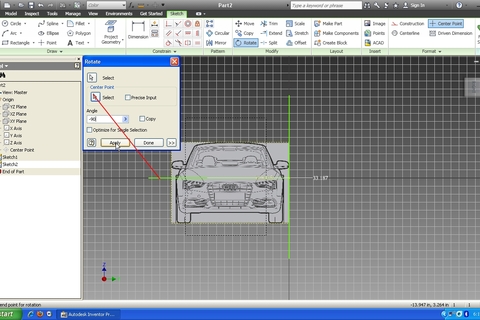

      Select centre point as the line. Fill the angle to rotate. click ok.



  12. Step 12

      Click "done"



  13. Step 13

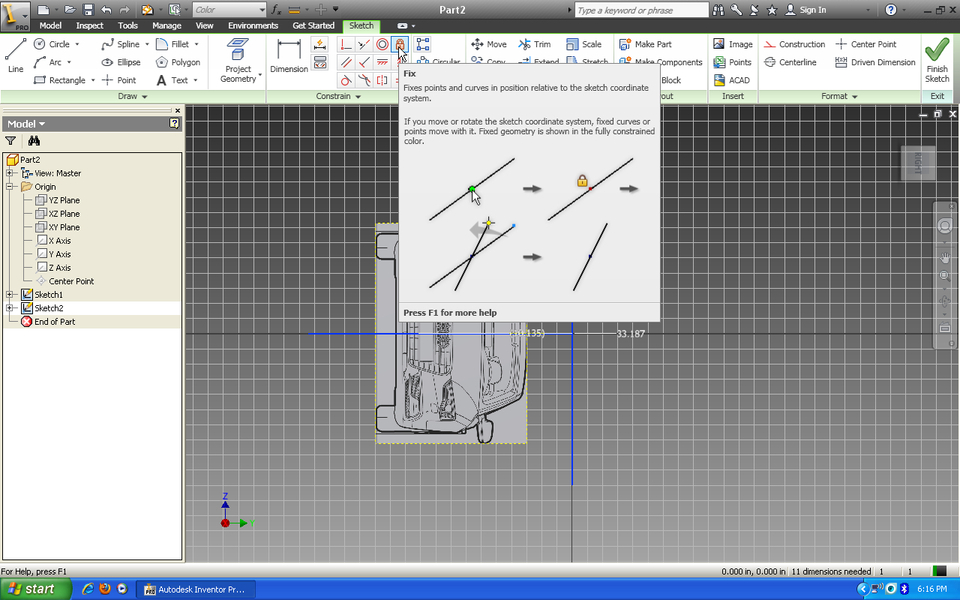

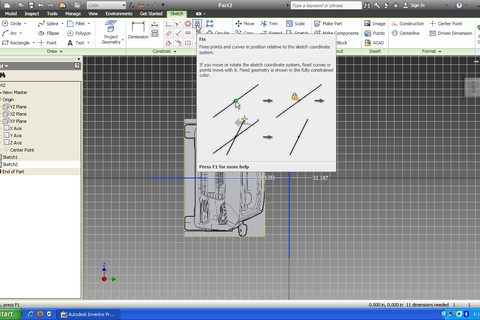

      select the fix constraint and constrain the lines.



  14. Step 14

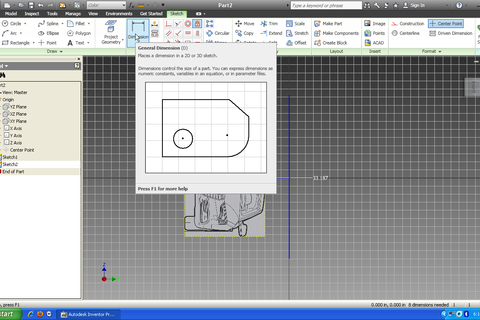

      Click on dimensions.



  15. Step 15

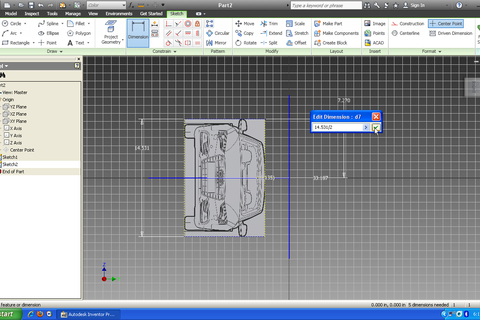

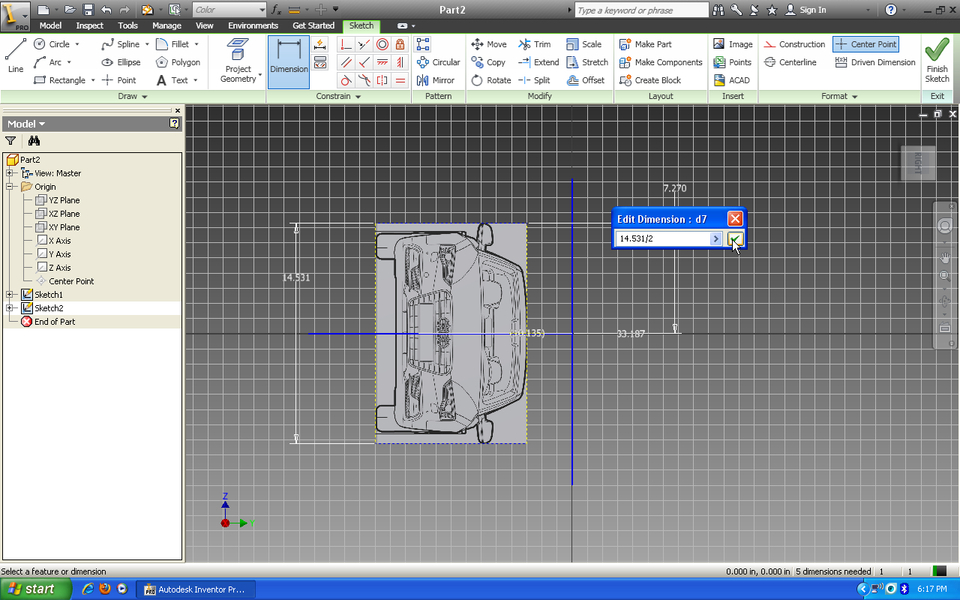

      Edit dimension. Ok.



  16. Step 16

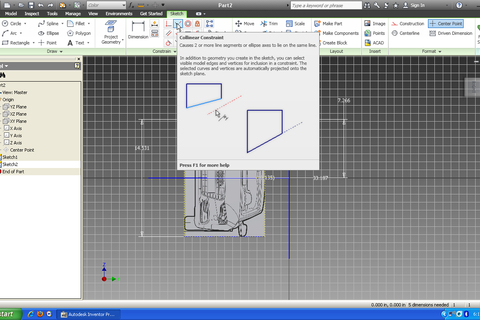

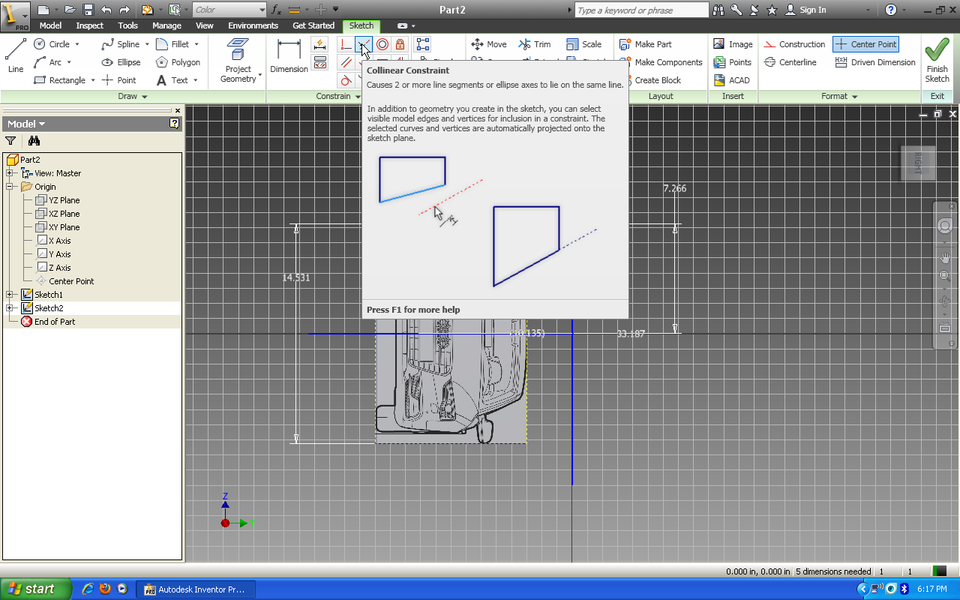

      Use colinear constraint if required to position the image.



  17. Step 17

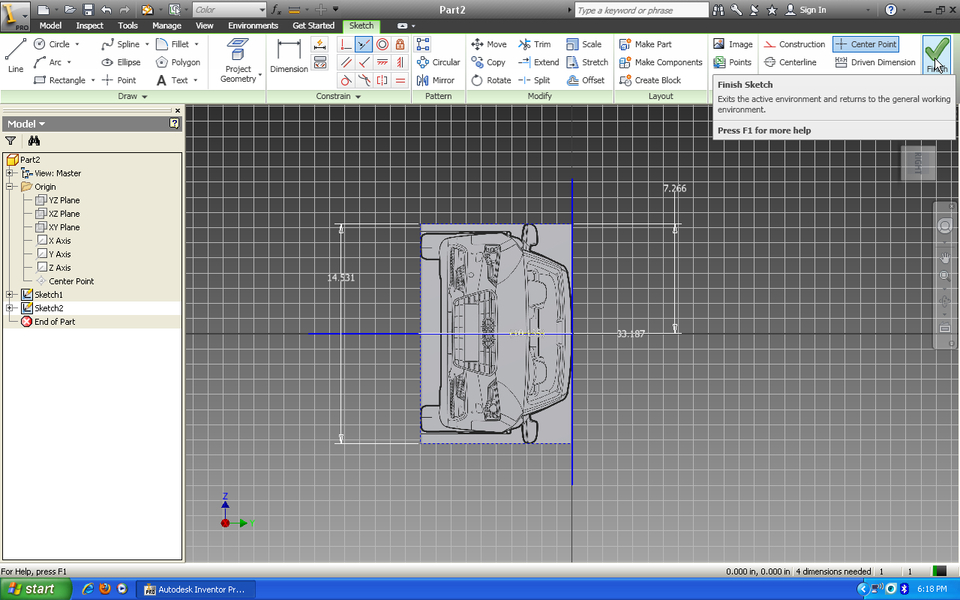

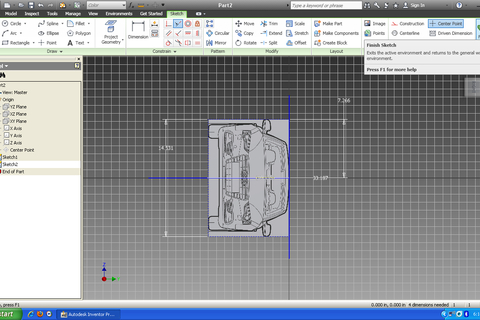

      Finish the sketch.

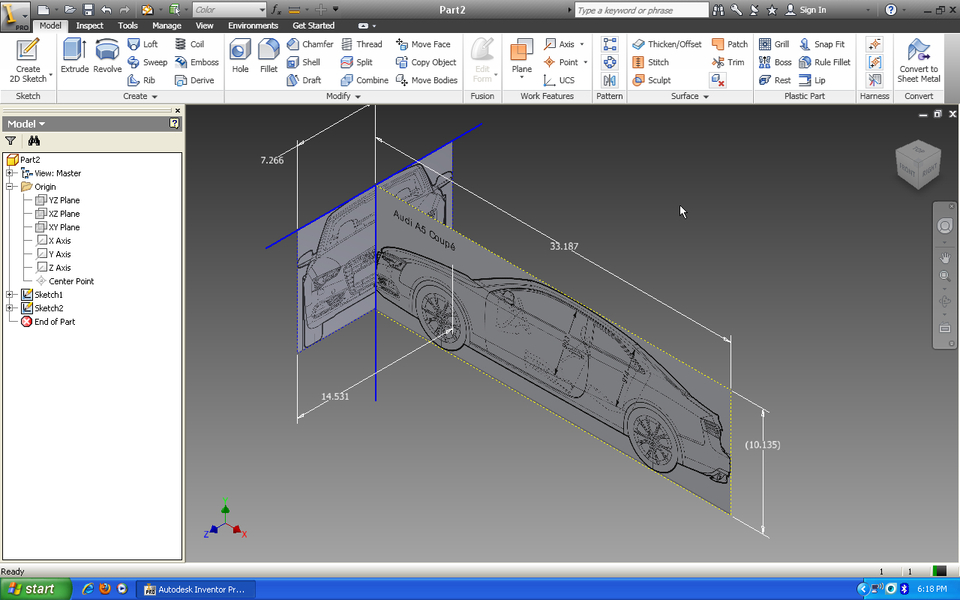

  18. Step 18

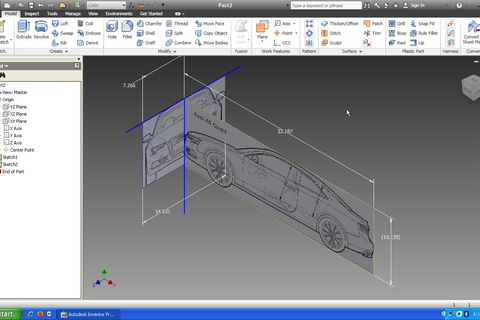

      Similarly import rest sketches.
