  Crankshaft endpoints connecting parts

  1. Step 1

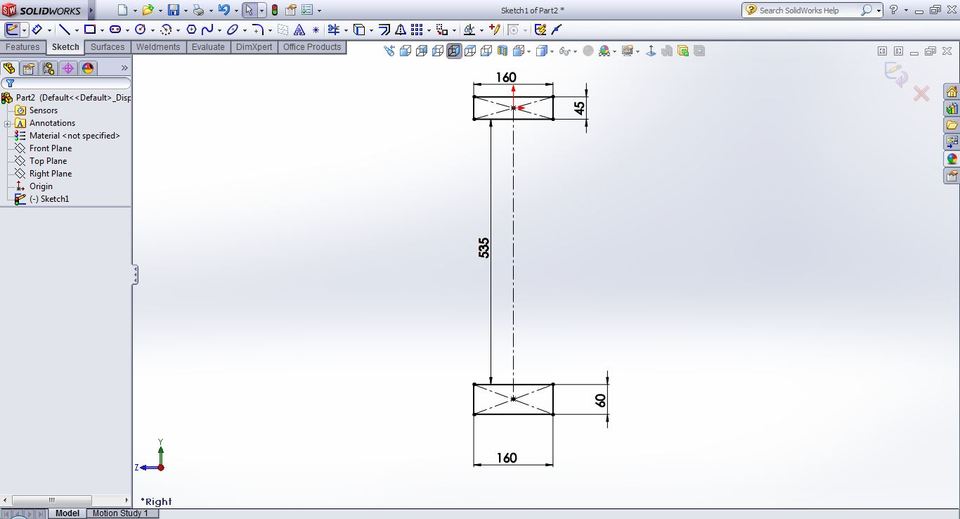

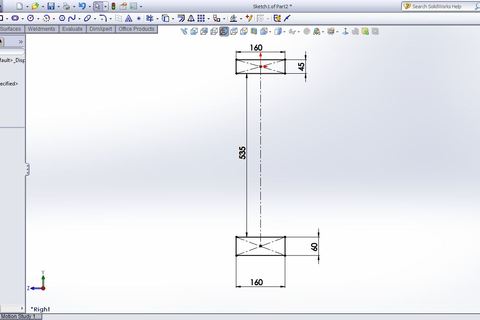

     draw shown sketch



  2. Step 2

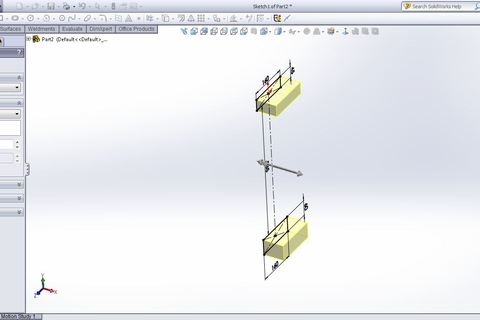

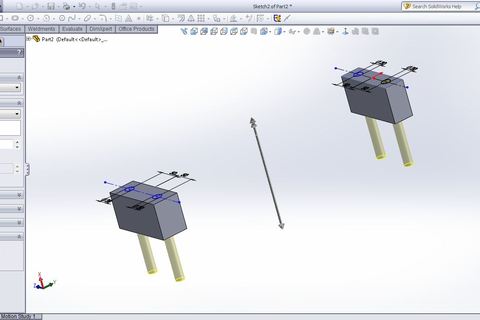

     extrude the sketch 60mm



  3. Step 3

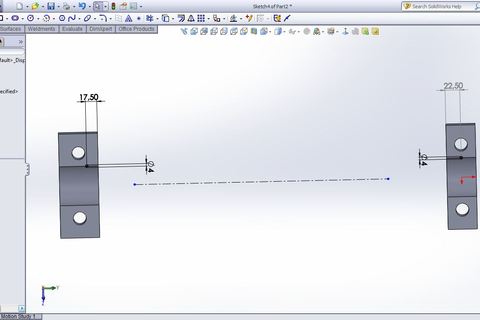

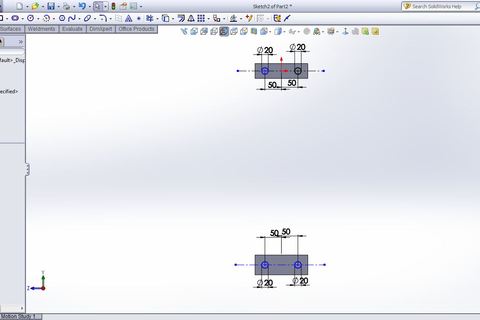

     open a sketch on the body and draw shown circles



  4. Step 4

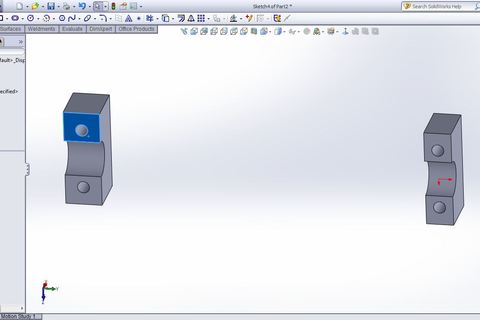

     cut the body



  5. Step 5

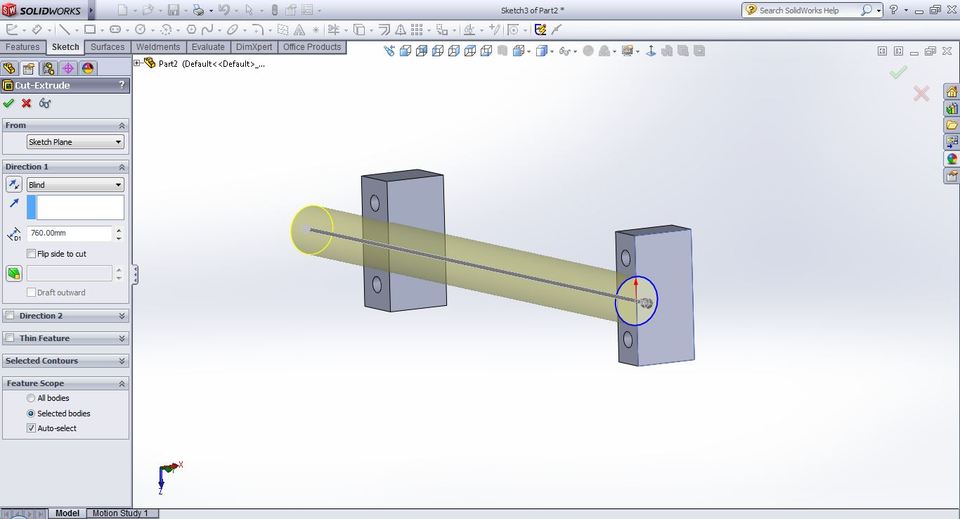

     draw a 30mm radiused circle like this and use cut extrude command



  6. Step 6

     open a sketch on the blue surface



  7. Step 7

     draw shown two circles and centerline



  8. Step 8

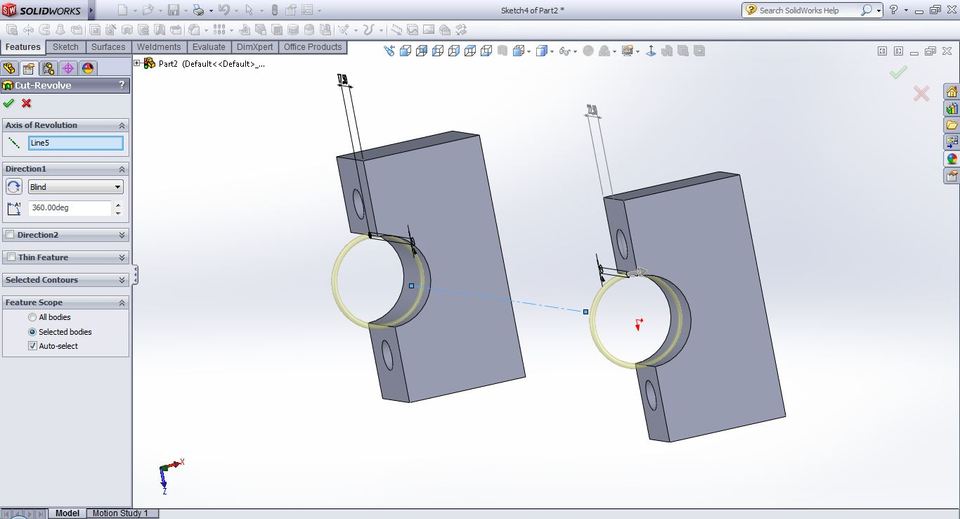

     use cut revolve command. that is all for now



•
  ali 9 months ago

  Thanks alot

•
  Guilherme Seiji Preissler 6 months ago

  Step 2 is actually 80mm instead of 60mm, in case anyone didn't notice ;)
