  part 10

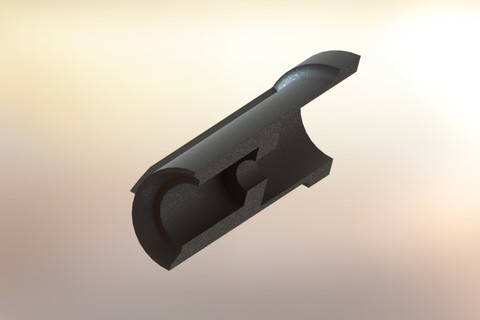

  1. Step 1

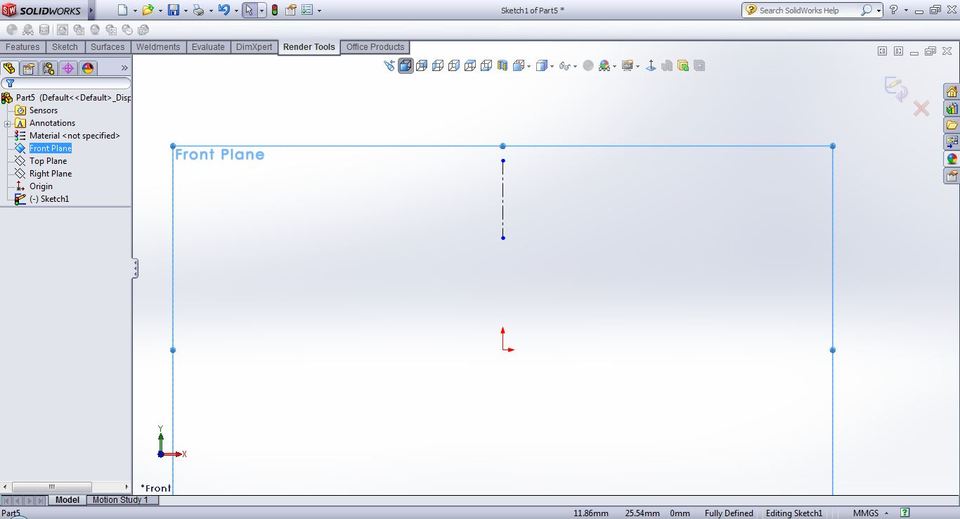

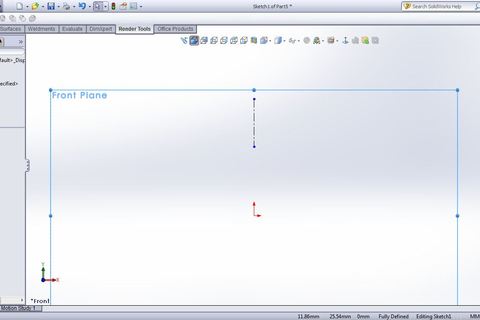

     open a sketch on the front plane and draw a centerline



  2. Step 2

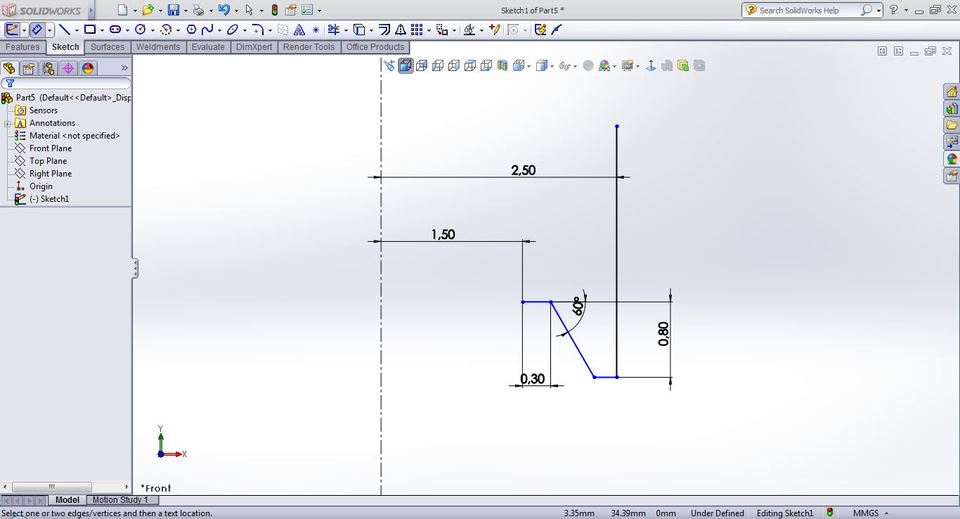

     start the drawing



  3. Step 3

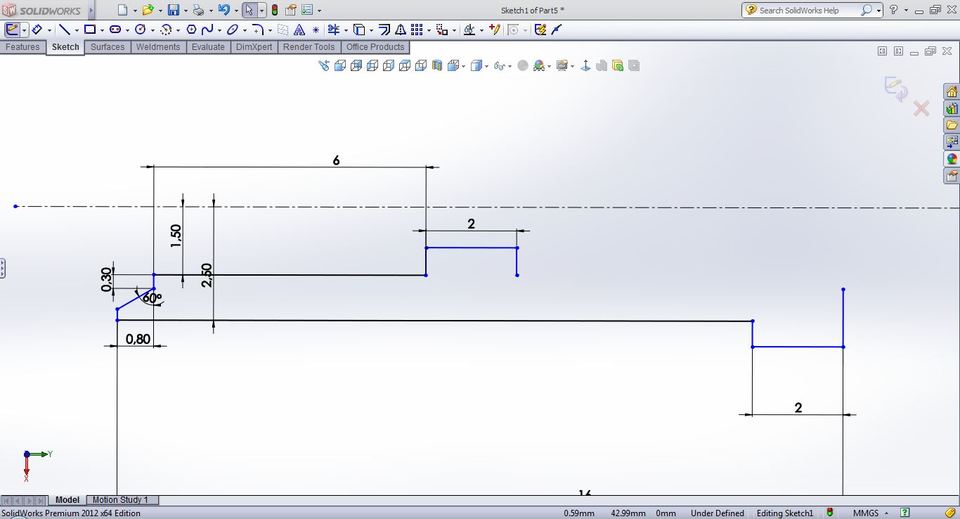

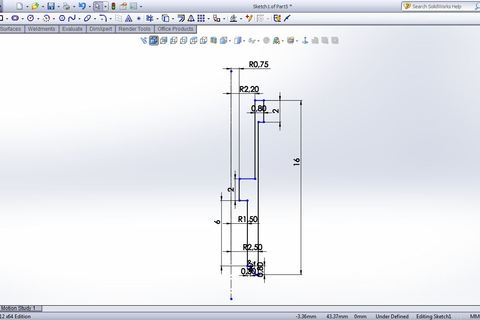

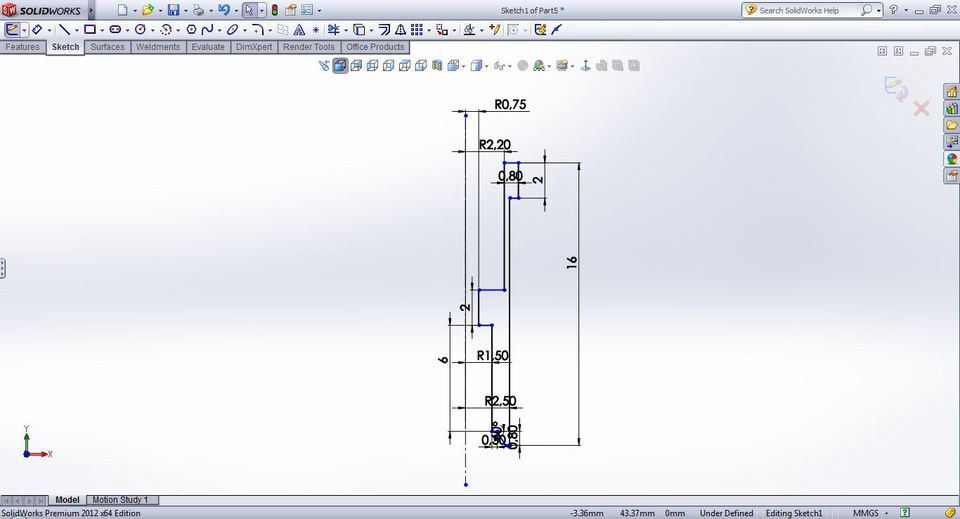

     continue



  4. Step 4

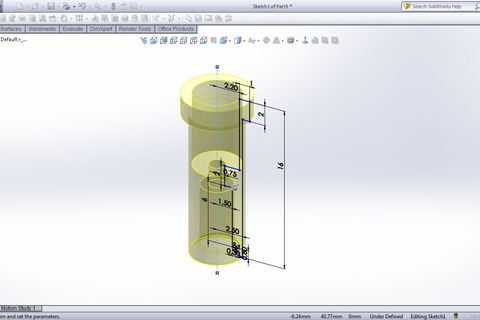

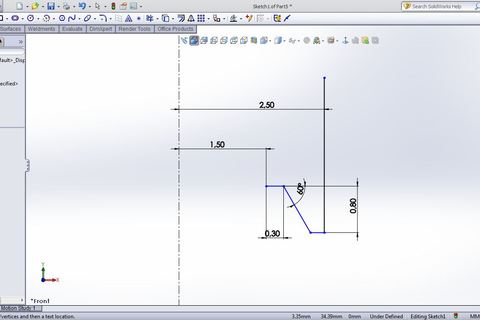

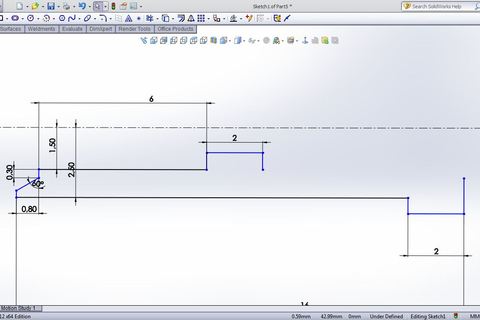

     make your sketch finally like this



  5. Step 5

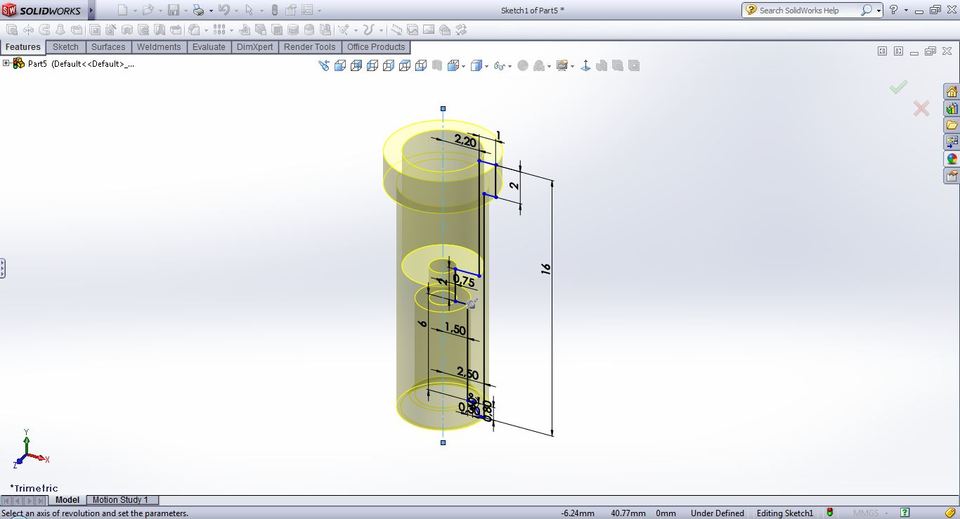

     use revolve command



  6. Step 6

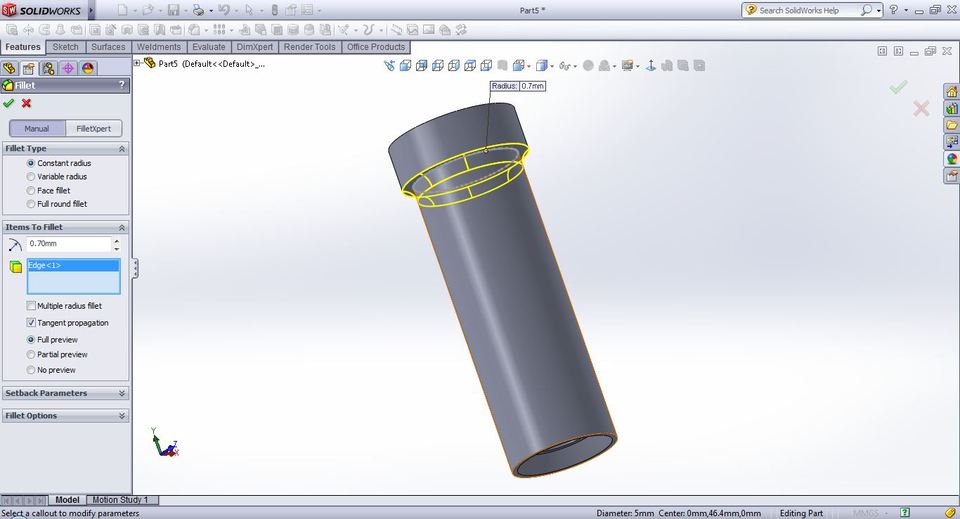

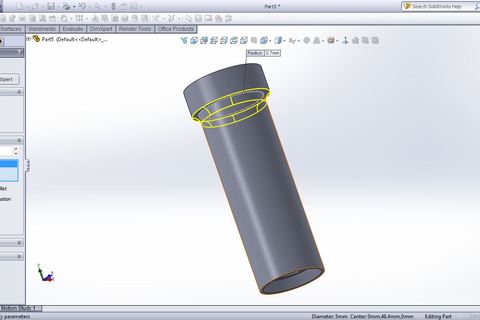

     use fillet command



  7. Step 7

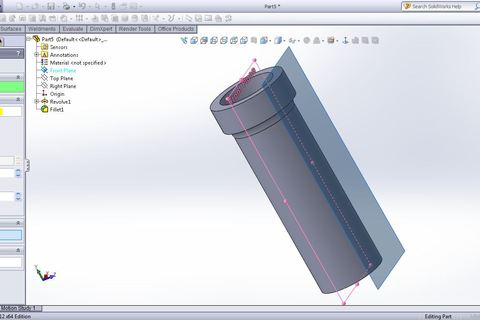

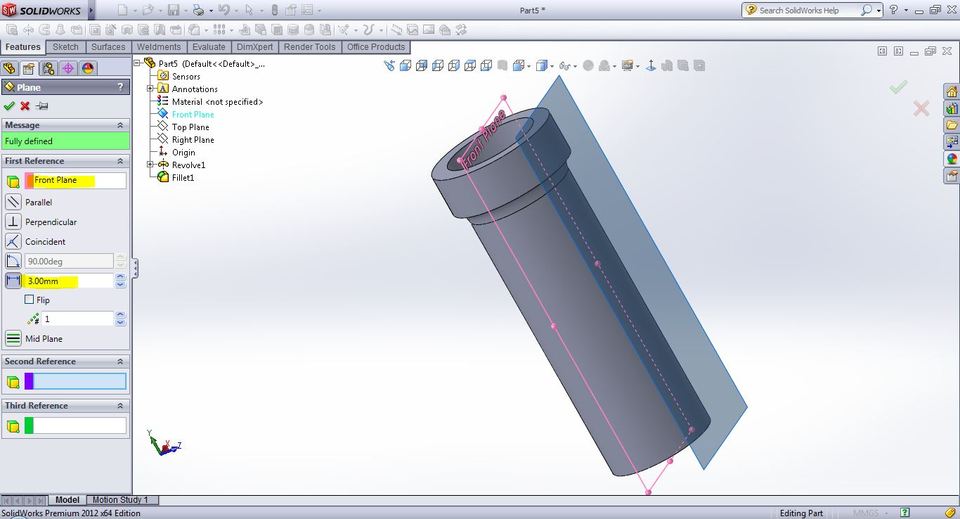

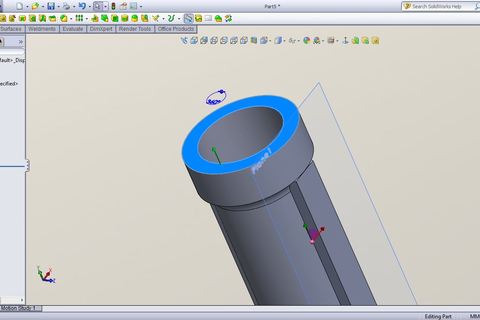

     referance geometry-- plane . select the front plane and enter the distance



  8. Step 8

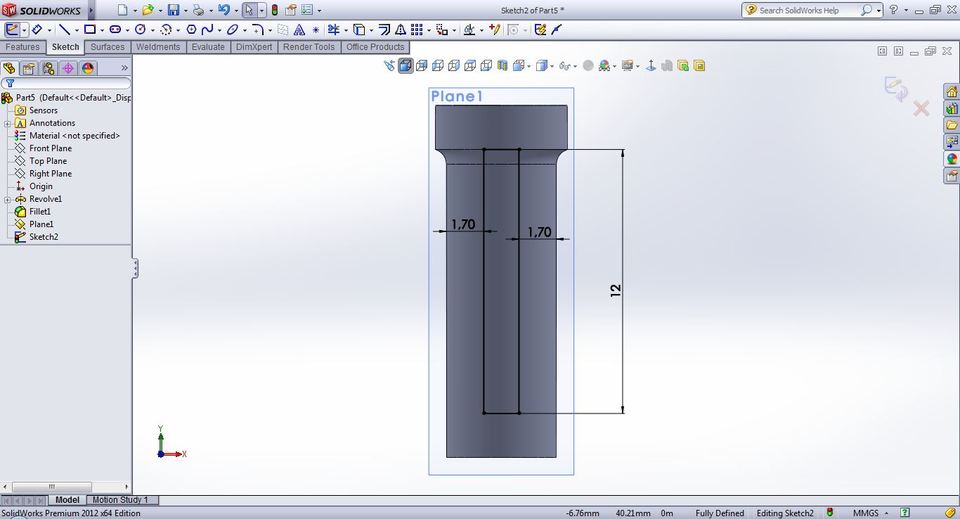

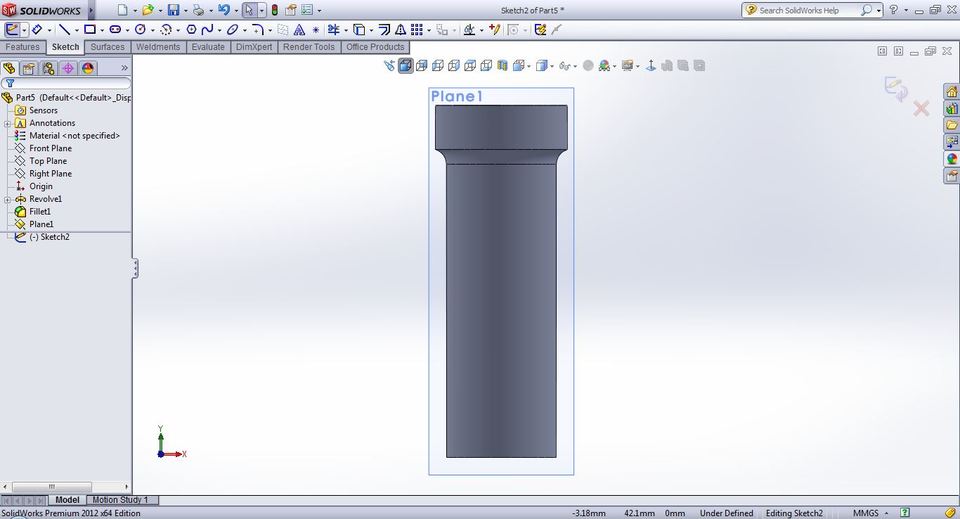

     open a sketch on the new plane



  9. Step 9

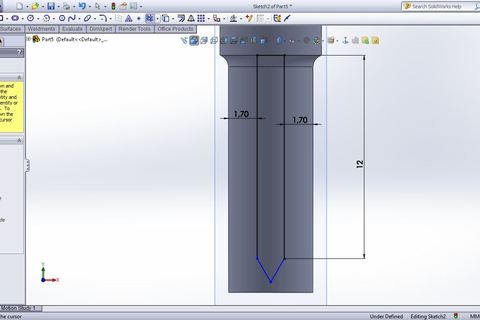

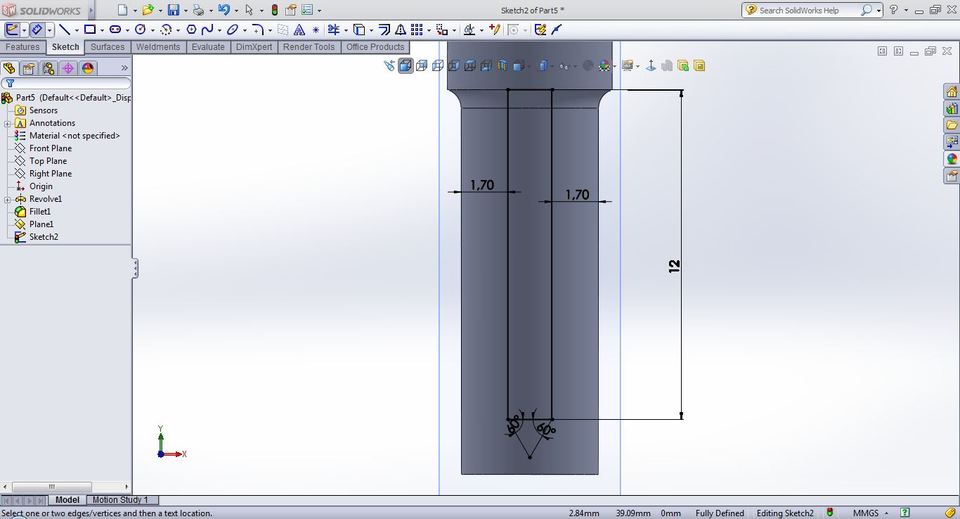

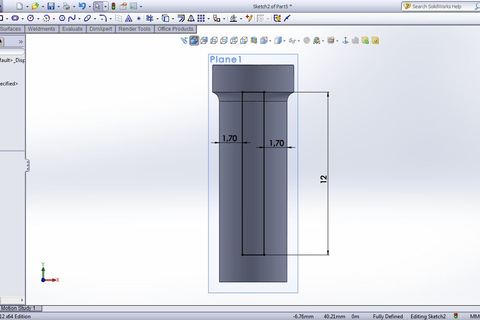

     draw a rectangle



  10. Step 10

      continue..



  11. Step 11

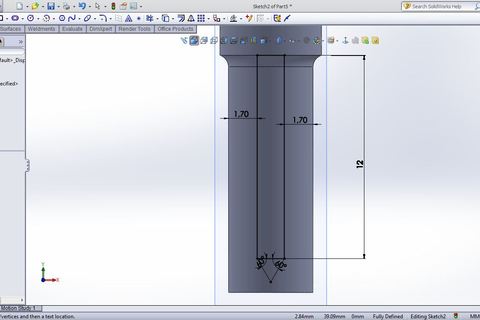

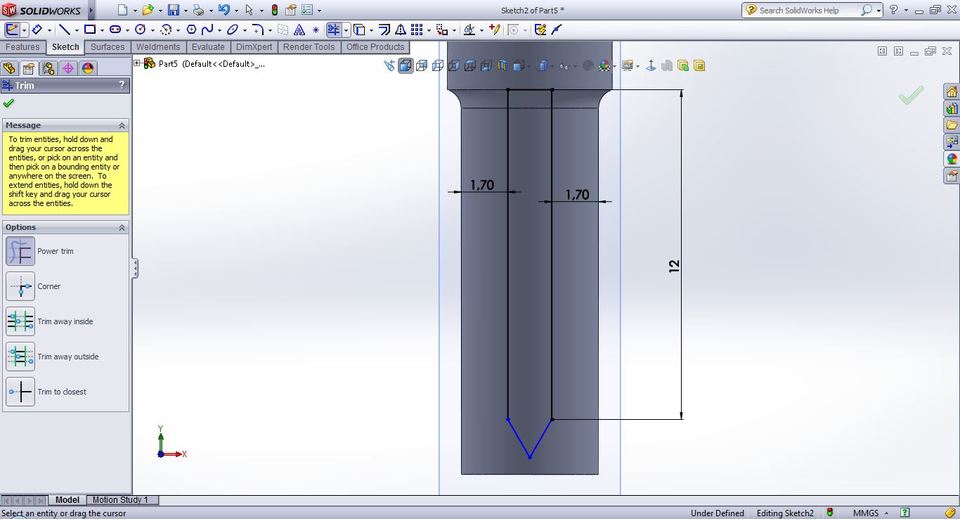

      use trim command



  12. Step 12

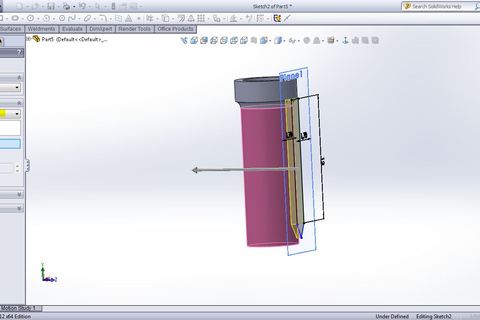

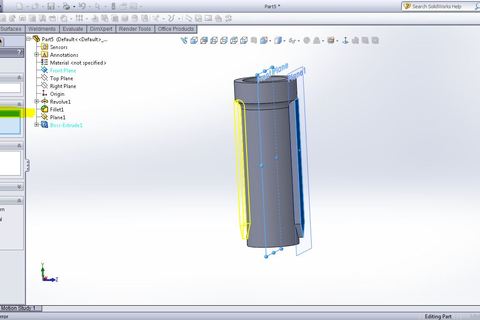

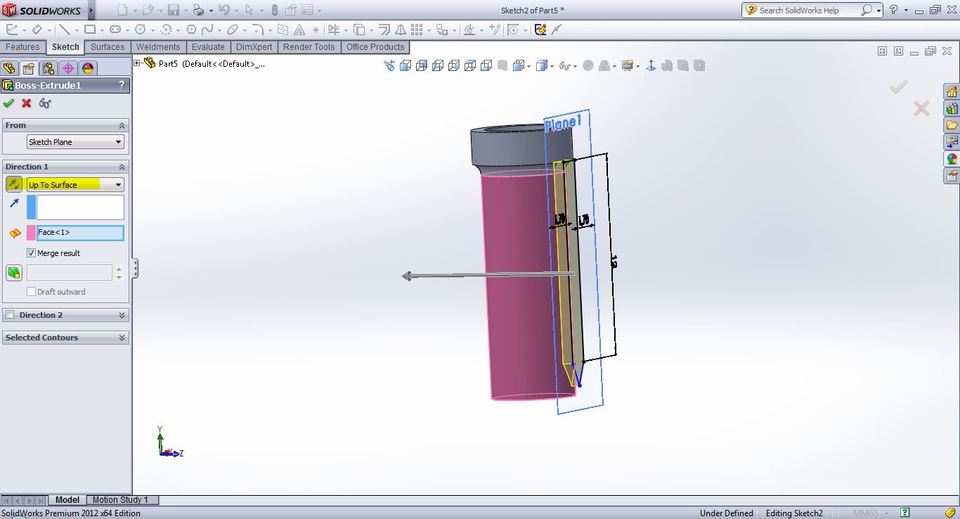

      use extrude command. select up to surface option and select the pink surface. confirm that



  13. Step 13

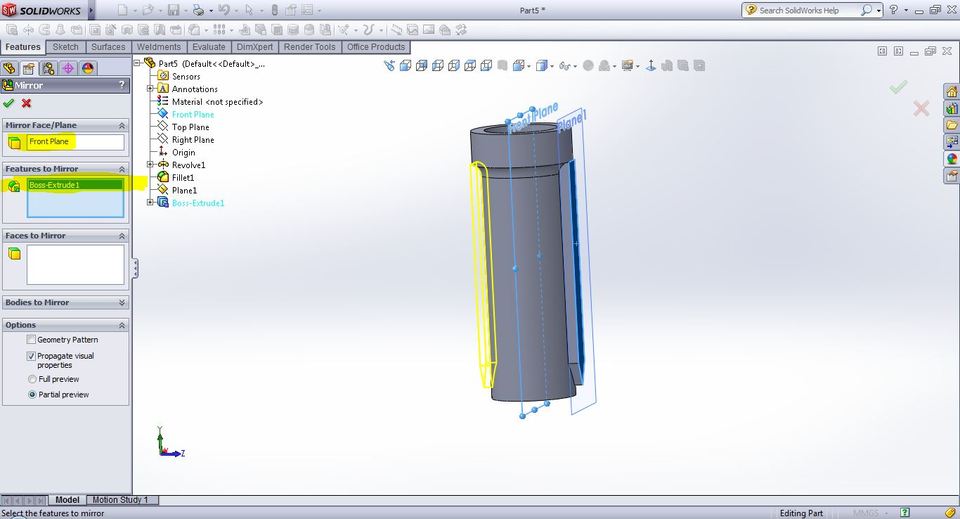

      use mirror command. select mirror plane (front plane) and features to mirror( boss extrude 1)



  14. Step 14

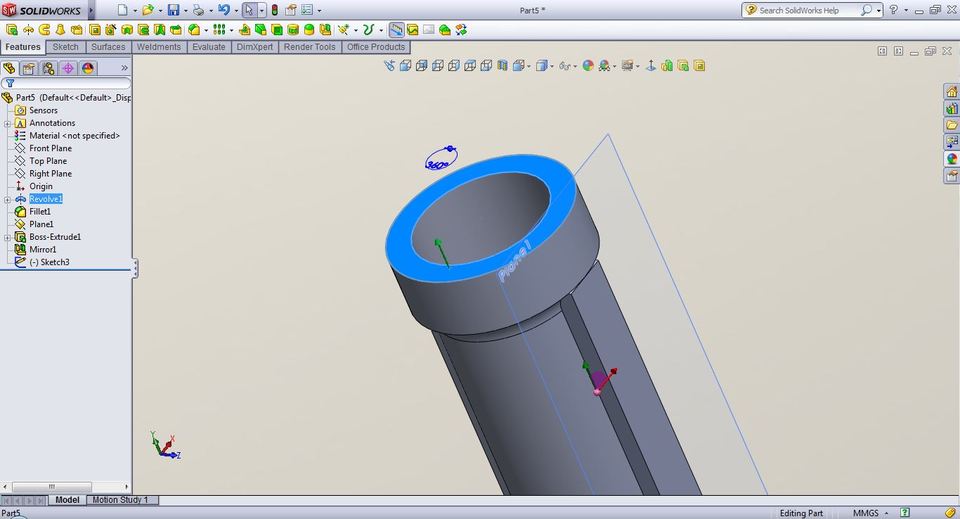

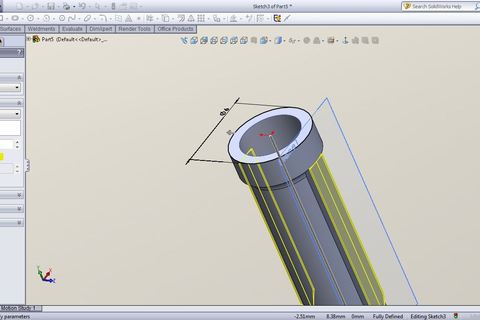

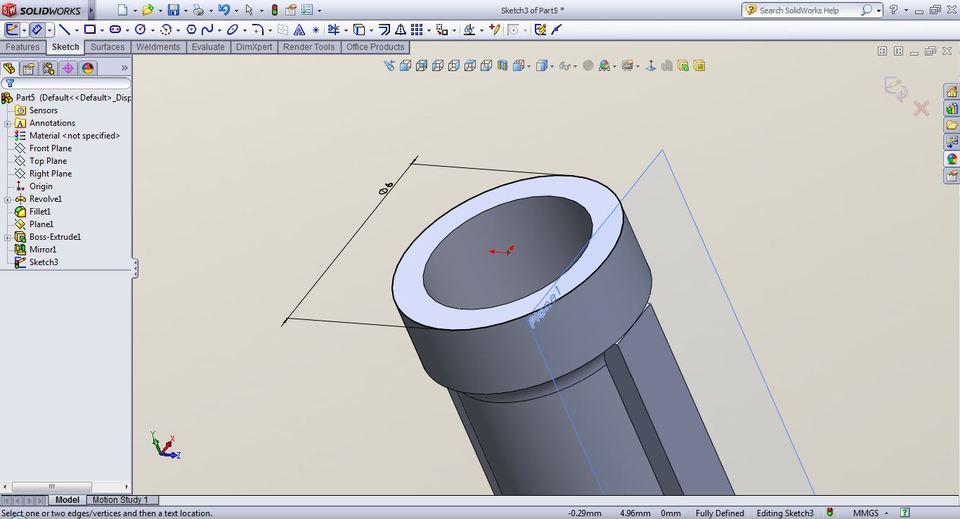

      open a sketch on this surface



  15. Step 15

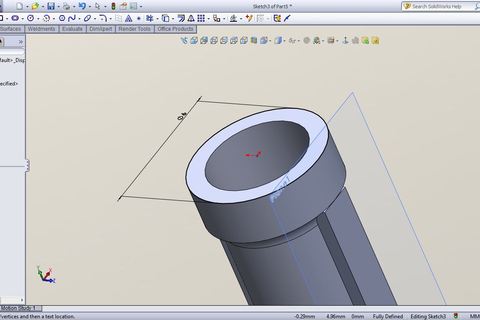

      draw a circle



  16. Step 16

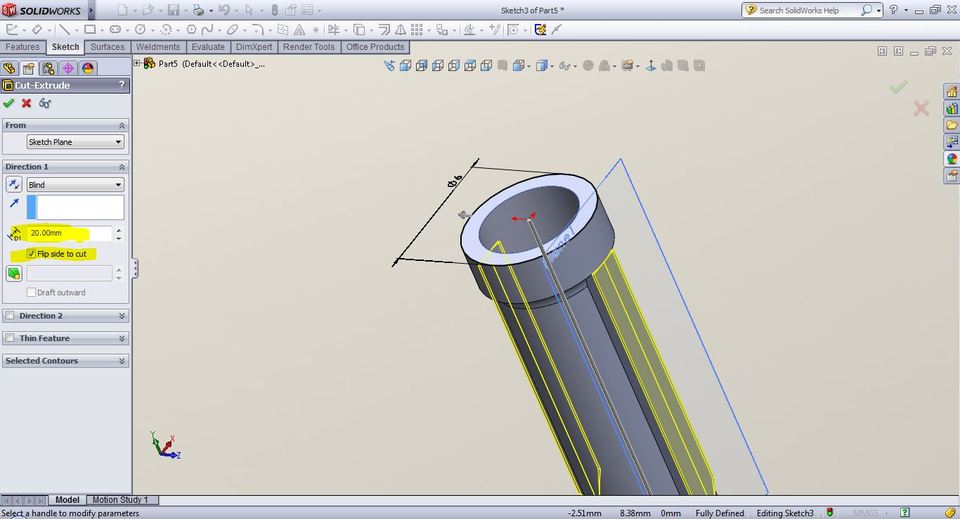

      use cut-extrude command. tick the ''flip side to cut'' box



  17. Step 17

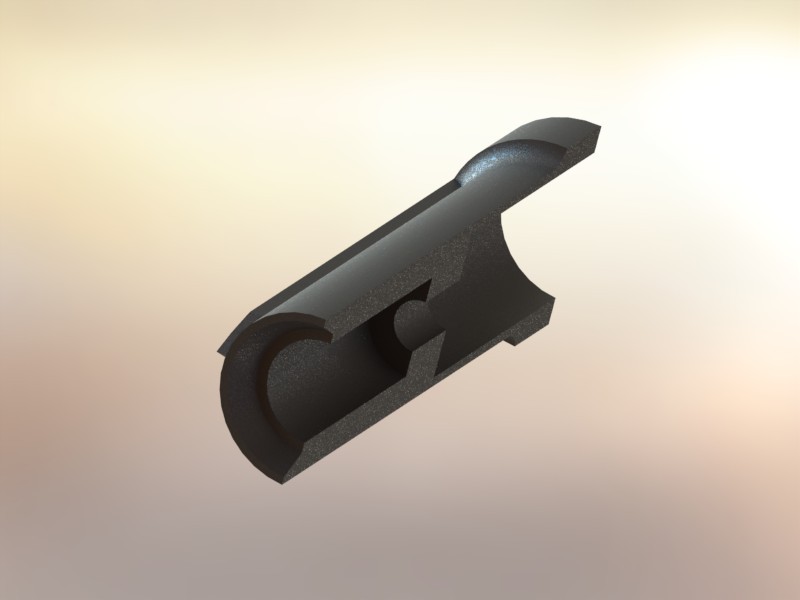

      save the part 10



  18. Step 18

      please don't try to make a assembly file at the moment. I will show how to make it soon
