Tutorial how to model a propelling pencil (14)

By Aykut Dana on 11 Mar 14:37 7 answers 1263 views 1 comment

14th step

http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-2
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-3
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-4
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-5
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-6
,http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-7
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-8
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-9
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-10
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-11
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-12
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-13
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-14
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-15
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-16
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-17
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-18
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-19
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-20

Added images

7 answers

Aykut Dana about 1 year ago
Part 9
1. Step 1

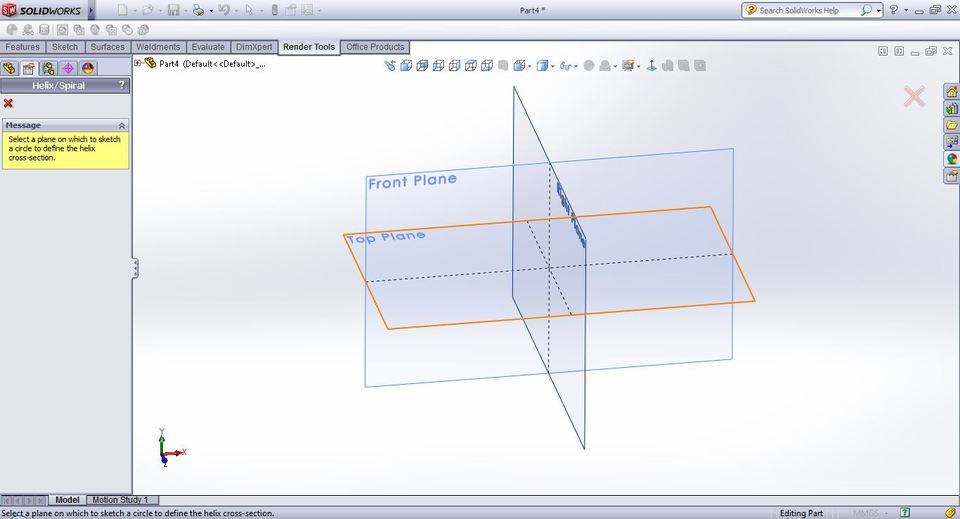

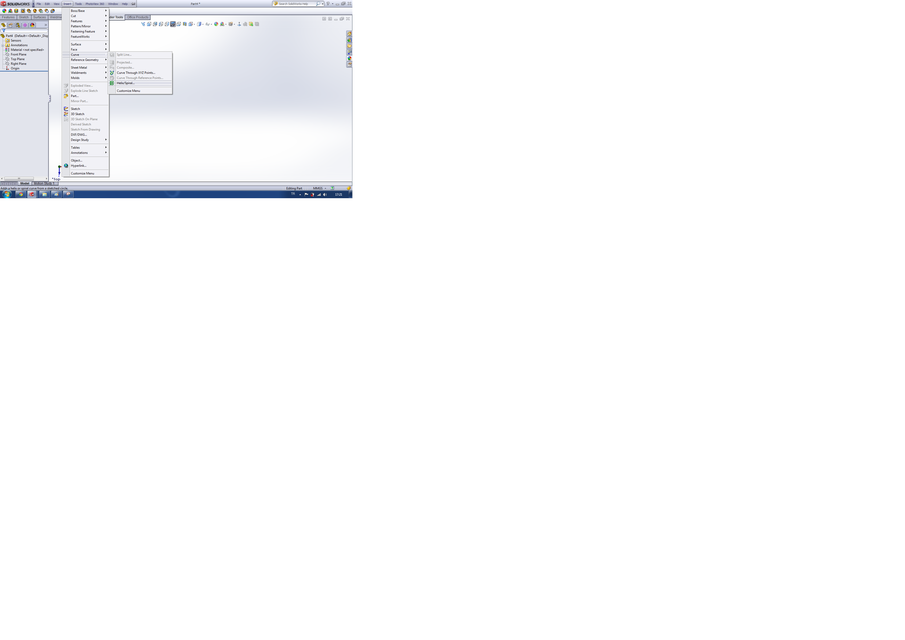

  insert--curve--helix spiral
2. Step 2

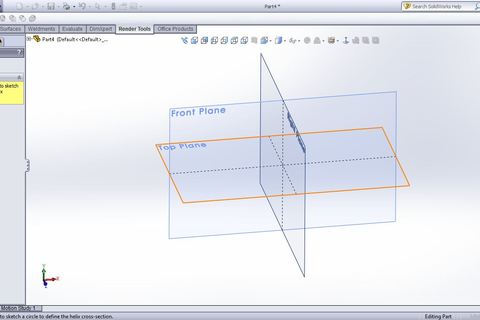

  select top plane
3. Step 3

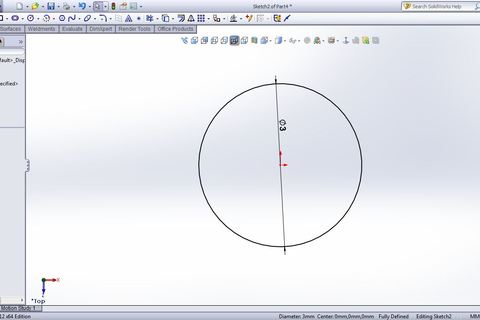

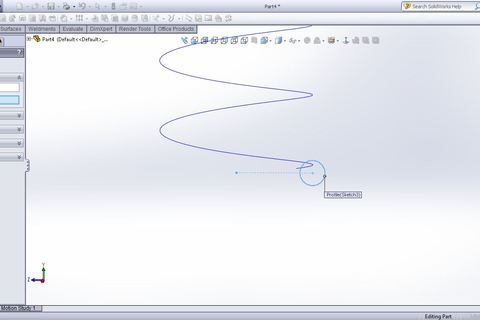

  draw a circle
4. Step 4

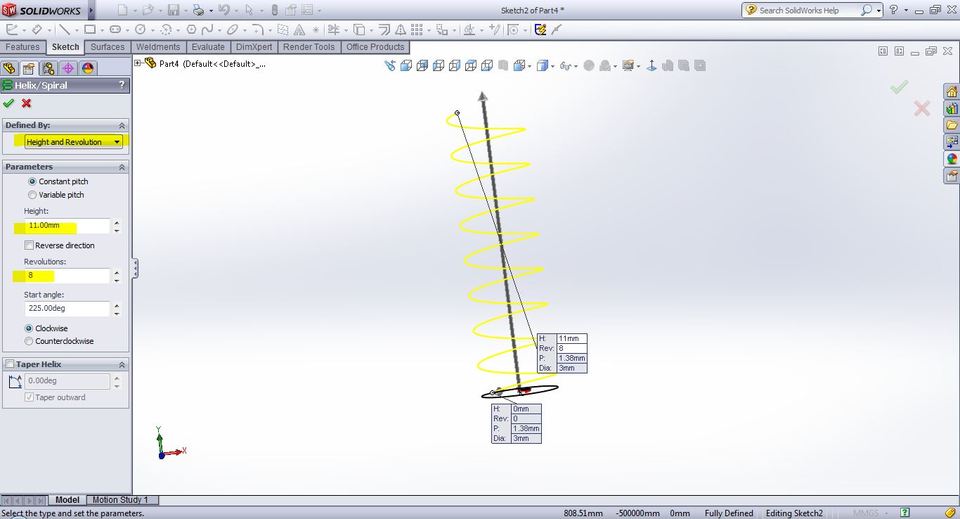

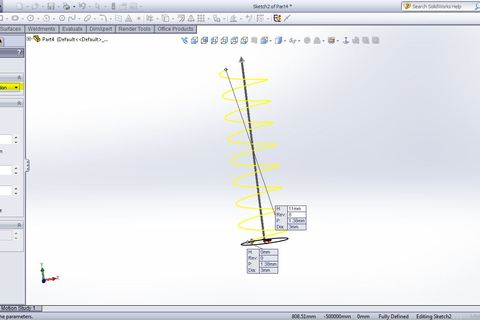

  exit from sketch end enter shown values
5. Step 5

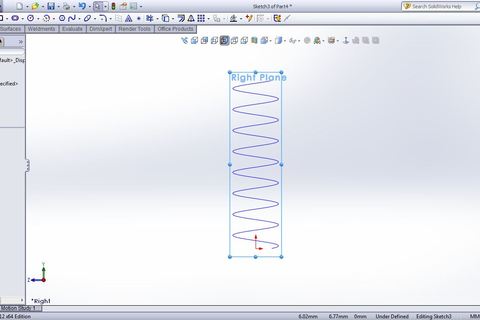

  confirm that. then open a sketch on the right plane
6. Step 6

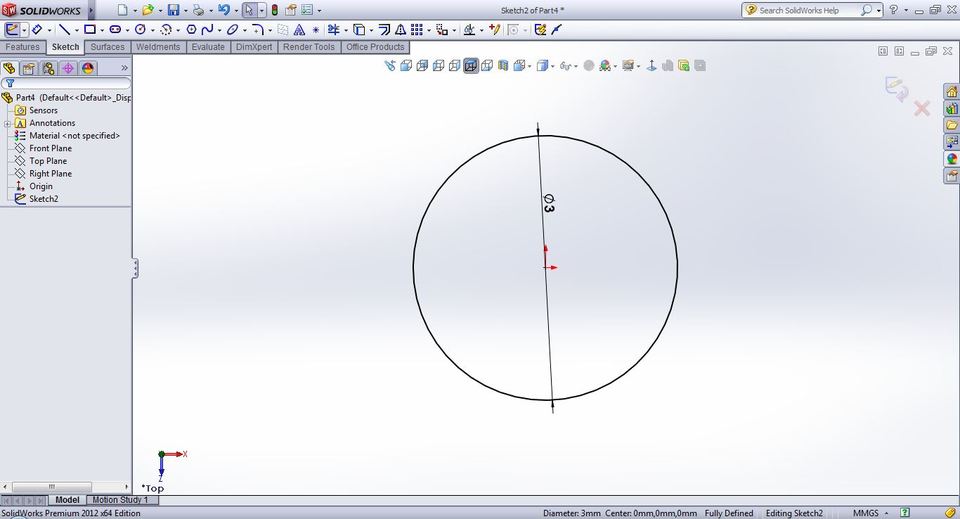

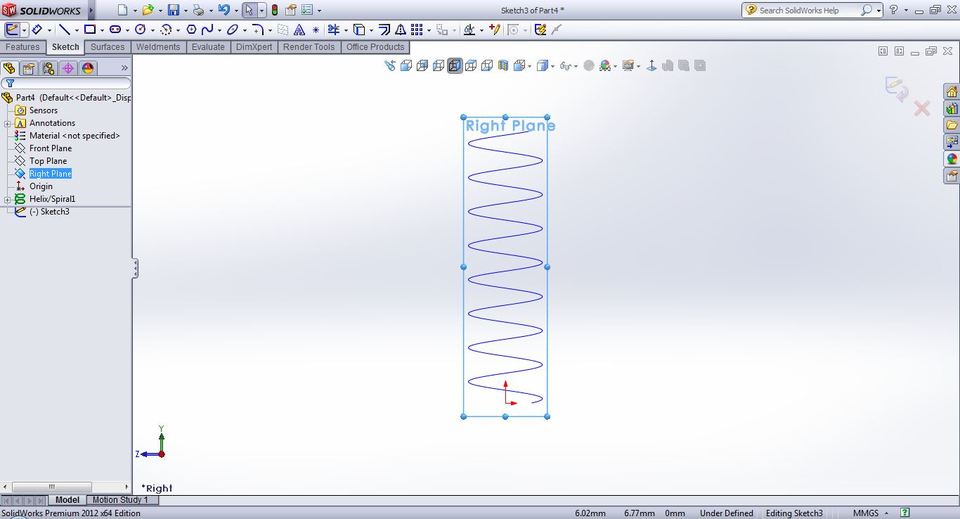

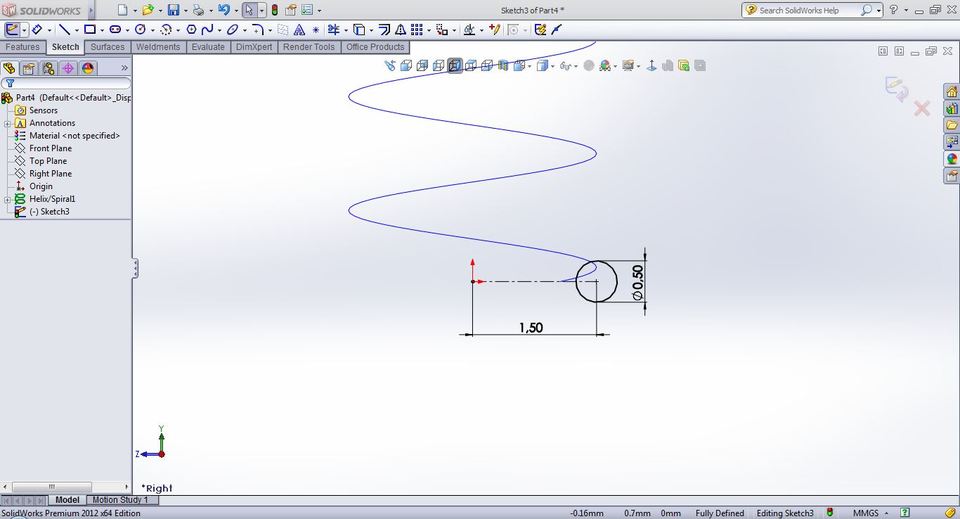

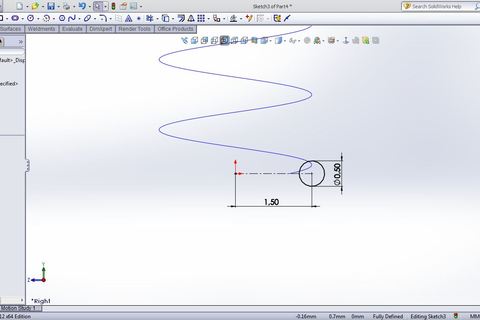

  draw shown circle
7. Step 7

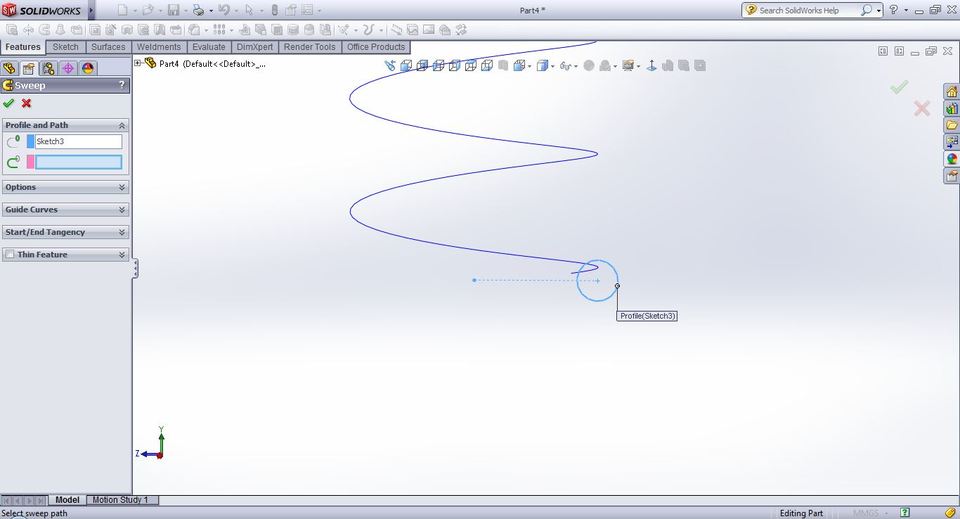

  exit from sketch and use sweept command. select the sketch for profile
8. Step 8

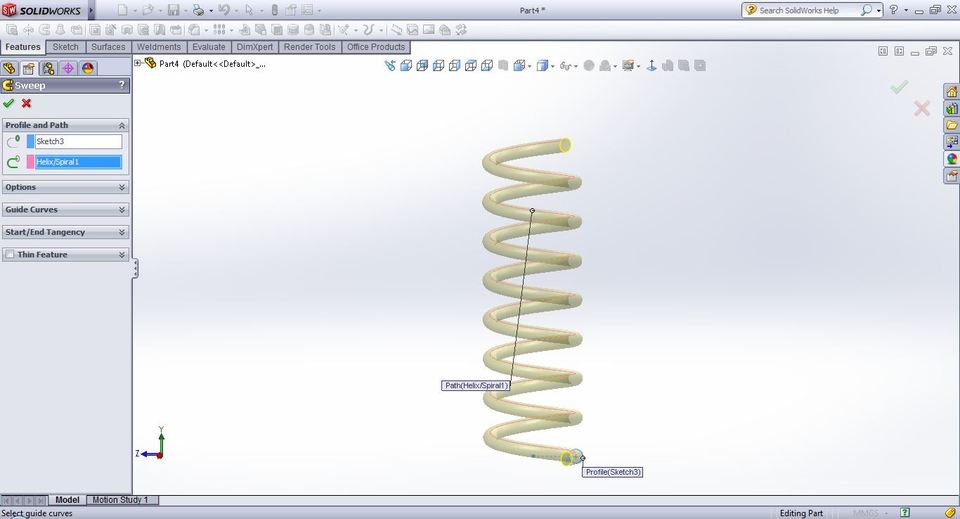

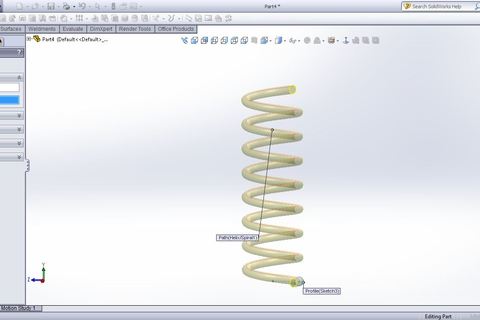

  then select the helix for path
9. Step 9

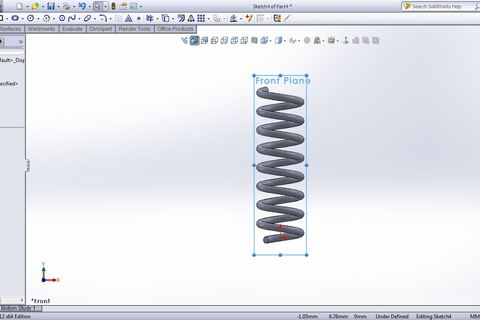

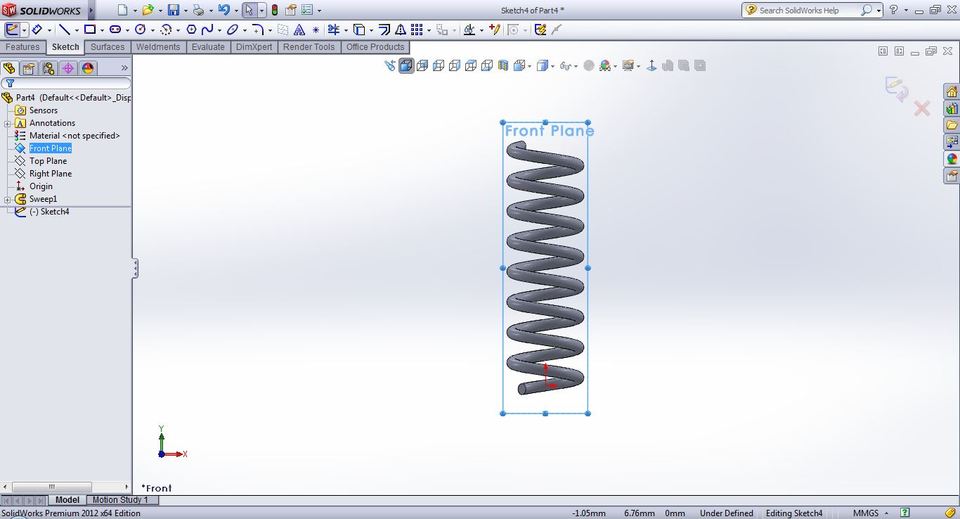

  confirm that and open a sketch on the front plane
10. Step 10

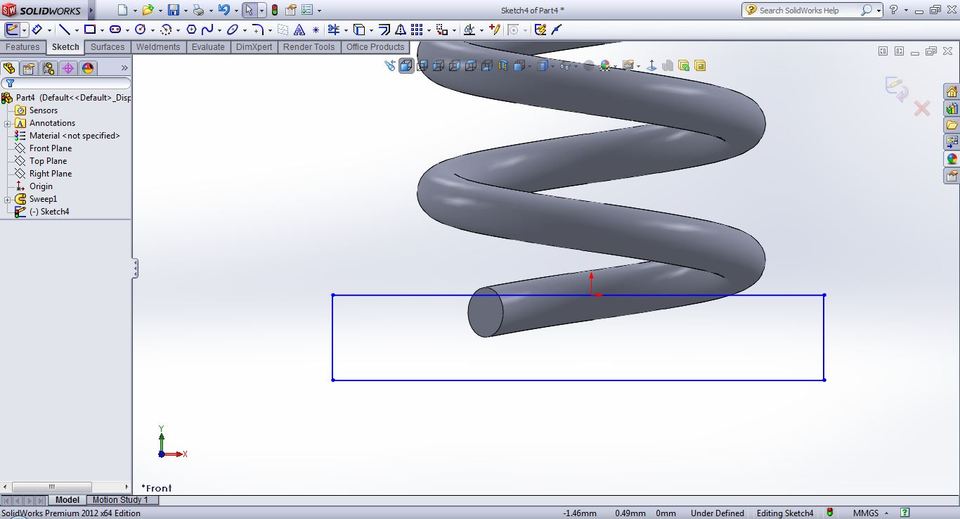

  draw shown rectangle. it must be on orjin
11. Step 11

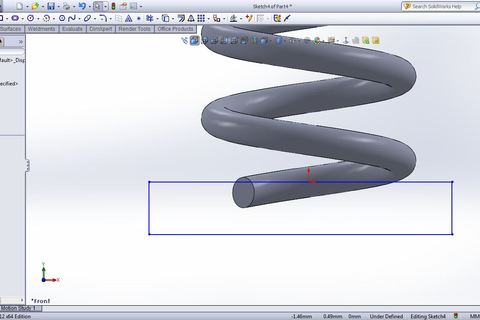

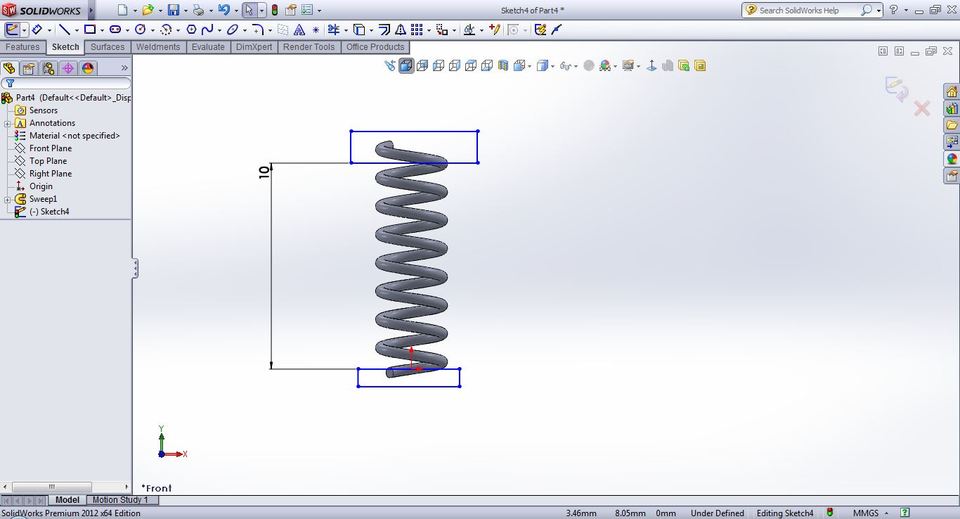

  go to upside and draw a more rectangle lik shown
12. Step 12

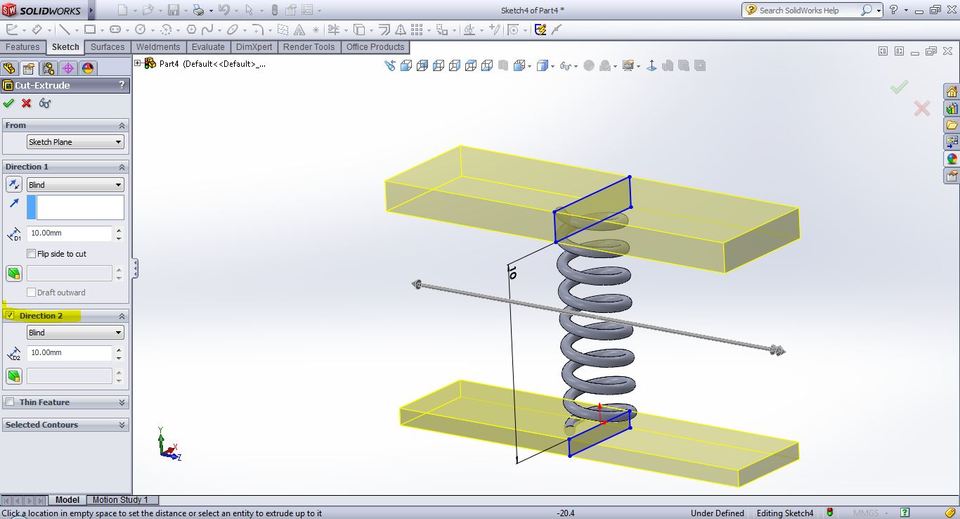

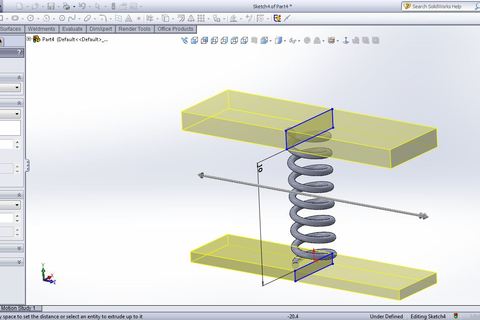

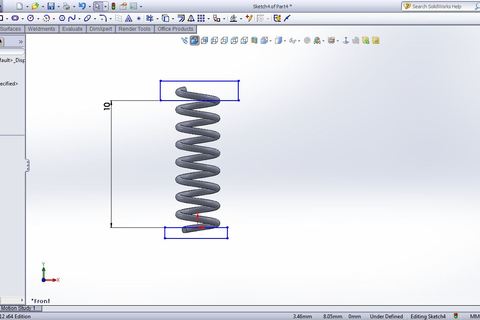

  use cut extrude command
13. Step 13

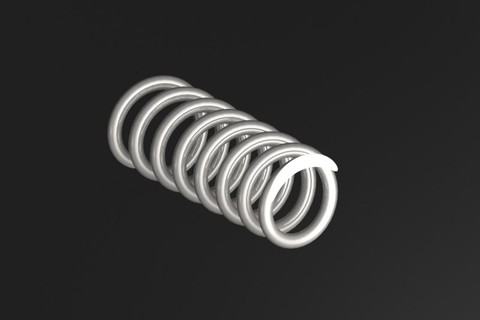

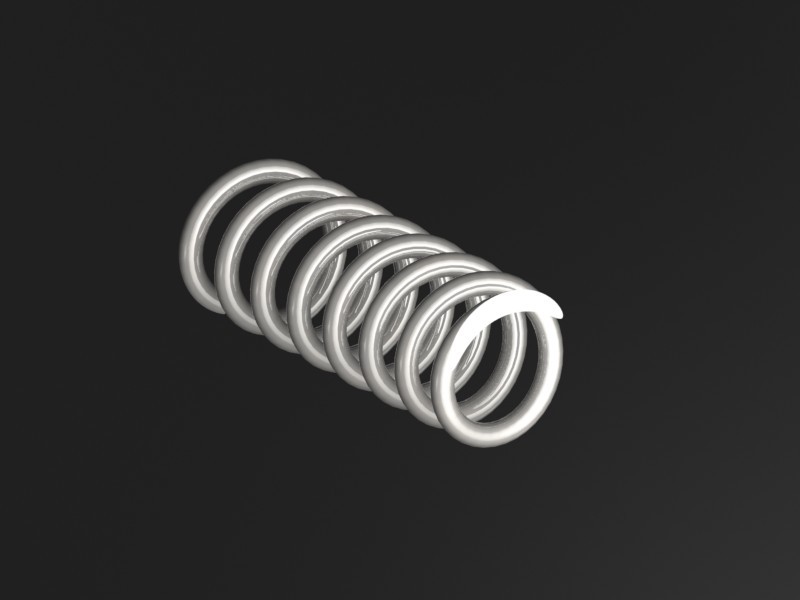

  save part 9
14. Step 14

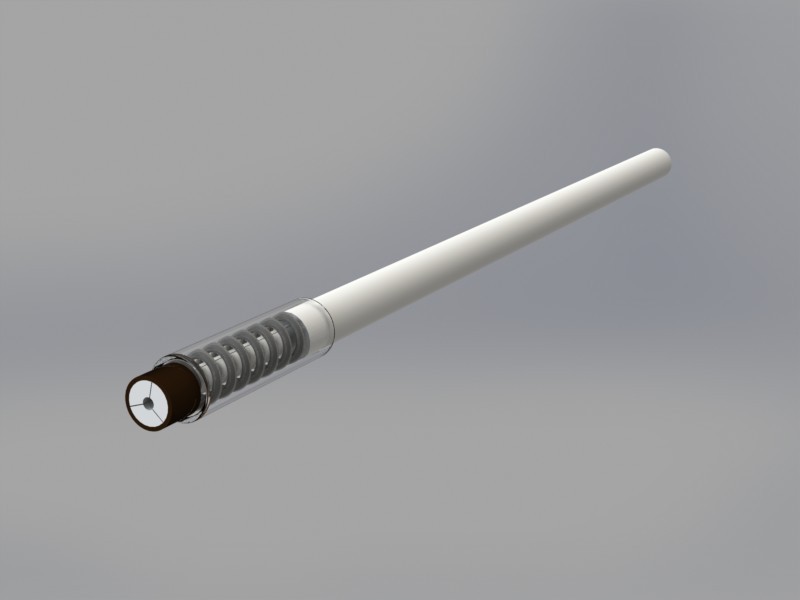

  part 6, 7, 8, and part 9. we will assemble later

  next:
  http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-15

samara about 1 year ago
very good tutorials thank you Aykut but where is the next one?

Liam Alexander Ward 8 months ago
PLEASE FINISH THIS TUTORIAL!!!!!!

Daniel Eriksson about 1 year ago
Great tutorial, i hope you finish it! Thanks.

Aykut Dana 4 months ago
New tutorials are avaliable! Keep on to the next : http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pen-15

Zia Ur Rehman 6 months ago
PLEASE FINISH THIS TUTORIAL!!!!!!

carlos eduardo navarro 4 months ago
Mr. Aykut Dana, Why did you leave the tutorial, when we are hoping that the assembly is the coolest? A great job, well presented, we are hungry for more tutorials that help us in everyday life, hope everything is well with you, to close this issue as well ... Greetings ( here in Brazil we have a few people doing tutorials CATIA )
1. Aykut Dana 4 months ago

  to be honest I forgot this tutorial series. I will publish new parts as soon as possible :))
