Tutorial: How to model a propelling pencil

By Aykut Dana on 10 Mar 11:39 3 answers 4239 views 2 comments

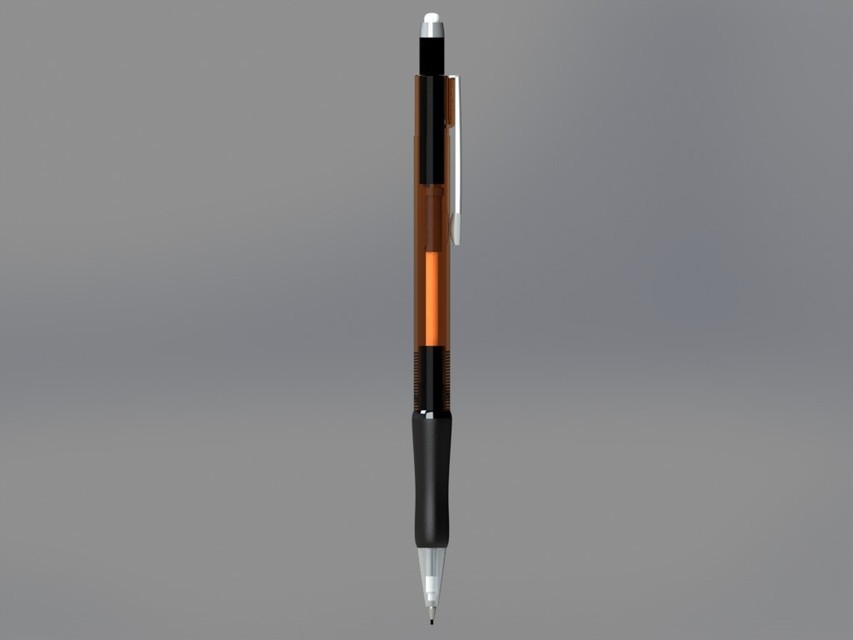

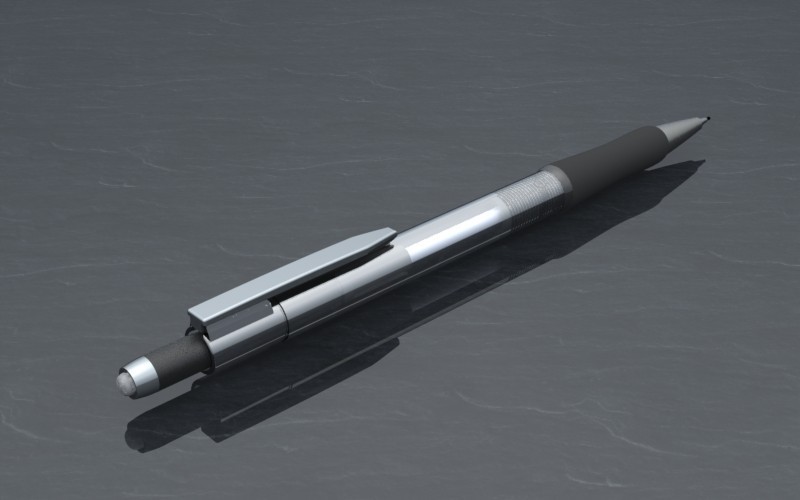

I will generate tutorials about modelling a pen
With exact dimensions

All steps:

http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-2
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-3
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-4
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-5
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-6
,http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-7
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-8
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-9
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-10
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-11
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-12
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-13
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-14
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-15
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-16
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-17
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-18
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-19
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-20
,http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-21
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-22
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-23
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-24
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-25
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-26
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-27
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-28
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-29
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-30
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-31
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-32
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-33
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-34
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-35
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-36
http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-37

http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-final

Added images

3 answers

Aykut Dana over 1 year ago
part 1

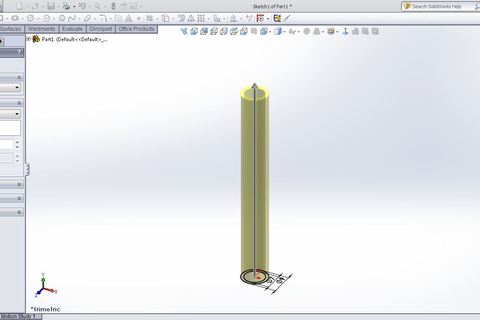

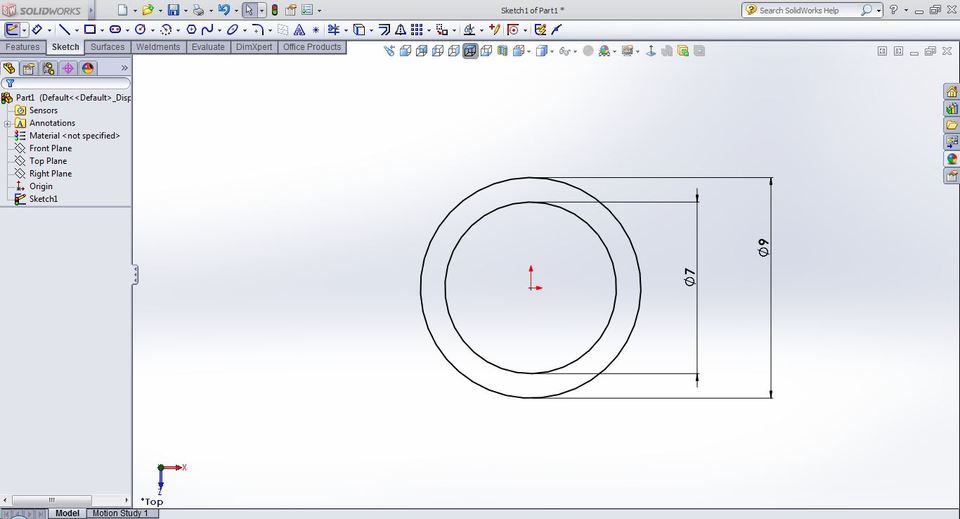

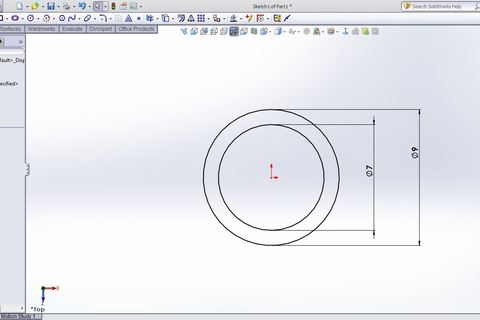

1. Step 1

  draw shown circles on th top plane
2. Step 2

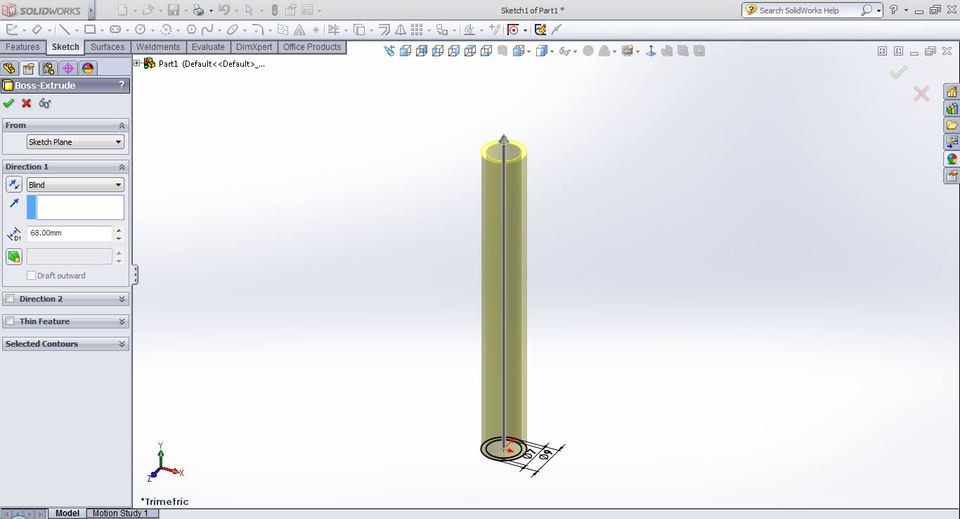

  exturde it 68 mm

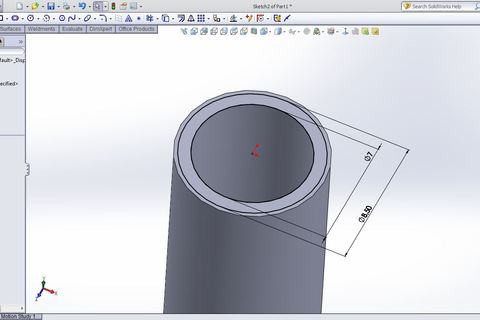

3. Step 3

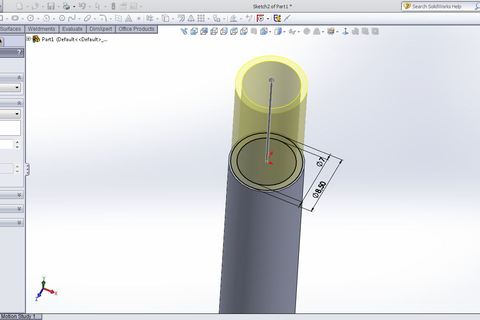

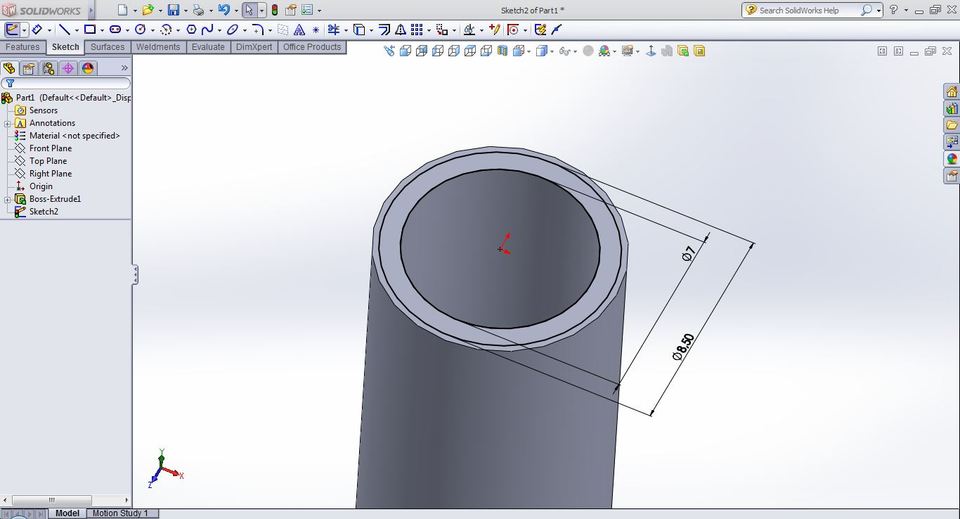

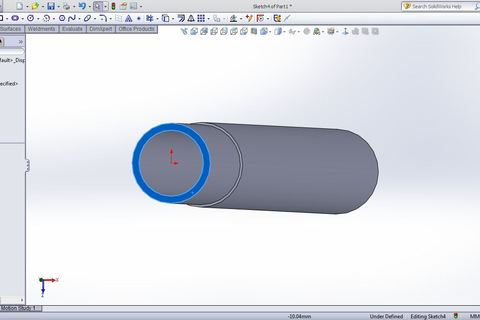

  open a sketch on the body and draw shown sketch

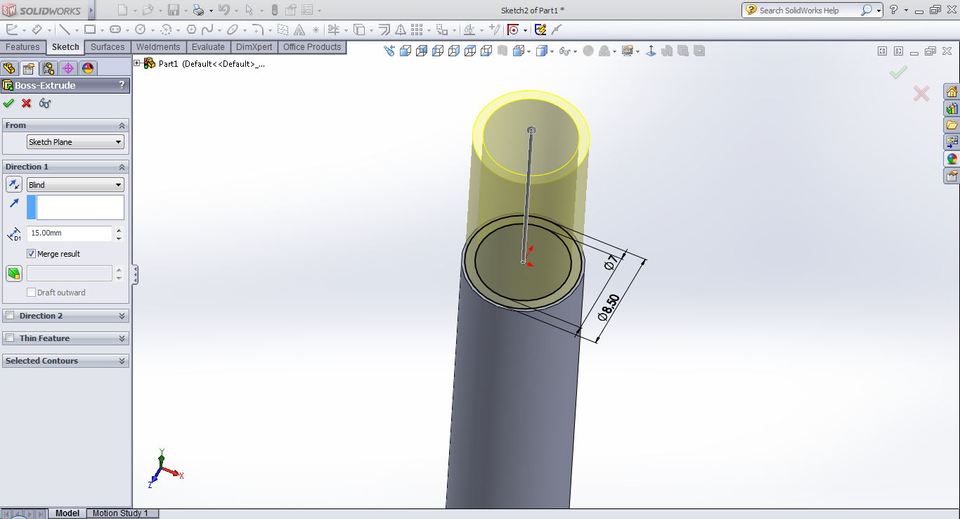

4. Step 4

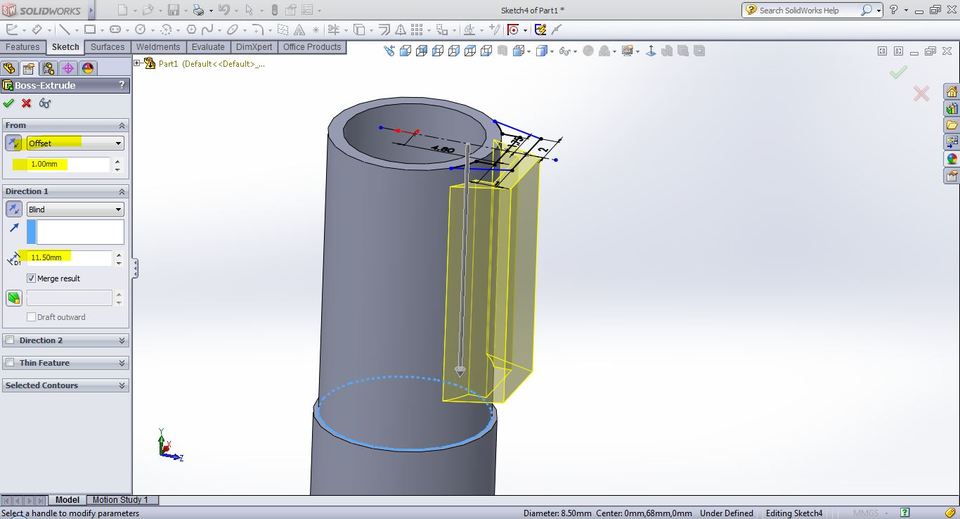

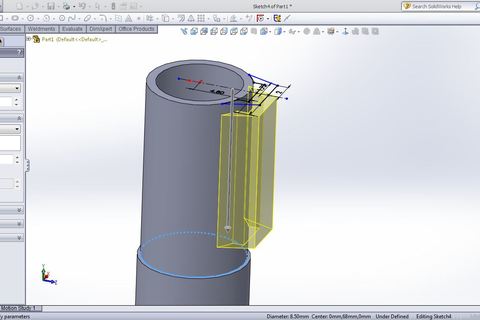

  extrude it 15 mm

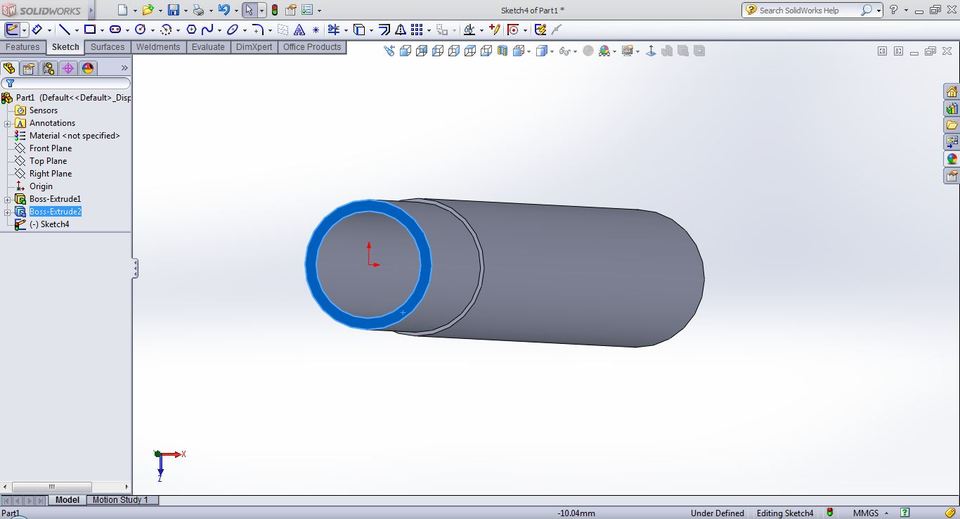

5. Step 5

  open a sketch on this surface
6. Step 6

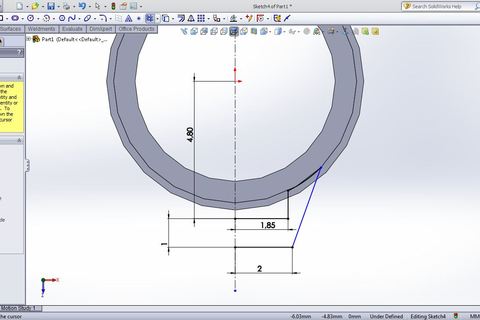

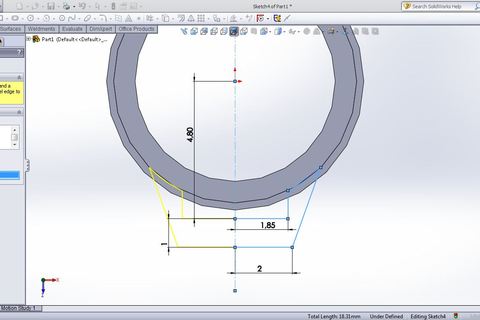

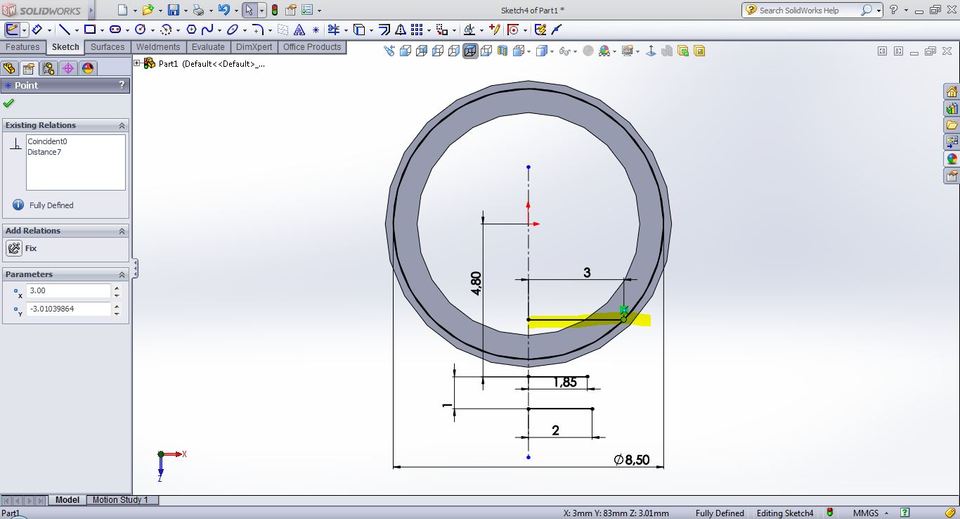

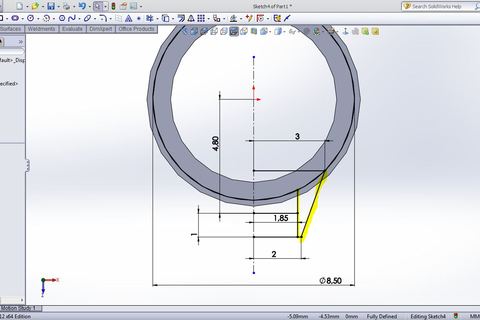

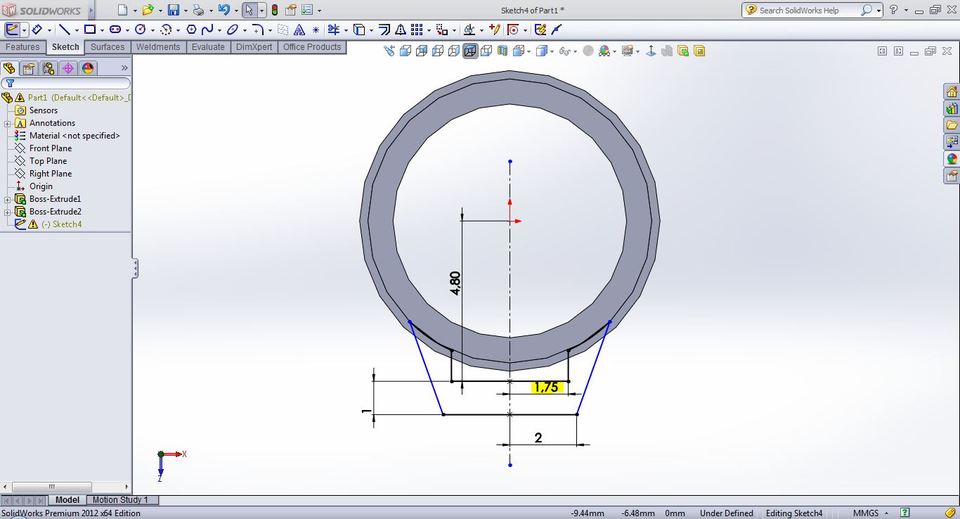

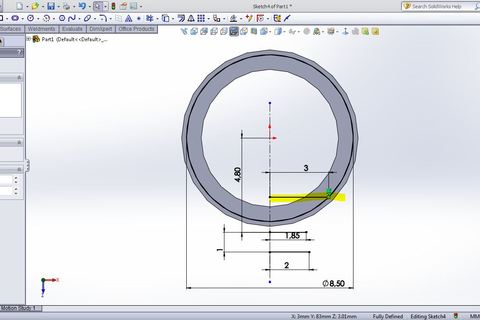

  draw shown lines. be attention that shown point have to be coincident with circle. and the line have to be horizontal
7. Step 7

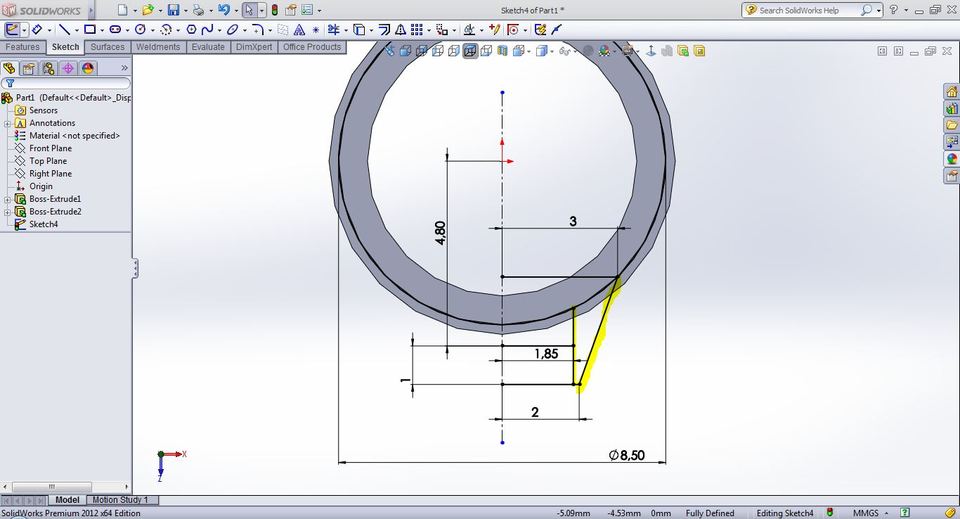

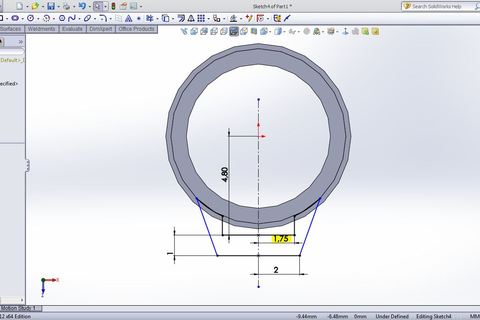

  add shown lines

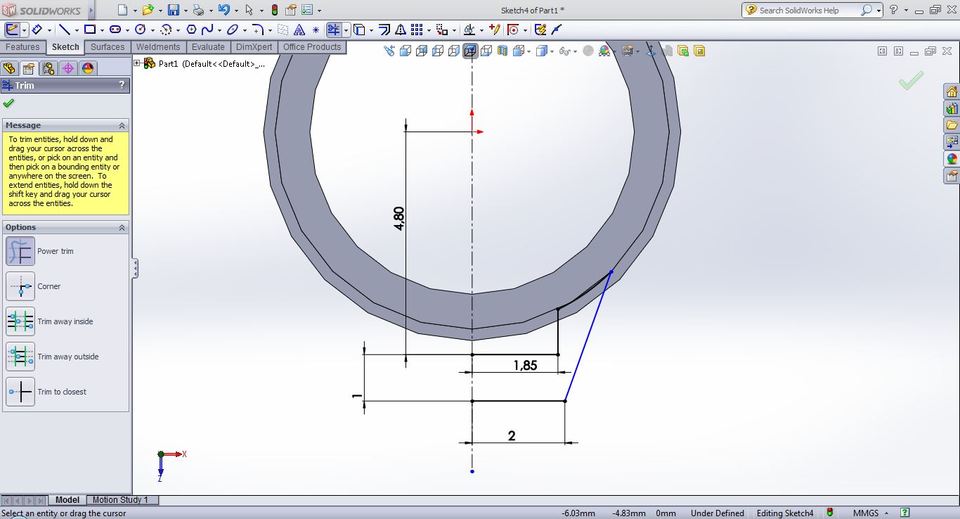

8. Step 8

  use trim command. make your sketch like this

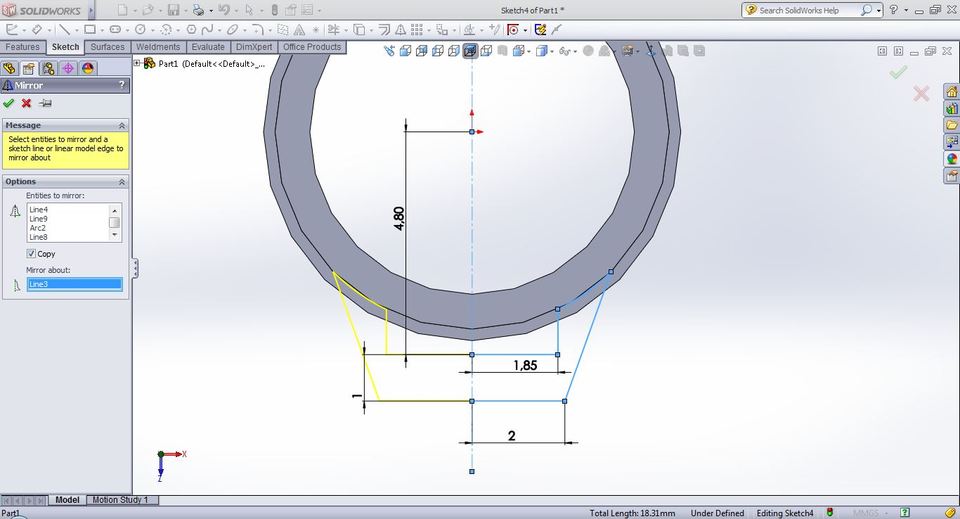

9. Step 9

  use mirror command.
10. Step 10

  now please change shown diameter. make it 1,75mm.
11. Step 11

  exturde it. enter shown values

  Next: http://grabcad.com/questions/tutorial-how-to-model-a-propelling-pencil-2

Mert 5 months ago
Motordan daha basittir herhalde 2 günü mü aldı motoru çizmesi :) emeğine sağlık çok güzel hazırlamışsın her şeyi
1. Aykut Dana about 1 month ago

  merak ettim gerçekten 2 gün mü sürdü bütün motor? hazırlaması aylar aldı da :D
2. Aykut Dana 5 months ago

  motor tutorialleri ilk çalışmalarım olduğu için malesef biraz sıkıntı çekti takip edenler. bunlar daha profesyonel hem kesin ölçülerle birlikte. açık nokta bırakmamaya çalıştım, faydalı olacağına eminim :)) kolay gelsin

Aykut Dana about 1 month ago
Tutorial series for Solidworks users.
