Tutorial: Making an animation out of any simulation in Catia V5.

1 answer

•
  Abhijeet 4 months ago

  Tutorial: Making an animation out of any simulation in Catia V5.

  1. Step 1

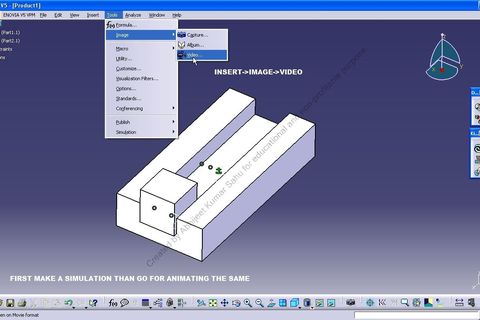

     Tools->image->video



  2. Step 2

     Follow the instructions on the image serially.



  3. Step 3

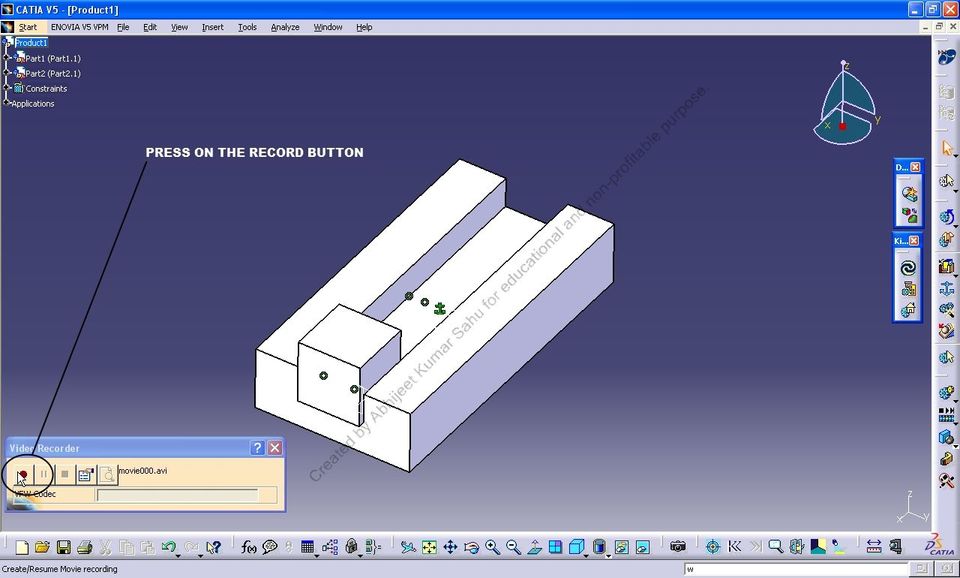

     Press the record button



  4. Step 4

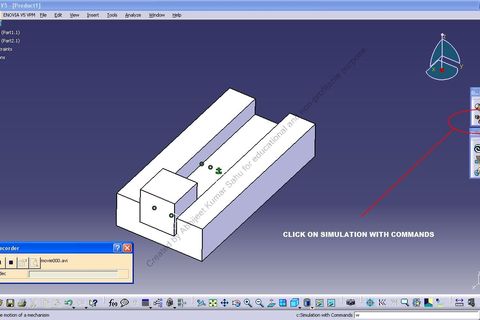

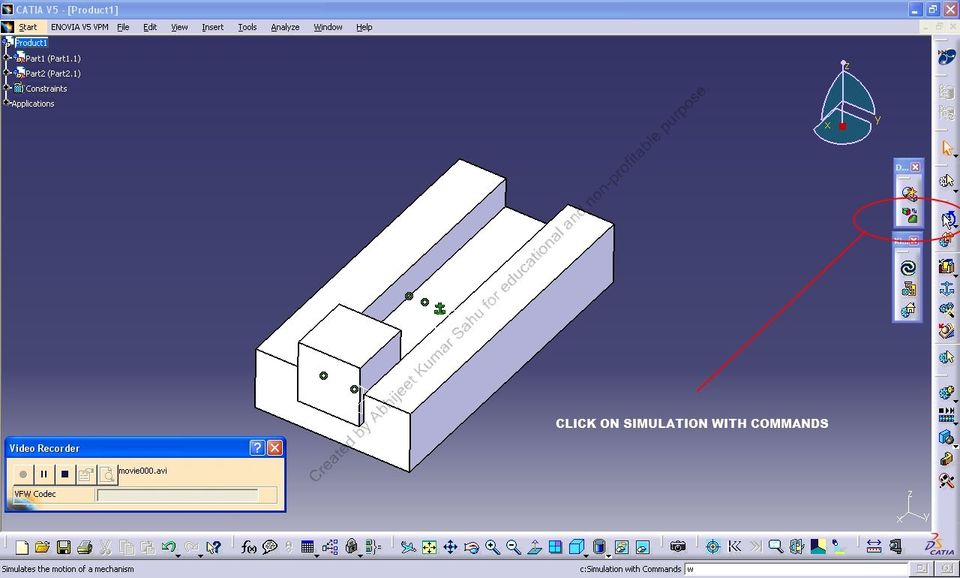

     Click on "simulation with commands"



  5. Step 5

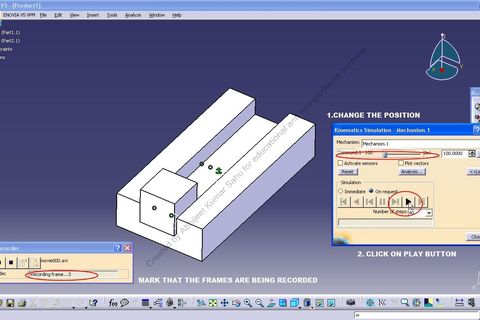

     Click on the "play" button to simulate and record the frames.
