  Here is the tutorial.

  1. Step 1

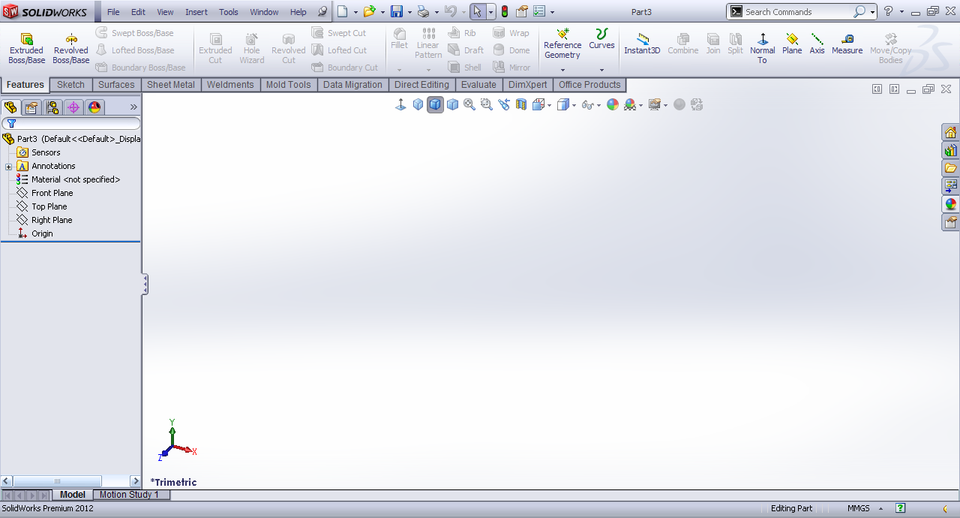

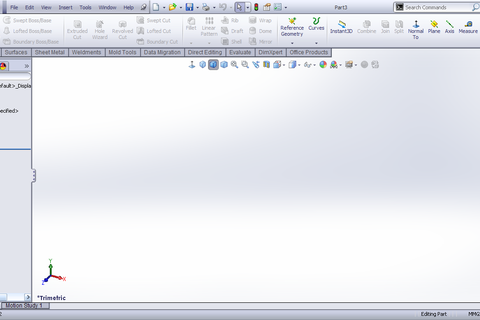

     Start SolidWorks.

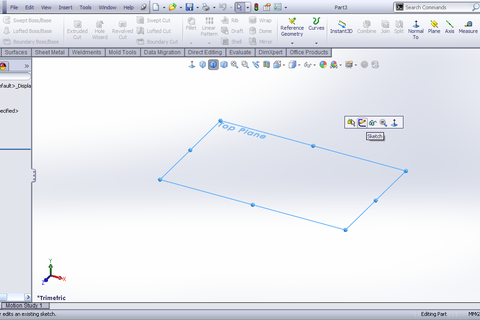

  2. Step 2

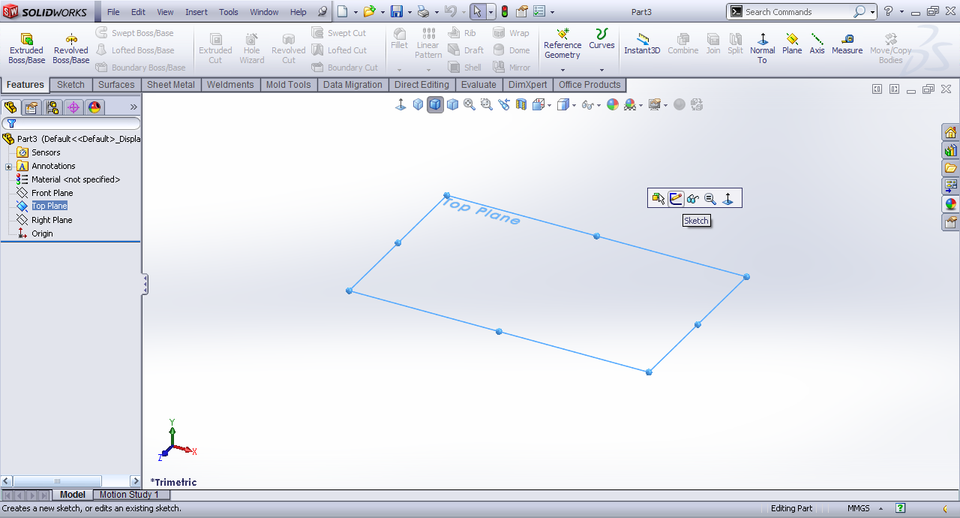

     Top plane >> Sketch.



  3. Step 3

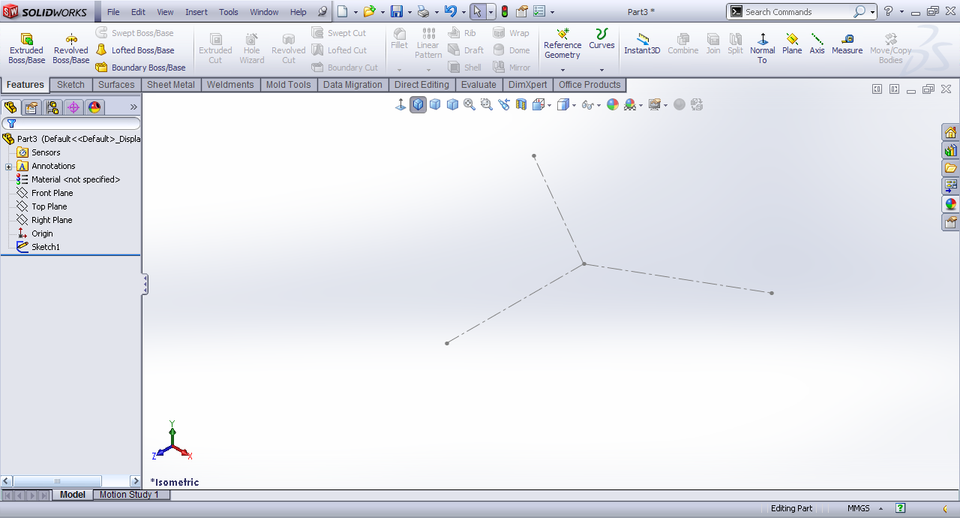

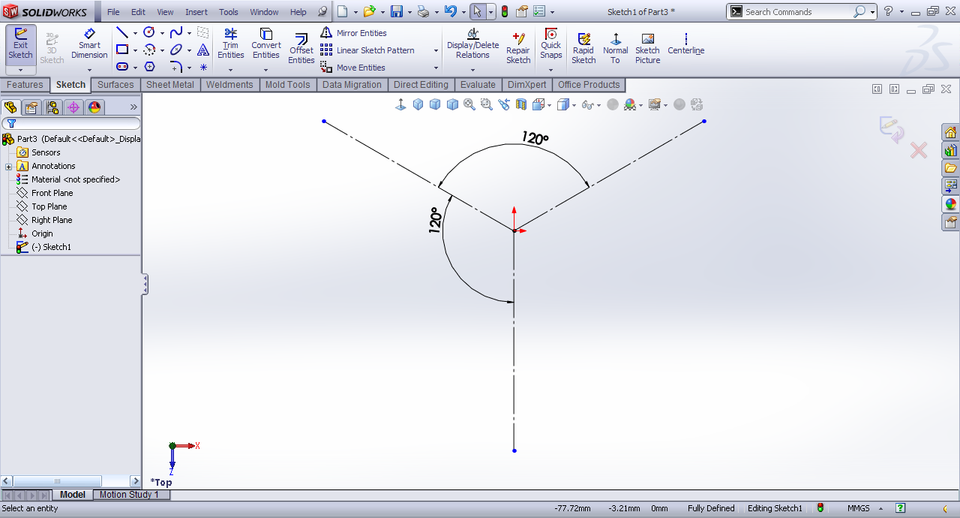

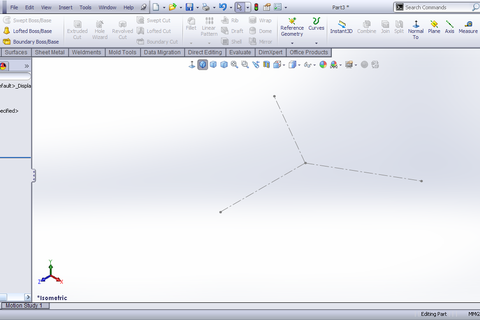

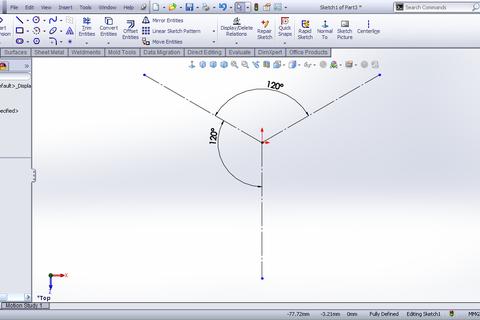

     Draw three equal construction line at 120º.



  4. Step 4

     Exit the sketch.

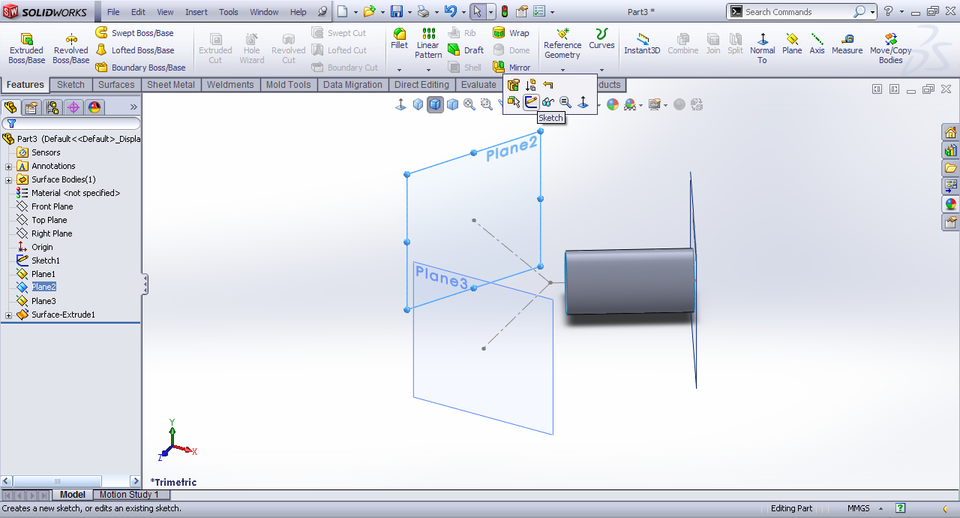

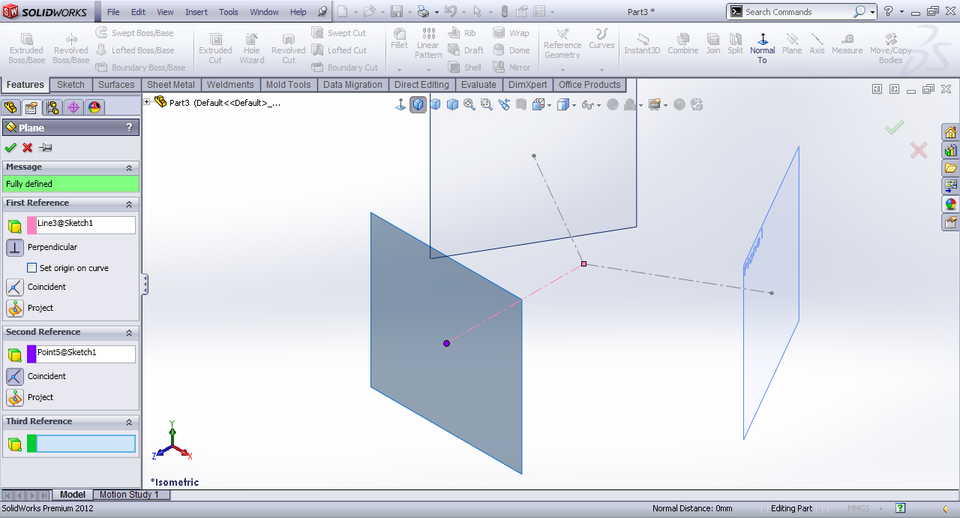

  5. Step 5

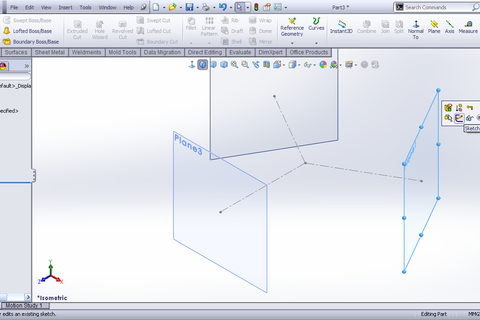

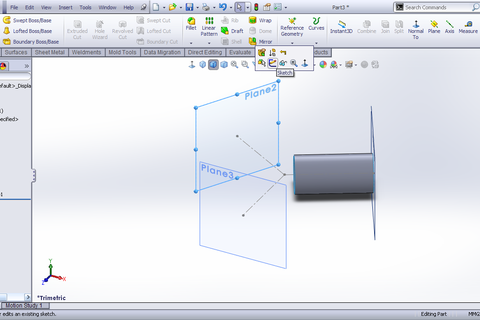

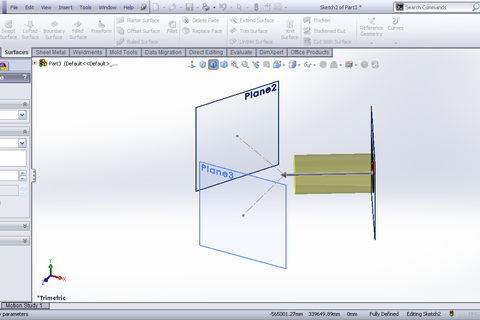

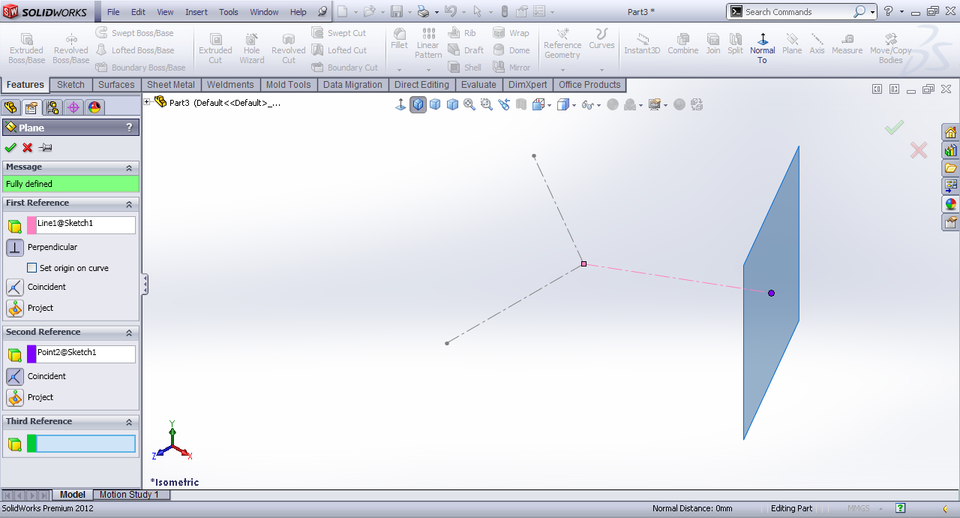

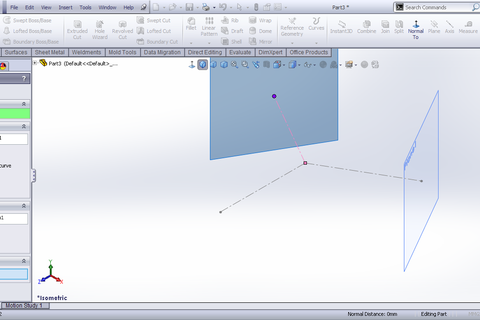

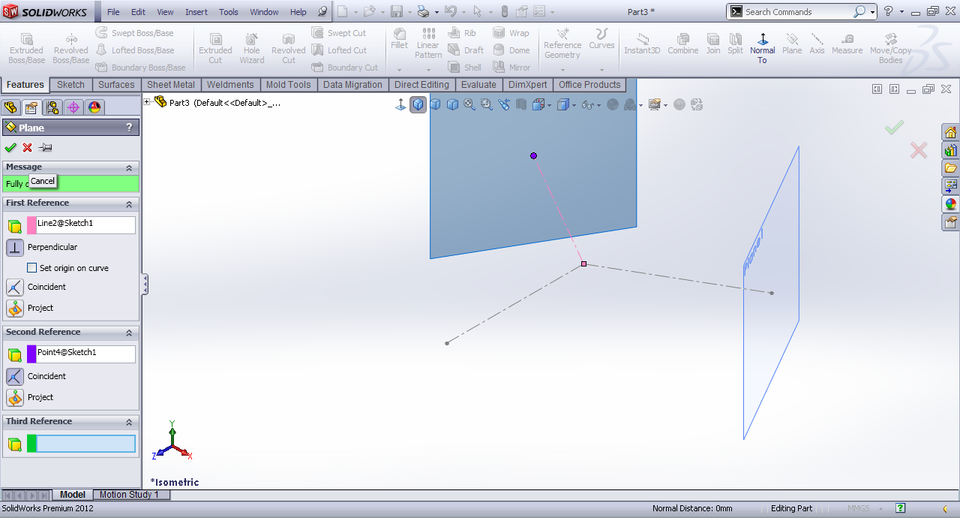

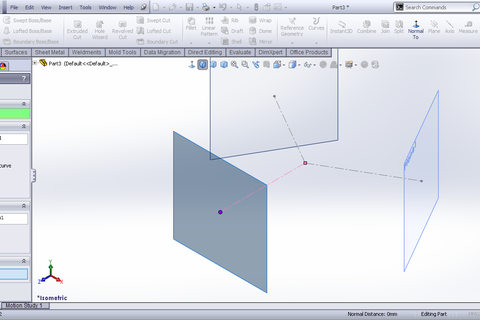

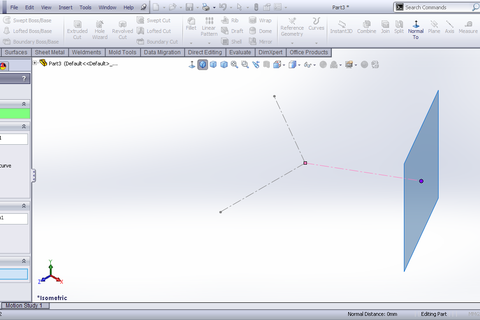

     Reference geometry >> Plane. Select the line and the end point. Click OK.



  6. Step 6

     Similarily create another plane for the line.



  7. Step 7

     Same step for third.



  8. Step 8

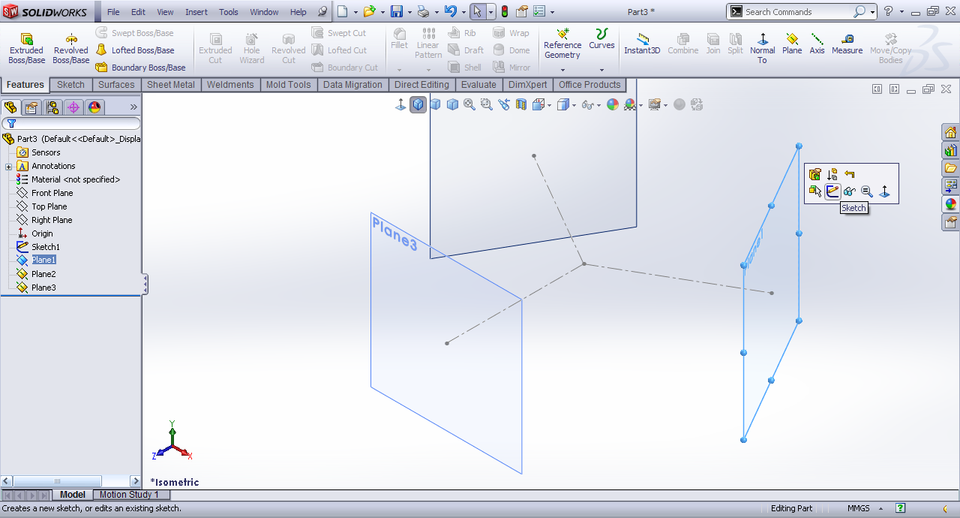

     Plane1 >> Sketch.



  9. Step 9

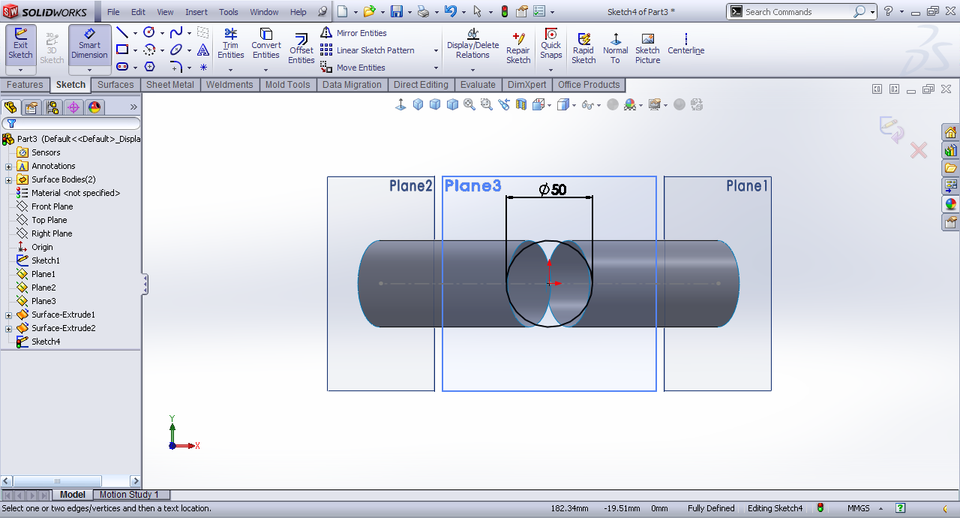

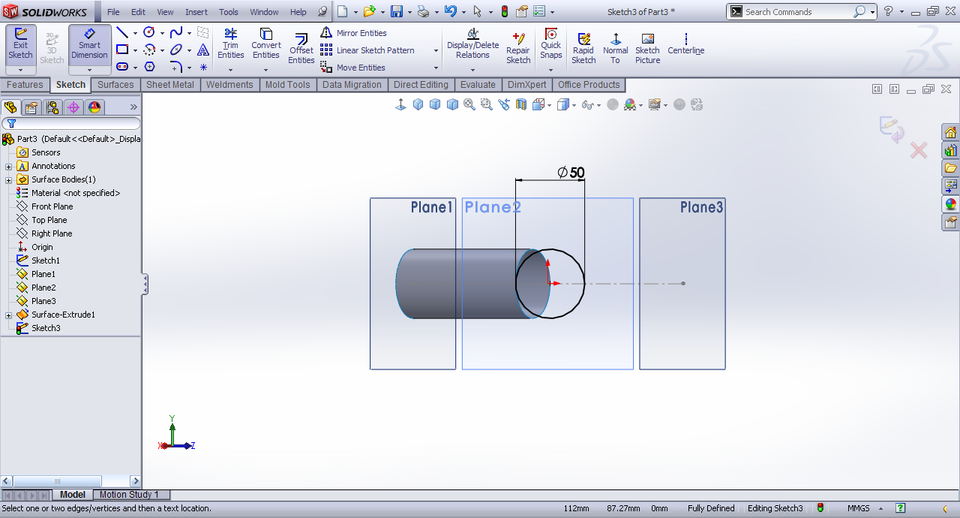

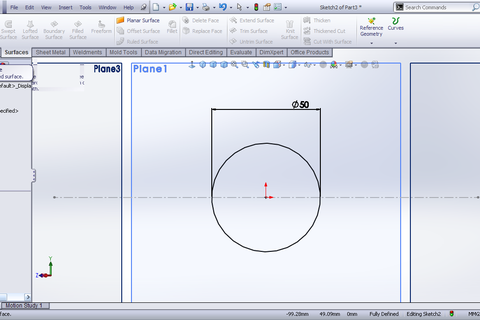

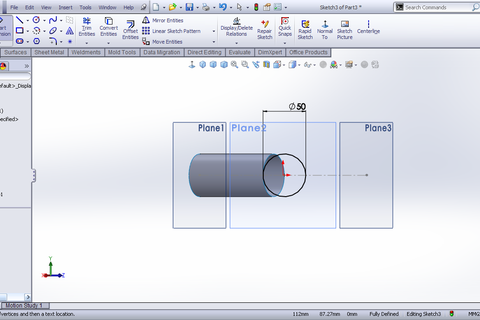

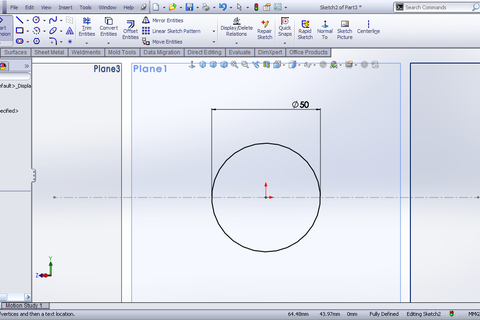

     Draw a circle of 50mm dia.



  10. Step 10

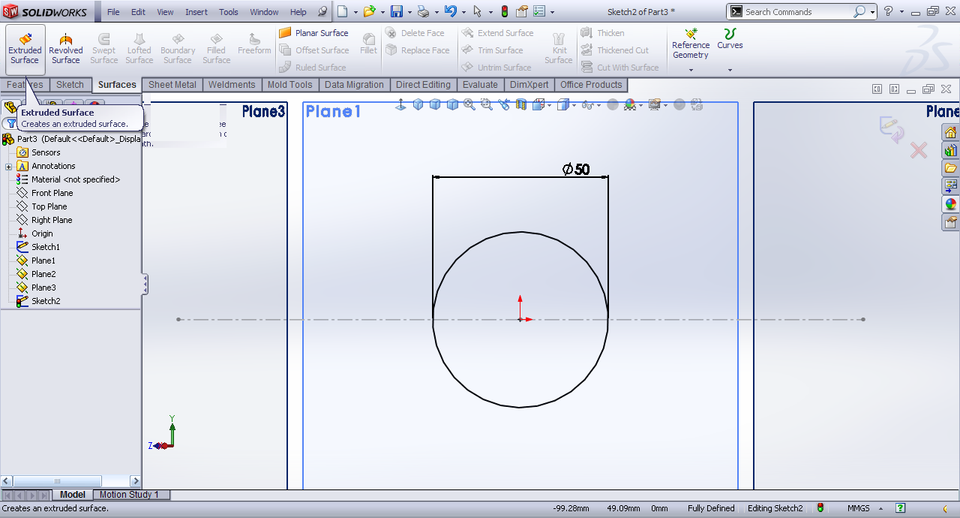

      Select Extruded surface under surface tab.



  11. Step 11

      Extrude it towards the Origin with a distance of 100mm.



  12. Step 12

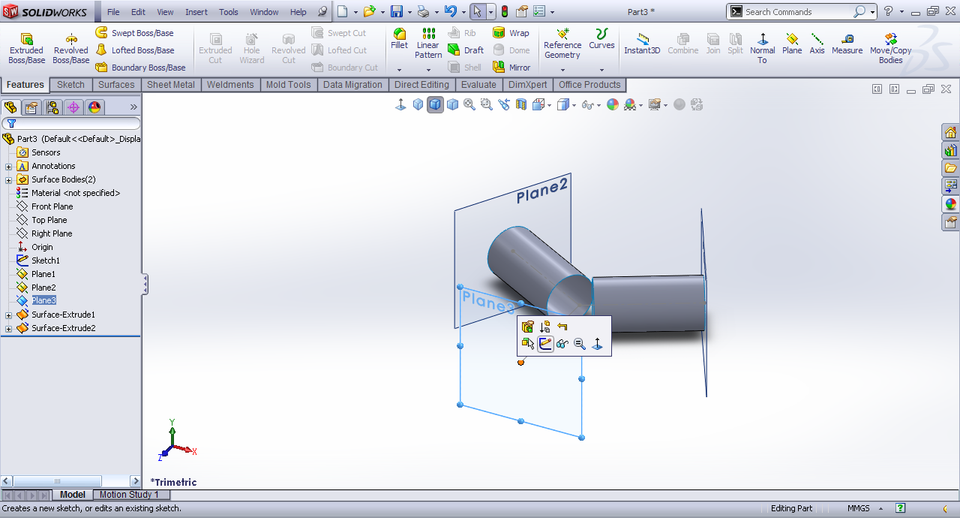

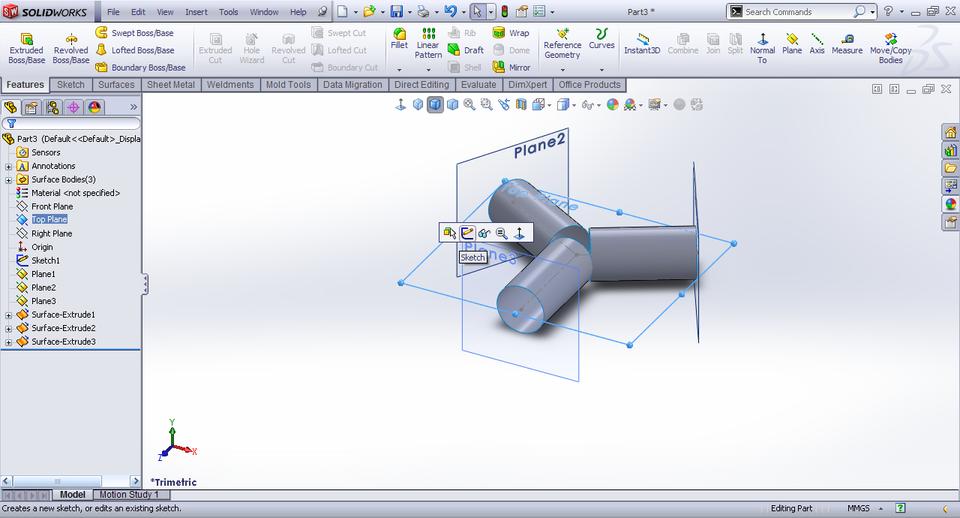

      Plane2 >> Sketch.



  13. Step 13

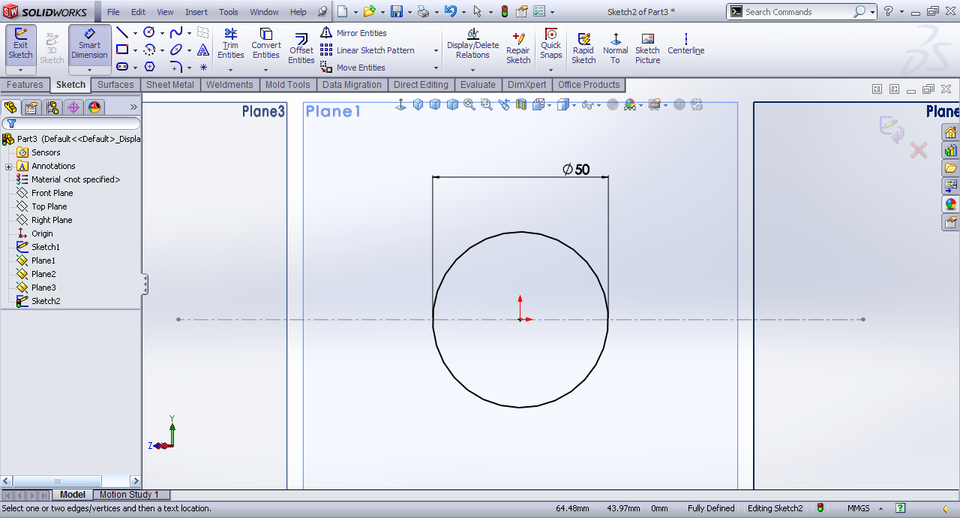

      Draw circle of 50mm diameter.



  14. Step 14

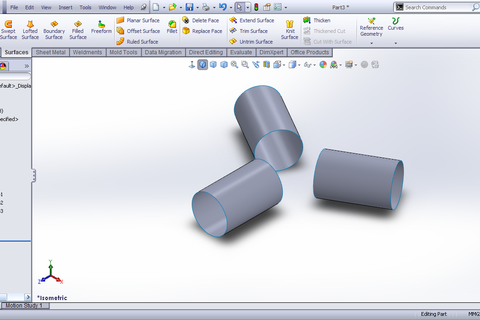

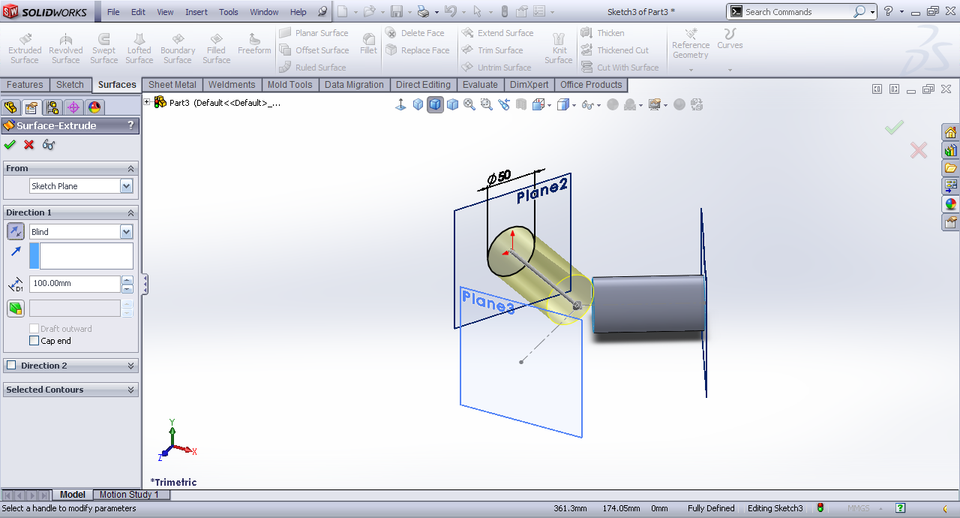

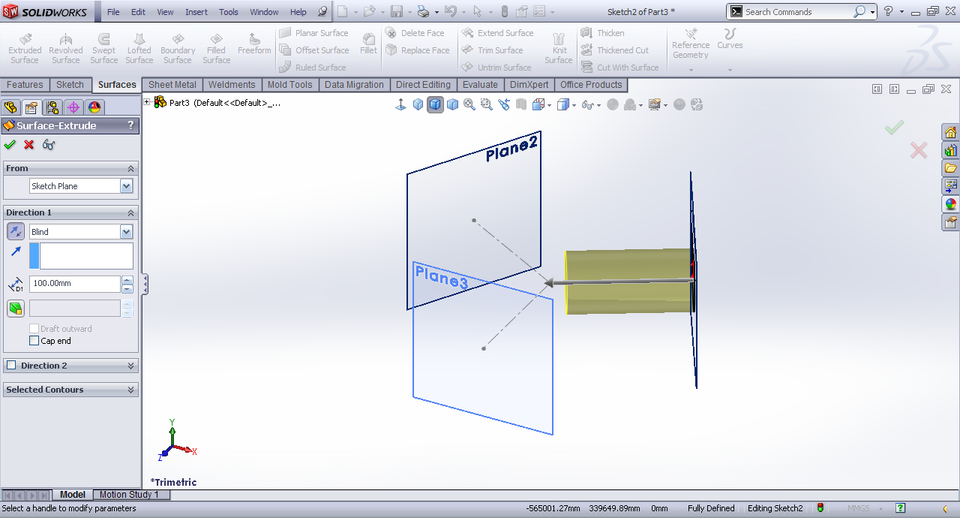

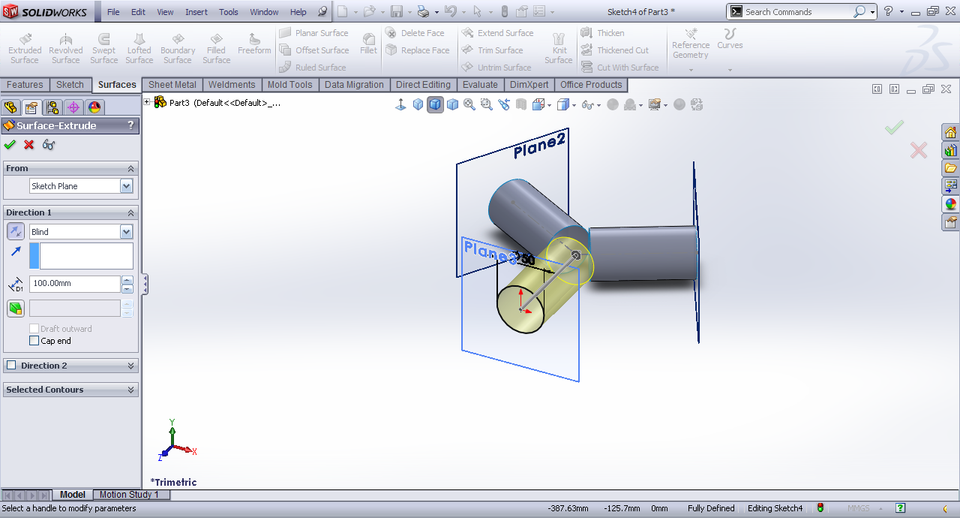

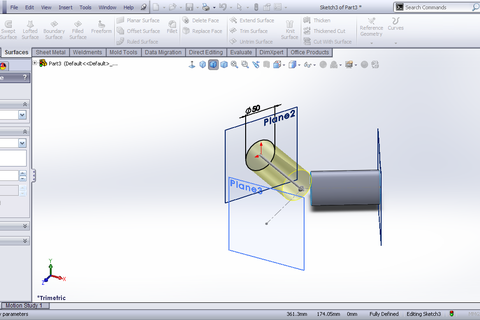

      Extrude surface it with the same distance and towards the origin.



  15. Step 15

      Plane3 >> Sketch.



  16. Step 16

      Draw circle of 50mm diameter.



  17. Step 17

      Extrude surface it with the same distance and towards the origin.



  18. Step 18

      Top plane >> Sketch.



  19. Step 19

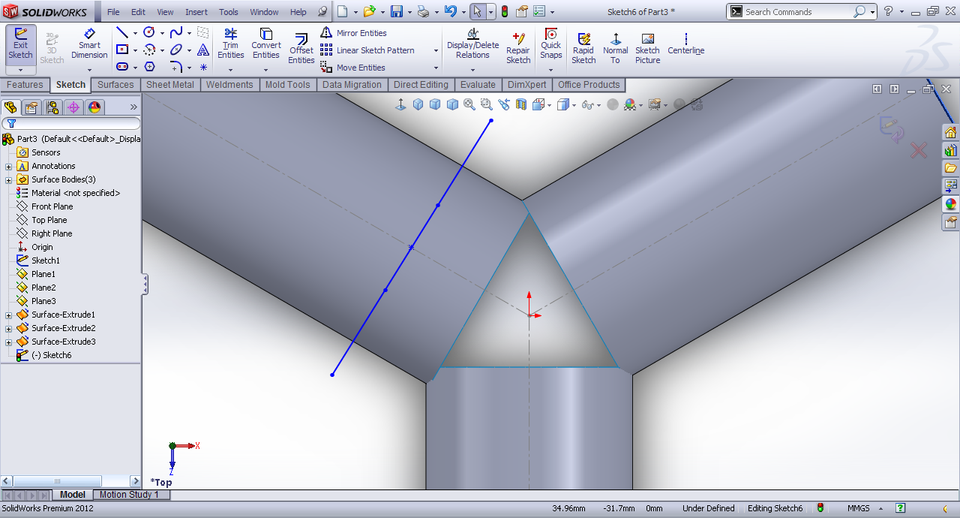

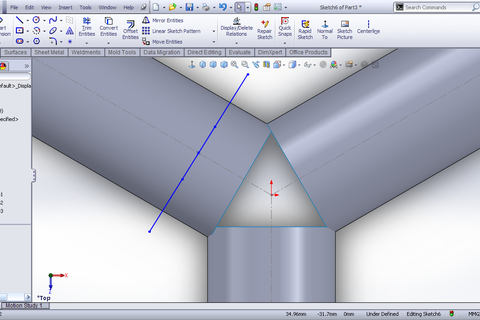

      Draw 3 lines collinear to each other and parallel to edge of pipe. These are 3 lines not one. This will create 3 edges.



  20. Step 20

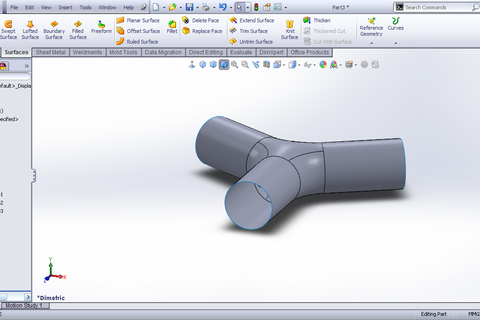

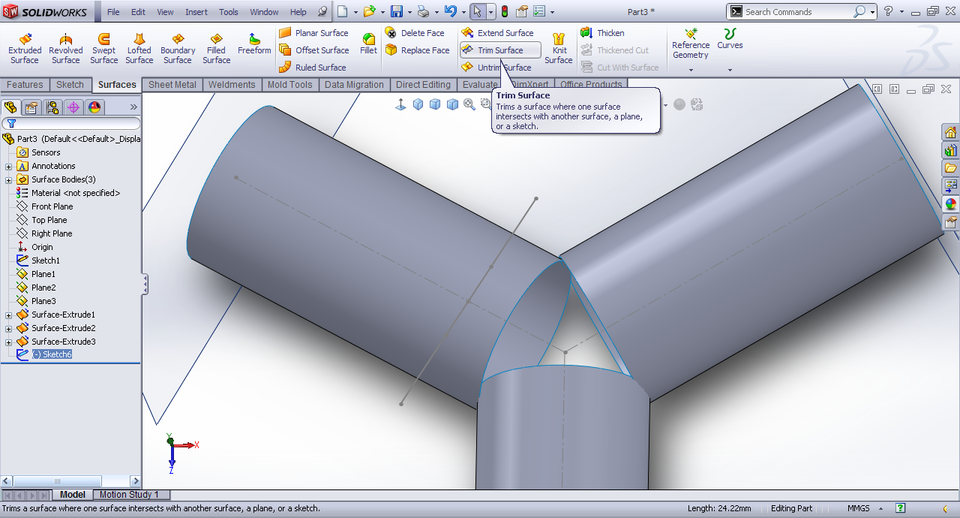

      Exit the sketch and select trim surface under surfaces tab.



  21. Step 21

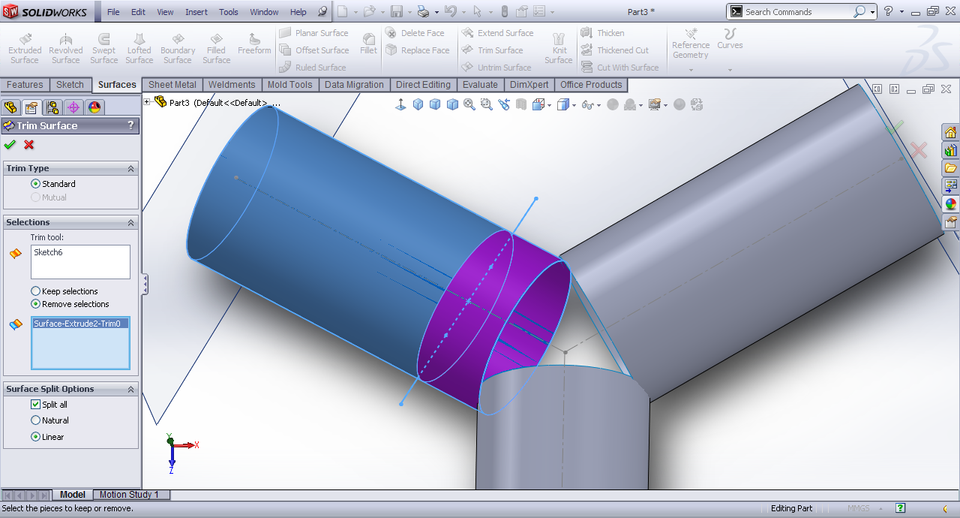

      Trim the surface using the line sketch as trimming tool.

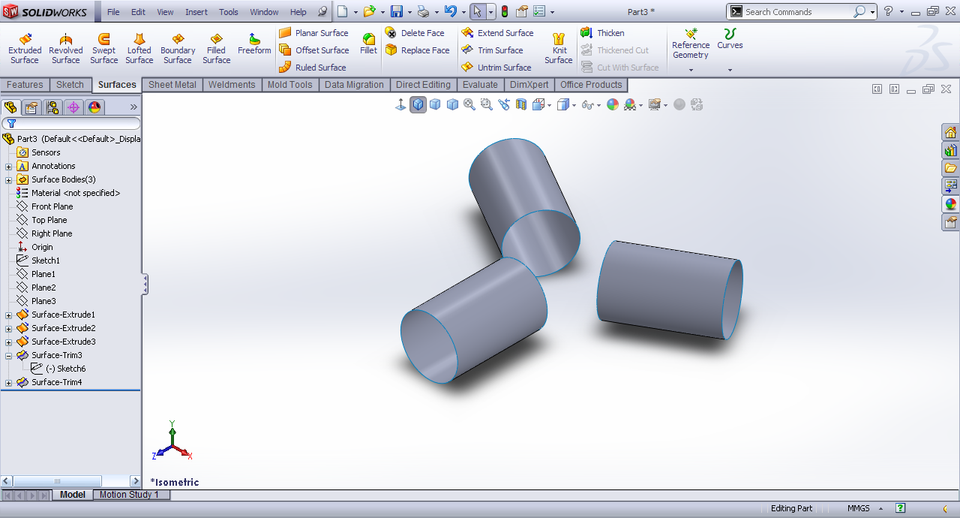

  22. Step 22

      Similarily trim other two extrusions.

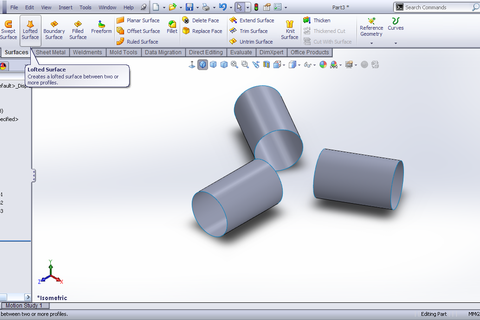

  23. Step 23

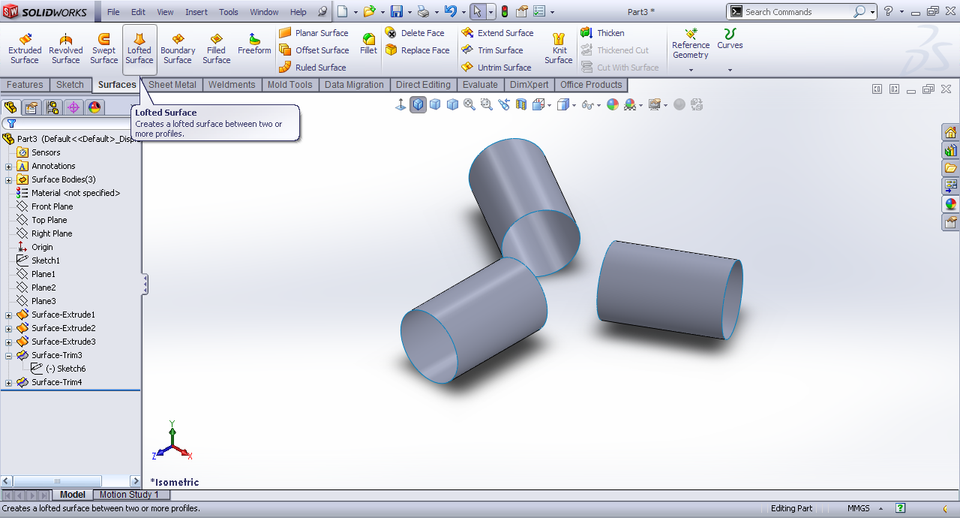

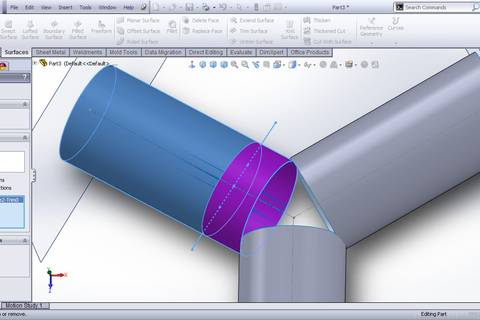

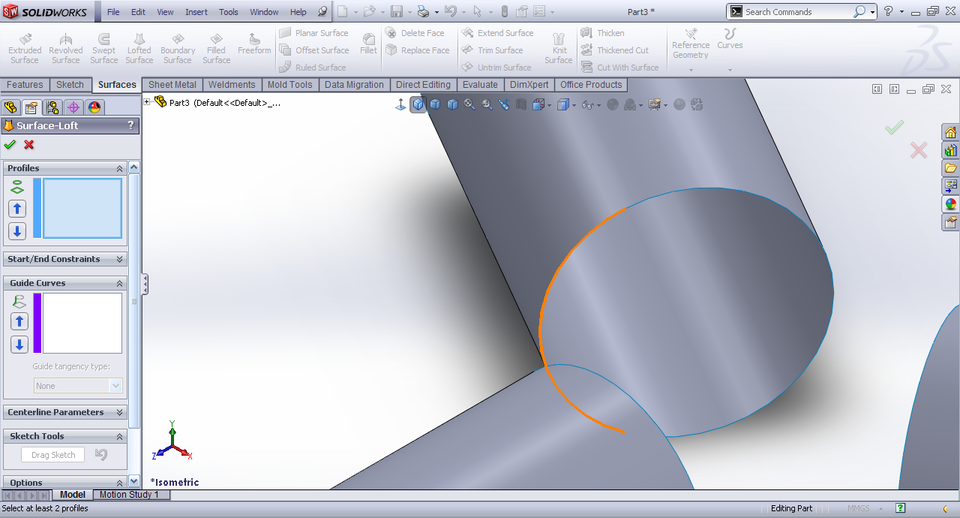

      Select lofted surface tool under surfaces tab.



  24. Step 24

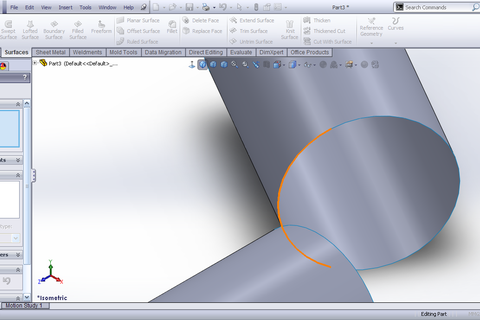

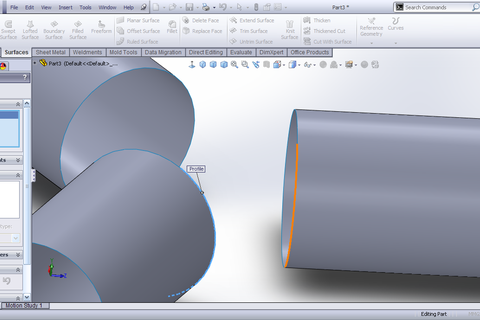

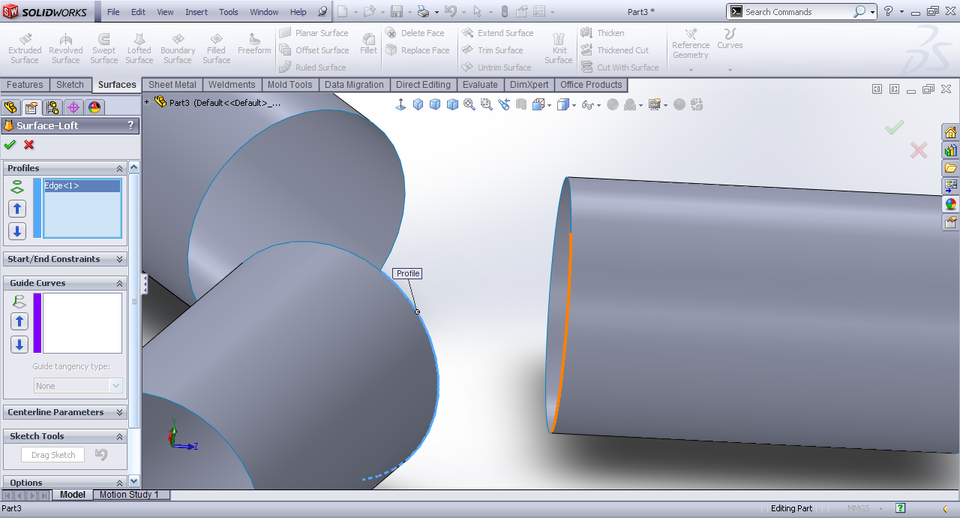

      Select the edge of the pipe.



  25. Step 25

      And the corresponding edge of the other pipe.

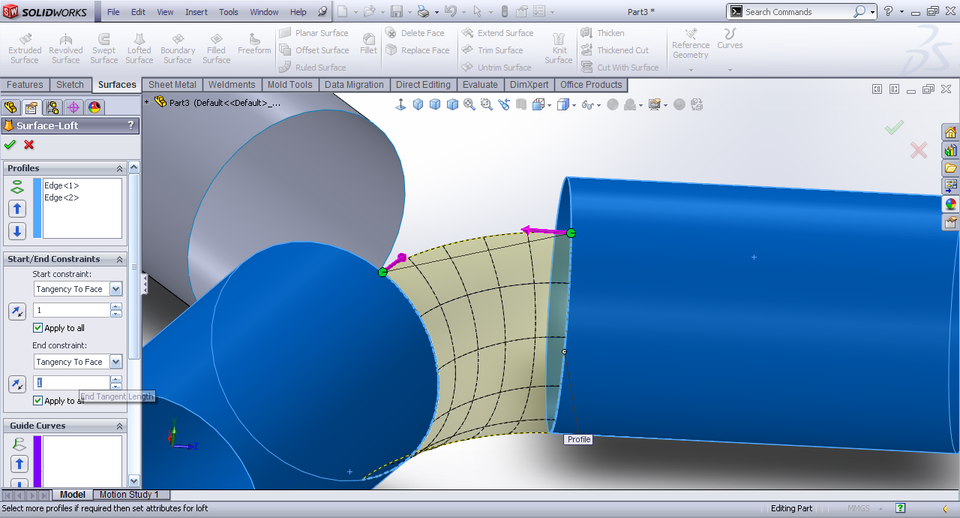

  26. Step 26

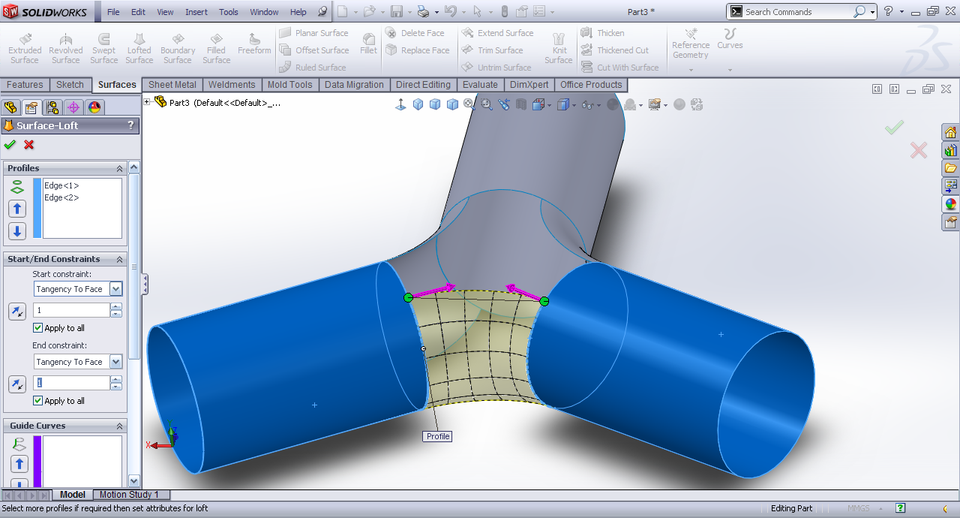

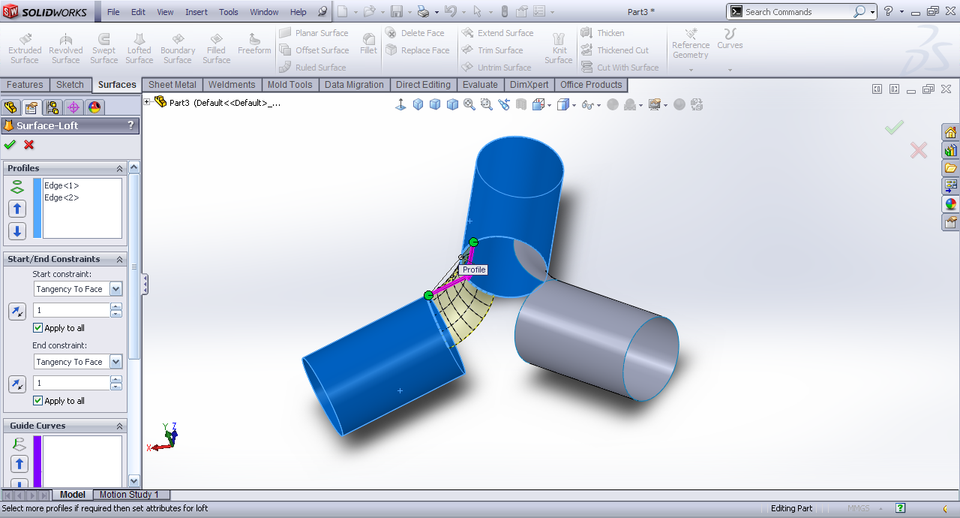

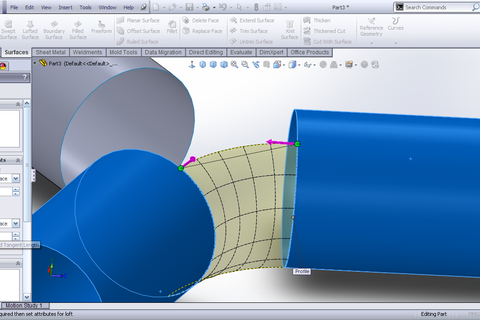

      Under start/End constraints change them to Tangency to face. Click OK.



  27. Step 27

      Create the same feature for other two pipes.



  28. Step 28

      Same step for remaining two edges.

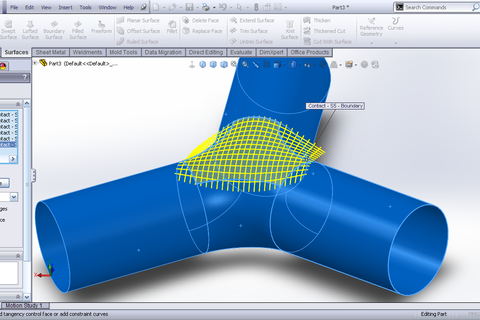

  29. Step 29

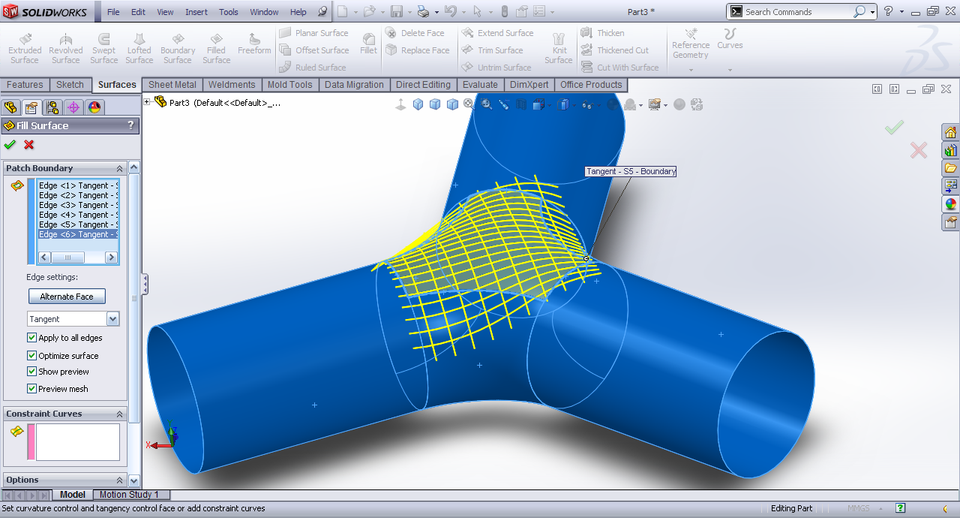

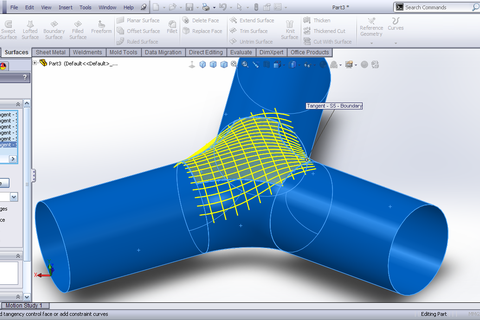

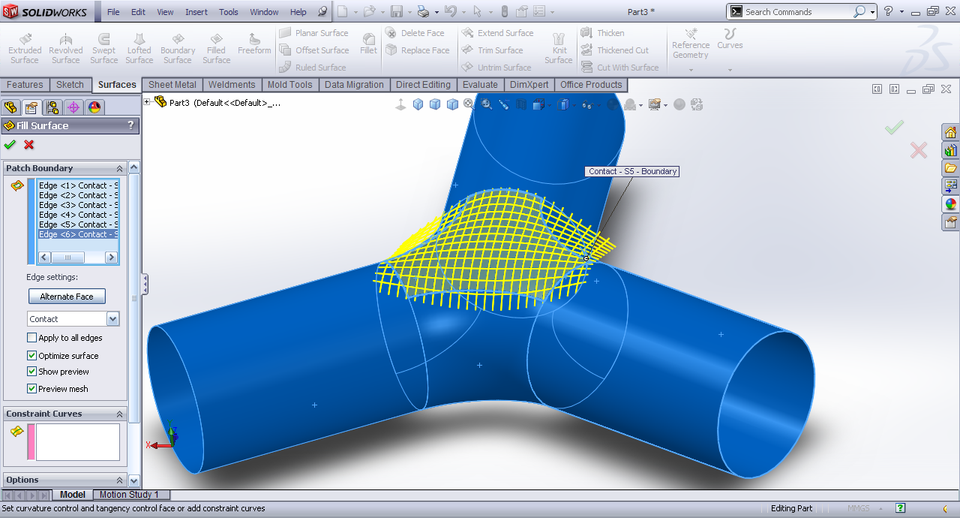

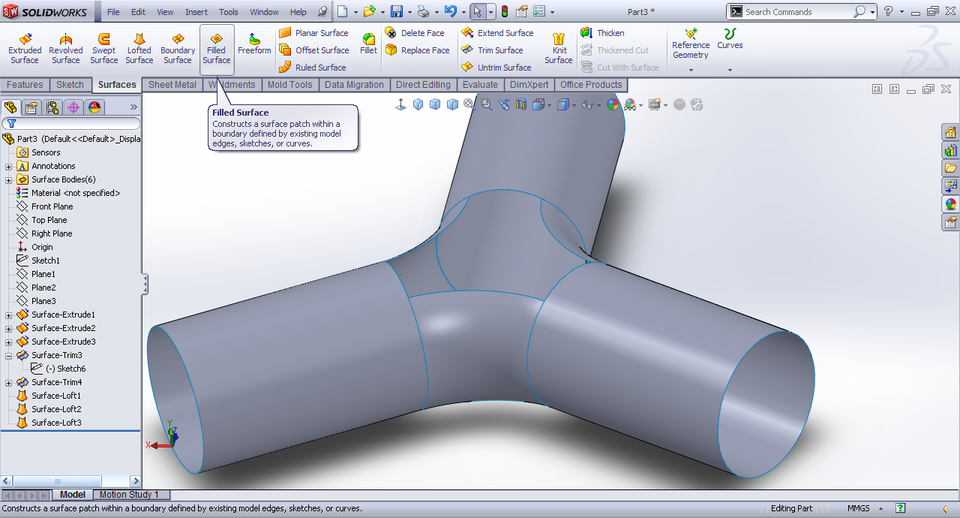

      Select Filled surface tool under surfaces tab.



  30. Step 30

      Select all upper the edges of the pipes.



  31. Step 31

      Change contact to tangent.



  32. Step 32

      Enable Apply to all edges. Click OK.



  33. Step 33

      Repeat the same step for lower side.



  34. Step 34

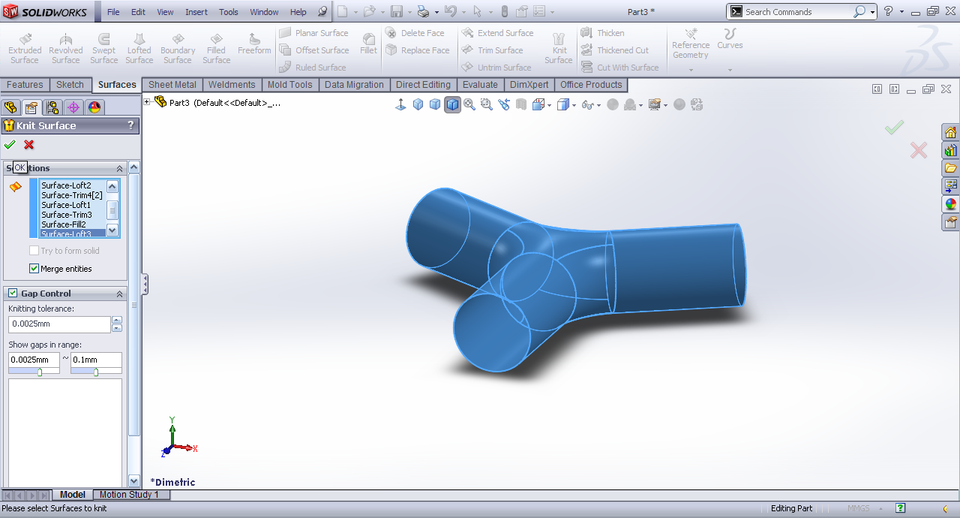

      Knit surface under surfaces tab.



  35. Step 35

      Select all surfaces and enable merge entities. Click OK.



  36. Step 36

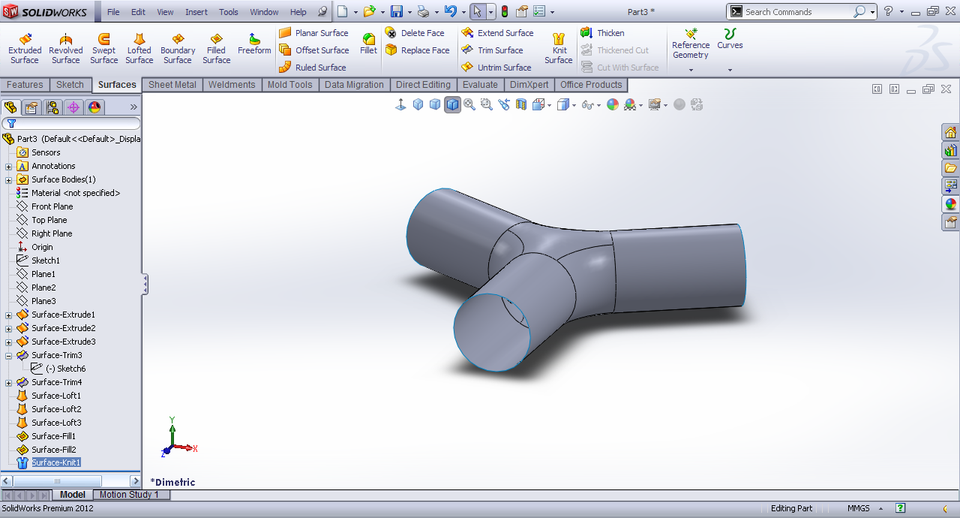

      Now all surfaces are knitted into one.

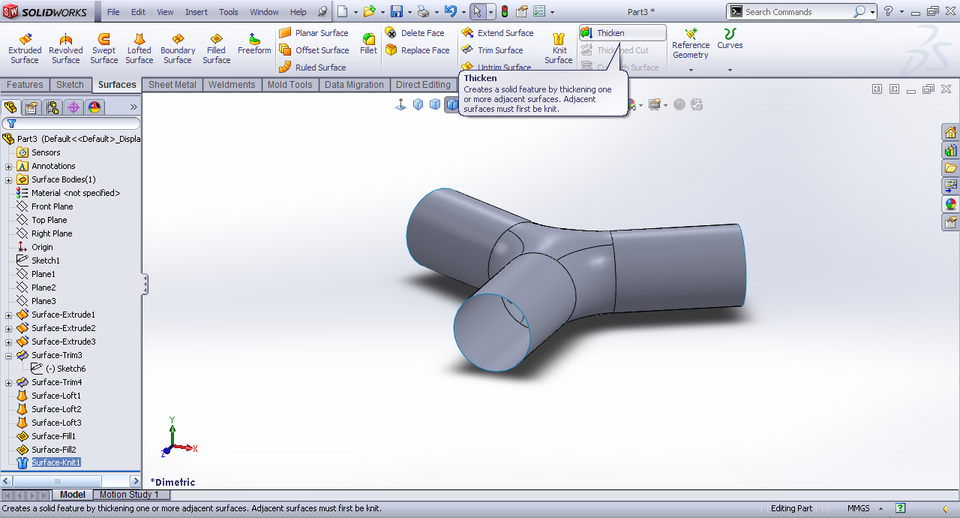

  37. Step 37

      Select Thicken tool under surfaces tab.



  38. Step 38

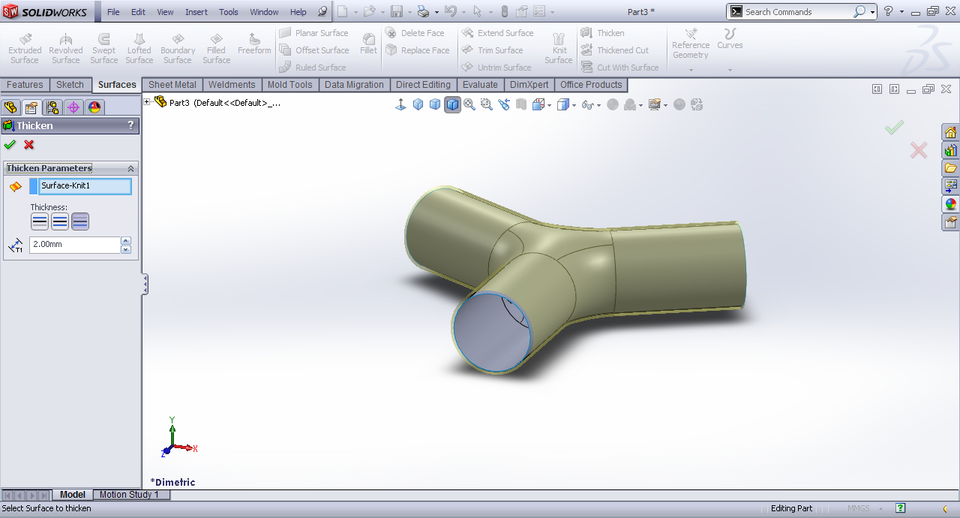

      Select the surface knit and thickness be 2mm outside direction. Click OK.

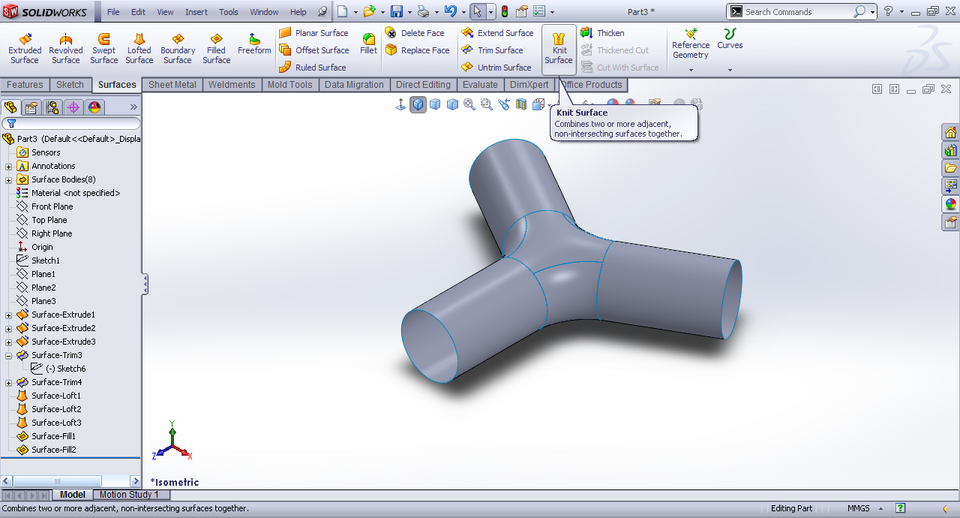

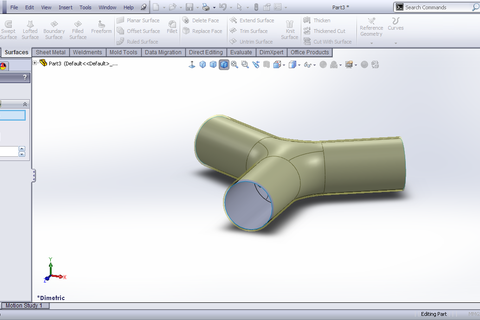

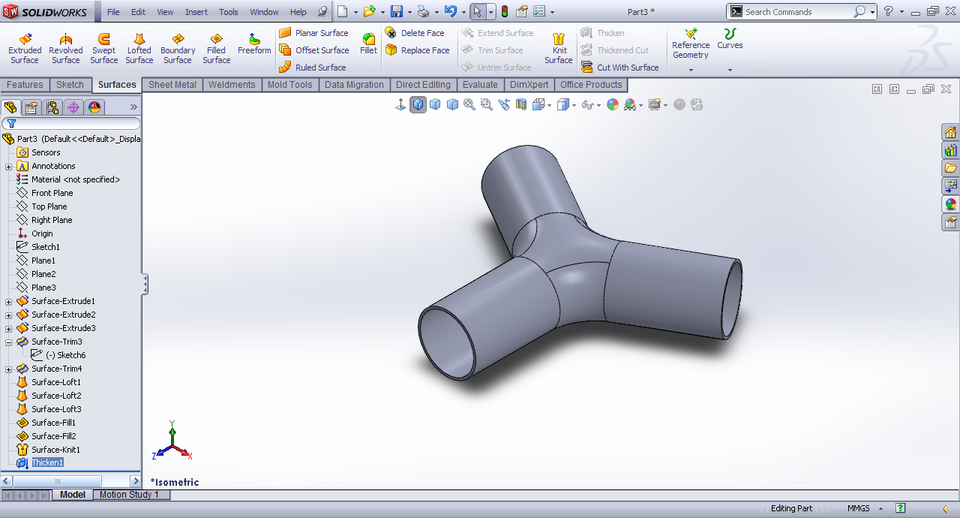

  39. Step 39

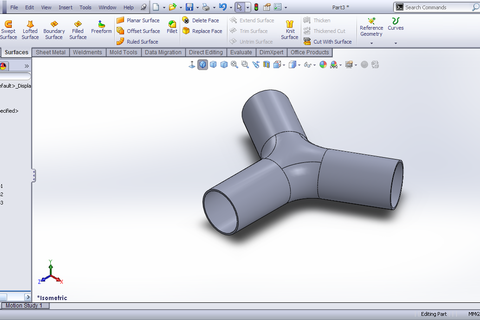

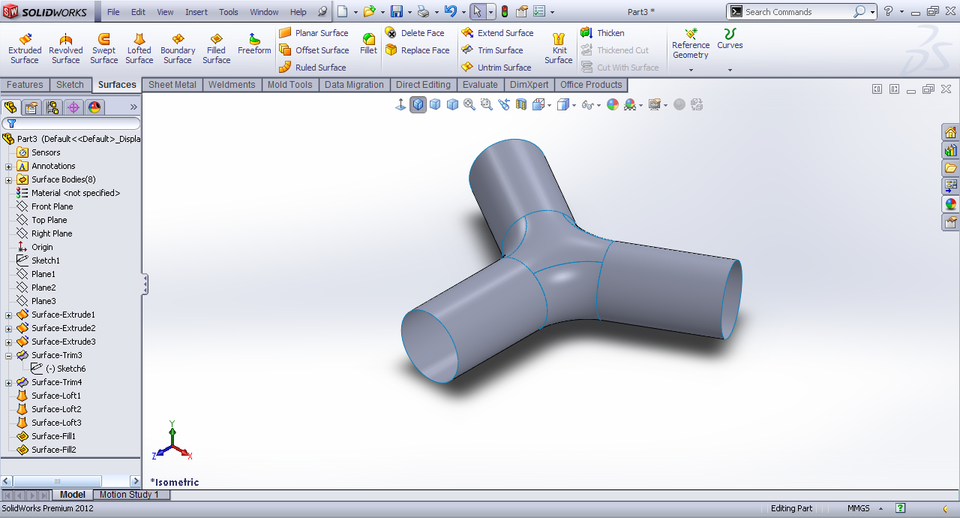

      And the 3-pipe joint is created.
