  Here is the tutorial.

  1. Step 1

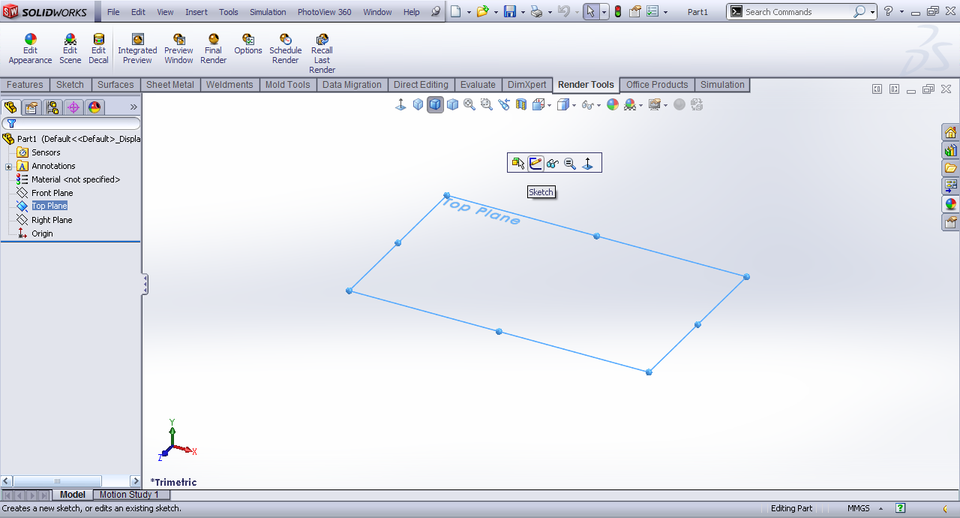

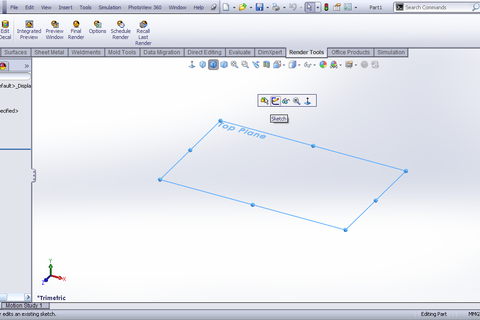

     Top plane>>Sketch.



  2. Step 2

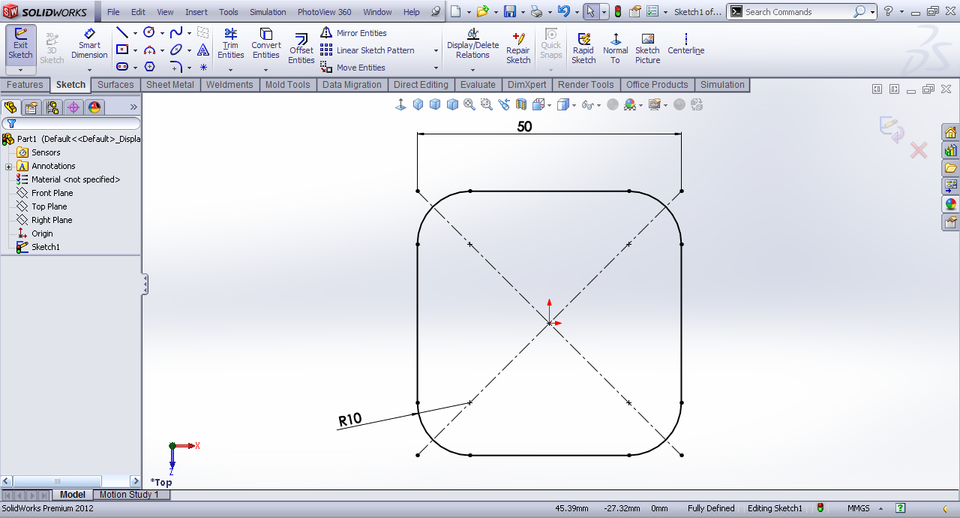

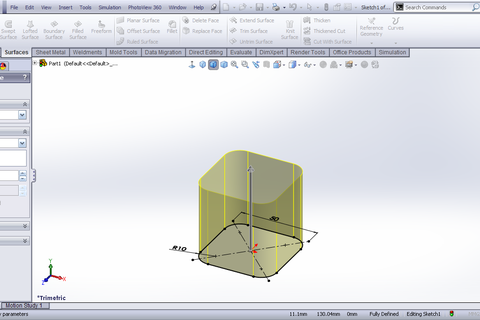

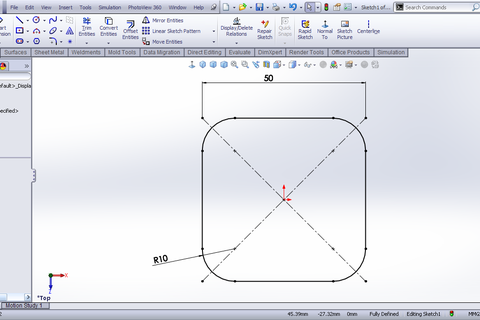

     Draw this profile.



  3. Step 3

     Extrude it.



  4. Step 4

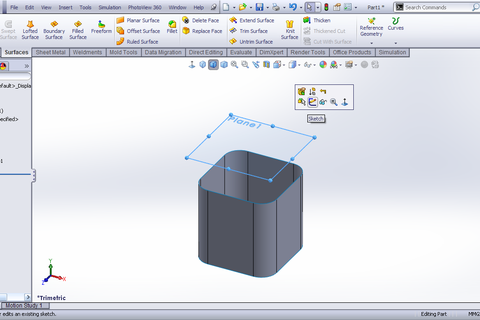

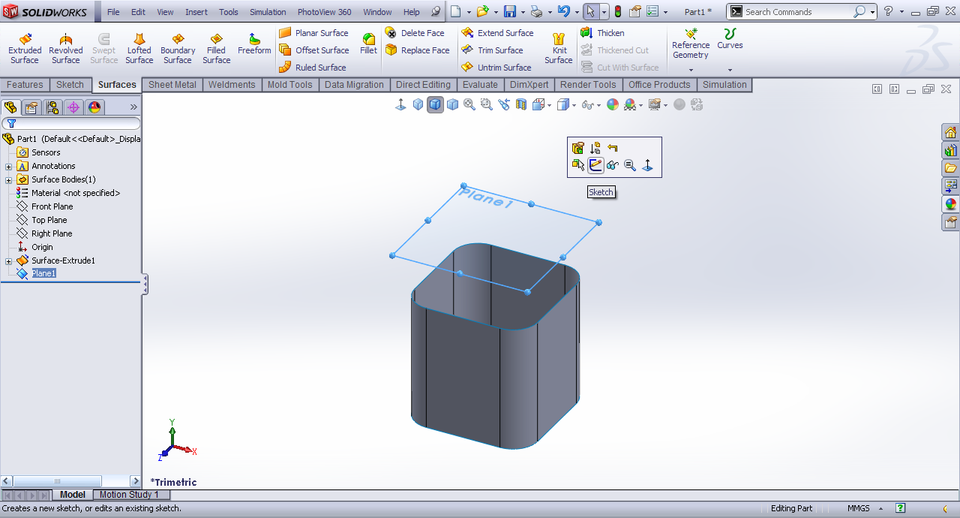

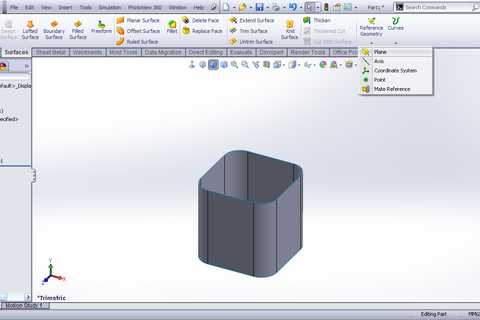

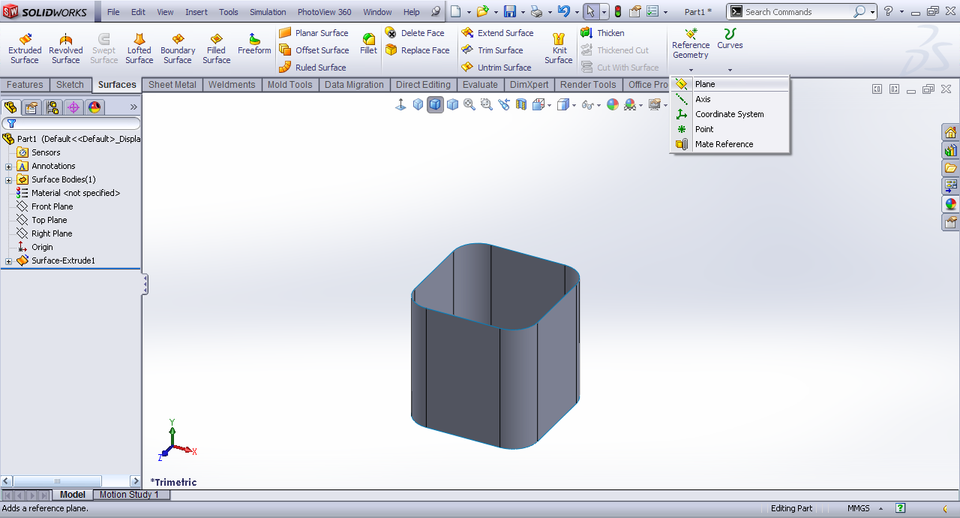

     Reference geometry>>plane.



  5. Step 5

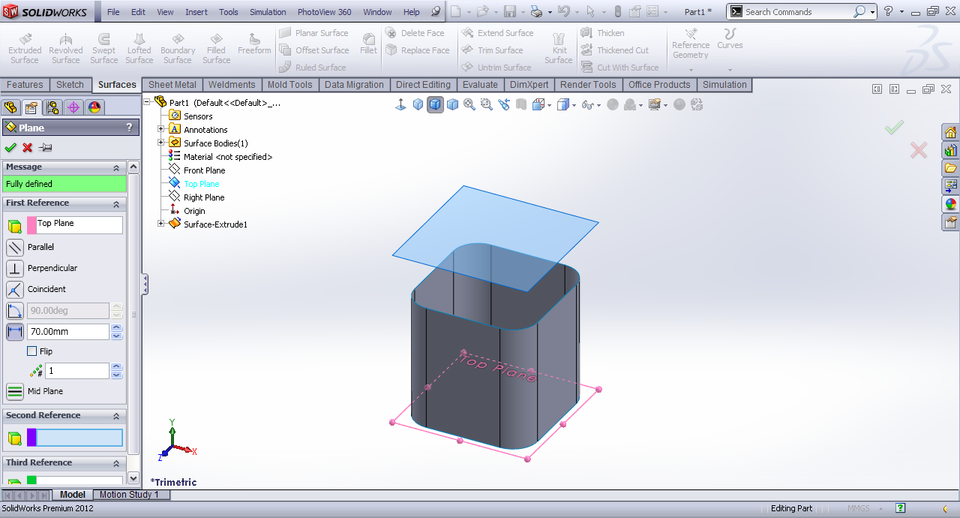

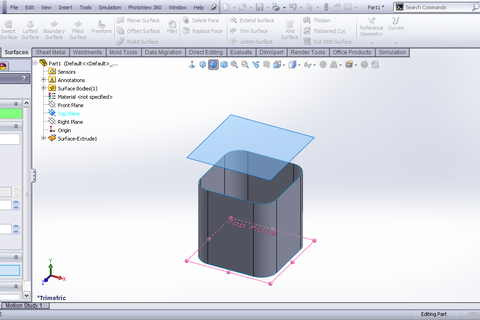

     Top plane by 70mm.



  6. Step 6

     Plane1>>Sketch.



  7. Step 7

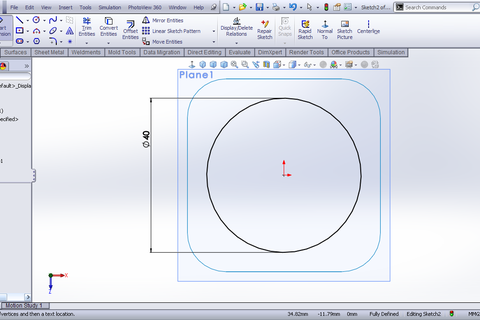

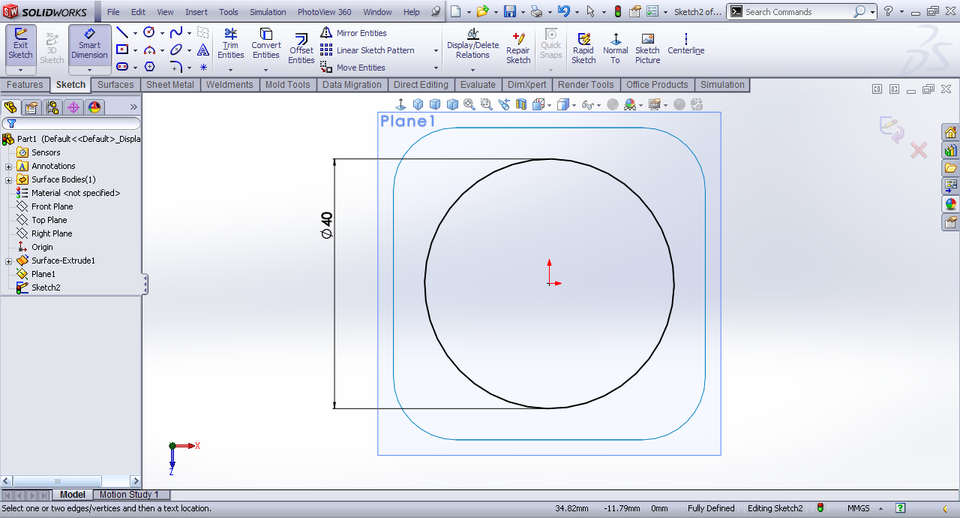

     Draw a circle.



  8. Step 8

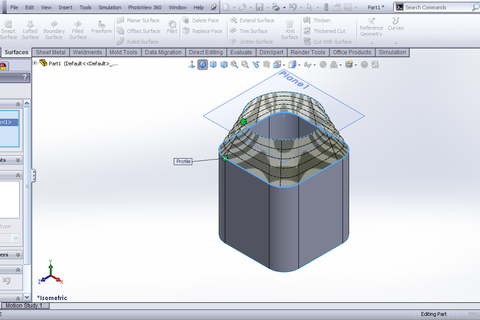

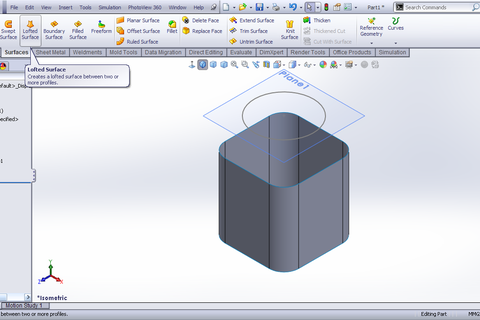

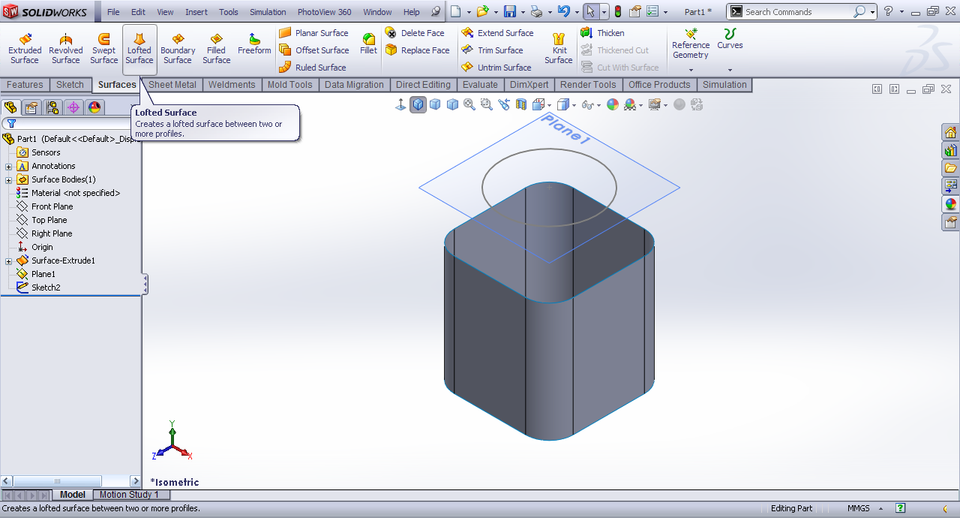

     Exit the sketch. Lofted surface.



  9. Step 9

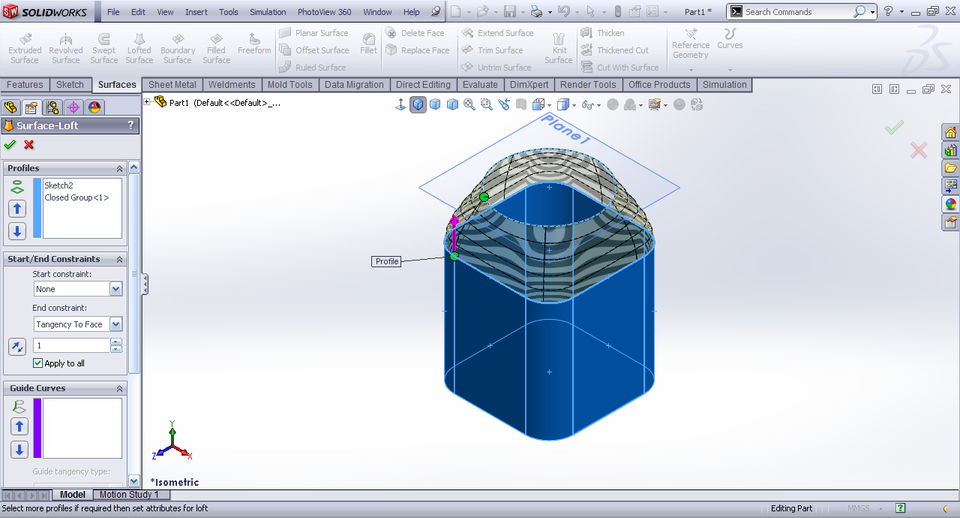

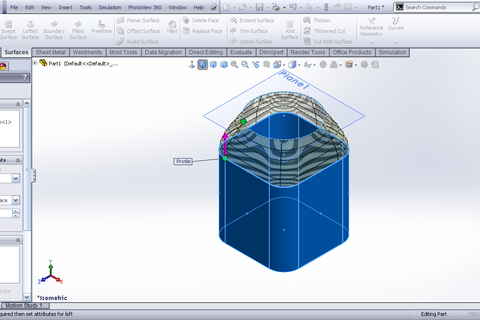

     Select the circle and the edges of the extruded surface as the loop using selection manager.



  10. Step 10

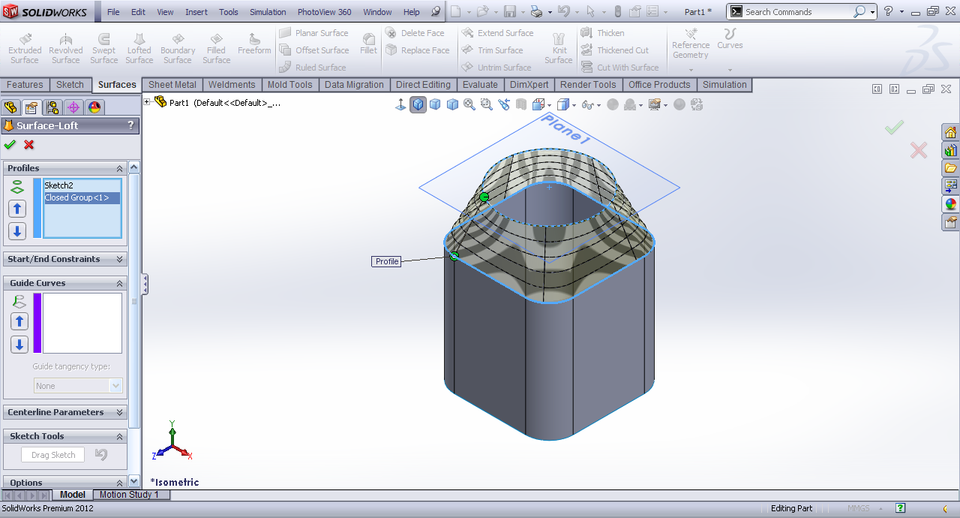

      Tangency to face.



  11. Step 11

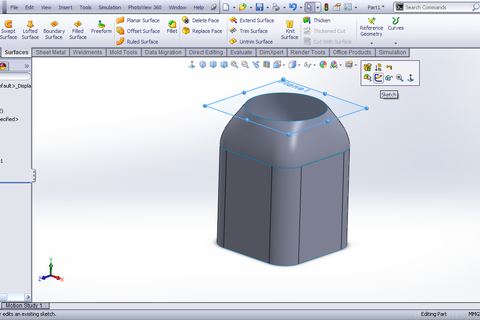

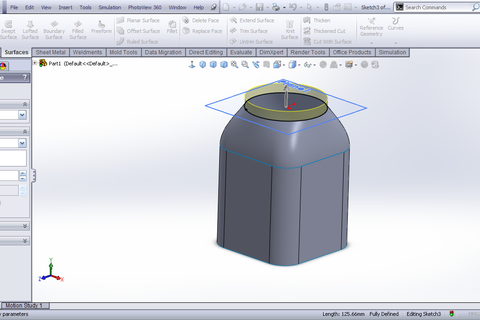

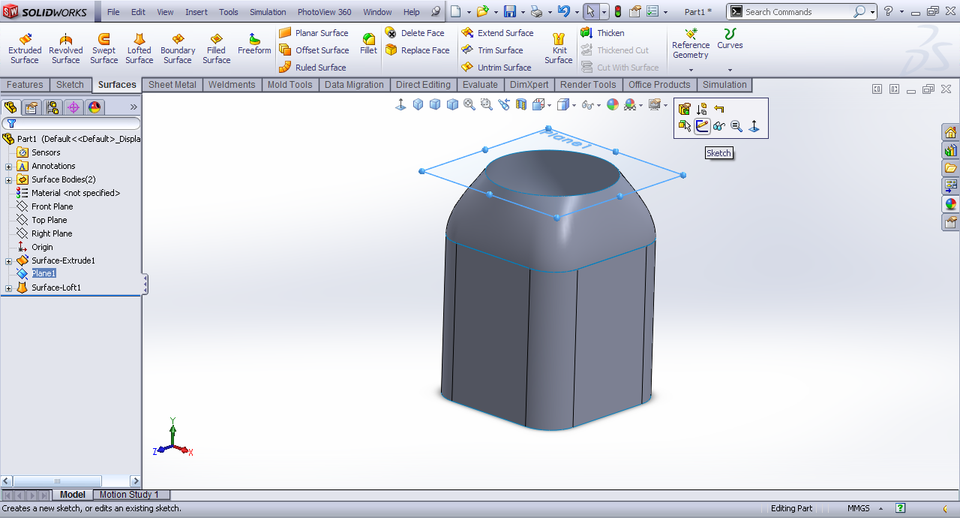

      Click OK. Again Plane1>>Sketch.



  12. Step 12

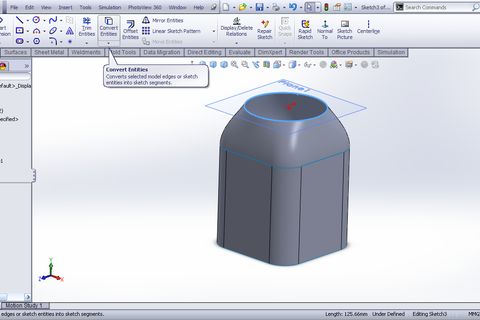

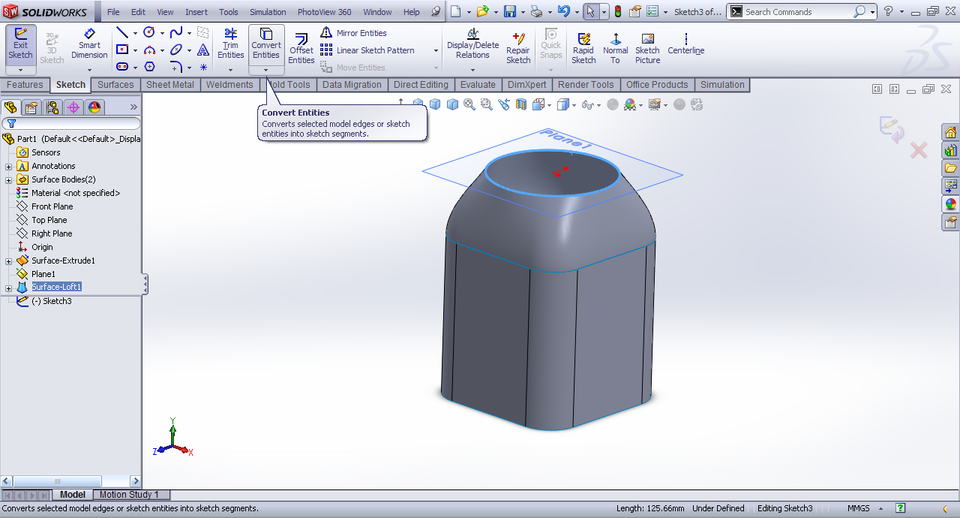

      Select the edge and then convert entities.



  13. Step 13

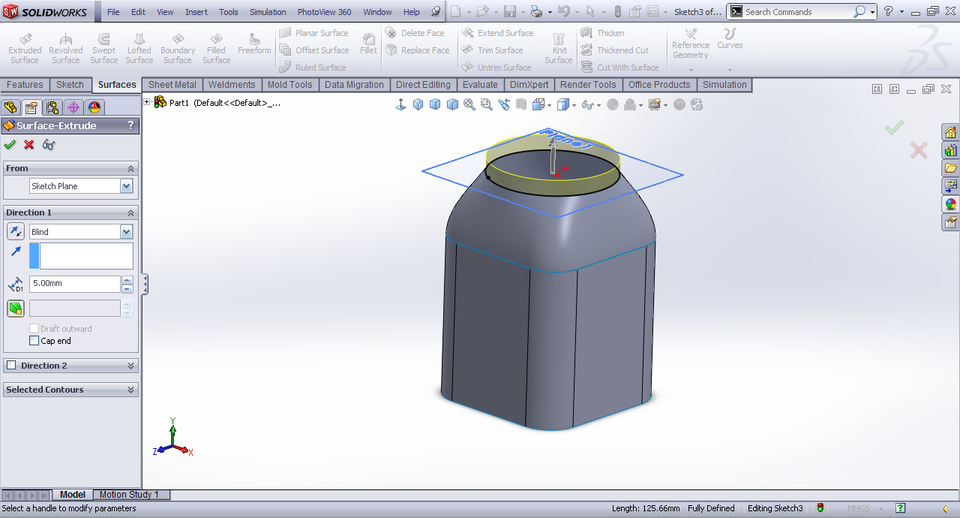

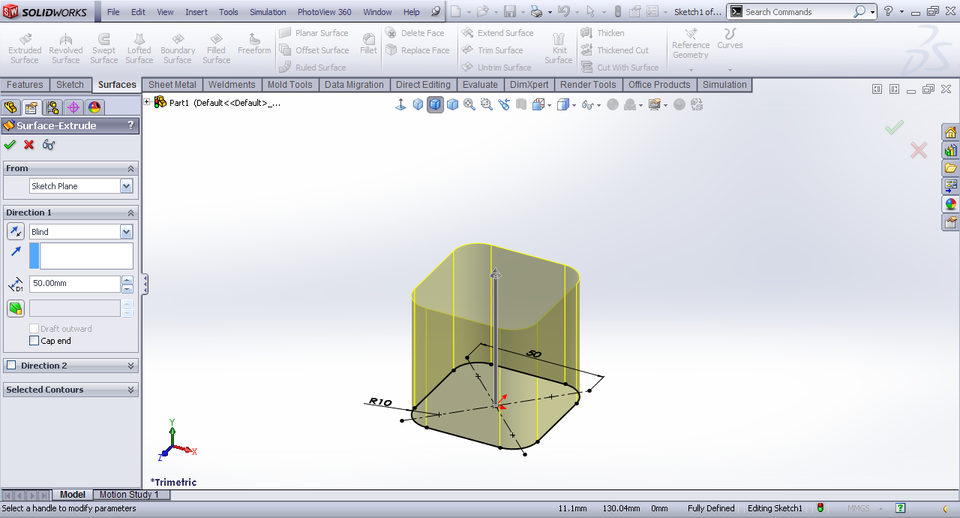

      Extrude it.



  14. Step 14

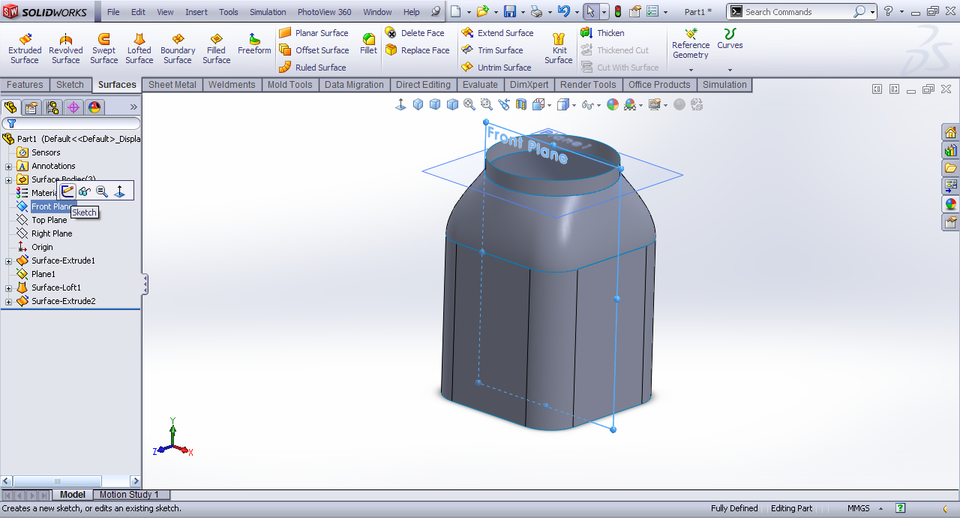

      Front Plane>>Sketch.



  15. Step 15

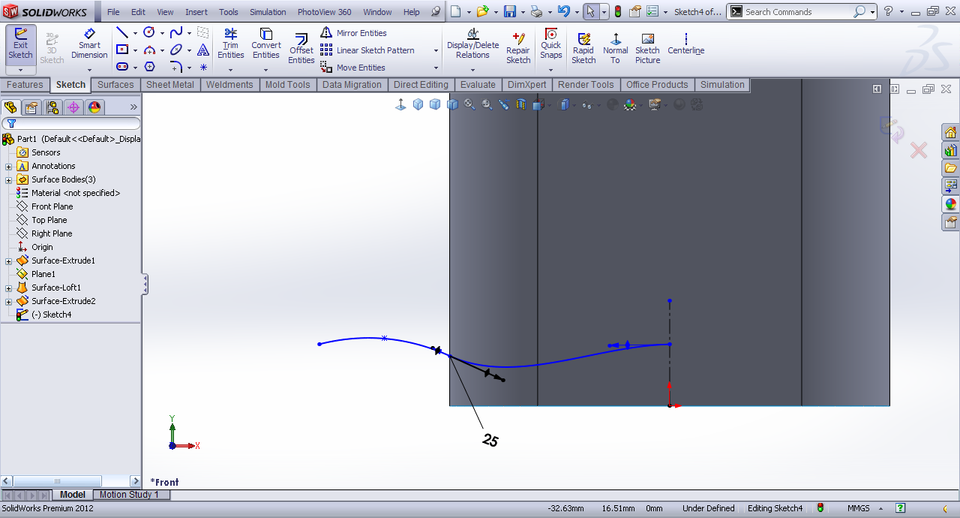

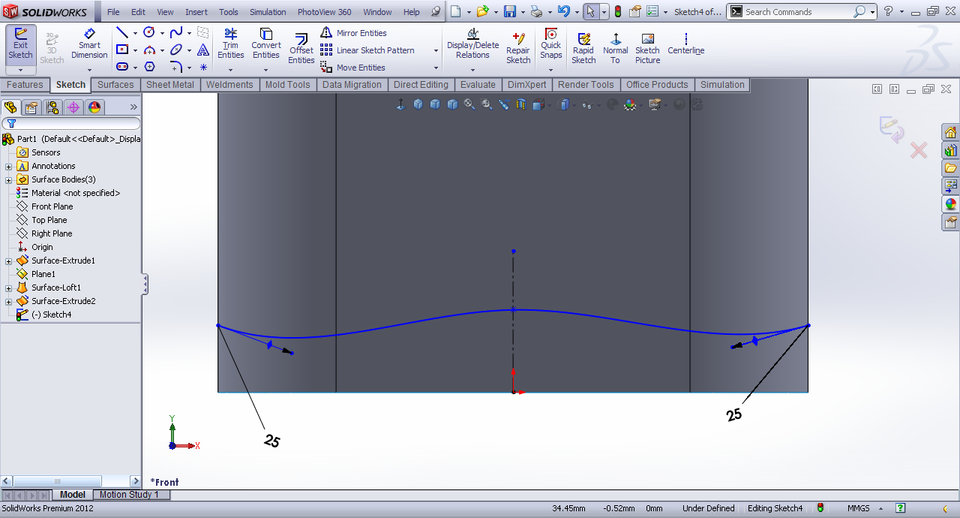

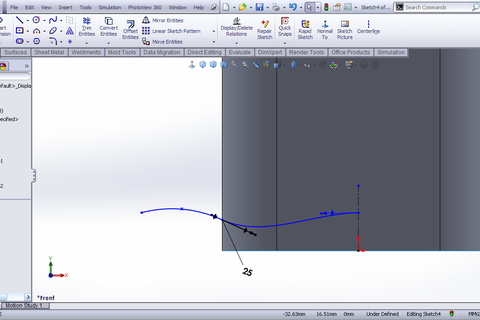

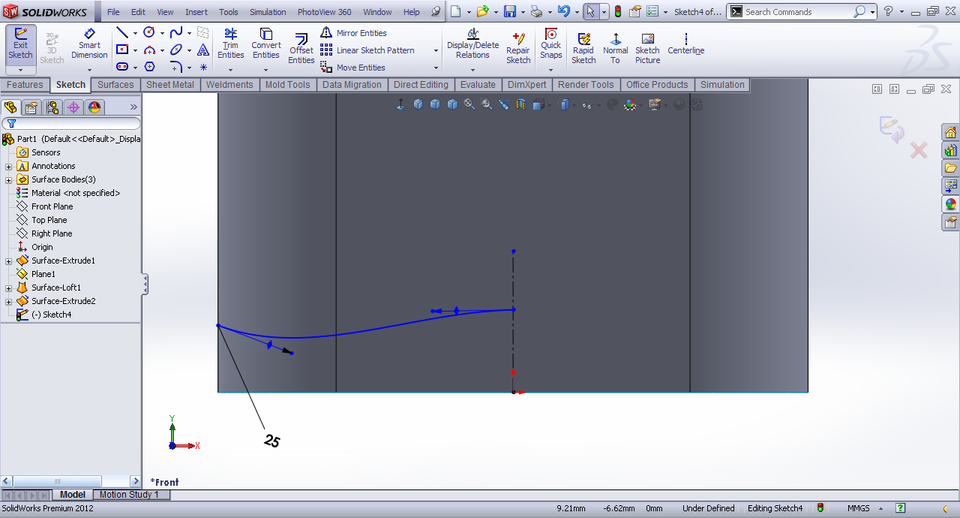

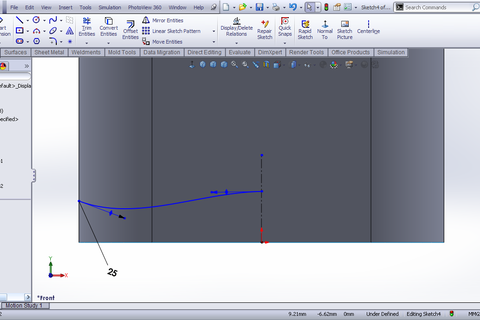

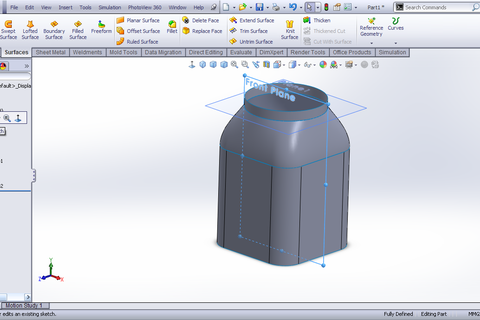

      Draw this profile using spline.



  16. Step 16

      Trim it in half.



  17. Step 17

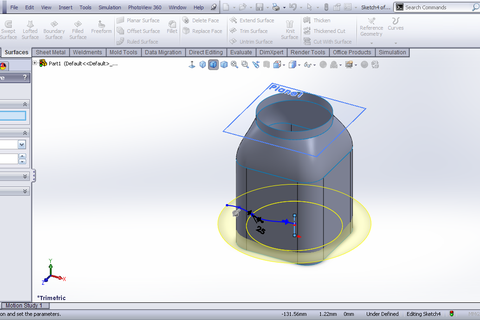

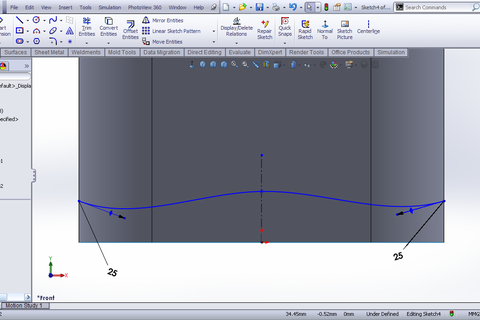

      Draw another spline tangent to this one.



  18. Step 18

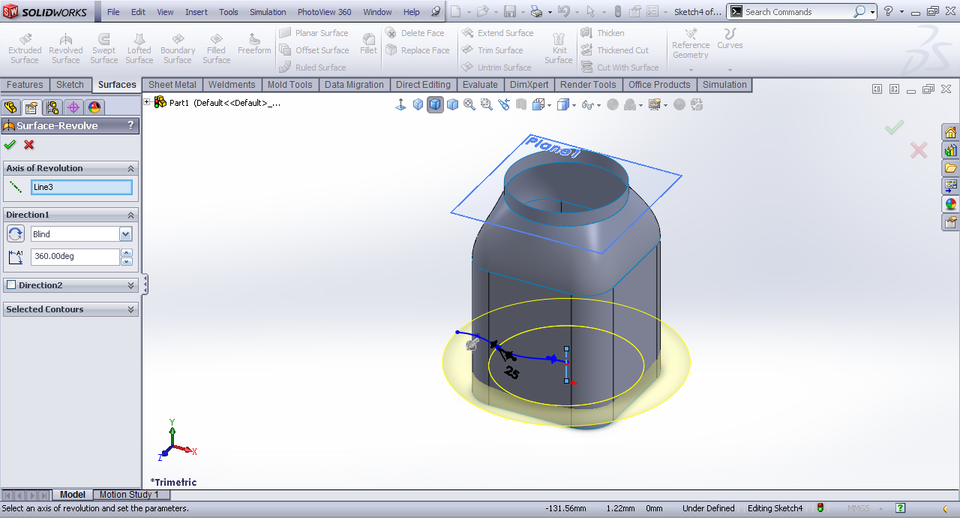

      Revolve surface it.



  19. Step 19

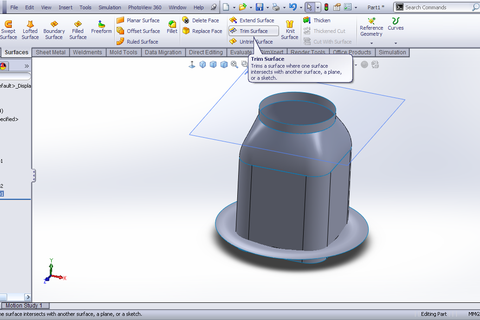

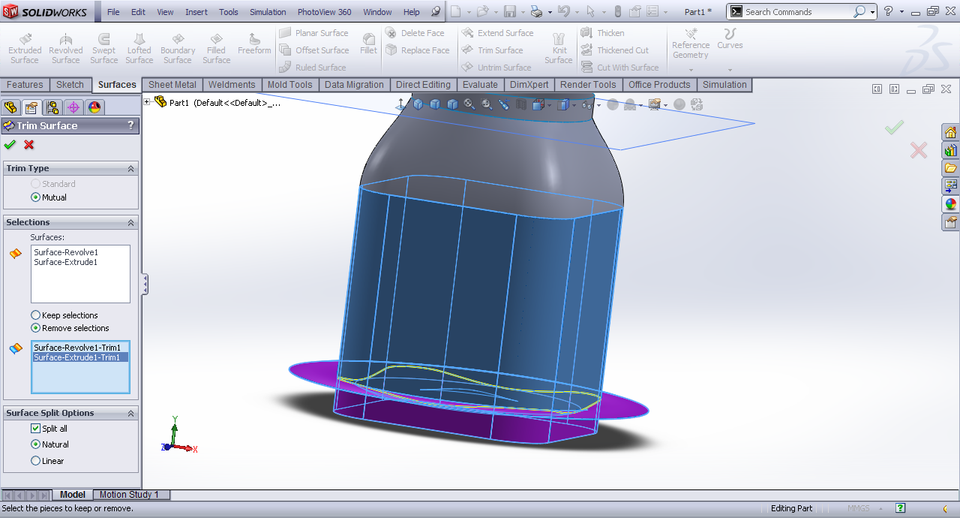

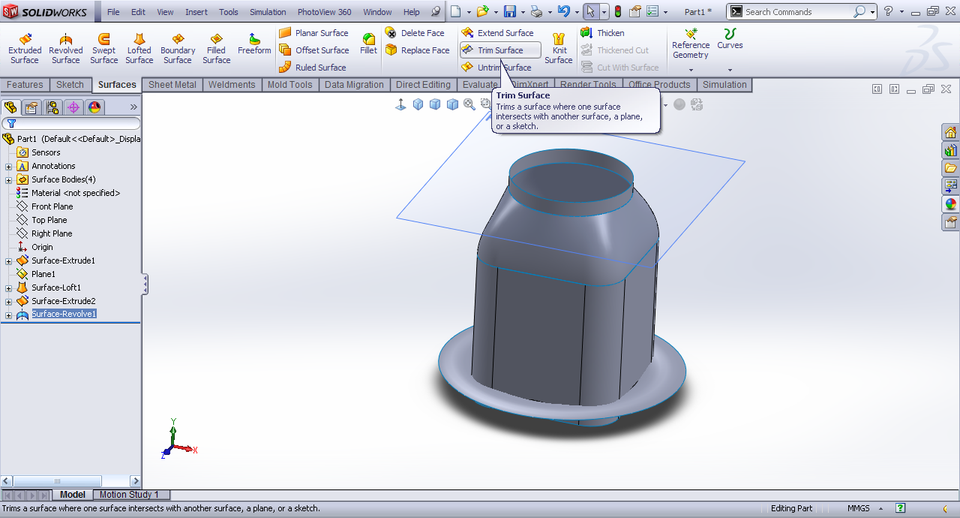

      Trim surface.



  20. Step 20

      Trim away the outer surfaces.



  21. Step 21

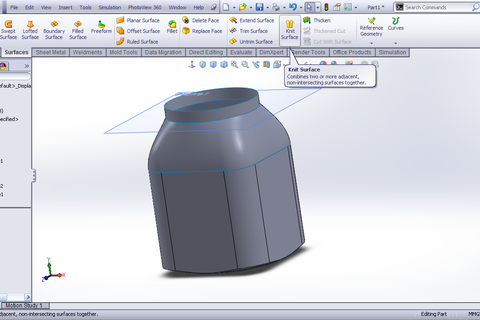

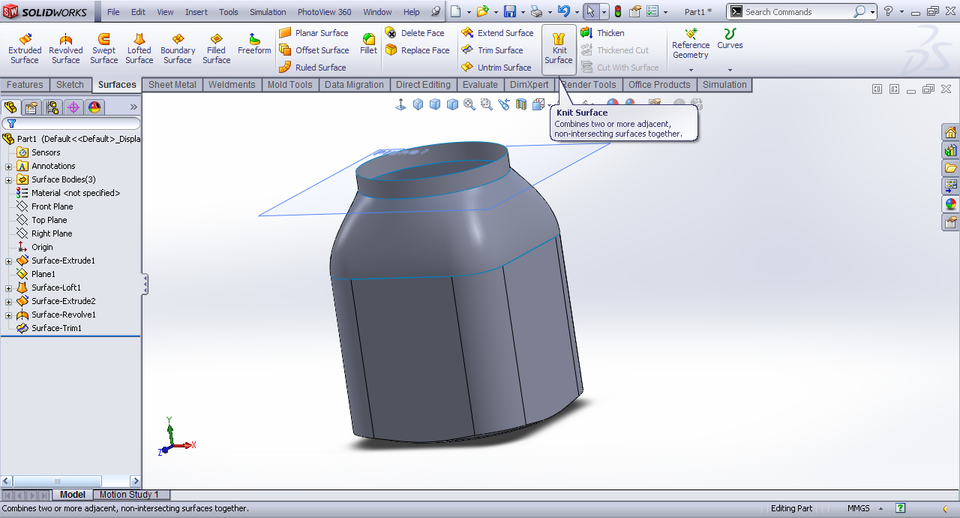

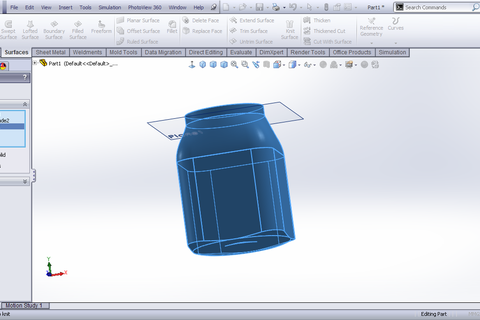

      Knit surface.

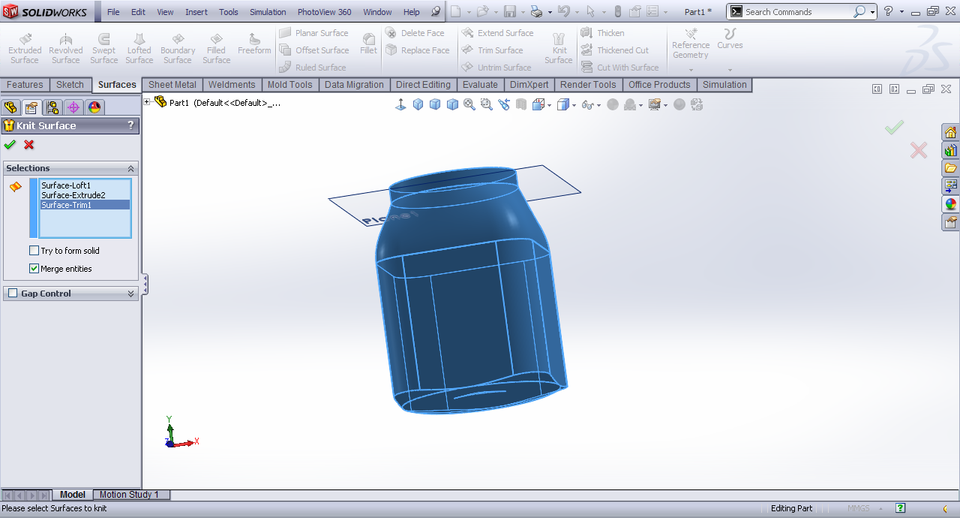

  22. Step 22

      Select all surface and uncheck gap control. Check merge entities.



  23. Step 23

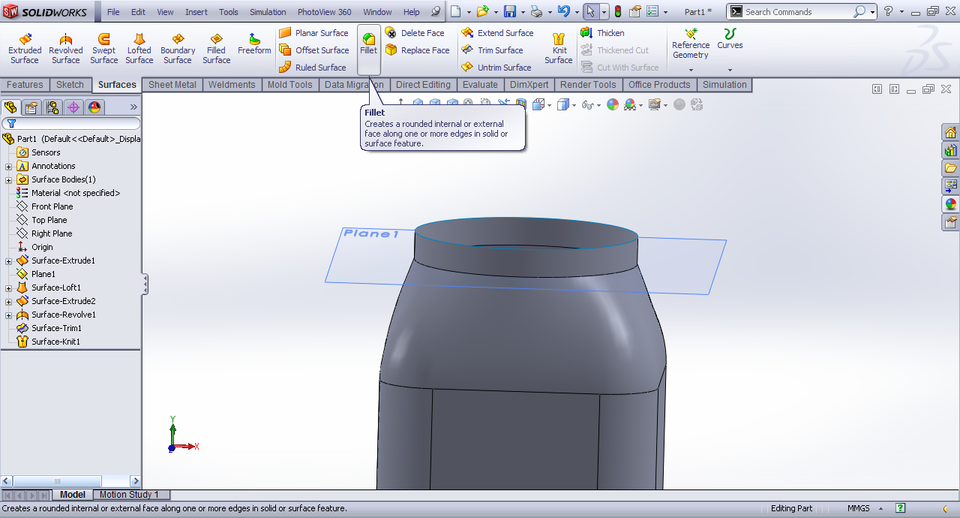

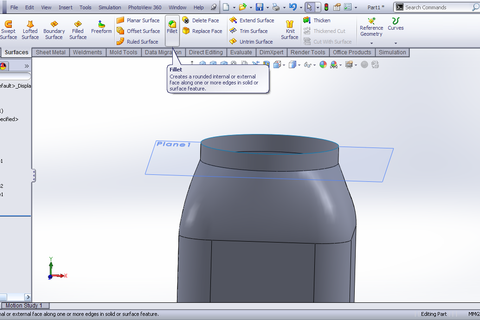

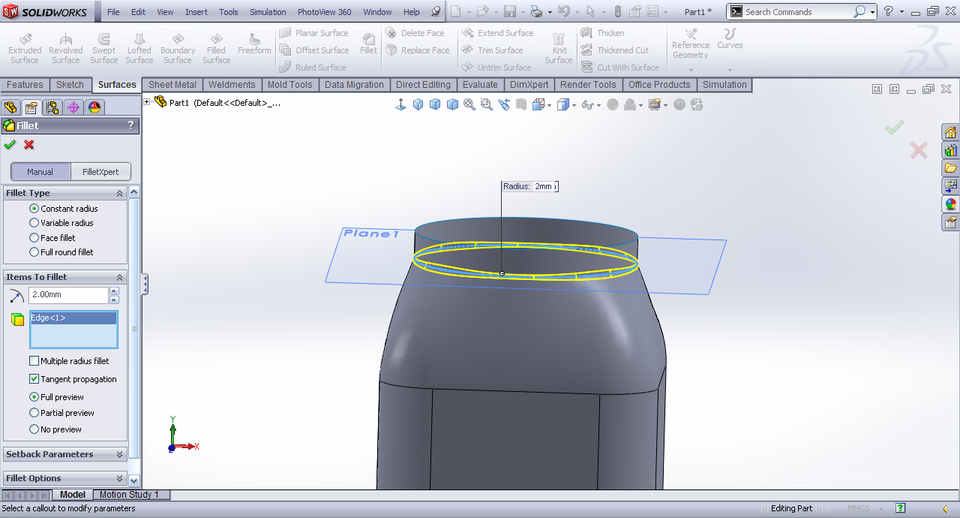

      Fillet.



  24. Step 24

      Select the edge of the extruded-surface2.



  25. Step 25

      Thicken.

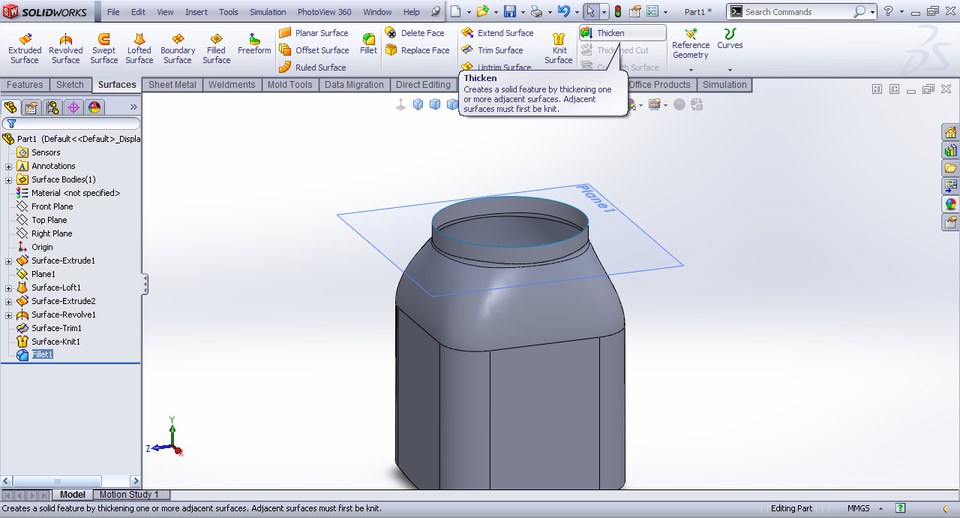

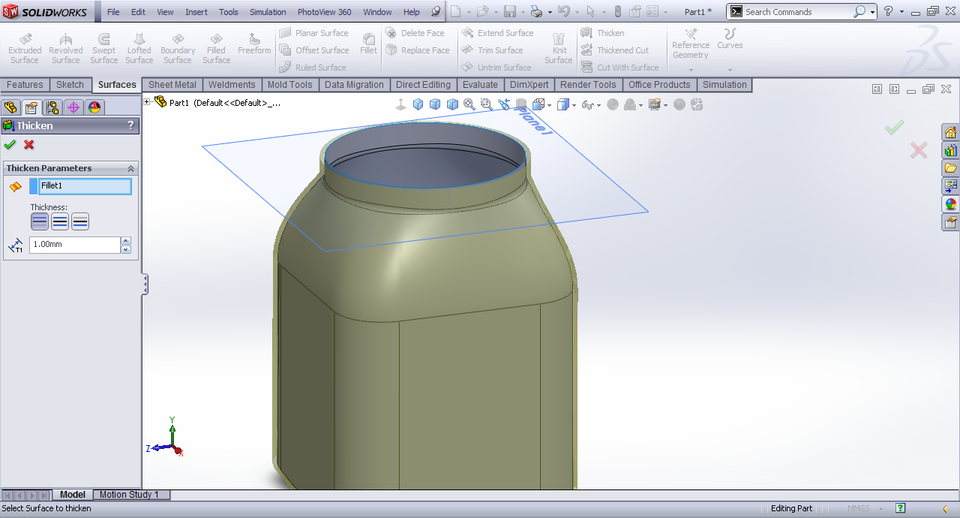

  26. Step 26

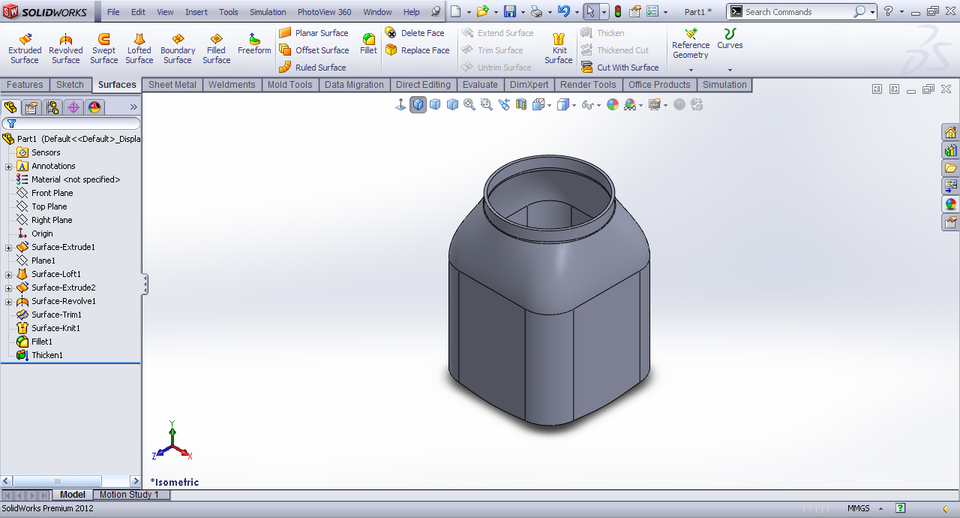

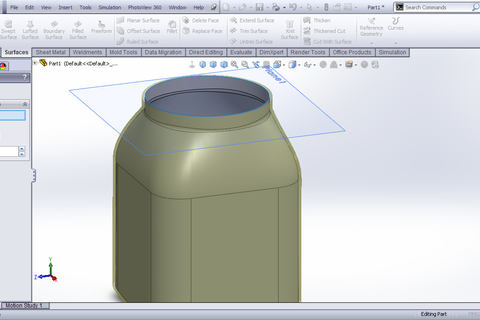

      Select the surface and thicken it outside.

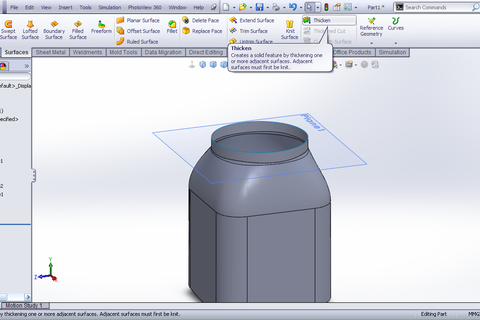

  27. Step 27

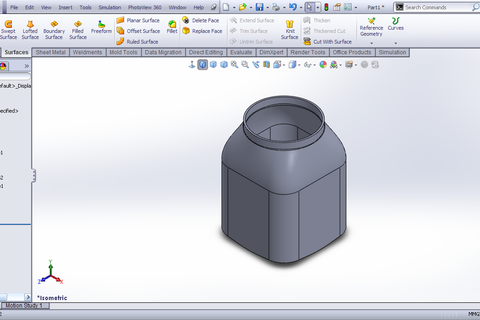

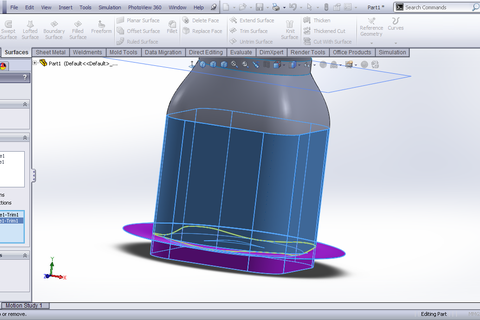

      And we have the basic surface of the container.



•
  troy 7 months ago

  Thanks for the tutorial everything worked as planned, except steps 9-10.
  I had to create a sketch on the rectangular top edge in order to have a closed sketch. (SW wouldn't let me simply select the top edges ).

  Thanks!
