Tutorial - Modeling Crank Shaft in SolidWorks?

By Sudhir Gill on 07 Mar 12:13 1 answer 2913 views 1 comment

Tutorial on modeling crank shaft in SolidWorks.

1 answer

Sudhir Gill about 1 year ago
This is tutorial on making crank shaft. The main problem with making such design is with reading the dimensions on the drawing sheet. Well i have solved it for you. In this tutorial we will go through simple extrusion operation to make crank shaft.
1. Step 1

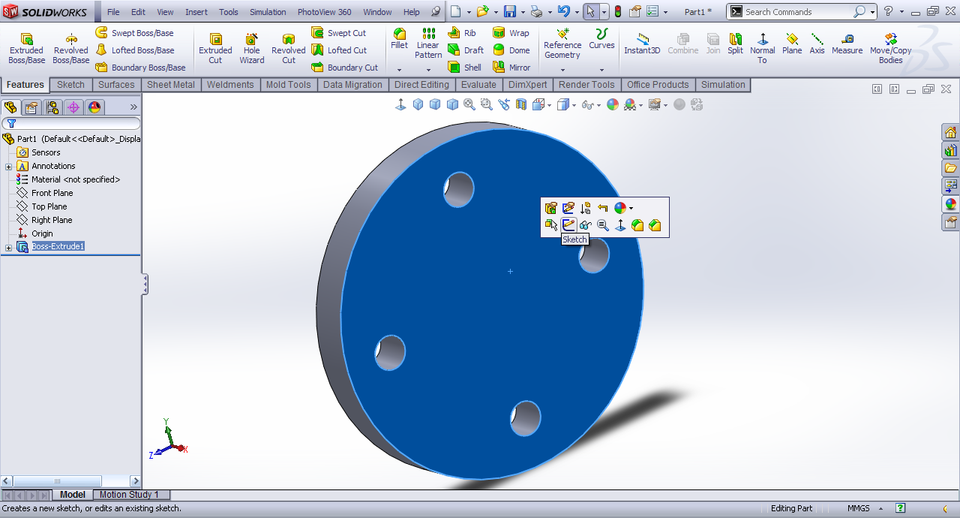

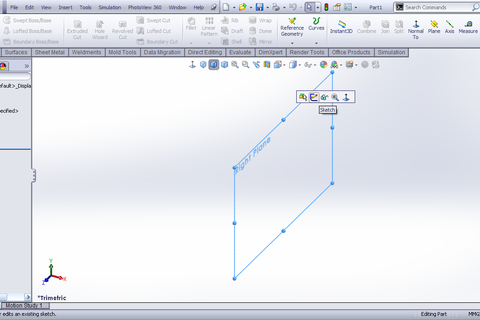

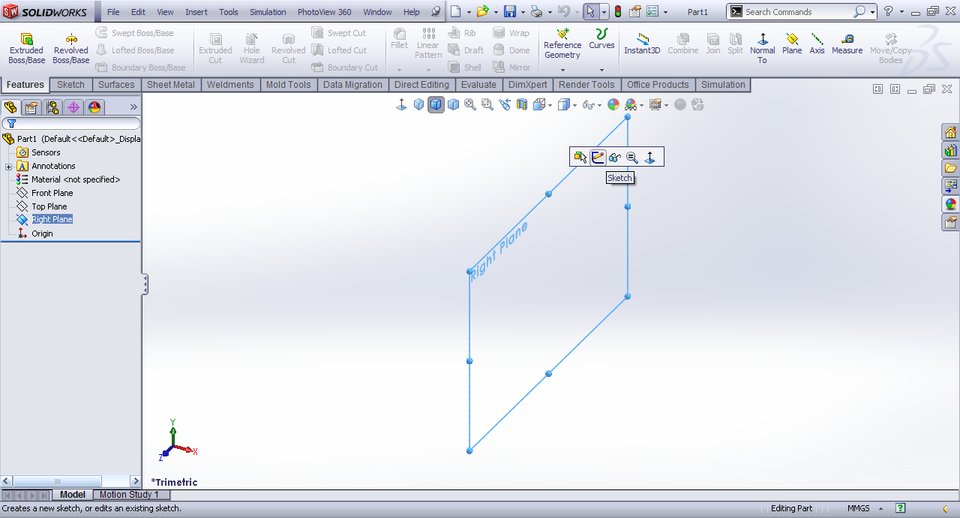

  Right Plane>>Sketch.
2. Step 2

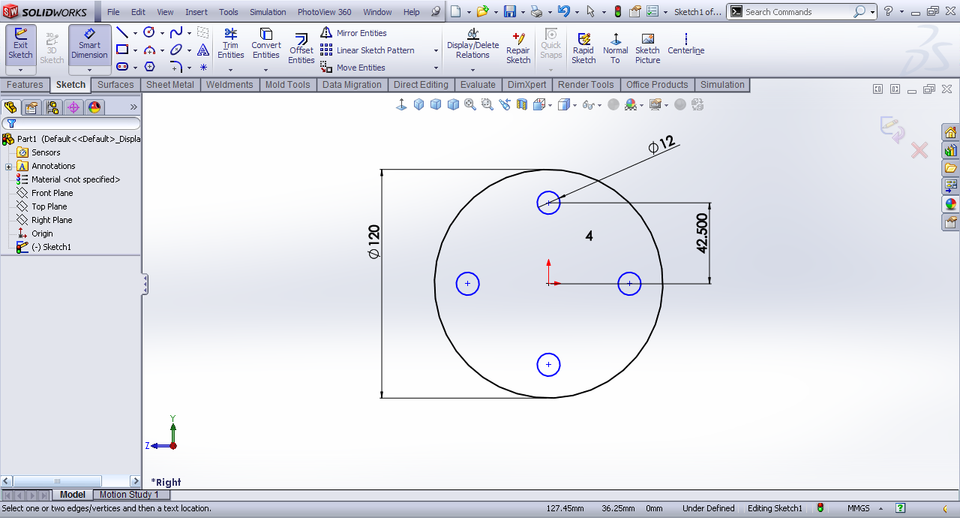

  Draw a circle of 120mm and 4 holes of 12mm at 42.5mm from origin.
3. Step 3

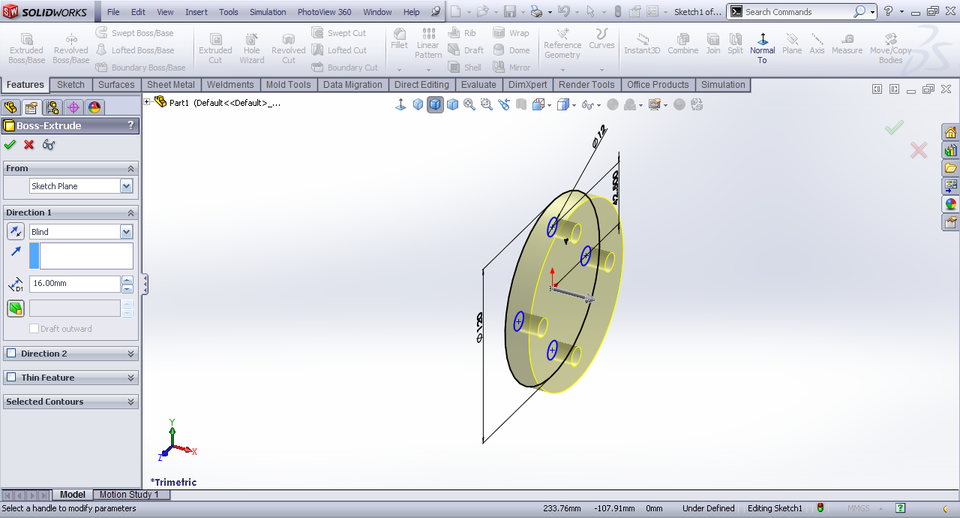

  Extrude it by 16mm.
4. Step 4

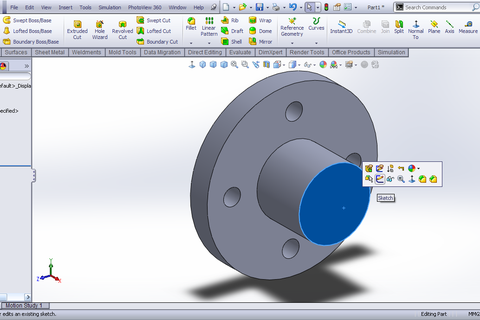

  Right face>>Sketch.
5. Step 5

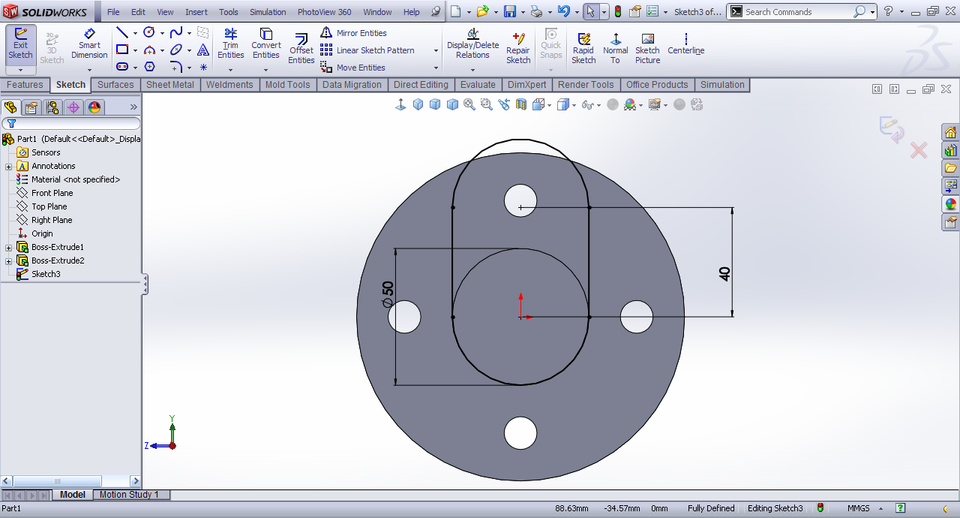

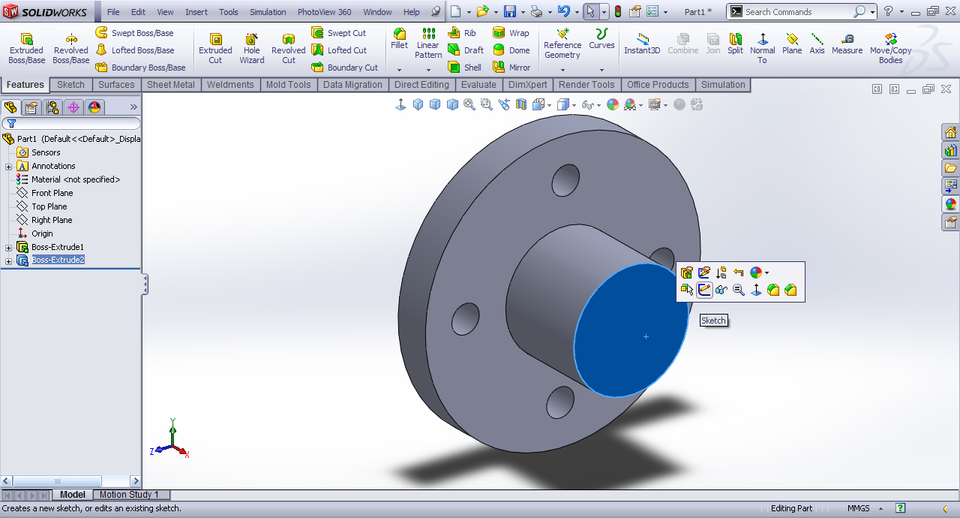

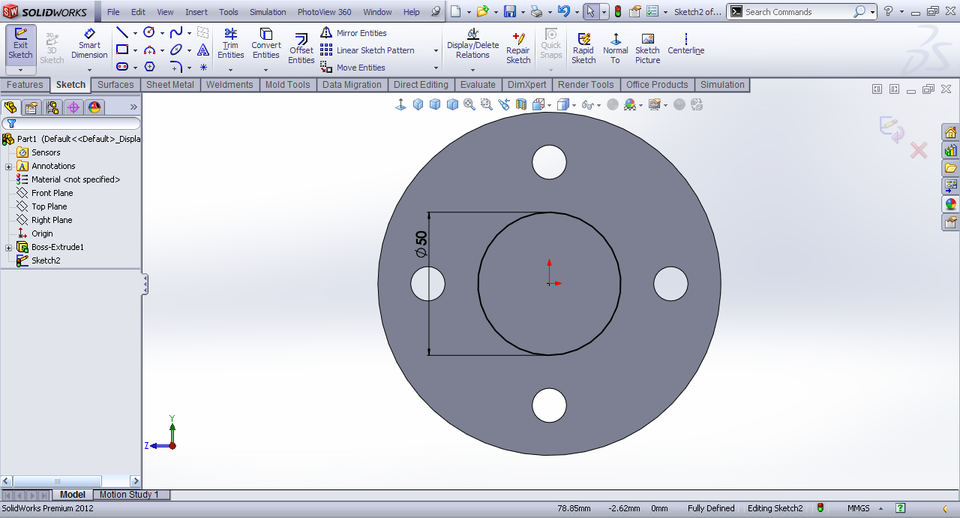

  Draw a circle of 50mm dia.
6. Step 6

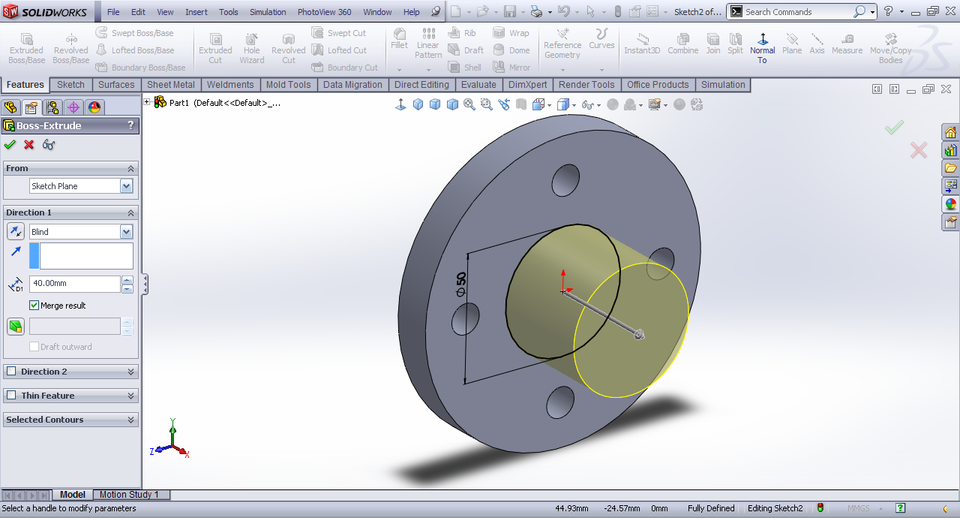

  Extrude it by 40mm.
7. Step 7

  Right face>>Sketch.
8. Step 8

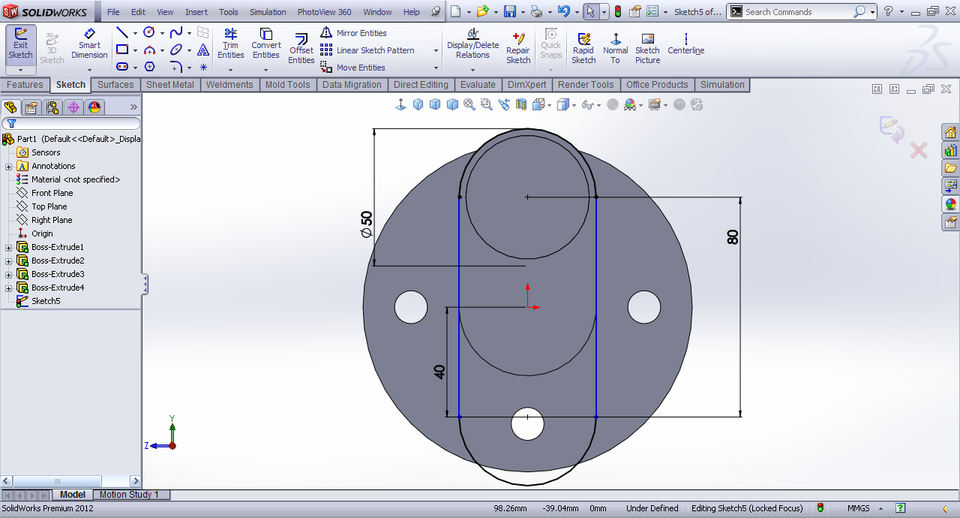

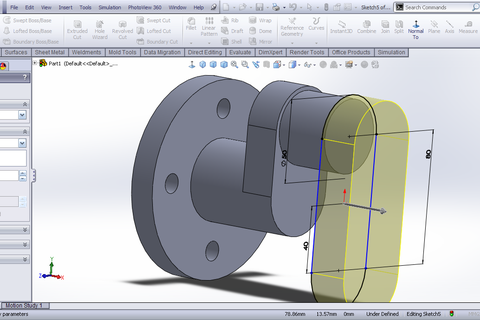

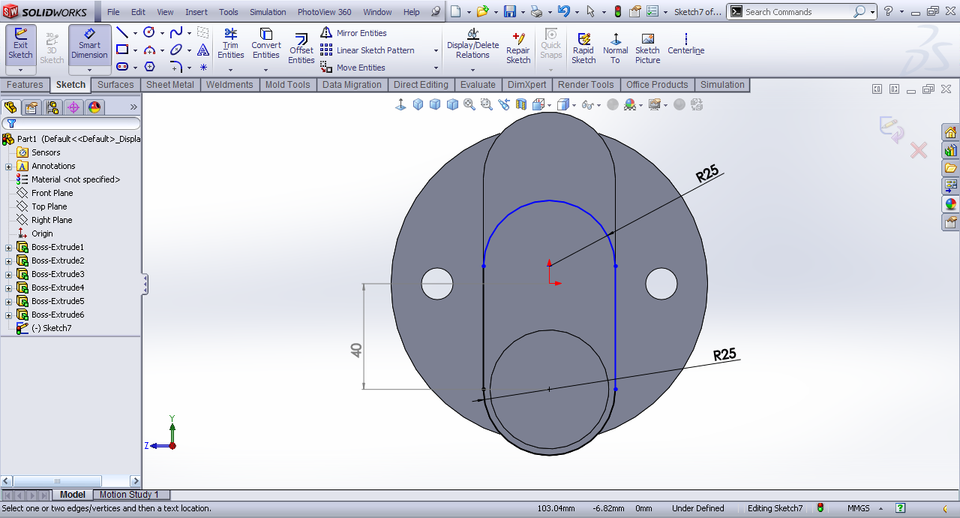

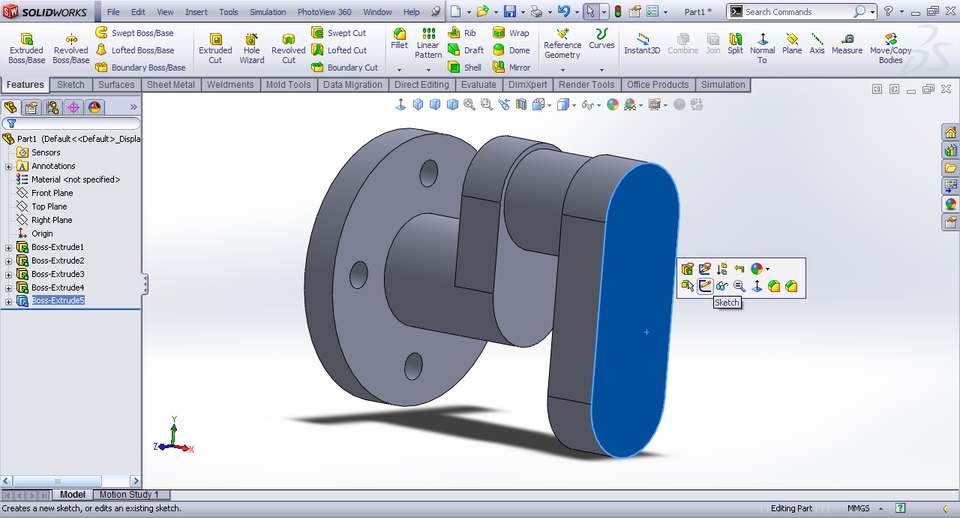

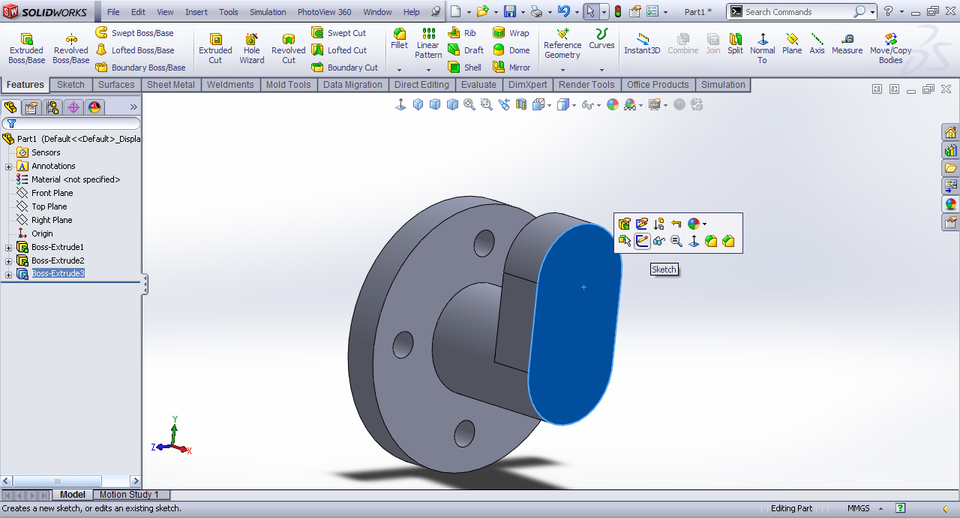

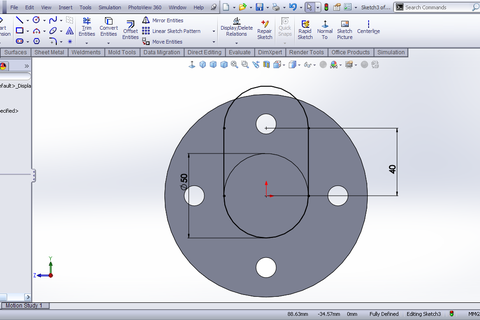

  Draw this profile.
9. Step 9

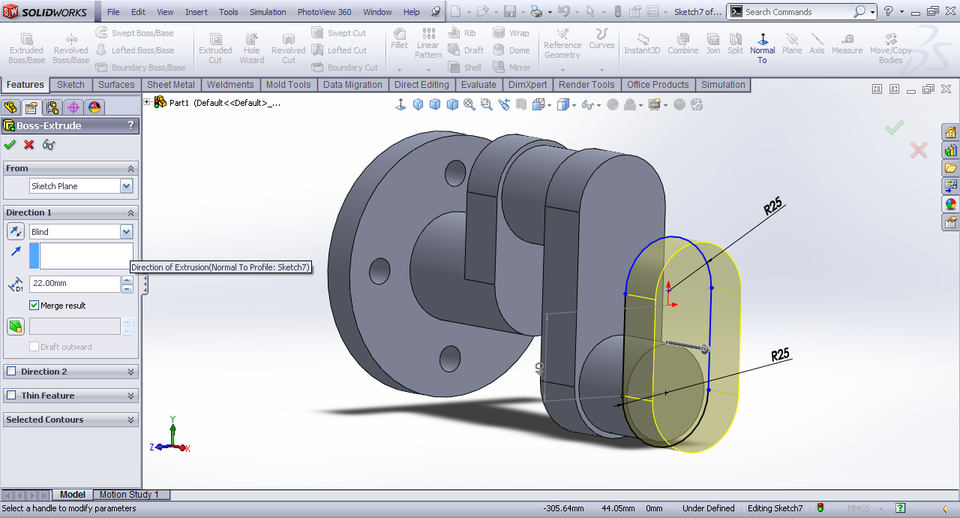

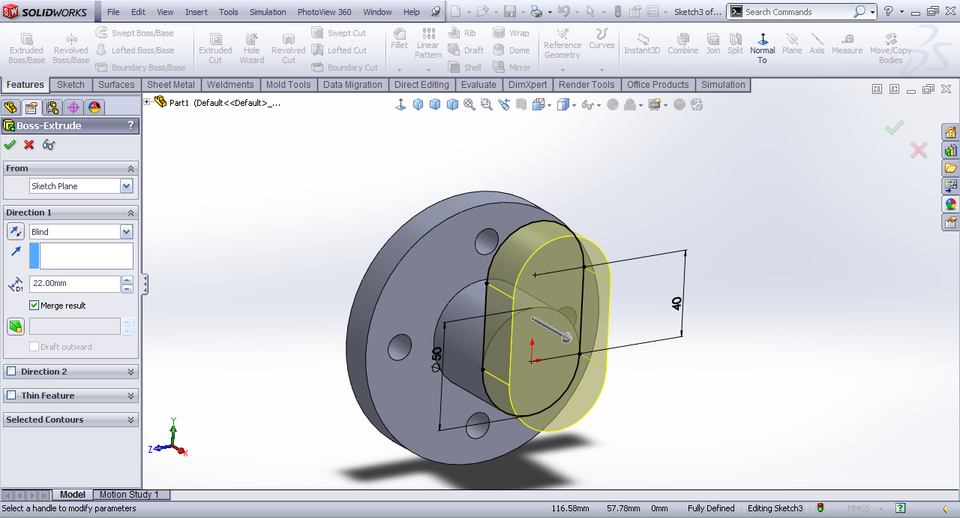

  Extrude it by 22mm.
10. Step 10

  Right face>>Sketch.
11. Step 11

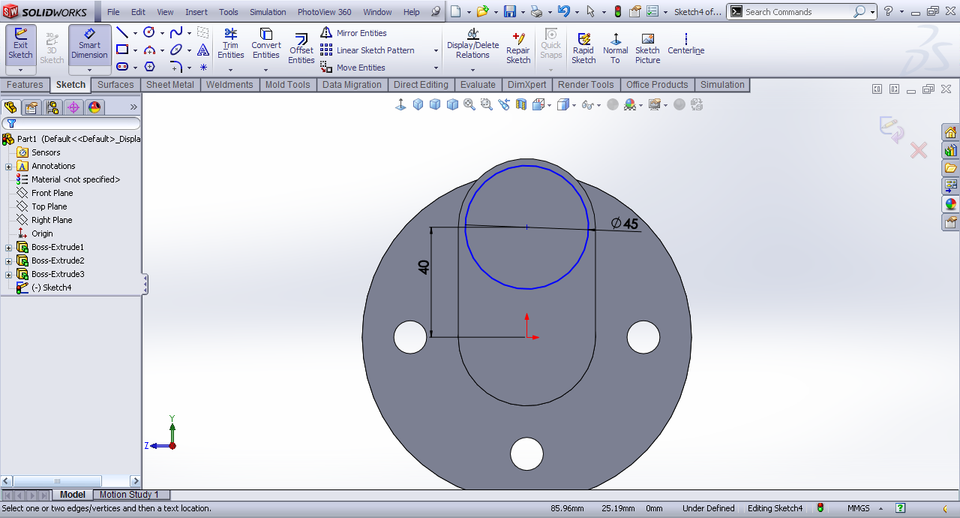

  Draw a circle of45mm at 40mm from origin.
12. Step 12

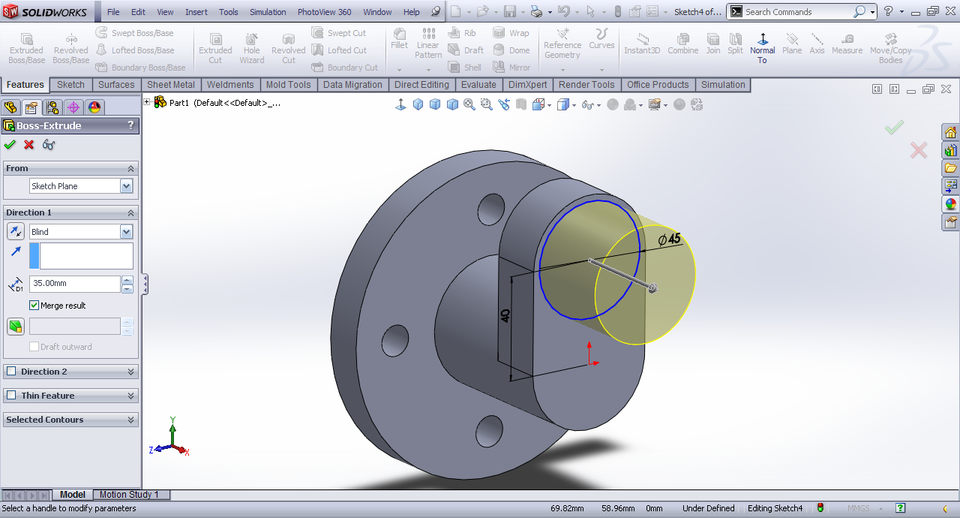

  Extrude it by 35mm.
13. Step 13

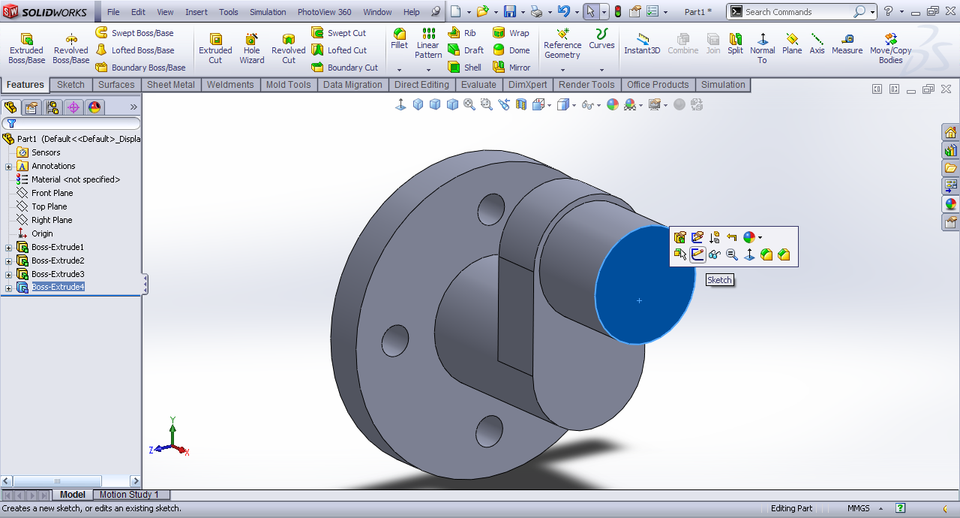

  Right face>>Sketch.
14. Step 14

  Draw this profile.
15. Step 15

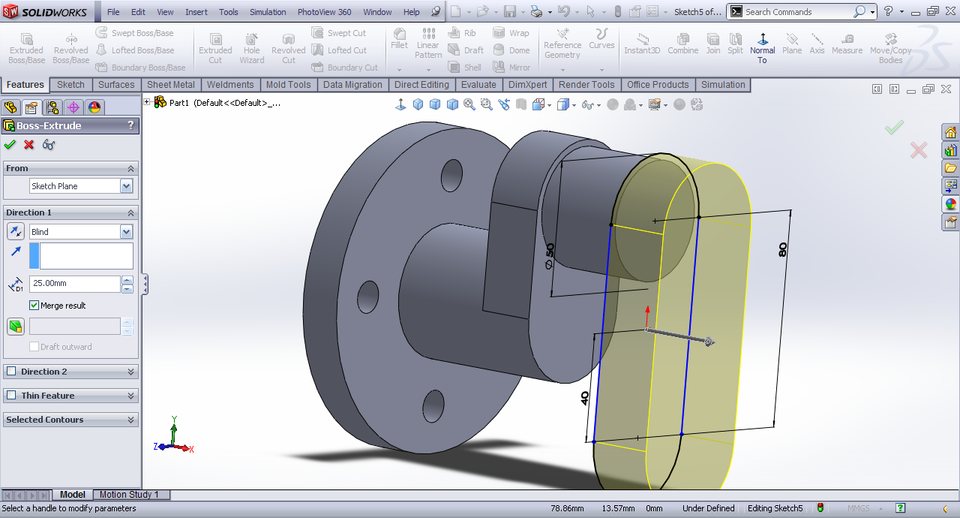

  Extrude it by 25mm.
16. Step 16

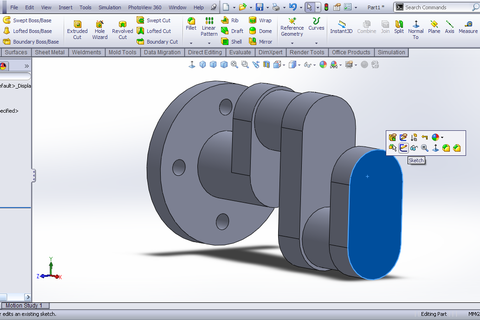

  Right face>>Sketch.
17. Step 17

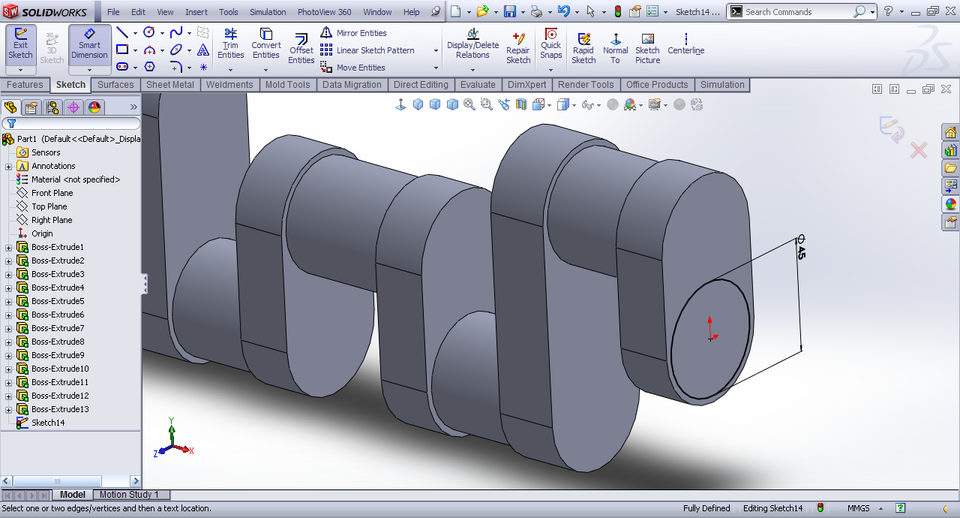

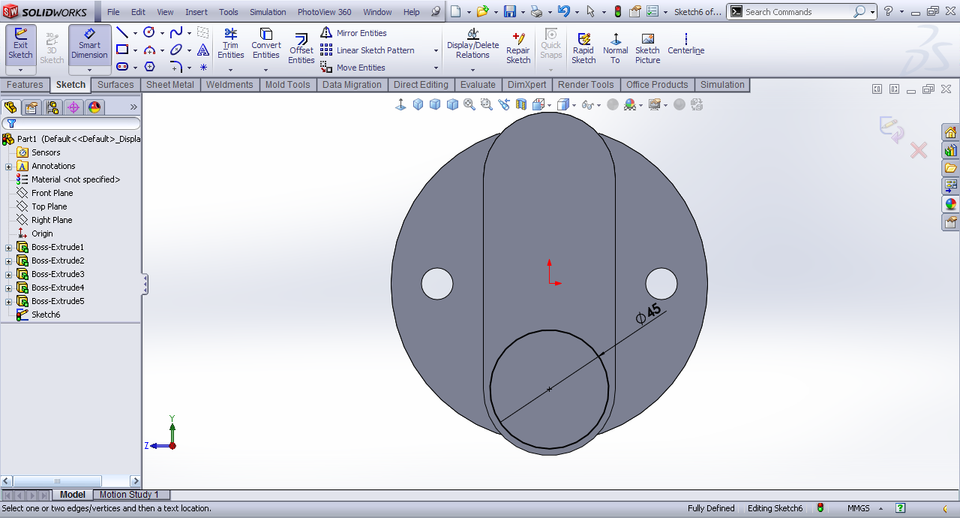

  Draw a circle of 45mm dia.
18. Step 18

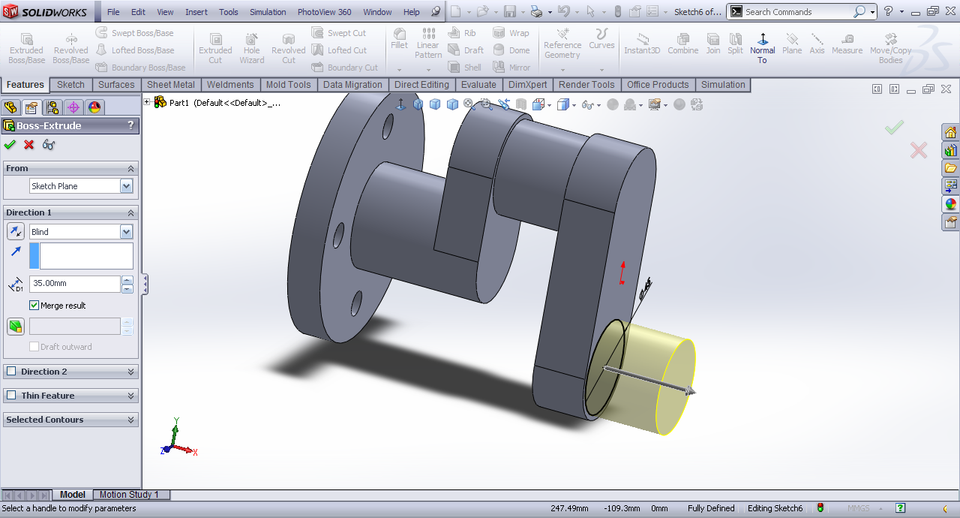

  Extrude it by 35mm.
19. Step 19

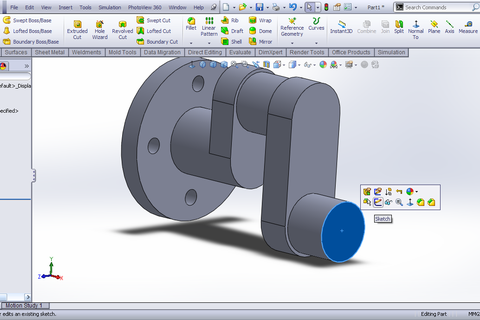

  Right face>>Sketch.
20. Step 20

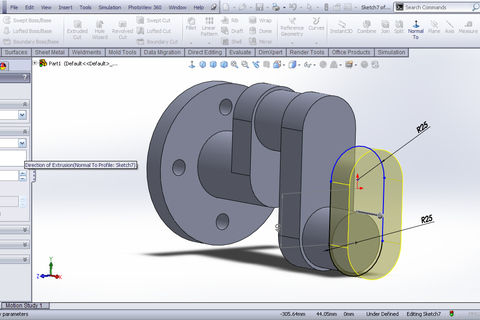

  Draw this profile.
21. Step 21

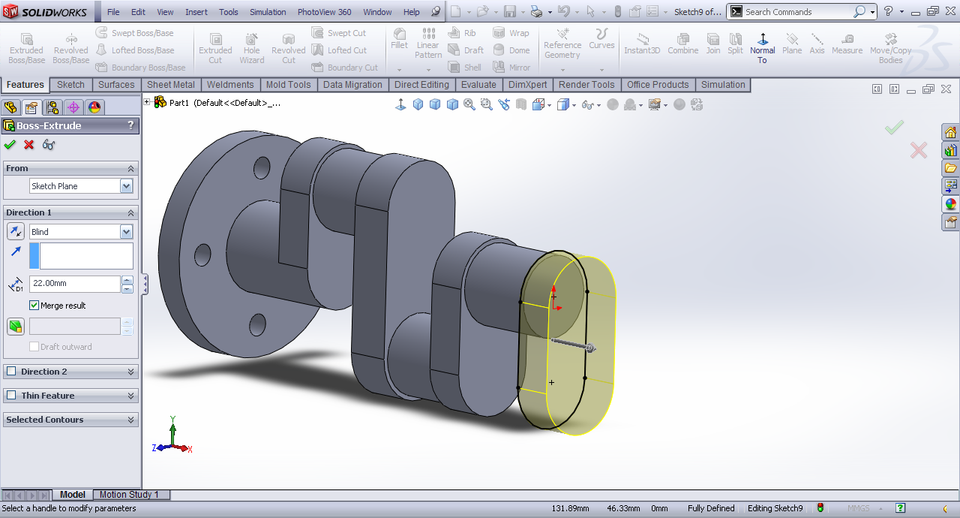

  Extrude it by 22mm.
22. Step 22

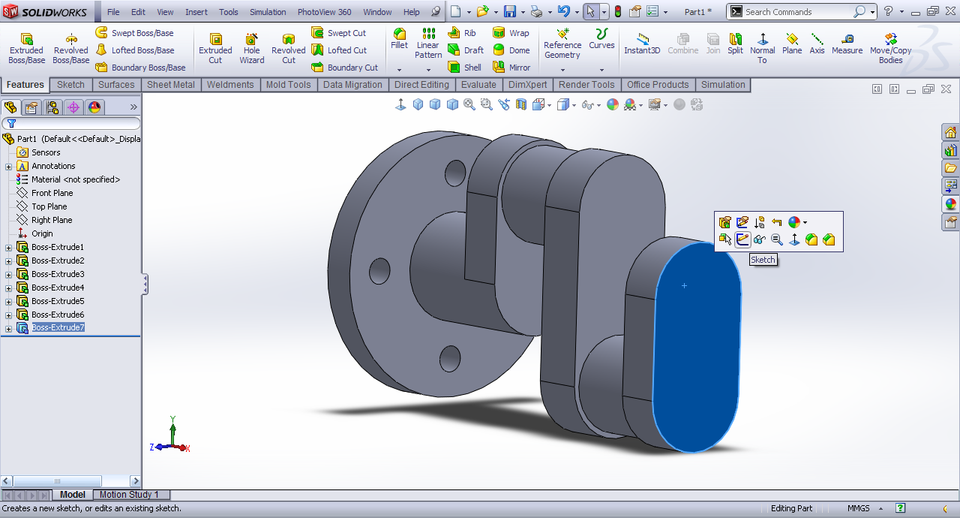

  Right face>>Sketch.
23. Step 23

  Draw a circle of 45mm.
24. Step 24

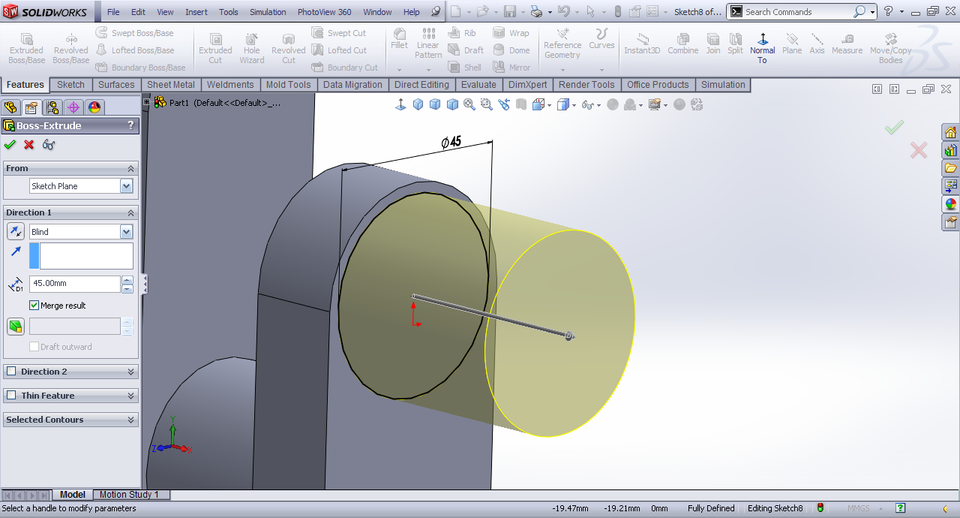

  Extrude it by 45mm.
25. Step 25

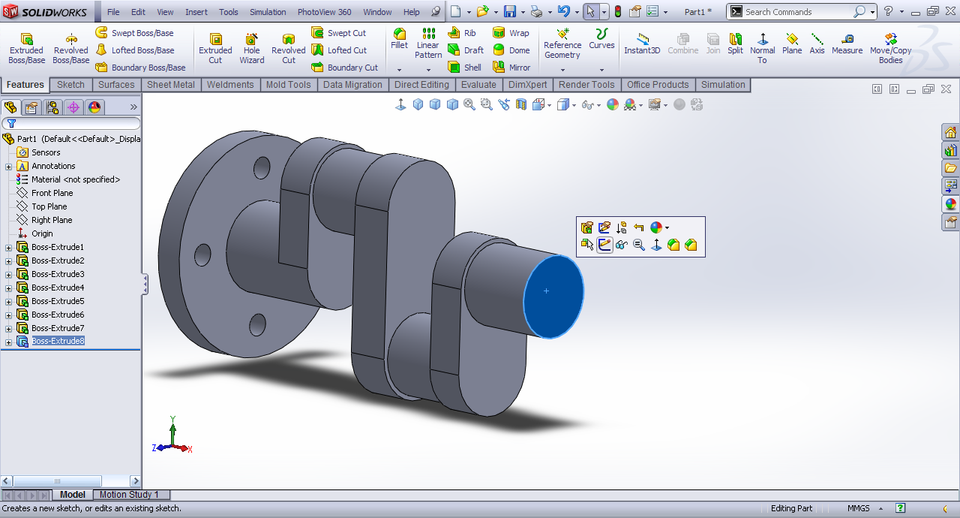

  Right face>>Sketch.
26. Step 26

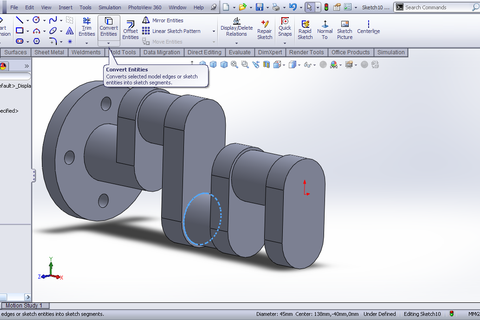

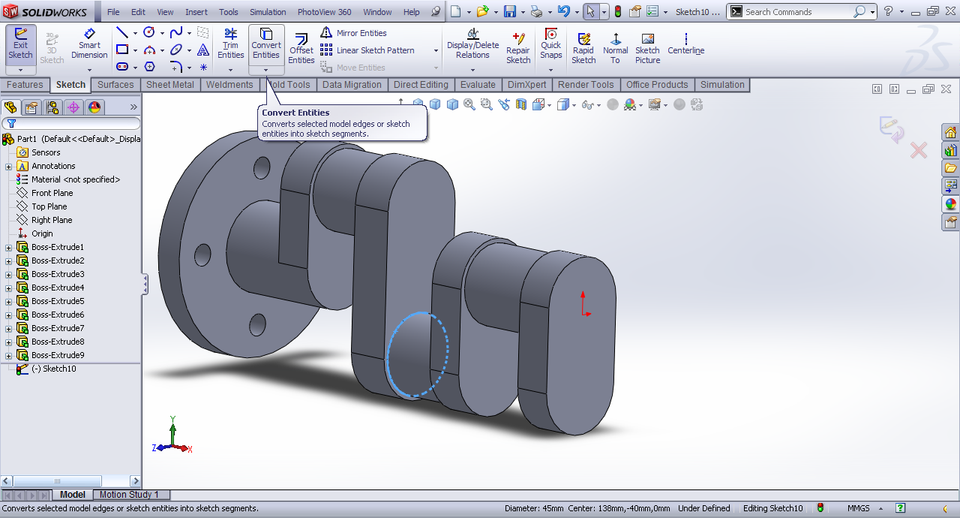

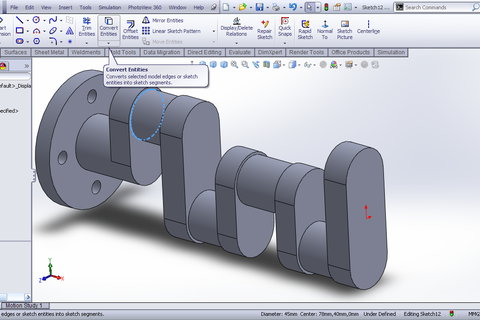

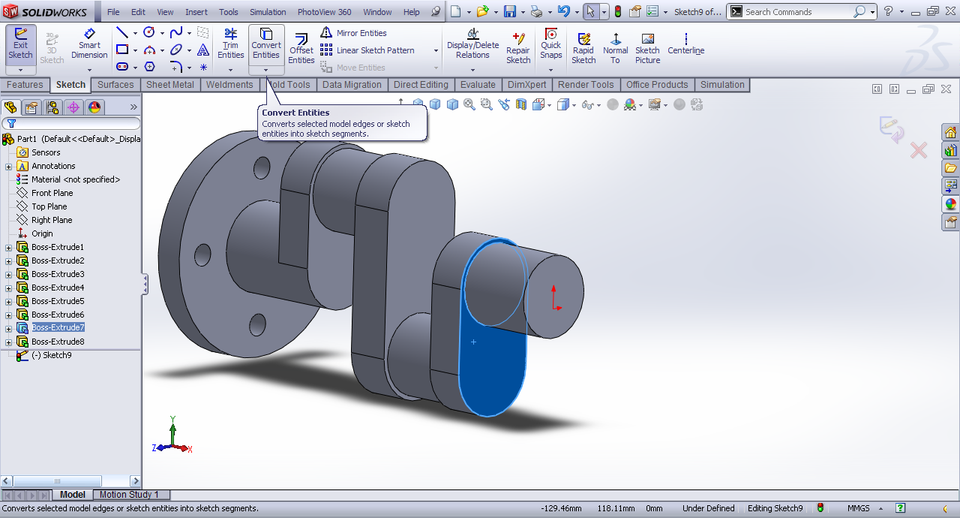

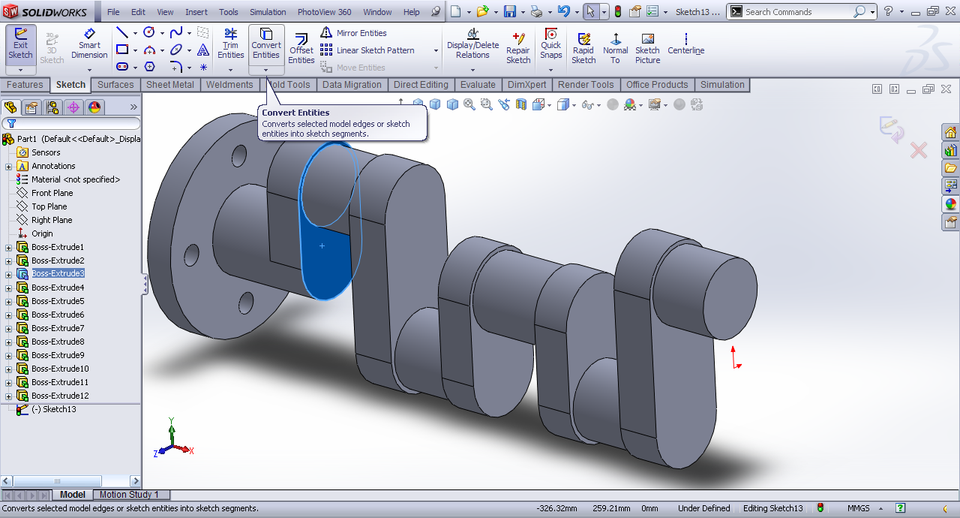

  Select this face and click Convert entities since the profile is same.
27. Step 27

  Extrude it by 22mm.
28. Step 28

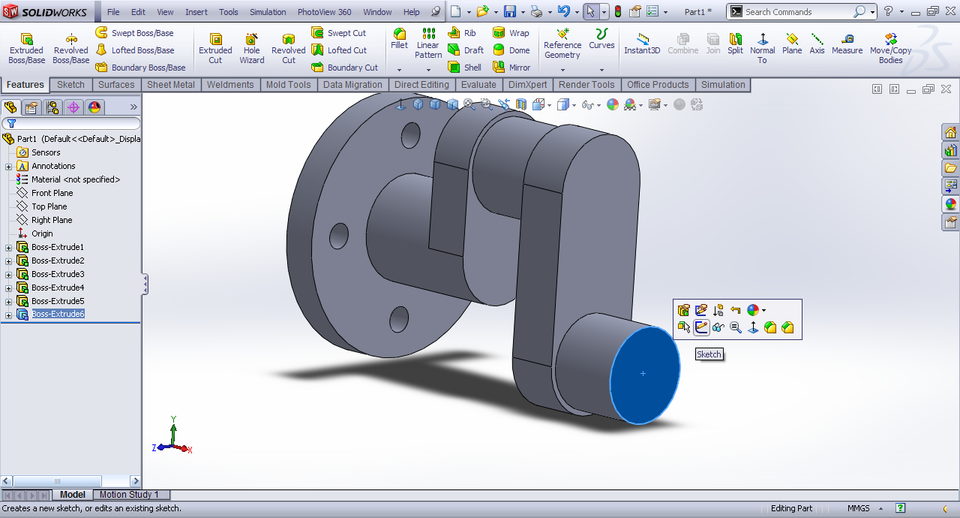

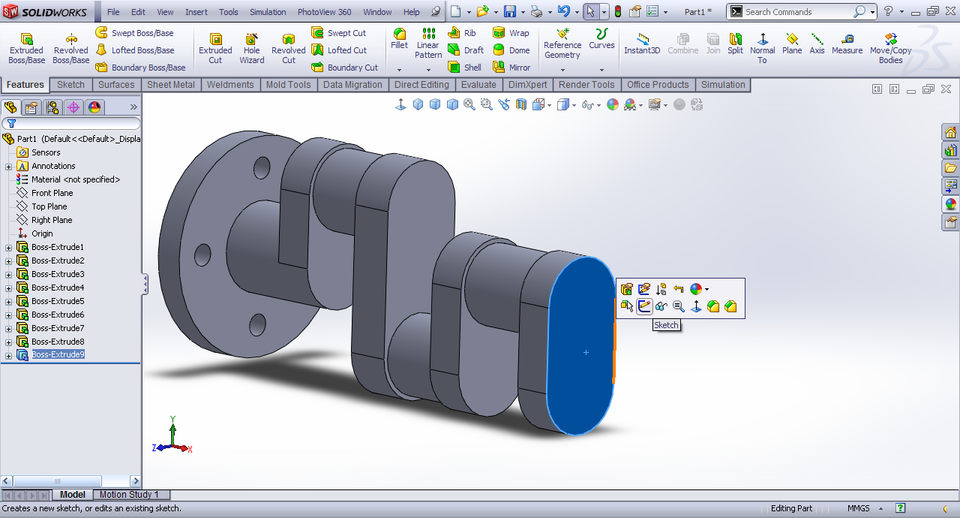

  Right face>>Sketch.
29. Step 29

  Convert the circular edge.
30. Step 30

  Extrude it by 35mm.
31. Step 31

  Right face>>Sketch.
32. Step 32

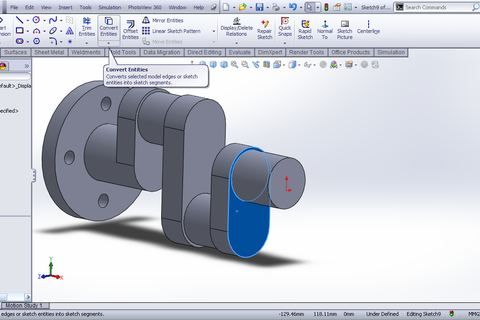

  Convert this face since the profile is same.
33. Step 33

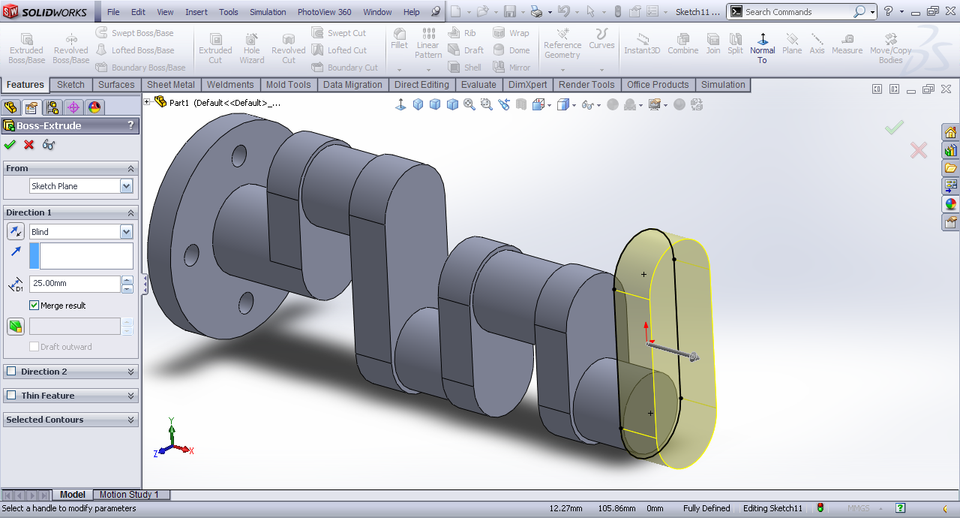

  Extrude it by 25mm.
34. Step 34

  Right face>>Sketch.
35. Step 35

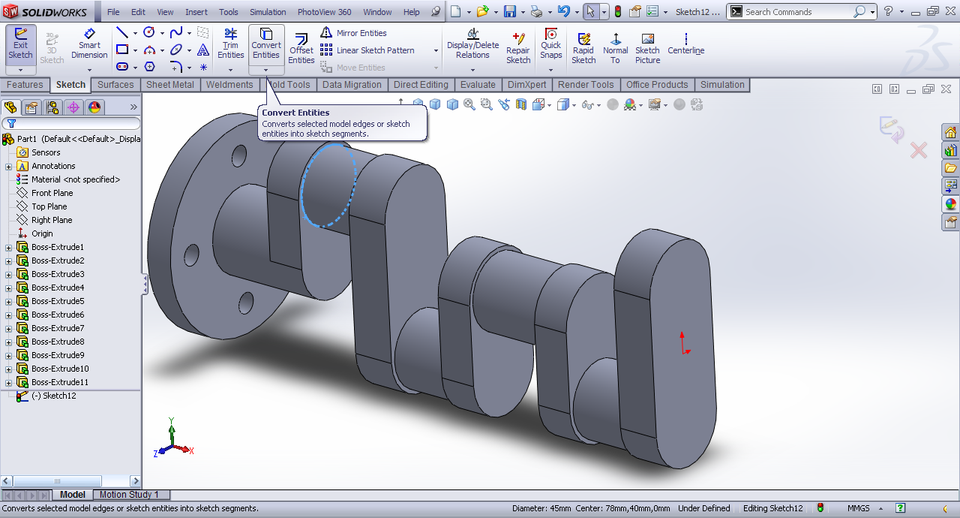

  Convert the cirular edge from 4th extrusion.

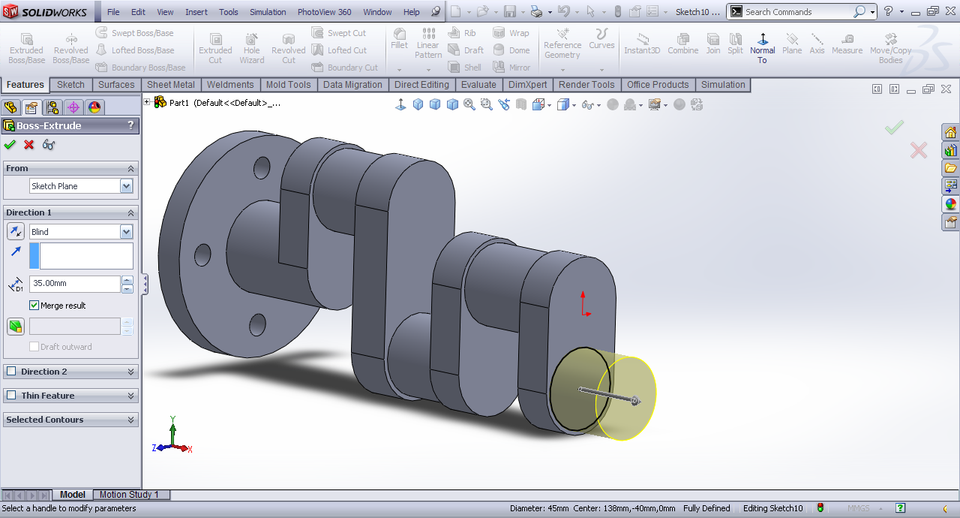

36. Step 36

  Extrude it by 35mm.
37. Step 37

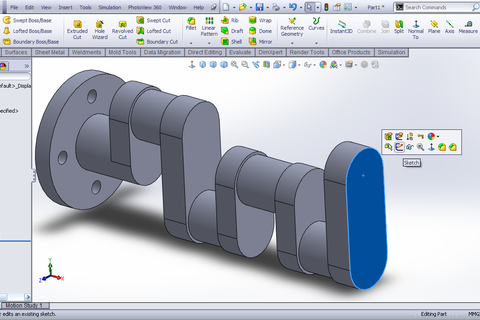

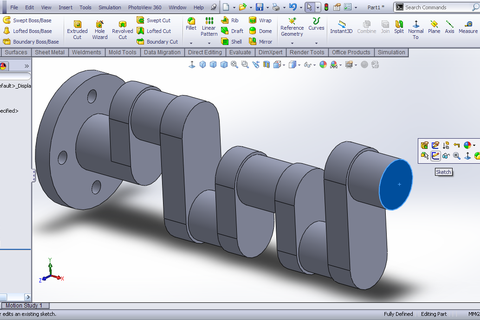

  Right face>>Sketch.
38. Step 38

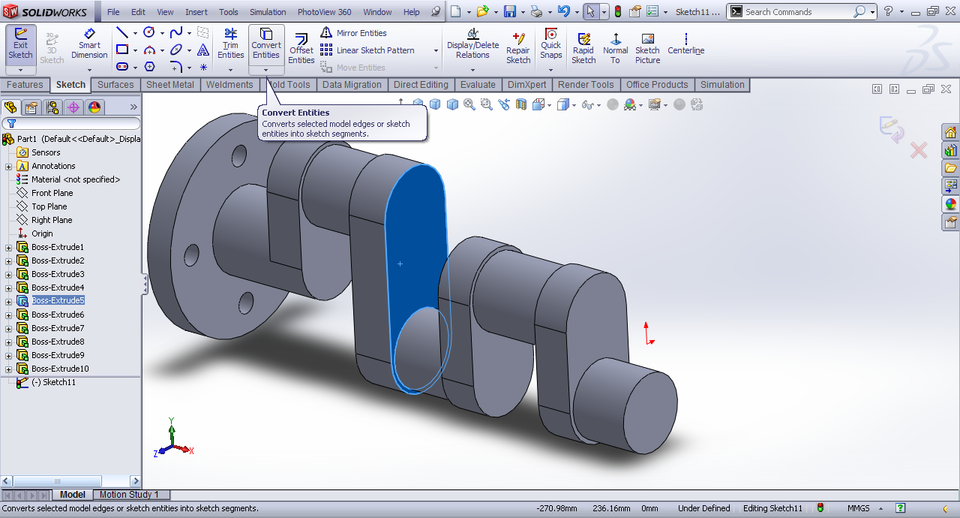

  Select the 3rd extrusion face and convert entities.
39. Step 39

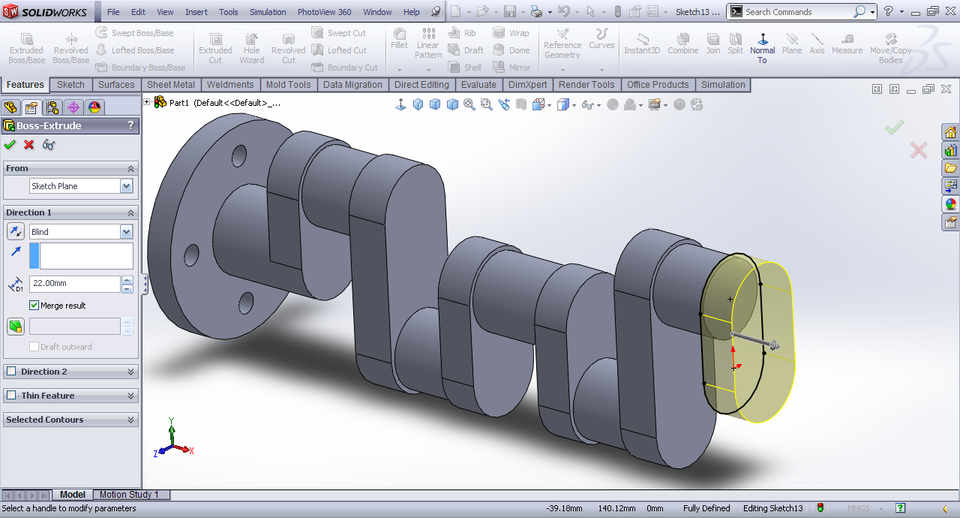

  Extrude it by 22mm.
40. Step 40

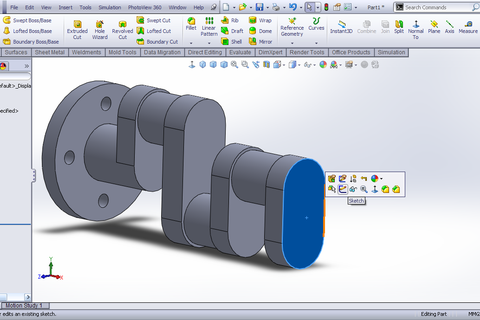

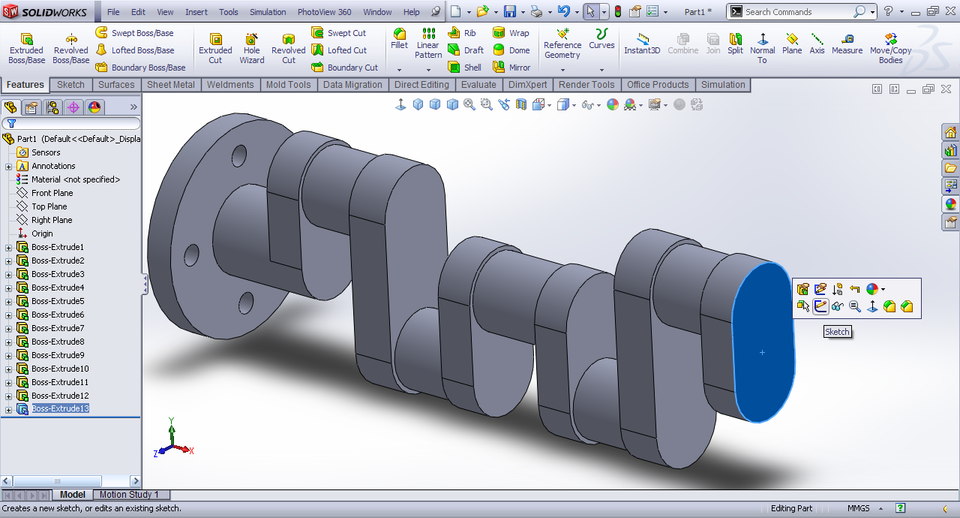

  Right face>>Sketch.
41. Step 41

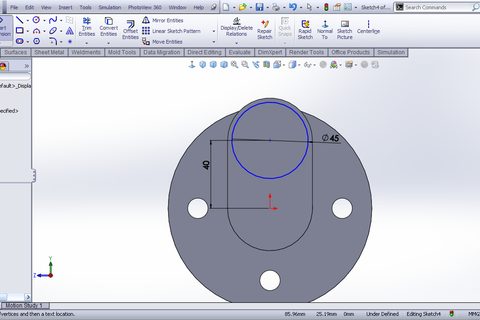

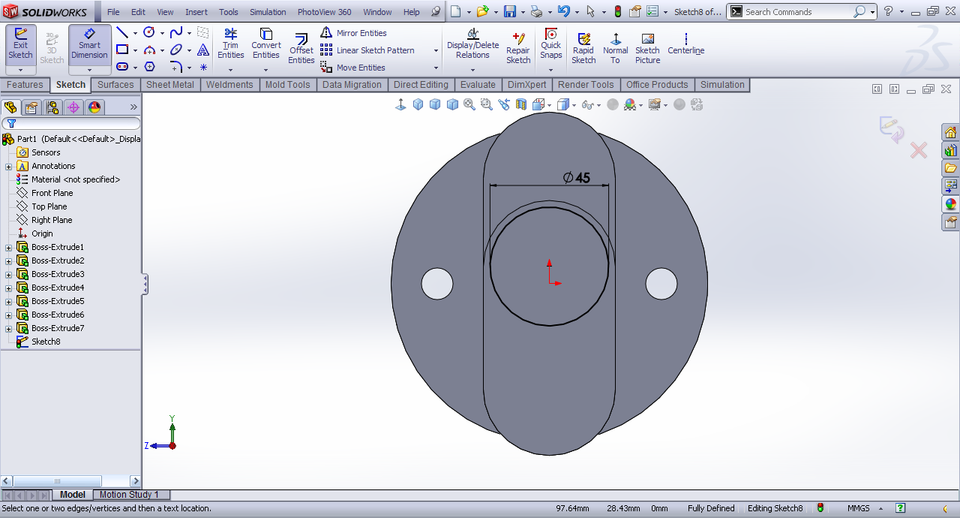

  Draw a circle of 45mm dia.

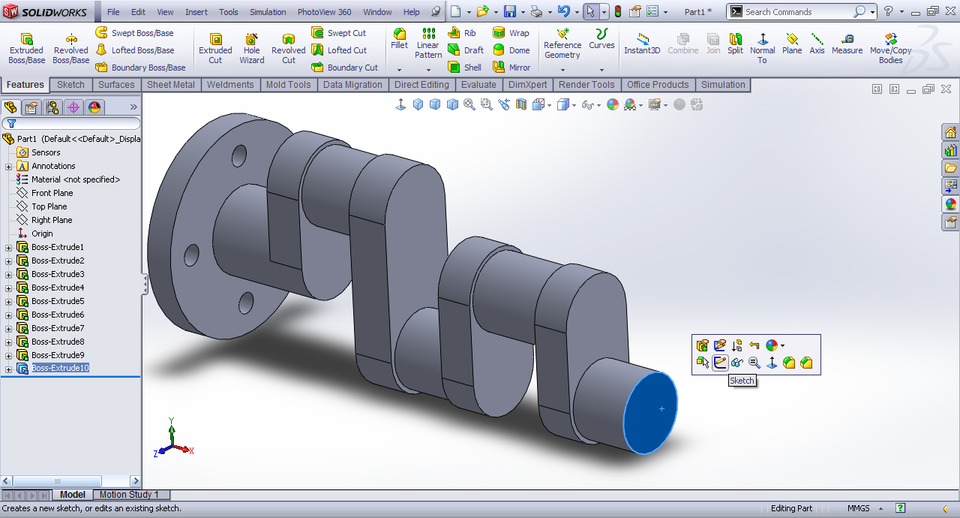

42. Step 42

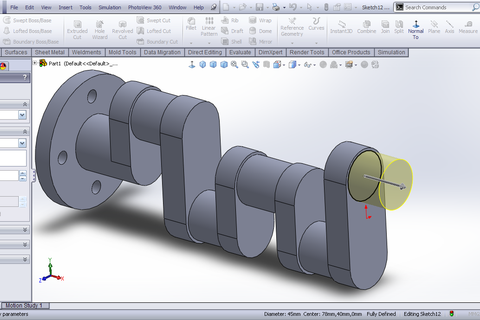

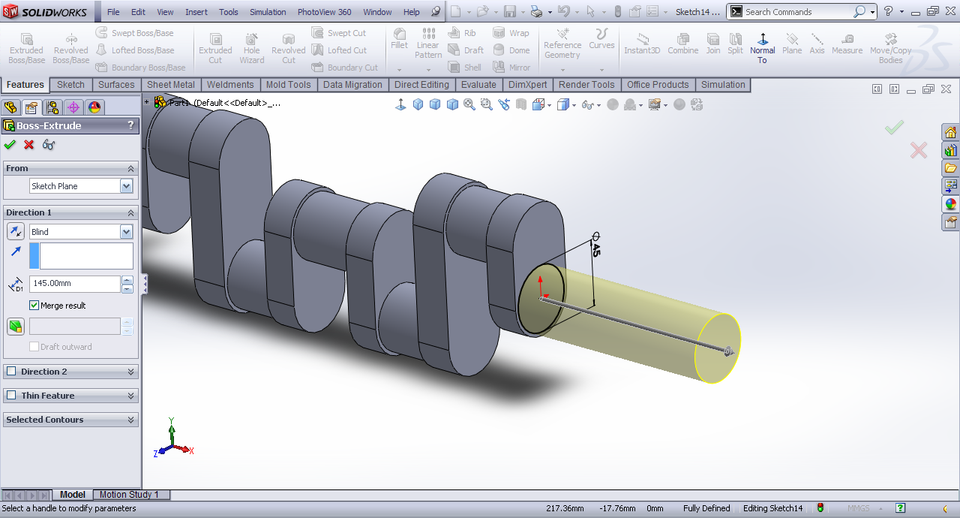

  Extrude it by 145mm.
43. Step 43

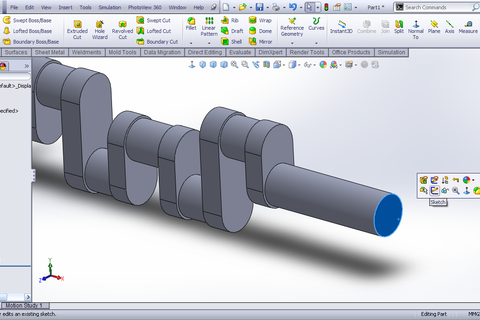

  Right face>>Sketch.
44. Step 44

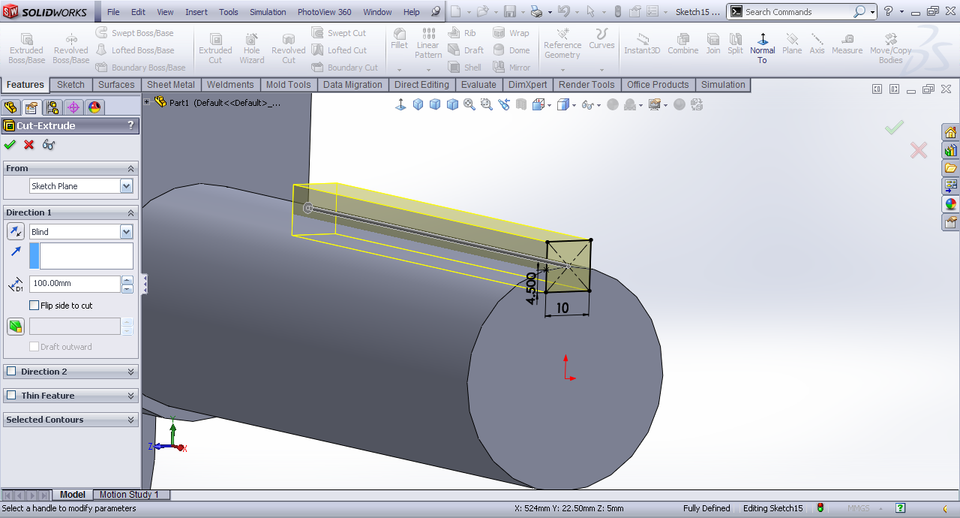

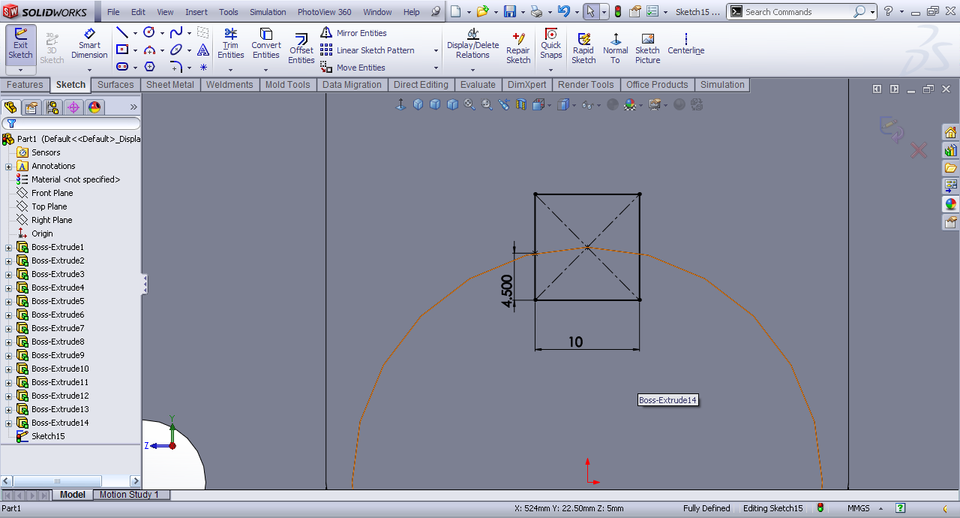

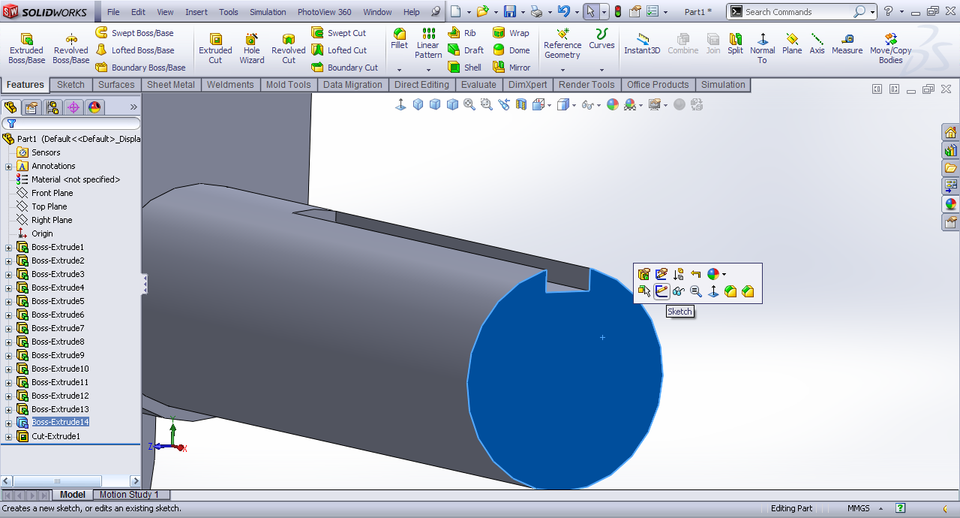

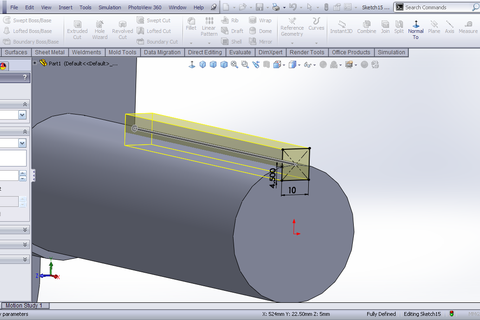

  Draw a rectangle of this dimension with one point coincident on the circular edge at a distance of 4.5mm.
45. Step 45

  Extrude cut it by 100mm.
46. Step 46

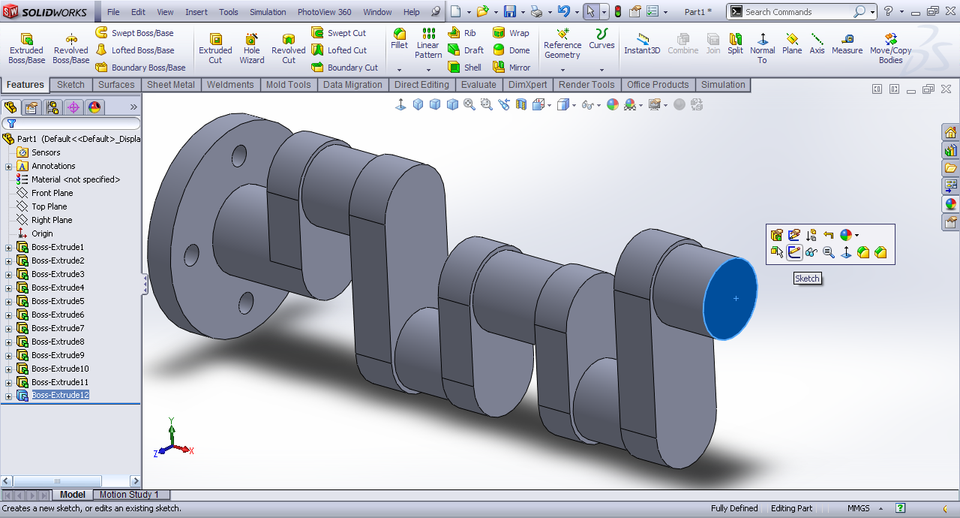

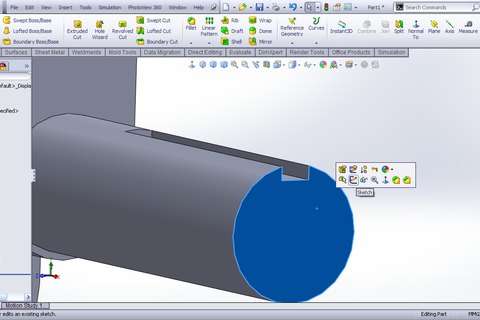

  Right face>>Sketch.
47. Step 47

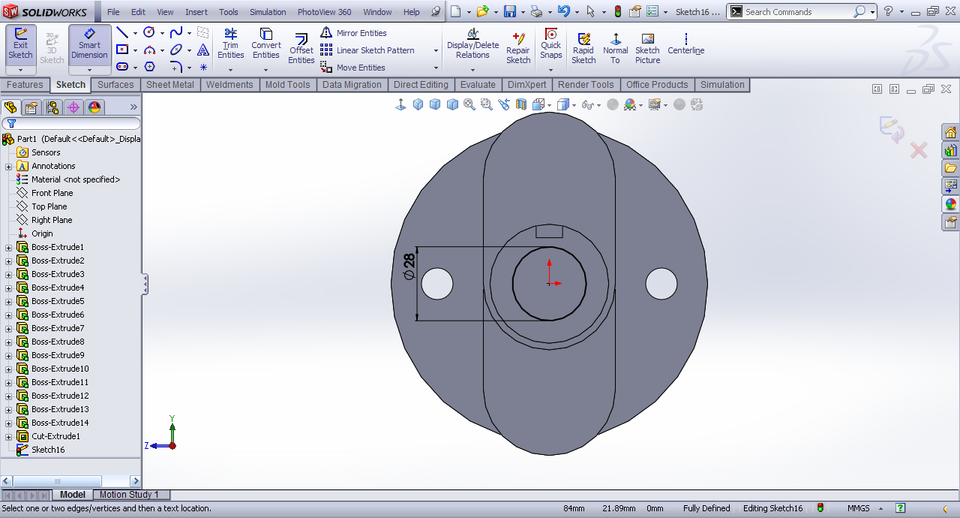

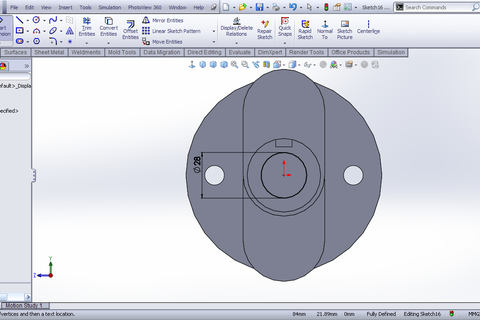

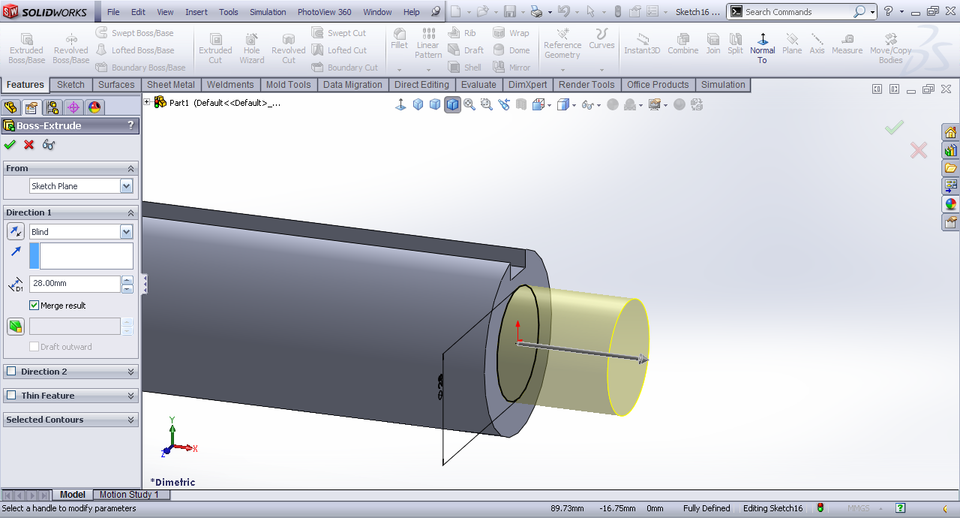

  Draw a circle of 28mm.
48. Step 48

  Extrude it by 28mm.
49. Step 49

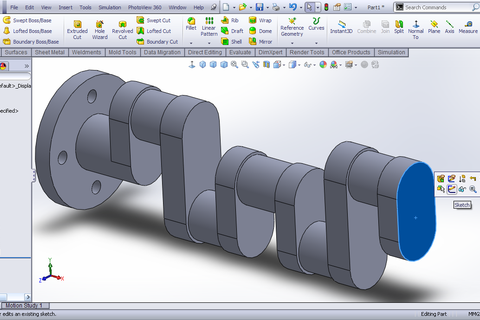

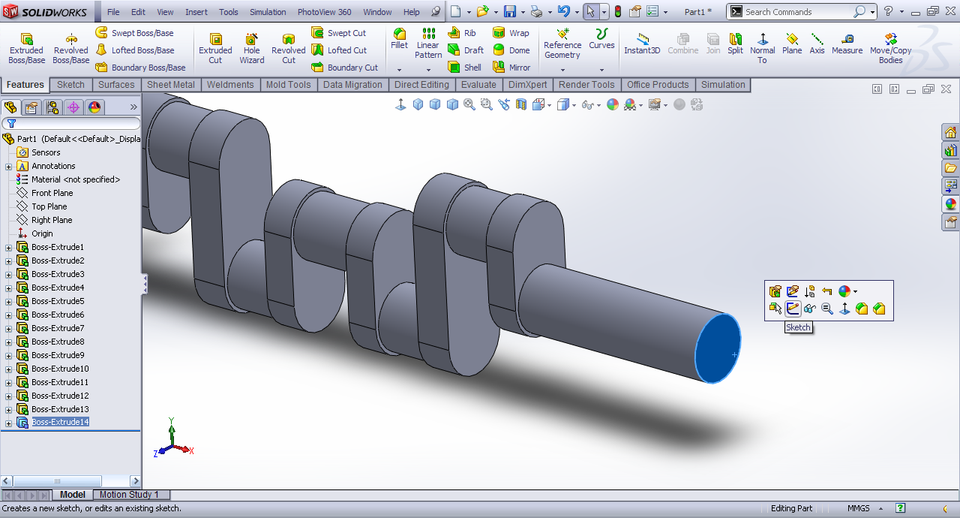

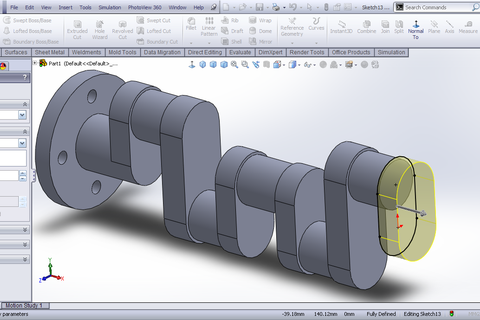

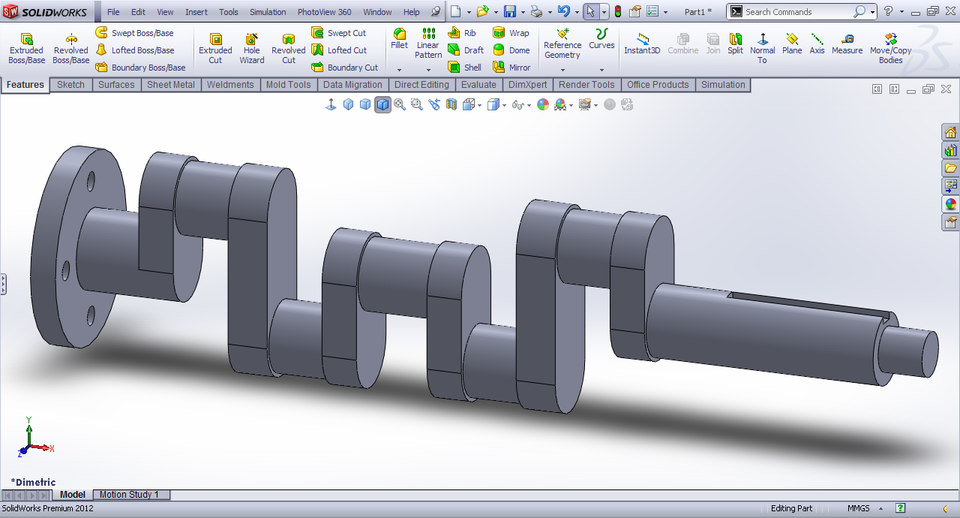

  We have the crank shaft.
