  Here is the tutorial.

  1. Step 1

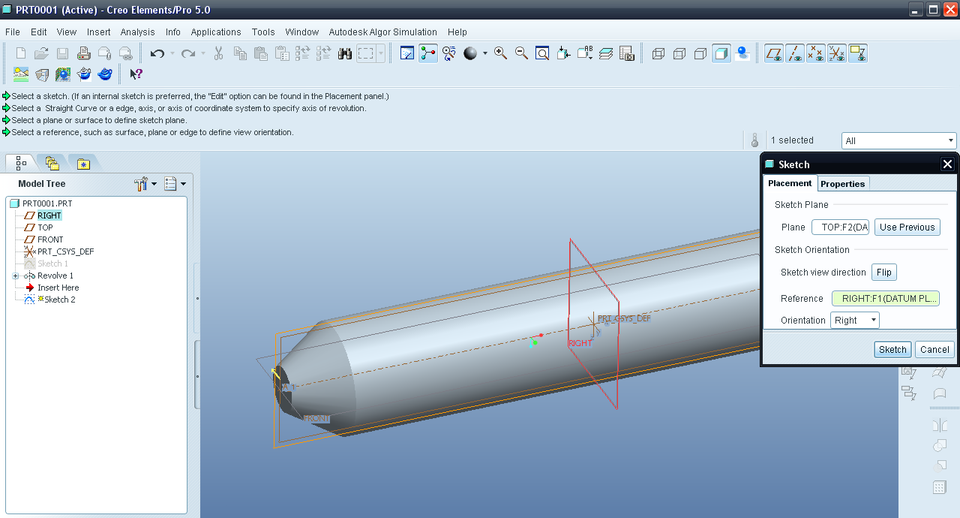

     Sketch >> Top plane.



  2. Step 2

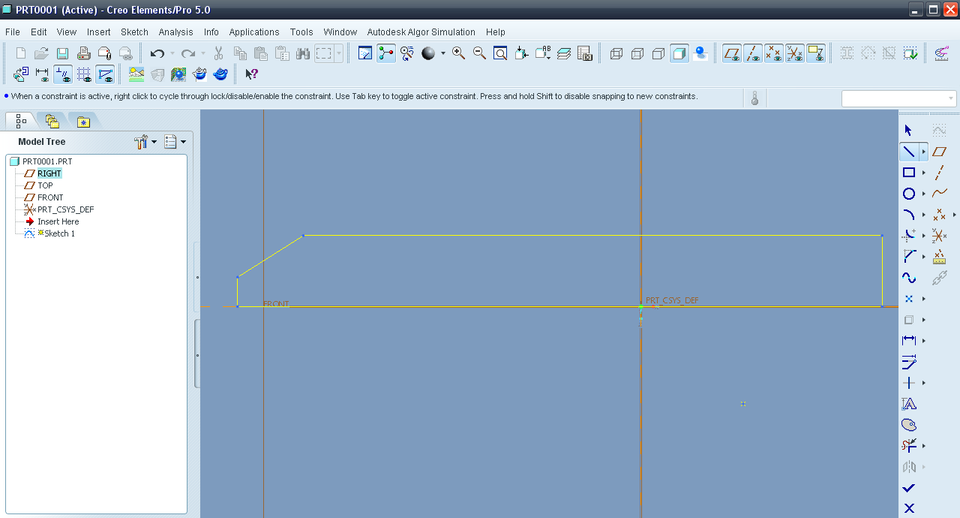

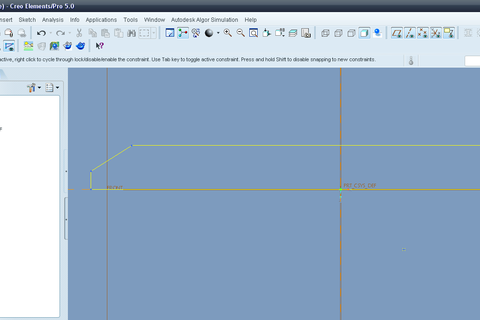

     Draw this profile.



  3. Step 3

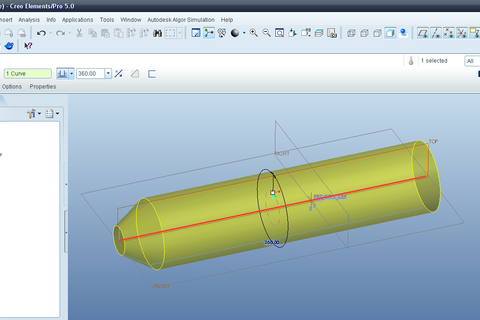

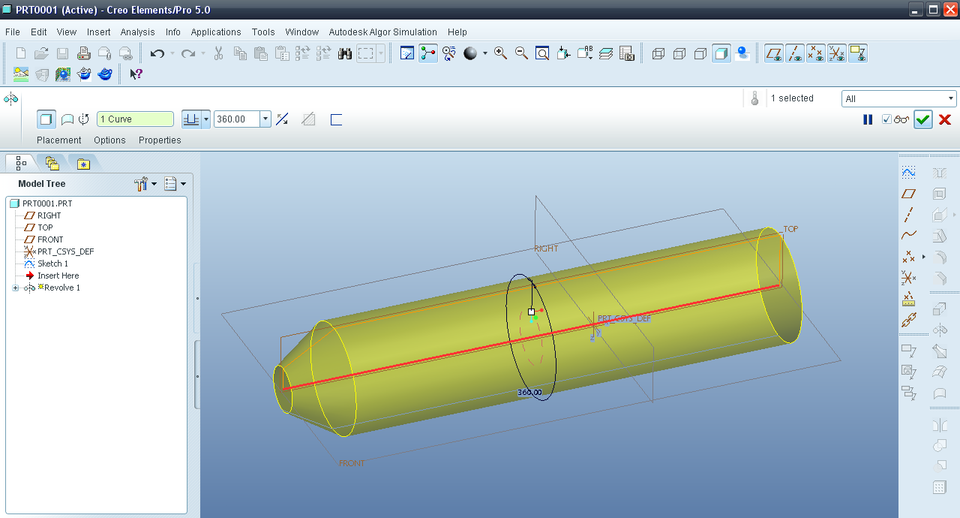

     Revolve it about base line.



  4. Step 4

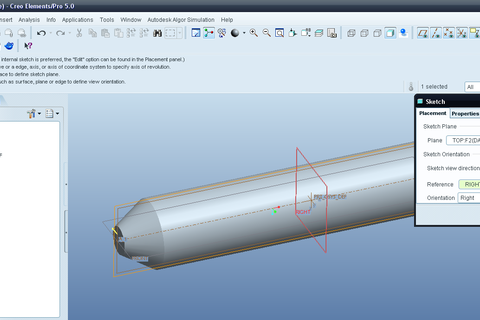

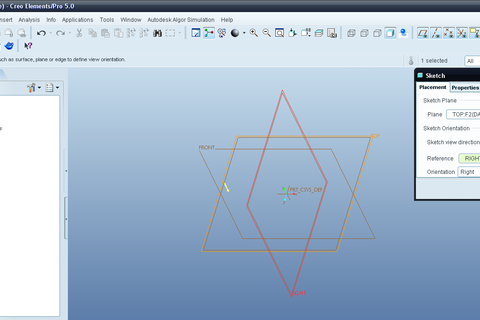

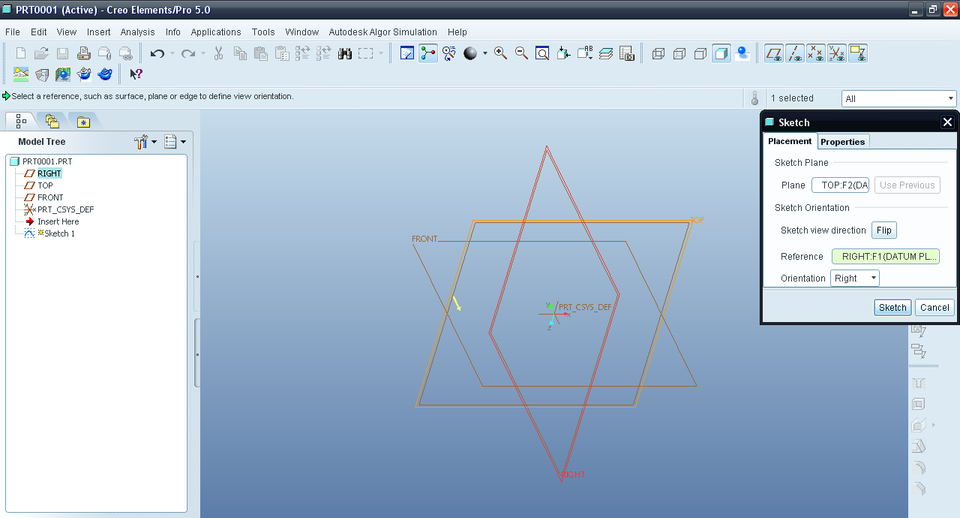

     Again Sketch >> Top plane.



  5. Step 5

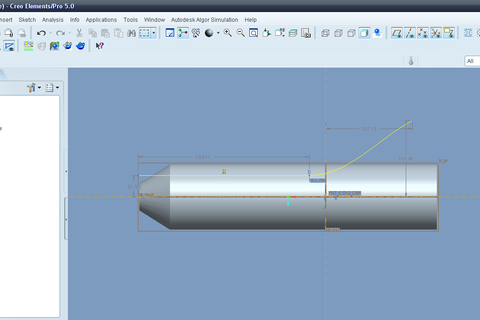

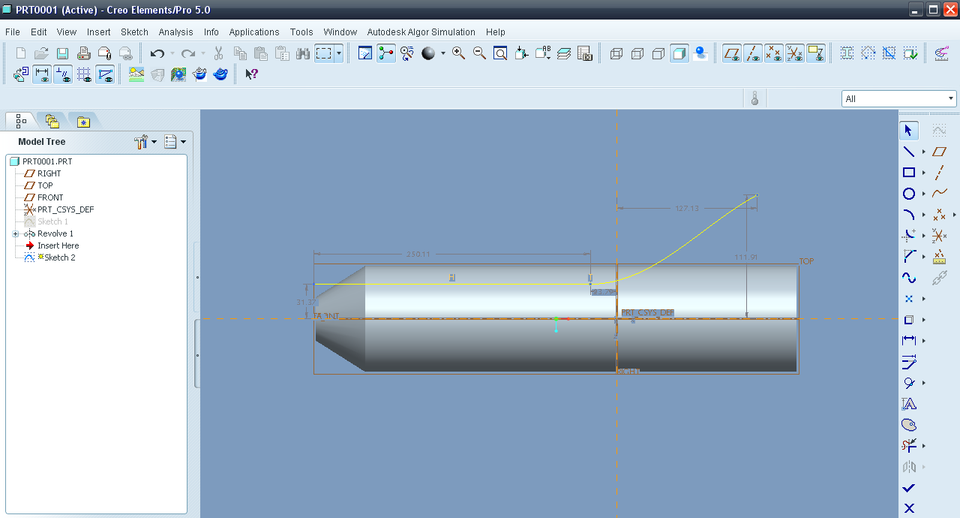

     Draw a line and spline tangent to it.



  6. Step 6

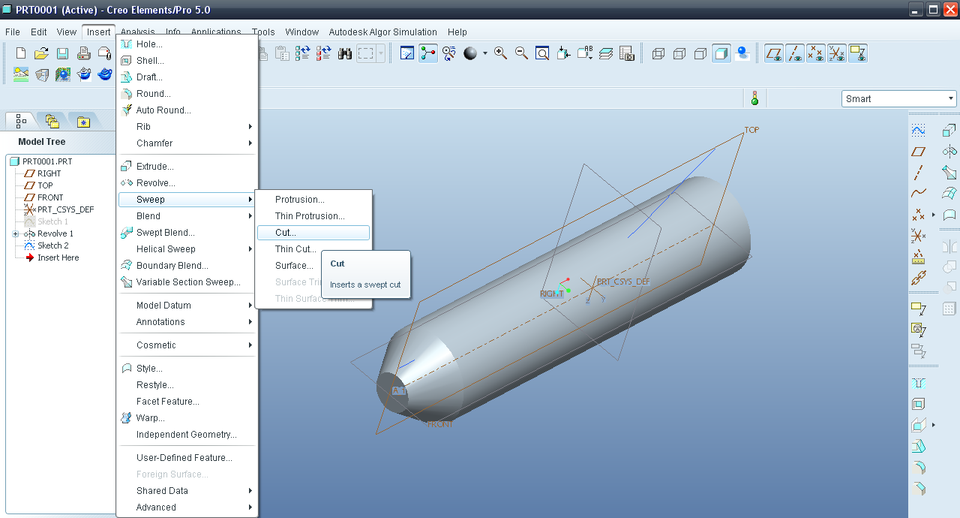

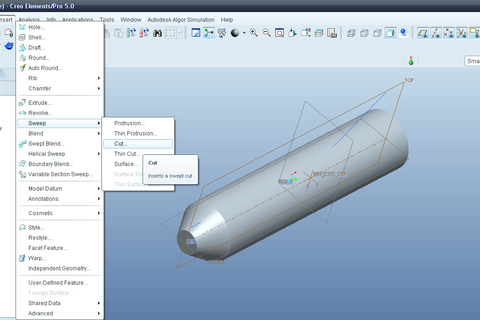

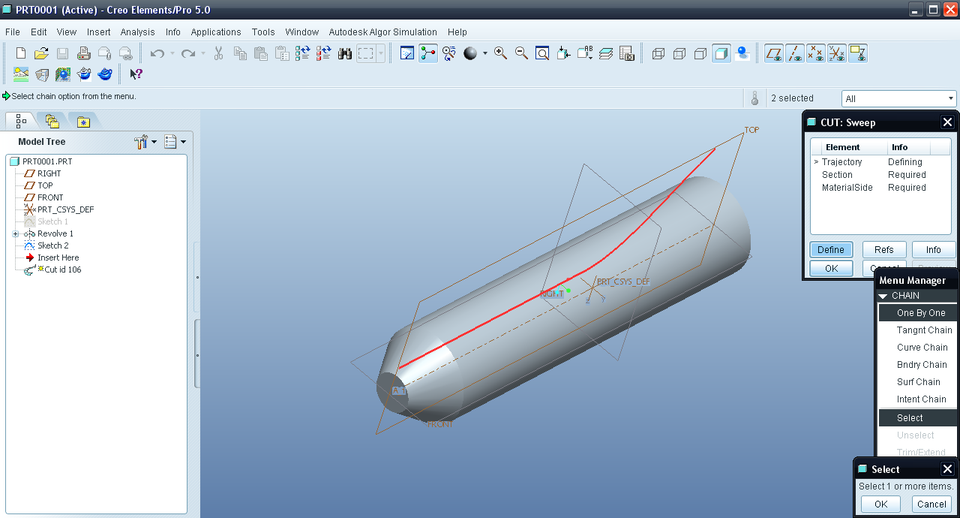

     Exit the sketch and go to Insert >> Sweep >> Cut.



  7. Step 7

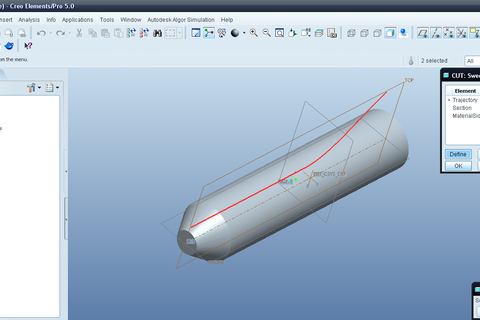

     Press CTRL and then select both line and spline and press middle mouse button.



  8. Step 8

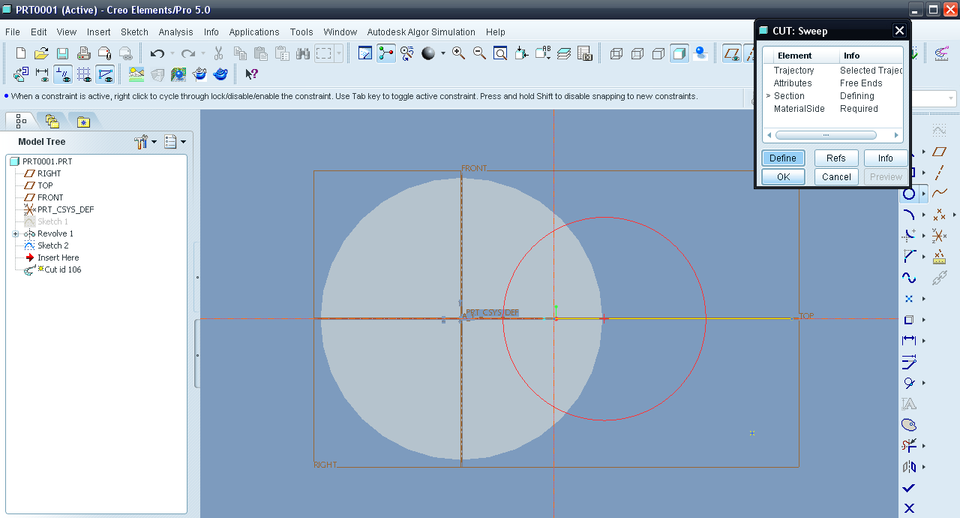

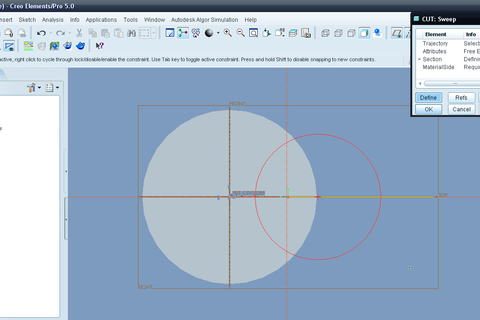

     For section draw a circle with center outside the drill body.



  9. Step 9

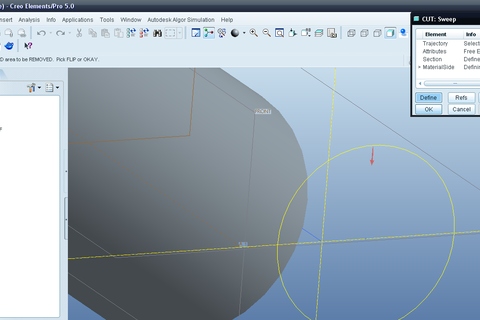

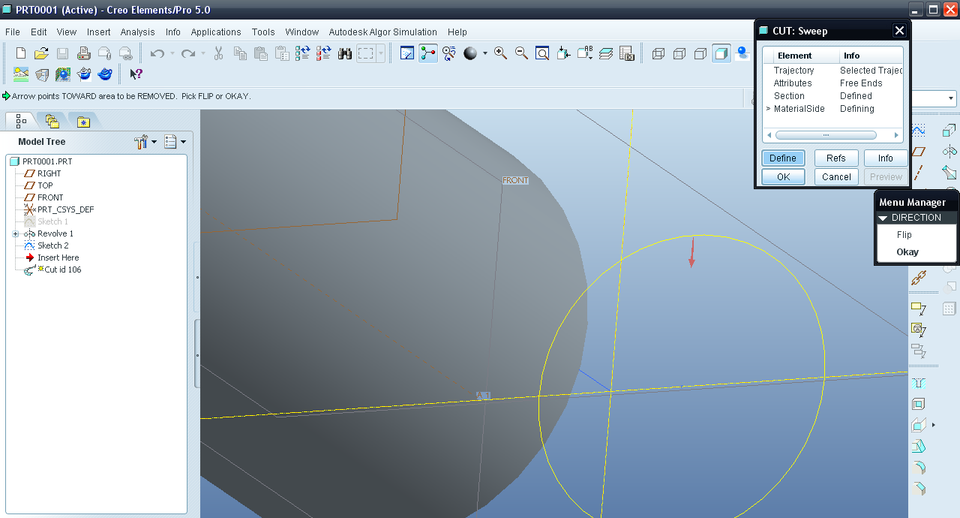

     Material side be inside the circle.



  10. Step 10

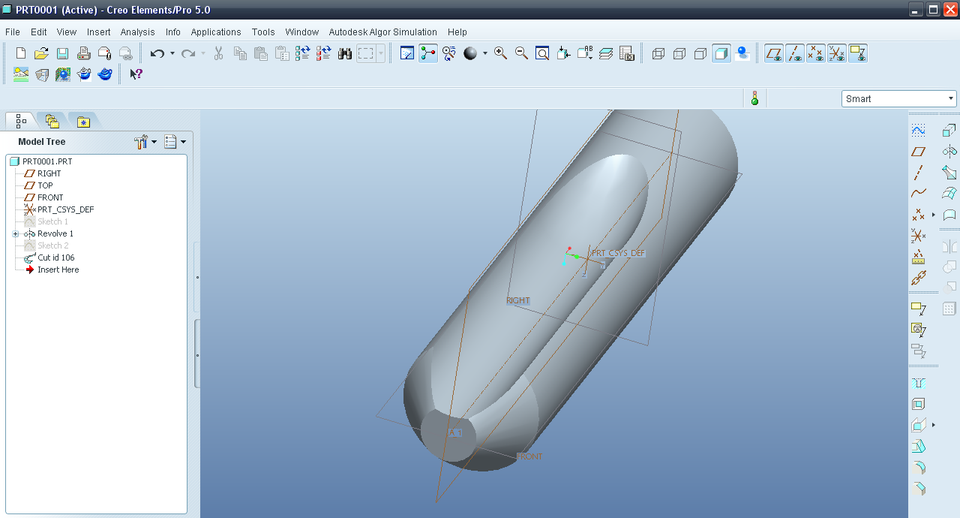

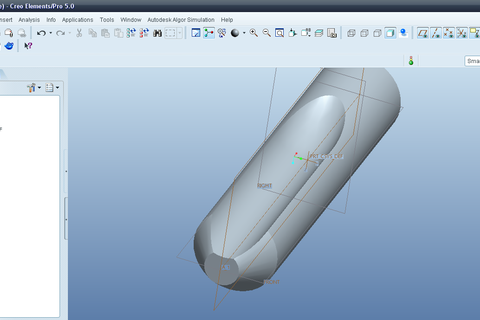

      Click OK and the feature is generated.



  11. Step 11

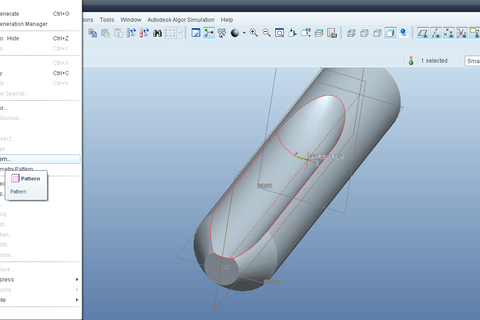

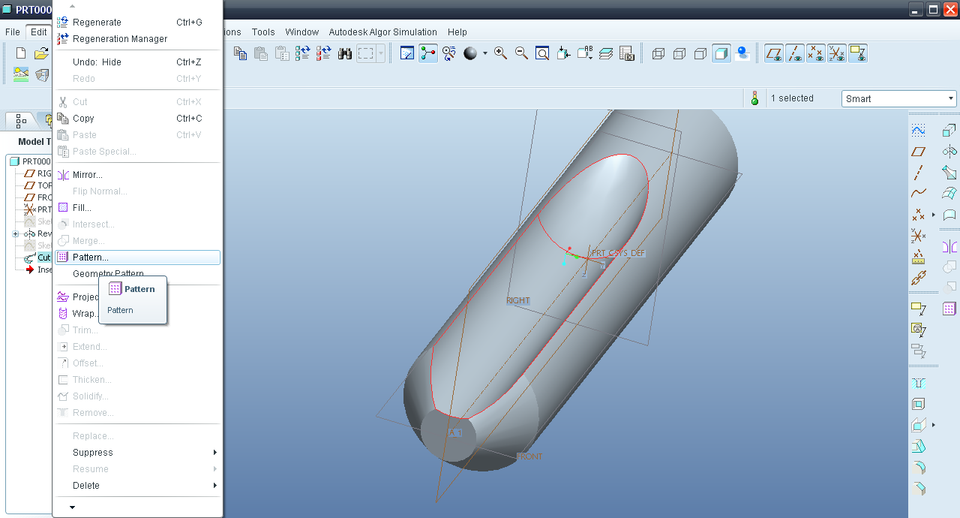

      Select cut feature and then Edit >> Pattern.



  12. Step 12

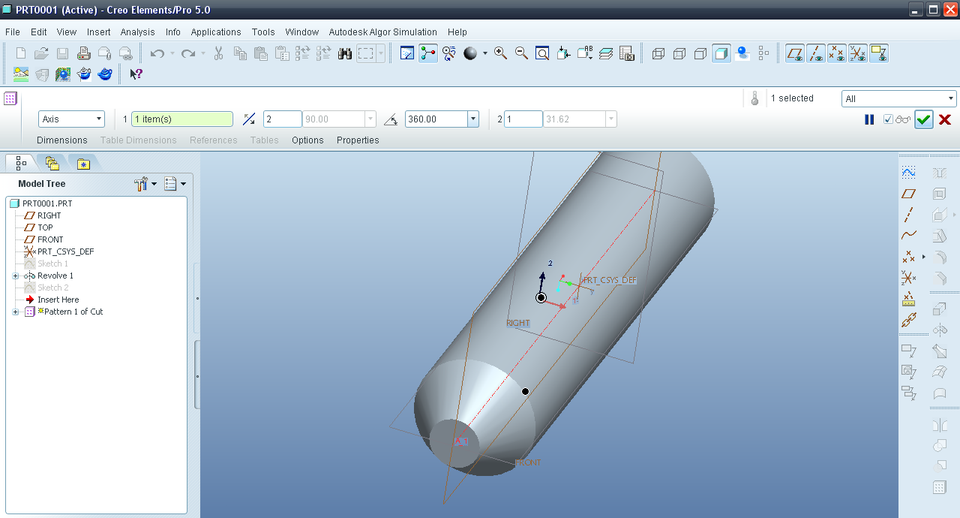

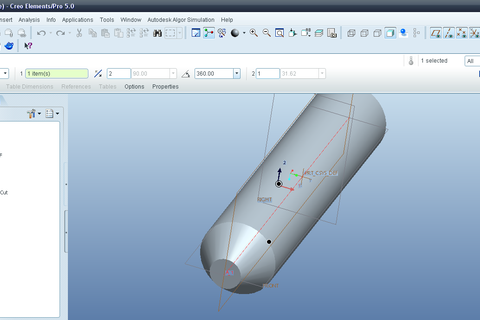

      About X-Axis at 360º two times. Click OK.



  13. Step 13

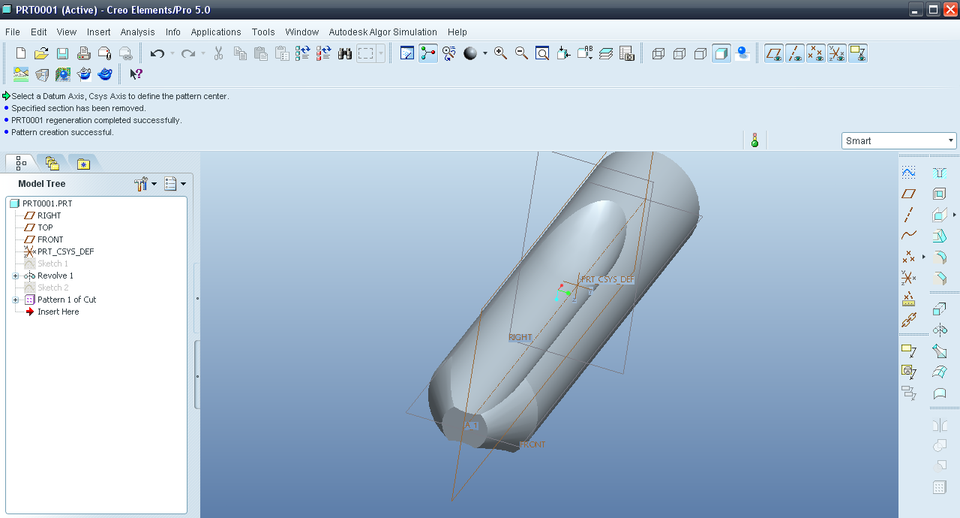

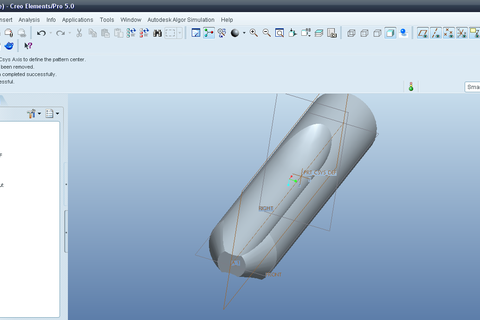

      Now we have two cut feature generated.



  14. Step 14

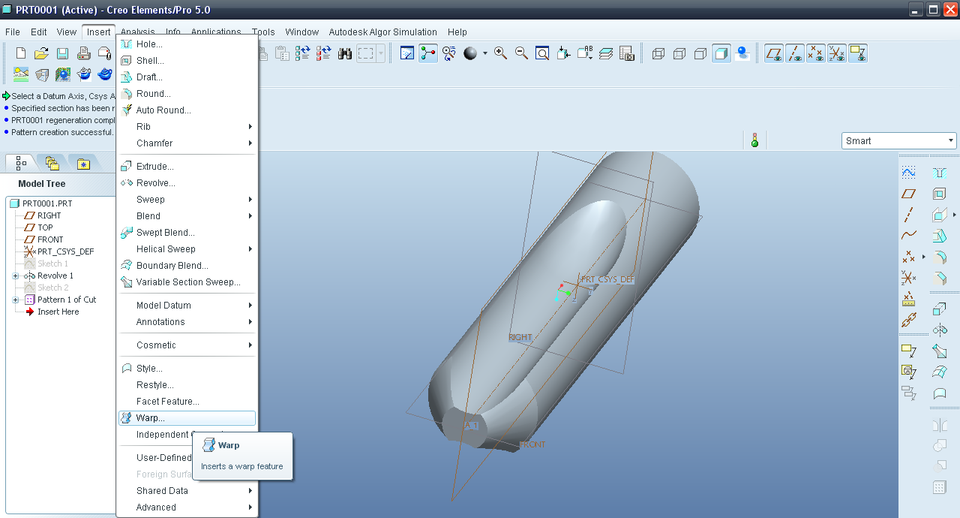

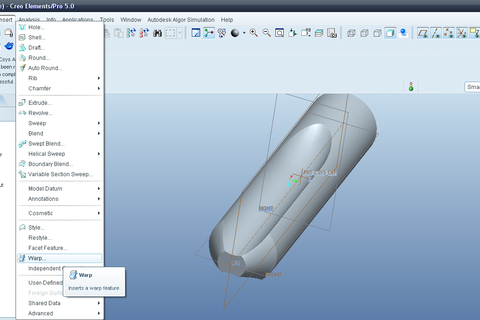

      Insert >> Warp.

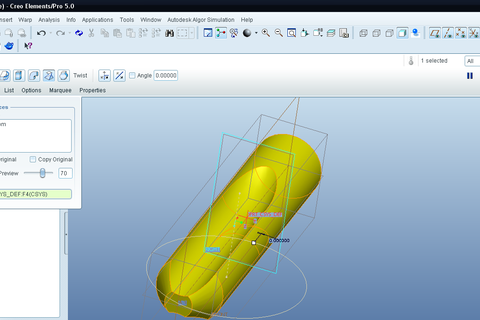

  15. Step 15

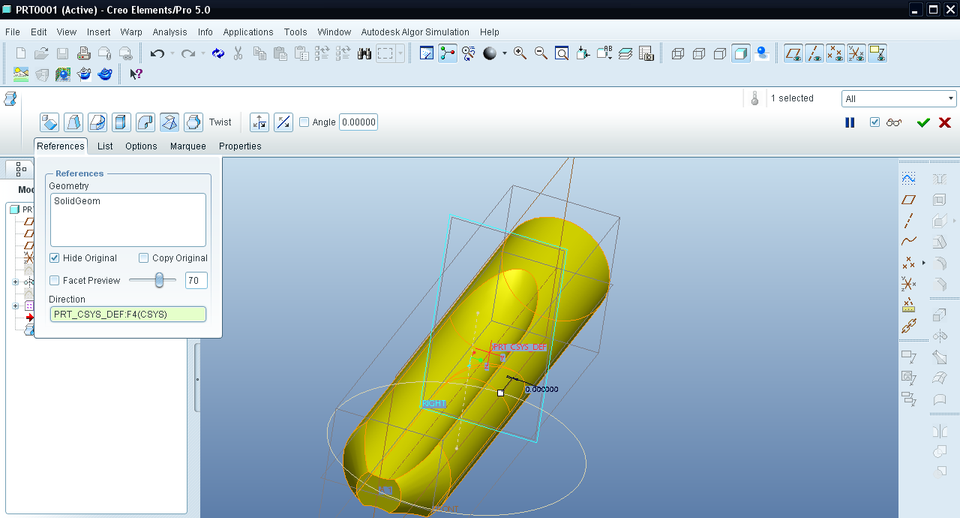

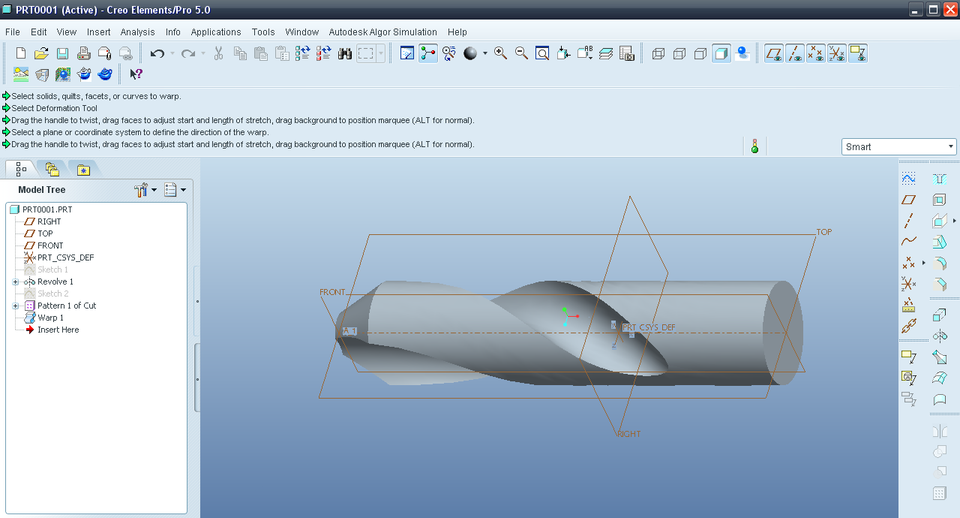

      Select the body and then twist tool. Under References change direction to Right plane.



  16. Step 16

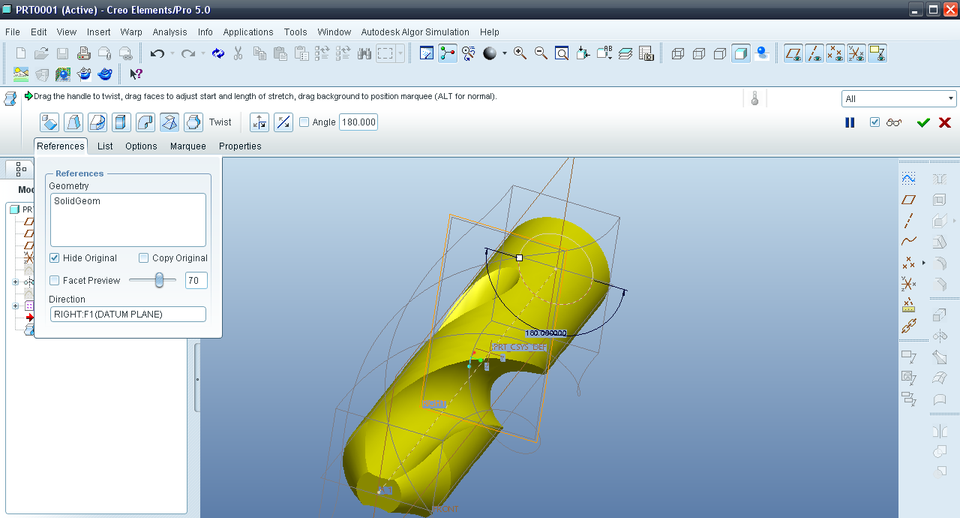

      Input the angle value 180º and click OK.



  17. Step 17

      We have drill bit generated.



  1.
     Sanjaygowda 8 months ago

     Great I learnt warp option. Thanks

  2.
     sumithkarun 11 months ago

     Good example of twisting , good work

  3.
     Pritesh Korat 10 months ago

     awesome yaaaarrr

•
  Chirag Aggarwal over 1 year ago

  Thanks yaar.....learnt something new from this!

  1.
     Sudhir Gill over 1 year ago

     The problem with the ending of the cut is solved ;D
