  Here is the tutorial.

  1. Step 1

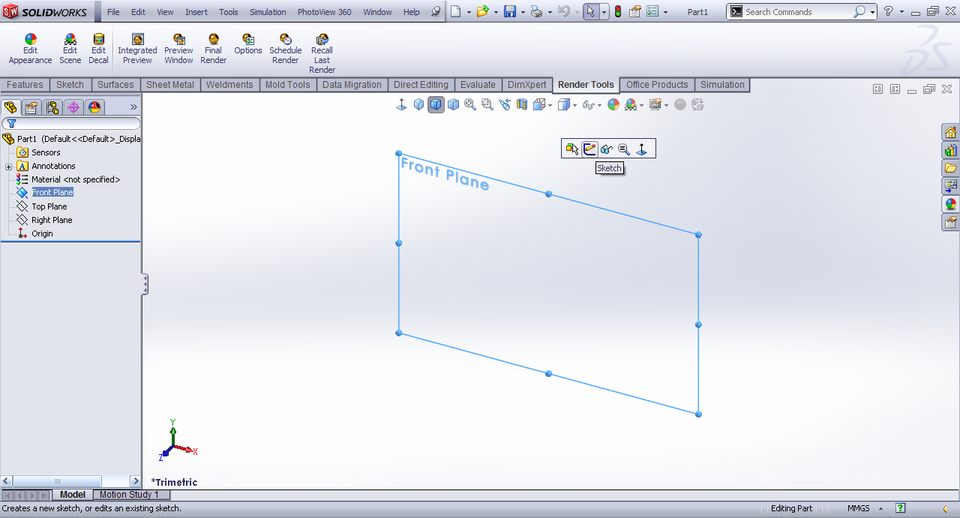

     Front Plane>>Sketch.



  2. Step 2

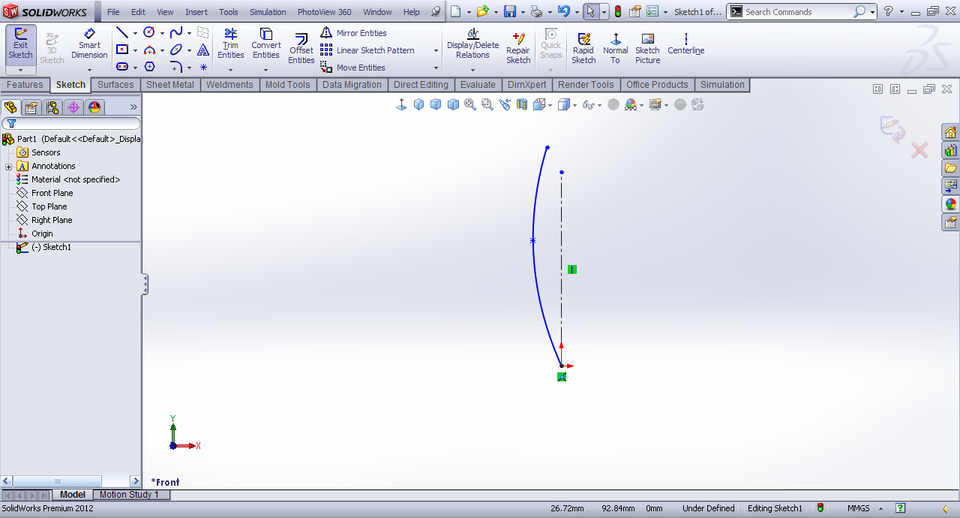

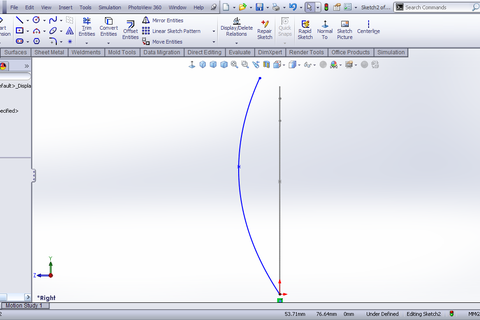

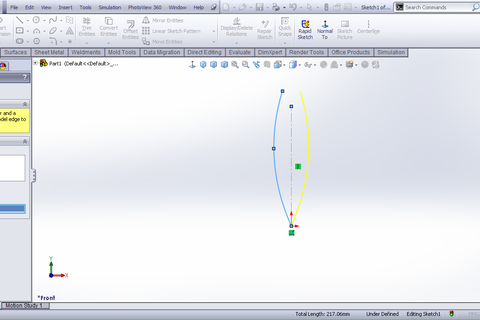

     Use Spline and make this sketch about a center line.



  3. Step 3

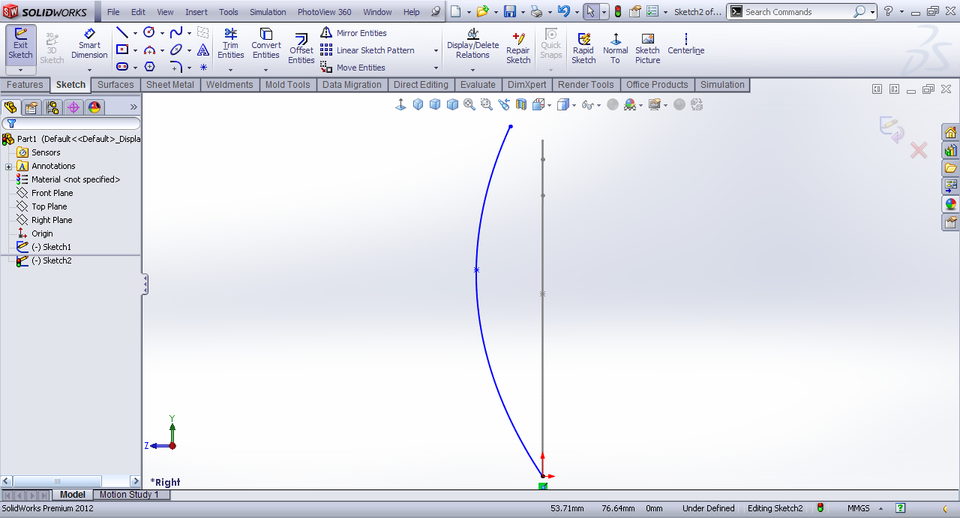

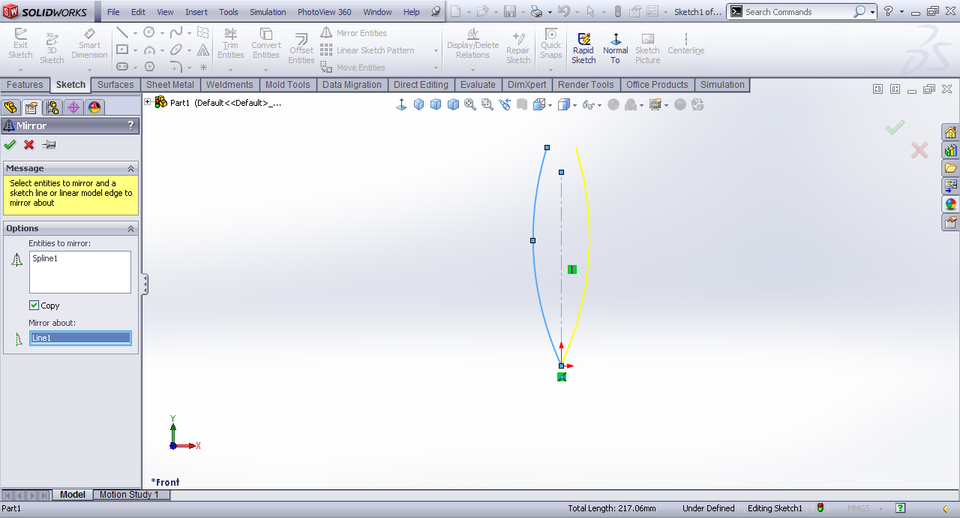

     Mirror Spline about center line.



  4. Step 4

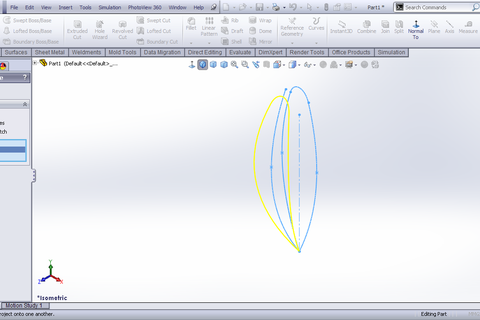

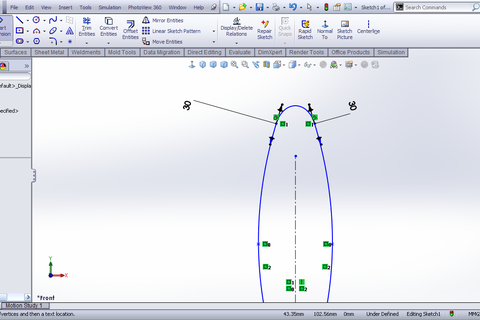

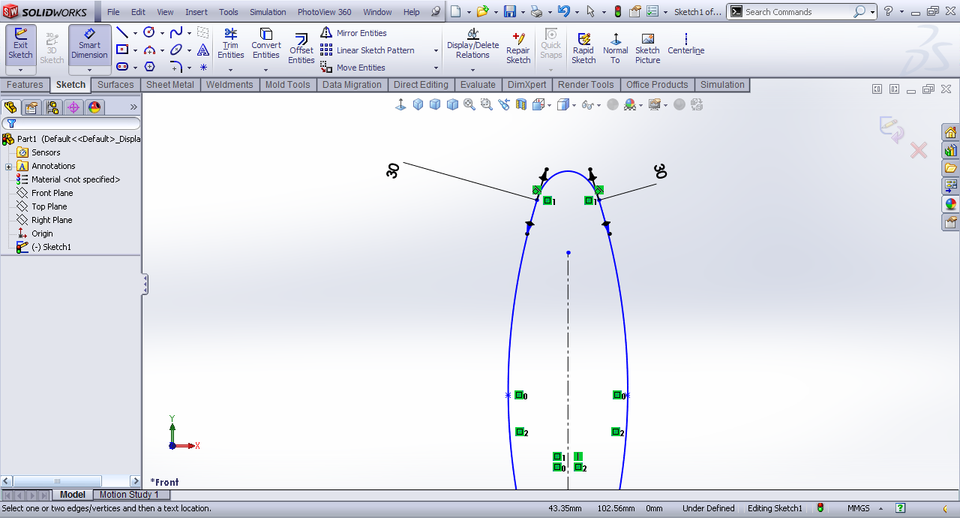

     Again make a spline about the end points of the two spline tangent to them.



  5. Step 5

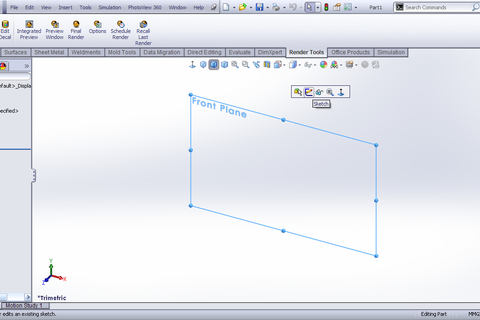

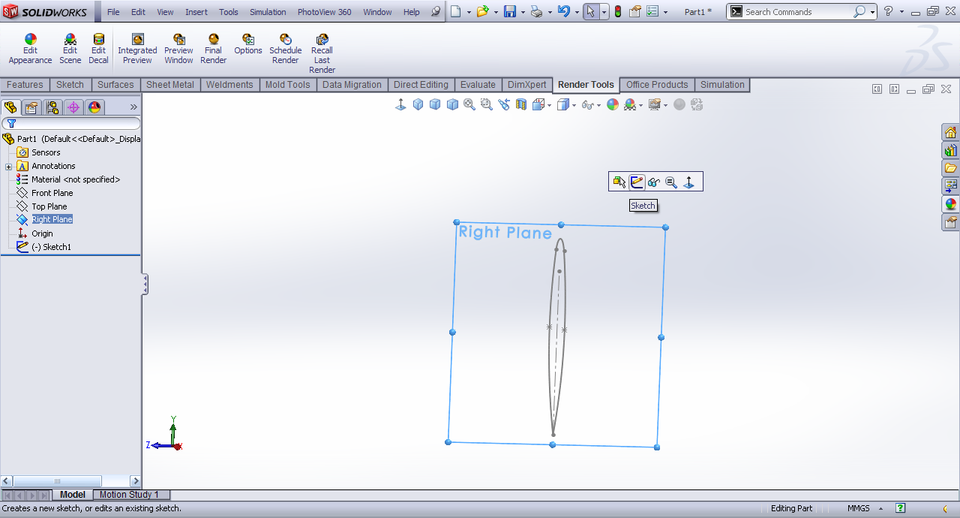

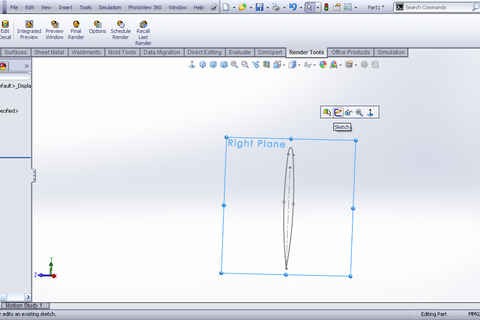

     Exit the sketch. Right plane>>Sketch.



  6. Step 6

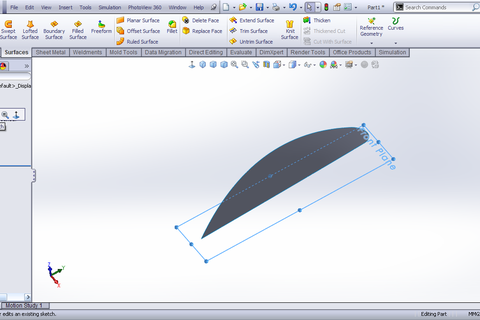

     Make a spline sketch like this.



  7. Step 7

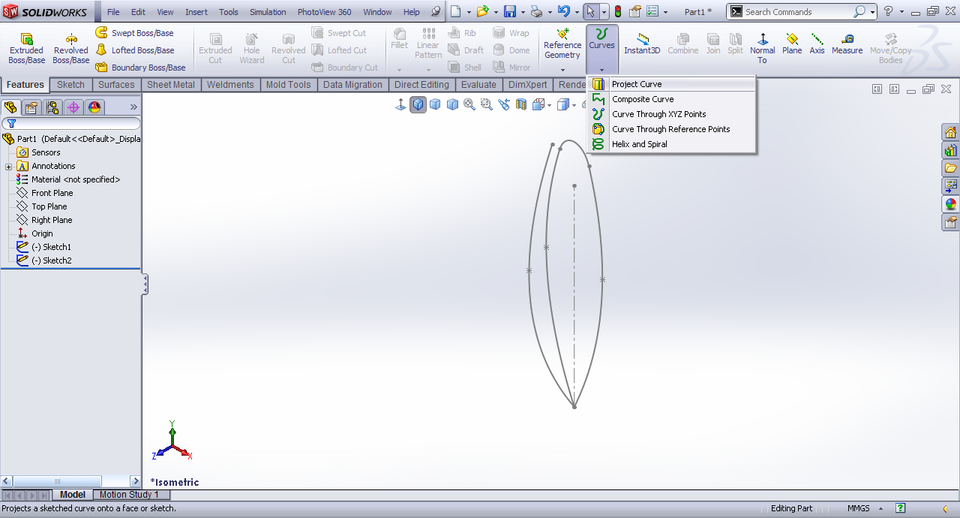

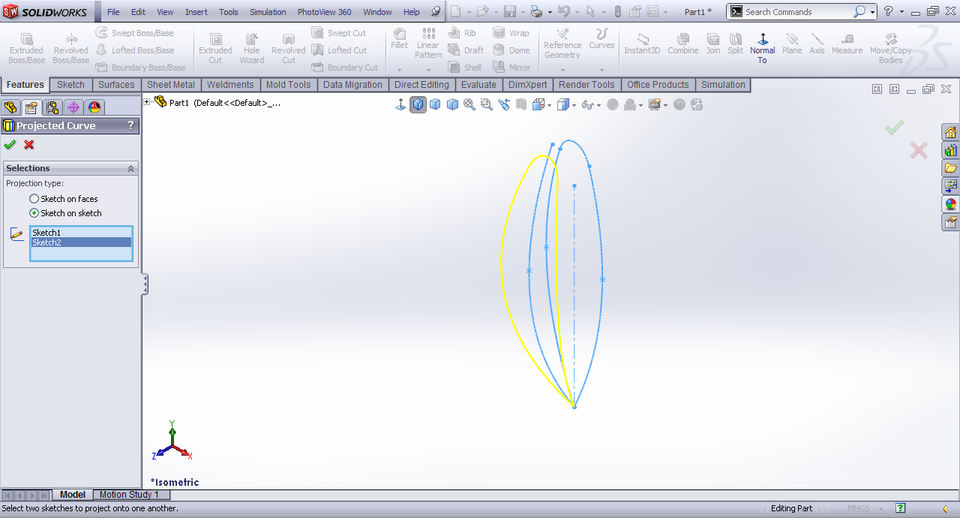

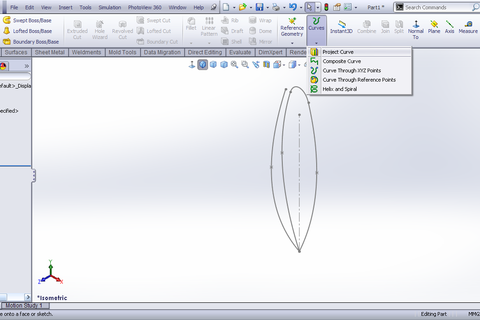

     Exit the sketch. Curves>>Project Curve.



  8. Step 8

     Select both sketches.



  9. Step 9

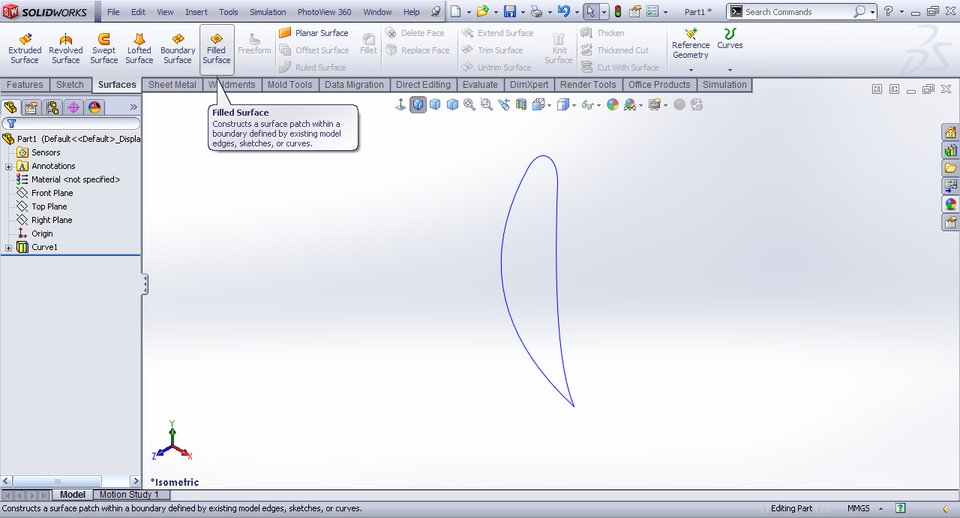

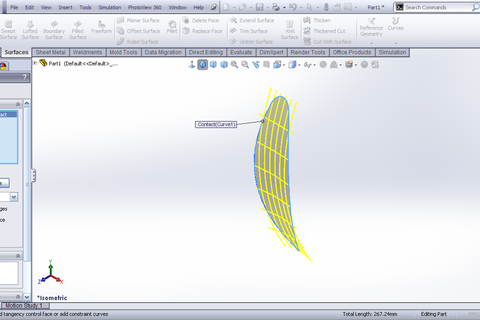

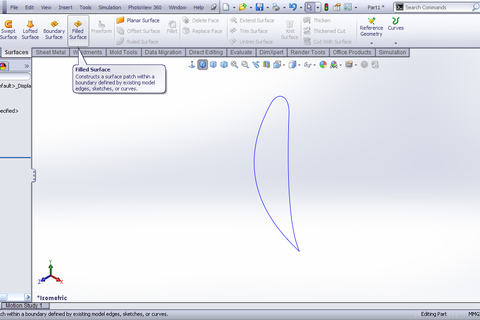

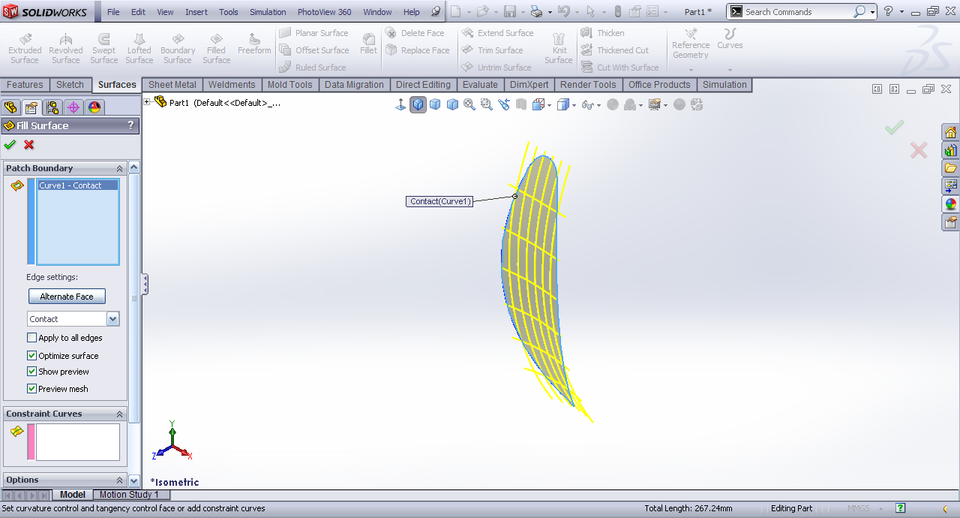

     Now Filled surface.



  10. Step 10

      Select the curve. Click OK.



  11. Step 11

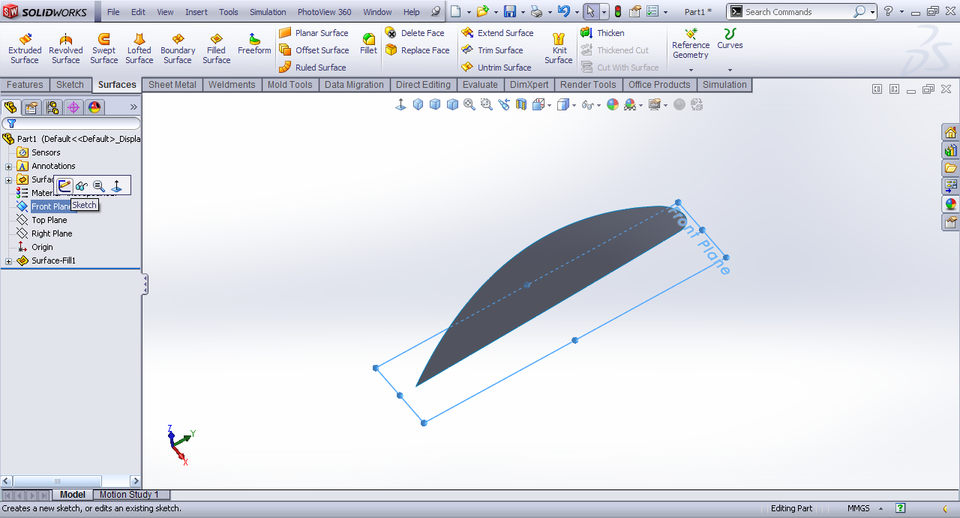

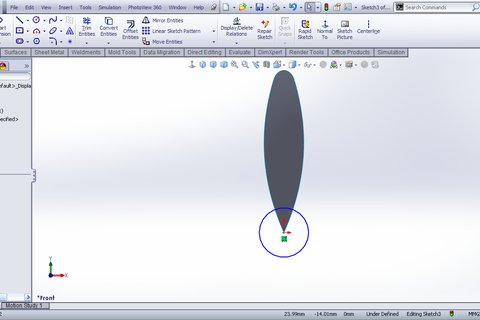

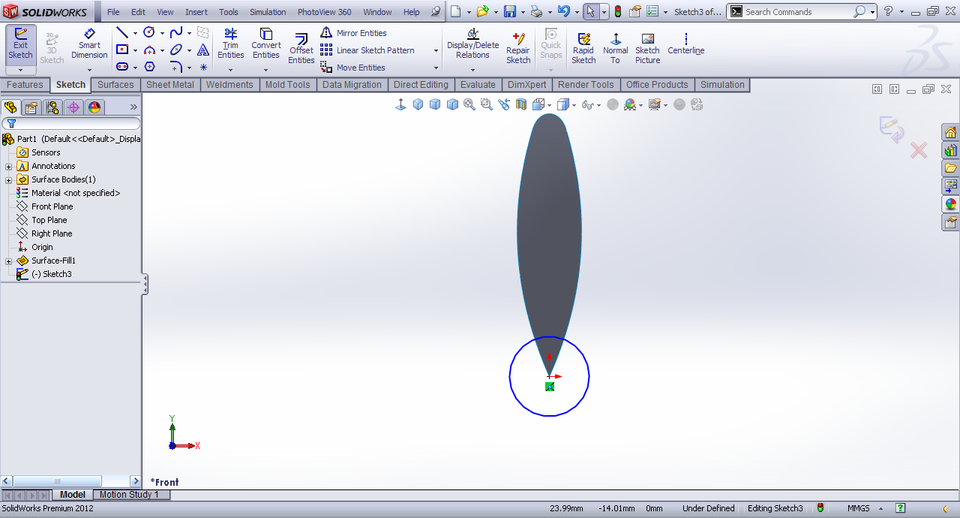

      Front plane>>Sketch.



  12. Step 12

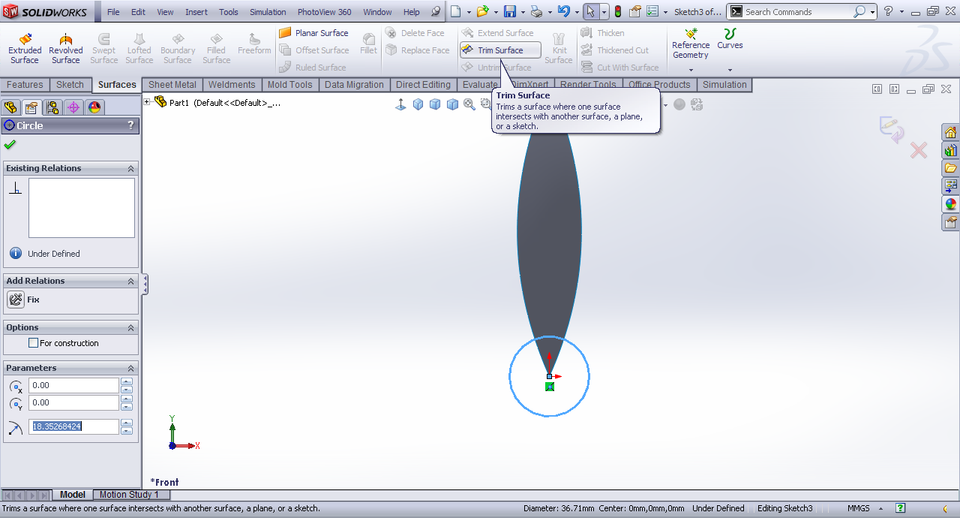

      Make a circle.



  13. Step 13

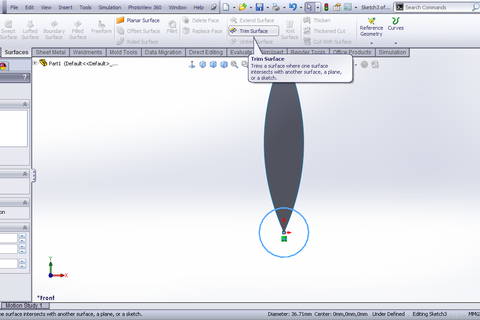

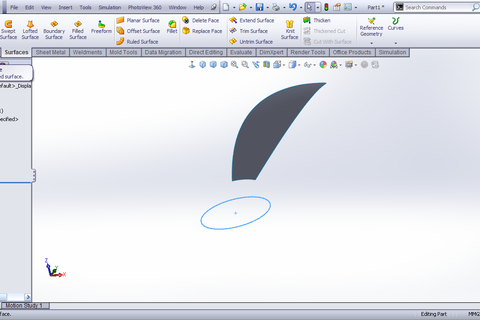

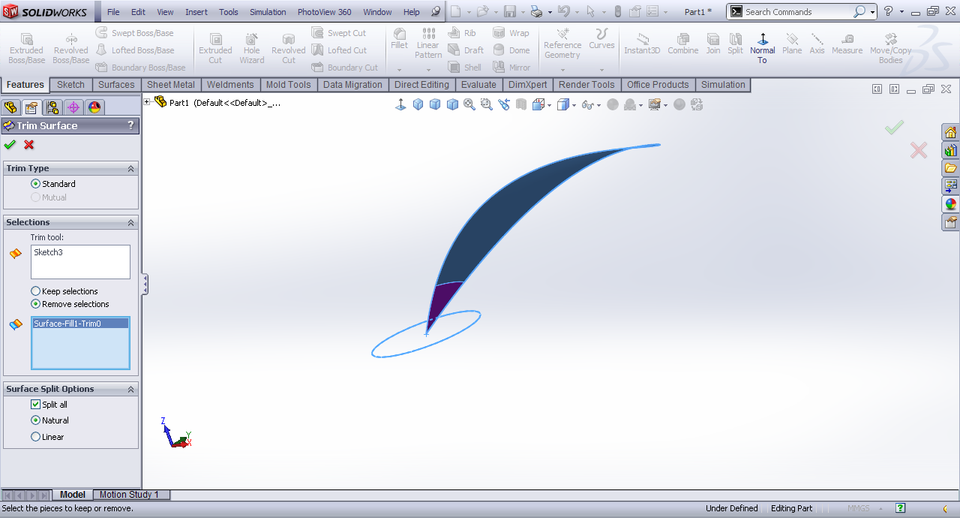

      Trim Surface.



  14. Step 14

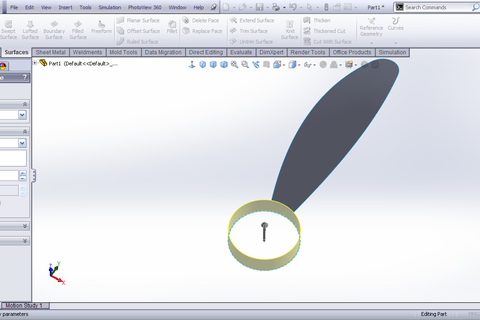

      Trim the leaf about the circle.



  15. Step 15

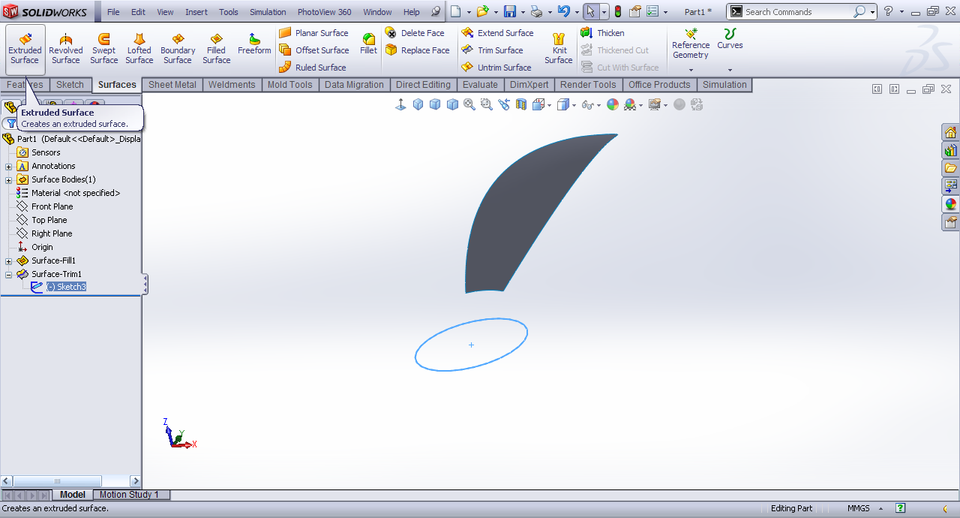

      Select the same sketch & then Extruded surface.



  16. Step 16

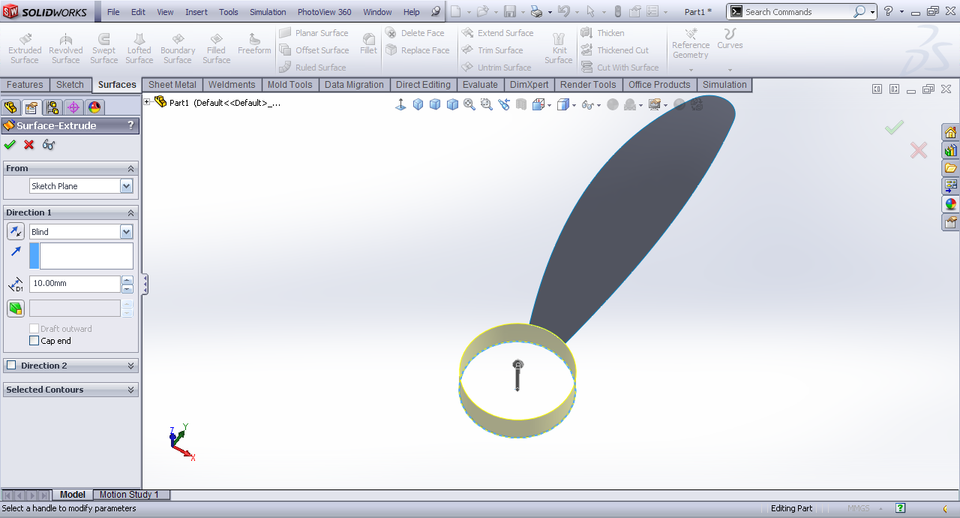

      Extrude the surface.



  17. Step 17

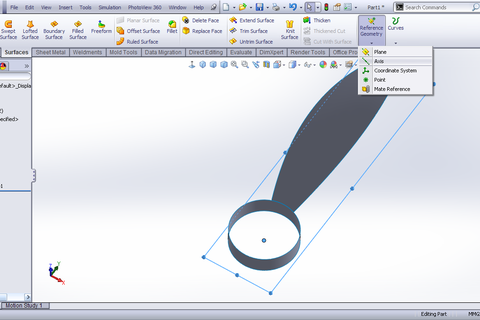

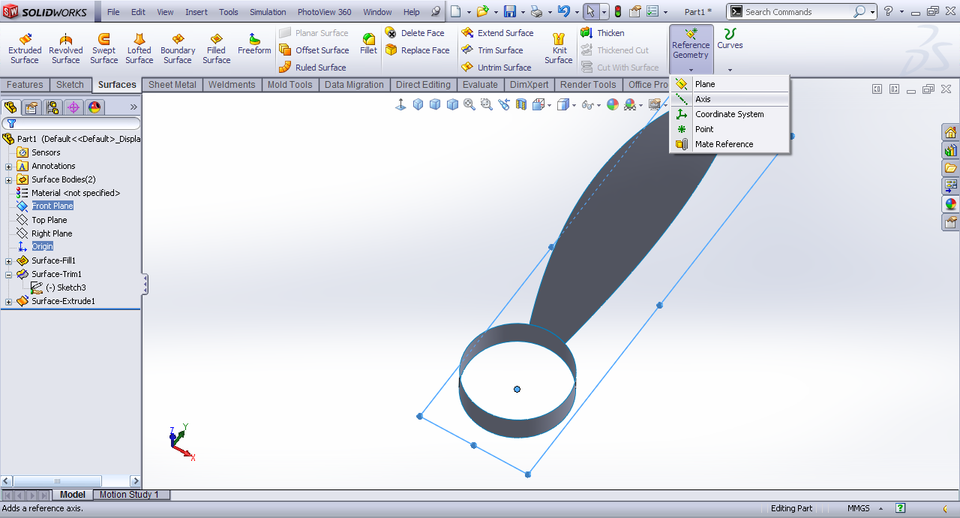

      While selecting front plane & Origin click Reference geometry>>Axis.



  18. Step 18

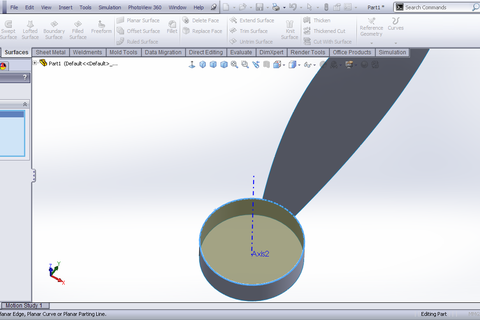

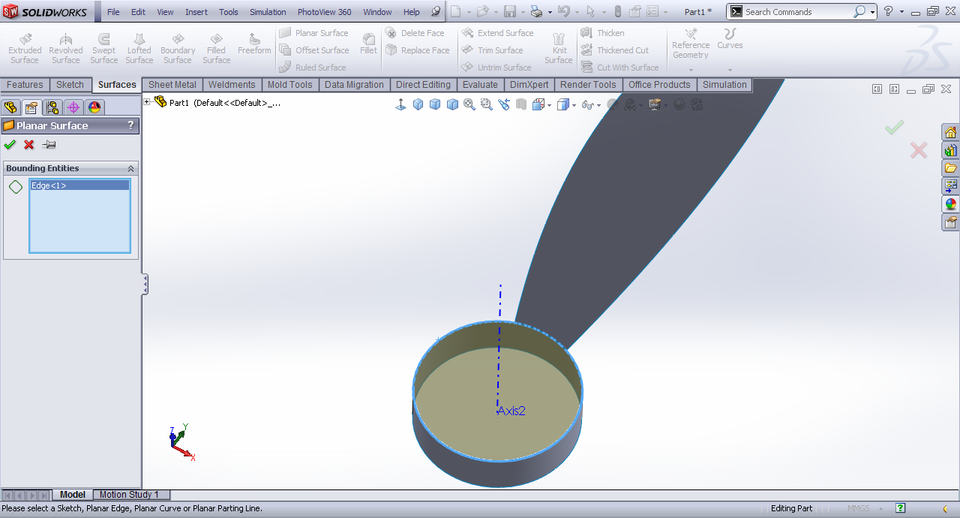

      Create a planar surface about the edge of the extruded surface.



  19. Step 19

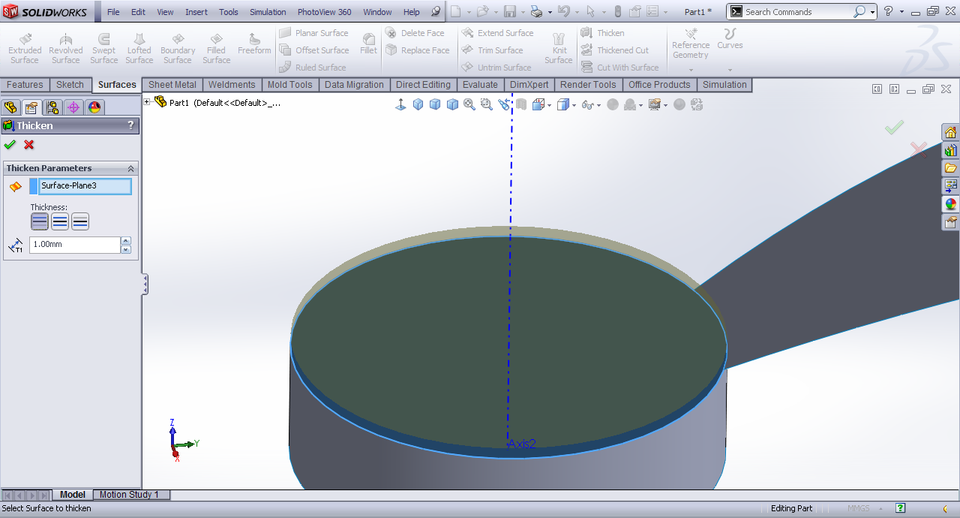

      Thicken that edge.



  20. Step 20

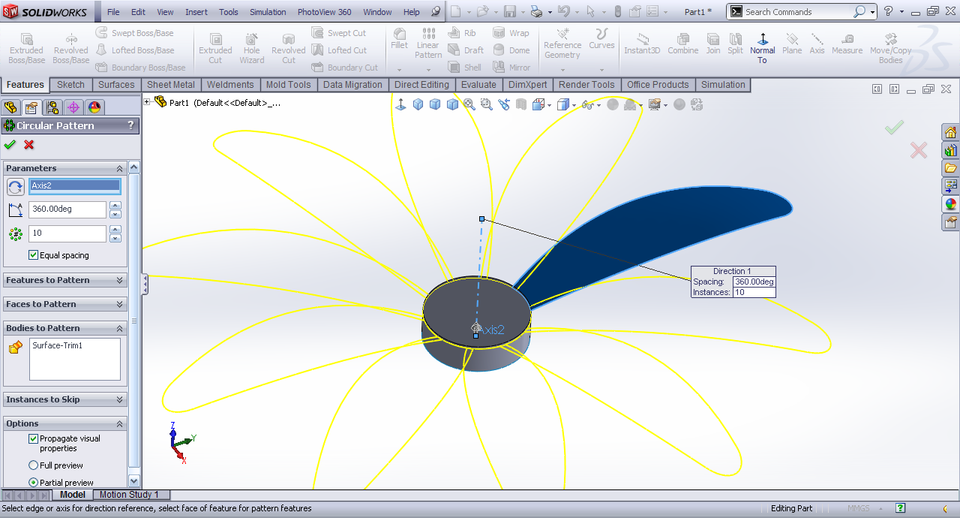

      Now pattern the leaf surface as a body about the axis.



  21. Step 21

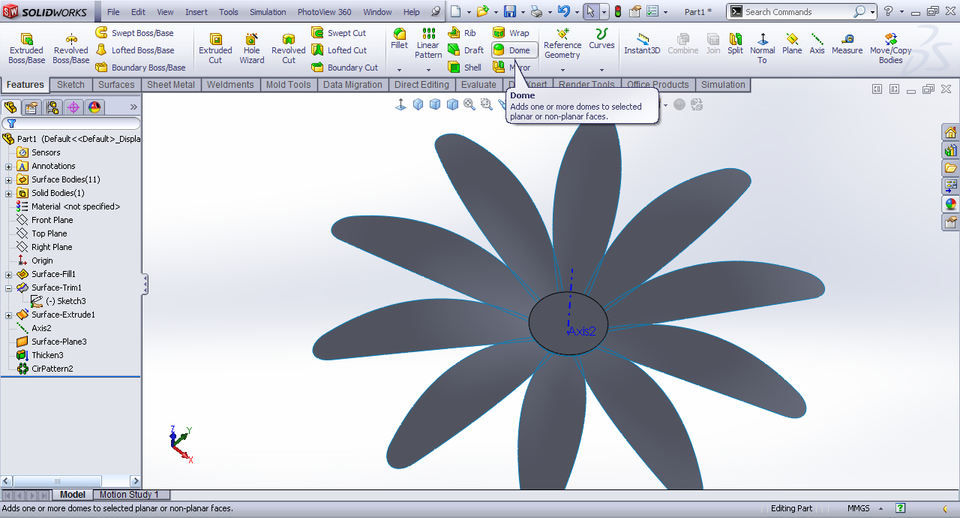

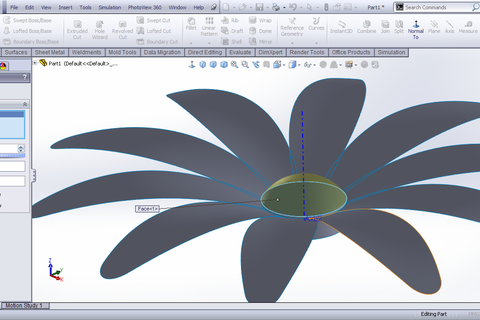

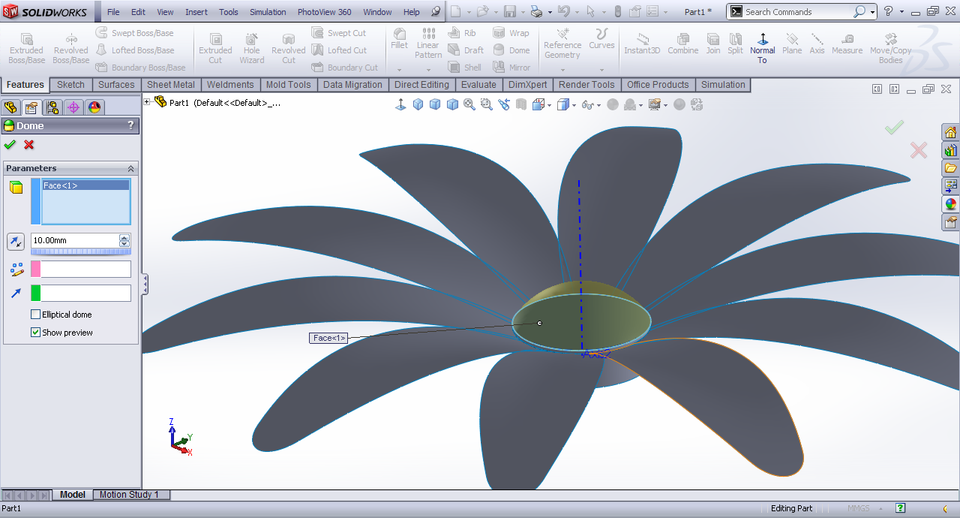

      Click Dome tool.



  22. Step 22

      Select the Thicken Surface.



  23. Step 23

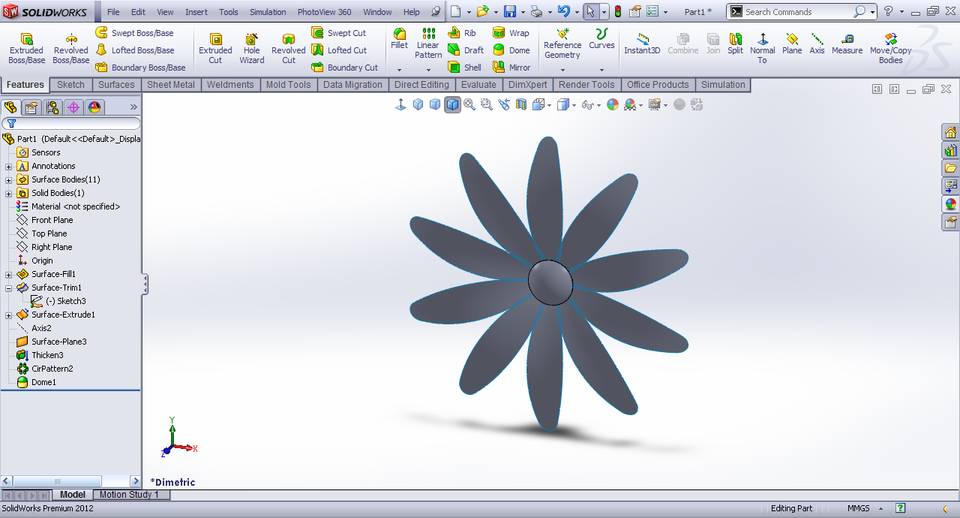

      And we have the flower.



•
  ROOZ about 1 year ago

  I can not do step 19 and as the result step 22. Can you mention the details?

  1.
     Sudhir Gill about 1 year ago

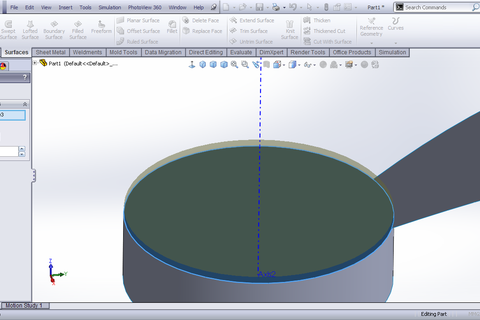

     After creating a planar surface on the edge of the extruded surface, I thickened the planar surface. And in step 22 i selected dome tool and then selected the top face of the thickened surface in step 19.

  2.
     ROOZ about 1 year ago

     How did you thickened the planar surface?

  3.
     ROOZ about 1 year ago

     That was the thicken tool that I could not find. Now it's working. Thanks

  4.
     Sudhir Gill about 1 year ago

     Your welcome!

  5.
     Sudhir Gill about 1 year ago

     Using the thicken tool. Maybe you are accounting the error in which the bodies are not combined.

•
