  Here is the tutorial.

  1. Step 1

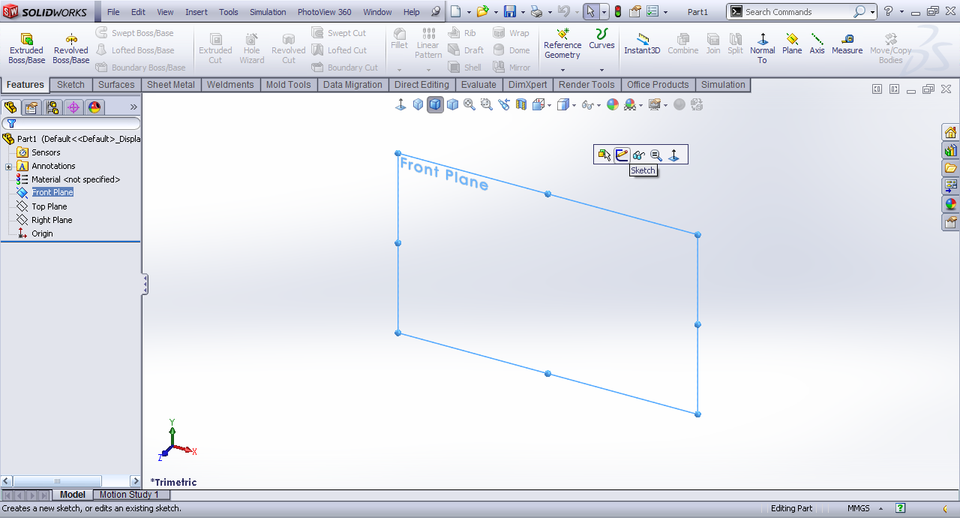

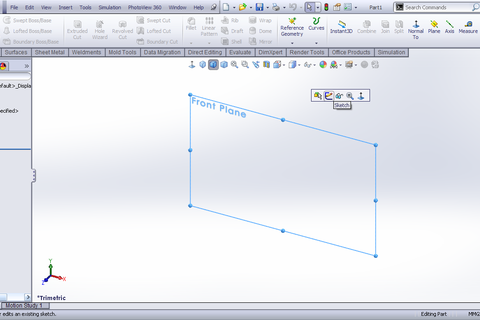

     Front plane >> Sketch.



  2. Step 2

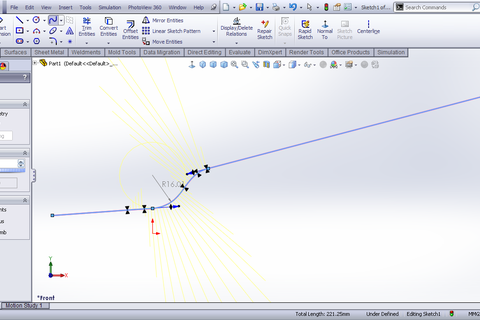

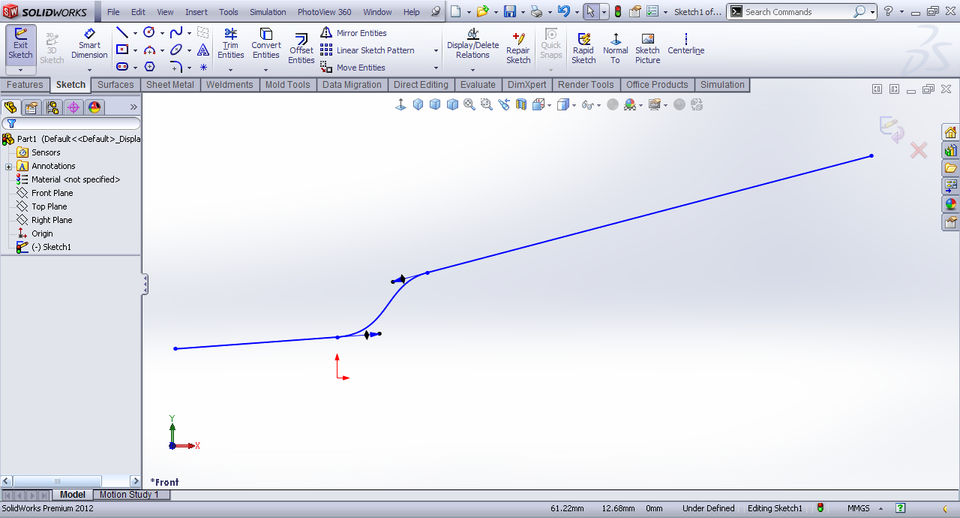

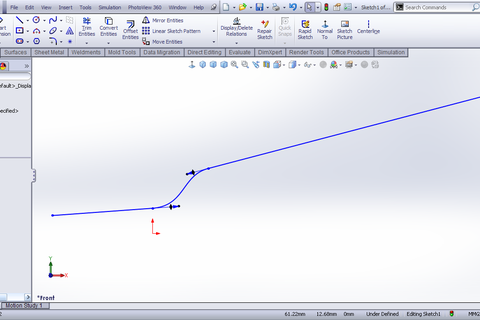

     Draw line and spline like this. The spline is tangent to both of lines.



  3. Step 3

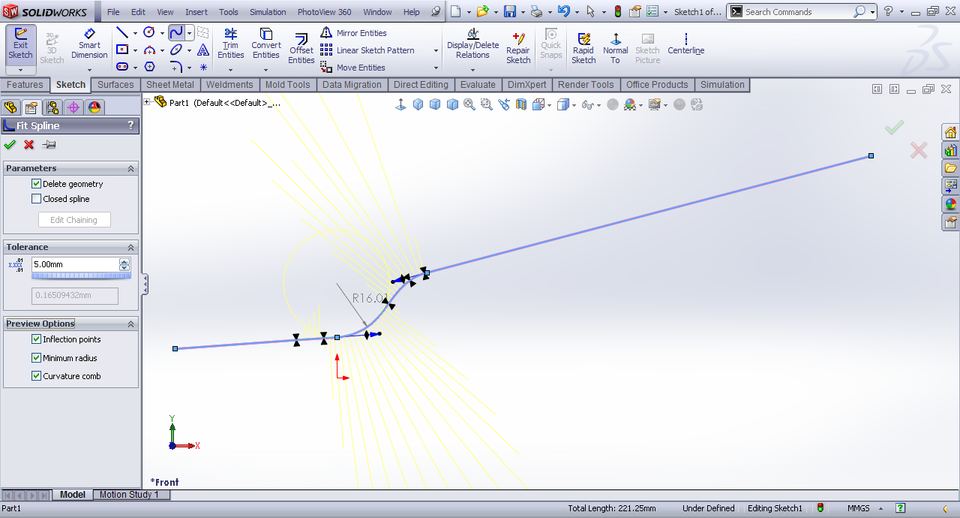

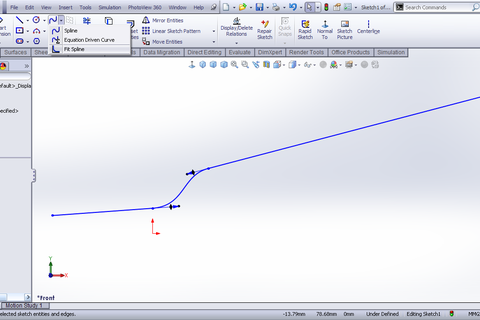

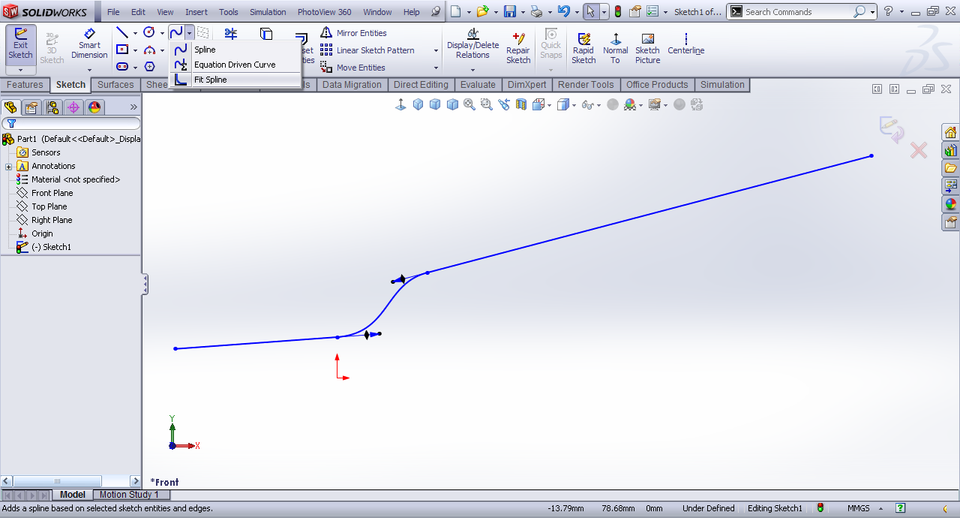

     Under sketch tab click Fit spline under spline.



  4. Step 4

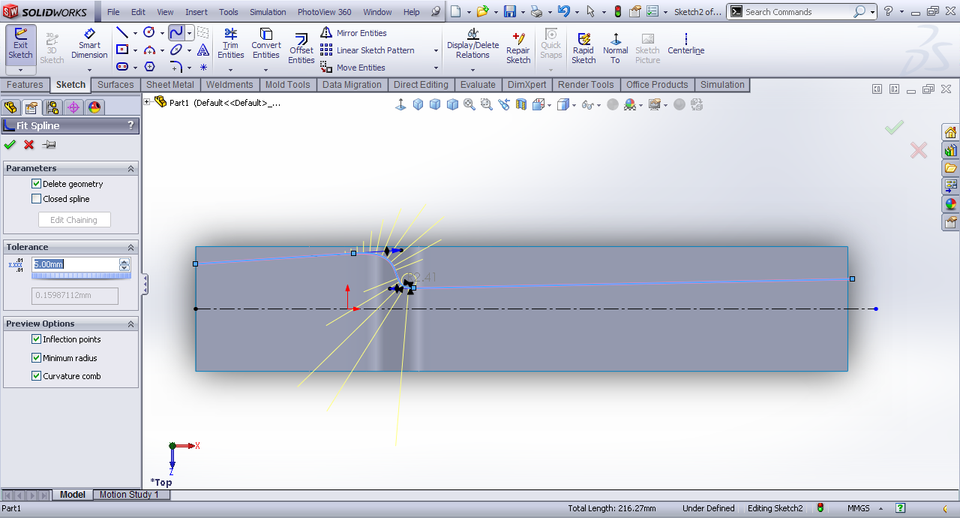

     Select all entites in order and then check delete geometry and uncheck closed geometry. Input tolerance = 5mm. Click OK.

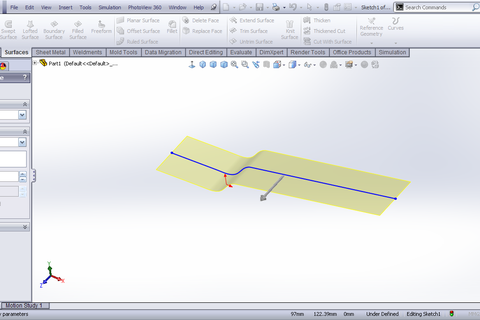

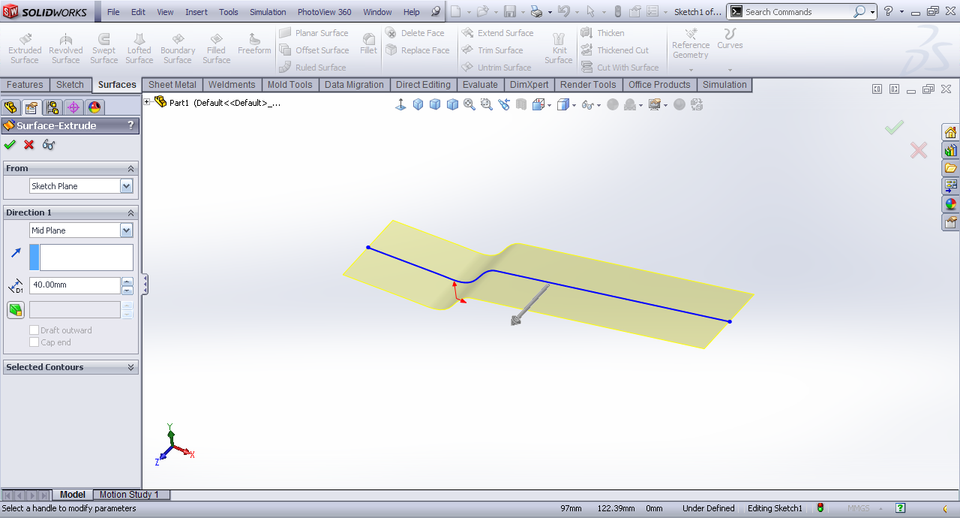

  5. Step 5

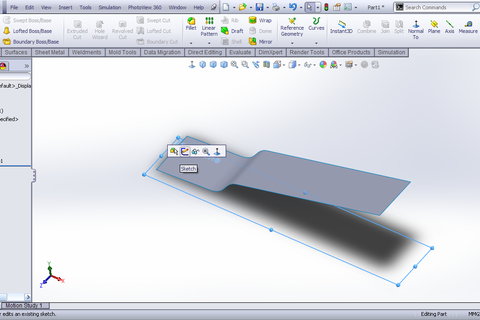

     Extrude the surface by mid plane.



  6. Step 6

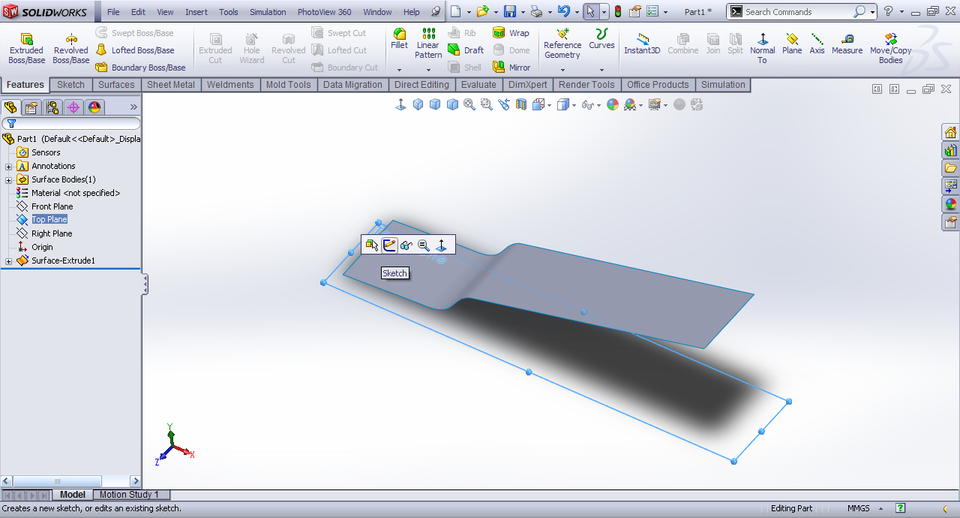

     Top plane >> Sketch.



  7. Step 7

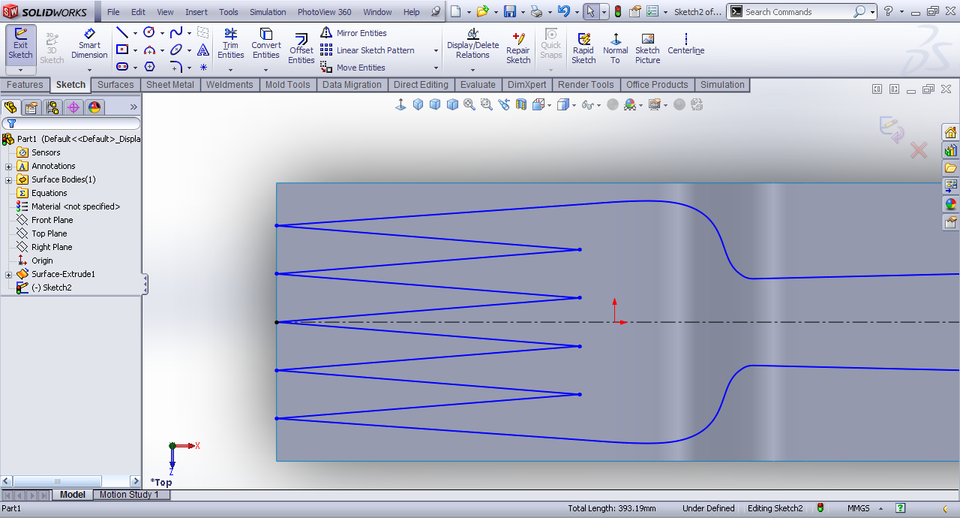

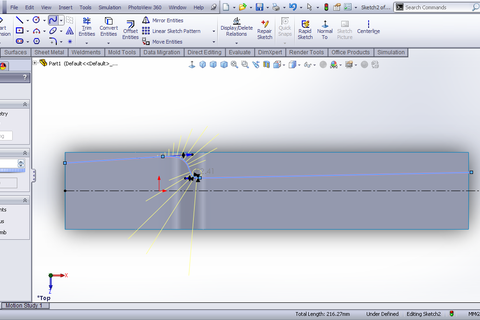

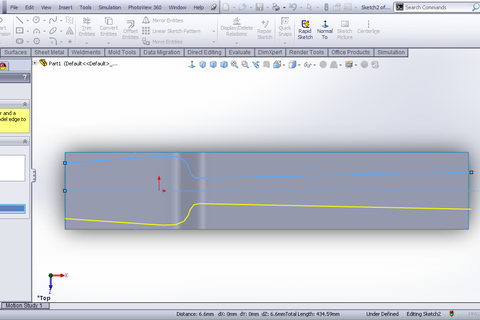

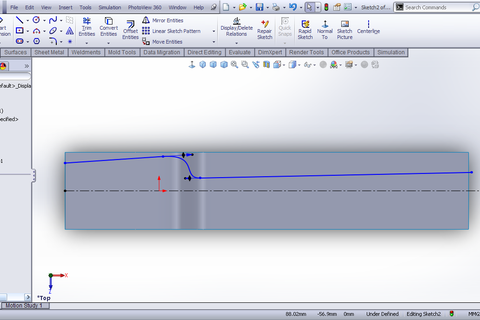

     Draw this profile using line and spline. The spline is again tangent to the lines. Draw a center line about the mid-point of the surface.

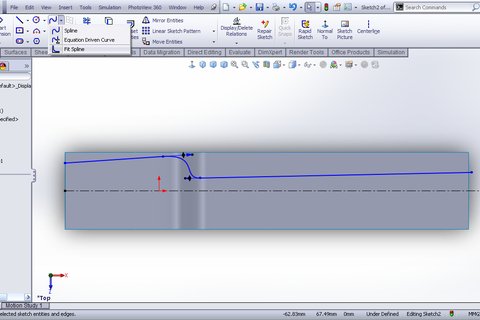

  8. Step 8

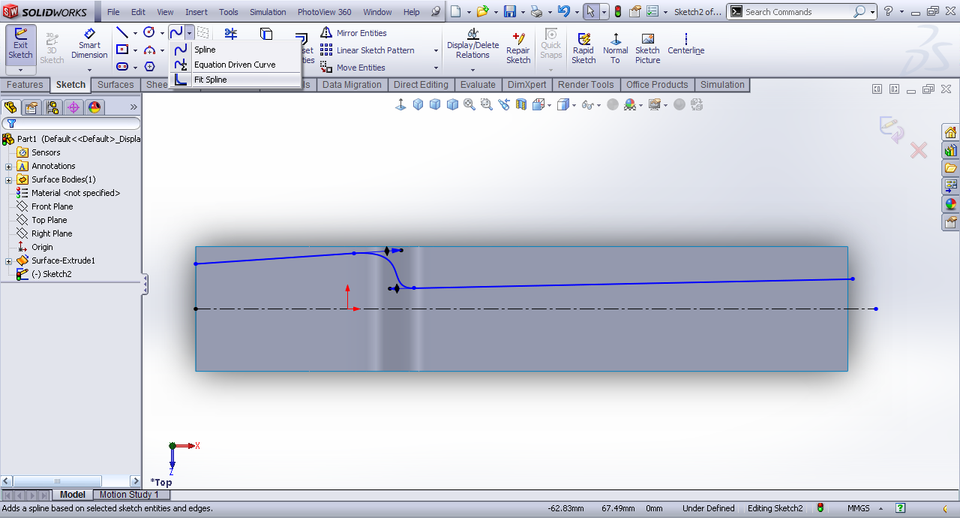

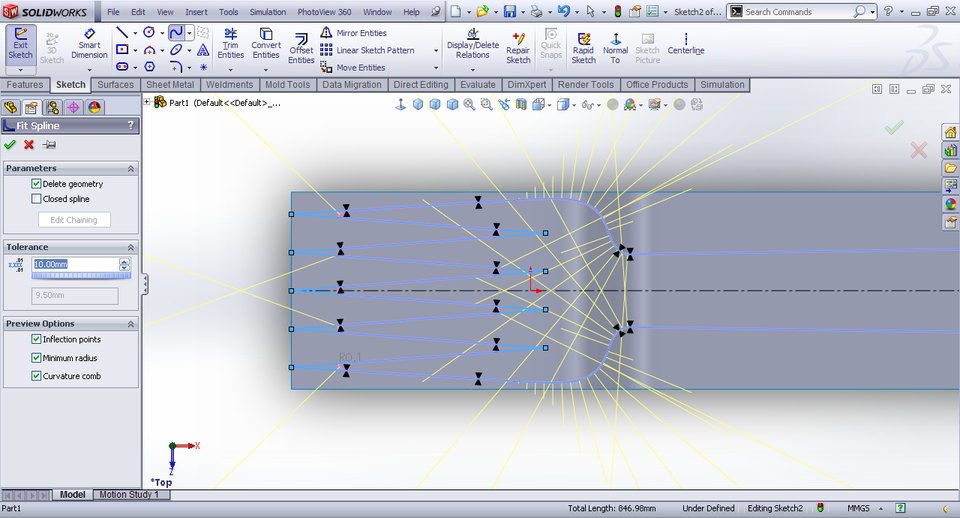

     Select Fit spline tool under spline.



  9. Step 9

     Same option for the fit spline. Check delete geometry and uncheck closed spline and tolerance = 5mm.



  10. Step 10

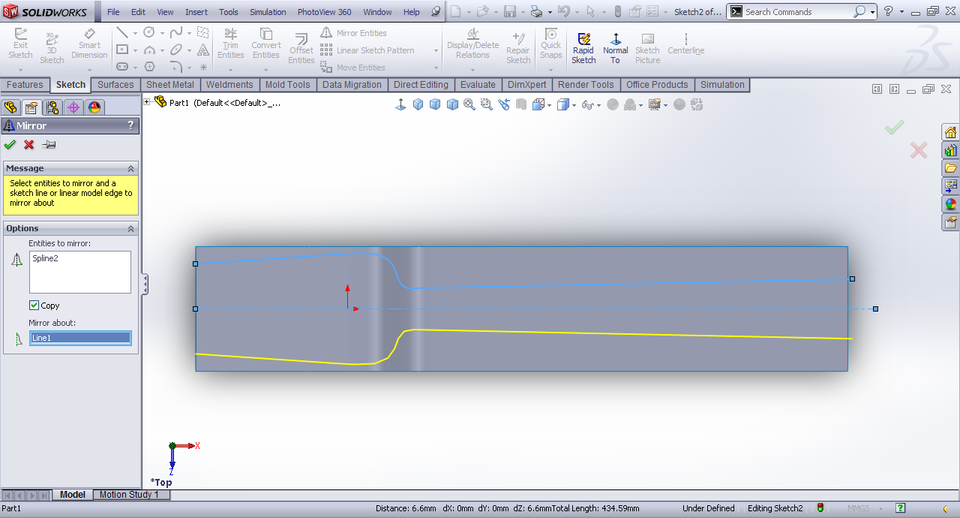

      Mirror the spline about the center line.

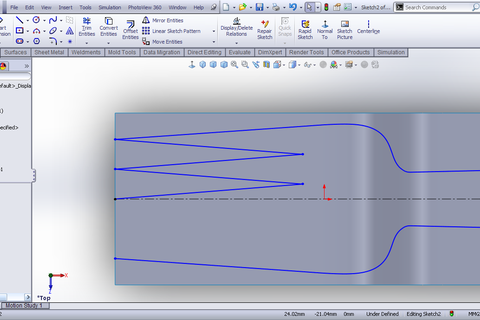

  11. Step 11

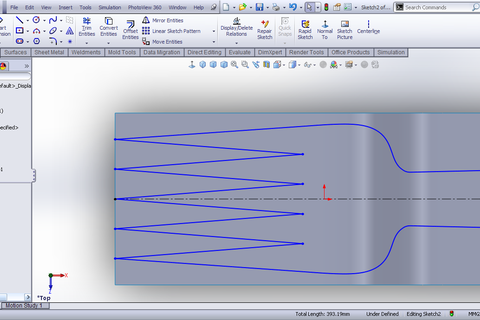

      Now draw lines like this. These line are equal to each other and parrallel to the corresponding lines too.



  12. Step 12

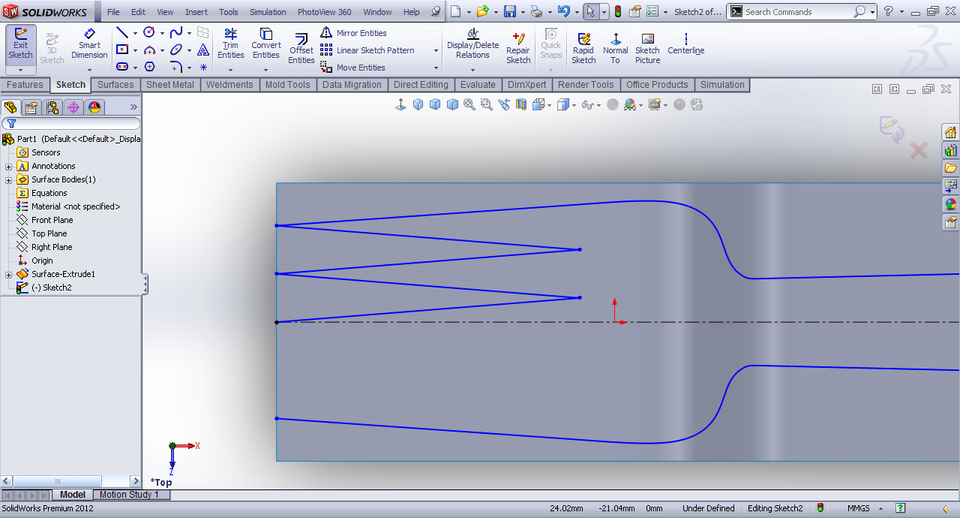

      Mirror these lines. These will work fine for the fork for now.

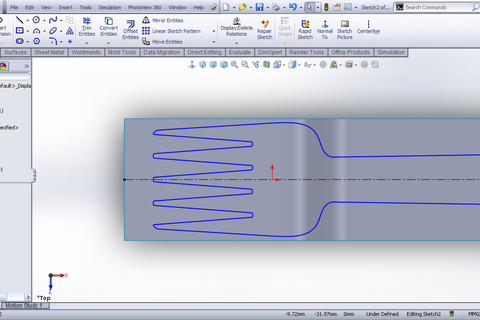

  13. Step 13

      Again Fit spline tool and select all entites with Delete geometry checked and closed spline unchecked with tolerance of 5~10mm.

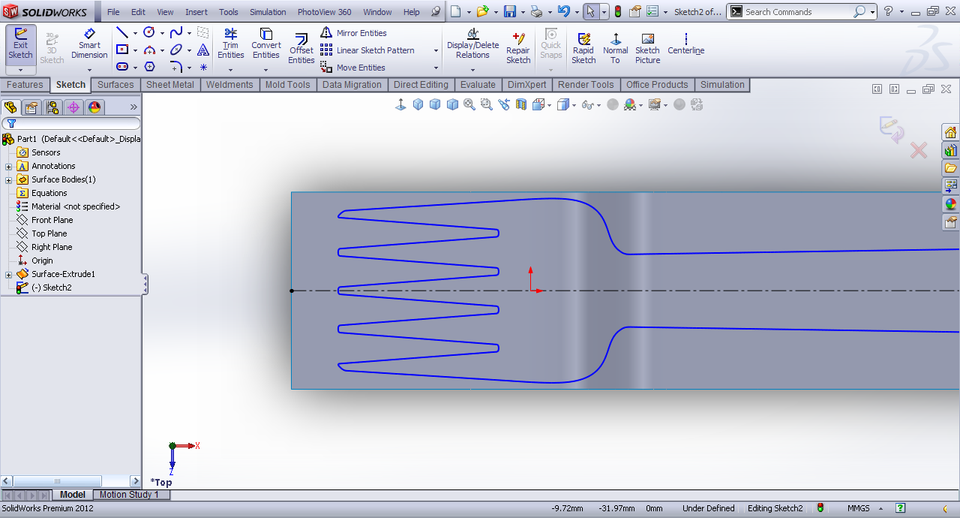

  14. Step 14

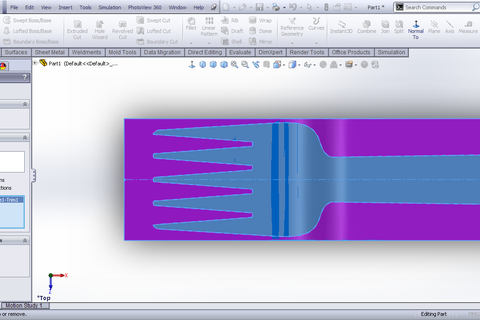

      We have a basic shape of fork.

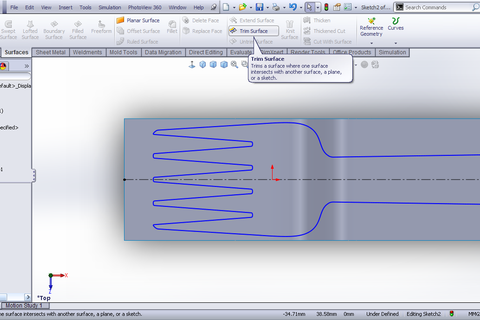

  15. Step 15

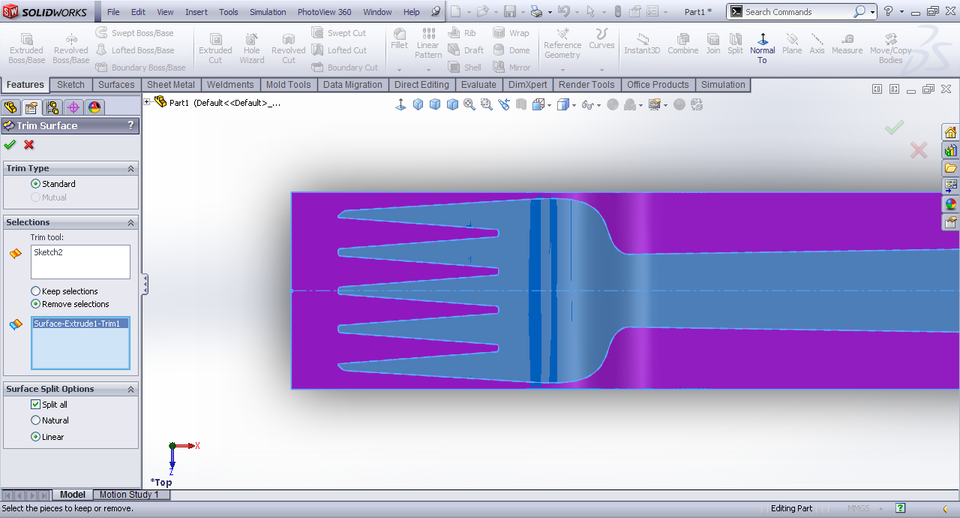

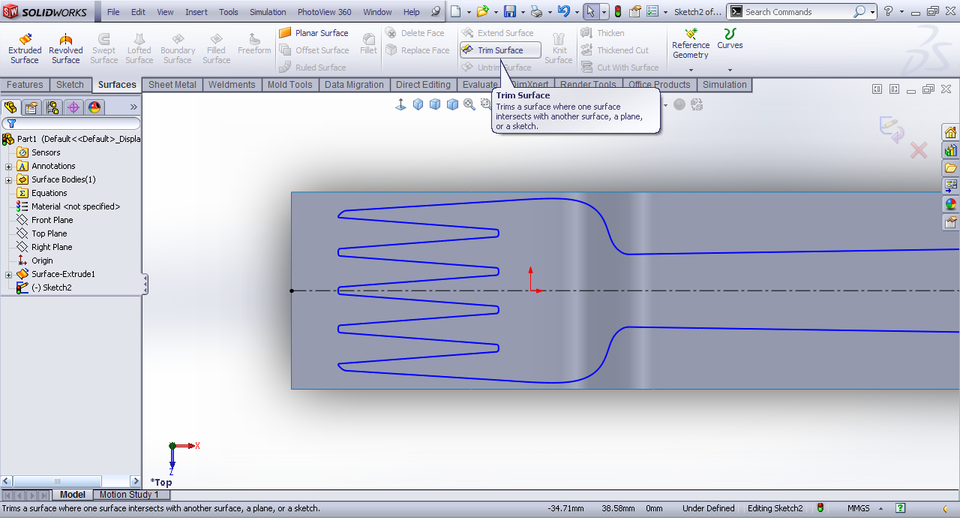

      Click Trim surface tool under surfaces tab.



  16. Step 16

      Use the sketch as the timming tool and remove the outer surface.

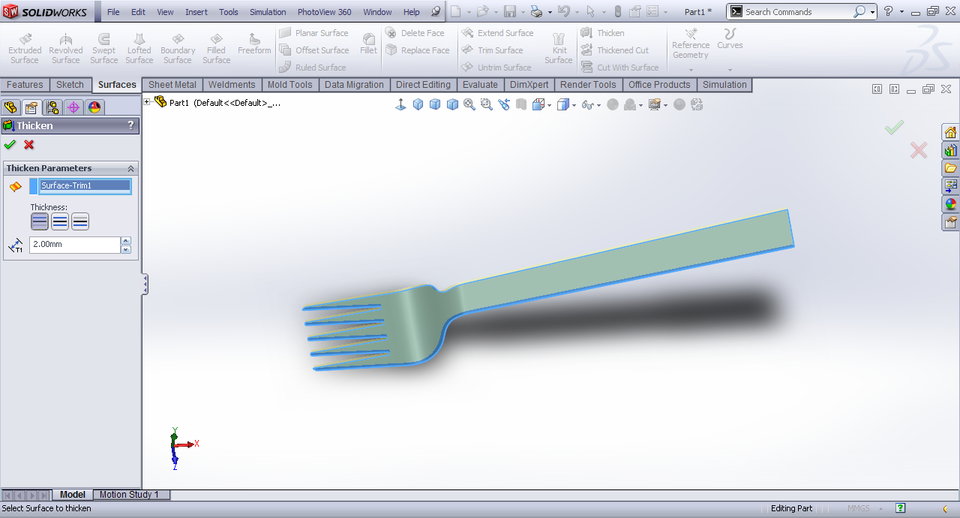

  17. Step 17

      Thicken the surface now.



  18. Step 18

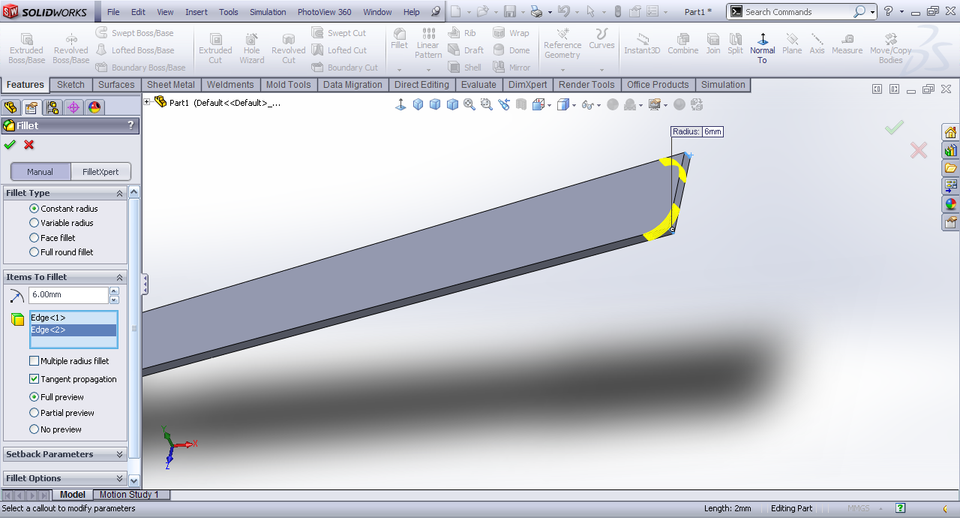

      Fillet the holding side.



  19. Step 19

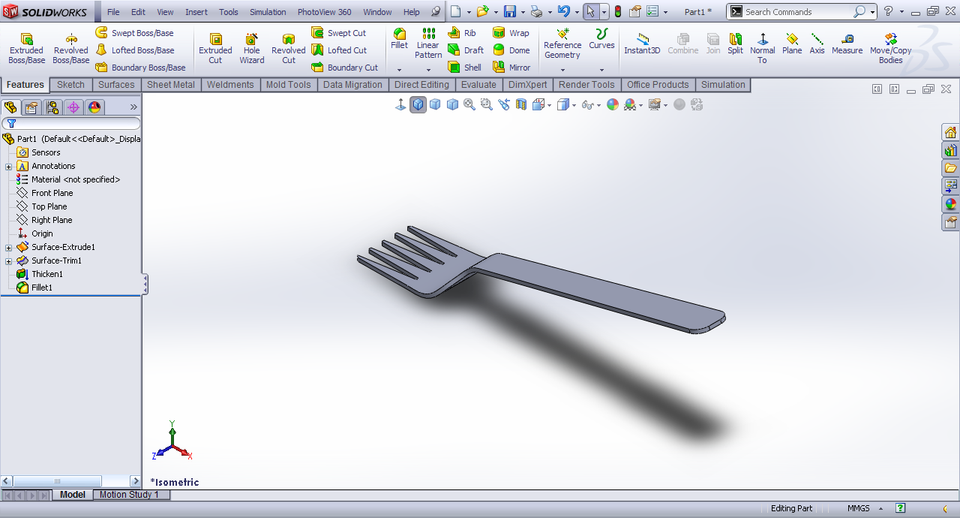

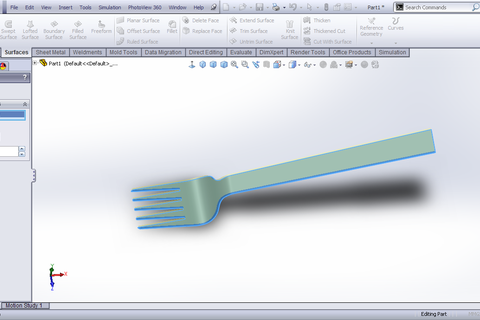

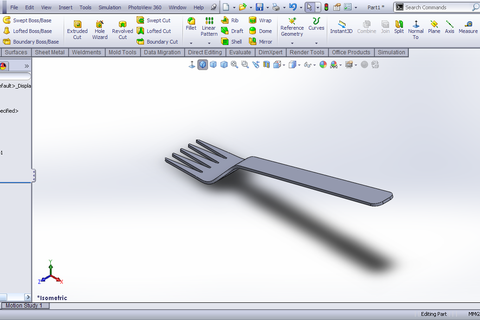

      Now we have the basic model of a fork.



•
