  Here is the tutorial.

  1. Step 1

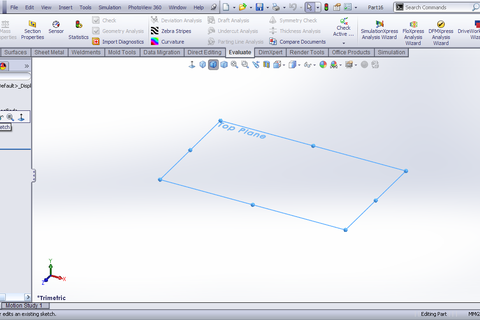

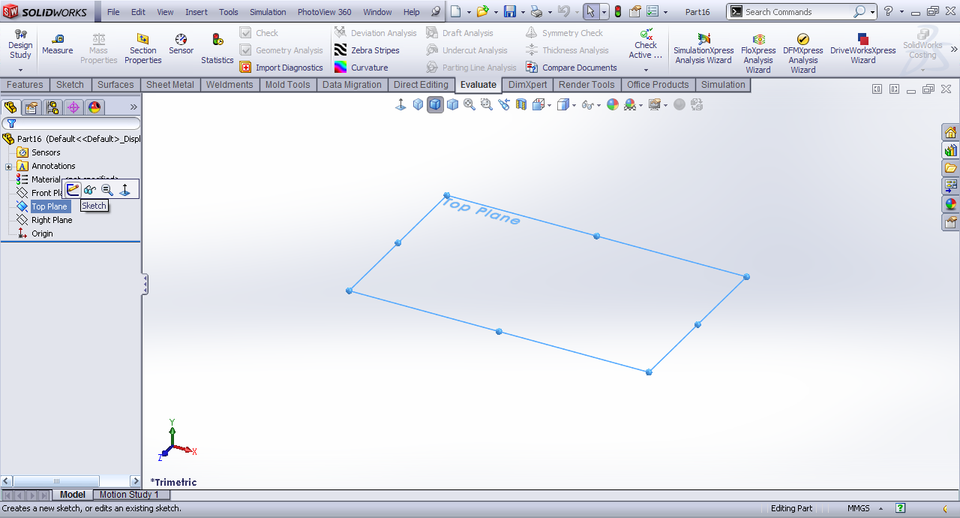

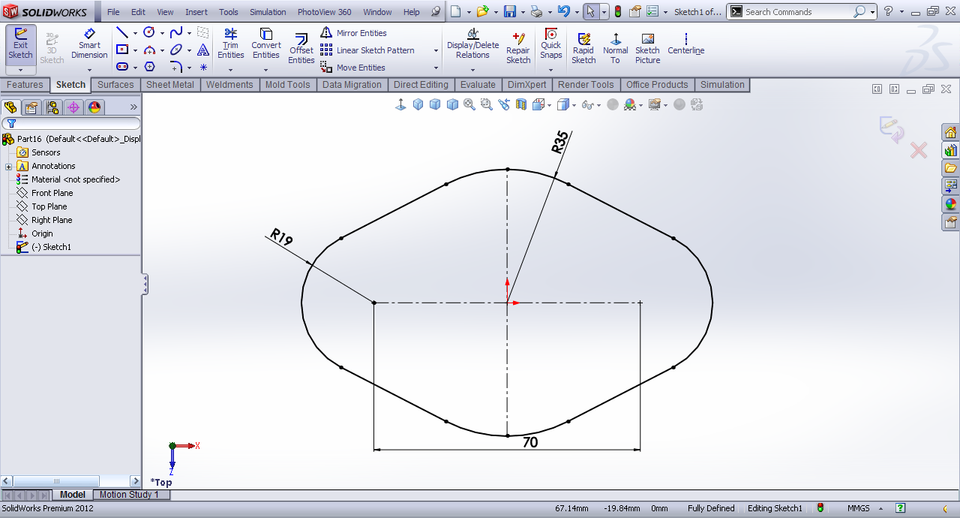

     Top plane>>sketch.



  2. Step 2

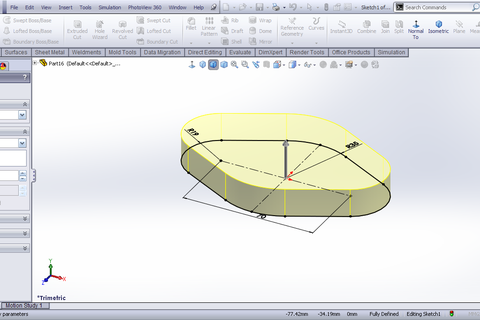

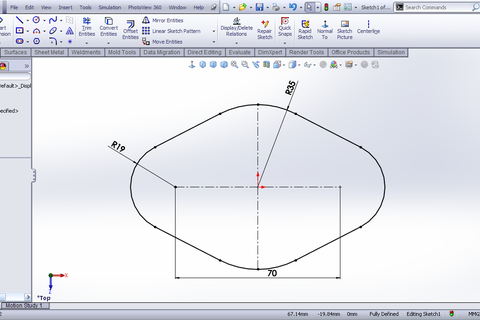

     Draw this profile.



  3. Step 3

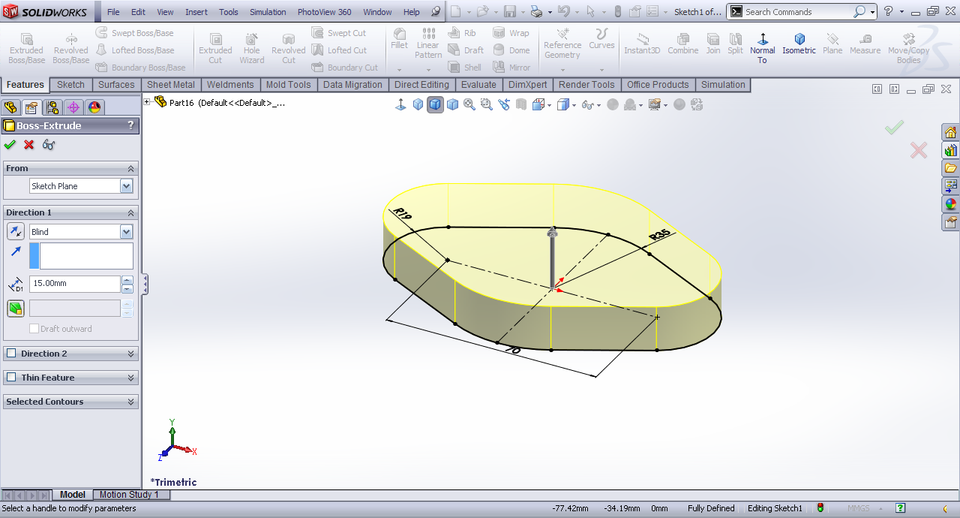

     Extrude it by 15mm.



  4. Step 4

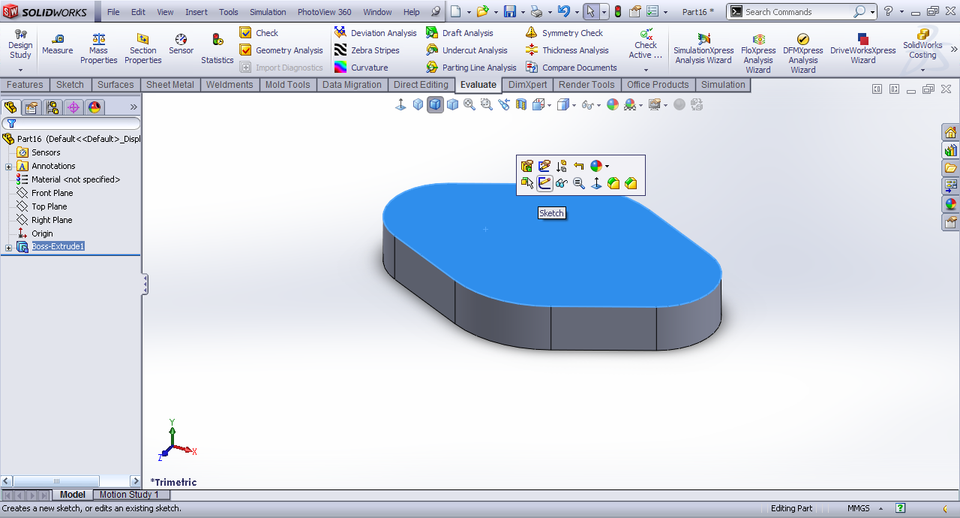

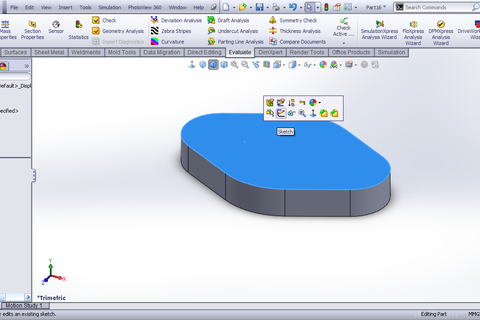

     Top face>>sketch.



  5. Step 5

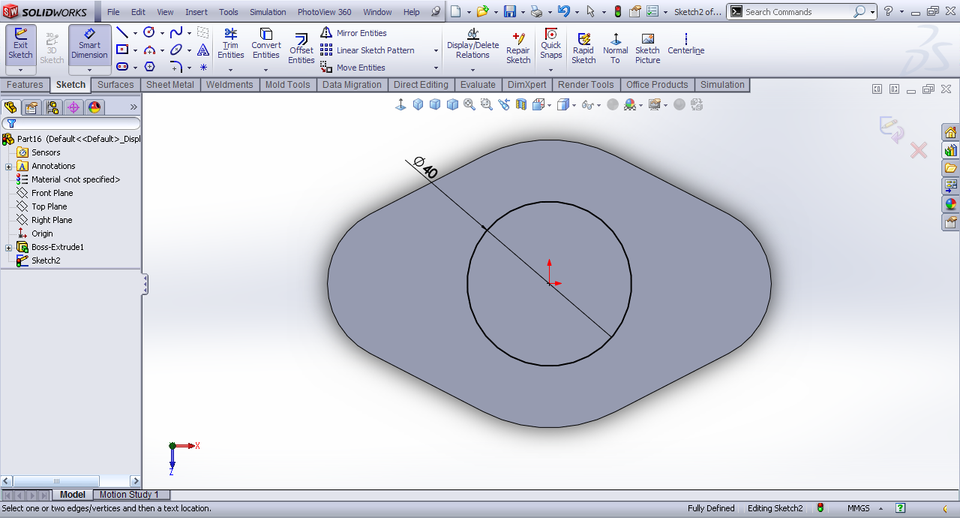

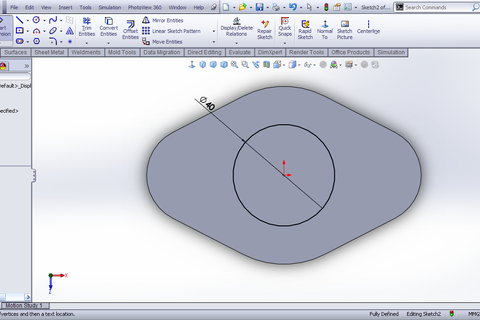

     Draw a circle of 40mm dia.



  6. Step 6

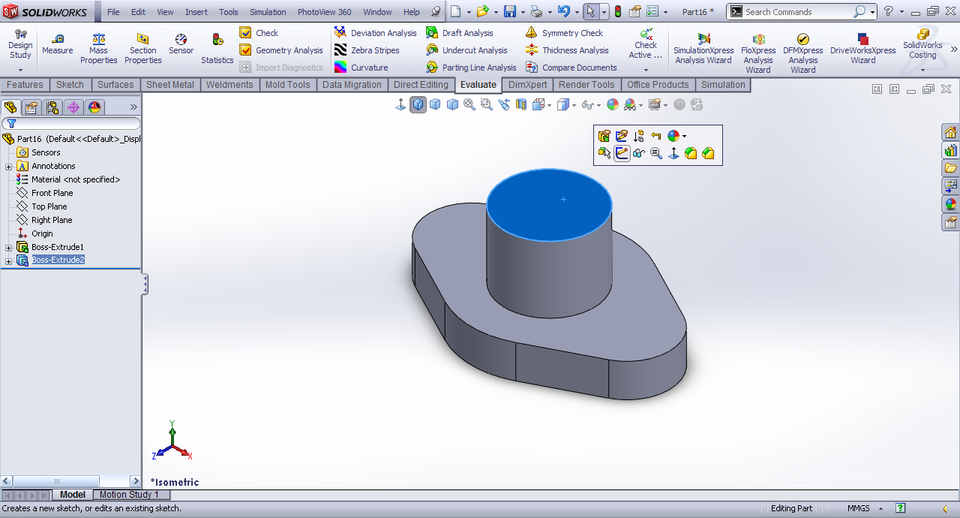

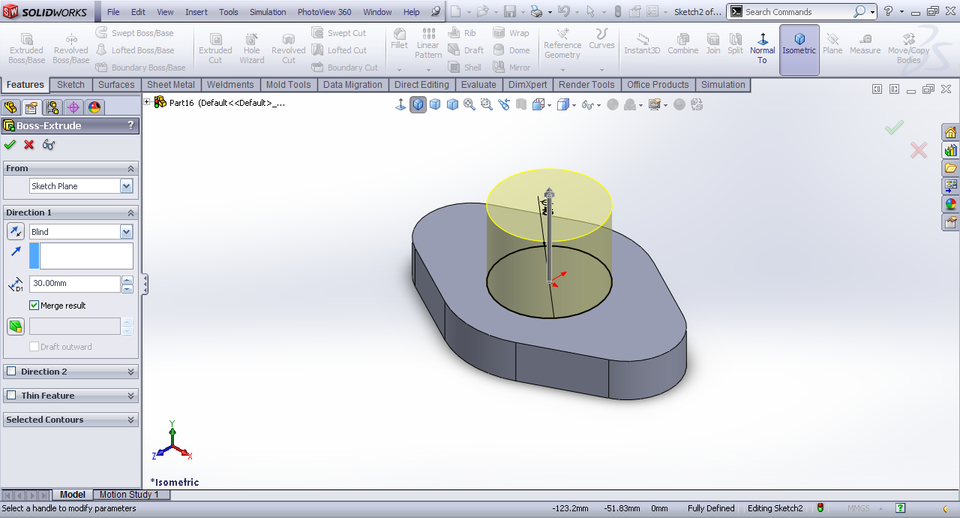

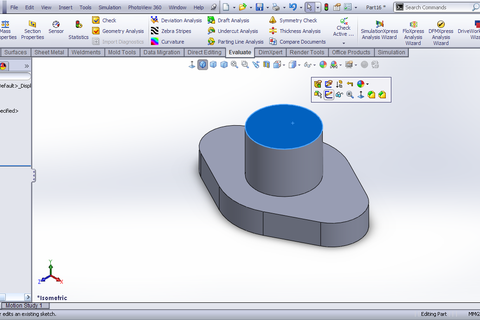

     Extrude it by 30mm.



  7. Step 7

     Top face>>sketch.



  8. Step 8

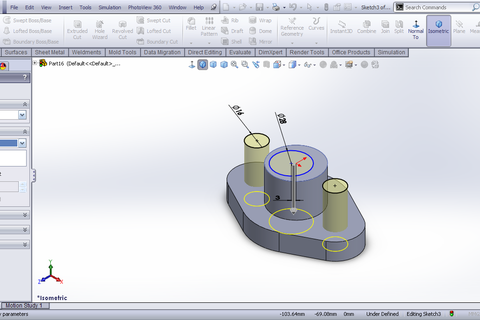

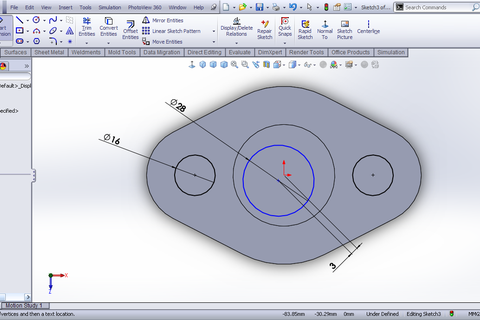

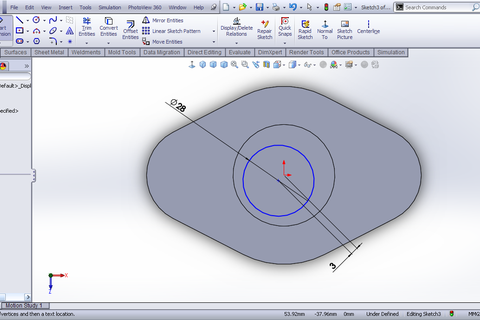

     Draw a circle of 28mm dia.



  9. Step 9

     Draw two circles of 16mm concentric to the edges.



  10. Step 10

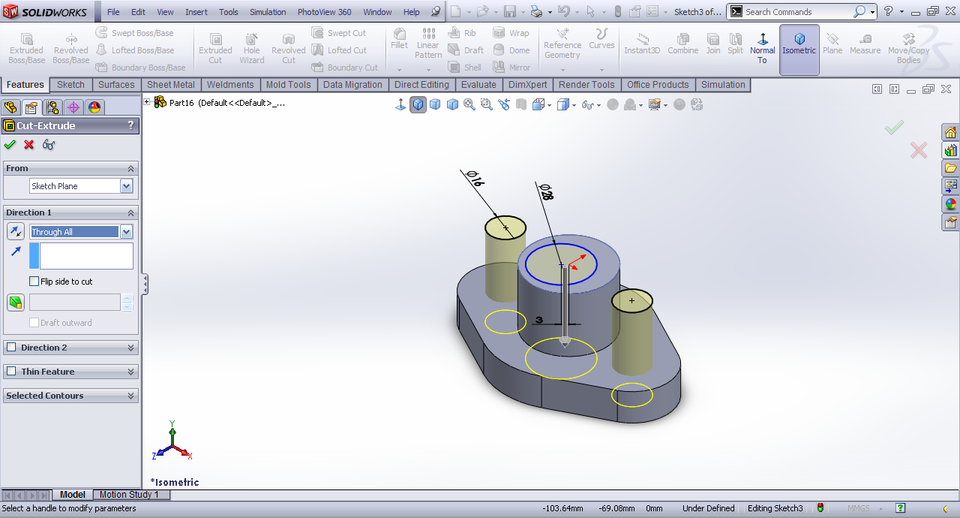

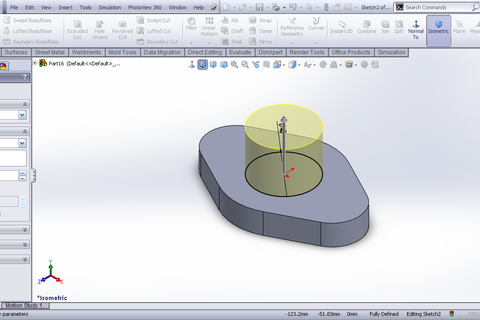

      Extude cut >> Through All.



  11. Step 11

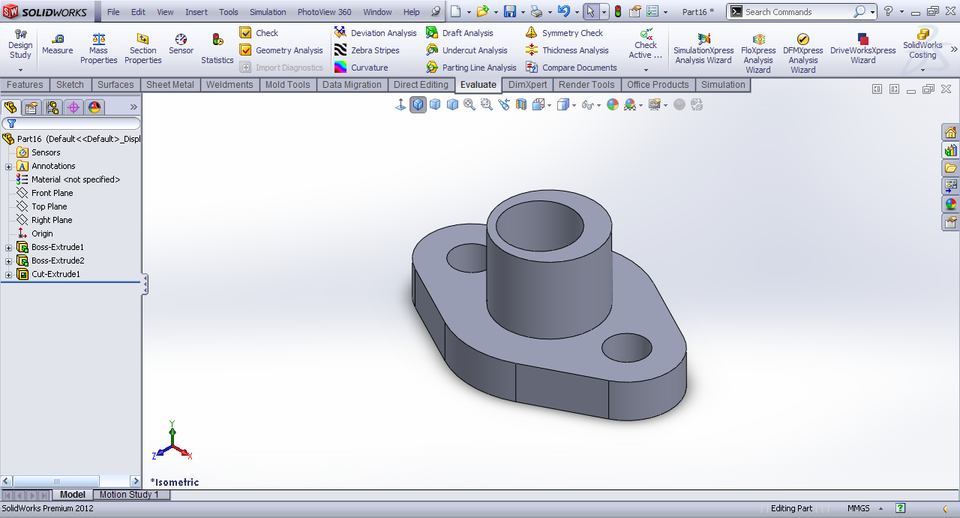

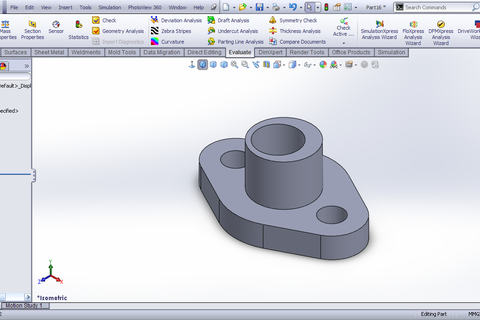

      And we have the Gland.
