Tutorial - Modeling Kunai in SolidWorks?

By Sudhir Gill on 07 Mar 18:18 1 answer 1962 views 3 comments

Tutorial on modeling kunai in SolidWorks.

1 answer

  • Sudhir Gill
    Sudhir Gill over 2 years ago

    Here is the tutorial.

    1. Step 1

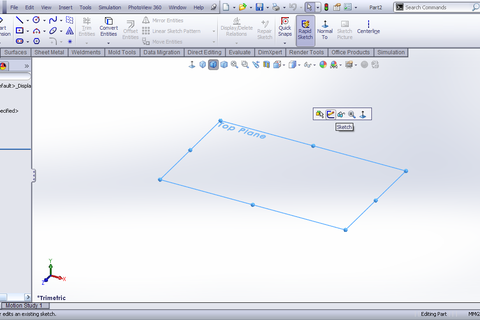

      Top plane >> Sketch.

      Medium

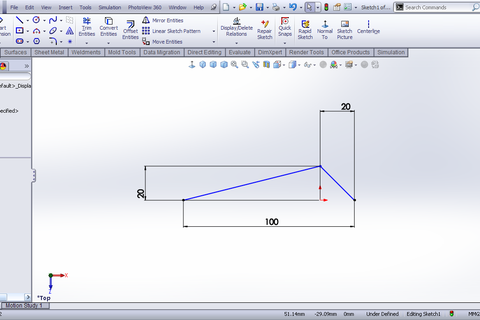

    2. Step 2

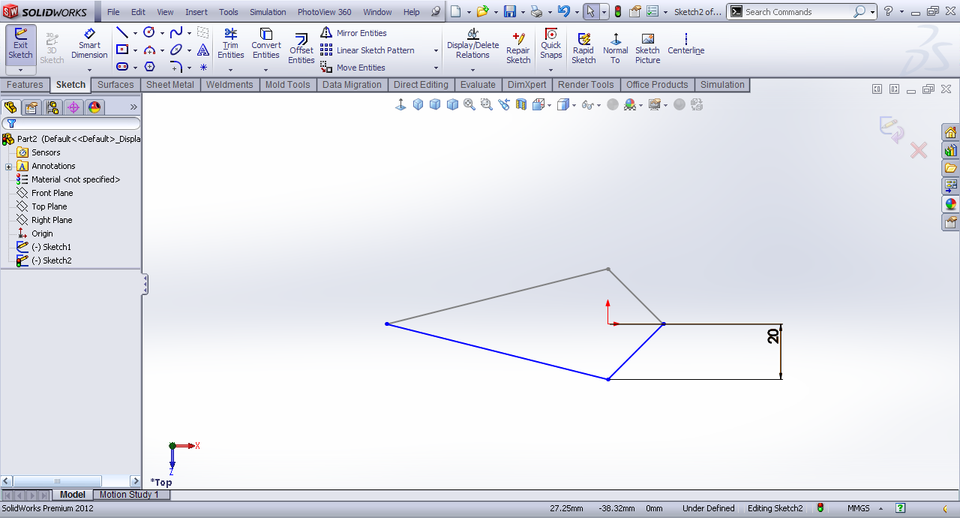

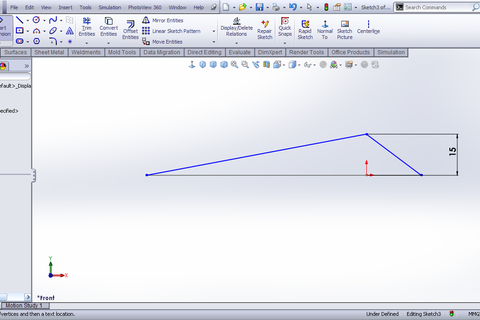

      Draw this profile.

      Medium

    3. Step 3

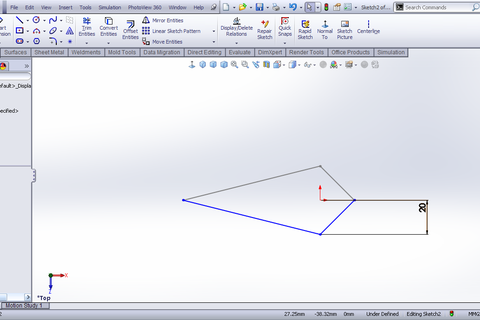

      Exit the sketch and then again Top plane >> Sketch. Draw same profile.

      Medium

    4. Step 4

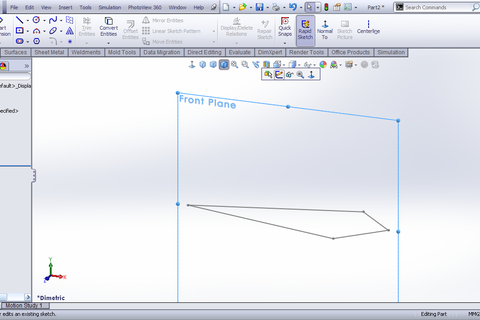

      Front plane >> Sketch.

      Medium

    5. Step 5

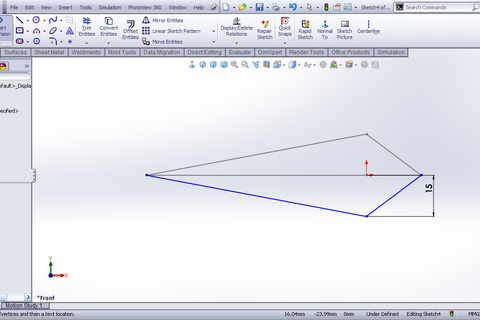

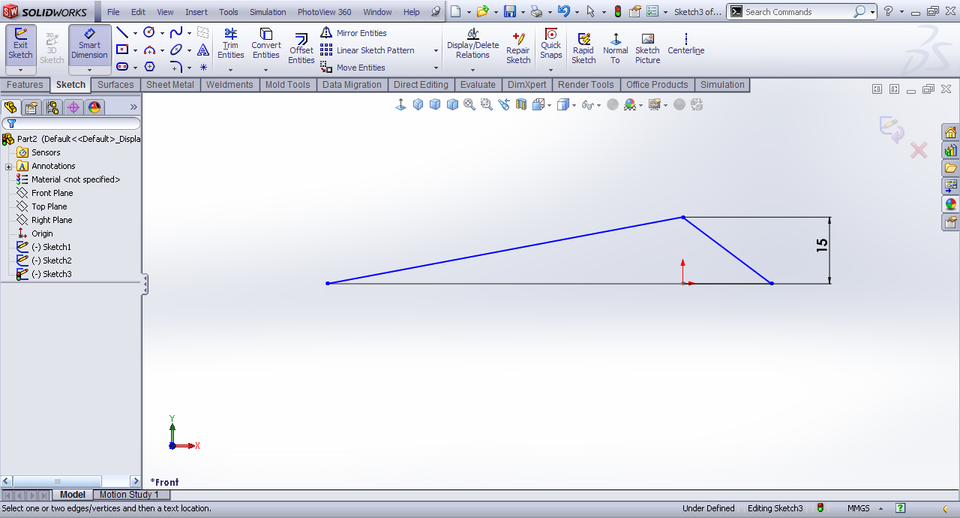

      Draw this profile. Exit the sketch.

      Medium

    6. Step 6

      Again Front plane >> Sketch and this profile. Exit the sketch.

      Medium

    7. Step 7

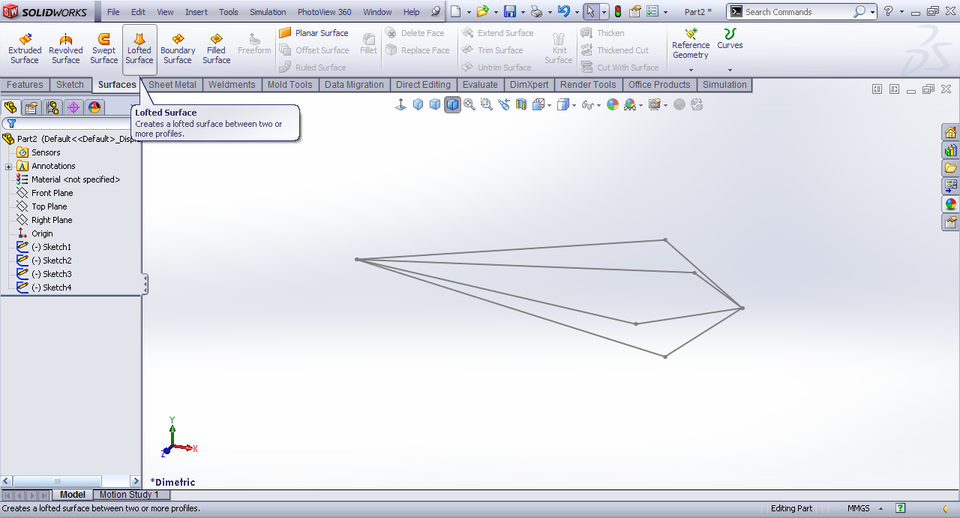

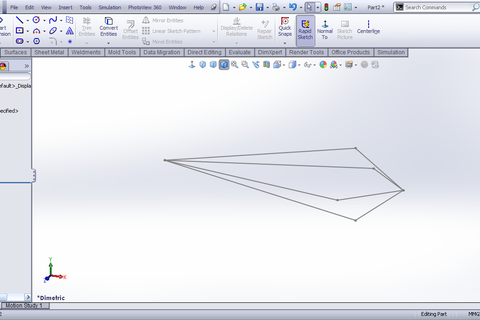

      Now we have four different sketches.

      Medium

    8. Step 8

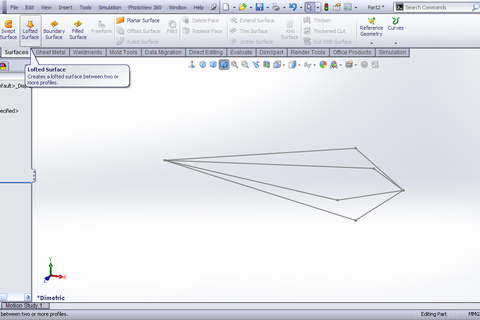

      Click Lofted surface under surfaces tab.

      Medium

    9. Step 9

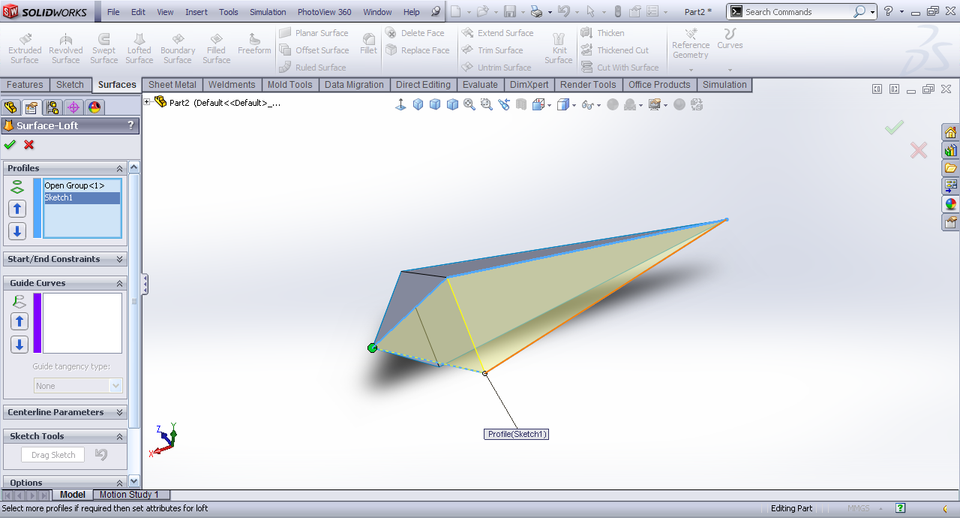

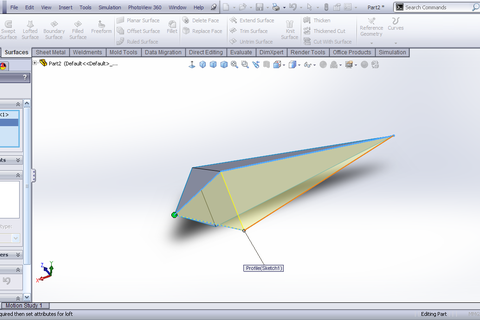

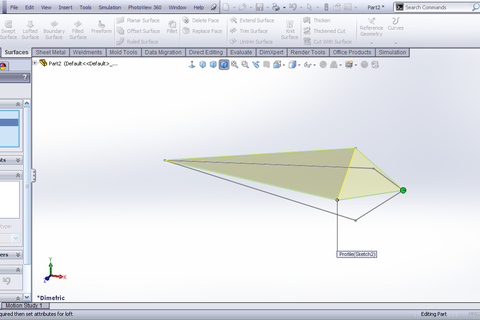

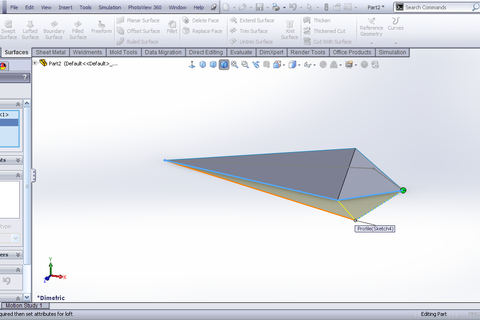

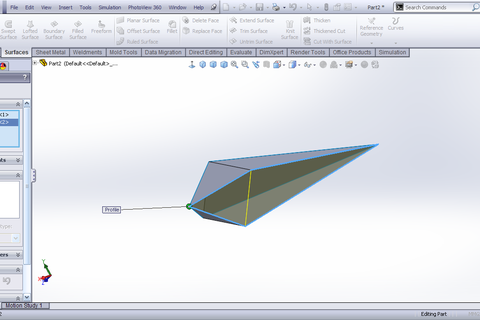

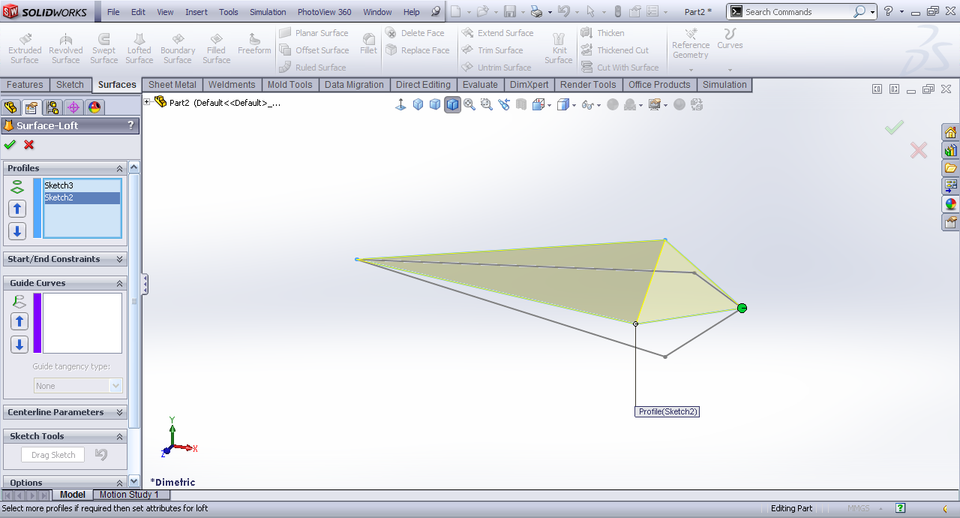

      Select the two sketches. Click OK and the first surface is generated.

      Medium

    10. Step 10

      Now generate a lofted surface b/w the edge of the surface and sketch. Use selection manager to form group.

      Medium

    11. Step 11

      Again create the 3rd surface with same step.

      Medium

    12. Step 12

      Final surface with the edges of surfaces.

      Medium

    13. Step 13

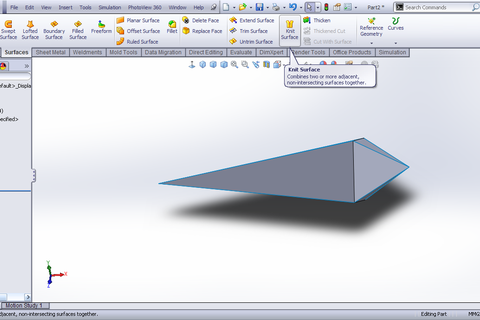

      Click Knit surface under surfaces tab.

      Medium

    14. Step 14

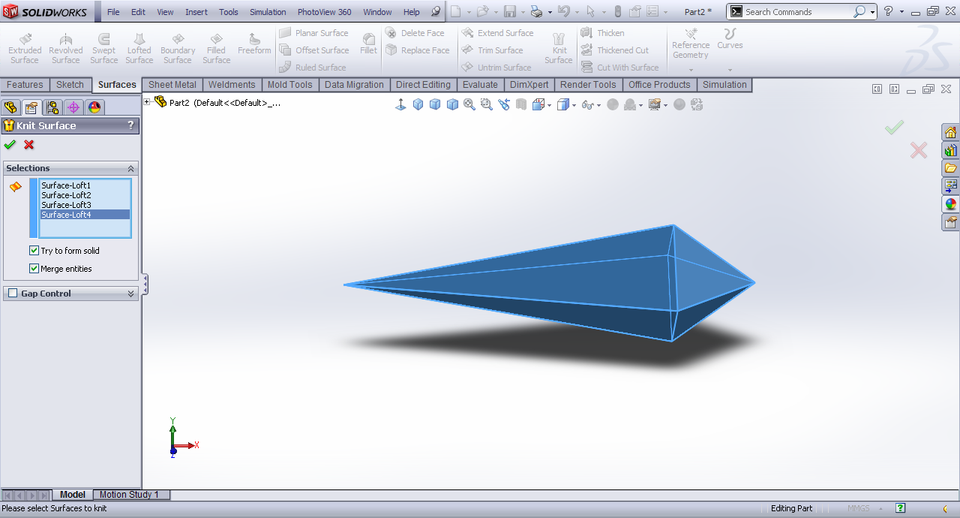

      Select all surfaces and check Try to form solid and click OK.

      Medium

    15. Step 15

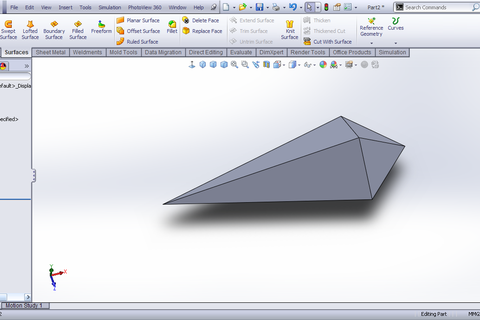

      Now we can see that a surface is generated.

      Medium

    16. Step 16

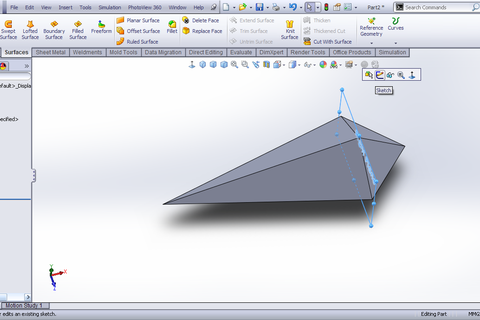

      Right plane >> Sketch.

      Medium

    17. Step 17

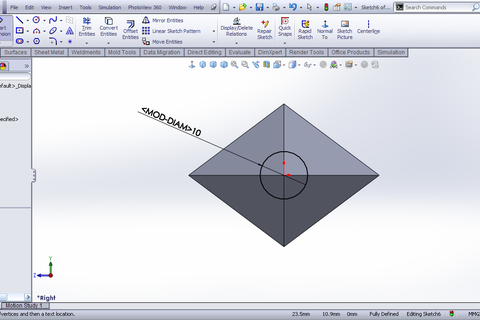

      Draw a circle of 10mm dia.

      Medium

    18. Step 18

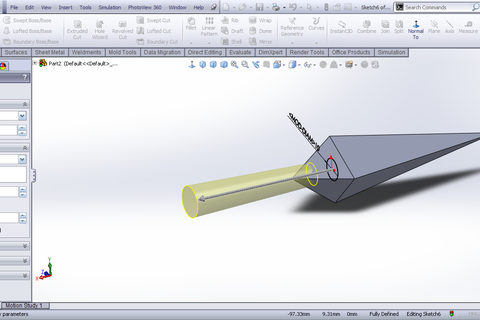

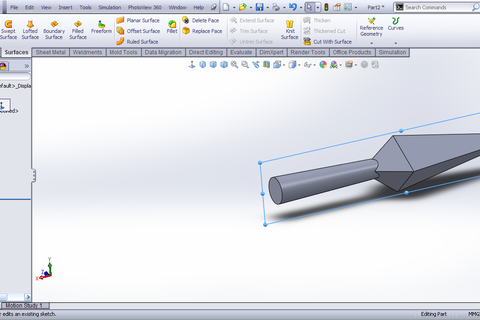

      Extrude it with outward draft and from the offset plane.

      Medium

    19. Step 19

      Front plane >> Sketch.

      Medium

    20. Step 20

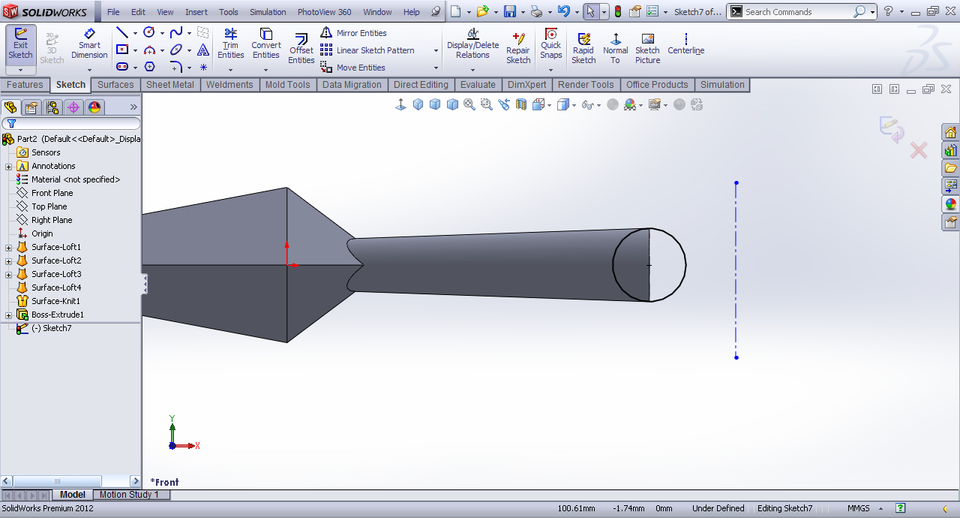

      Draw a circle on the edge.

      Medium

    21. Step 21

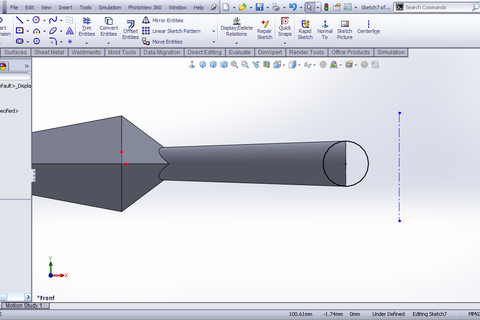

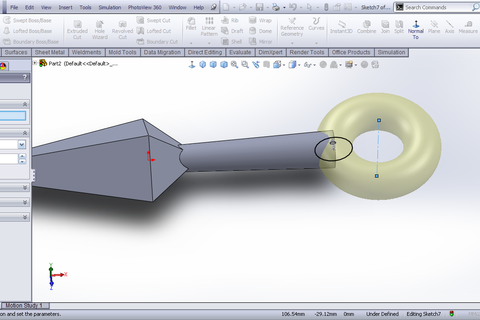

      Revolve it about the center line.

      Medium

    22. Step 22

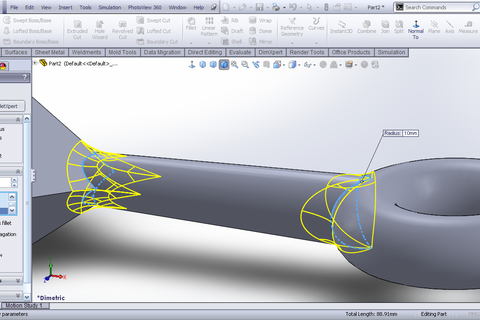

      Fillet the edges.

      Medium

    23. Step 23

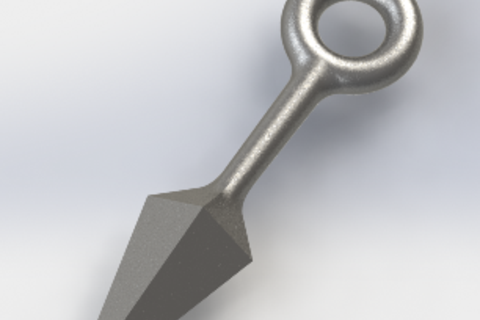

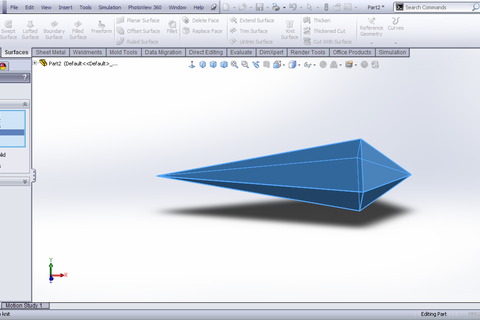

      We have the kunai created.

      Medium
