  Here is the tutorial.

  1. Step 1

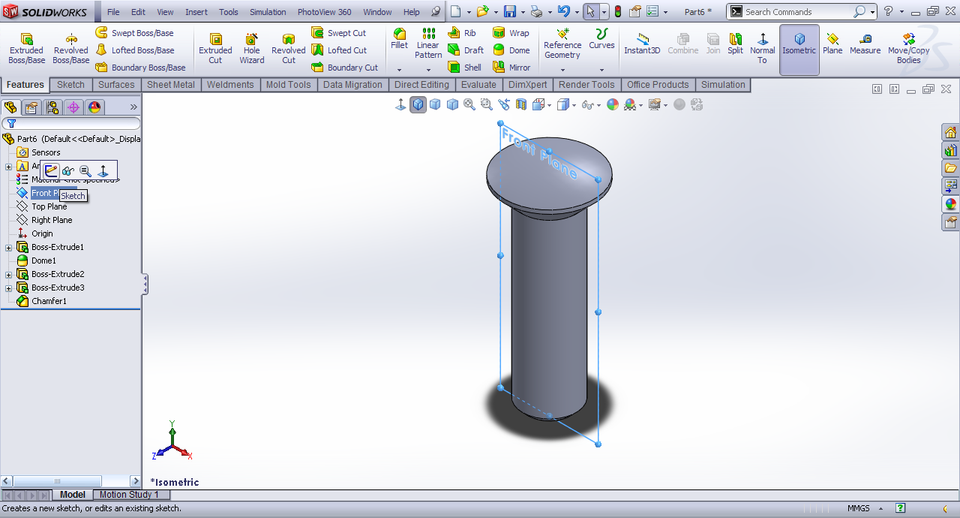

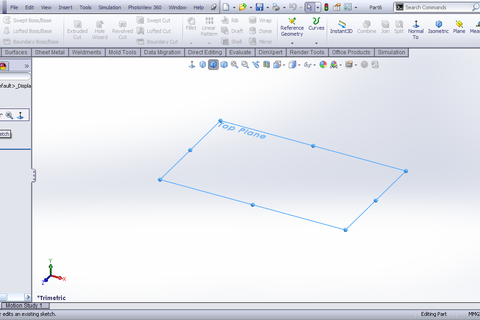

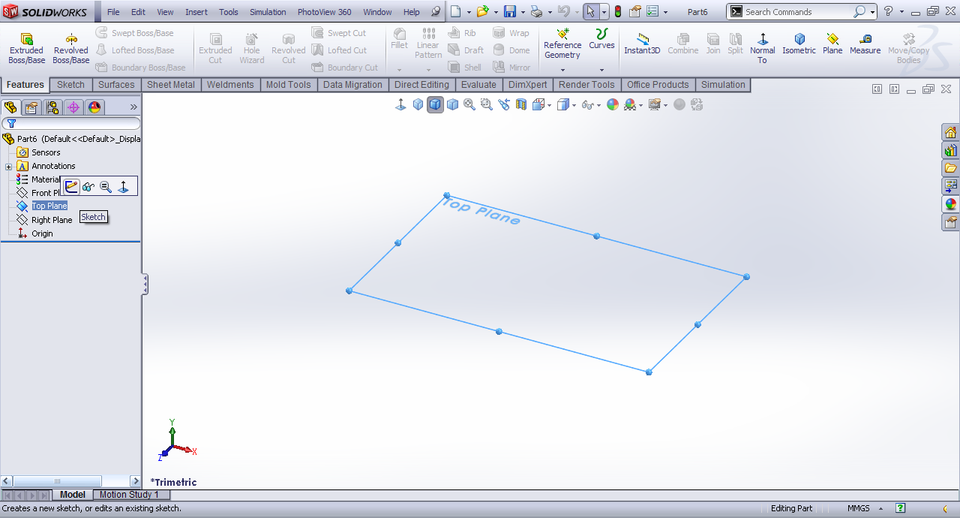

     Top plane>>sketch.



  2. Step 2

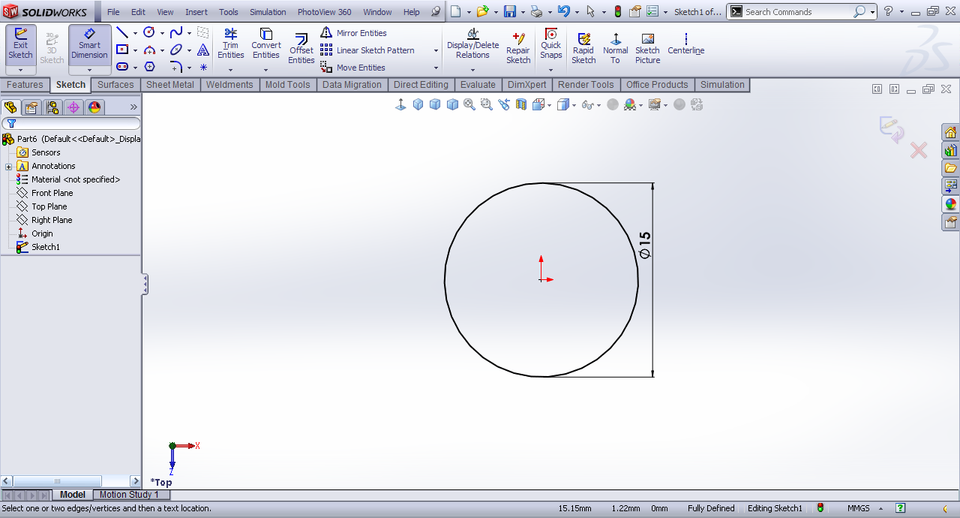

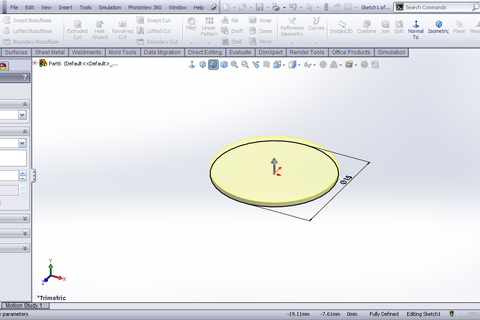

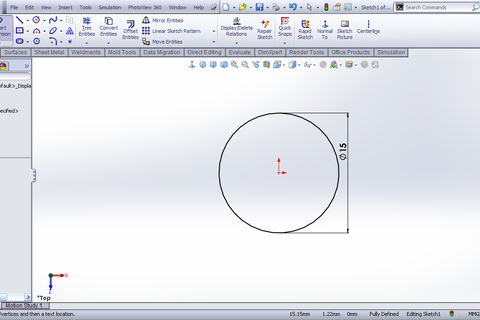

     Draw a circle of 15mm dia.



  3. Step 3

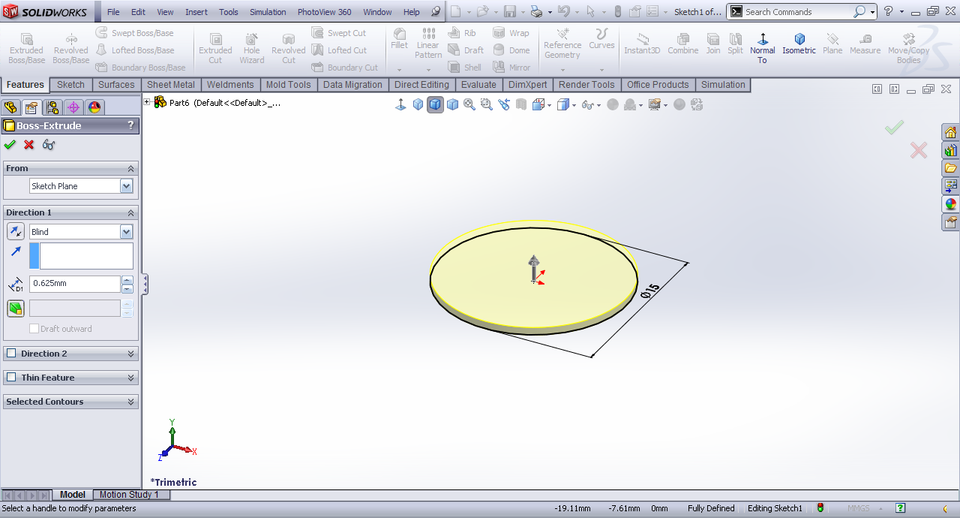

     Extrude it by .625mm.



  4. Step 4

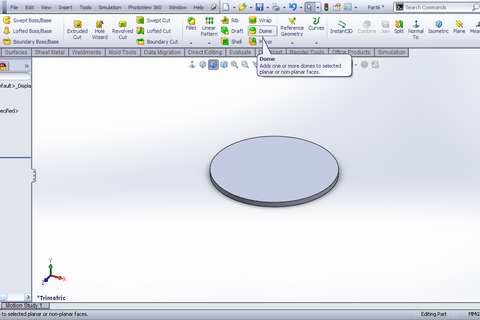

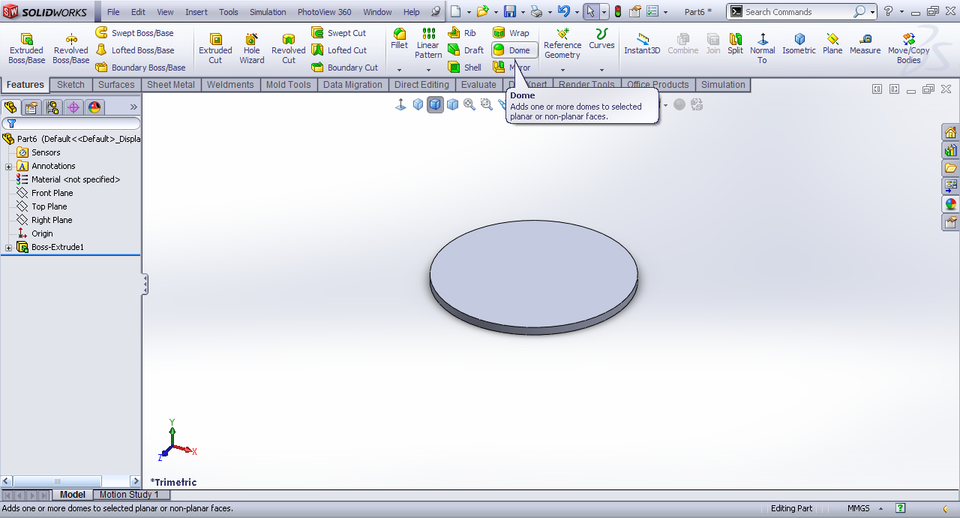

     Dome feature.



  5. Step 5

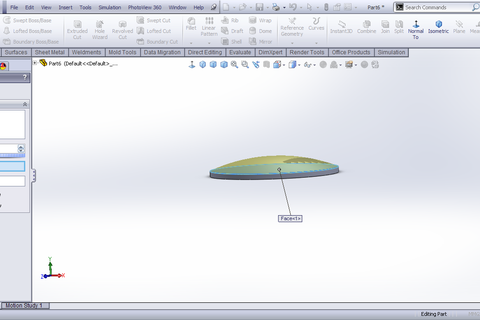

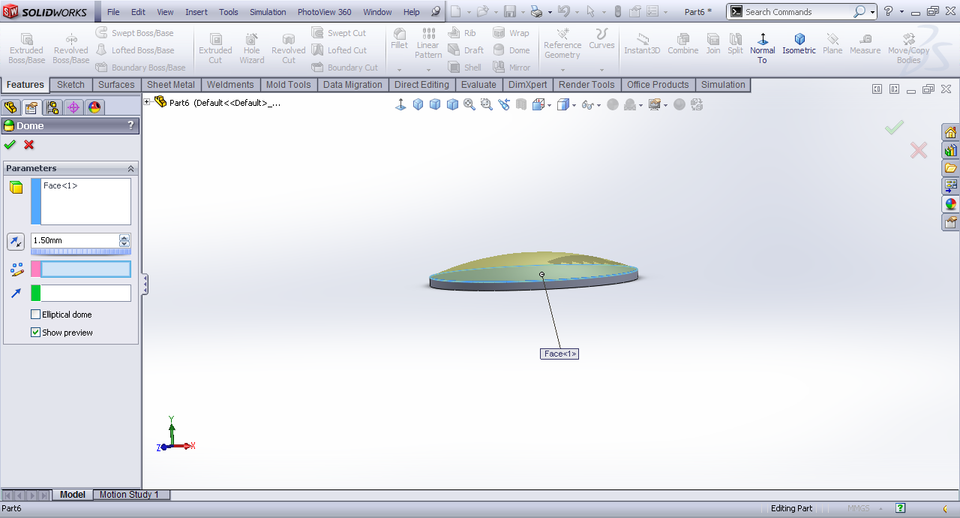

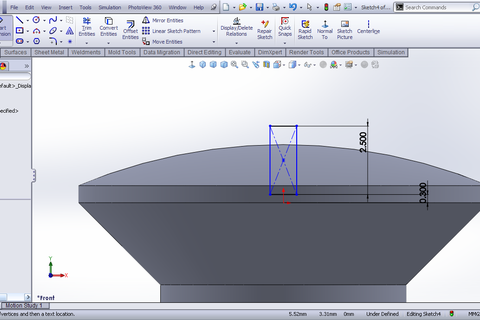

     Select Top face and input the length be 1.5mm.



  6. Step 6

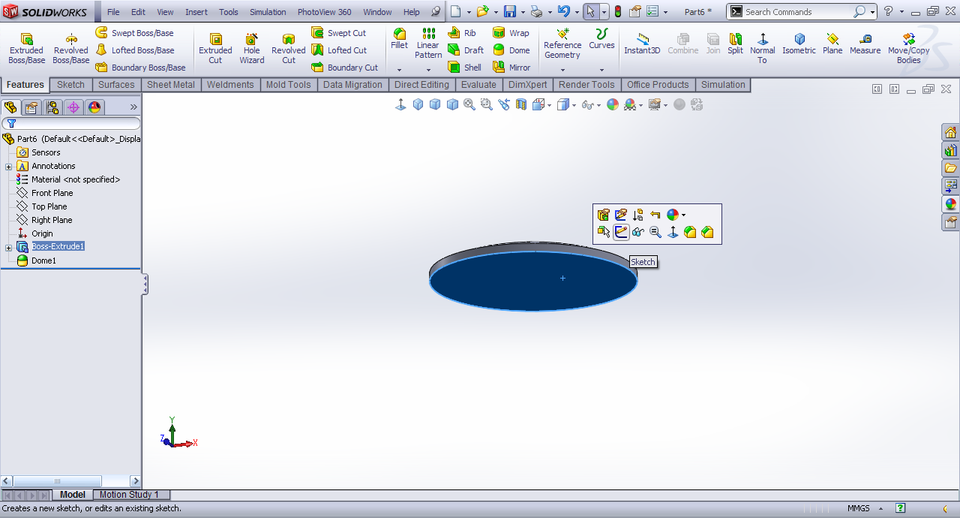

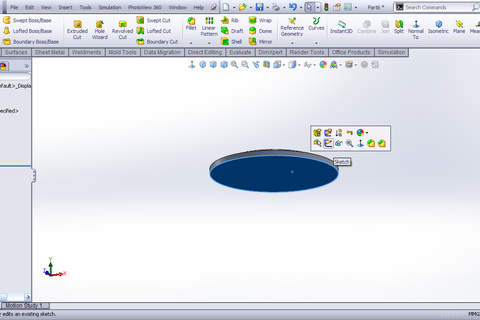

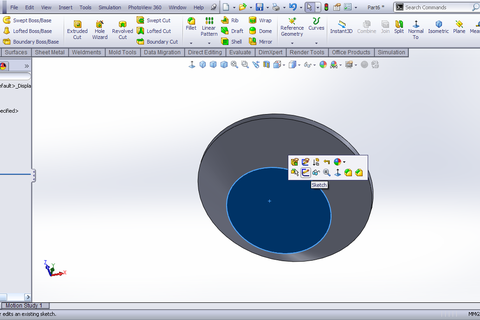

     Bottom face>>sketch.



  7. Step 7

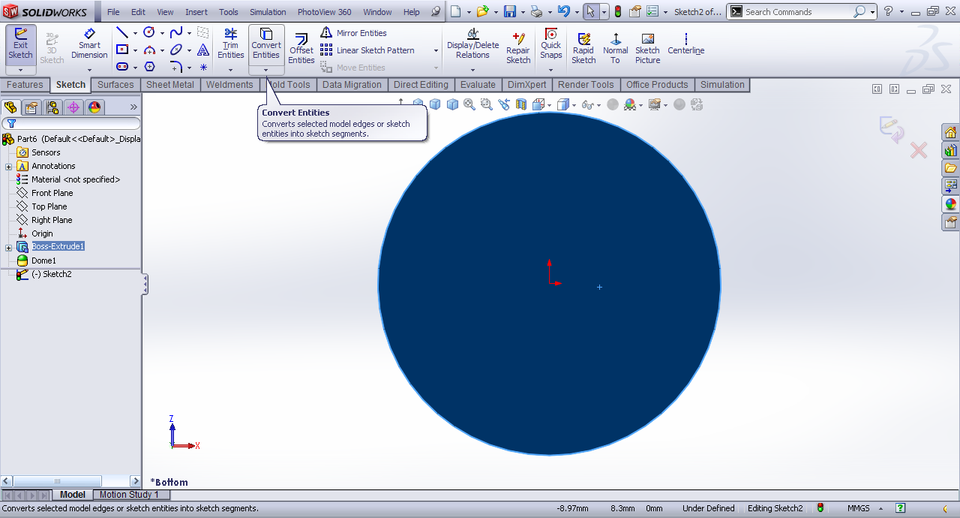

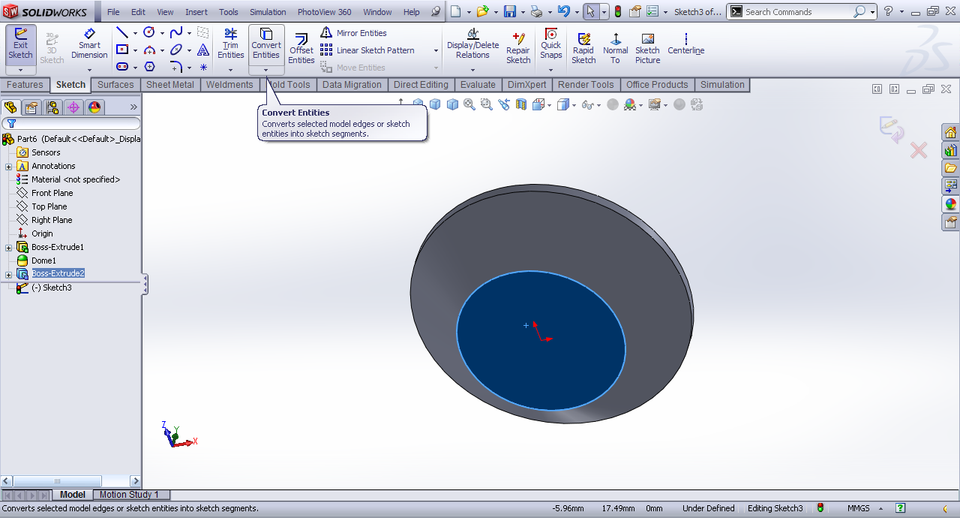

     While selecting the bottom face click convert entities.



  8. Step 8

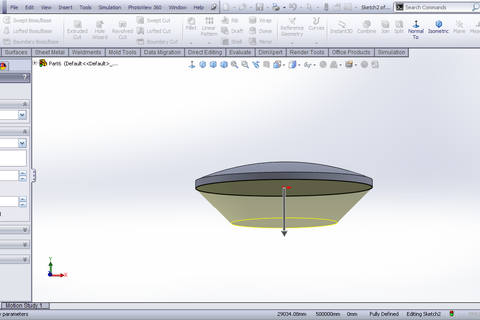

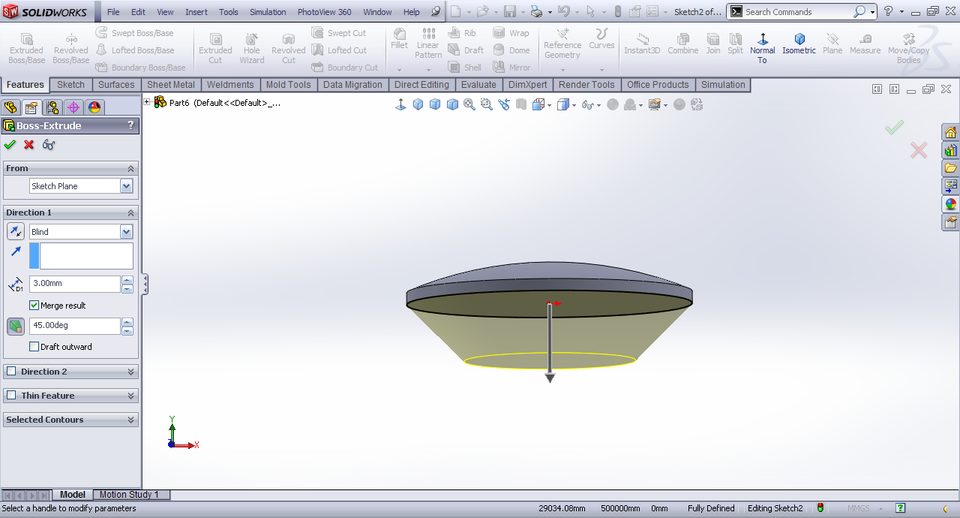

     Extrude it by 3mm and 45º draft.



  9. Step 9

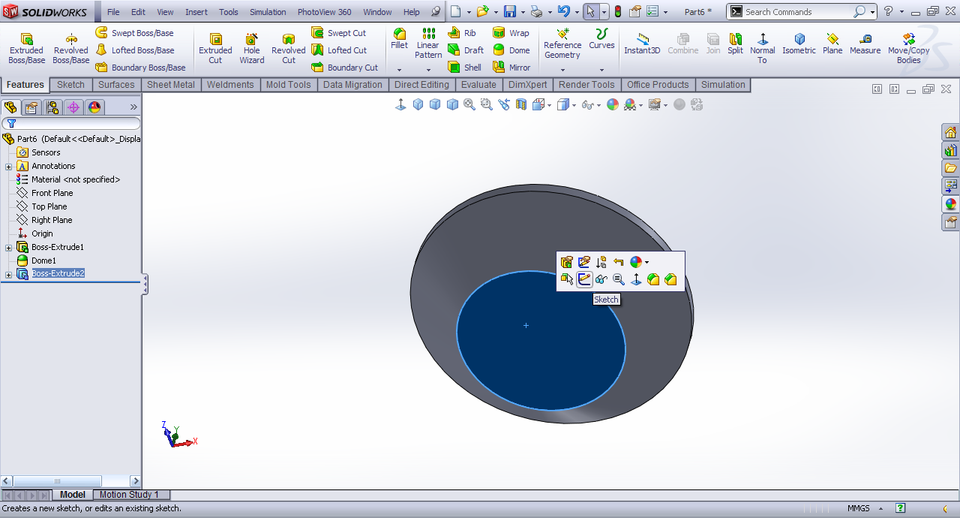

     Bottom face>>Sketch.



  10. Step 10

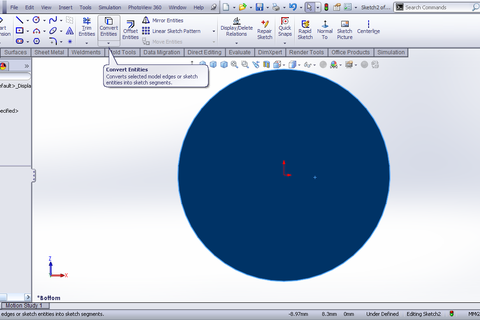

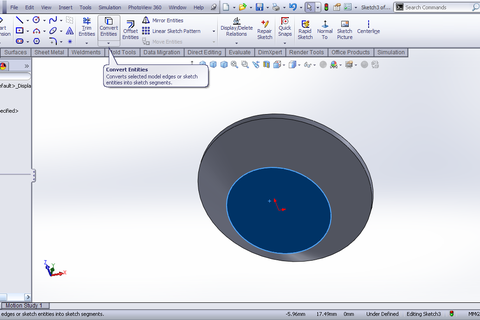

      Click Convert entities.



  11. Step 11

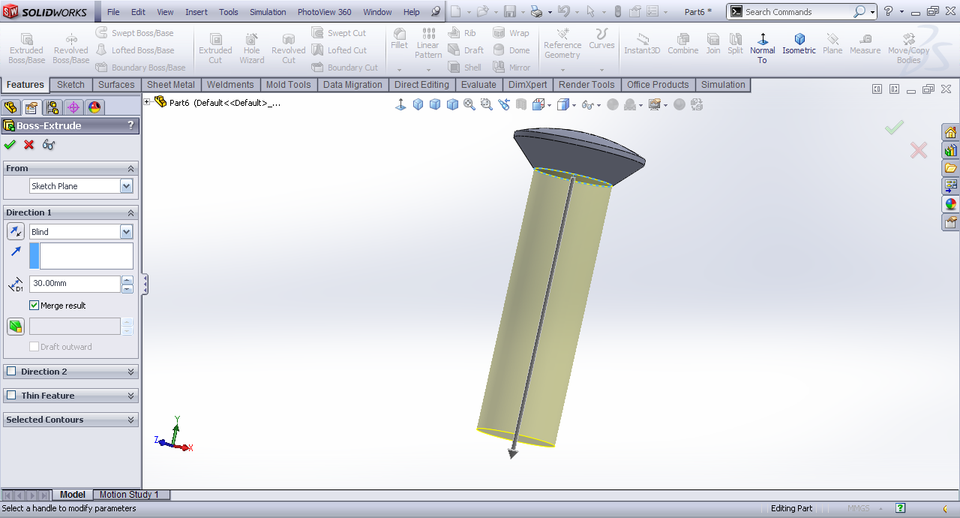

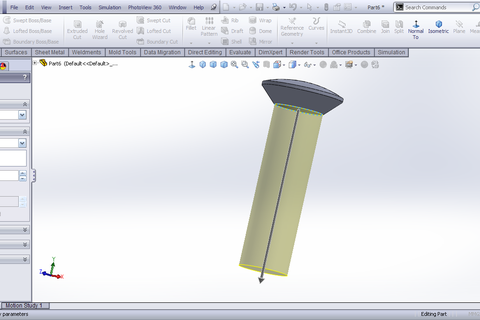

      Extrude it by 30mm.



  12. Step 12

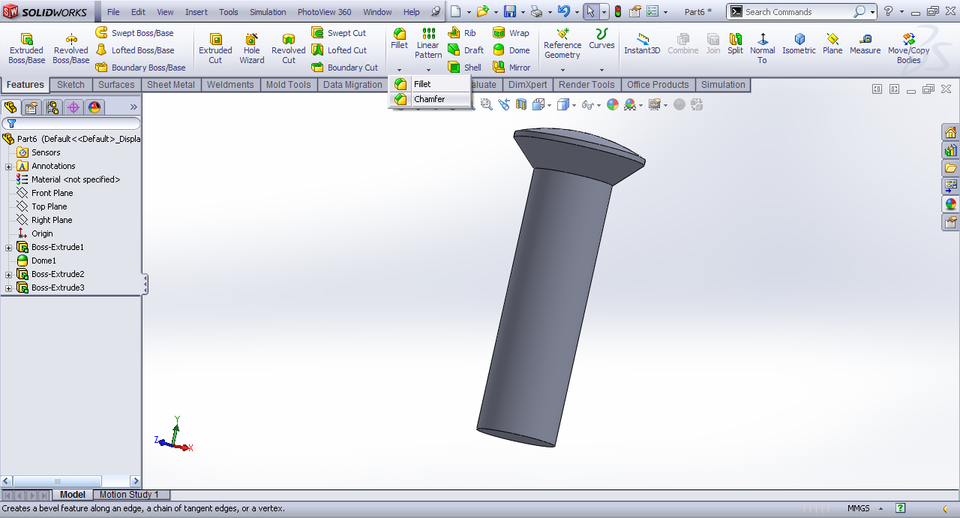

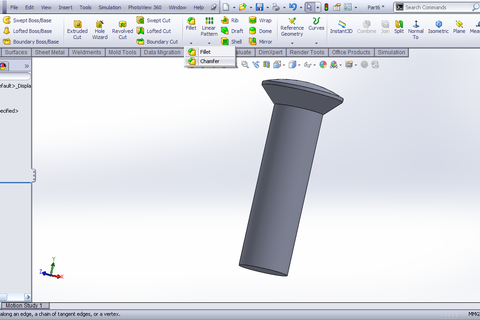

      Chamfer.



  13. Step 13

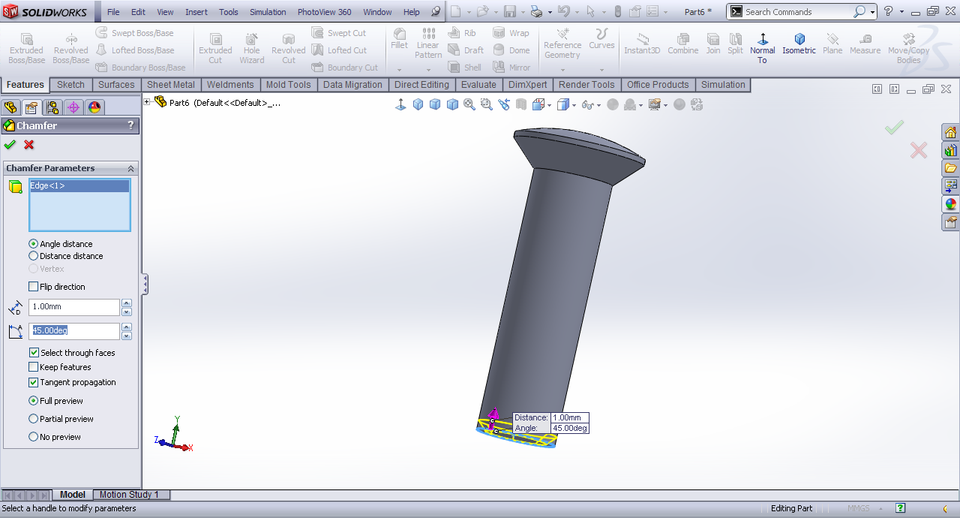

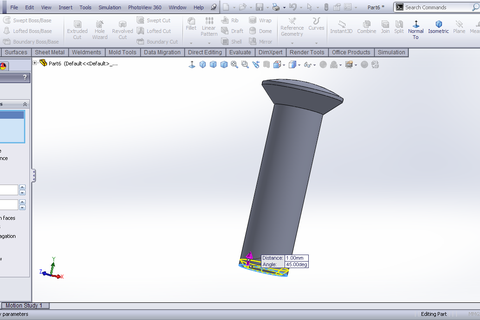

      Lower edge at 1mm and 45º.



  14. Step 14

      Front plane>>Sketch.



  15. Step 15

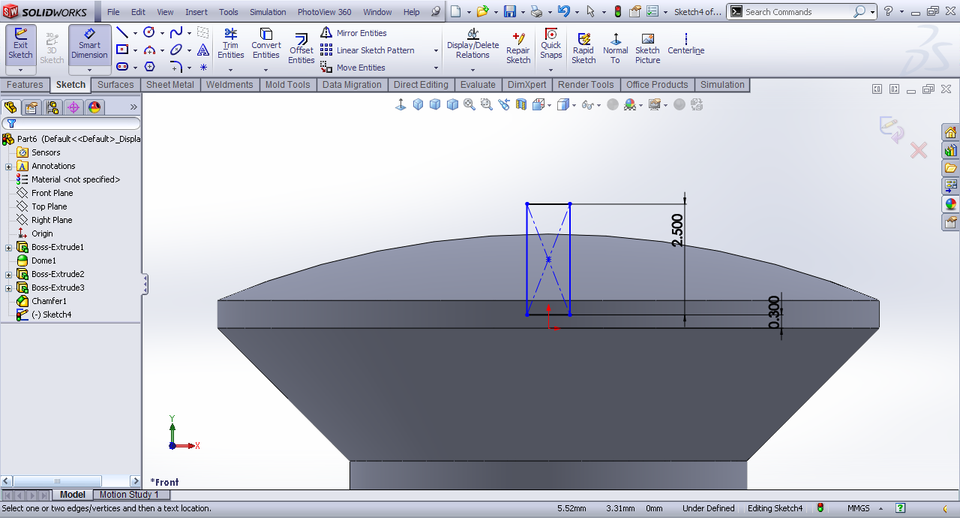

      Draw this rectangle.



  16. Step 16

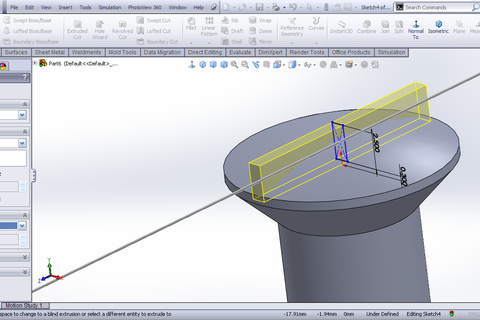

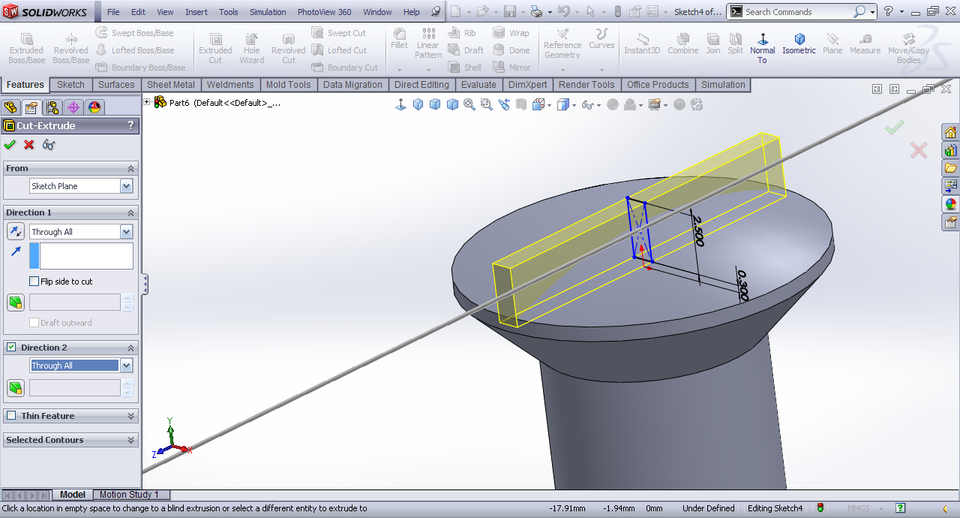

      Extrude cut through all in both direction.



  17. Step 17

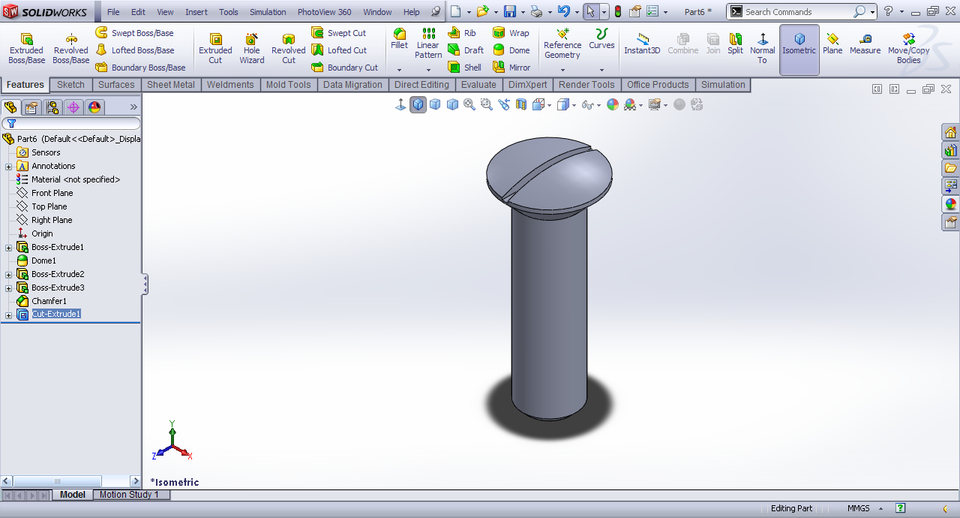

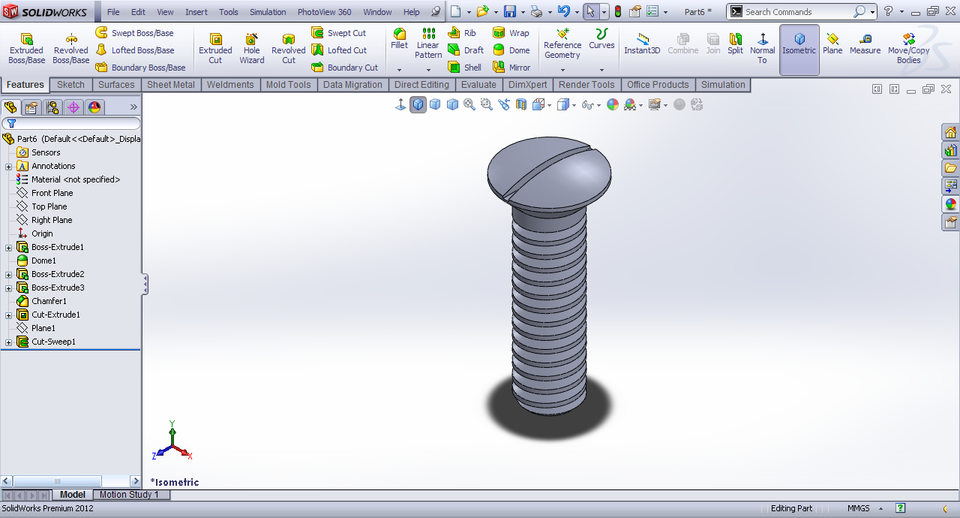

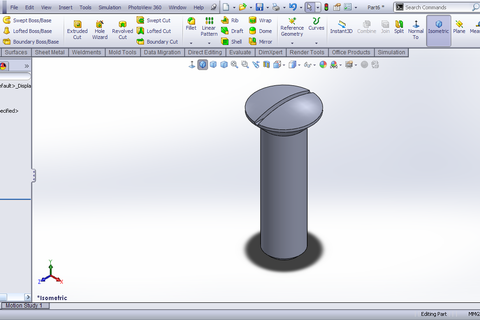

      Now we have the part body.



  18. Step 18

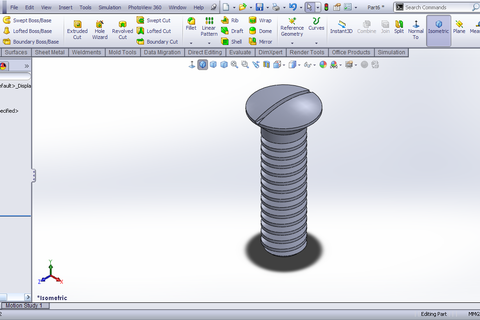

      After cutting threads.
