  Download Model: Sketched Trajectory spring

  1. Step 1

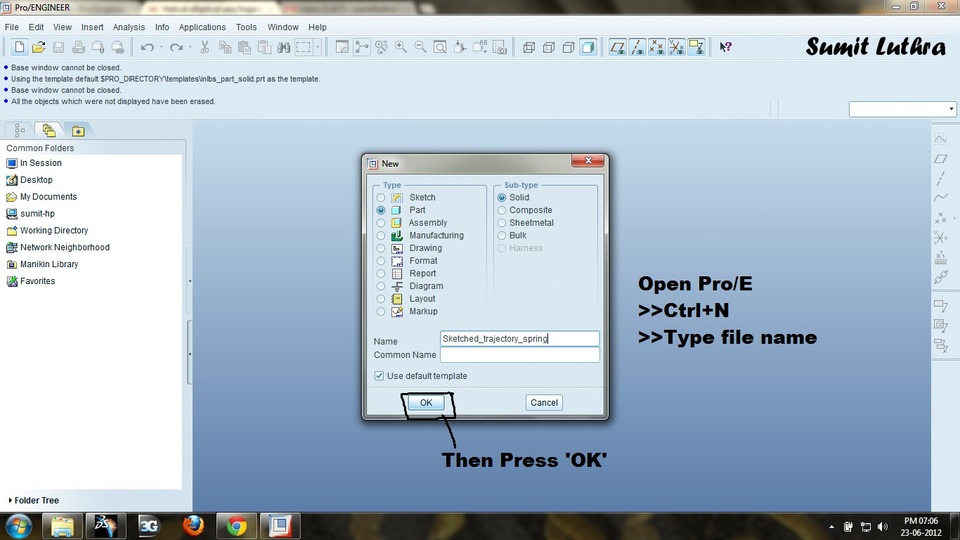

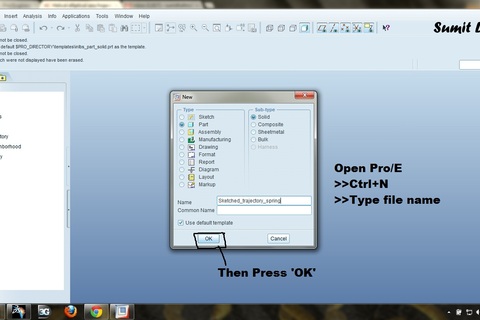

     Open Pro/E and make new File.



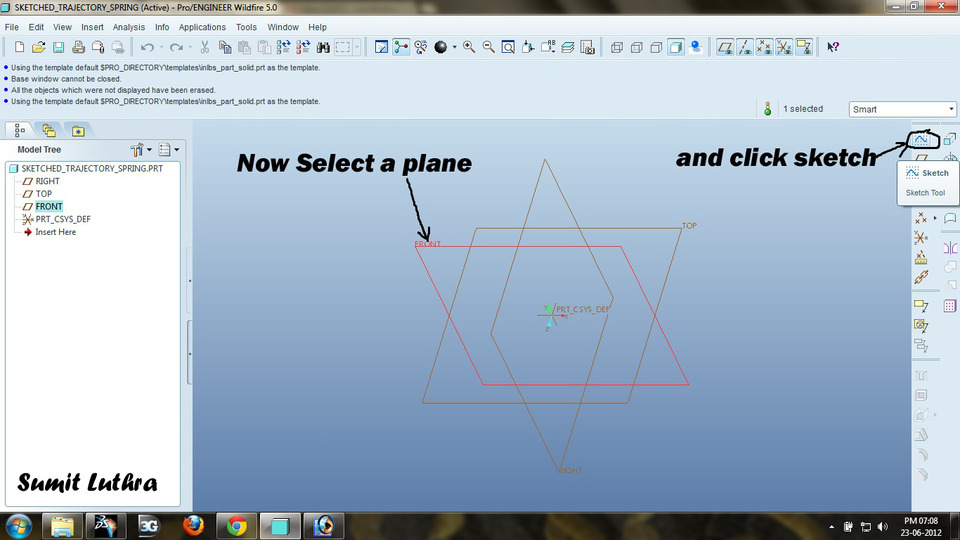

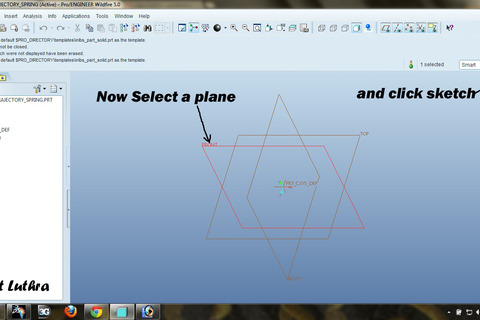

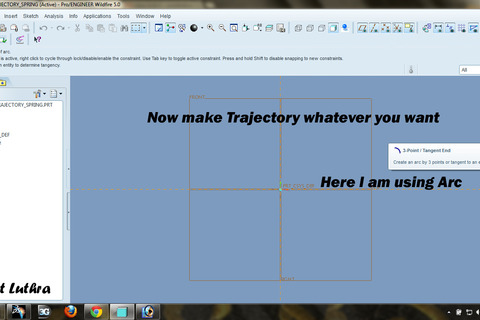

  2. Step 2

     2



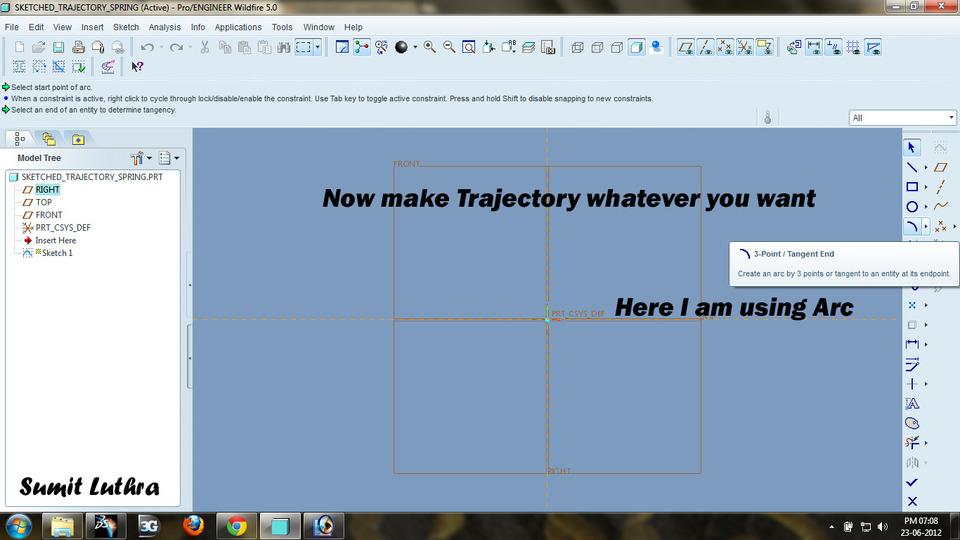

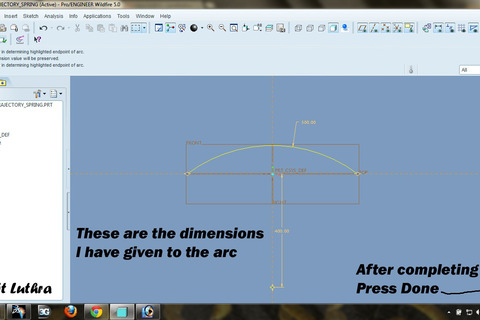

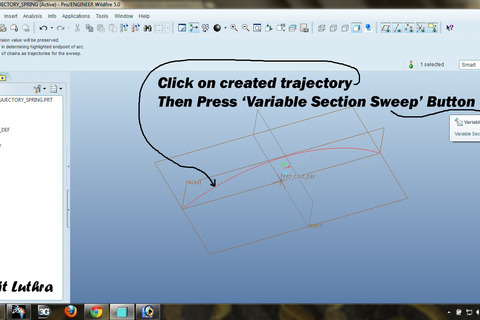

  3. Step 3

     3



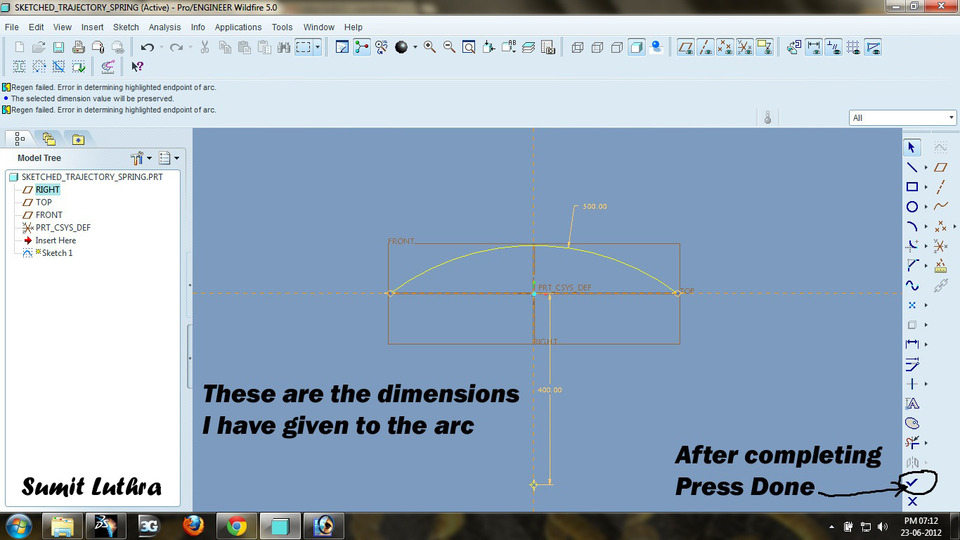

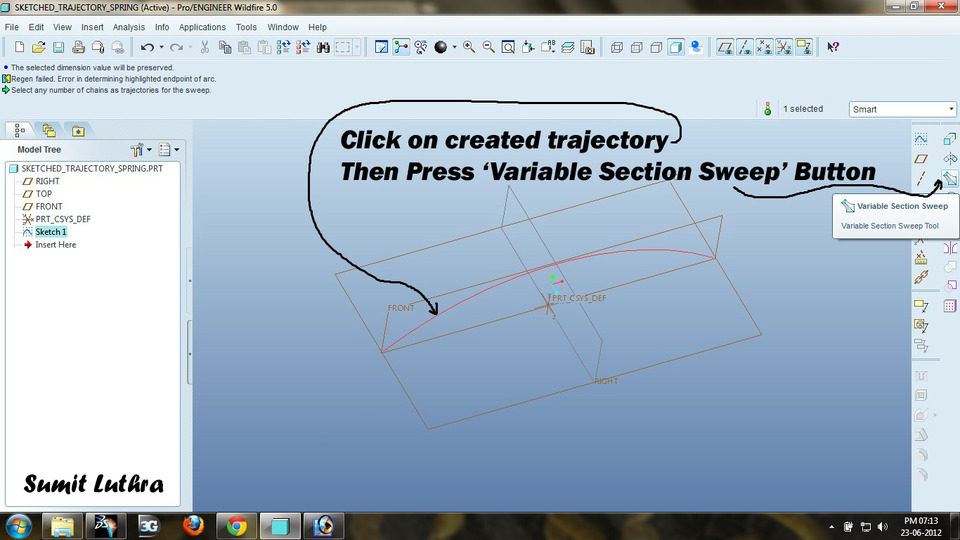

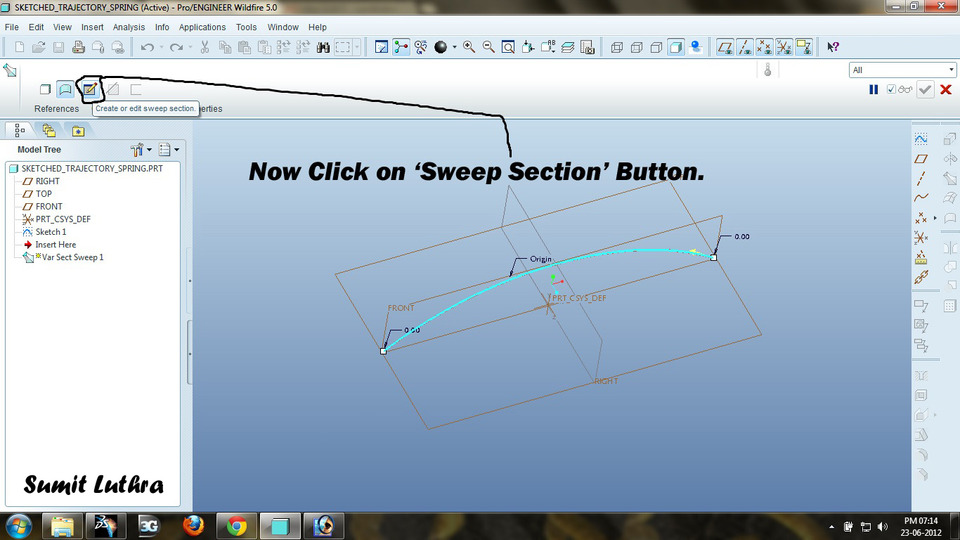

  4. Step 4

     4

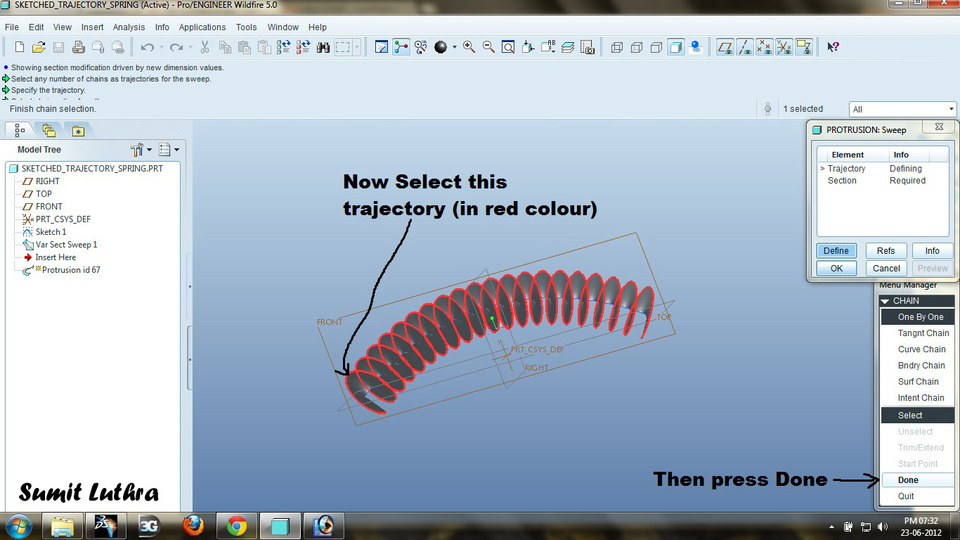

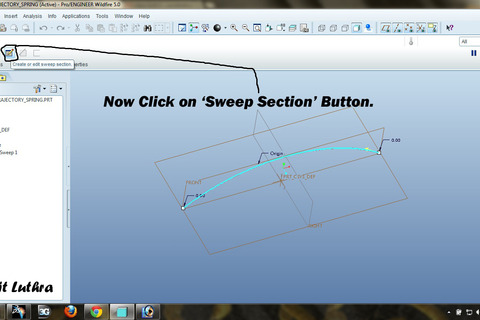

  5. Step 5

     5



  6. Step 6

     6



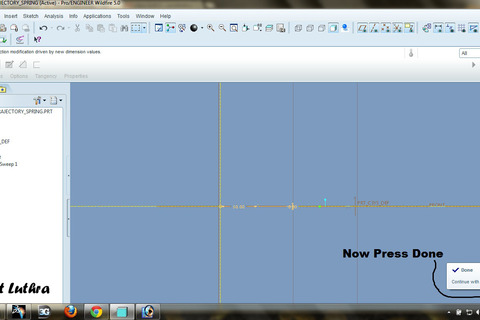

  7. Step 7

     7



  8. Step 8

     8



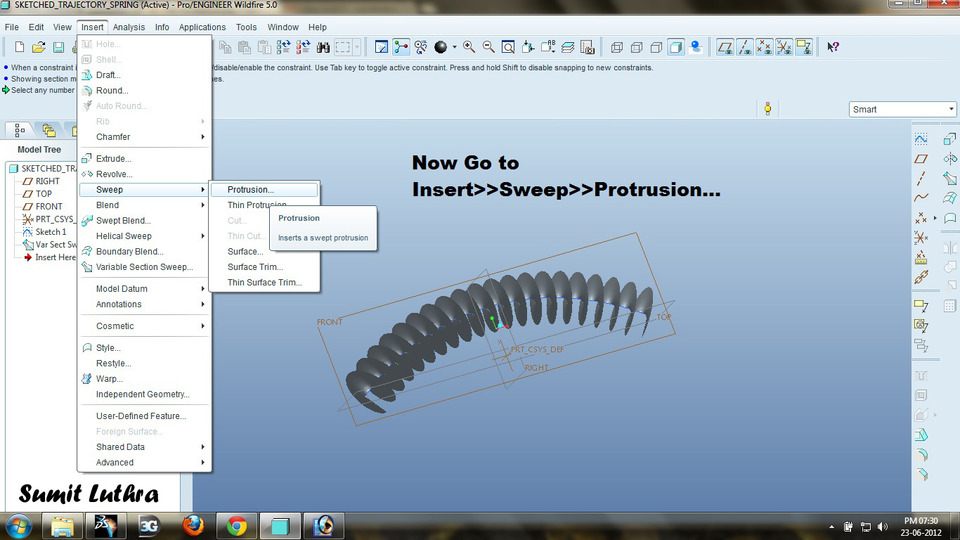

  9. Step 9

     9



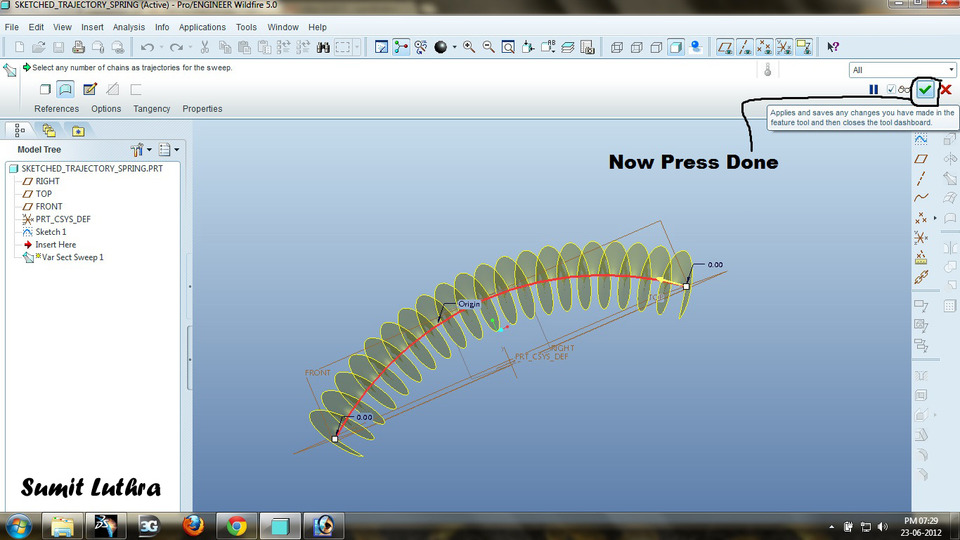

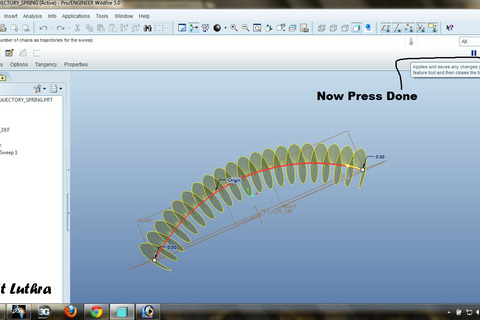

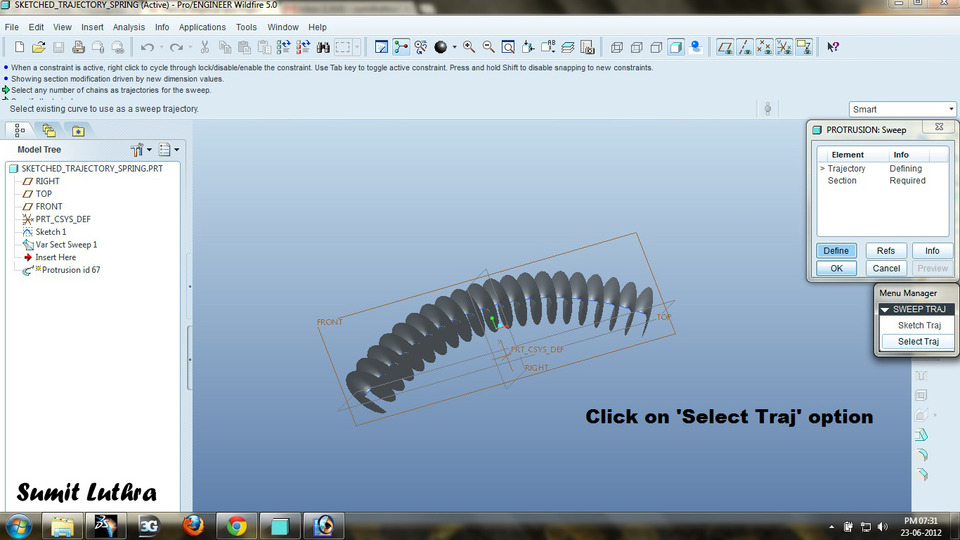

  10. Step 10

      10



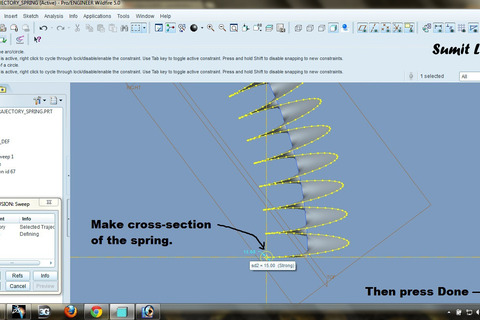

  11. Step 11

      11



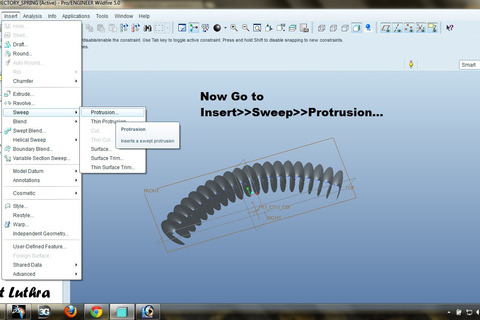

  12. Step 12

      12



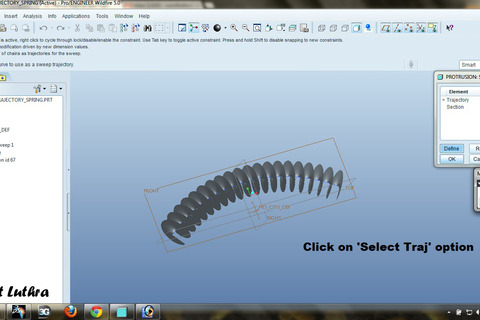

  13. Step 13

      13



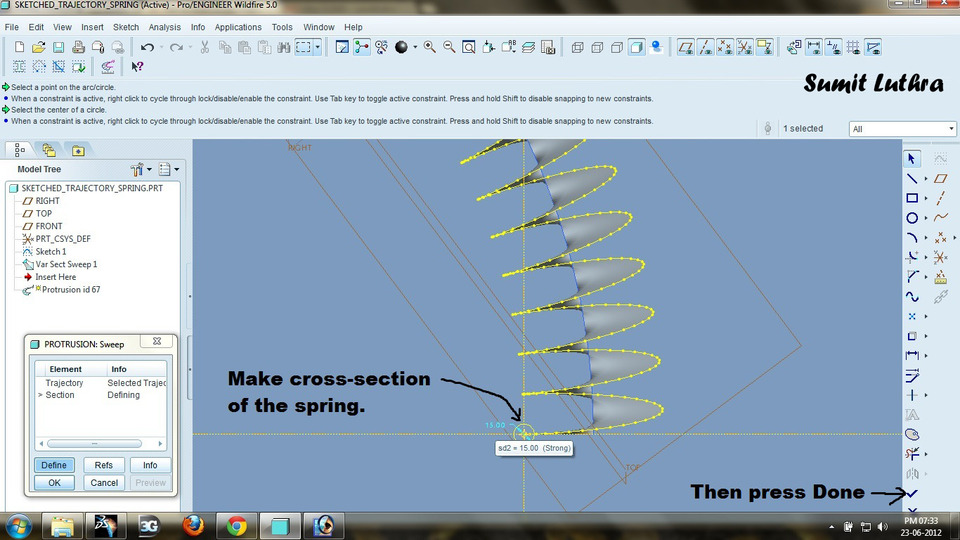

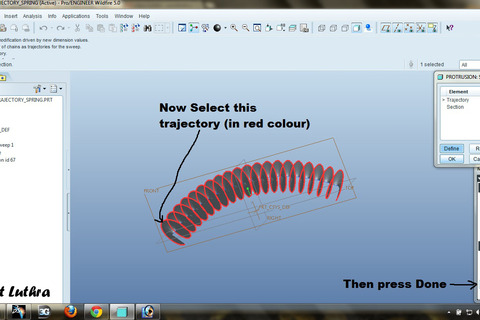

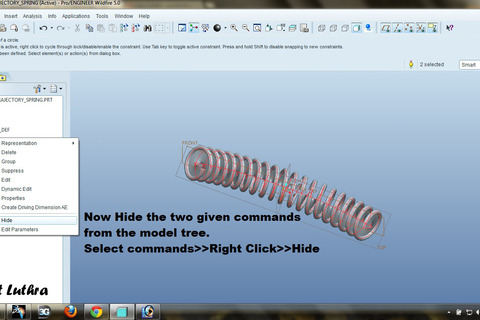

  14. Step 14

      14



  15. Step 15

      15



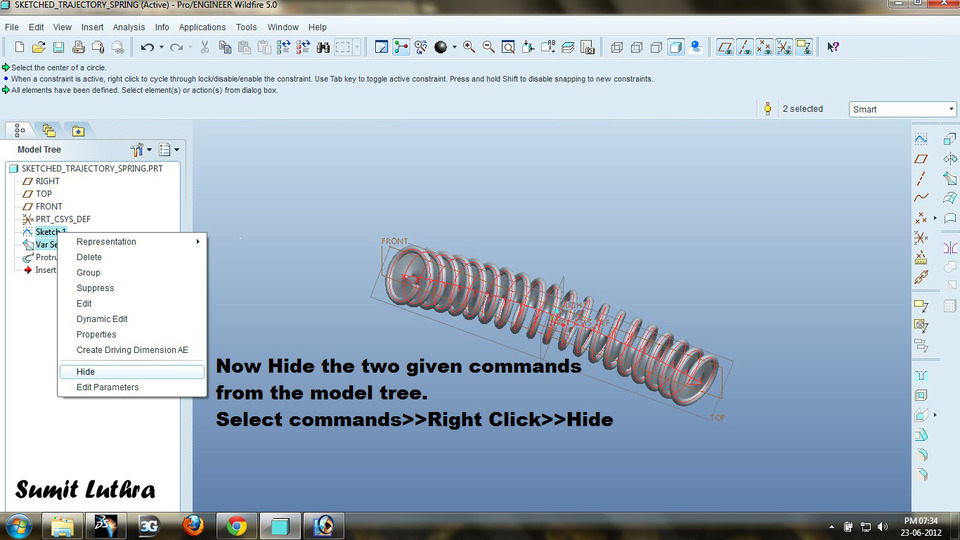

  16. Step 16

      16



  1.
     Sudhir Gill 11 months ago

     Nice one... :) :) Good Method.

  2.
     Sumit Luthra 11 months ago

     Thanks Sudhir :)

  3.
     Hamid Javaheri 11 months ago

     Very good job. thanks.

  4.
     Sumit Luthra 11 months ago

     Anytime Hamid.. :)

  5.
     Anuradha 11 months ago

     Another way. Tht's grt

  6.
     Sumit Luthra 10 months ago

     What is the problem umar? plz explain...

  7.
     umar yazdani 10 months ago

     i am having problem in equation part

  8.
     anhquoc38 10 months ago

     """"umar yazdani
     i am having problem in equation part"""
     Sd#=trajpar*360*a
     Sd# : twist angle
     a : number of twist

  9.
     umar yazdani 10 months ago

     when i enter the equation it doesnt execute, the relation windows blinks and nothing happens and in message area i get the message "Relations violate geometrical constraints. Please edit relations."

  10.
      Sumit Luthra 10 months ago

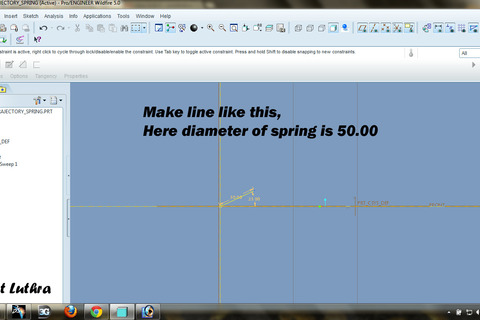

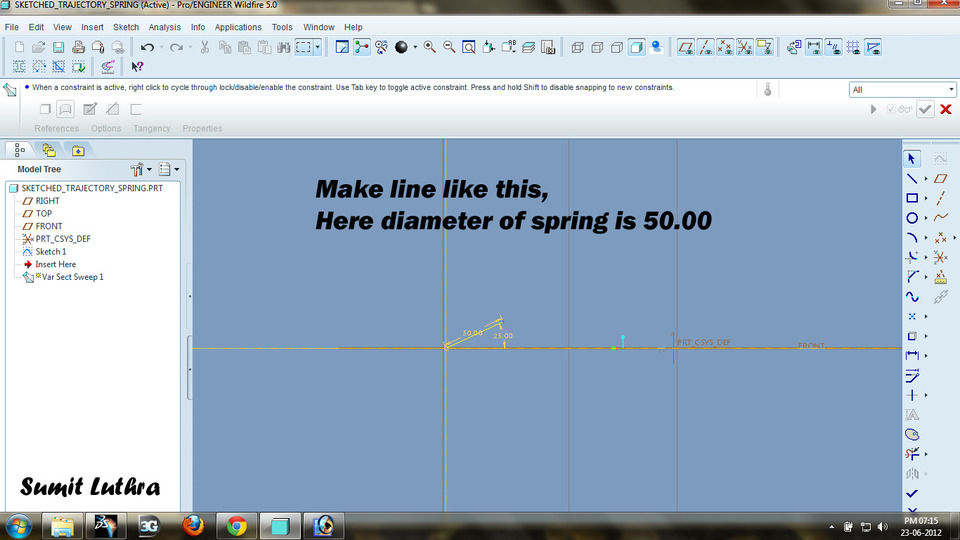

      umar.. when you are in the sketching mode of variable section sweep command make a straight line inclined at any angle from horizontal.
      Now use command 'normal' and define the length of the line.

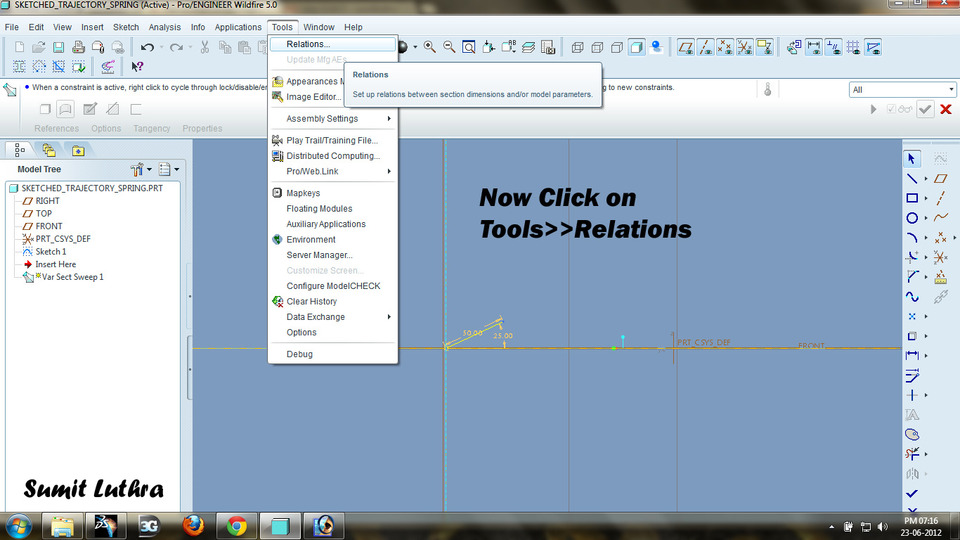

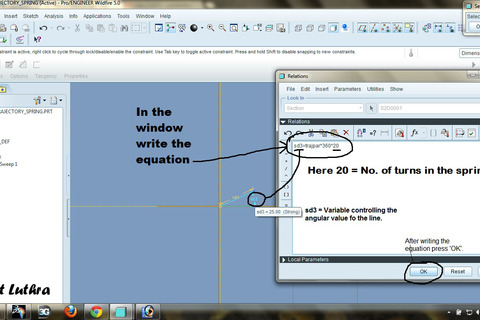

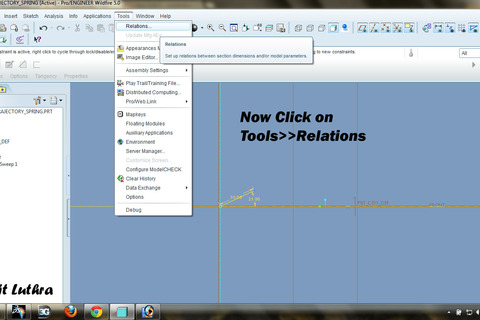

      Now go to tools>>relations command, window will appear. Then you can see that your sketch values are changed into variables. In the relations window you have to use the variable which defines angle (in most cases it is denoted by sd3)

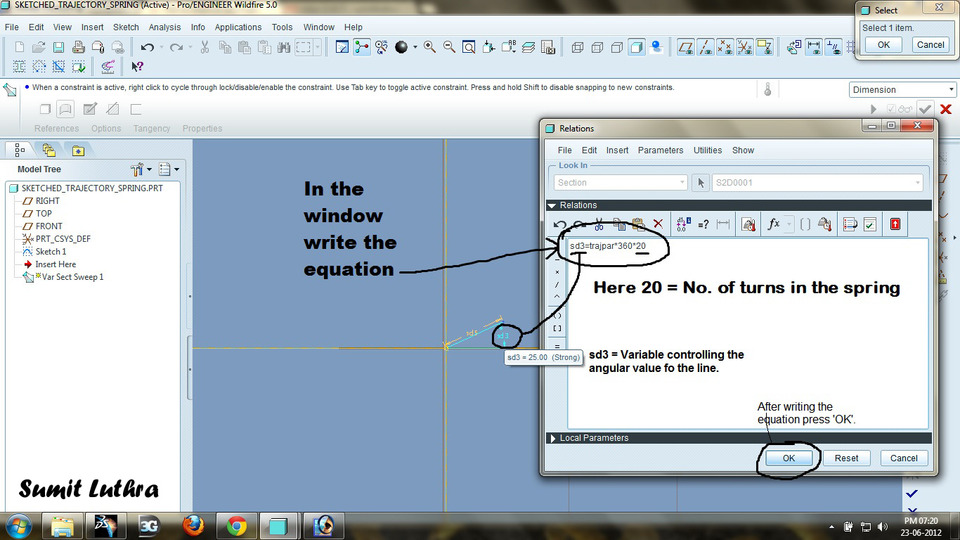

      in the relations window type:
      (sd3=trajpar*360*10) for 10 loops
      and dont type anything else in that window.
      then press ok.

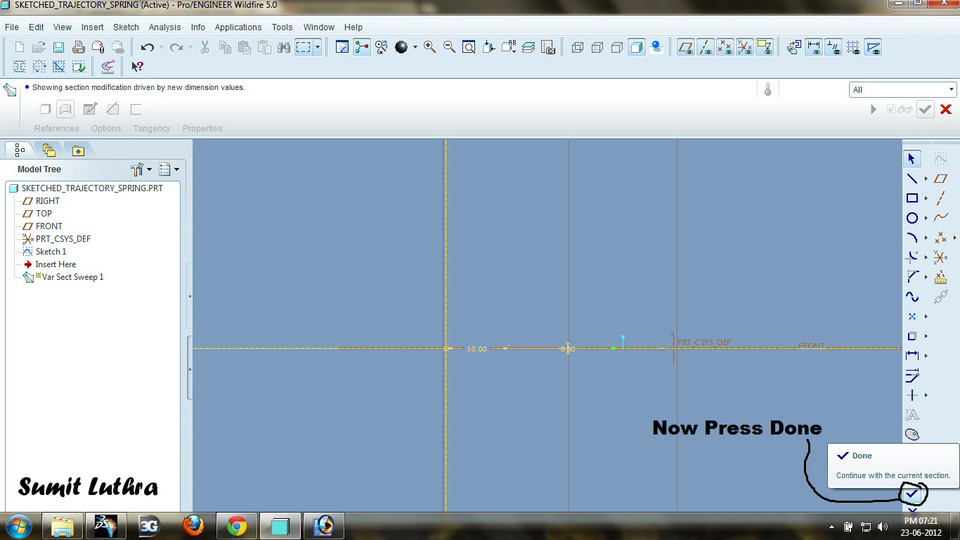

      then the angle will change to 0 degree.
      Now you will be done.

•
  anhquoc38 10 months ago

  """"umar yazdani
  i am having problem in equation part"""
  Sd#=trajpar*360*a
  Sd# : twist angle
  a : number of twist

•
  yatish 7 months ago

  excellent tutorial bro. Bro i want to learn Sheet Metal in Pro E - 5.0. Can u help me on this tutorial - Rply

•
  thiru 6 months ago

  Thank you buddy........ it works very well
  But give the formula clearly... the formula is (sd3=Trajpar*360*20)
