Tutorial on Modeling of Tennis Ball in SolidEdge ST4.

By Surajmal on 14 Apr 04:51 4 answers 2386 views 4 comments

Tutorial on Modeling of Tennis Ball in SolidEdge ST4.

4 answers

Surajmal about 1 year ago
Model for this tutorial is here(Tennis Ball)

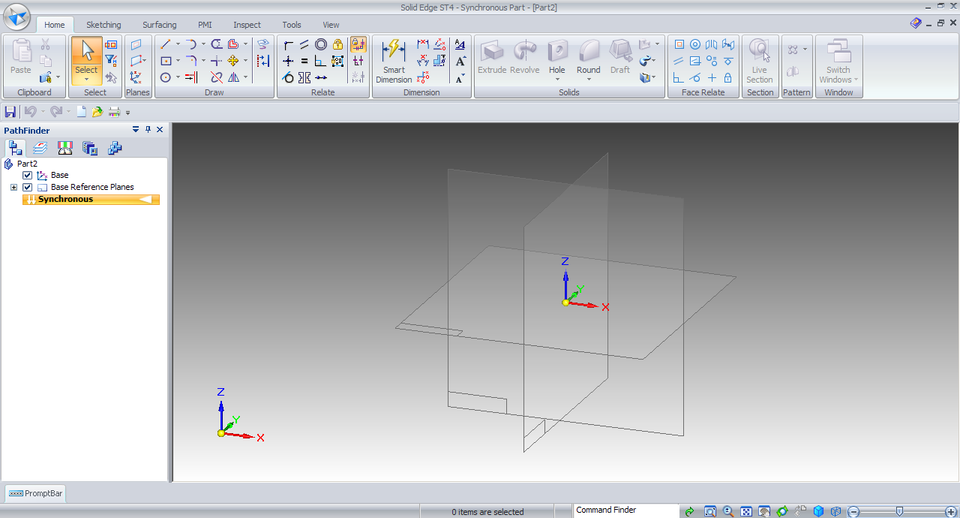

1. Step 1

  Start SolidEdge in ISO Part Mode.
2. Step 2

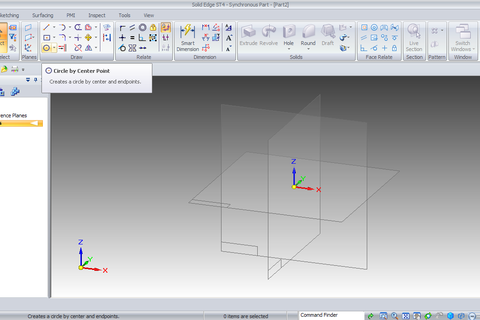

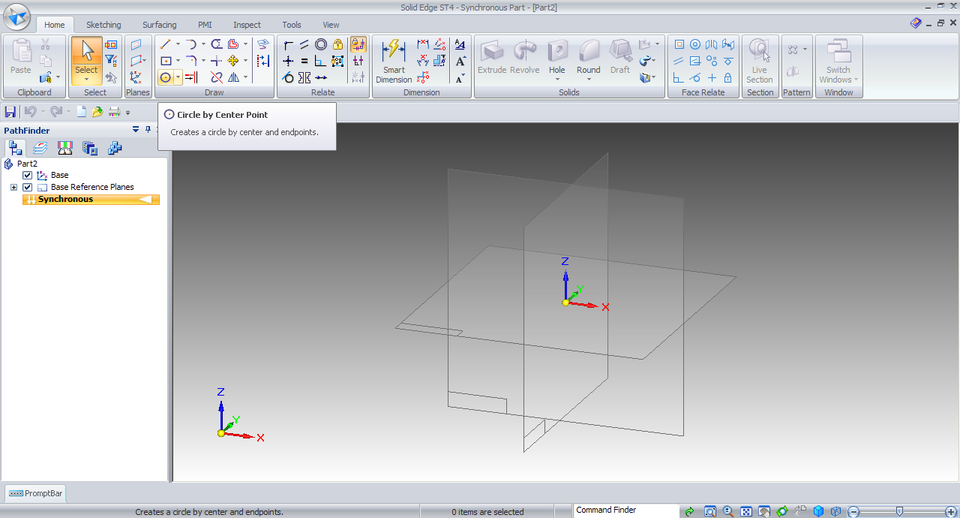

  Select Circle tool.

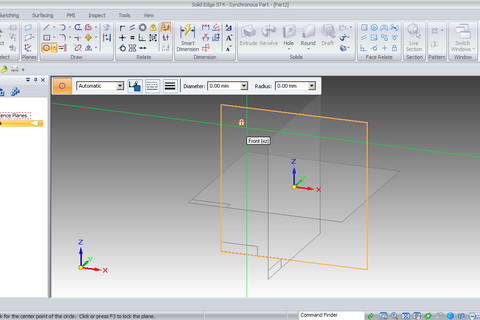

3. Step 3

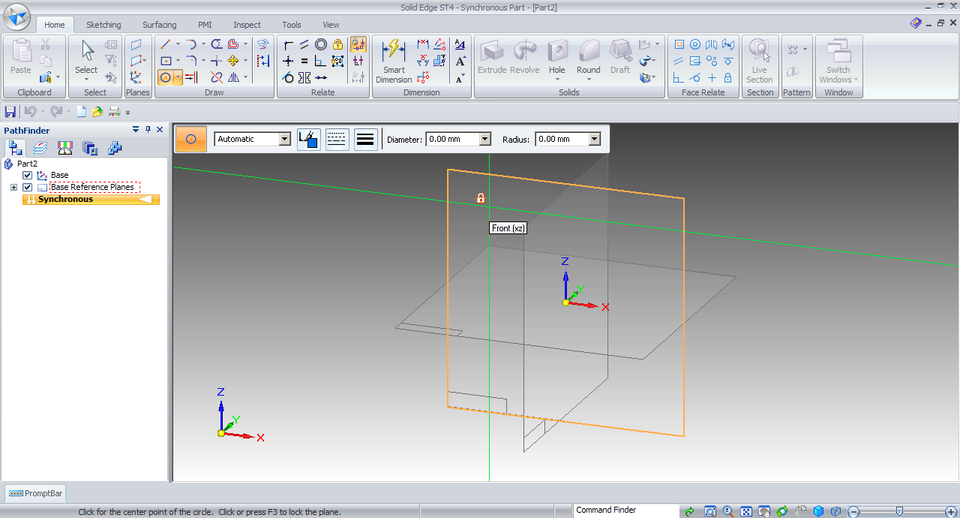

  Hover the mouse on Front plane.
4. Step 4

  Press F3 to lock the plane.

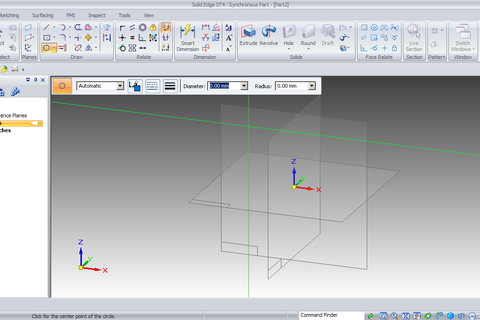

5. Step 5

  Keep the mouse on the origin while the axis are selected.

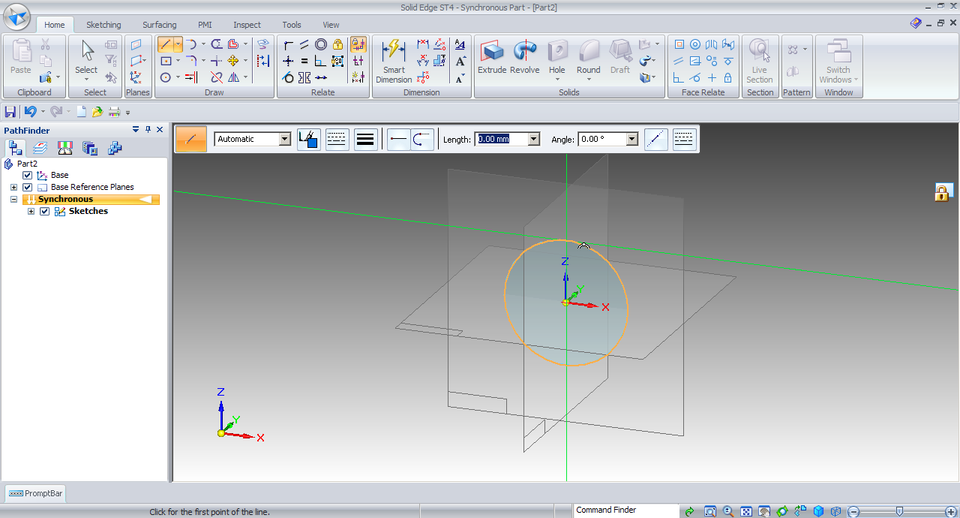

6. Step 6

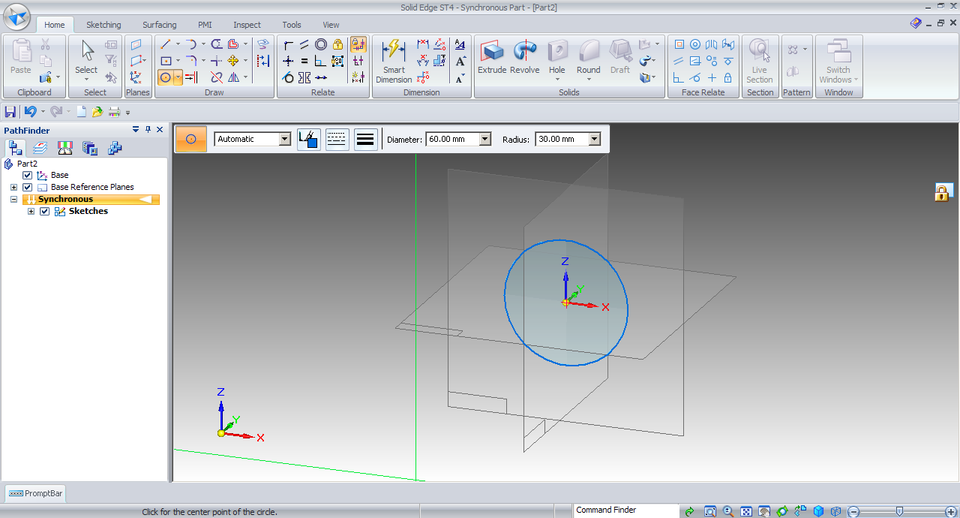

  Make a circle of 60mm diameter on origin.

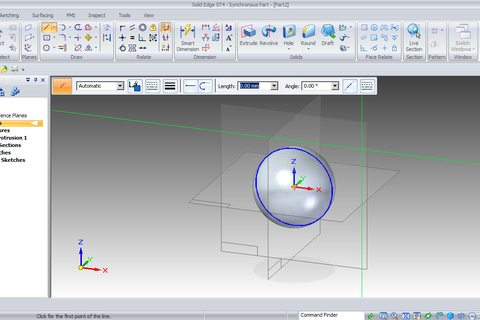

7. Step 7

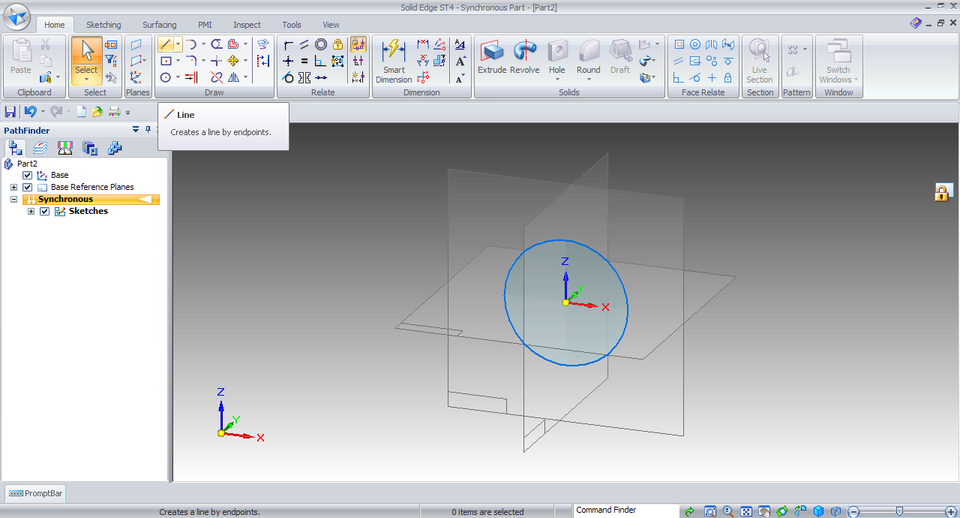

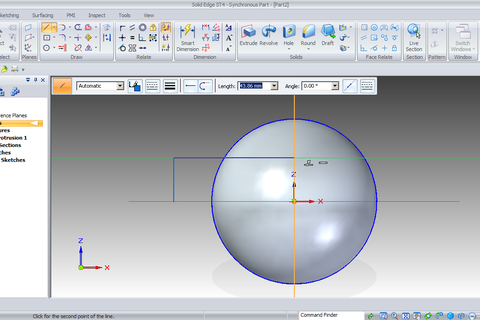

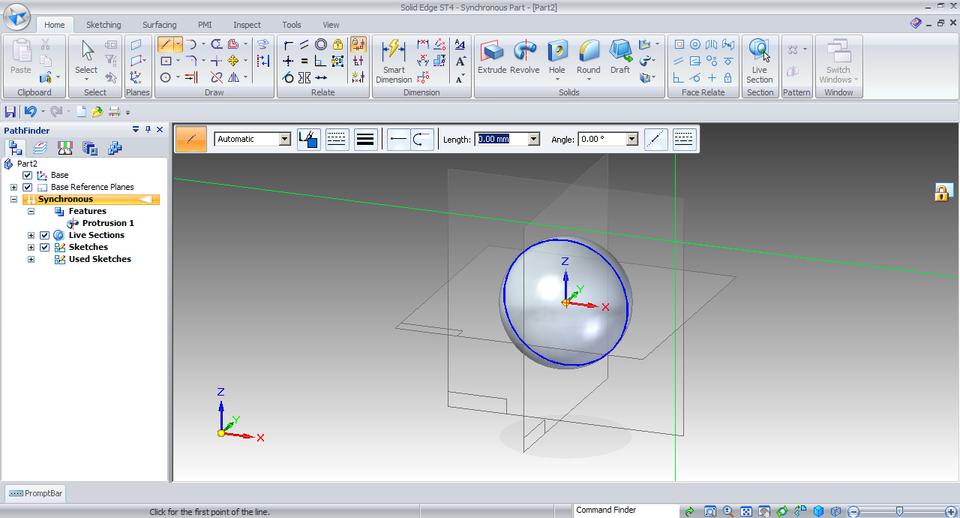

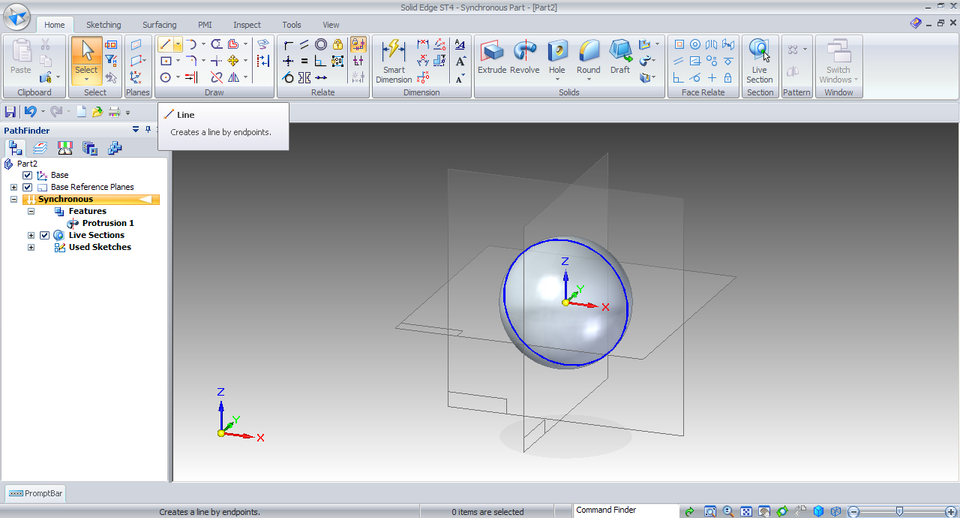

  Select Line tool.
8. Step 8

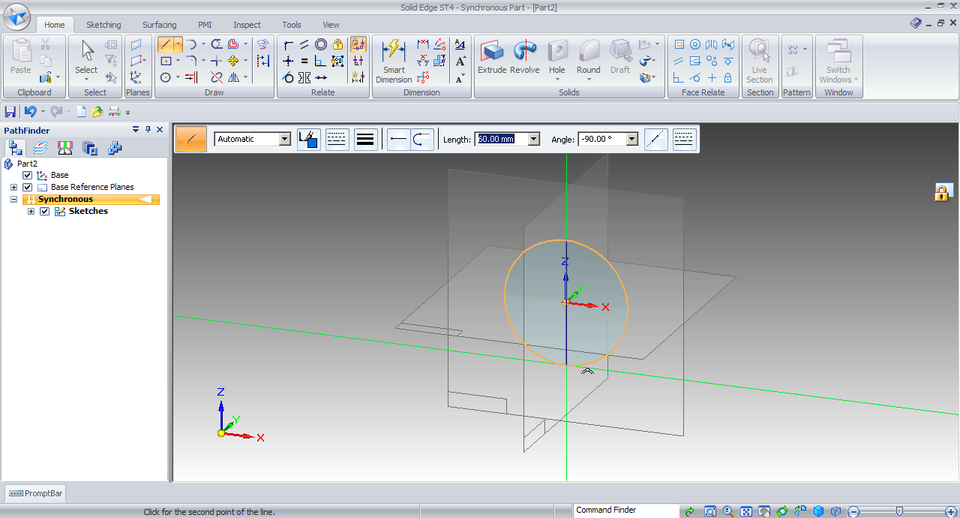

  Select the upper point along Z-axis.
9. Step 9

  Select the lower point
10. Step 10

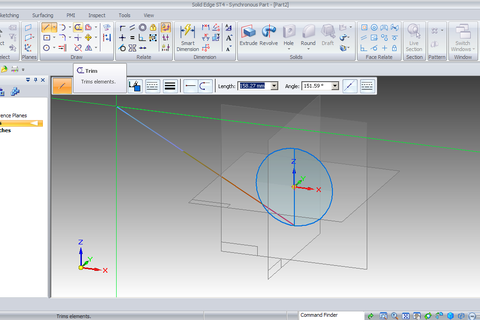

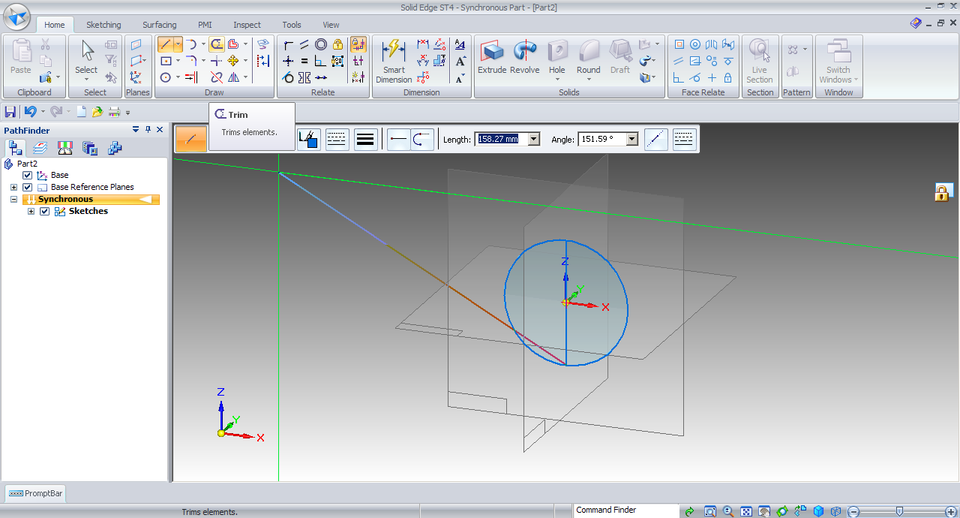

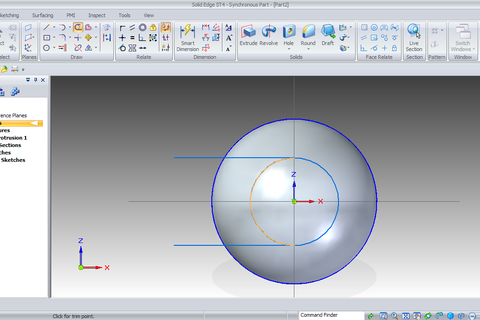

  Select Trim tool.
11. Step 11

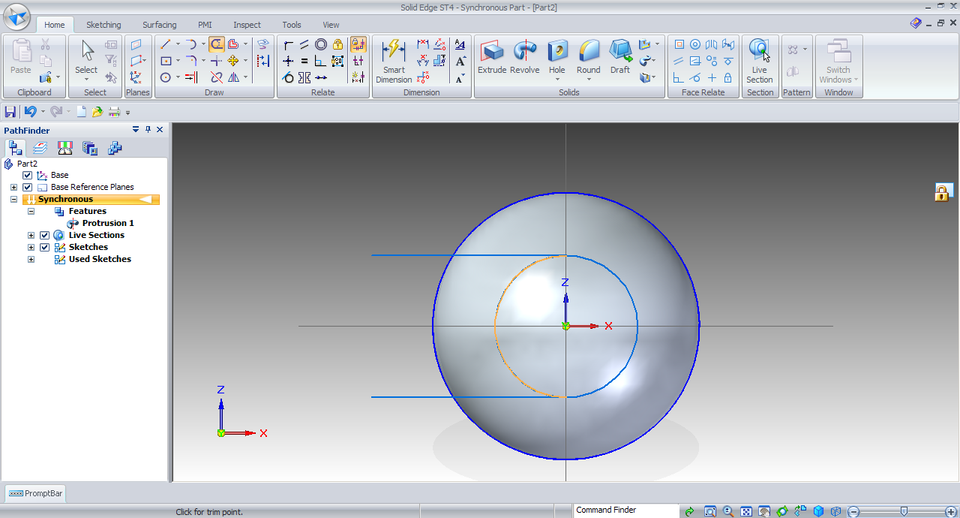

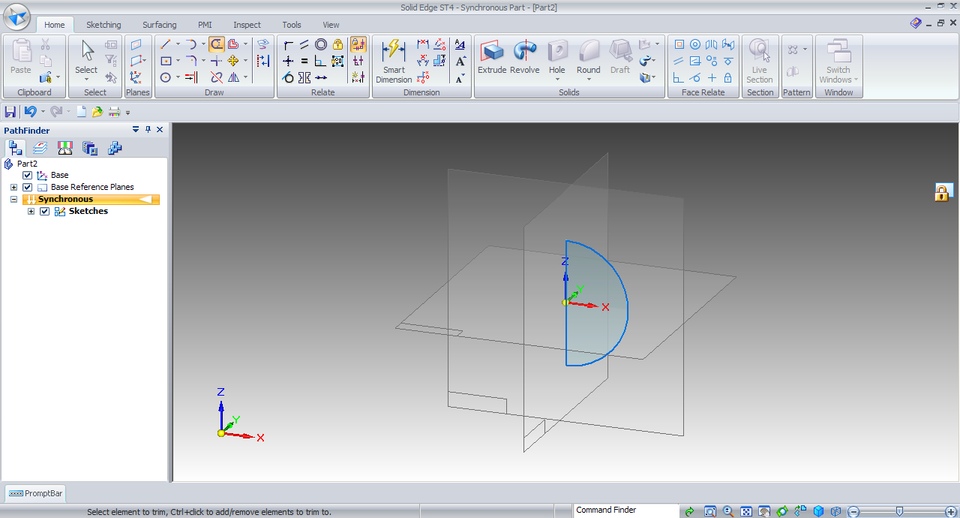

  Trim away the circle.
12. Step 12

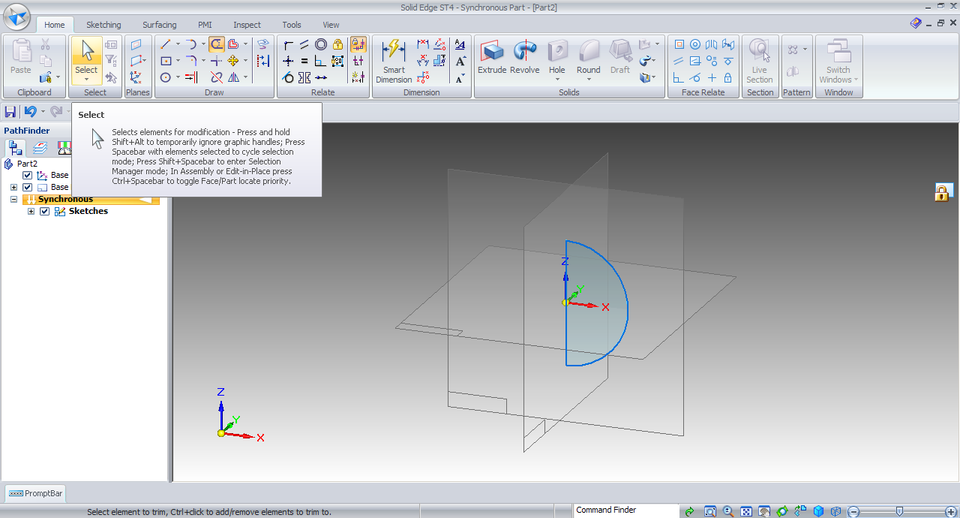

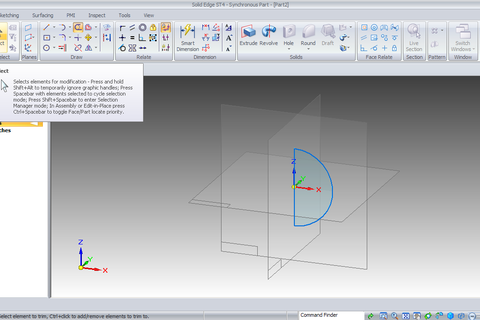

  Click Select tool.

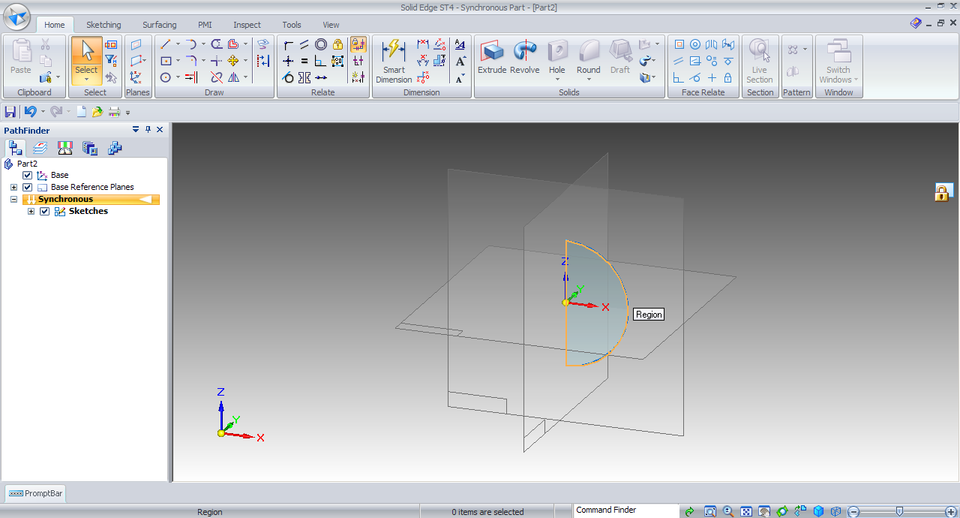

13. Step 13

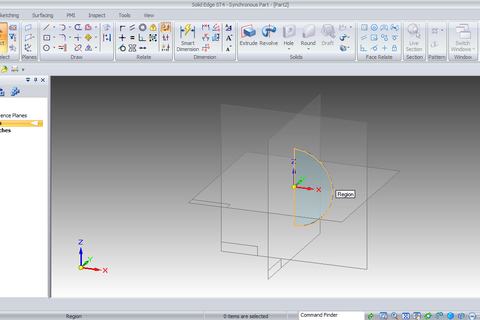

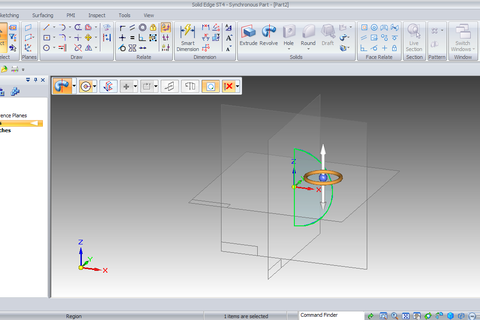

  Select the region.
14. Step 14

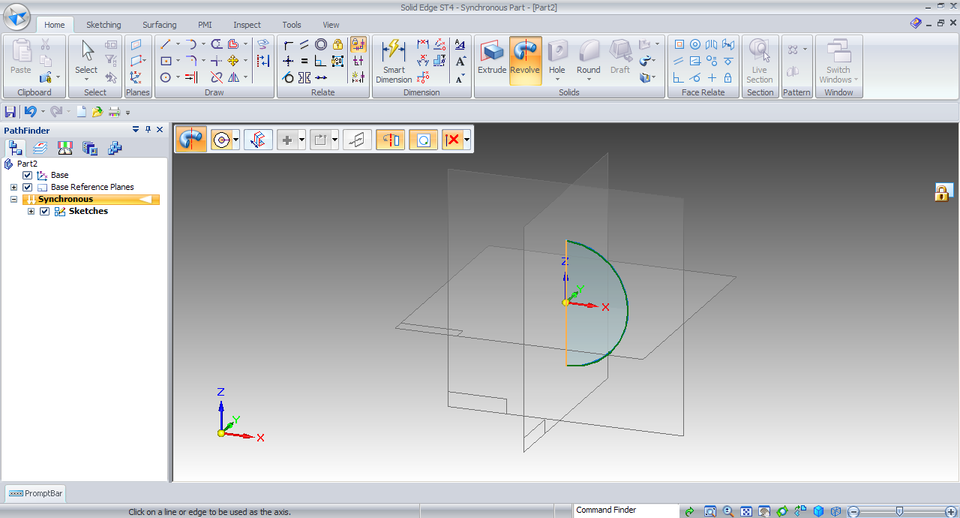

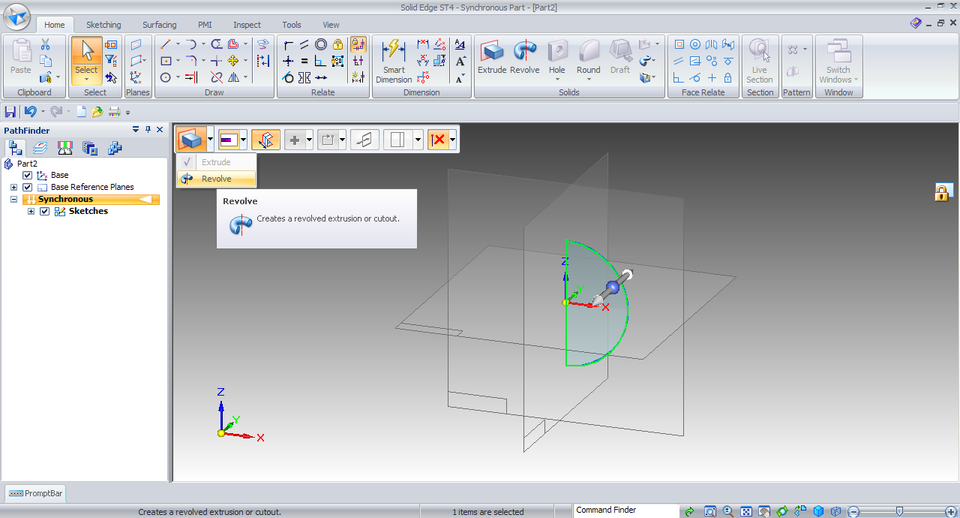

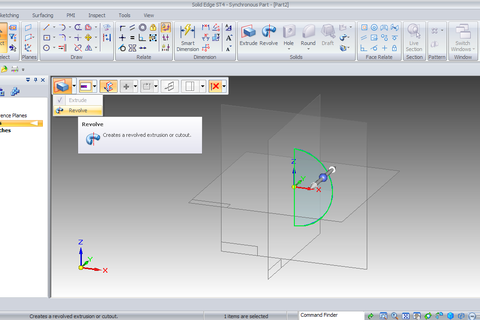

  Select Revolve.
15. Step 15

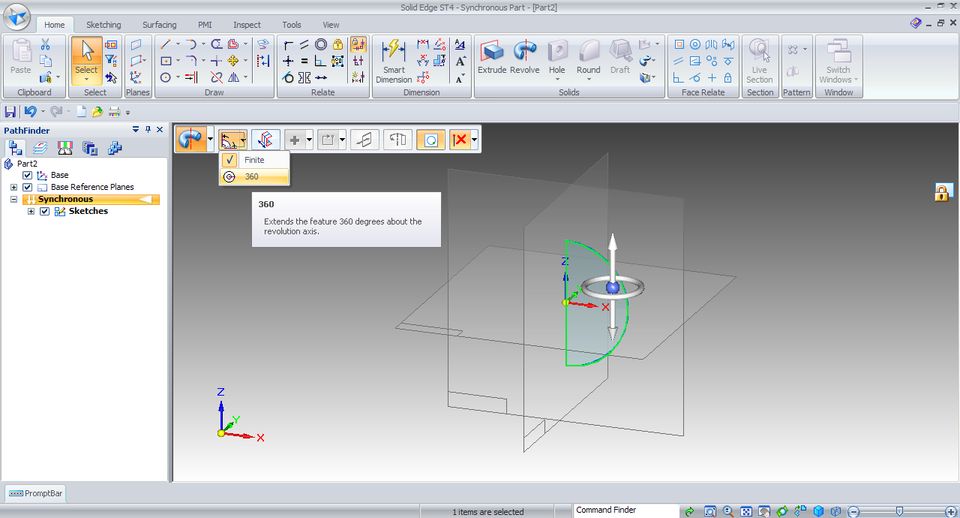

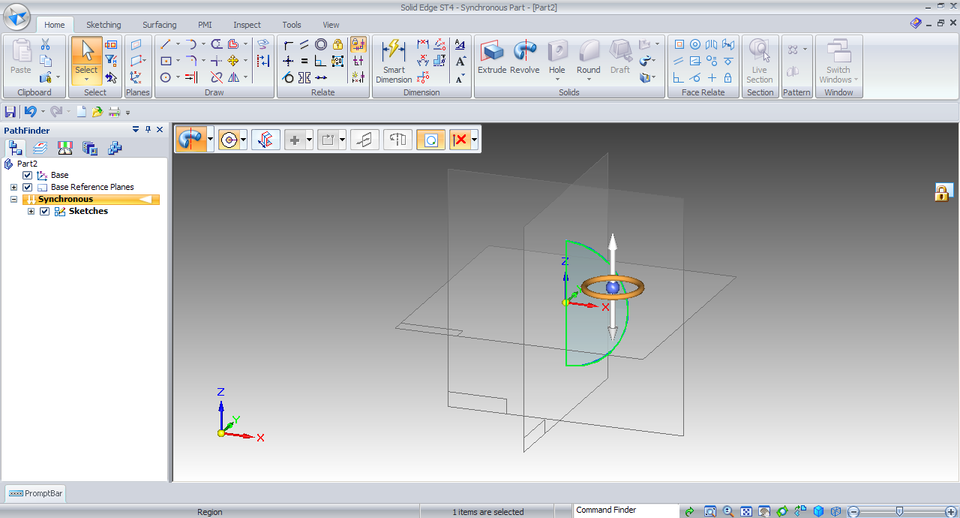

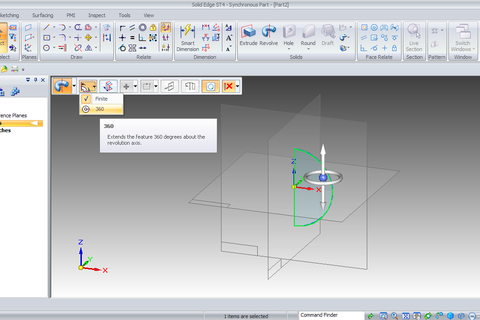

  Change the revolution type to 360.
16. Step 16

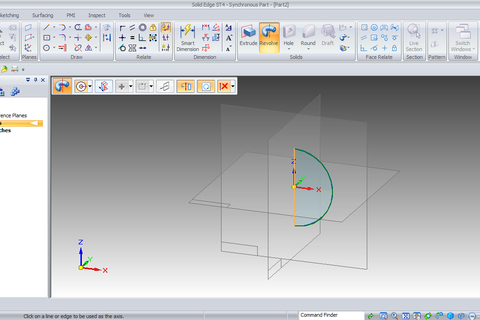

  Click the revolution axis.
17. Step 17

  Select the line along Z-axis.

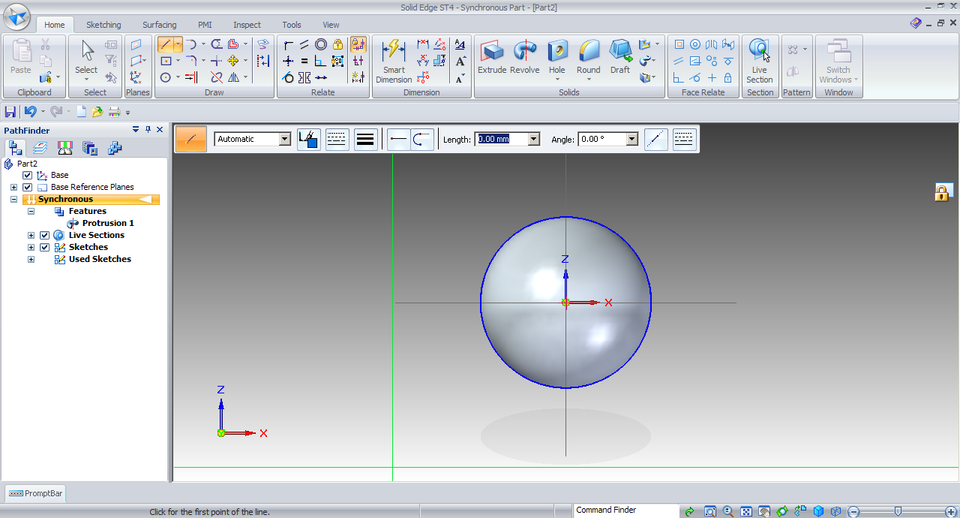

18. Step 18

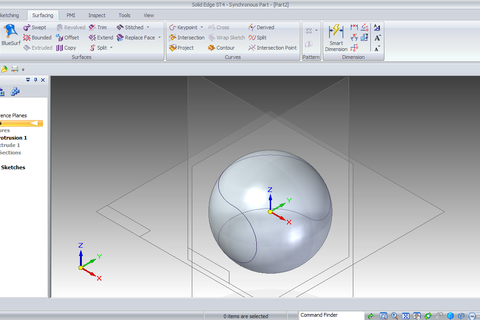

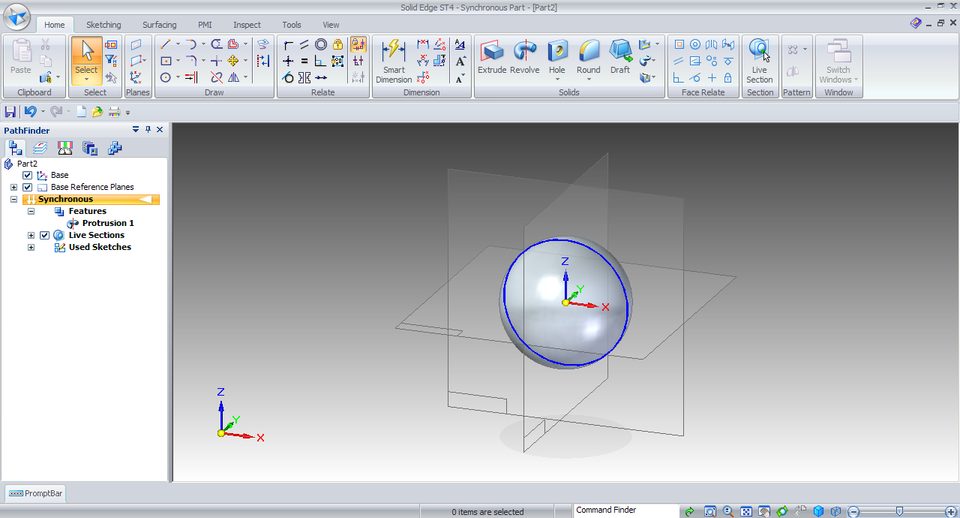

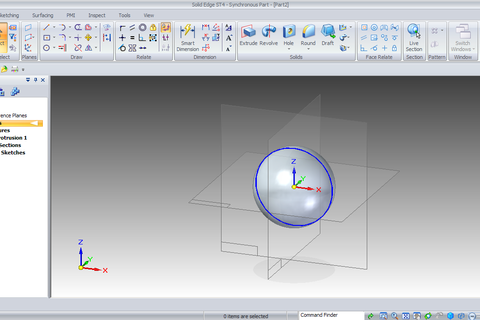

  Now we have created the ball body.
19. Step 19

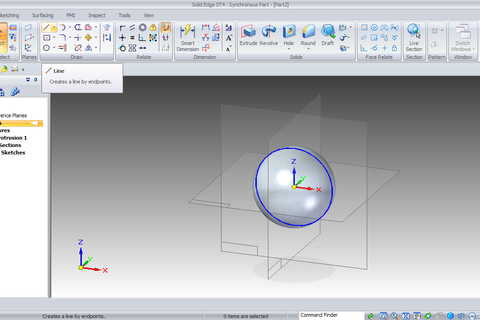

  Select line tool.
20. Step 20

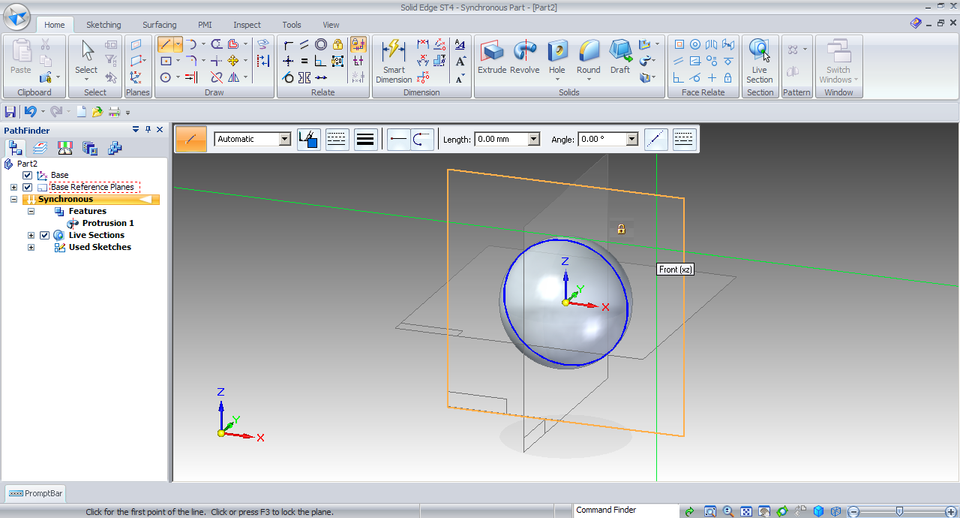

  Select Front Plane by keeping mouse pointer on it.
21. Step 21

  Press F3.
22. Step 22

  Press Ctrl+F for Front view.
23. Step 23

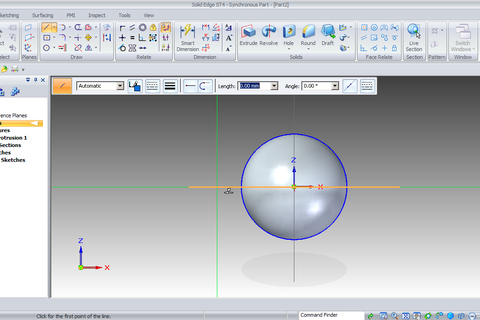

  Click along X-axis.
24. Step 24

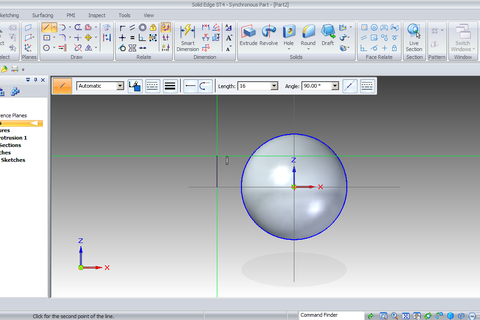

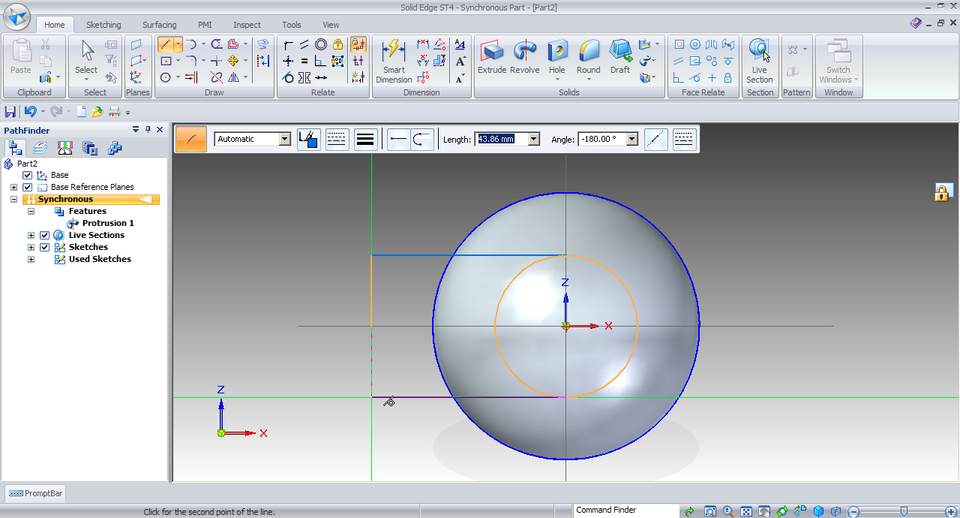

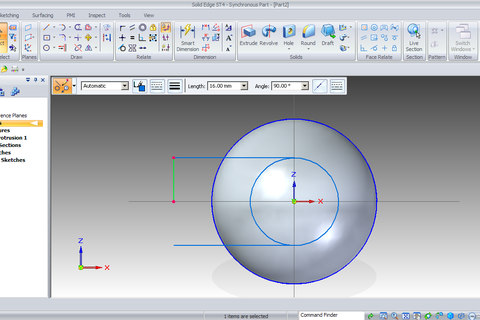

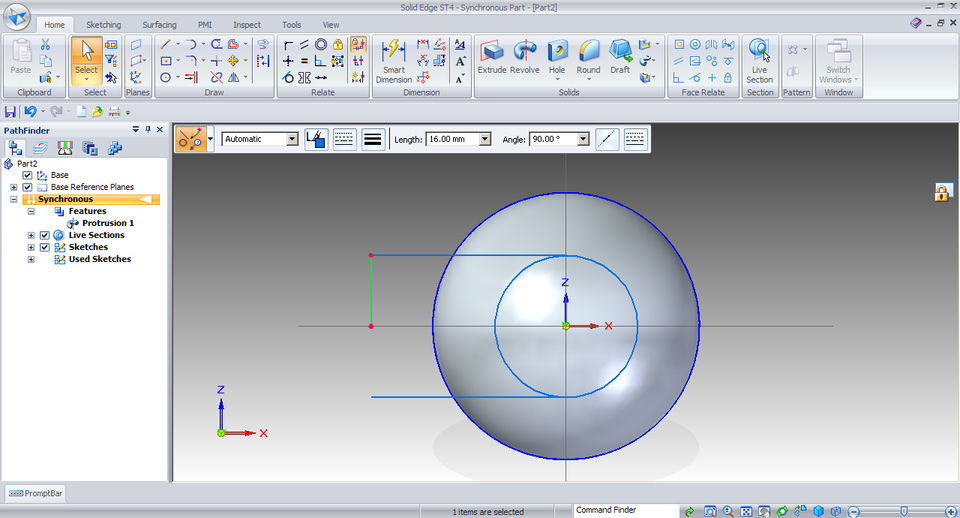

  Height of line is 16 and angle is 90.00º.
25. Step 25

  Draw it till the z-axis.
26. Step 26

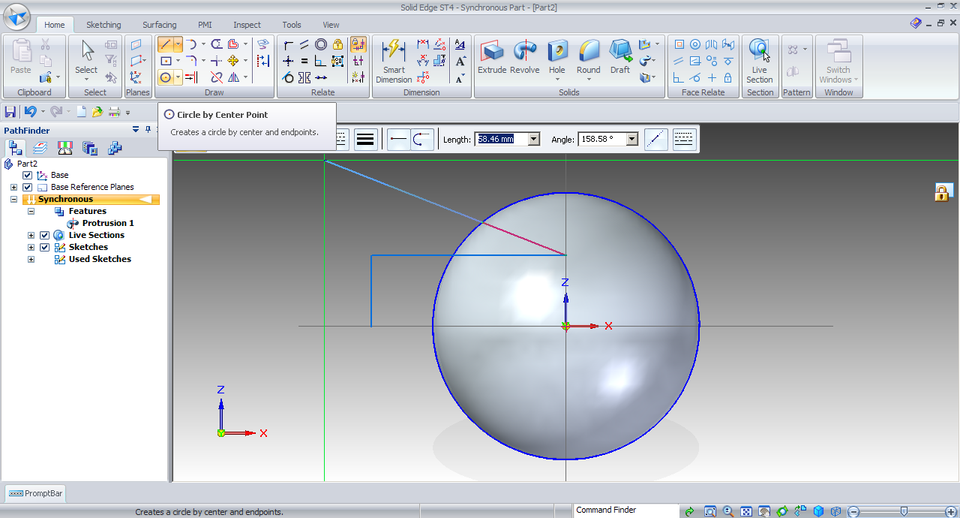

  Select the circle tool.
27. Step 27

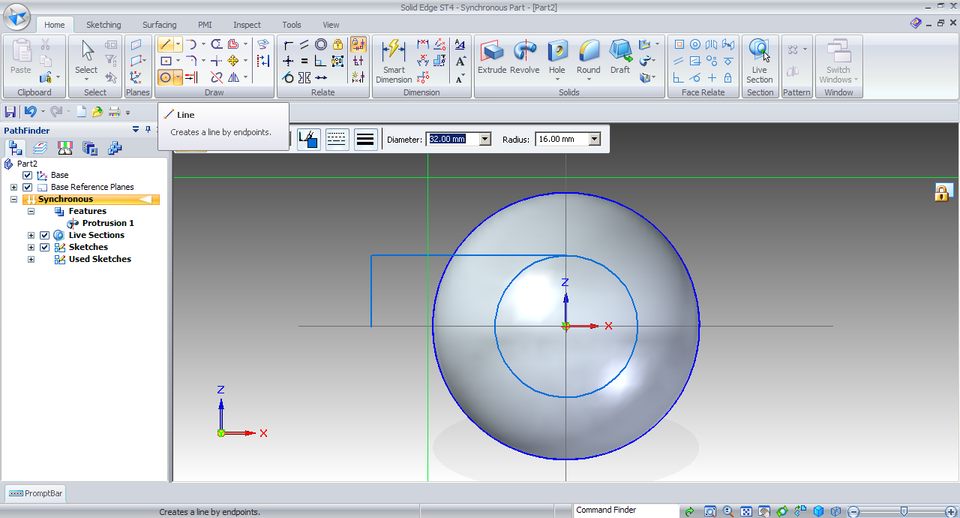

  Select origin.

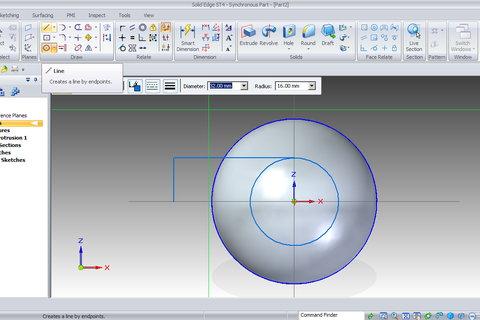

28. Step 28

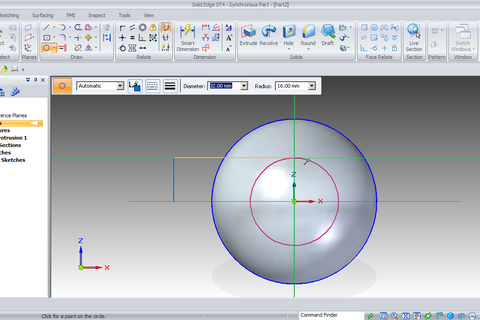

  Draw a circle coincident to the end point.
29. Step 29

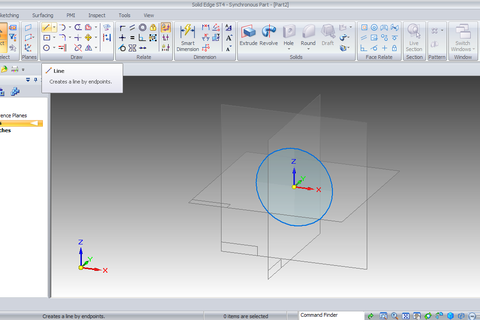

  Again Line tool.
30. Step 30

  Click the circle point about Z axis.
31. Step 31

  Draw the line with the same length.
32. Step 32

  Delete the vertical line.
33. Step 33

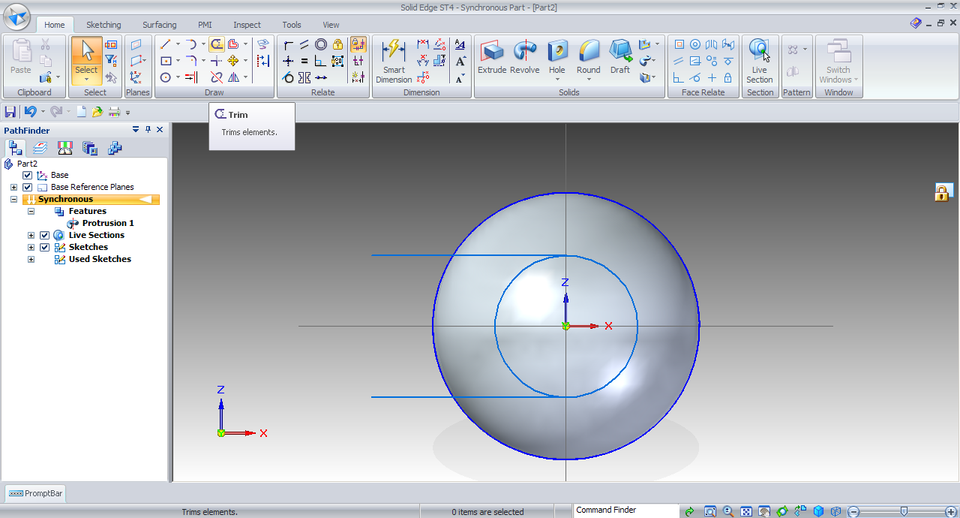

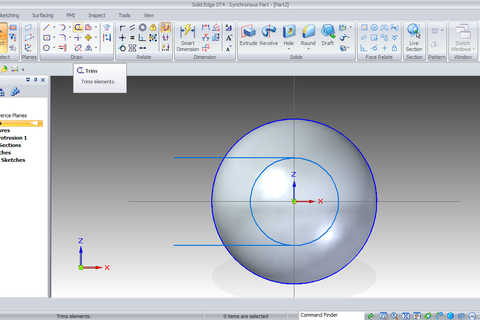

  Select the trim tool.
34. Step 34

  Trim the inner circle.
35. Step 35

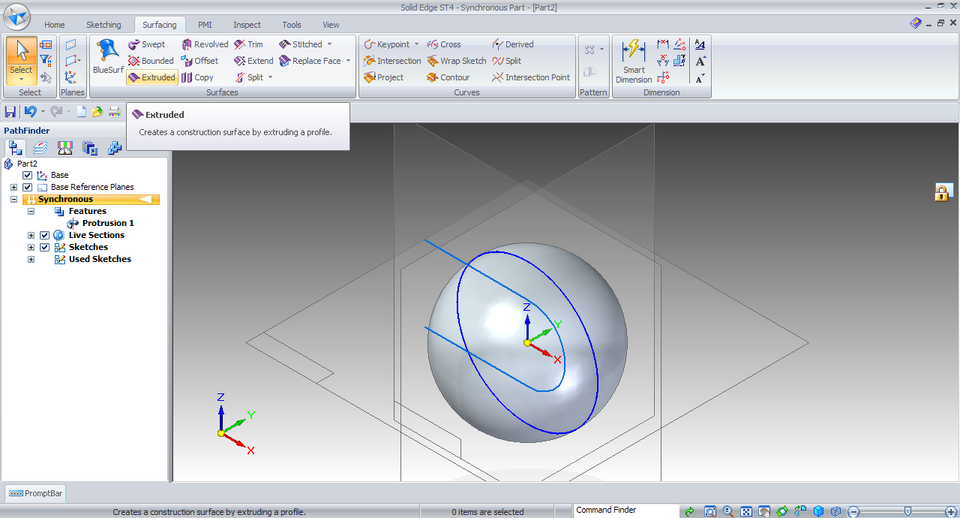

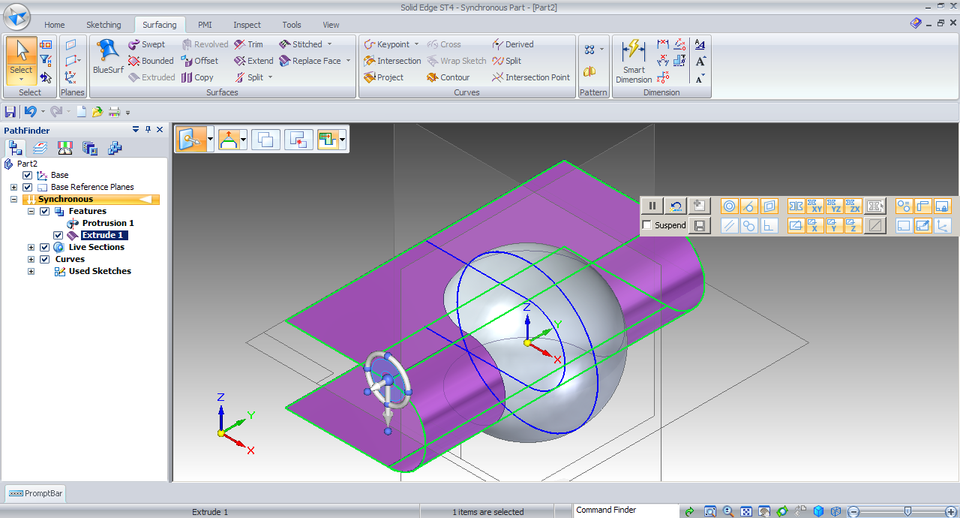

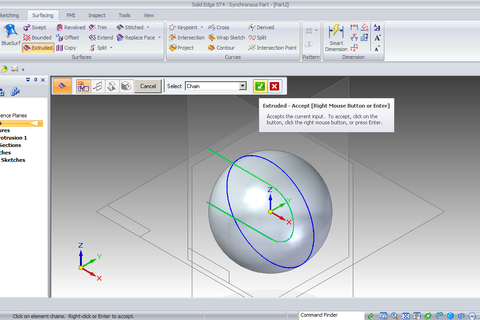

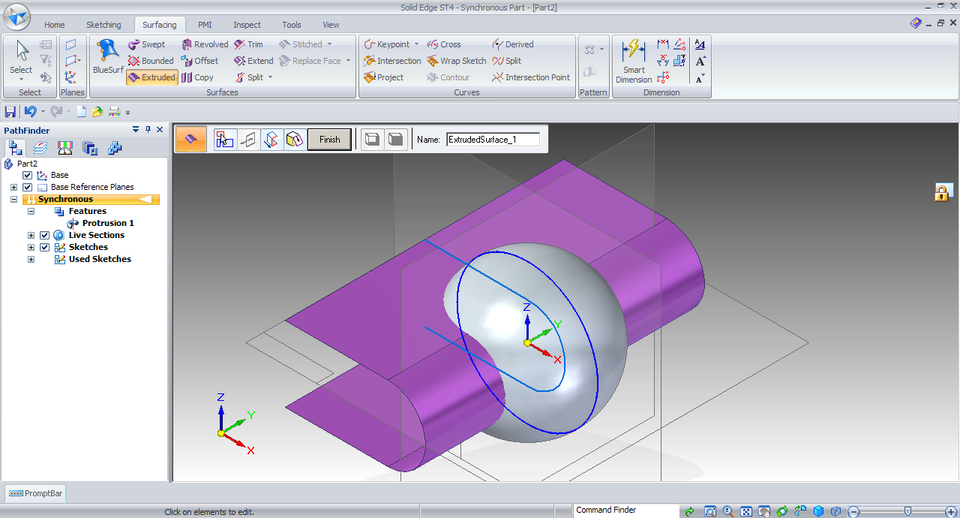

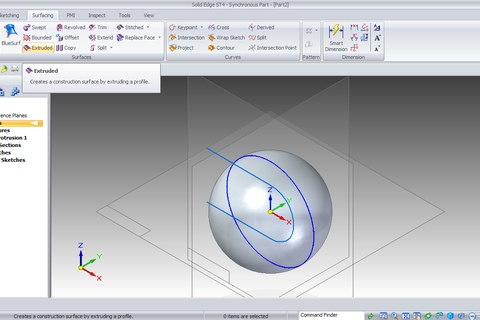

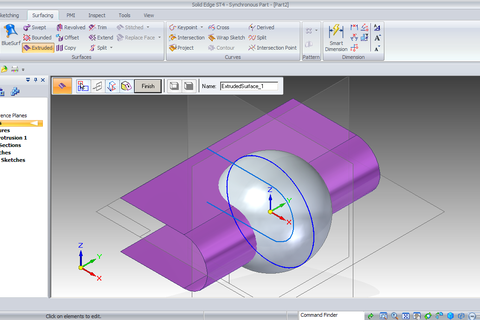

  Under surfacing tab select Extruded.
36. Step 36

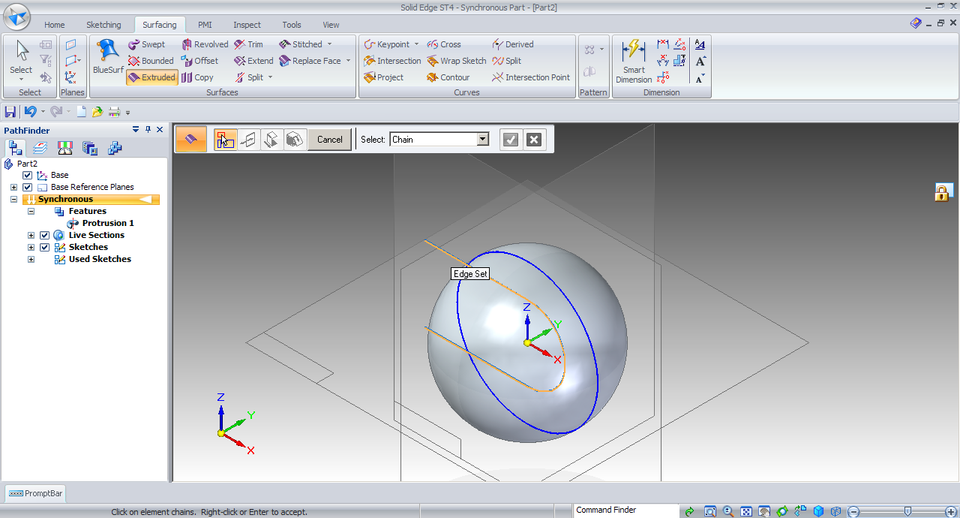

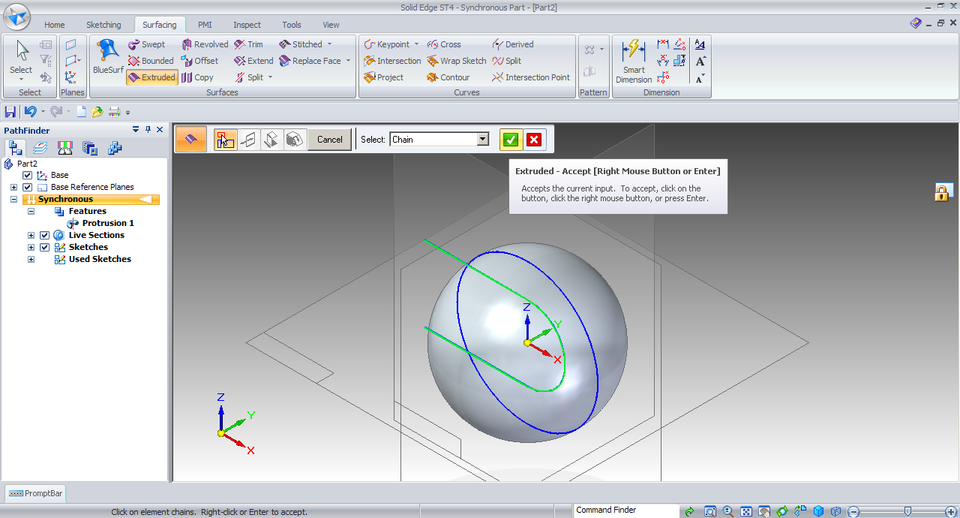

  Select the sketch.
37. Step 37

  Click Accept.
38. Step 38

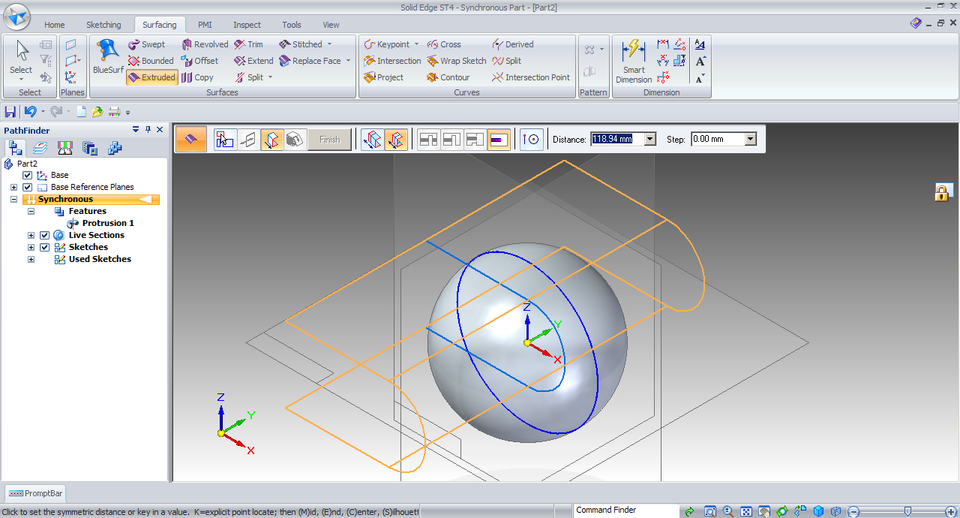

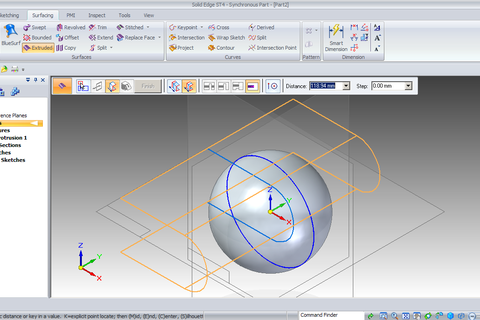

  Extrude it symmetrically such that it passes through the ball body.
39. Step 39

  Click Finish.

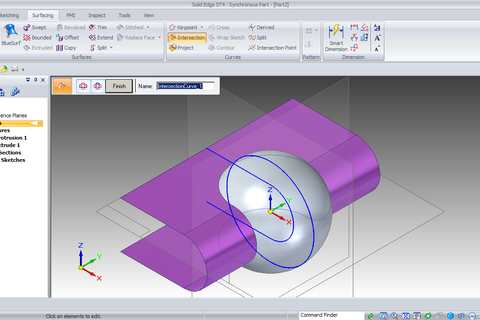

40. Step 40

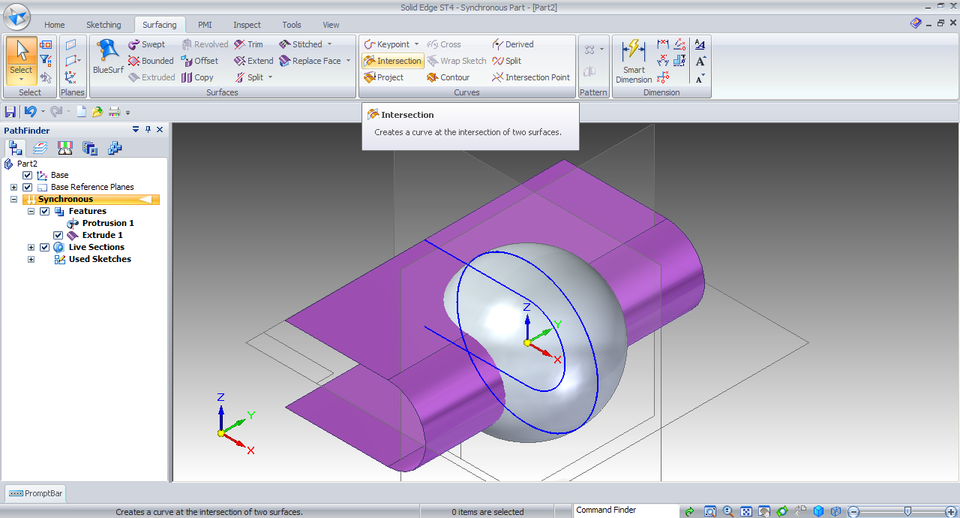

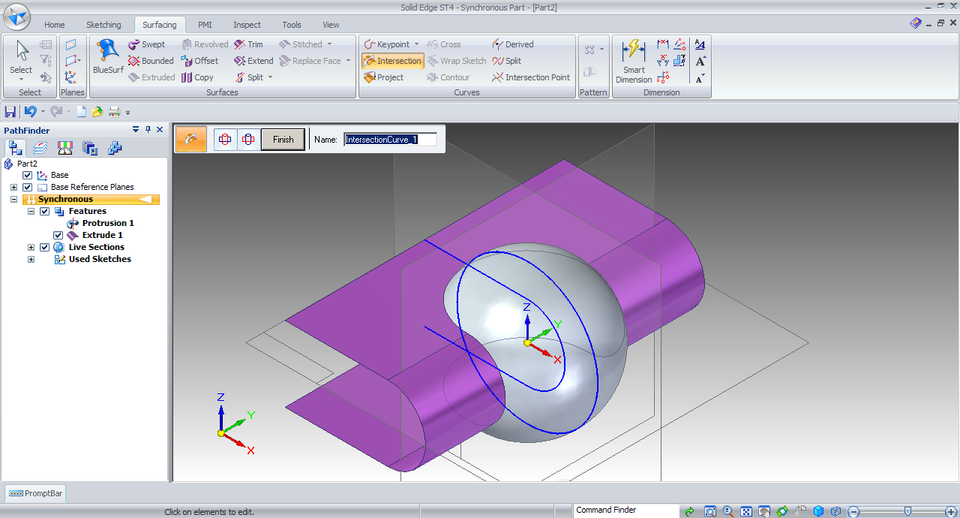

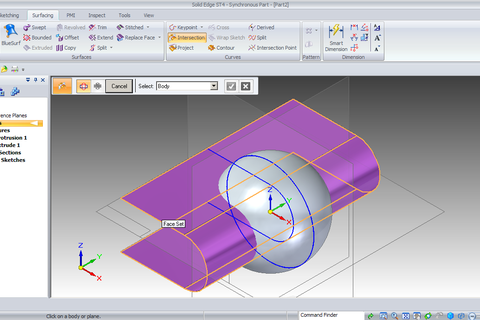

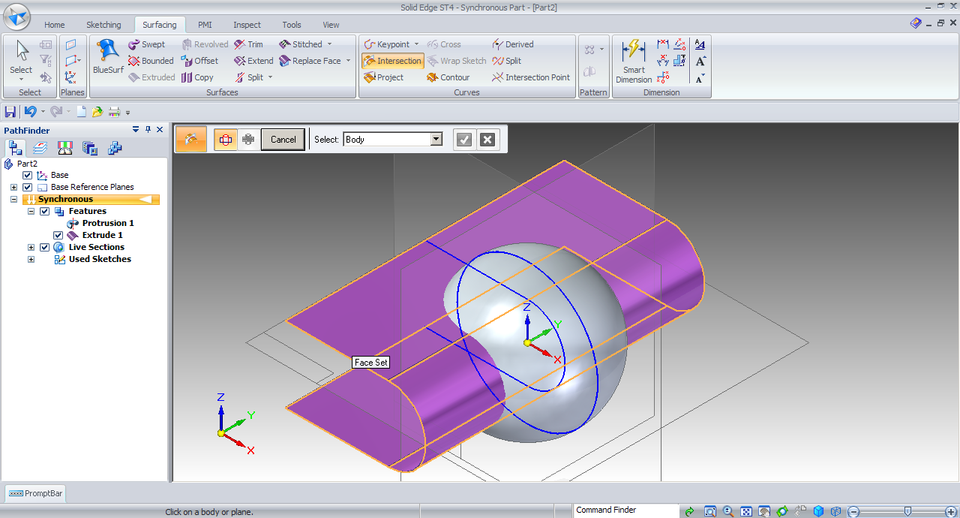

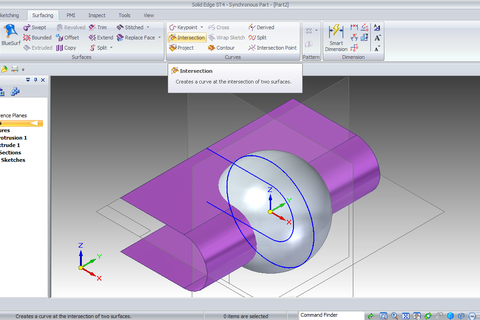

  Select Intersection.
41. Step 41

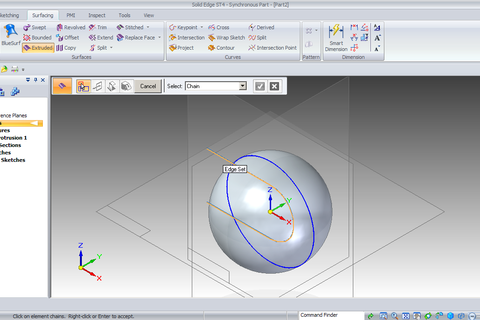

  Select Both Surfaces.
42. Step 42

  Click Finish.
43. Step 43

  Select the Extrude1 in Path finder and then Hide it by unchecking it.

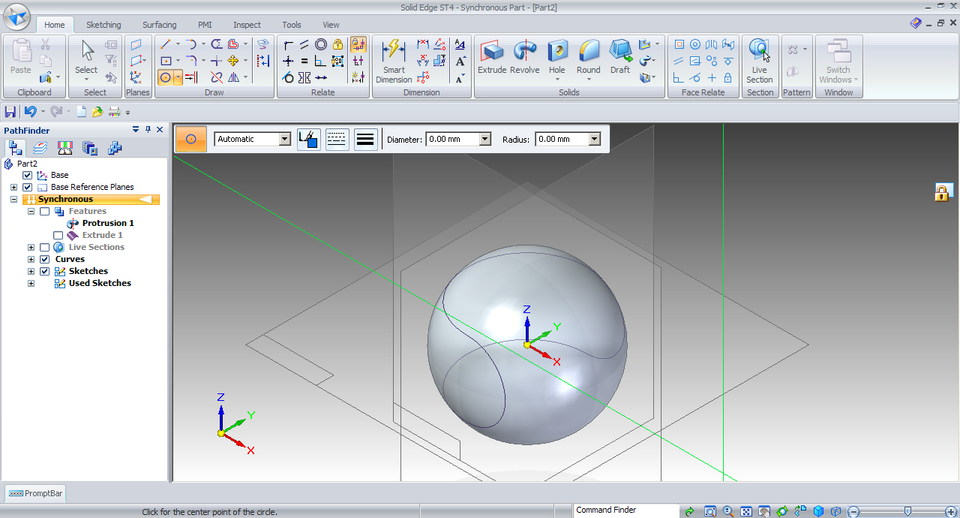

44. Step 44

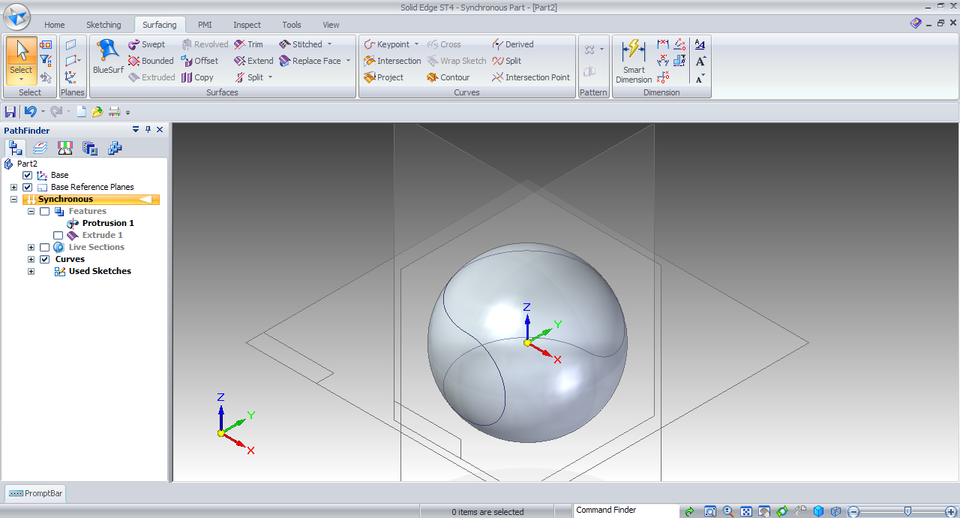

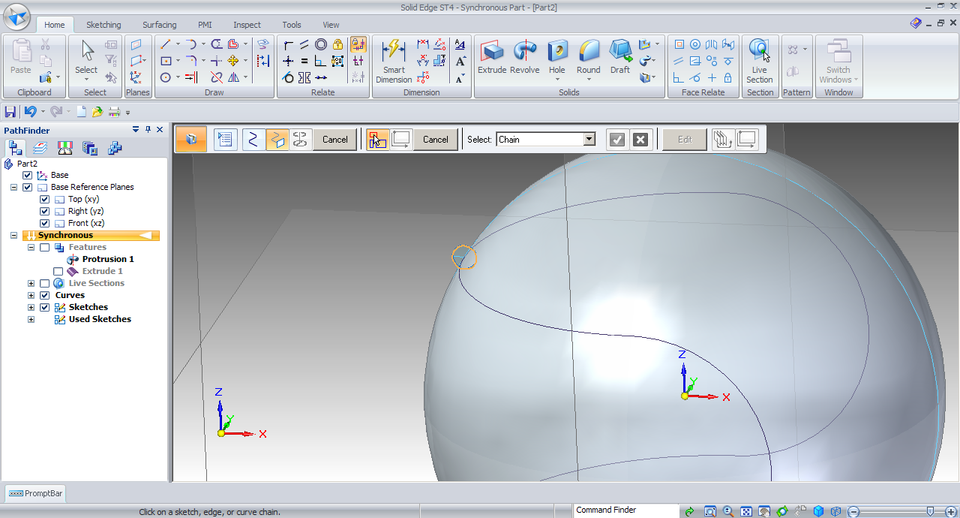

  Now we have the curve.
45. Step 45

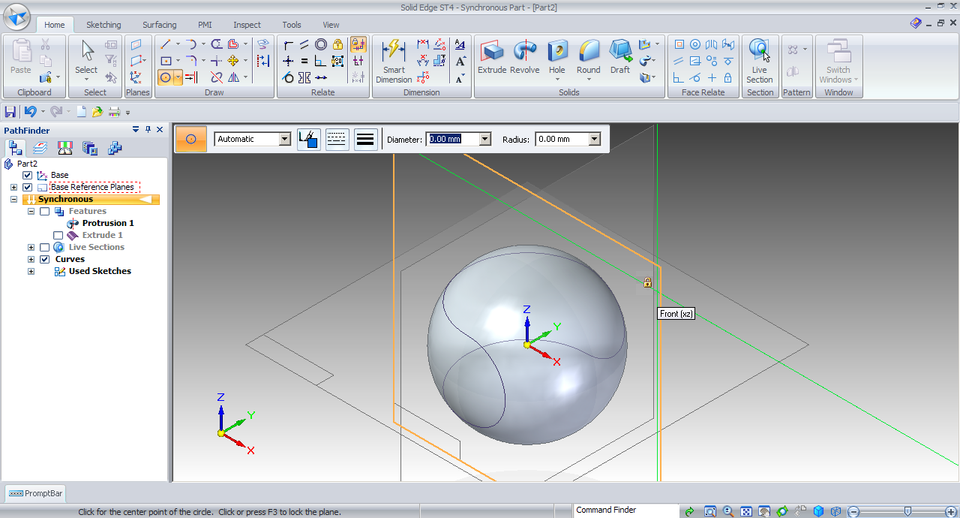

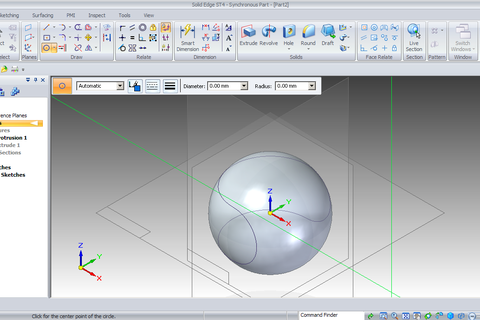

  Select circle tool and then hover the mouse over front plane.
46. Step 46

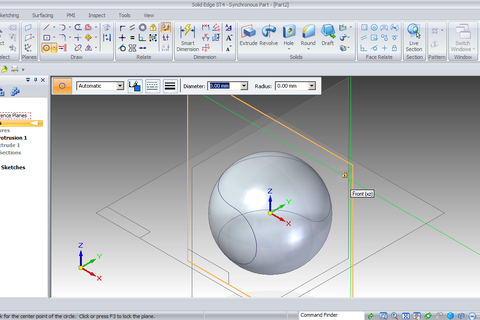

  Press F3 to lock it.
47. Step 47

  Ctrl+F to Front view.
48. Step 48

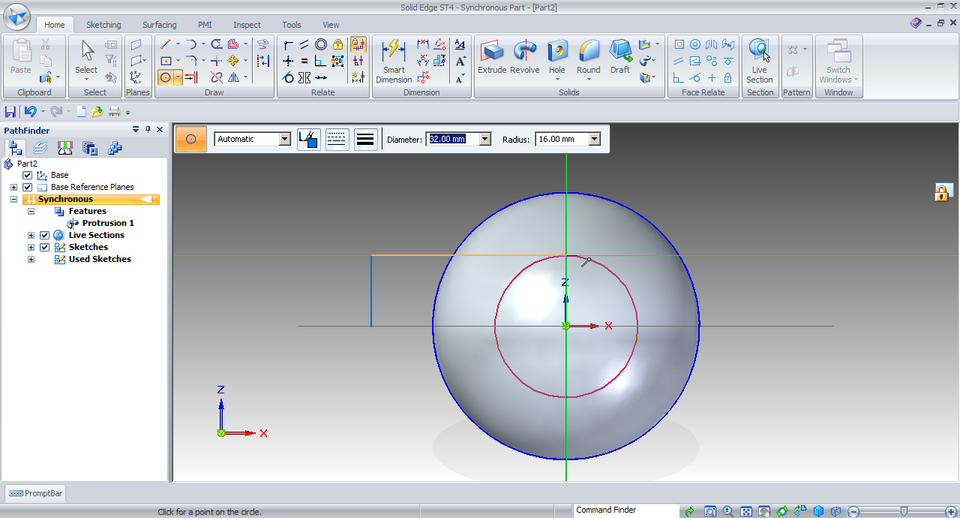

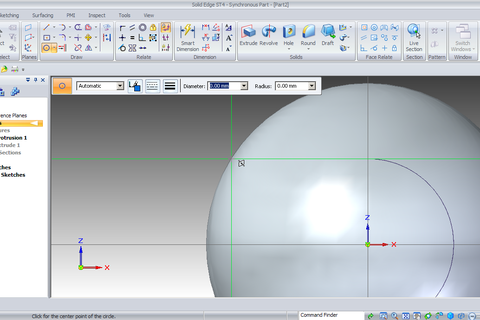

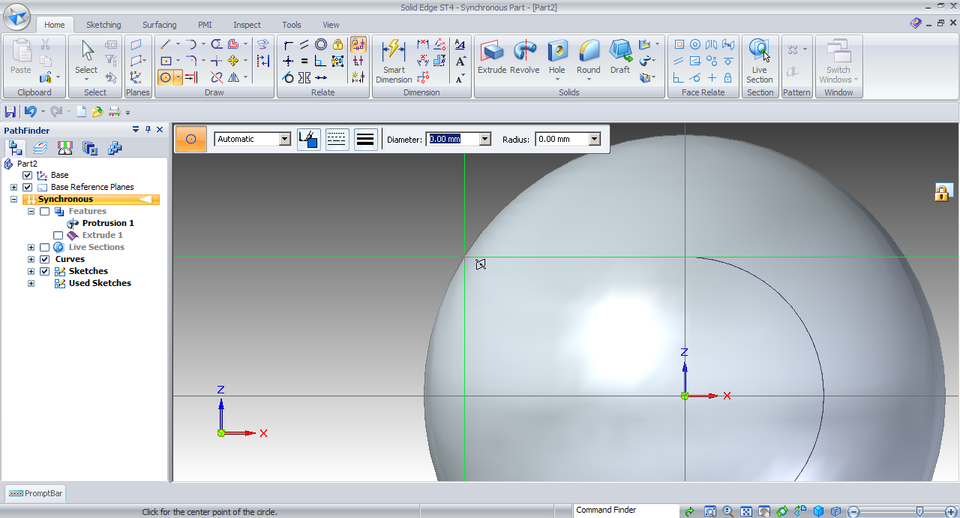

  Draw a circle of 2.84mm diameter coincident to the cicular surface and the curve.
49. Step 49

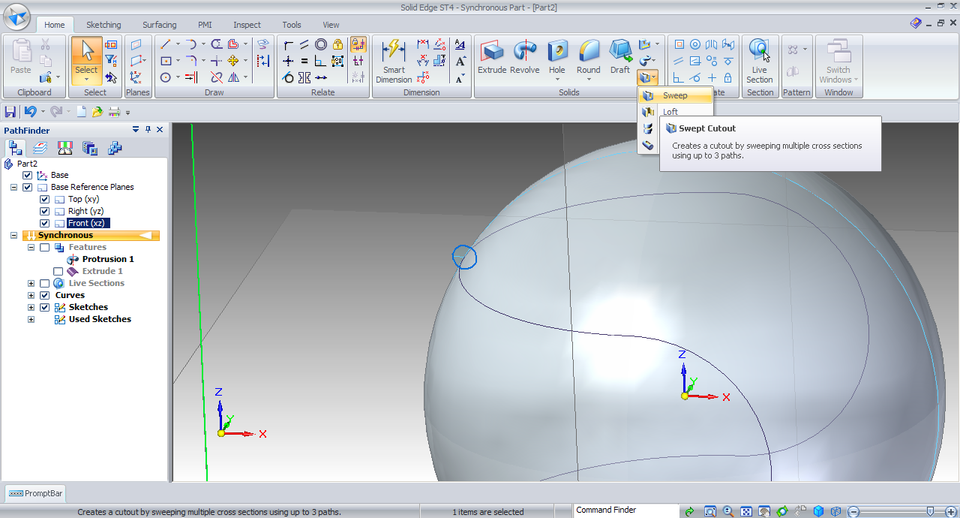

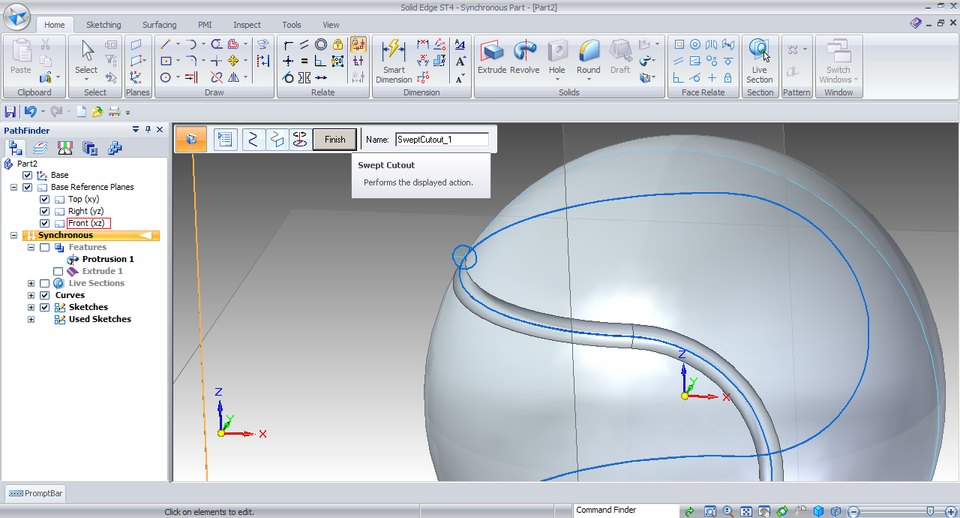

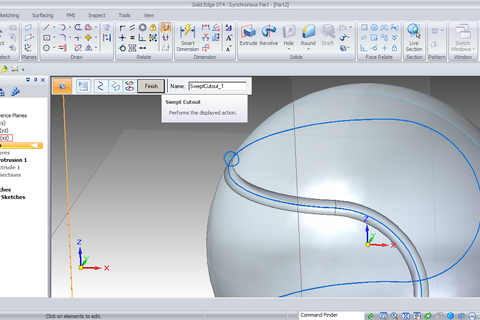

  Select Swept cutout under cut feature.
50. Step 50

  Click OK.
51. Step 51

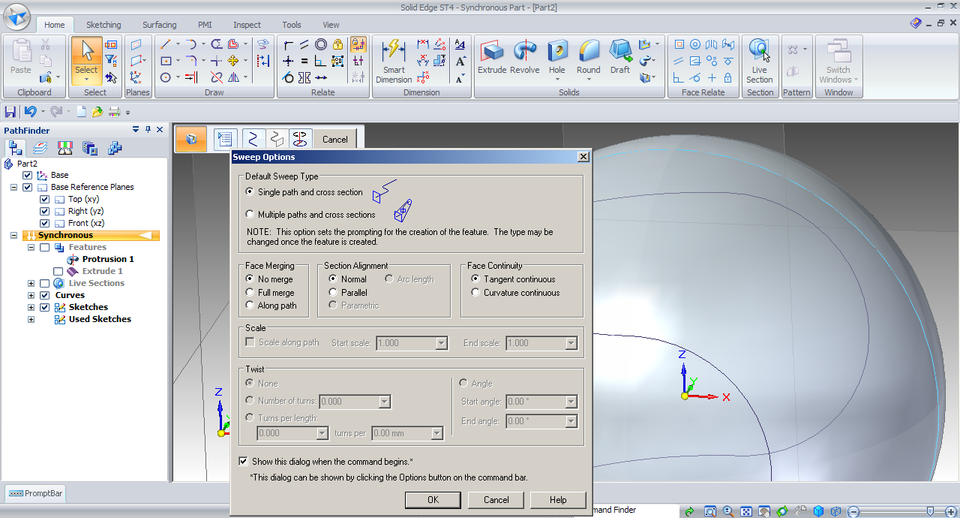

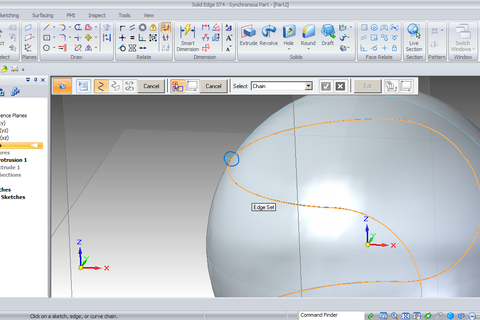

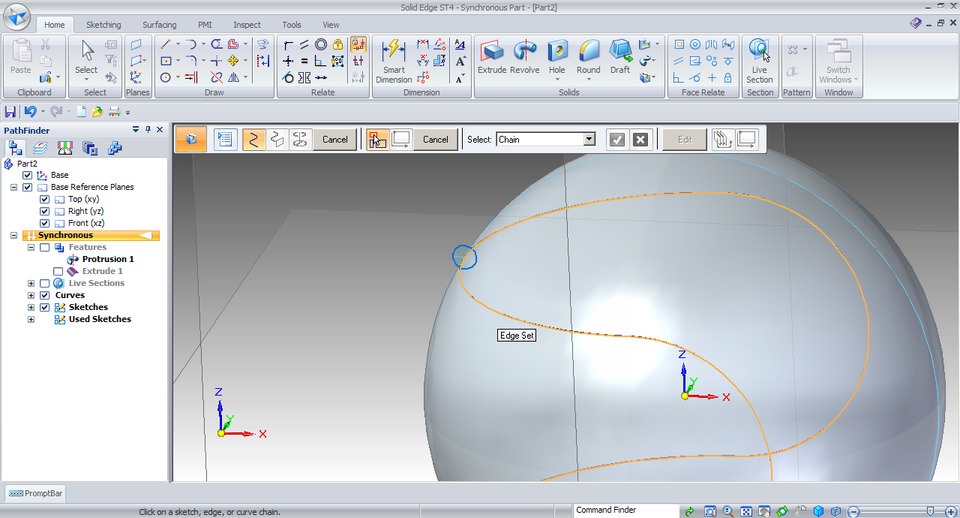

  Select the curve.
52. Step 52

  Now Select the circle as the profile.
53. Step 53

  Click Finish.
54. Step 54

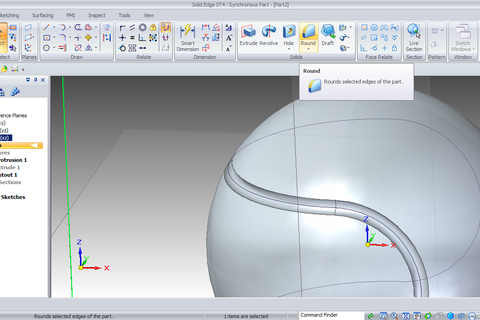

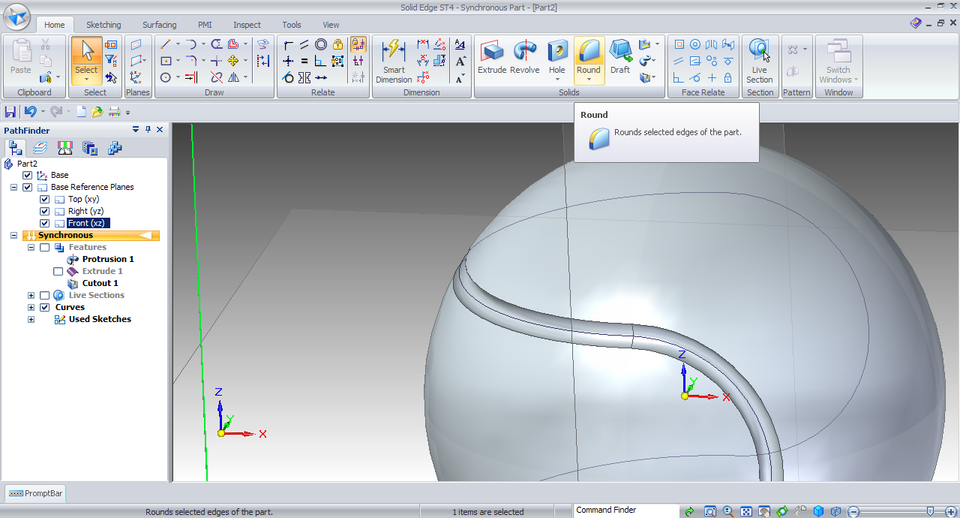

  Select Round tool.

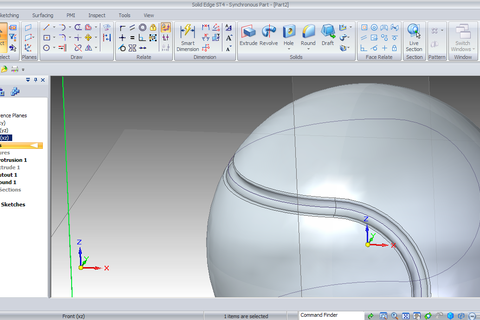

55. Step 55

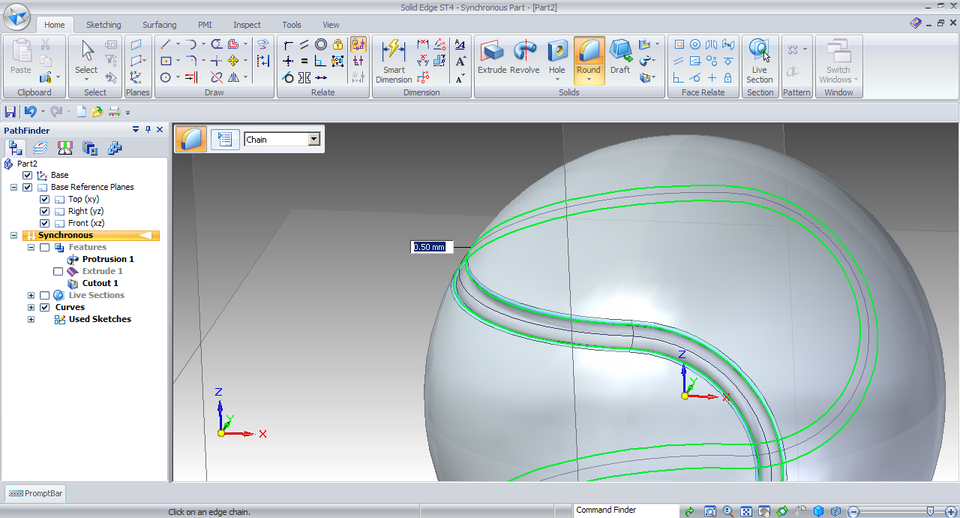

  Round both these edges by 0.50mm.
56. Step 56

  Right click to accept. Now click Select tool.

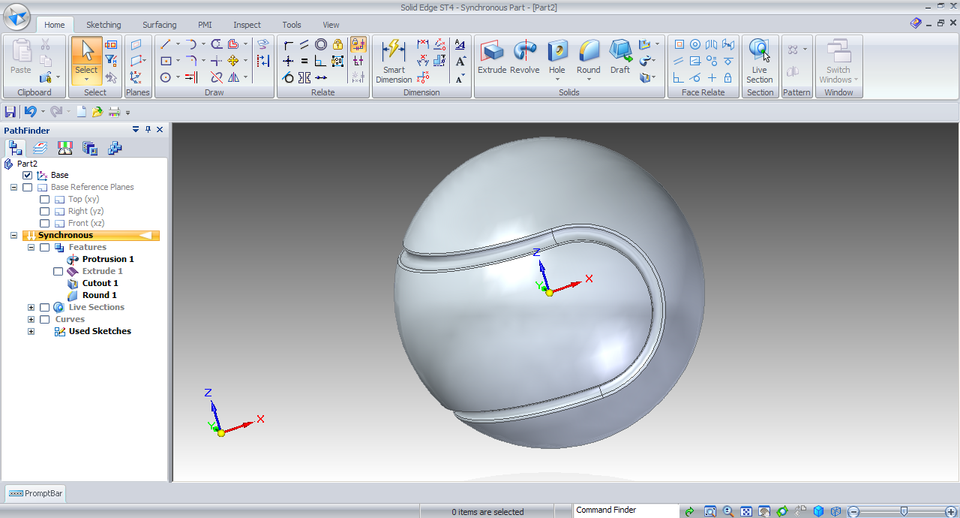

57. Step 57

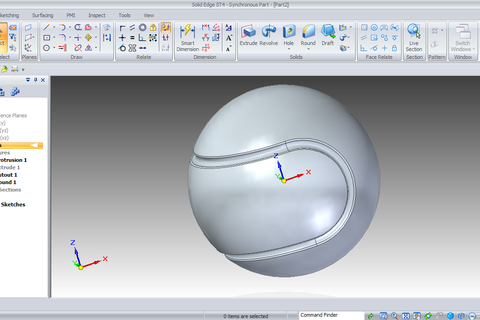

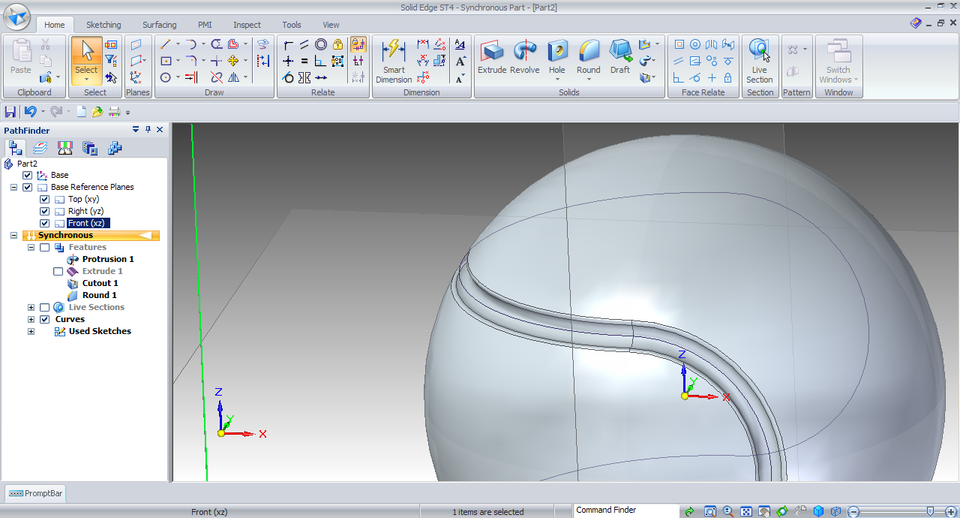

  Now the ball is ready.
