  Here is the tutorial.

  1. Step 1

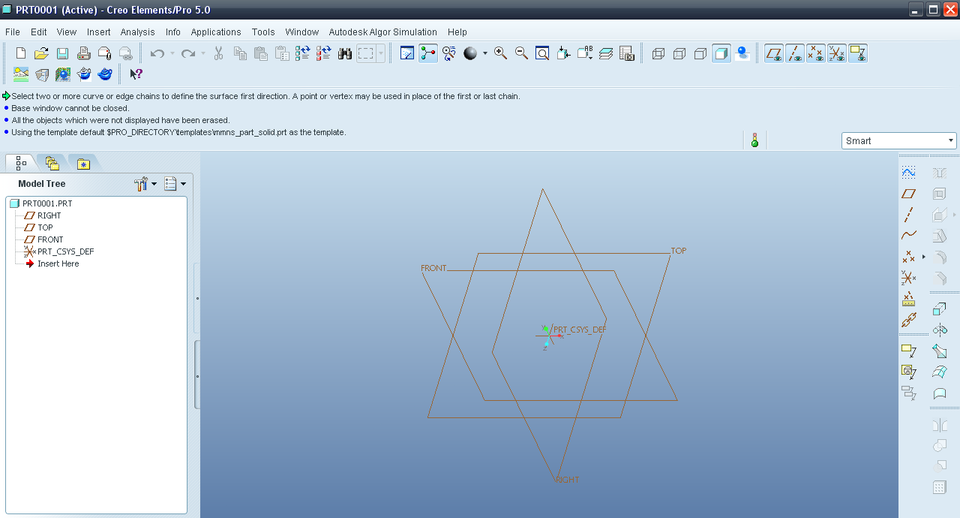

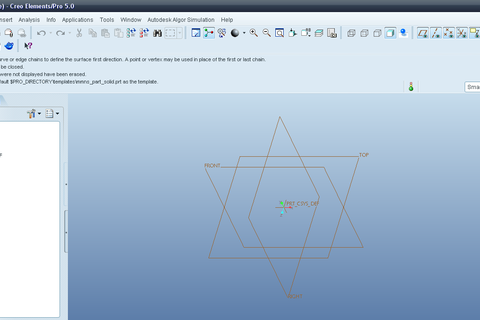

     Start Creo.



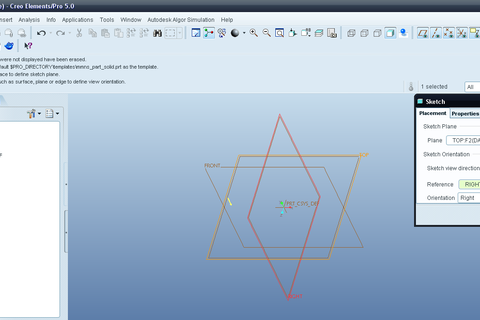

  2. Step 2

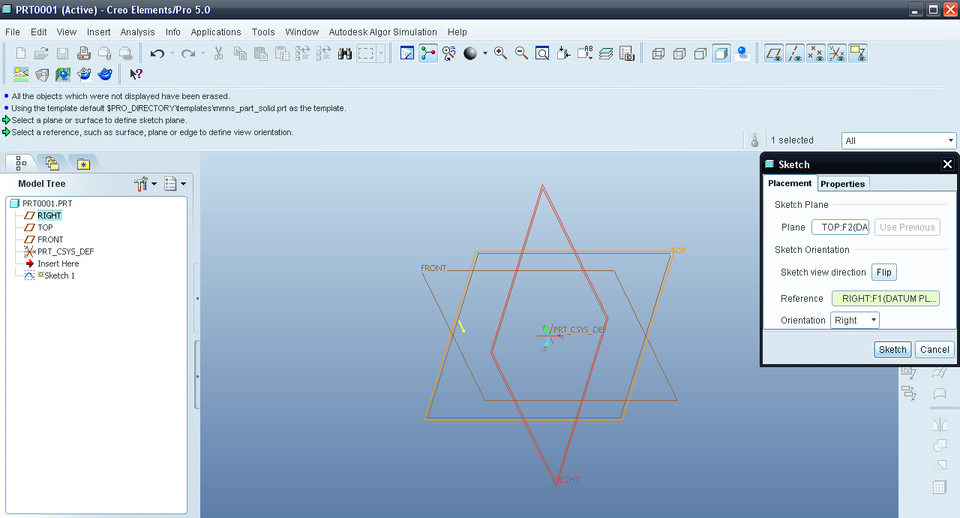

     Sketch >> Top plane.

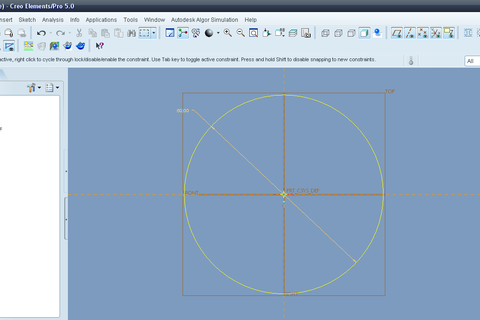

  3. Step 3

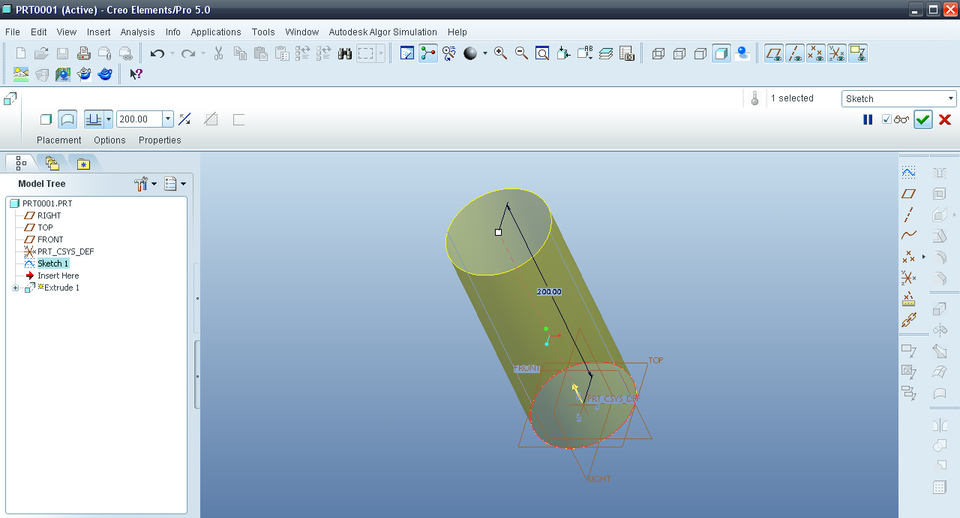

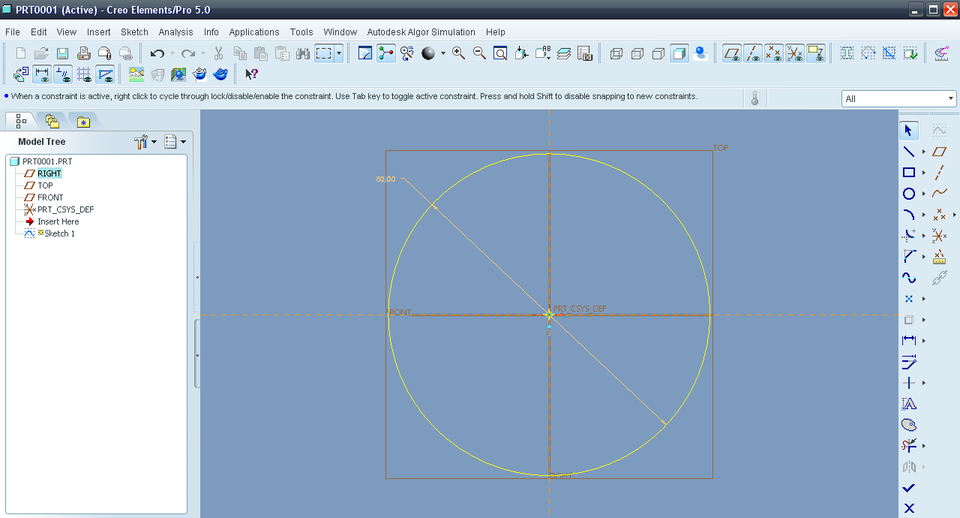

     Draw a circle of 80mm diameter.



  4. Step 4

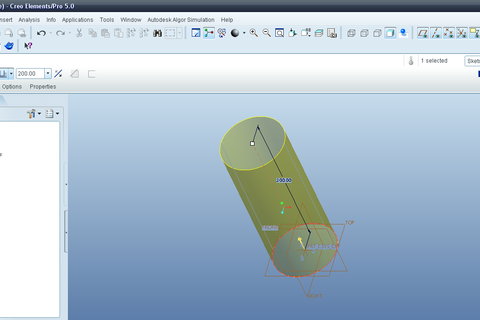

     Extrude it as surface by 200mm.



  5. Step 5

     Offset the right plane by 200mm.

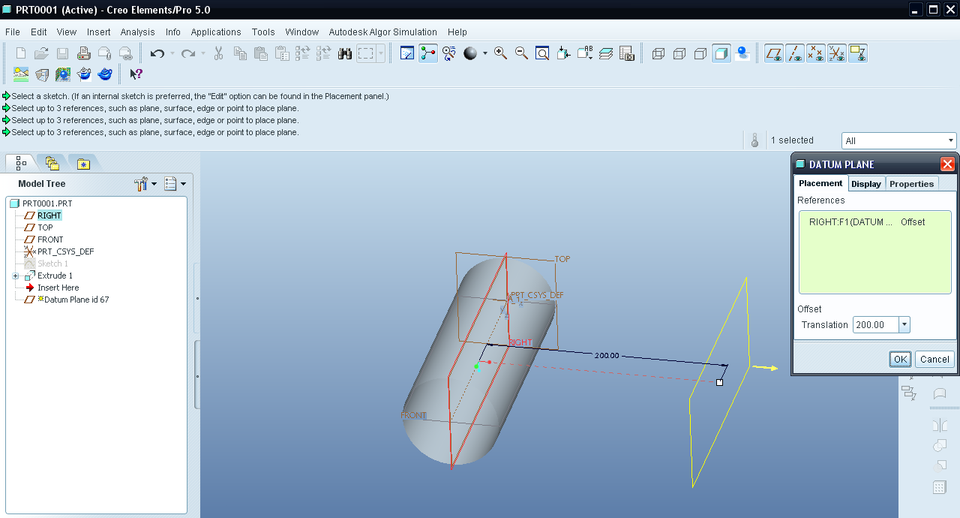

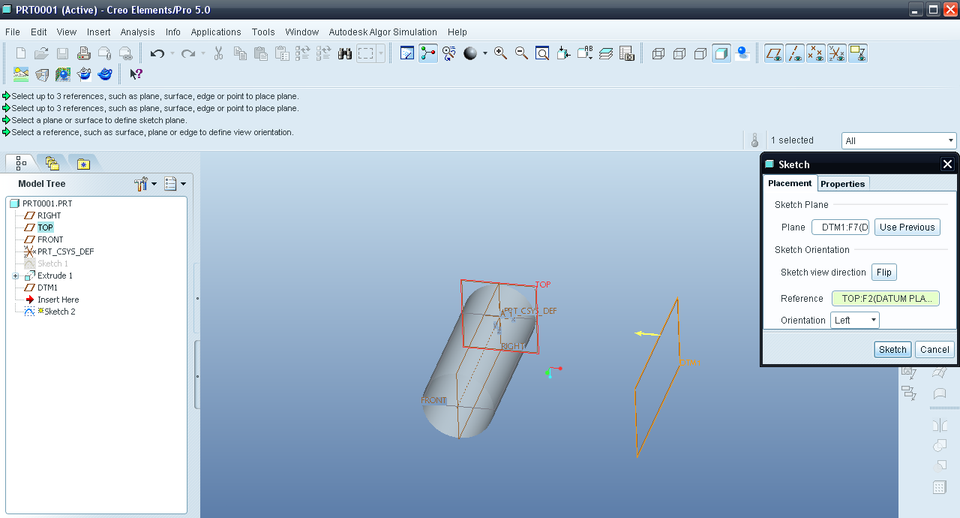

  6. Step 6

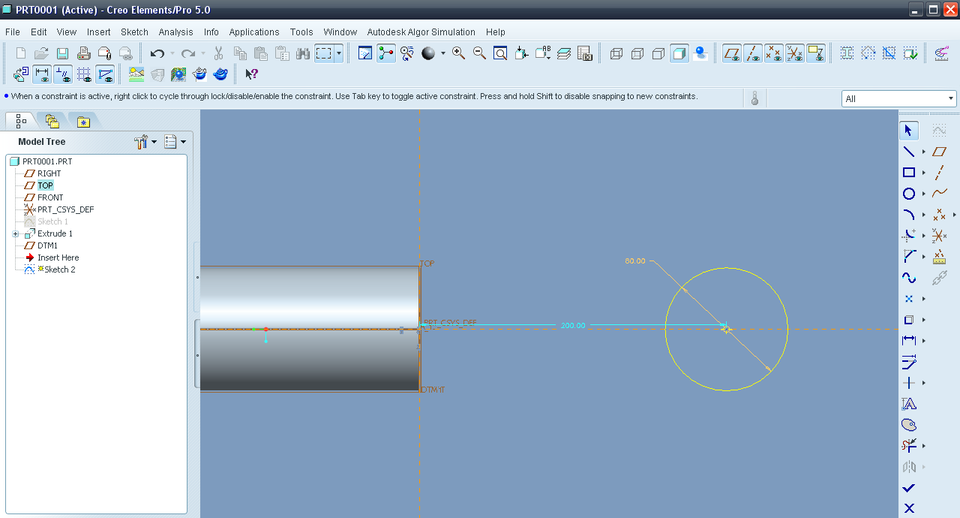

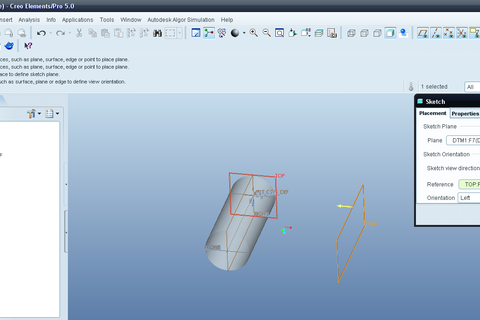

     Sketch >> DTM1.



  7. Step 7

     Draw a circle of 80mm at 200mm to the origin.

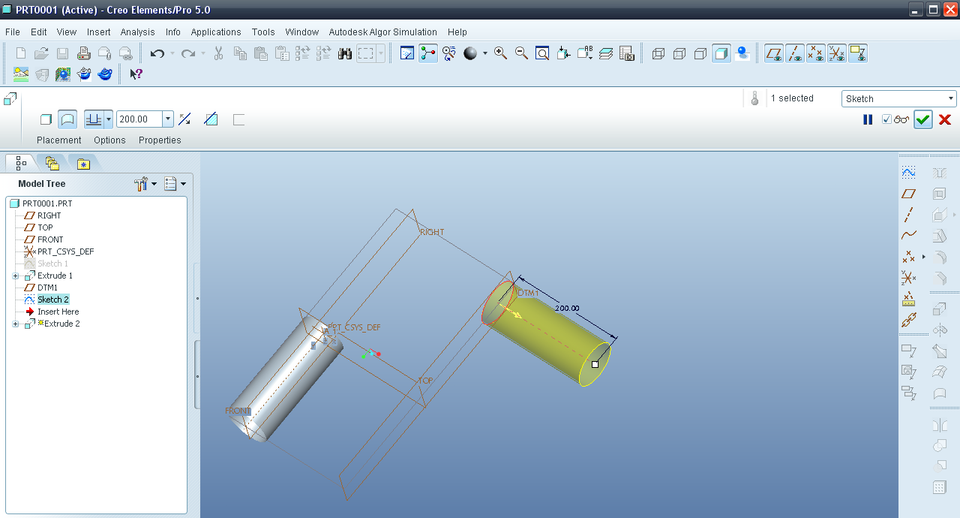

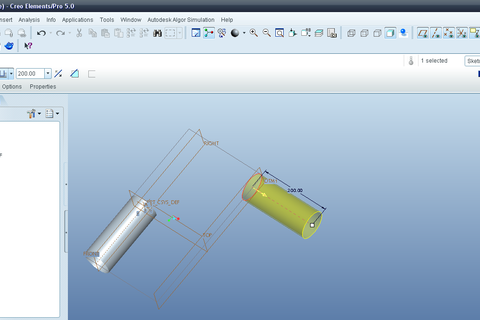

  8. Step 8

     Extrude it as surface by 200mm away from origin.

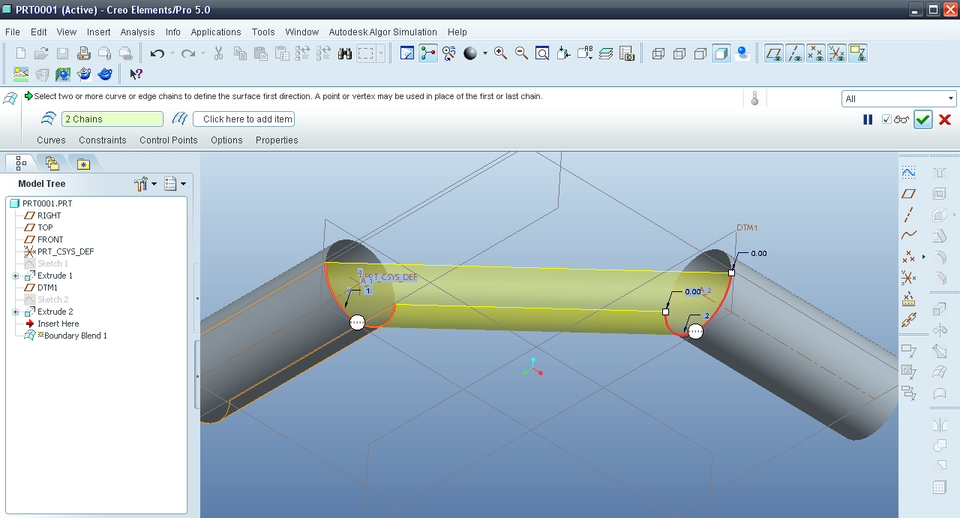

  9. Step 9

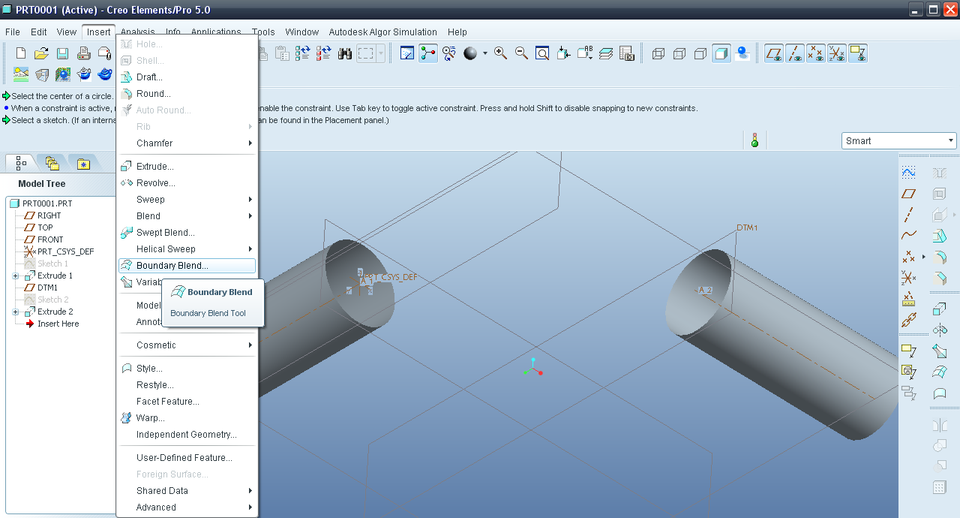

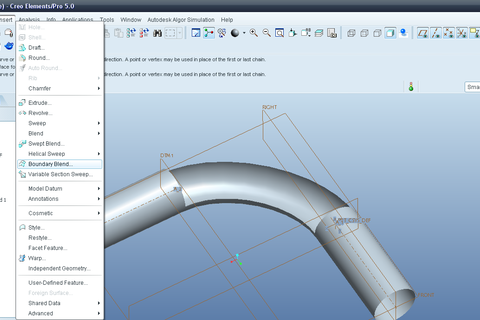

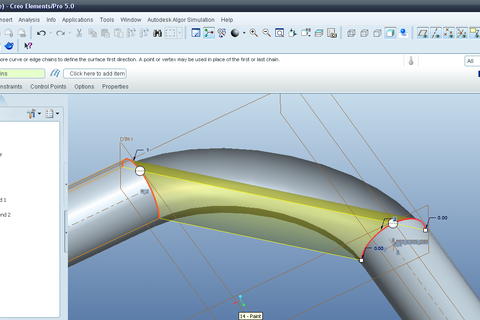

     Insert >> Boundary blend.



  10. Step 10

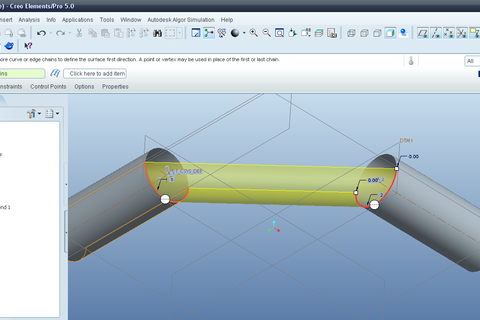

      Select both edges of the pipes while holding down control key.

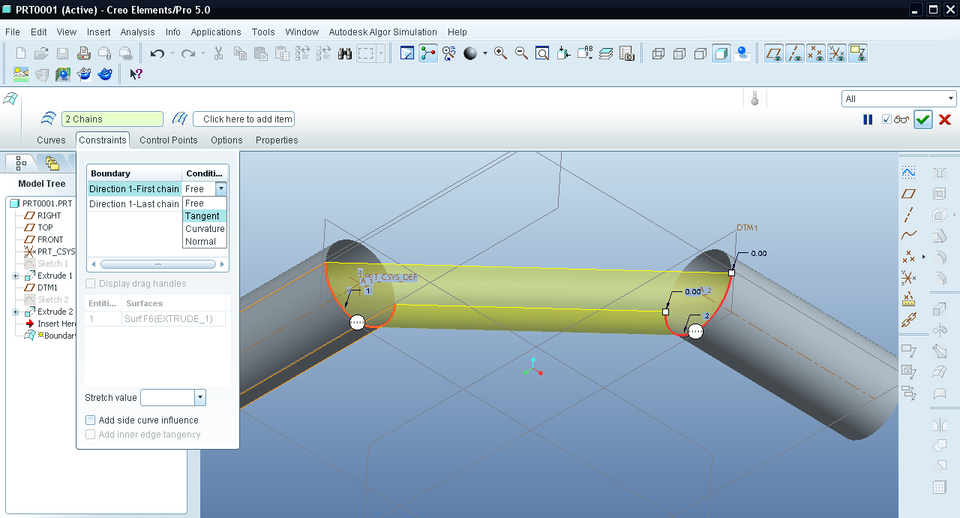

  11. Step 11

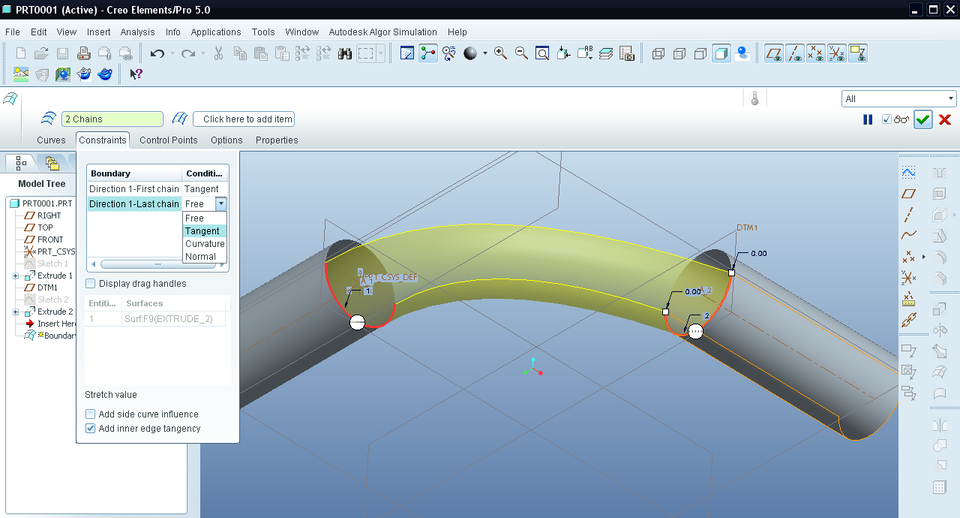

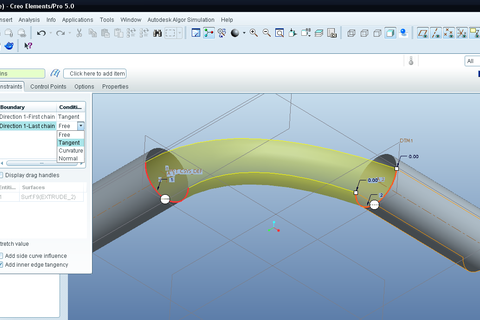

      Under constraints change boundary conditions to Tangent for First chain.



  12. Step 12

      Same for Last Chain.



  13. Step 13

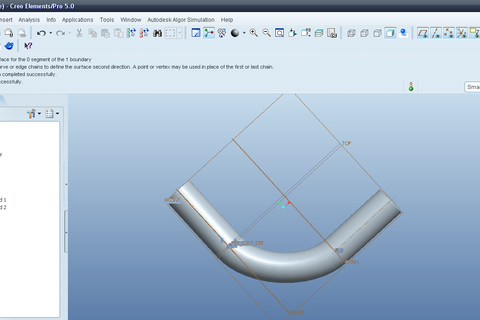

      Click OK and the surface is generated.



  14. Step 14

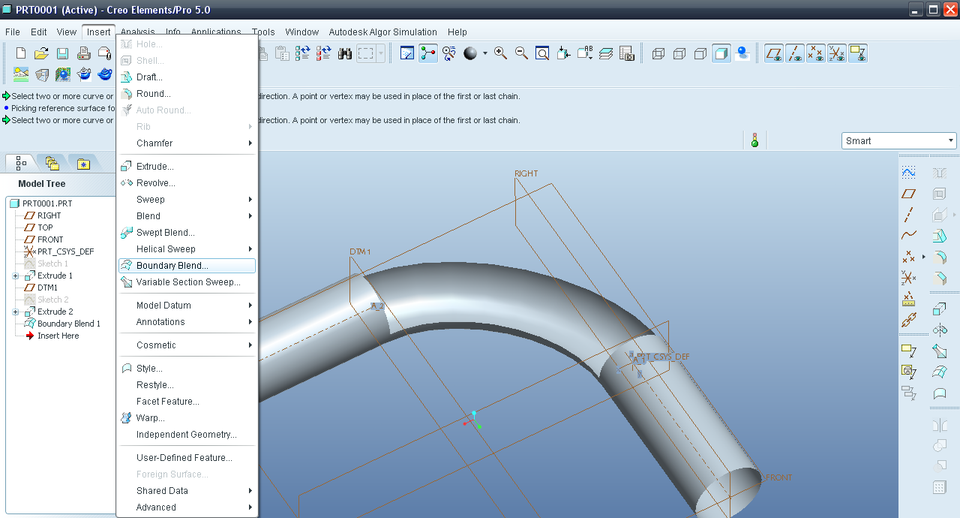

      Insert >> Boundary Blend.



  15. Step 15

      Again Select both edges while holding CTRL key.

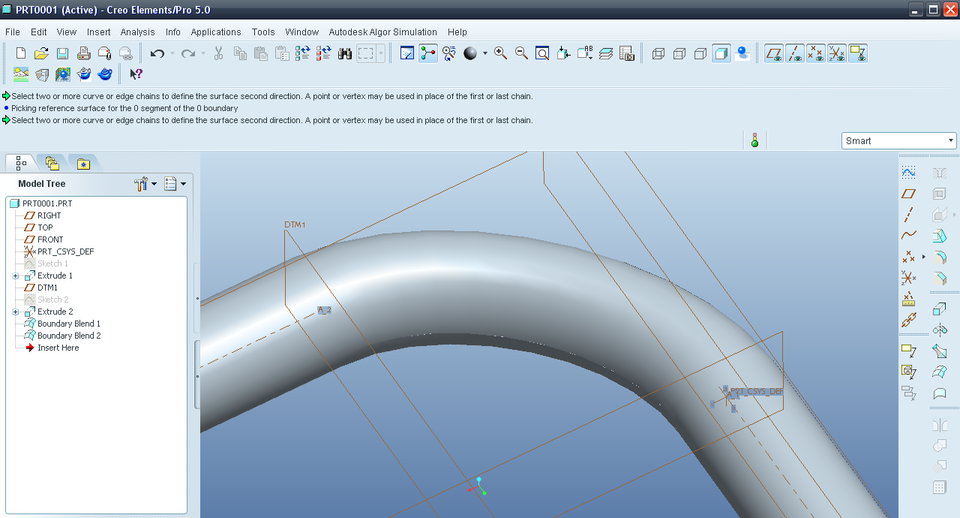

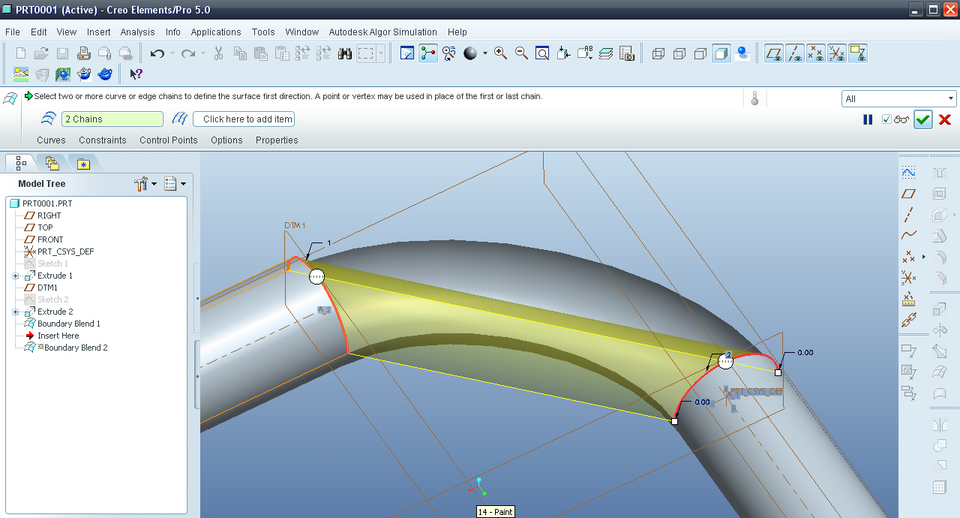

  16. Step 16

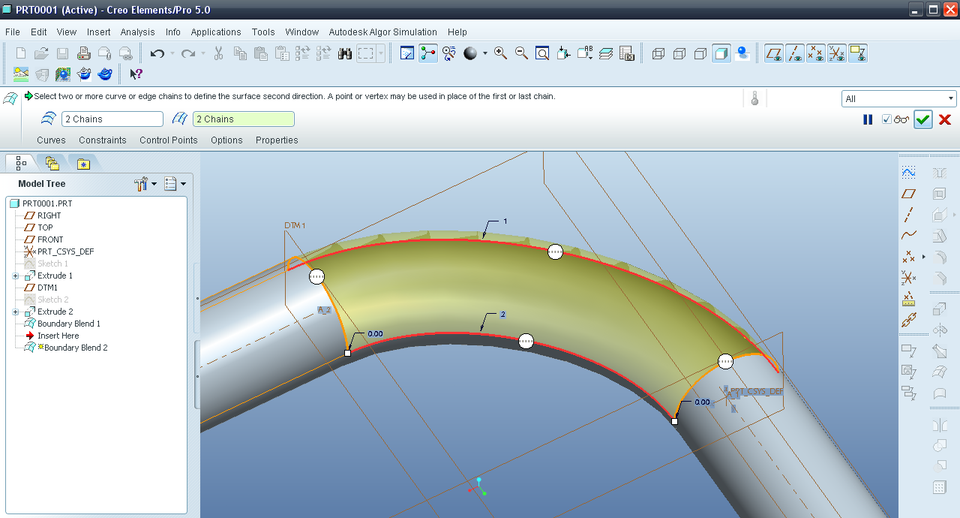

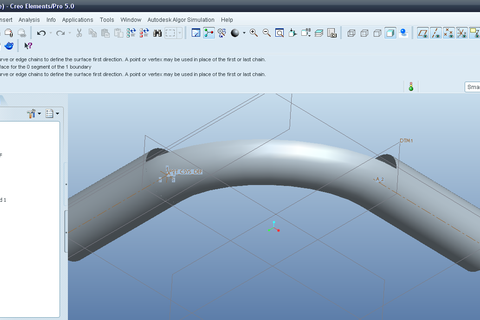

      For direction 2 select the edges of the boundary blend 1 while holding CTRL key.



  17. Step 17

      Click OK and the surface is generated.

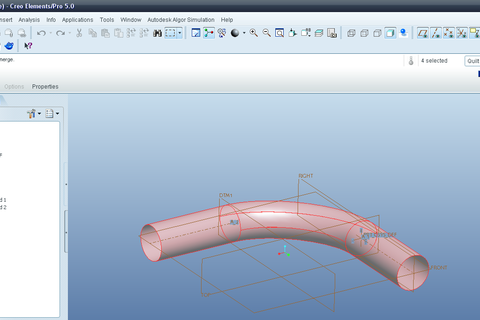

  18. Step 18

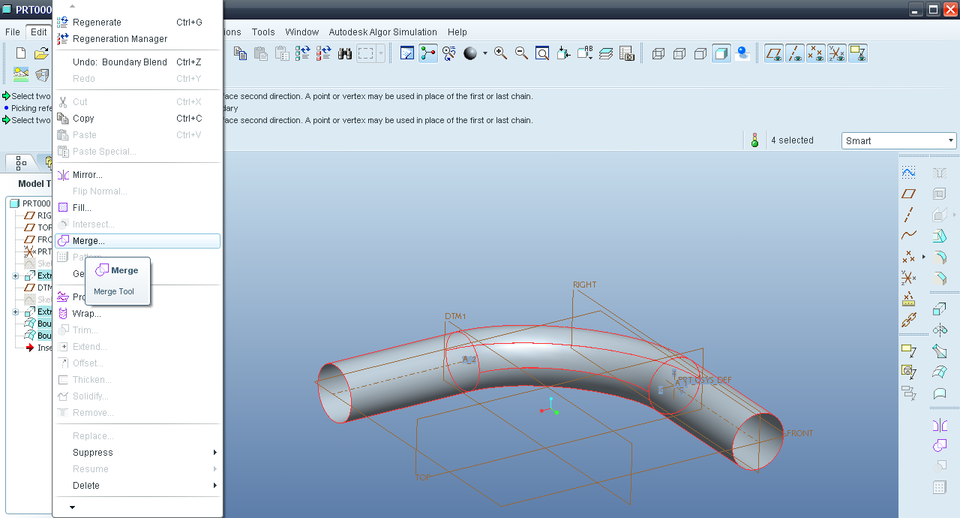

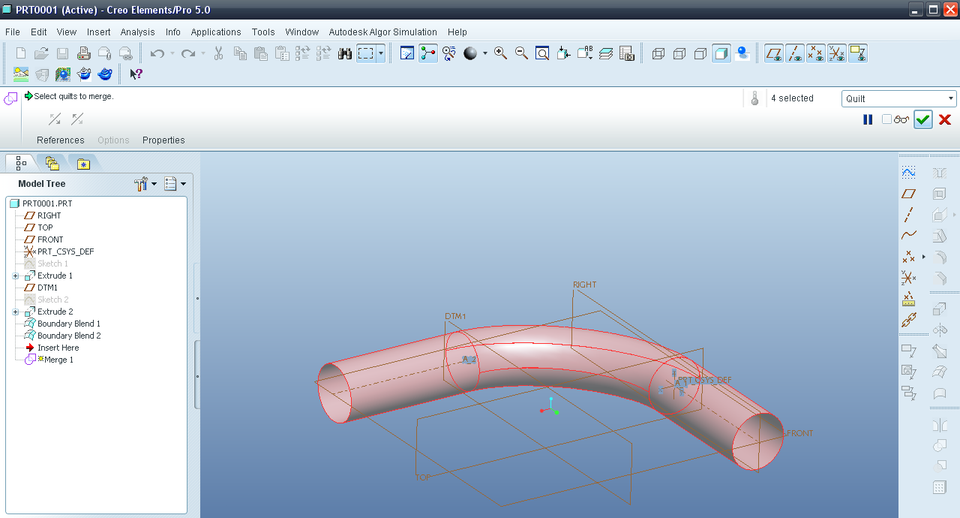

      Select all surfaces and then Edit >> Merge.



  19. Step 19

      ClicK OK and the surfaces are merged into one.



  20. Step 20

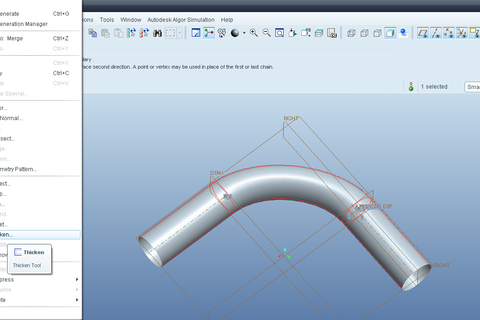

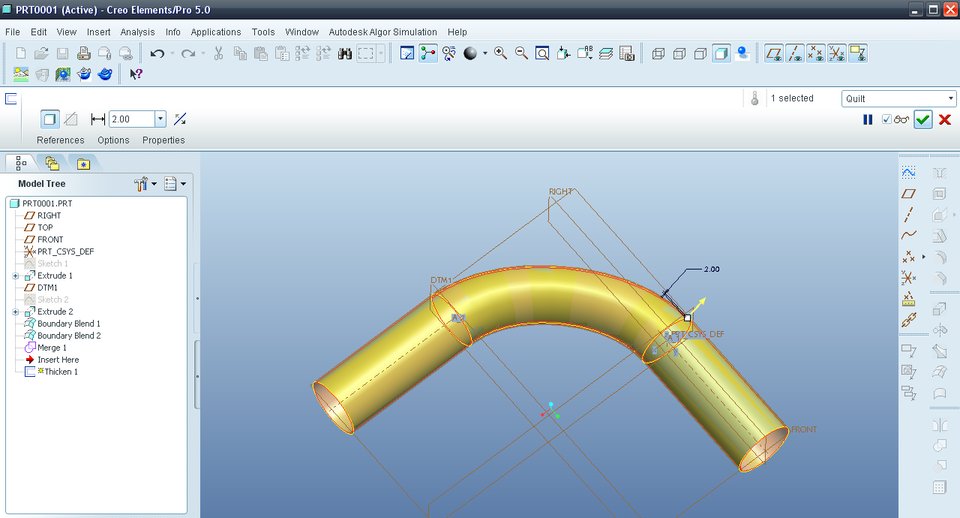

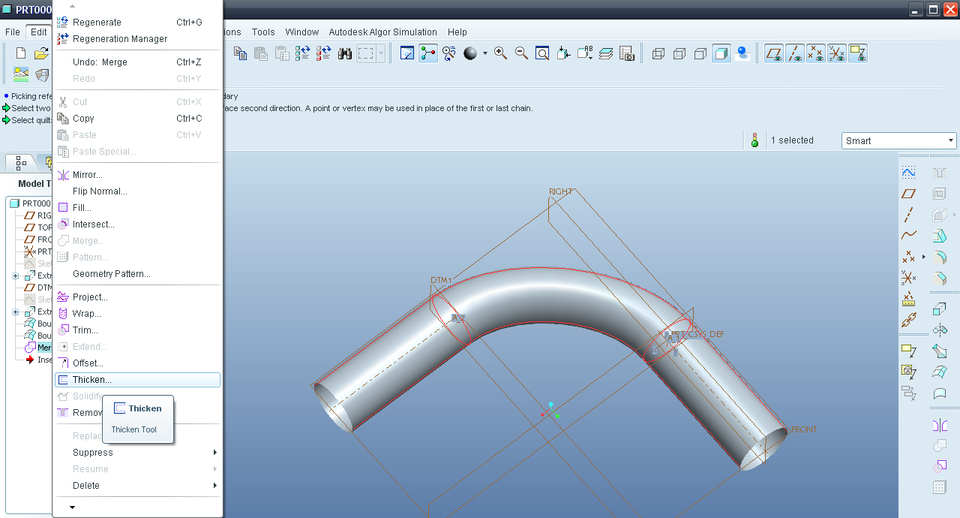

      Select the merge1 and then Edit >> Thicken.



  21. Step 21

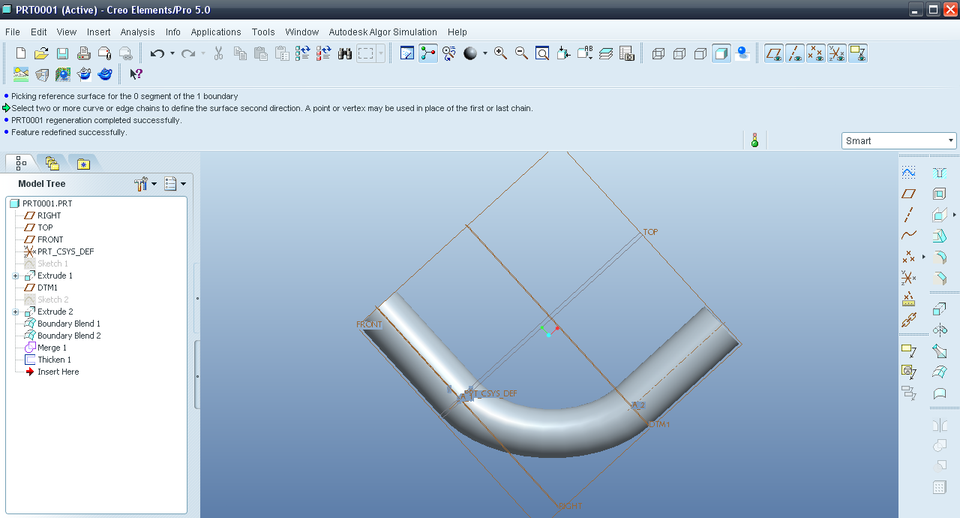

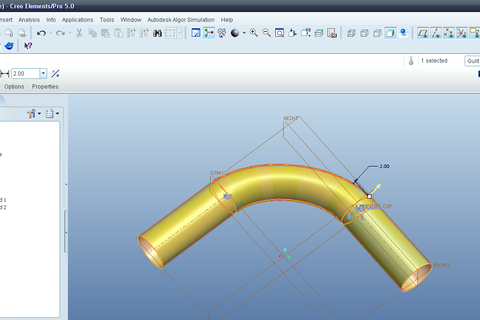

      Input thickness 2mm outside. Click OK.



  22. Step 22

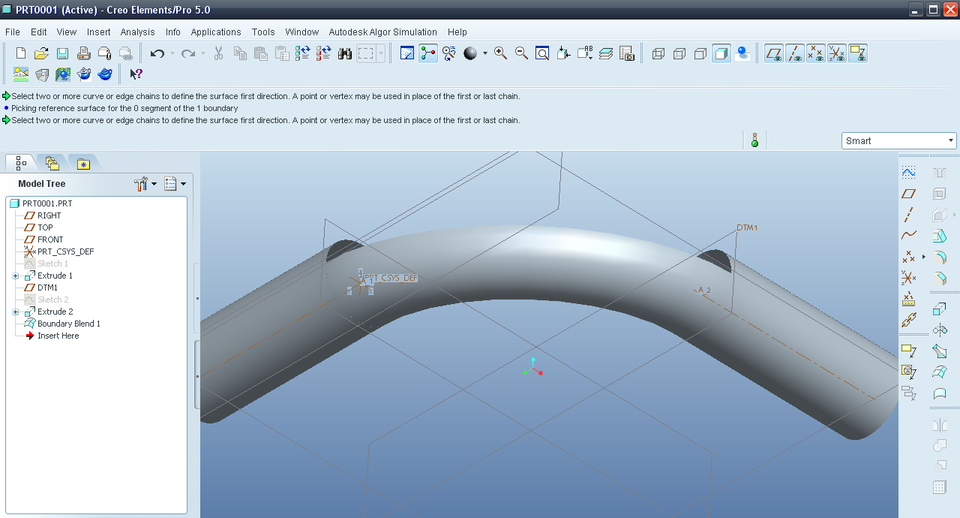

      Now the pipe joint is created using Boundary blend.
