  Tutorial: Prismatic joint in Catia V5 simulation

  1. Step 1

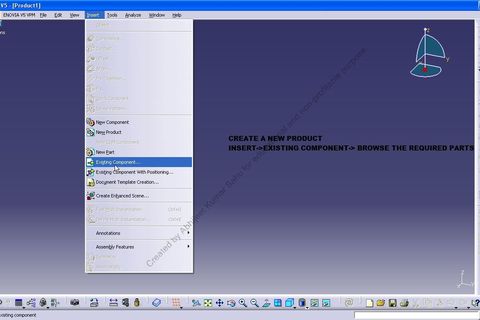

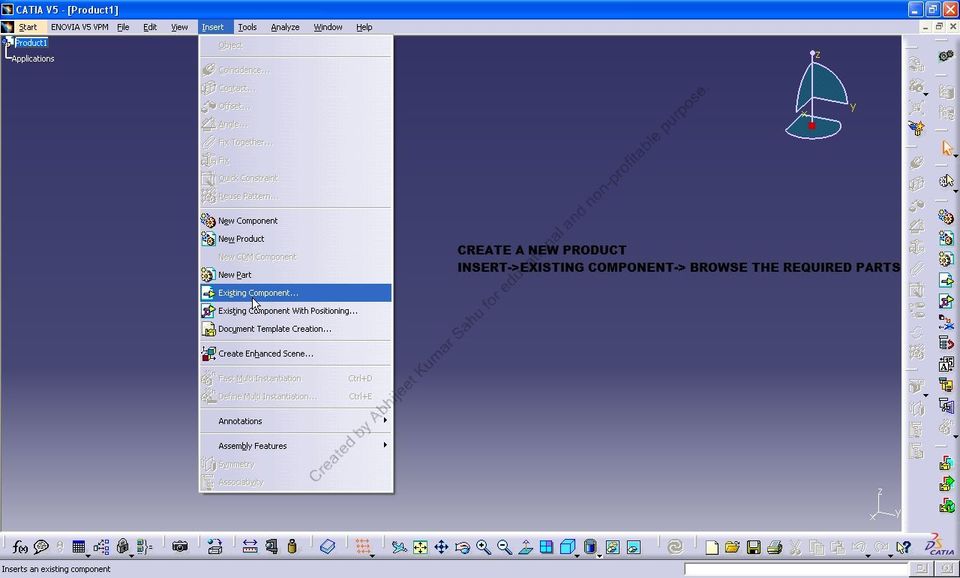

     Insert->existing component->browse for the parts



  2. Step 2

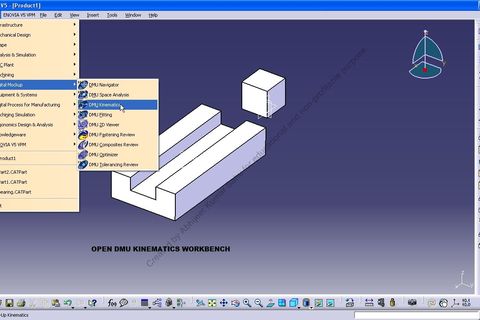

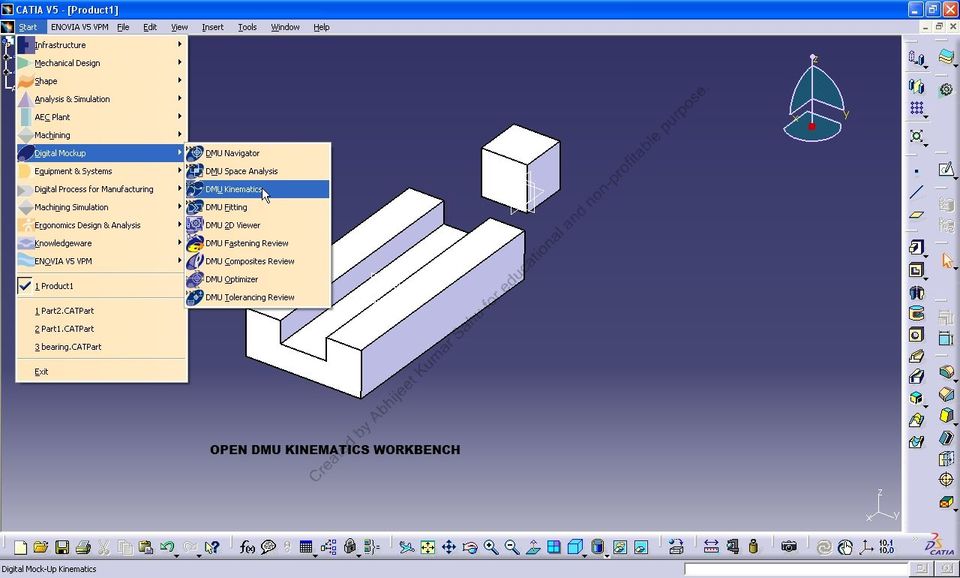

     Open DMU Kinematics workbench



  3. Step 3

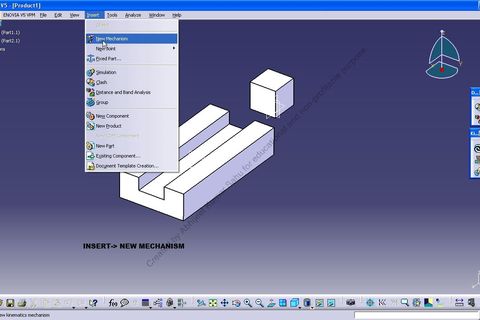

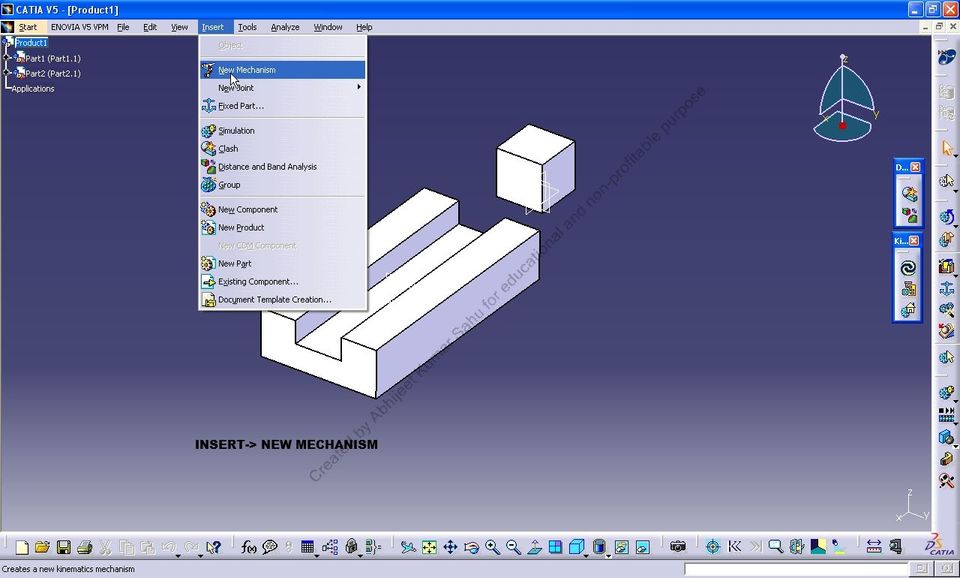

     Insert->new mechanism



  4. Step 4

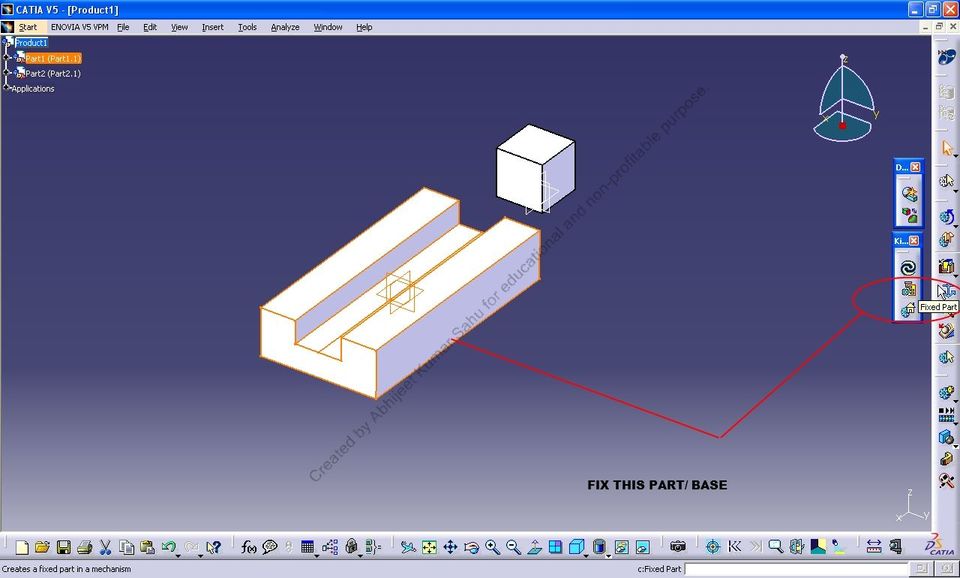

     Fix the base part



  5. Step 5

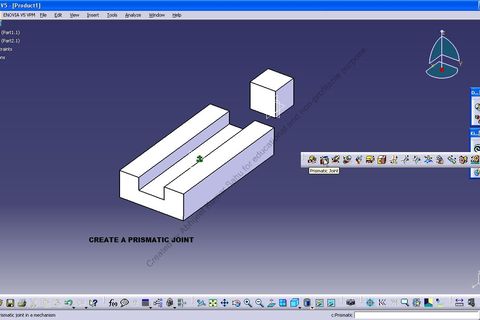

     Insert->joints->prismatic joint or choose "prismatic joint" from the menu shown.



  6. Step 6

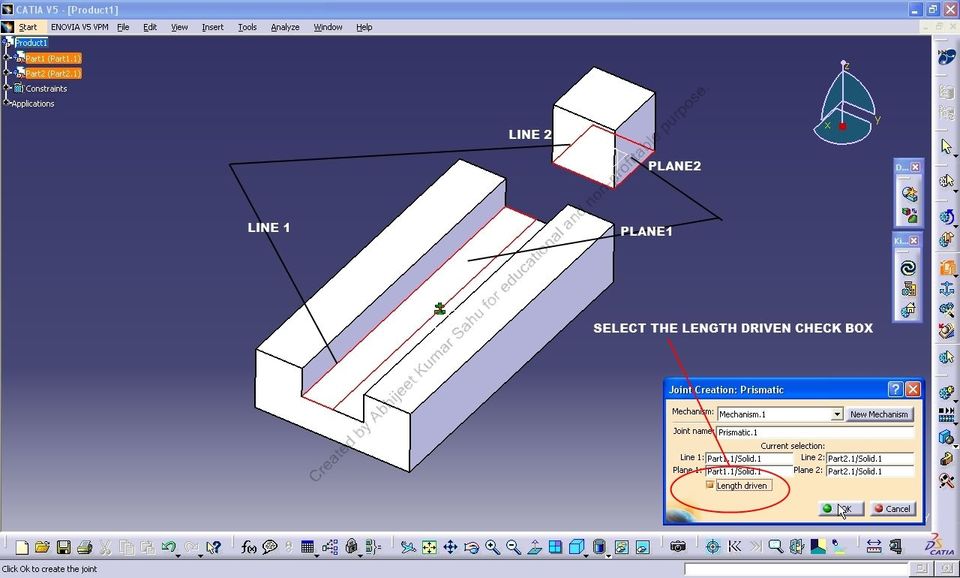

     Fill in the appropriate spaces in the dilog box shown



  7. Step 7

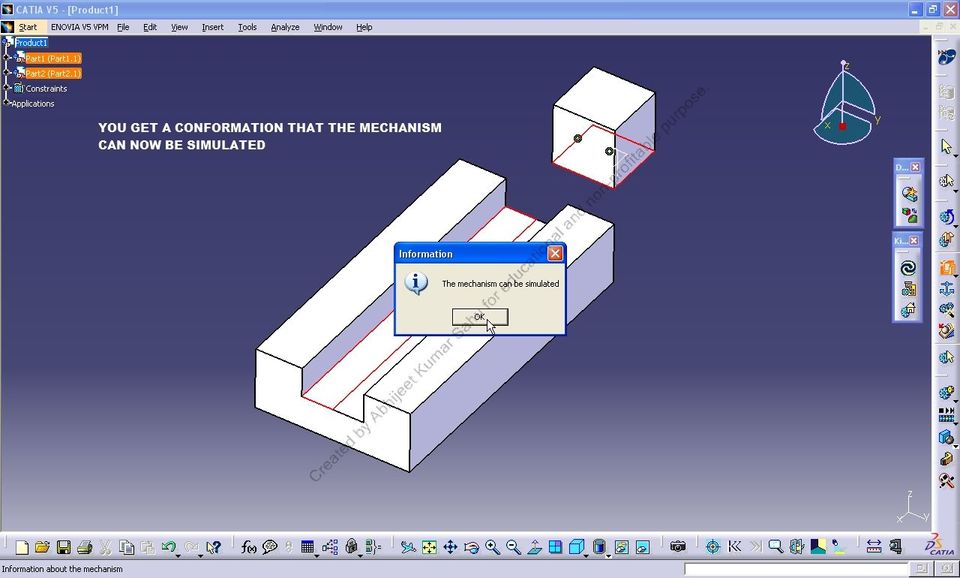

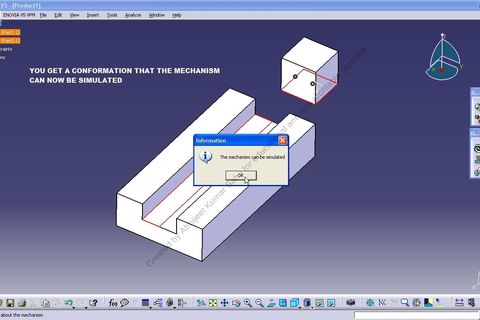

     A dilog box pops out saying that the mechanism can now be simulated



  8. Step 8

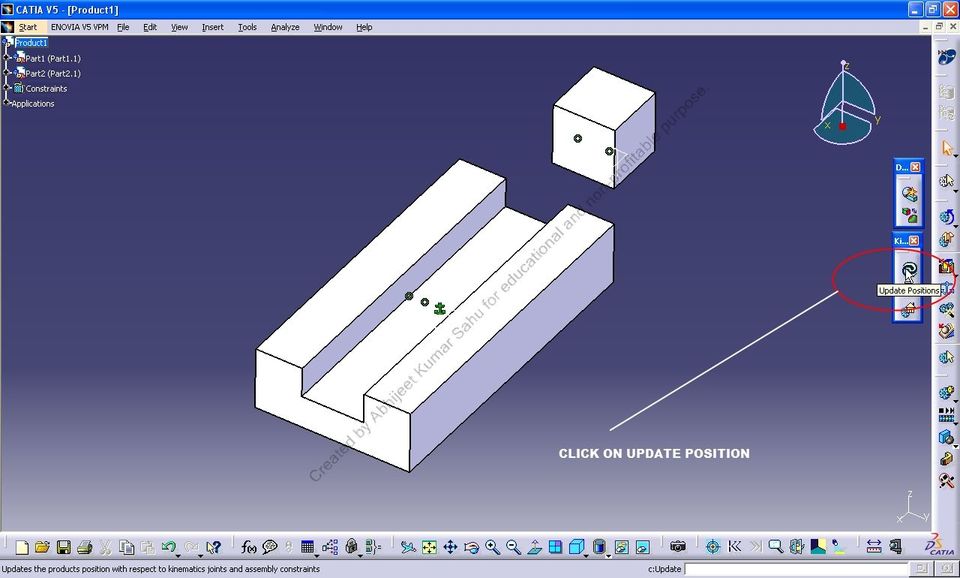

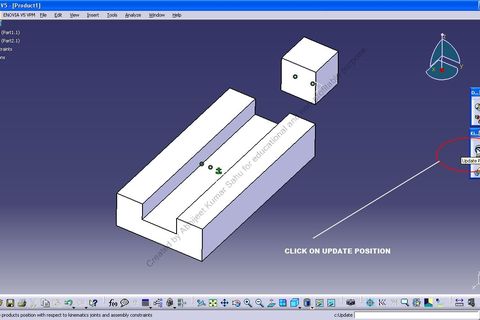

     Click on update position



  9. Step 9

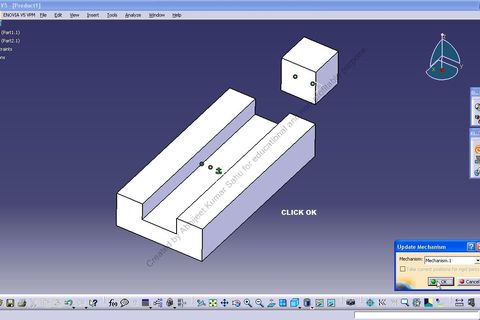

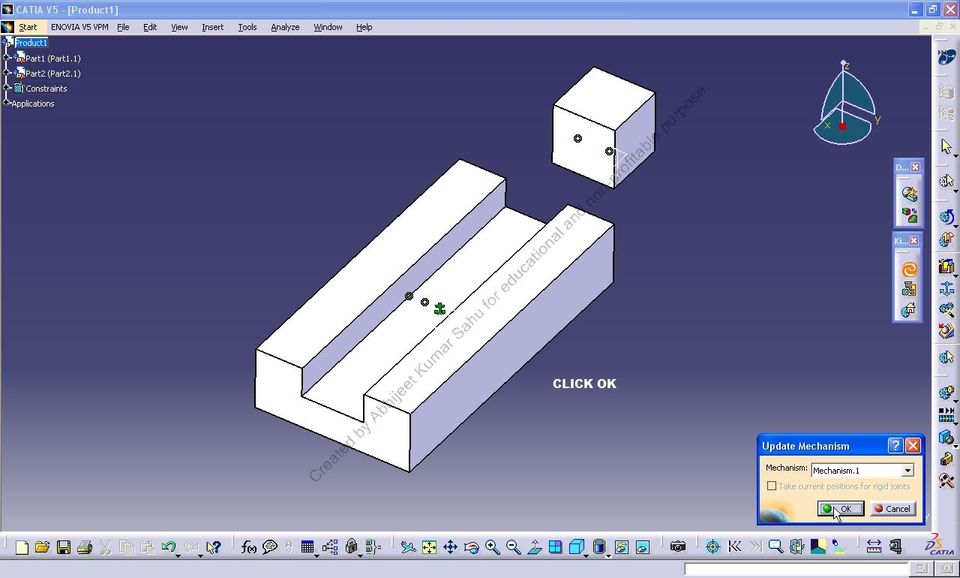

     Update mechanism->ok



  10. Step 10

      Click on "simulation with commands"

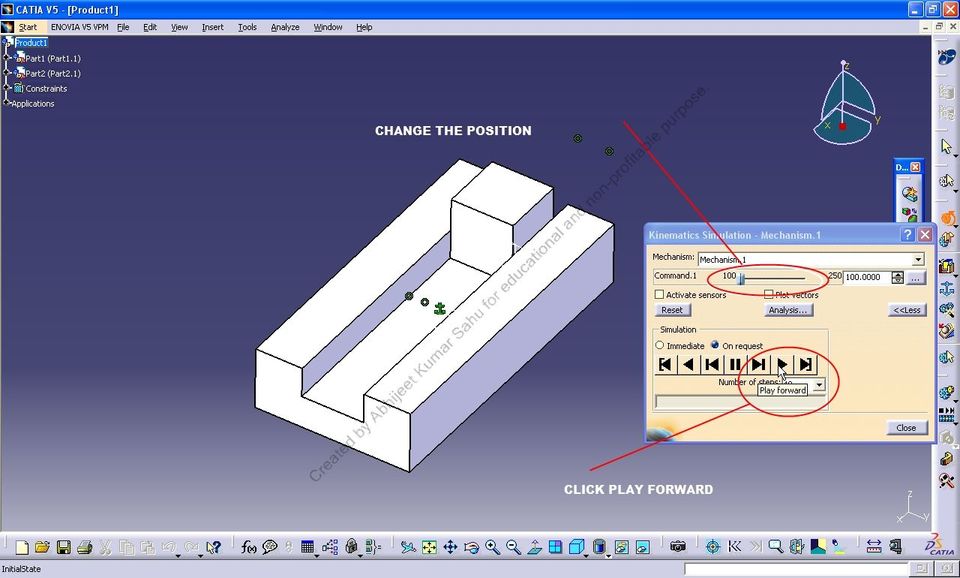

  11. Step 11

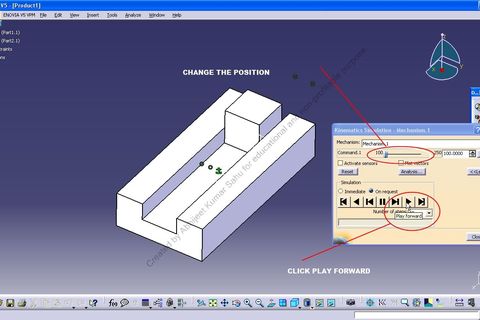

      Click on "play" button to simulate
