Tutorial - Rib feature in SolidWorks?

2 answers

•
  Sudhir Gill 4 months ago

  Here is the tutorial.

  1. Step 1

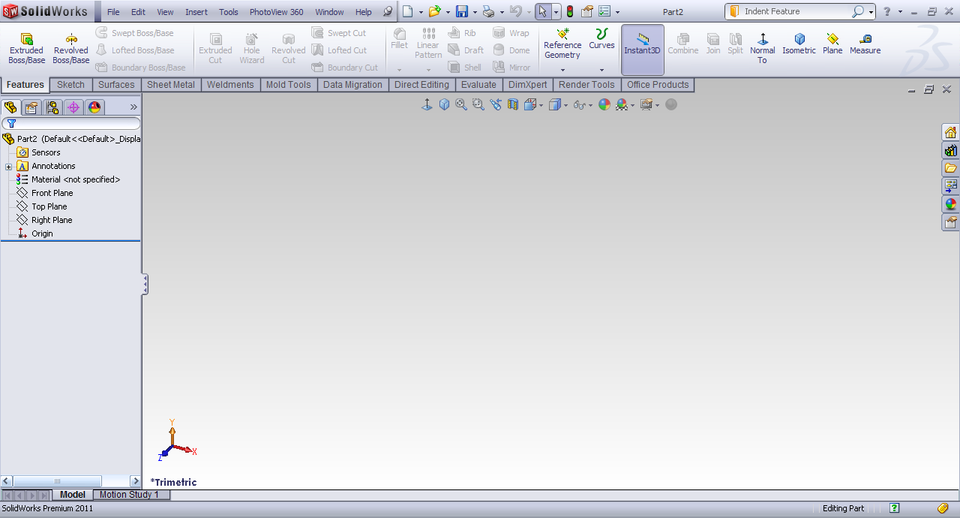

     Start Solidworks in Part Mode.



  2. Step 2

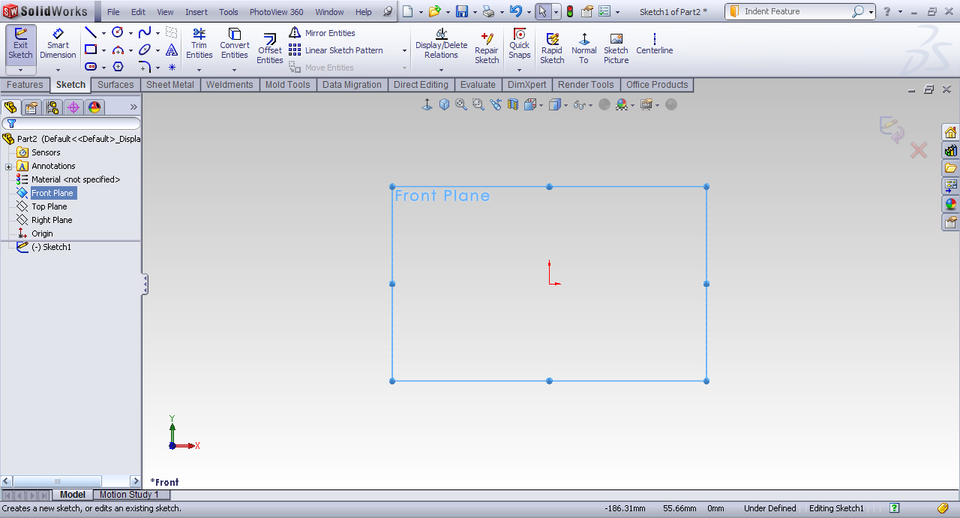

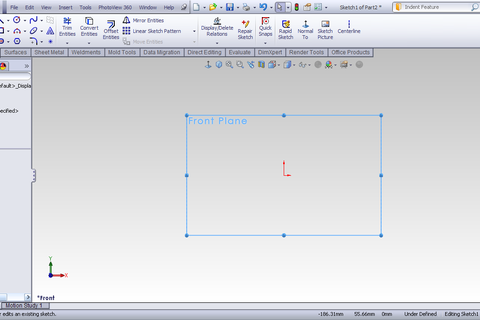

     Front Plane>>Sketch.



  3. Step 3

     Make a profile like this.



  4. Step 4

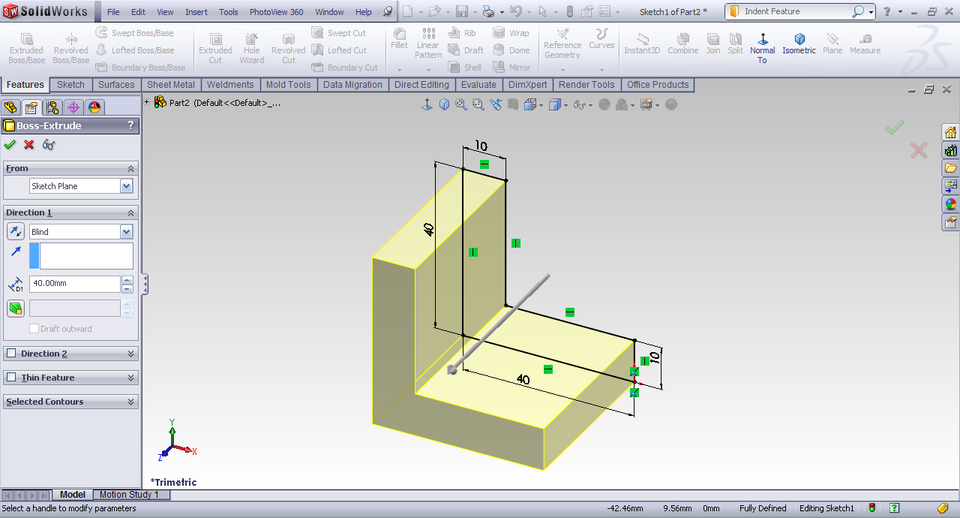

     Extrude it by 40mm.



  5. Step 5

     Under Features tab choose reference geometry>>plane.



  6. Step 6

     Choose the face1 and distance be 20mm.



  7. Step 7

     Choose Plane1>>Sketch.



  8. Step 8

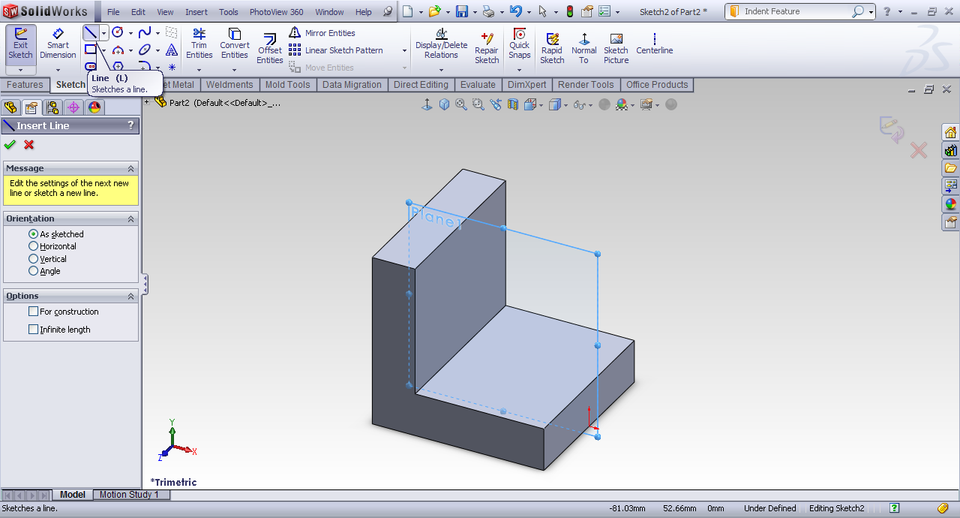

     Choose Line tool.



  9. Step 9

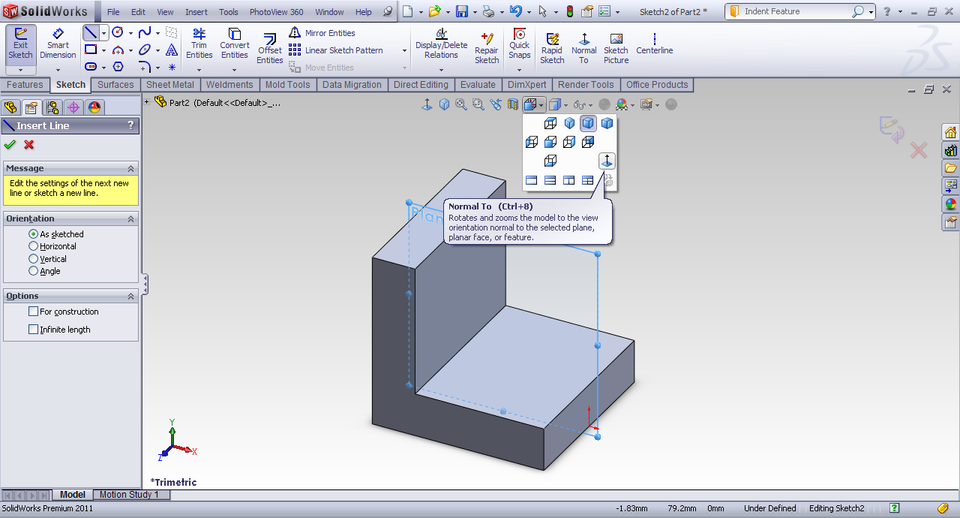

     Standard Views>Normal to.



  10. Step 10

      Make a line coincident with both the corners.



  11. Step 11

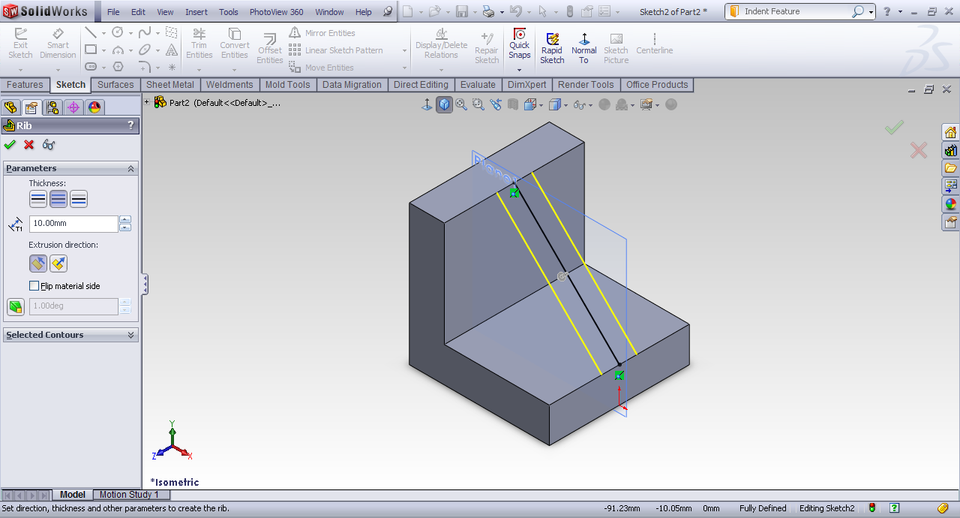

      Insert>>Features>>Rib.



  12. Step 12

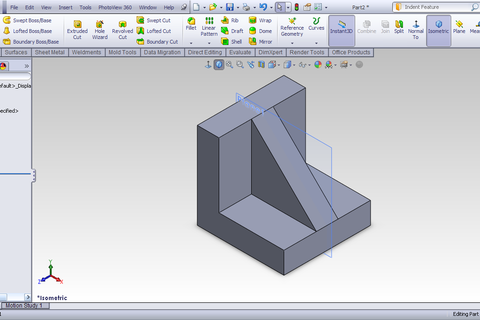

      Isometric View.



  13. Step 13

      Keep the default settings and click OK. Now the rib feature has been created.



•
