2 answers

•
  Sudhir Gill about 1 year ago

  Here is the tutorial.

  1. Step 1

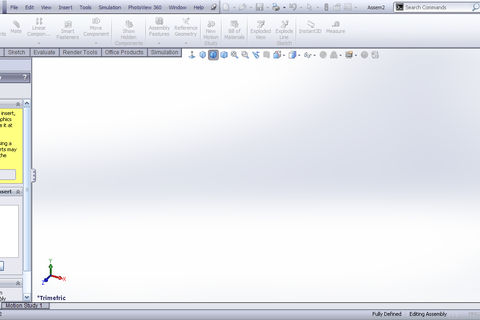

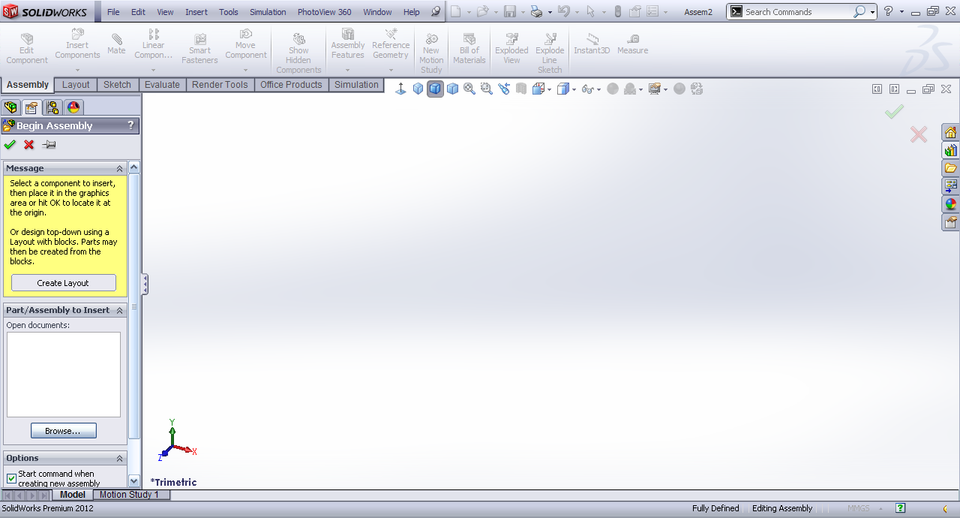

     Start SolidWorks.



  2. Step 2

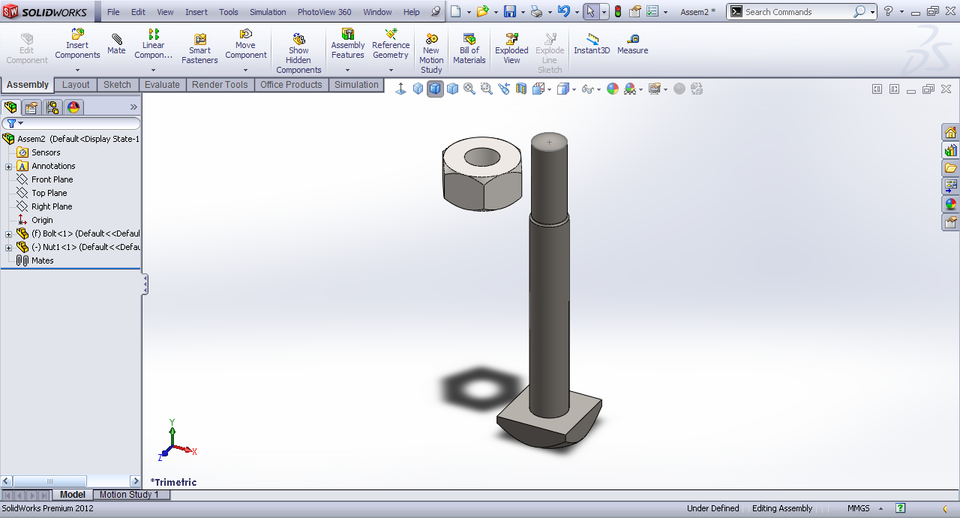

     Insert the attached parts.



  3. Step 3

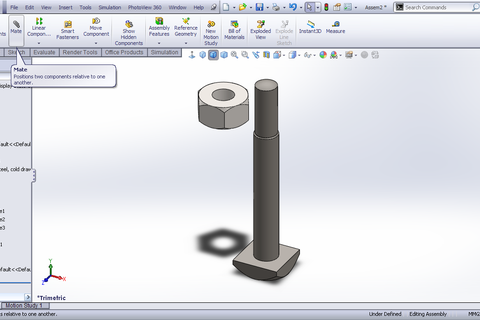

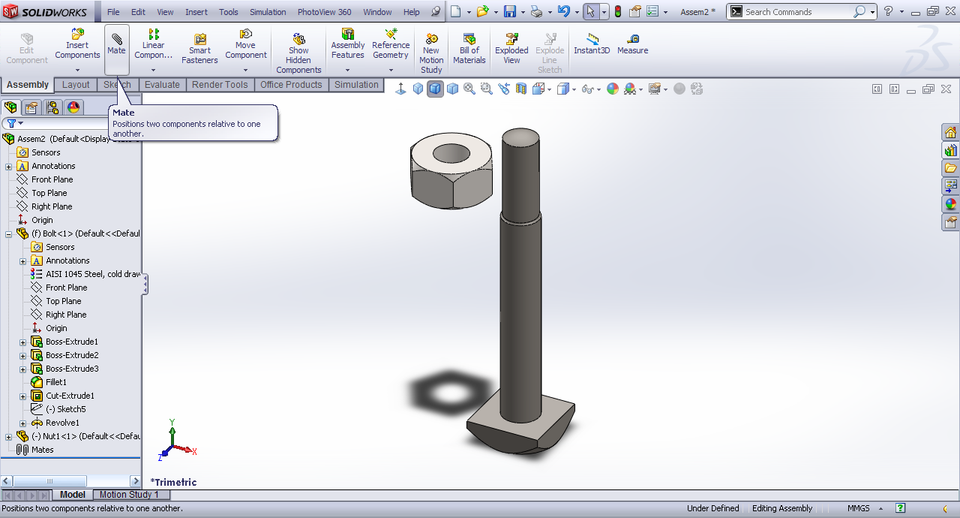

     Click Mate.



  4. Step 4

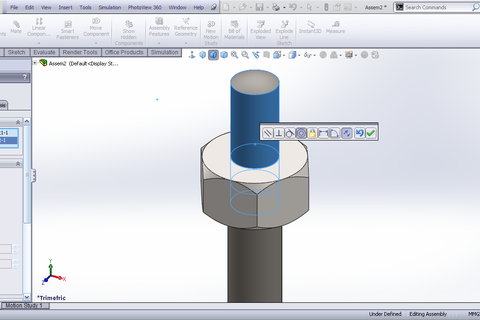

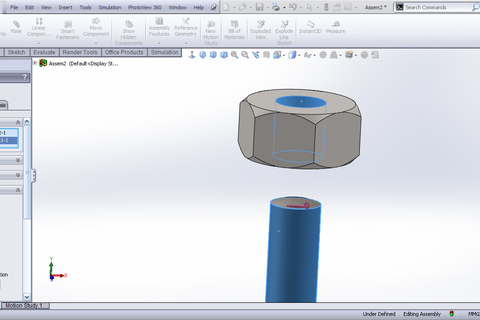

     Select the circular faces.



  5. Step 5

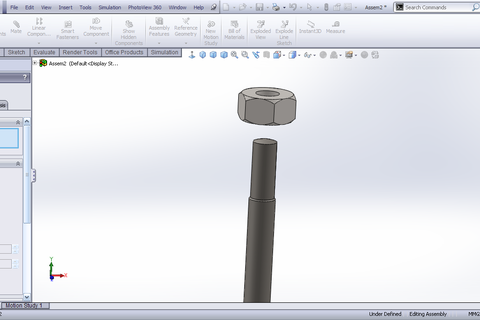

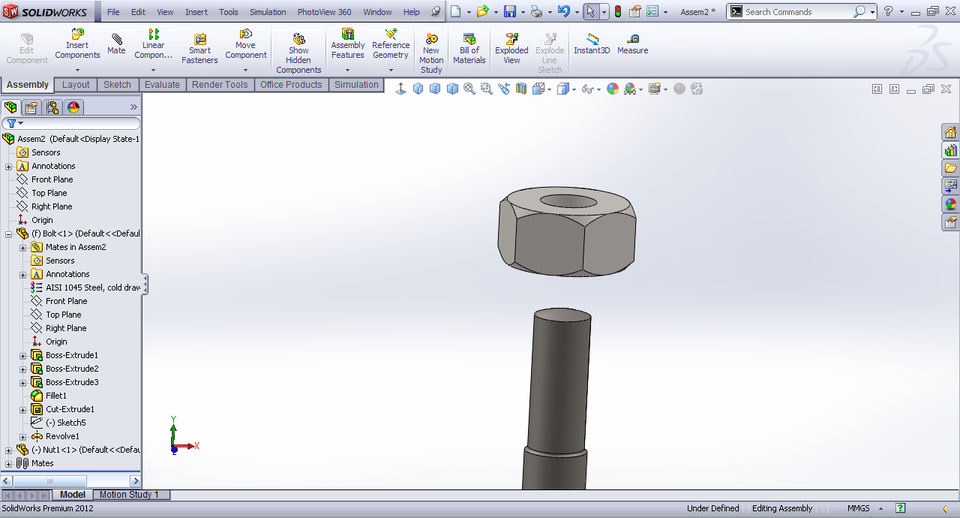

     Move the nut away from bolt.



  6. Step 6

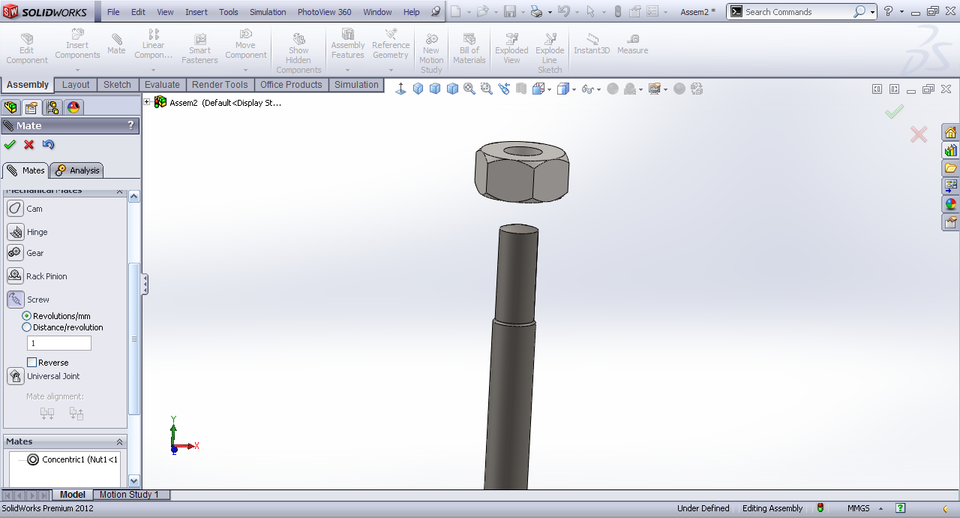

     Under mechanical mates click screw.



  7. Step 7

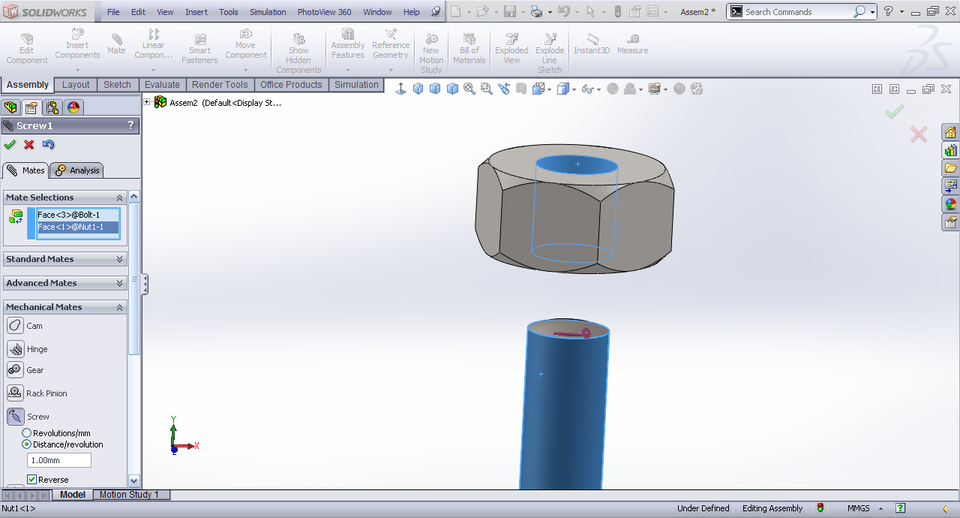

     Select distance/revolution (i.e. pitch) and input value.



  8. Step 8

     Select both cicular faces.



  9. Step 9

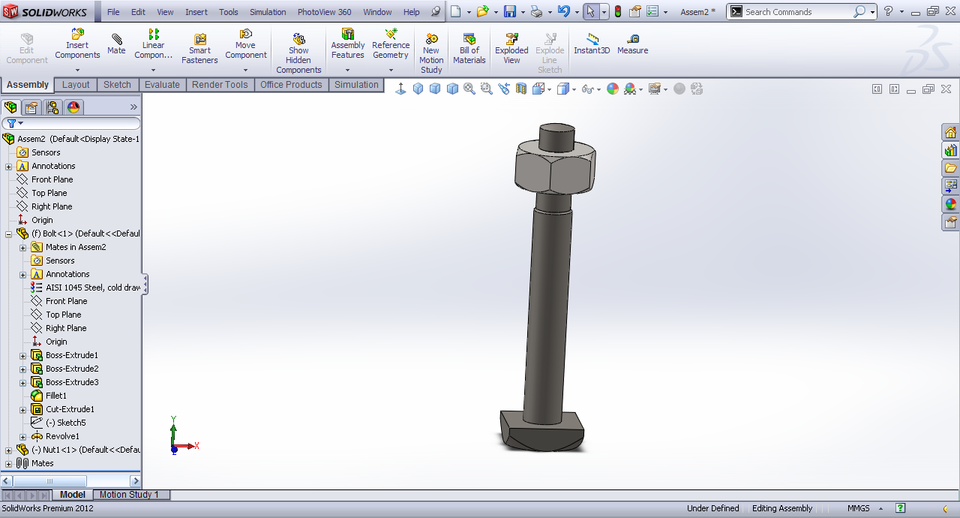

     Click OK and the mate is generated.



  10. Step 10

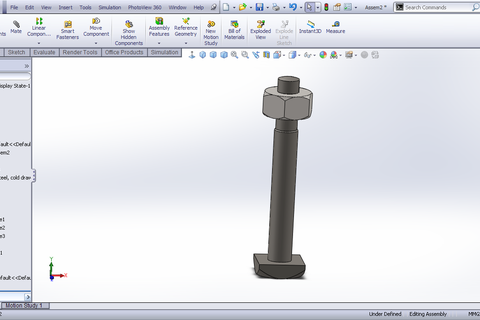

      When we revolve the nut with mouse we can see that it is moved up and down.



•
  Robert Stein about 1 year ago

  Nice :)

  1.
     Robert Stein about 1 year ago

     Actually, thank You, I'm working with SW since release 2009 and use a lot of screws and bolts and this option never came to my mind ;)

  2.
     Sudhir Gill about 1 year ago

     Thank you Sir.

  3.
     Sudhir Gill about 1 year ago

     Your welcome sir.
