  Here is the Tutorial.

  1. Step 1

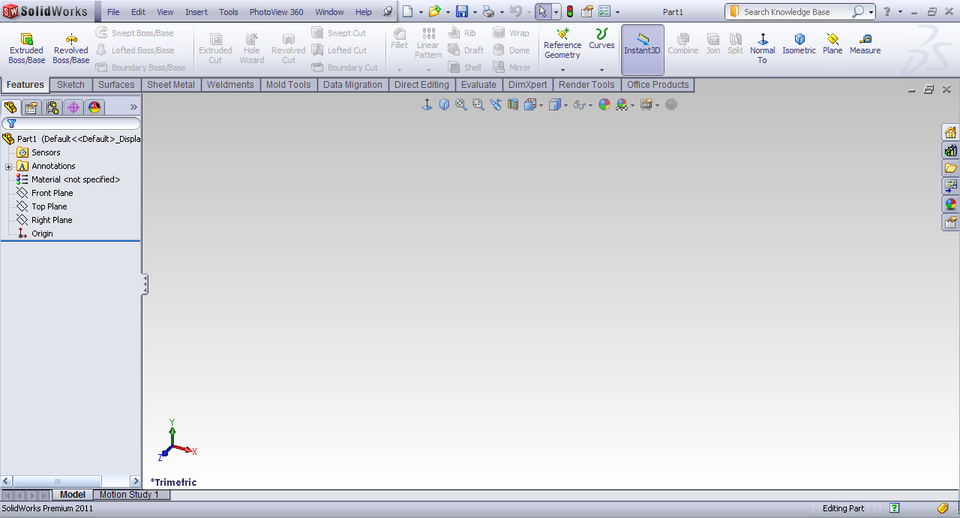

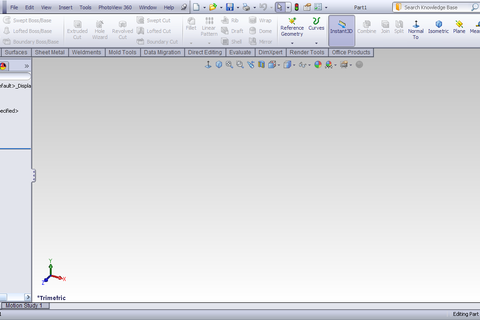

     Start Solidworks in part mode.



  2. Step 2

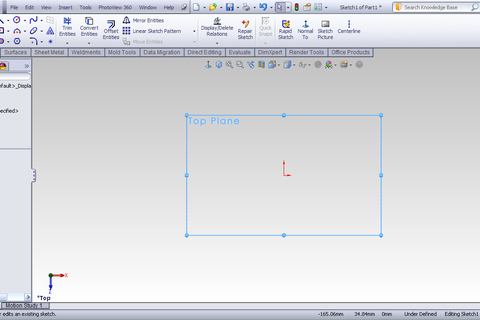

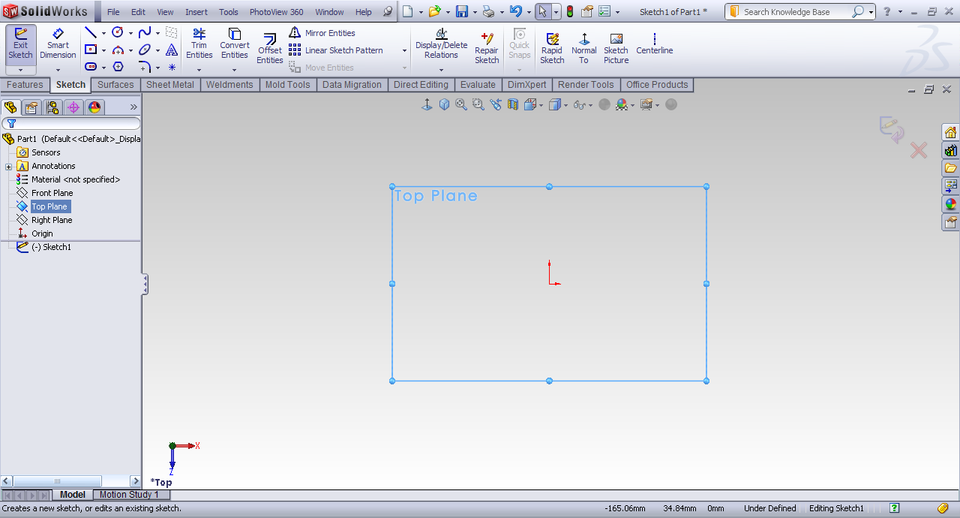

     Top Plane>>Sketch.



  3. Step 3

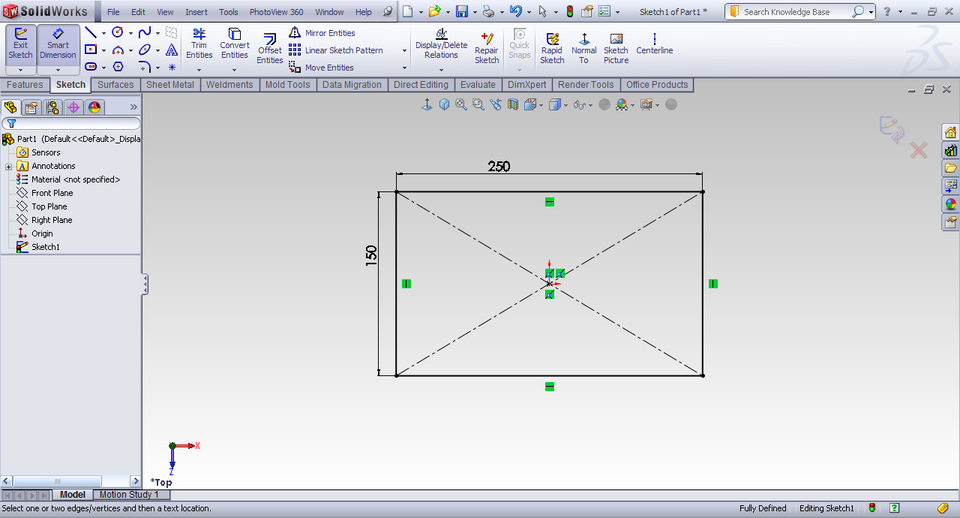

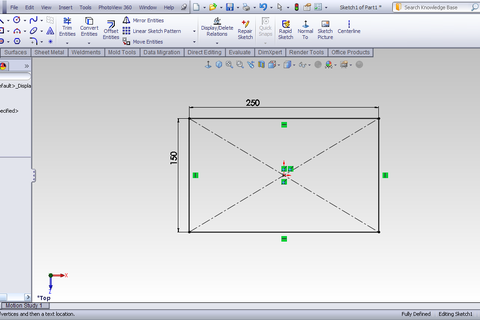

     Make a rectangle.



  4. Step 4

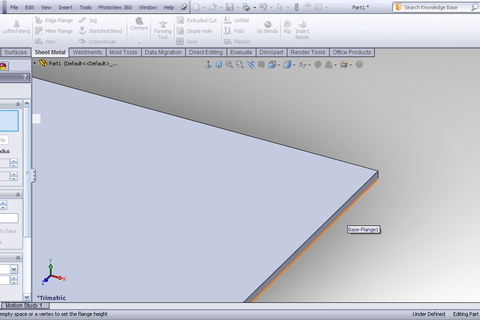

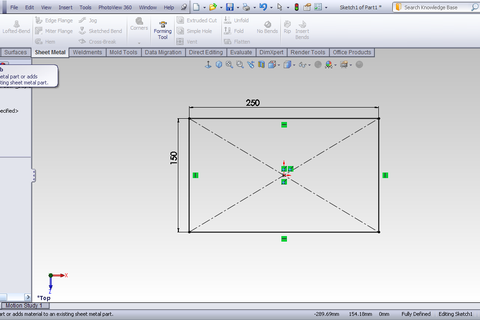

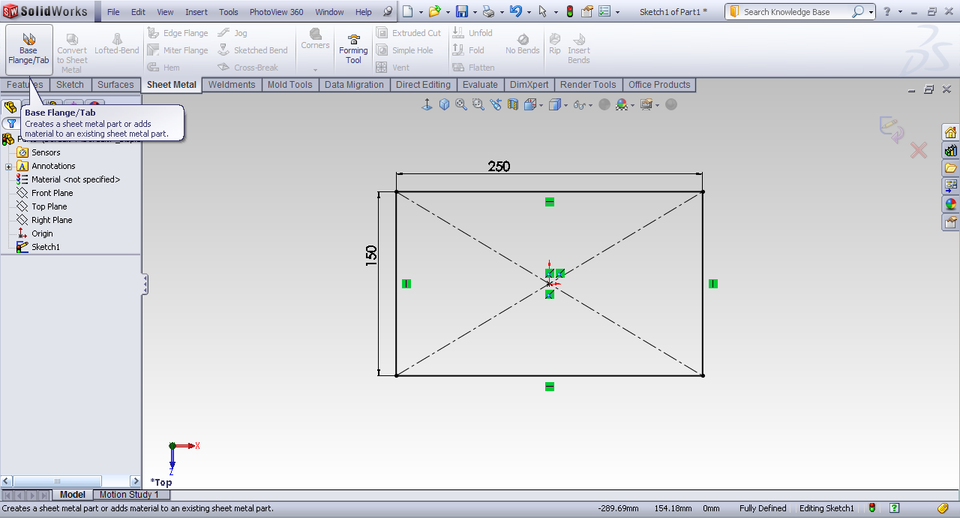

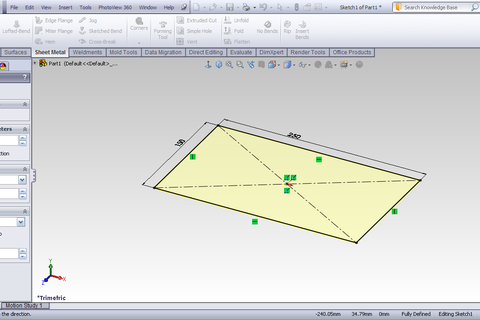

     Under Sheetmetal tab choose base flange. This will act as the base of the sheetmetal part.



  5. Step 5

     Keep the default settings and click OK.

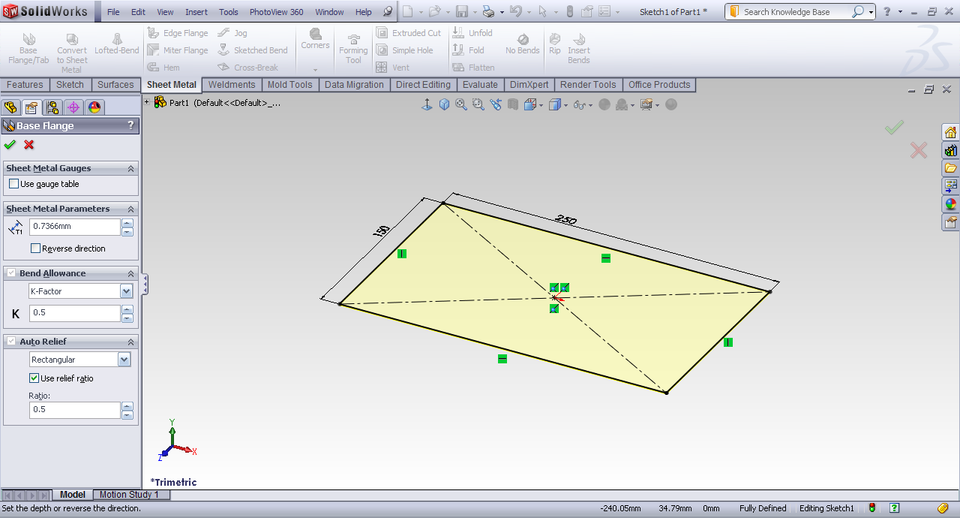

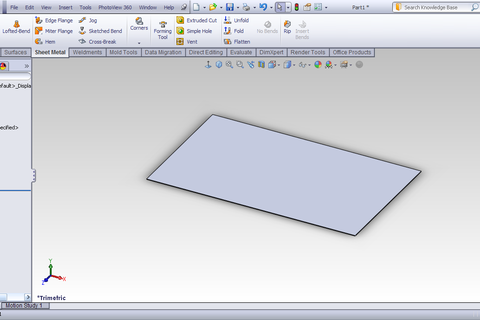

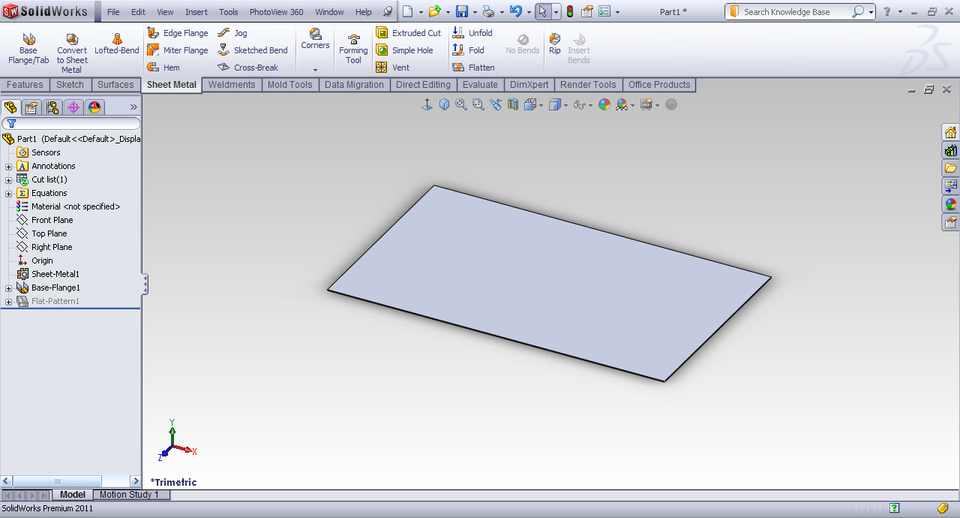

  6. Step 6

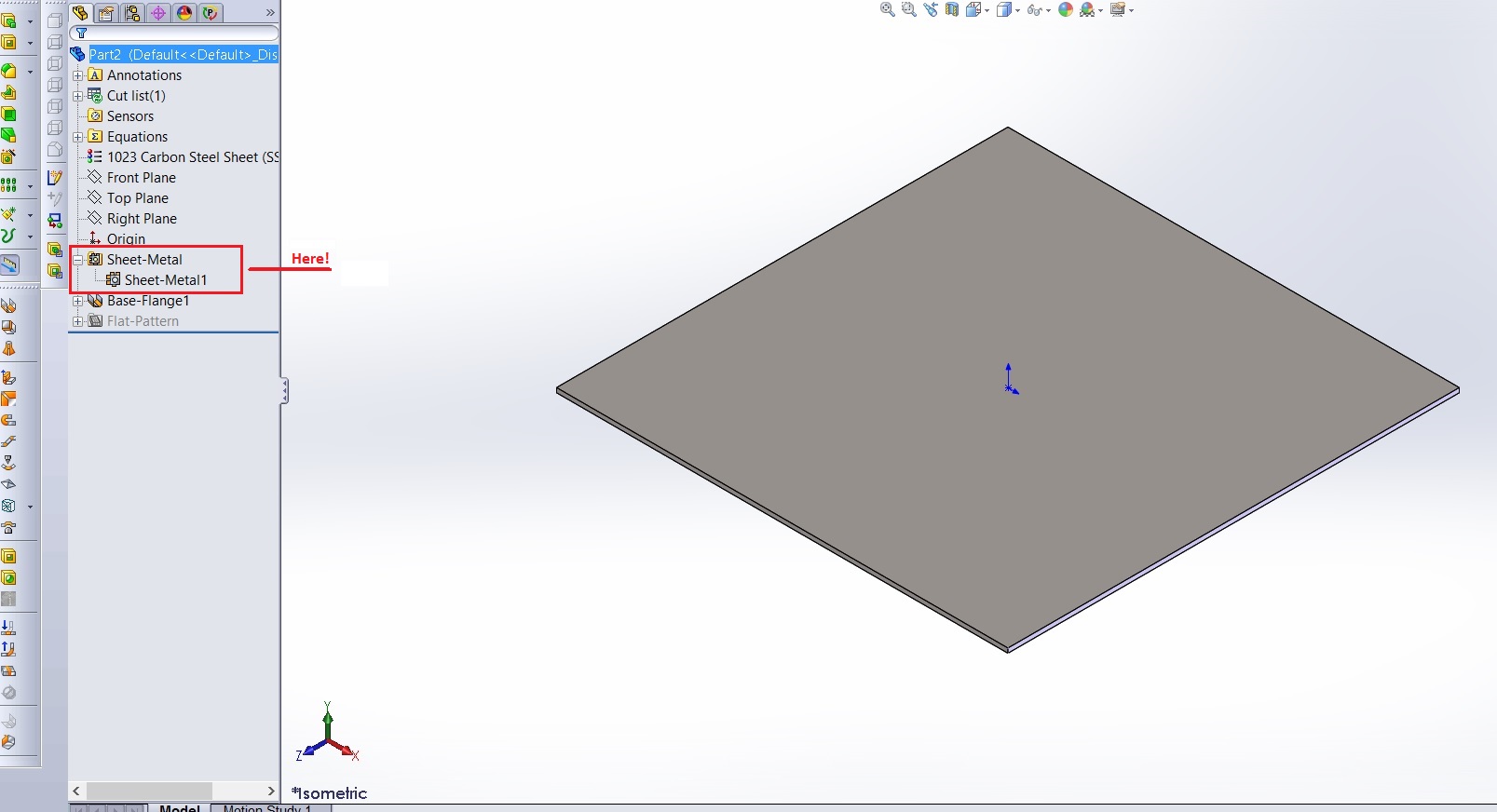

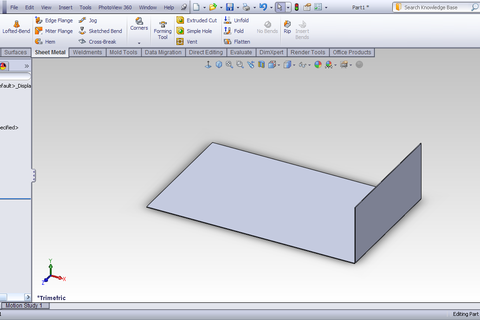

     The base of the sheetmetal part has been generated.



  7. Step 7

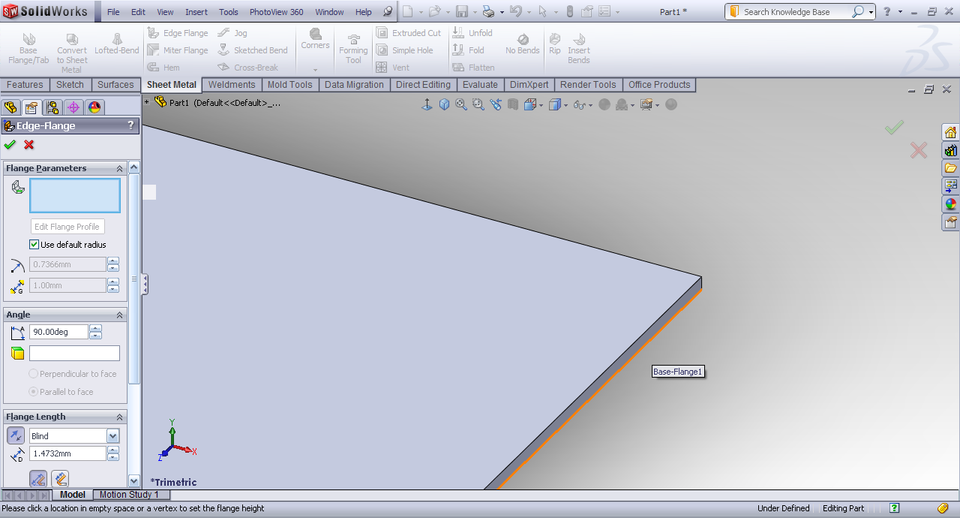

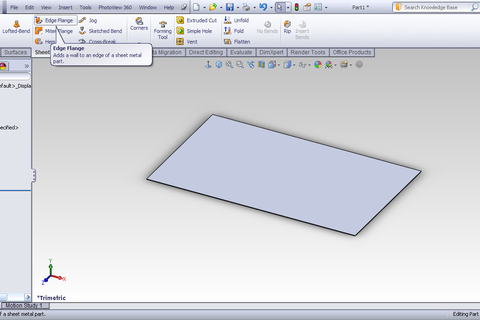

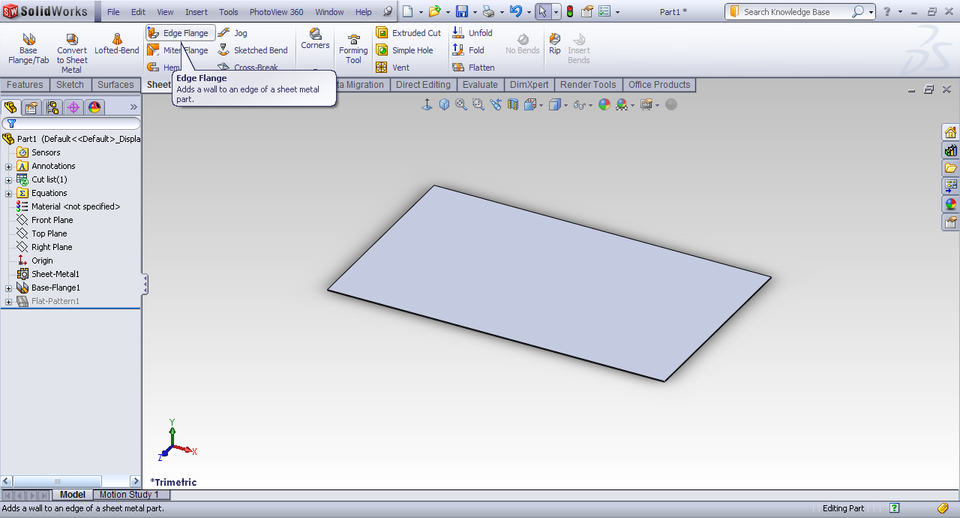

     Choose Edge flange in sheetmetal tab.



  8. Step 8

     Choose the right face lower edge.

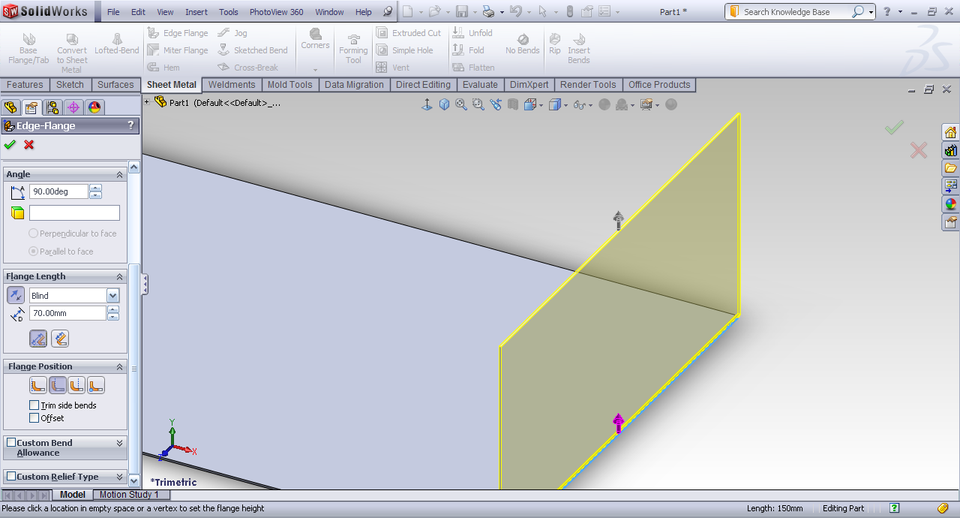

  9. Step 9

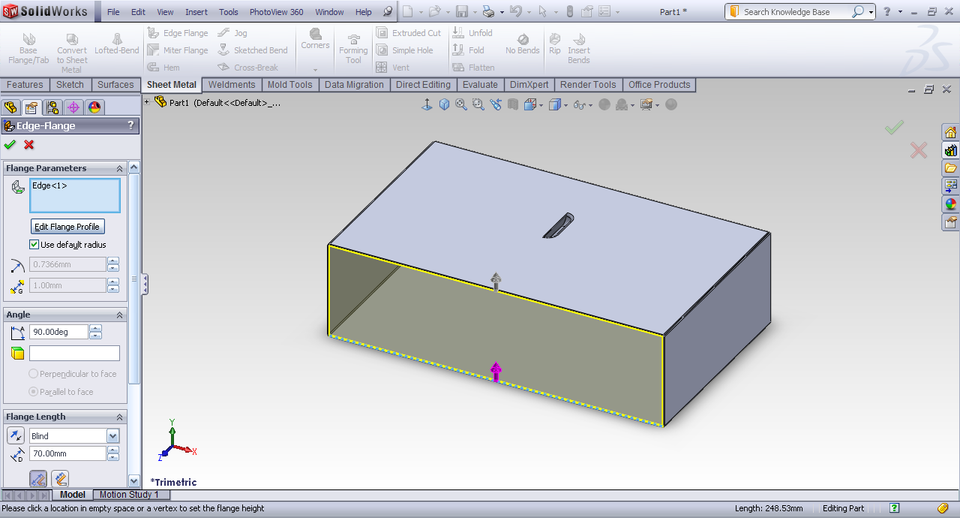

     Enter a height of 70mm in Property manager.



  10. Step 10

      Click OK and we have the wall created.

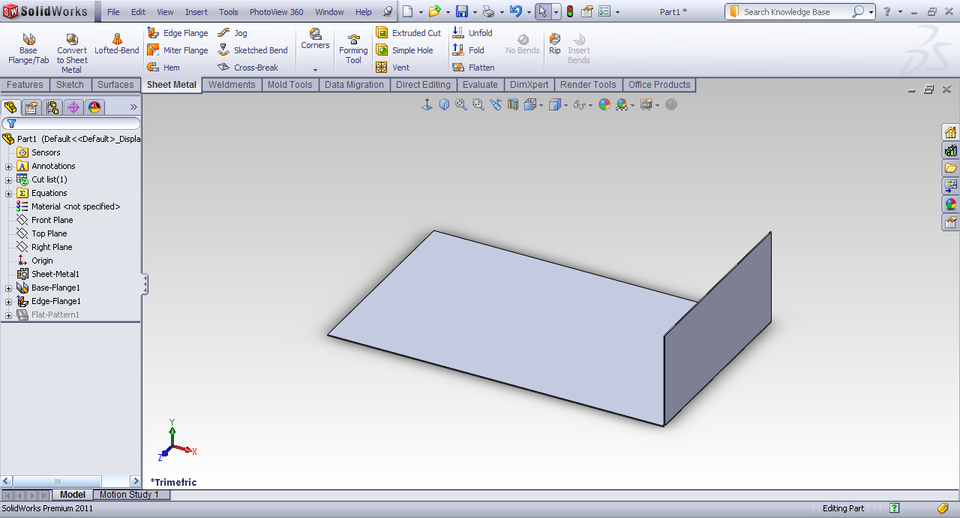

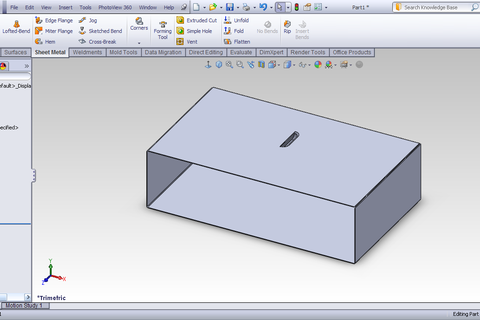

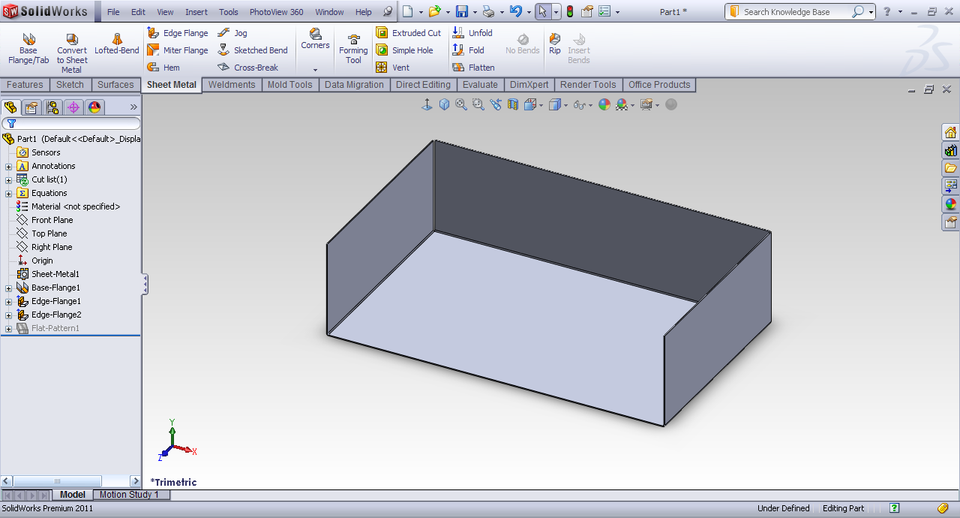

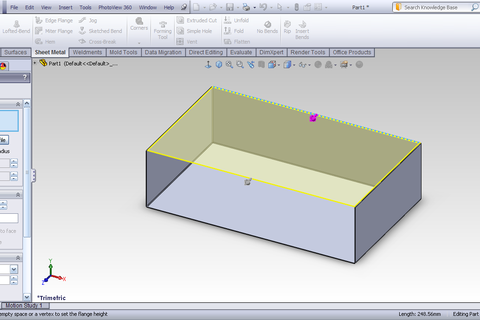

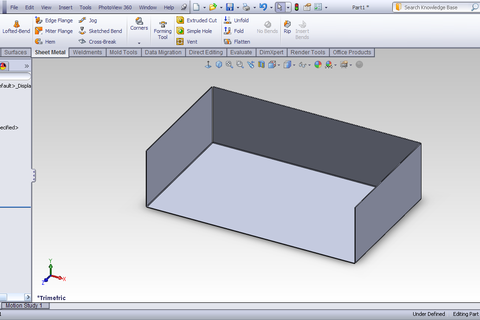

  11. Step 11

      Repeat the same step for the other edges also.



  12. Step 12

      Again Select the edge flange and select the edge of the middle wall.

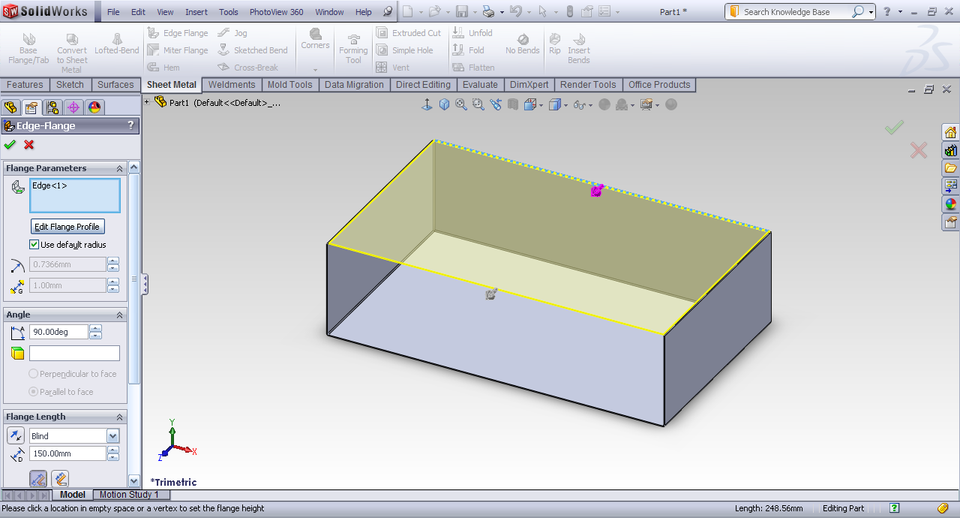

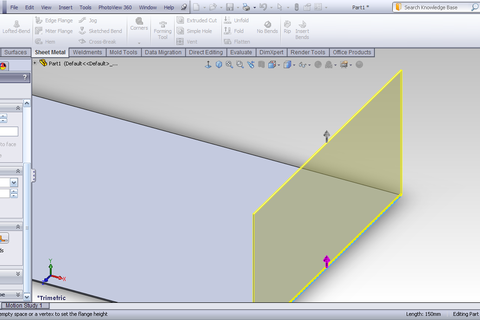

  13. Step 13

      Enter an height of 150mm and Click OK.



  14. Step 14

      Open Design Library.



  15. Step 15

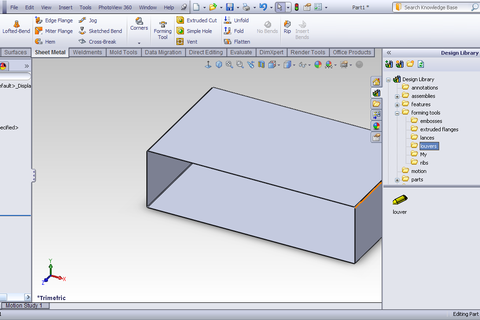

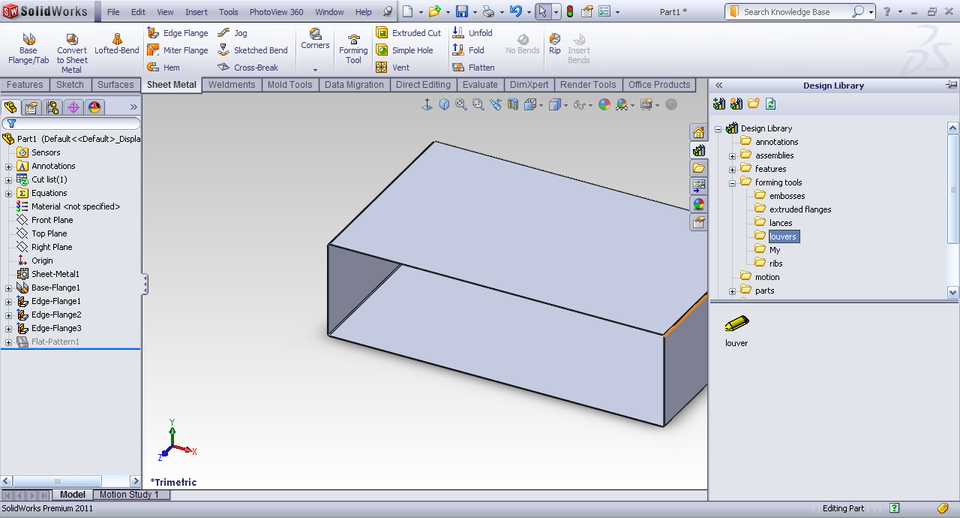

      Browse to Forming Tools>>Louvers. If needed right click the forming tools folder and click the forming tool option.



  16. Step 16

      Drag the lower to the top surface of the part.



  17. Step 17

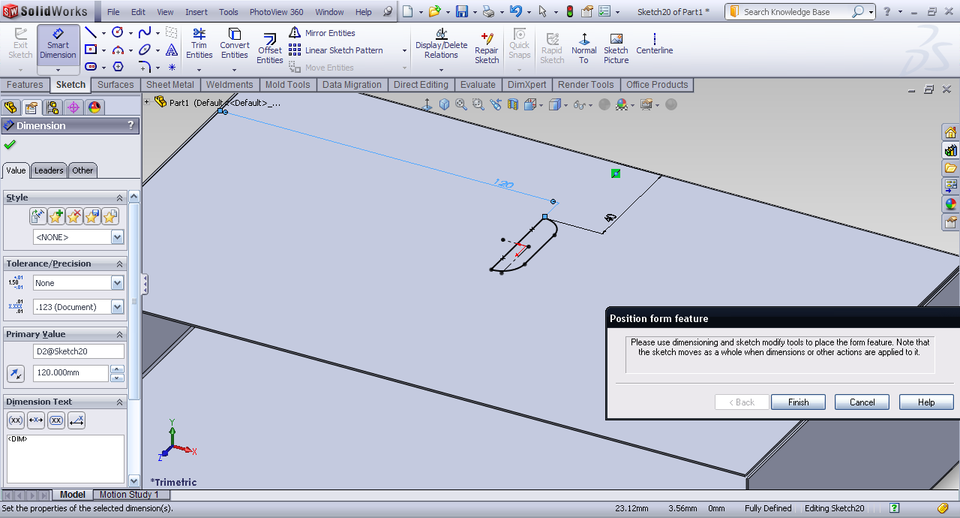

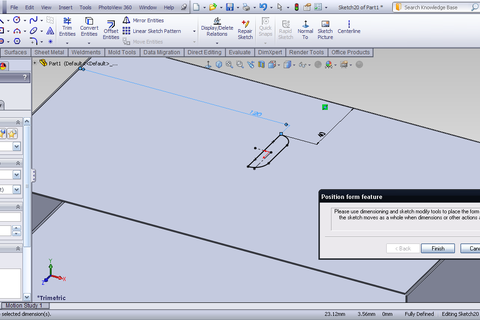

      Position it by assigning some dimensions.



  18. Step 18

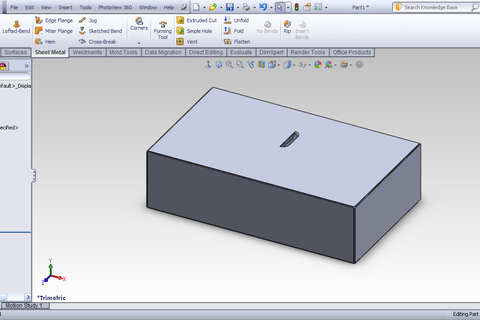

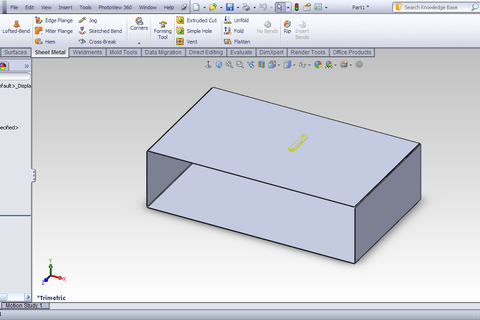

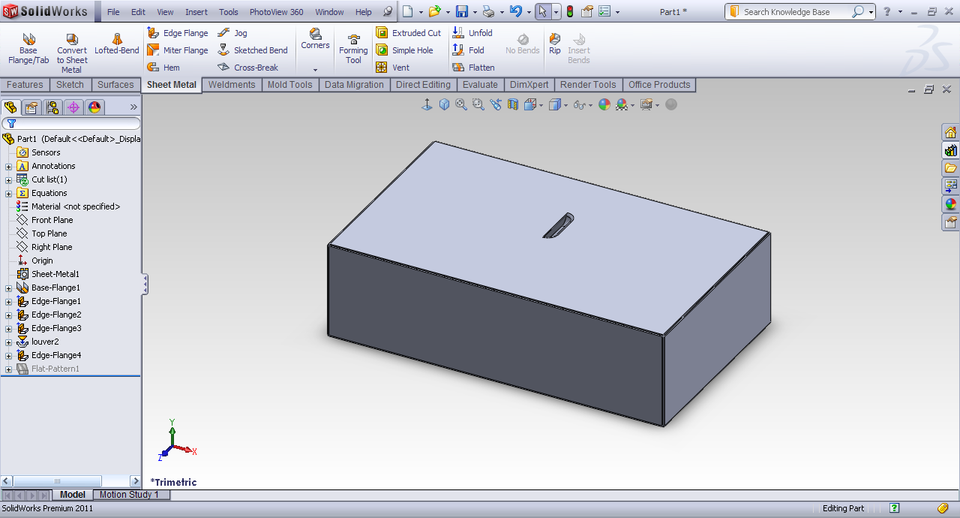

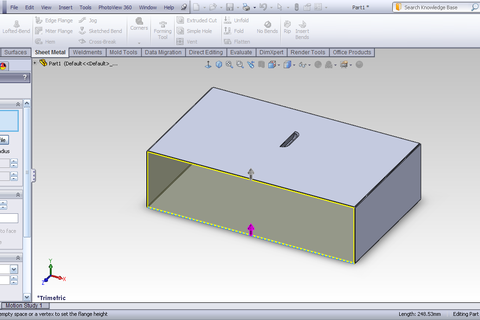

      Click OK and we have the forming feature created.



  19. Step 19

      Choose Edge flange and select the Edge of the bottom surface.



  20. Step 20

      Click OK.



  21. Step 21

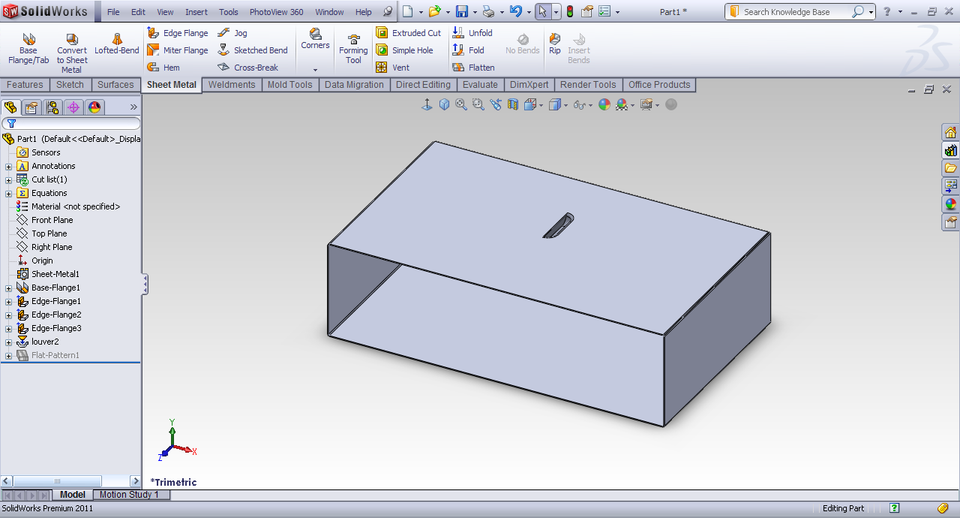

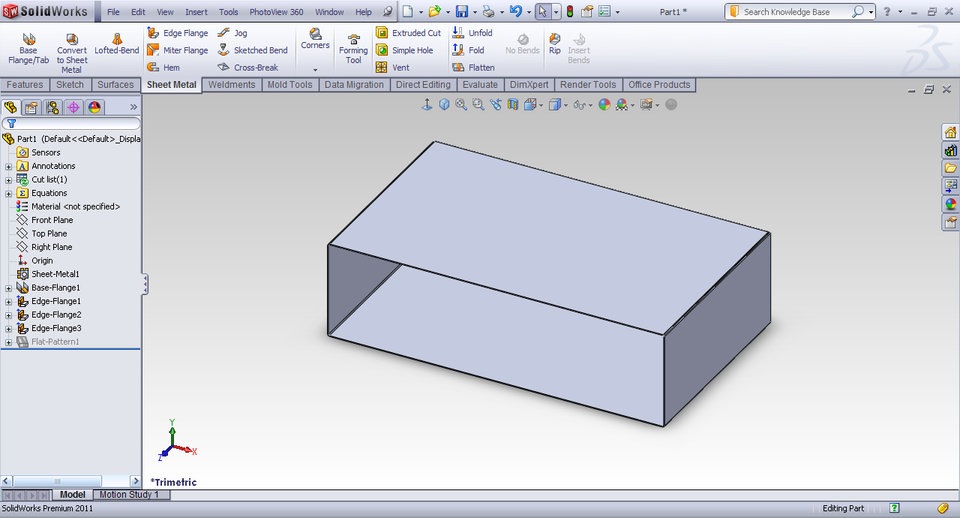

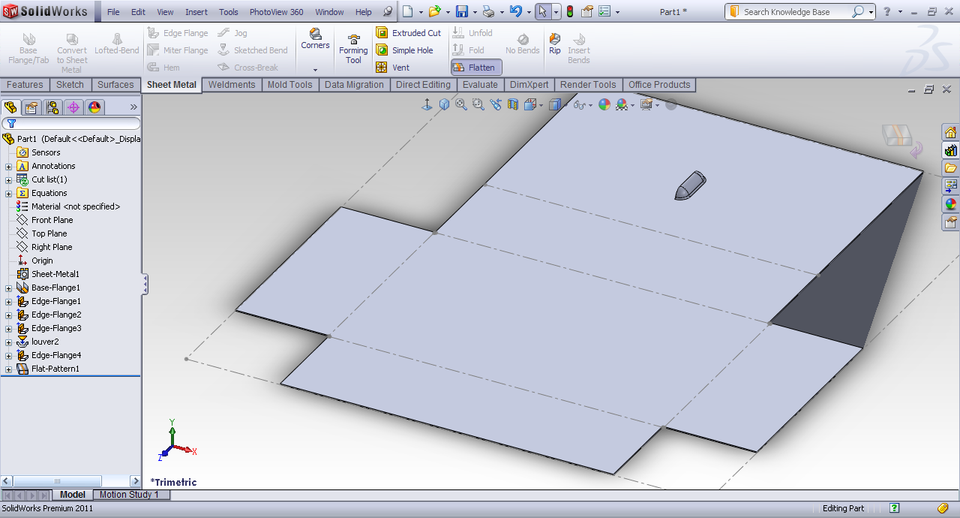

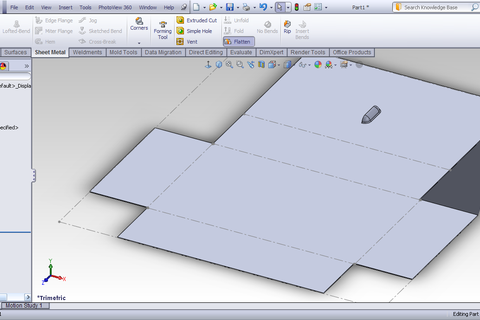

      Choose Flatten in the Sheetmetal Tab. And we have the sheetmetal body part created.



  1.
     Hamidreza Rastan 10 months ago

     and does not work!!!!!

  2.
     Sudhir Gill 10 months ago

     Right click the forming tools folder in design library and set as default forming tools.

  3.
     Hamidreza Rastan 10 months ago

     when i want to drag the forming tools,first appear the attention that:do you want drived part????(in 2012)

•
