  In general, a finite element solution may be broken into the following three stages.
  1. Preprocessing: defining the problem;
  - Define keypoints/lines/areas/volumes
  - Define element type and material/geometric properties
  - Mesh lines/areas/volumes as required
  2. Solution: assigning loads, constraints and solving;
  3. Postprocessing:
  - Lists of nodal displacements
  - Element forces and moments
  - Deflection plots
  - Stress contour diagrams
  In this tutorial we will go through first and seecond step here.

  1. Step 1

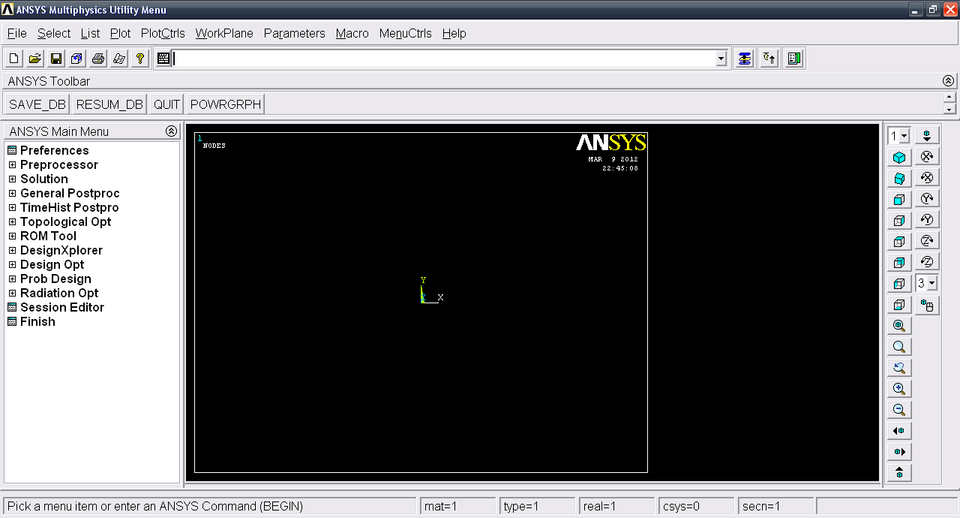

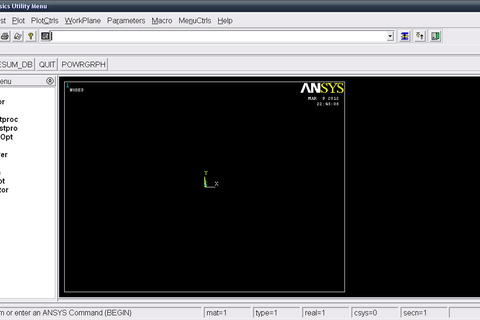

     Start Mechanical APDL.



  2. Step 2

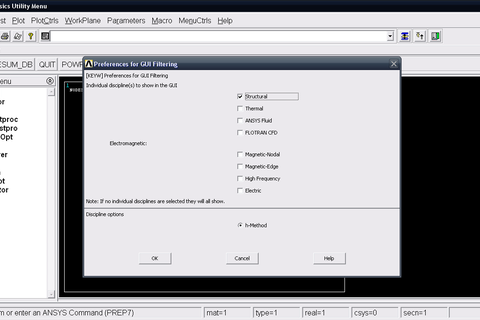

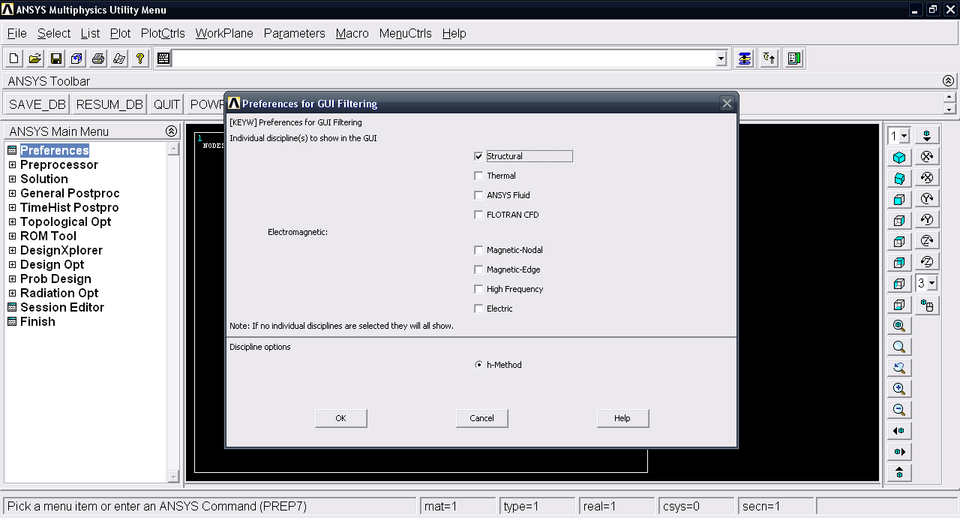

     Click Preferences and select Structural. Click OK.



  3. Step 3

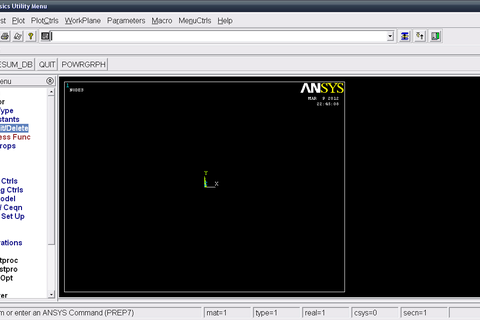

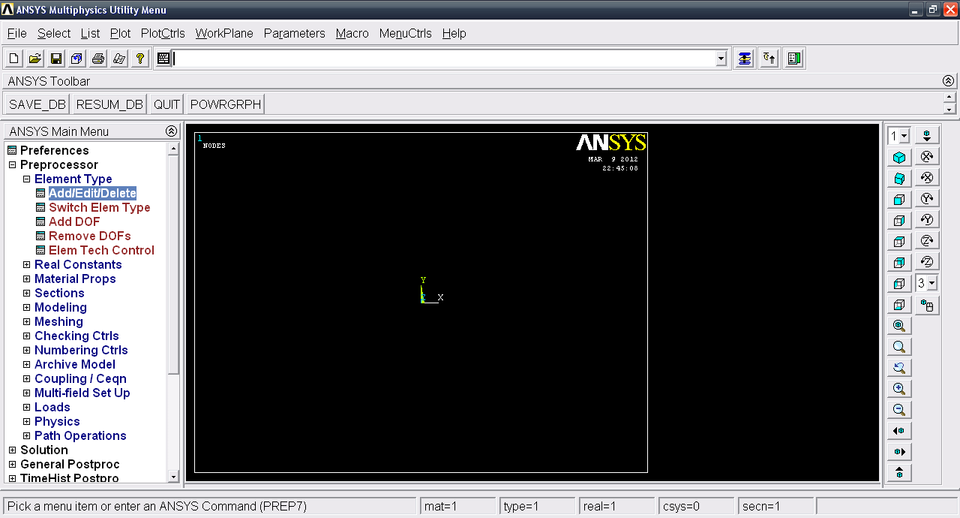

     Under Preprocessor goto >> Element Type >> Add/Edit/Delete.



  4. Step 4

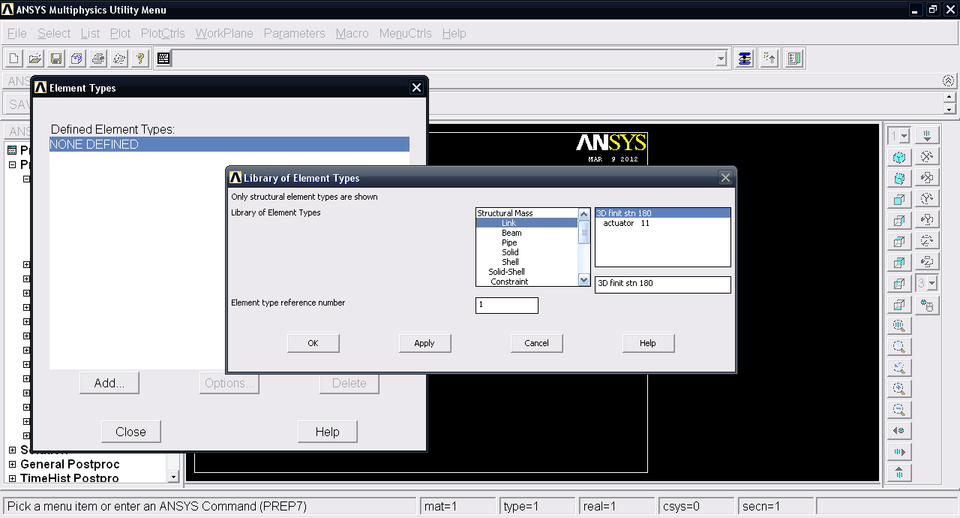

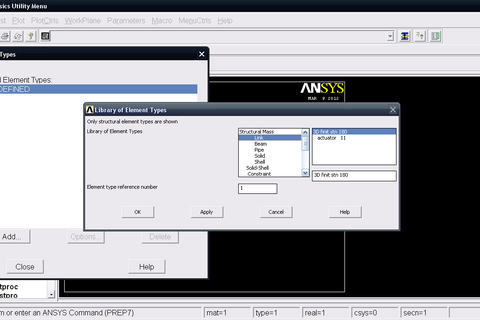

     Click Add and then select 3D finit stn. Click OK and then close.



  5. Step 5

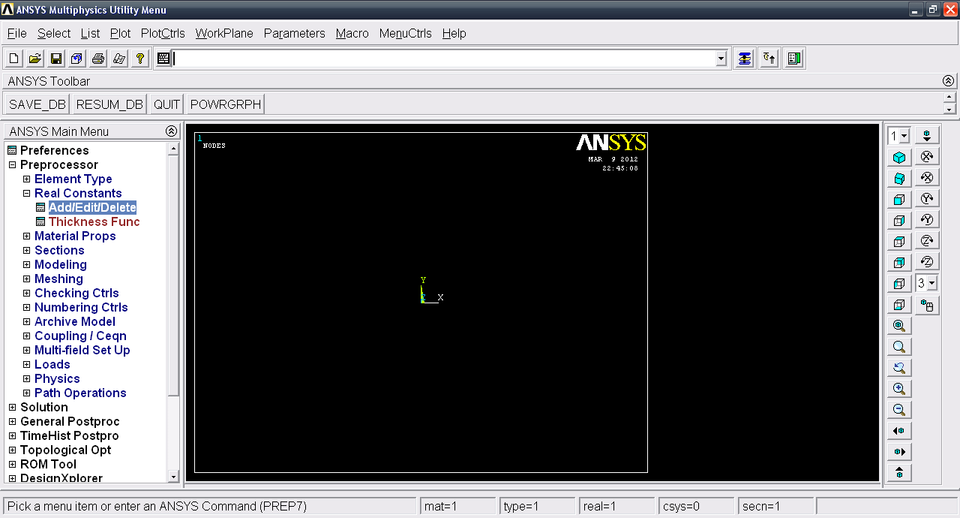

     Under Real constants click Add/Edit/Delete.



  6. Step 6

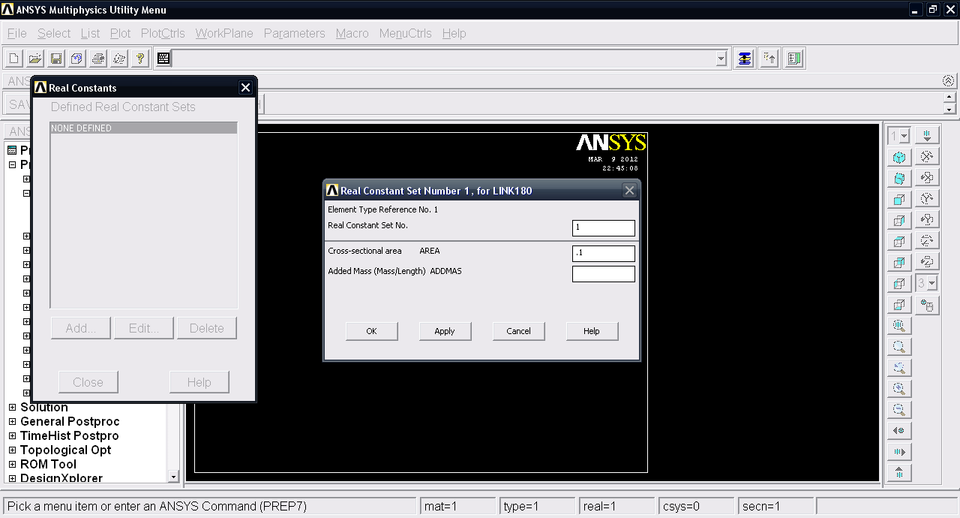

     Click Add and then define Area = .1. Click OK and Click Close.



  7. Step 7

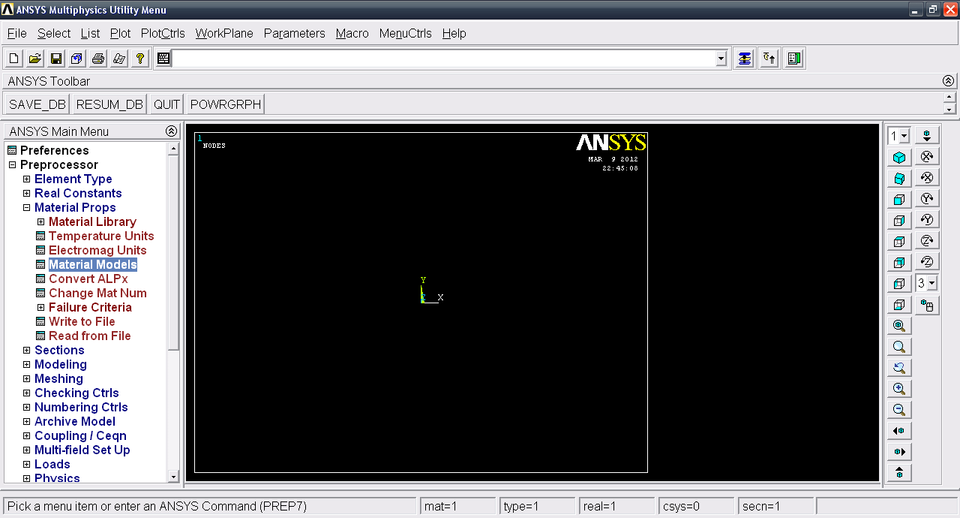

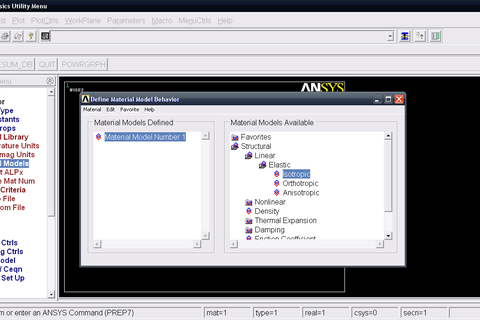

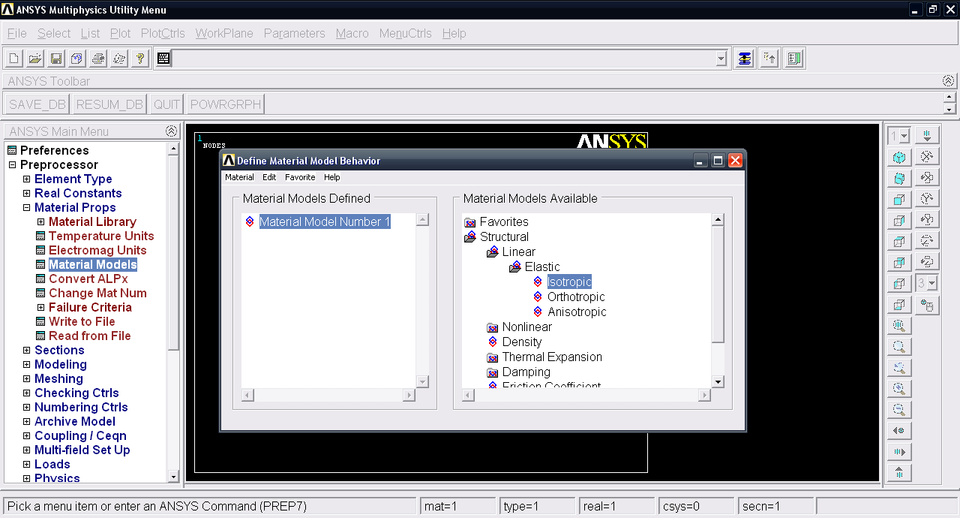

     Under Material Props >> Material Models.



  8. Step 8

     Under Structural >> Linear >> Elastic >> Isotropic.



  9. Step 9

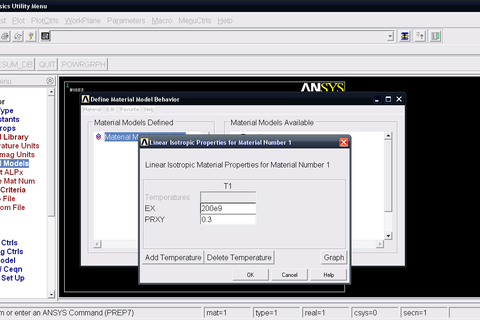

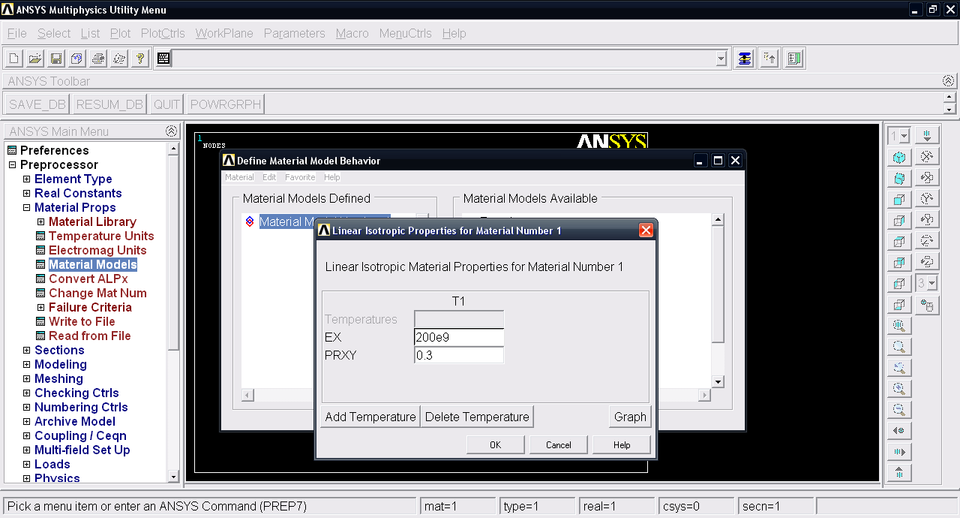

     Input EX=200e9 and PRXY=0.3. Click OK and then close Material Model window.



  10. Step 10

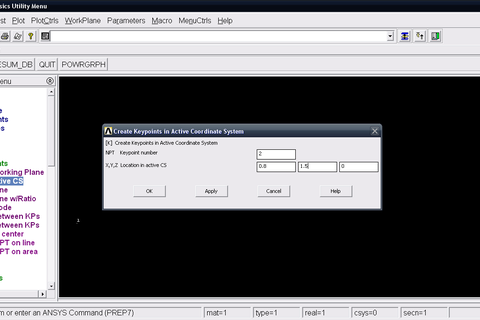

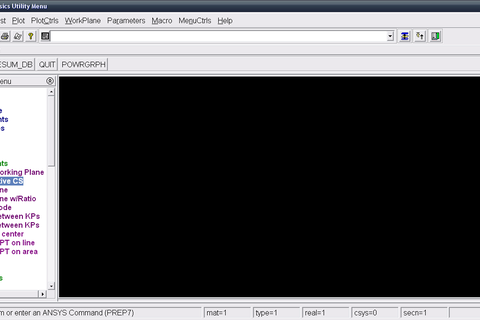

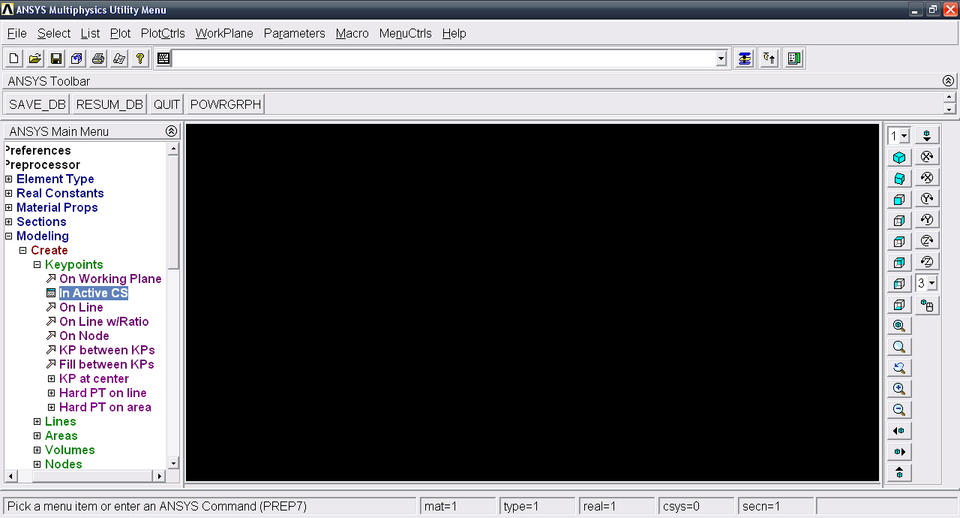

      Goto Preprocessor >> Modeling >> Create >> Keypoints >> In Active CS.



  11. Step 11

      Input Keypoint 1 = (0,0,0)



  12. Step 12

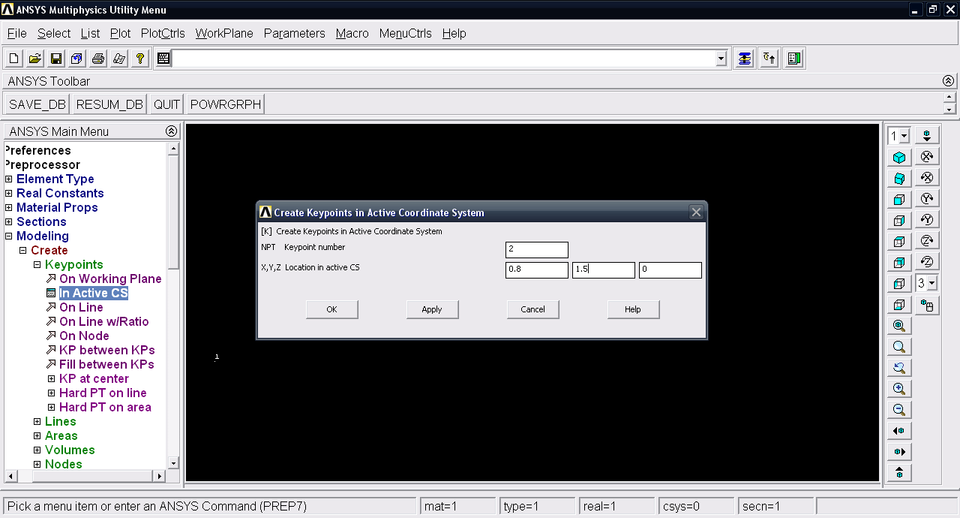

      Input Keypoint 2 = (0.8,1.5,0) & 3 = (2.8,0,0)



  13. Step 13

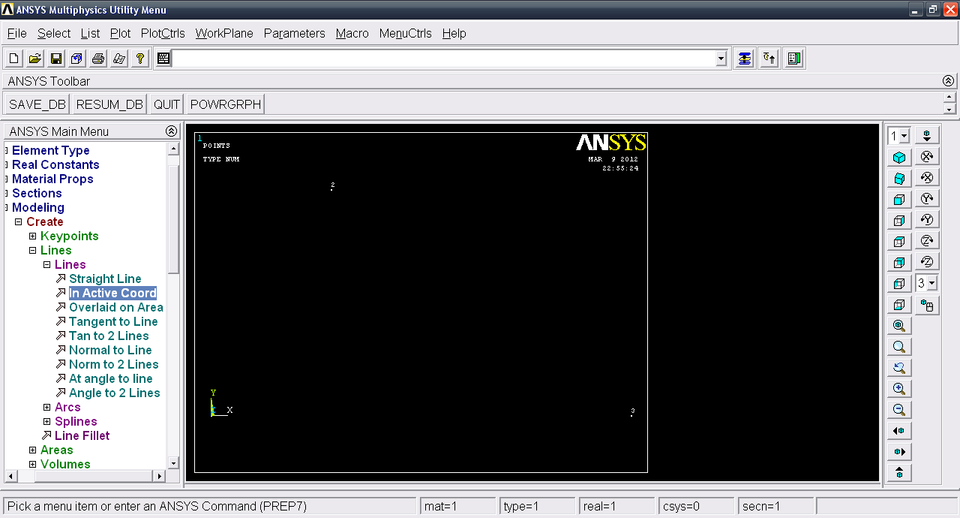

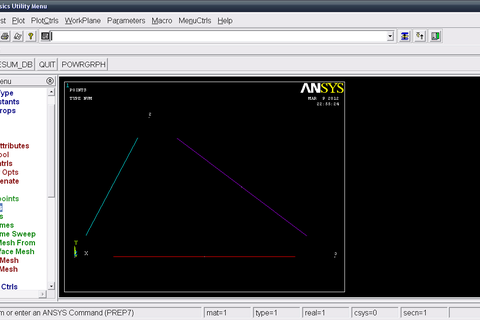

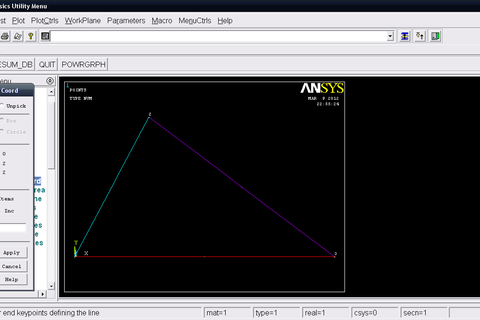

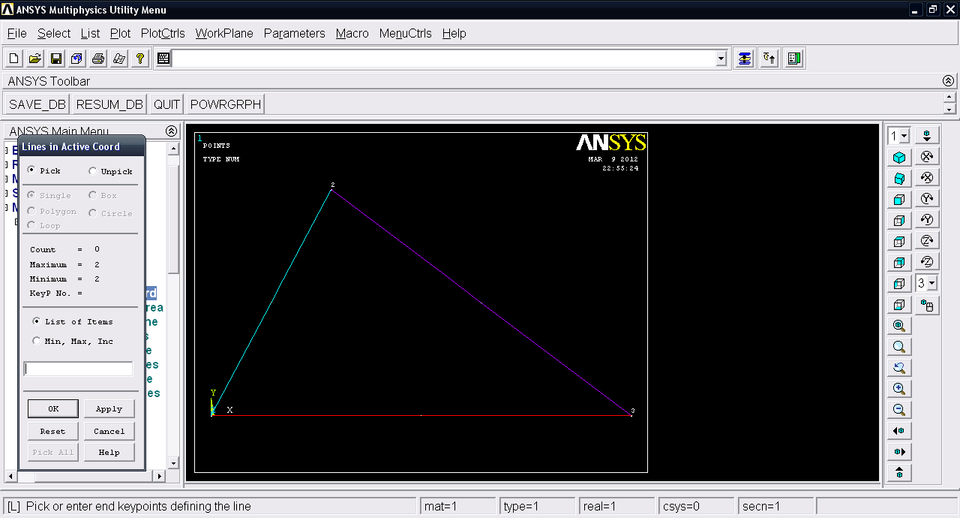

      Goto Modeling >> Create >> Lines >> Lines >> In active Coord to create lines.



  14. Step 14

      Select keypoints and create lines. Click OK after done.



  15. Step 15

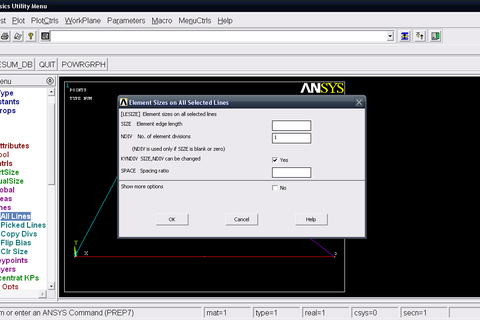

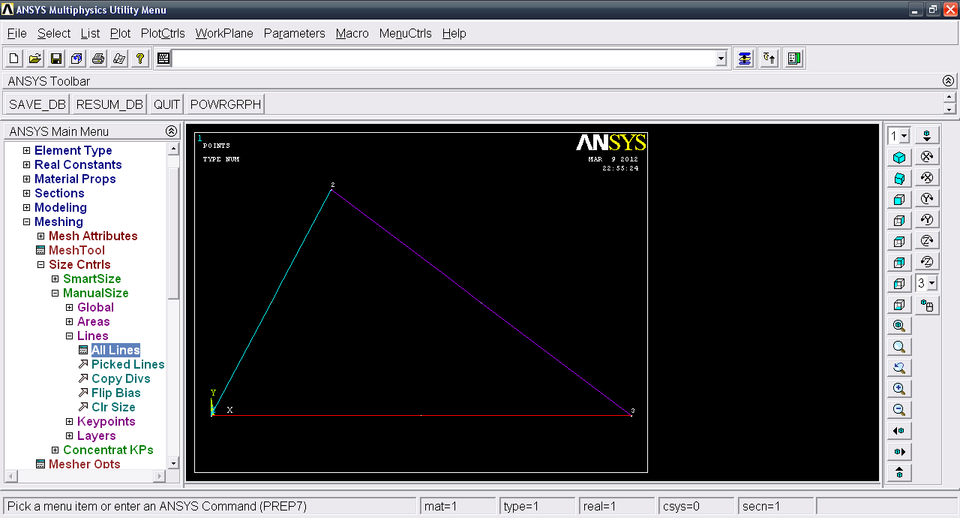

      Goto Meshing >> Size Controls >> Manual Size >> Lines >> All lines.



  16. Step 16

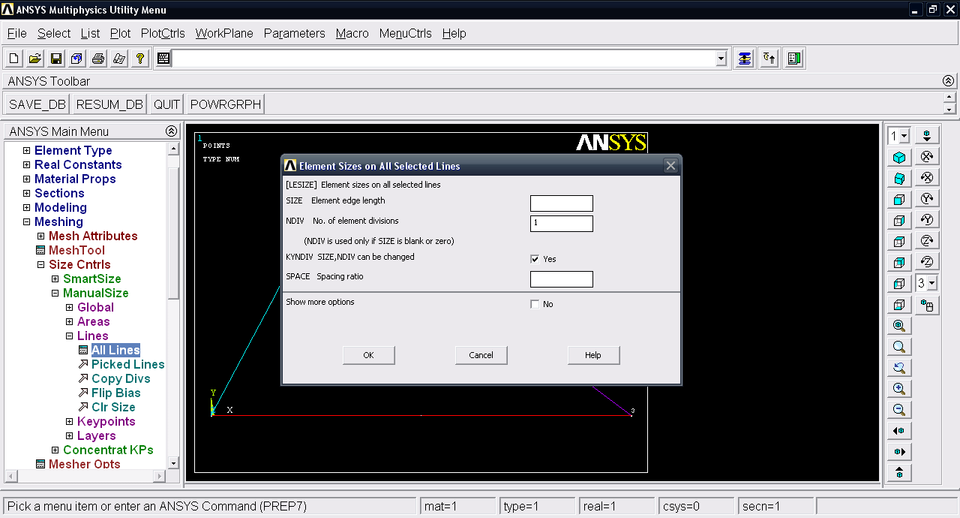

      Input No. of element divisions = 1. Click OK.



  17. Step 17

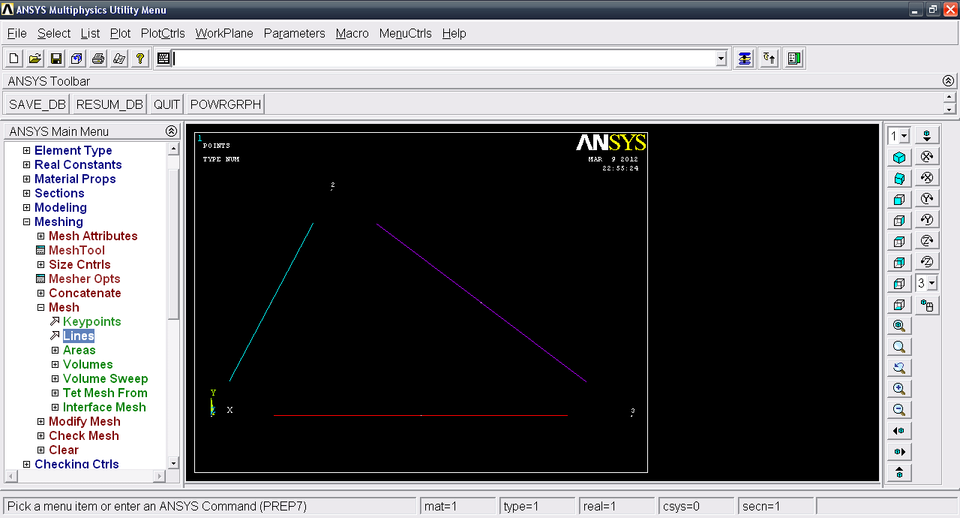

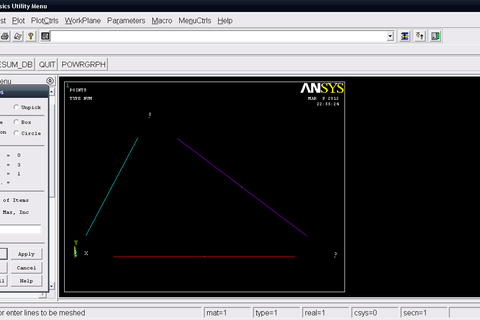

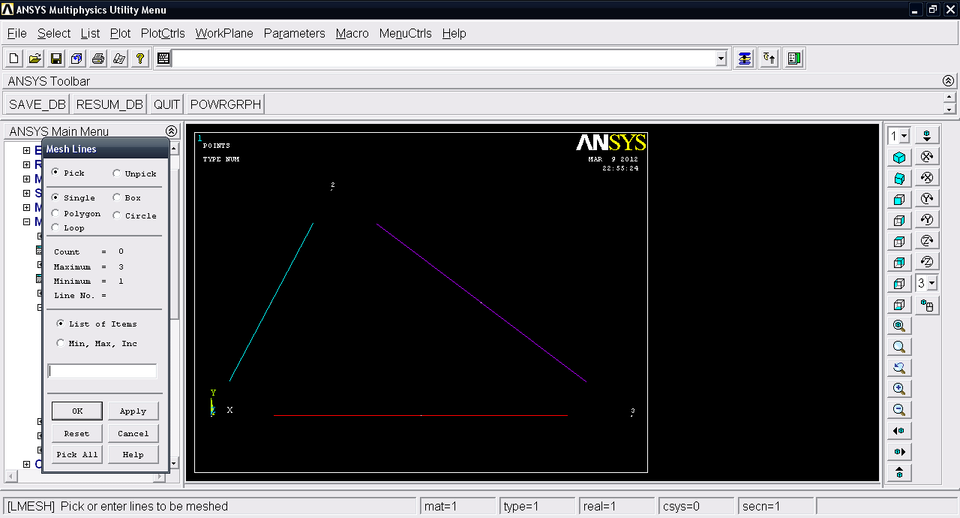

      Goto Meshing >> Mesh >> lines.



  18. Step 18

      Click Pick all.



  19. Step 19

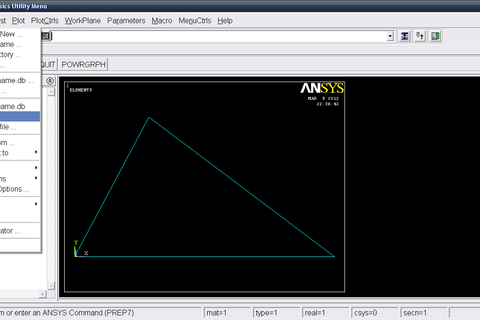

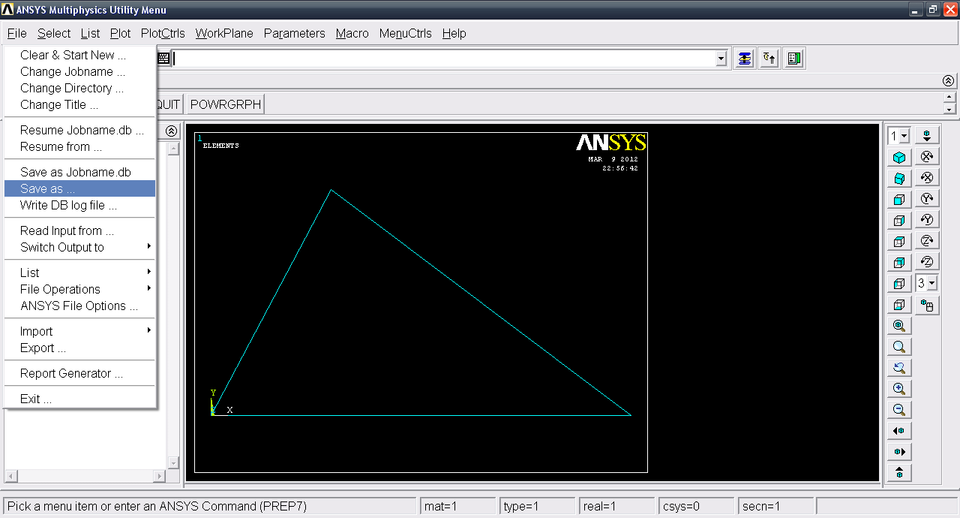

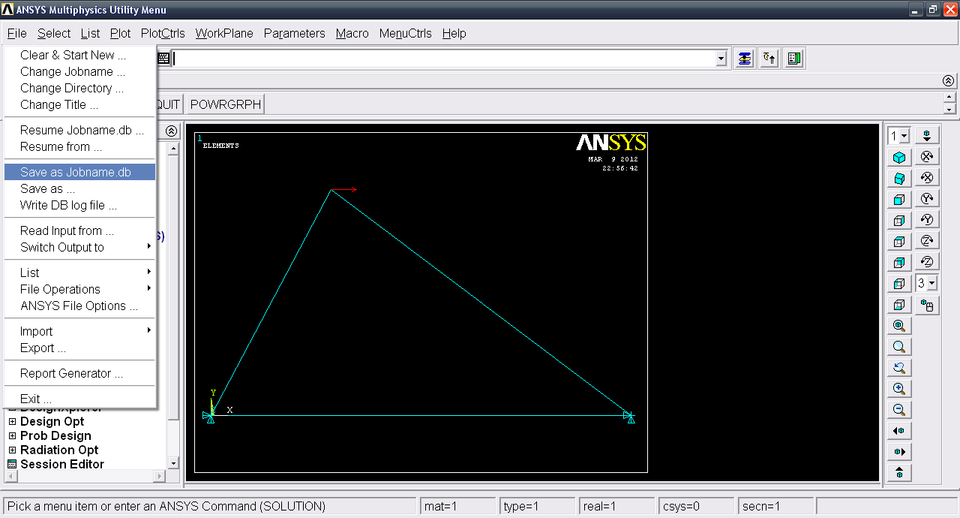

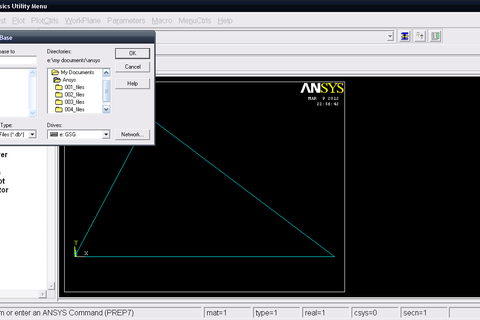

      Now save the job. Click File >> Save as.



  20. Step 20

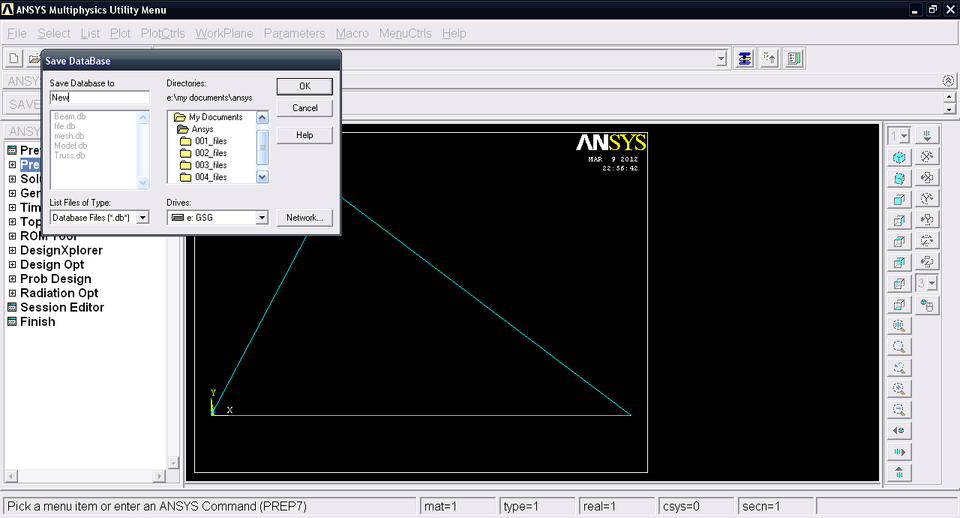

      Save the job.



  21. Step 21

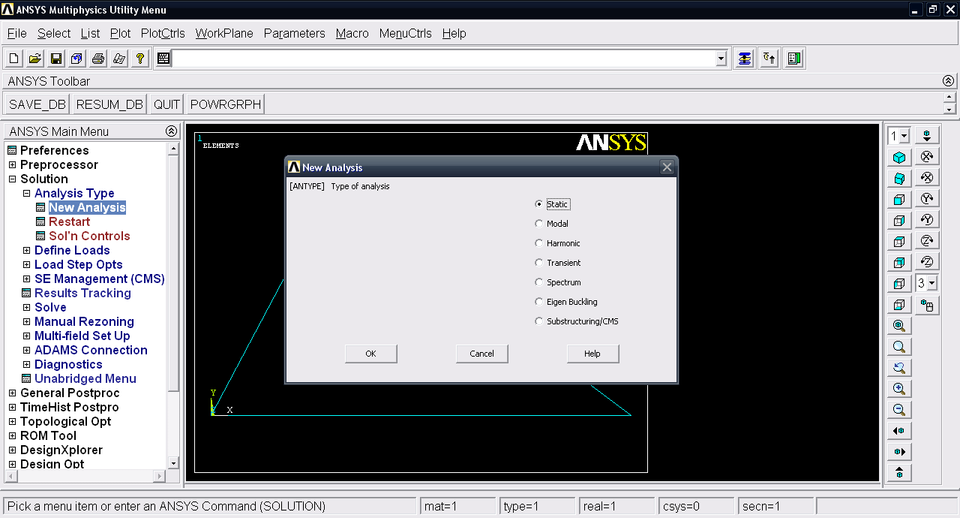

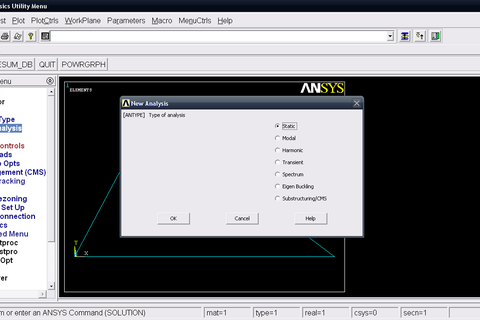

      Under Solution select Analysis type >> New analysis.



  22. Step 22

      Select Static and click OK.



  23. Step 23

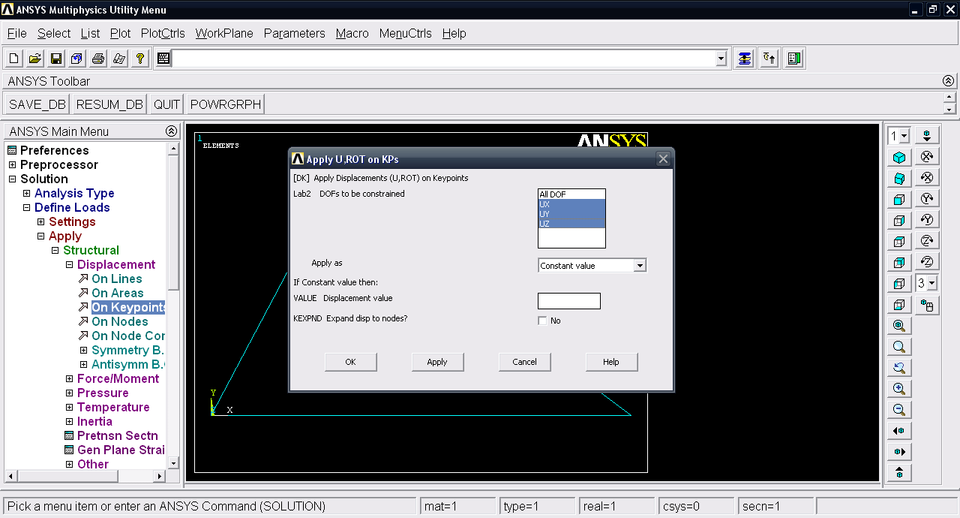

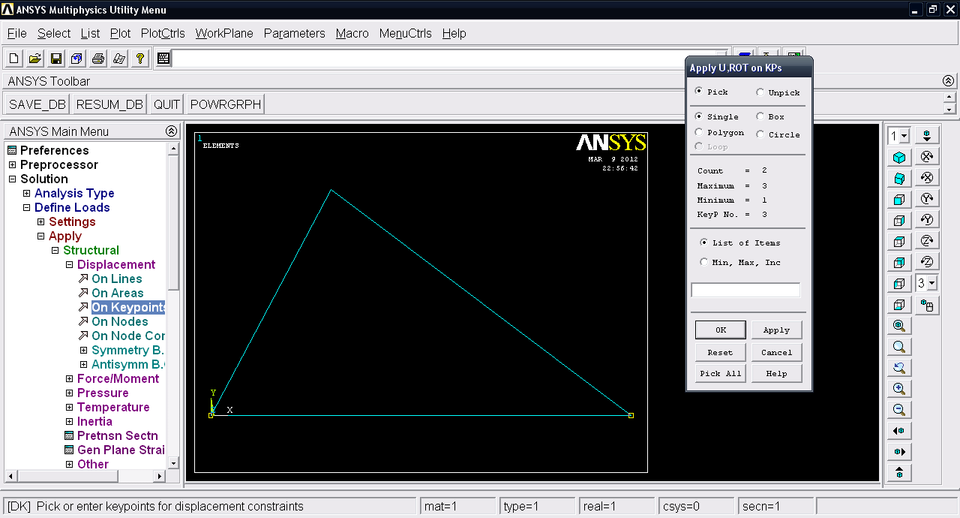

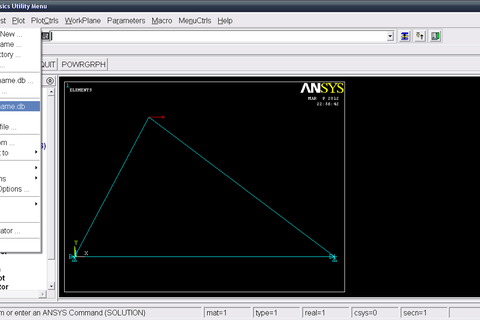

      Goto Define Loads >> Apply >> Structural >> Displacement >> On Keypoints.



  24. Step 24

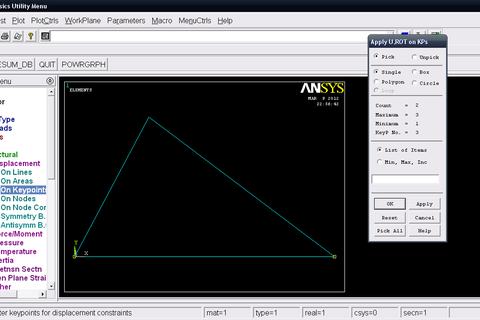

      Select both keypoints.



  25. Step 25

      Select All UX,UY and UZ. Click OK.



  26. Step 26

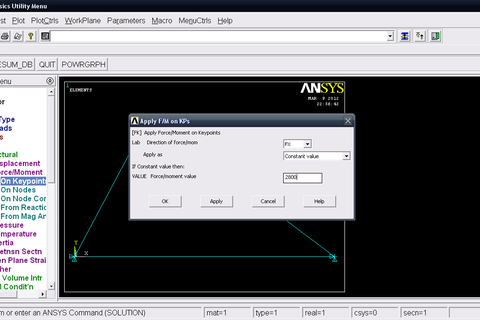

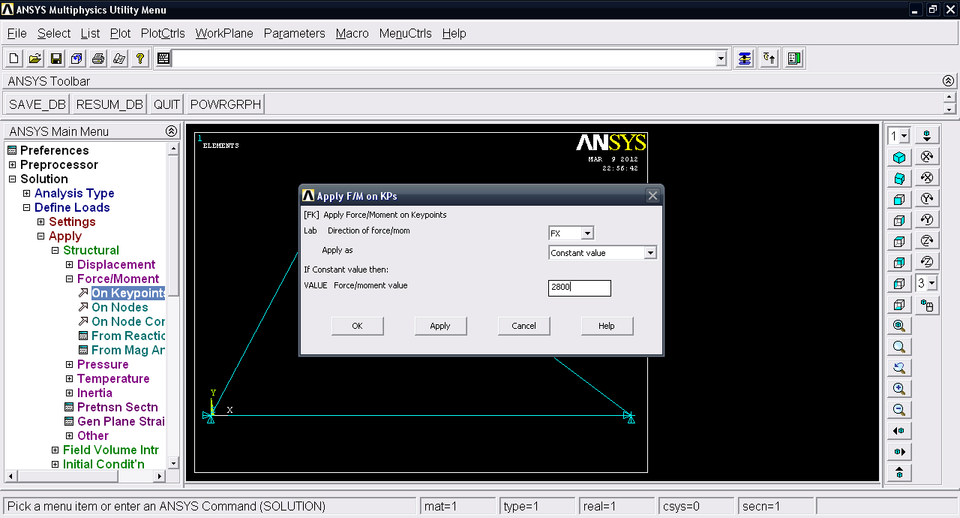

      Goto Define loads >> Apply >> Structural >> Force/Moment >> On Keypoints.



  27. Step 27

      Select the top Keypoint. Click OK.



  28. Step 28

      Input Force = 2800. Direction be FX. Click OK.



  29. Step 29

      Now save the job.



  30. Step 30

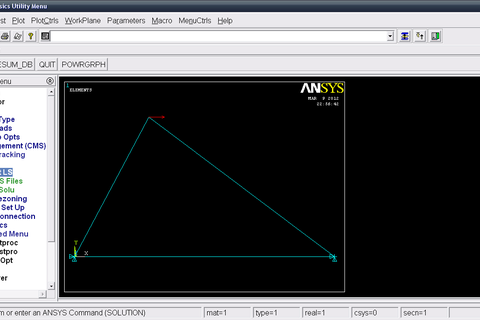

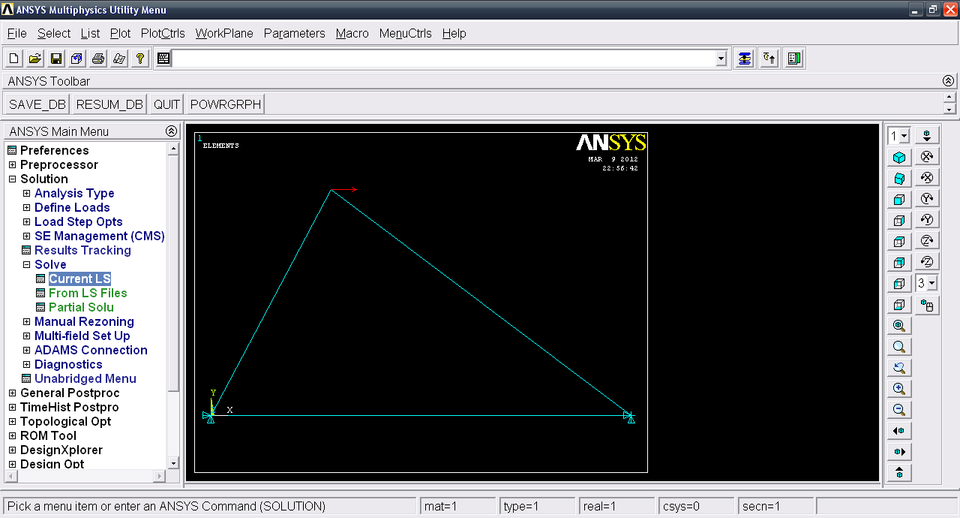

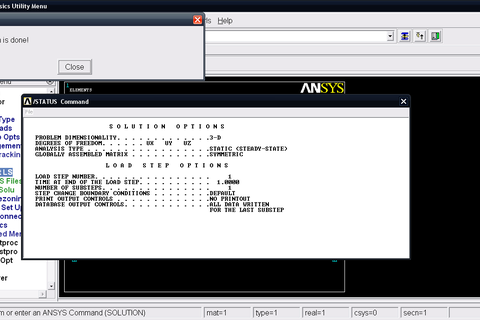

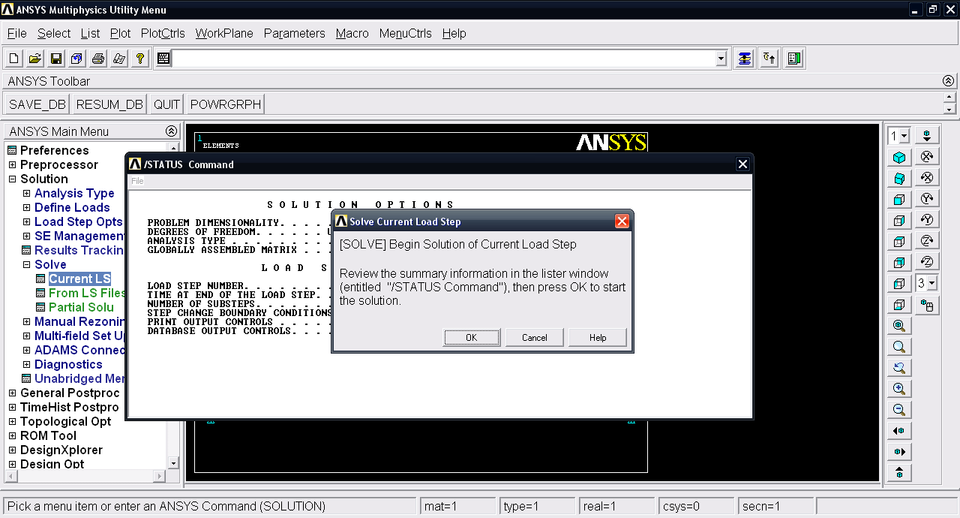

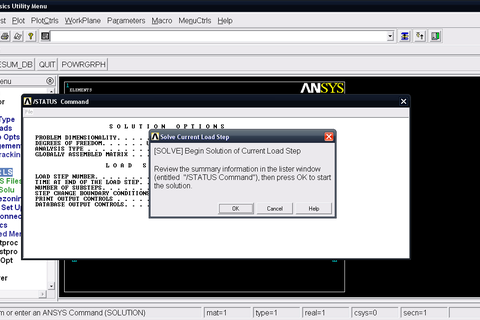

      Goto Solution >> Solve >> Current LS.



  31. Step 31

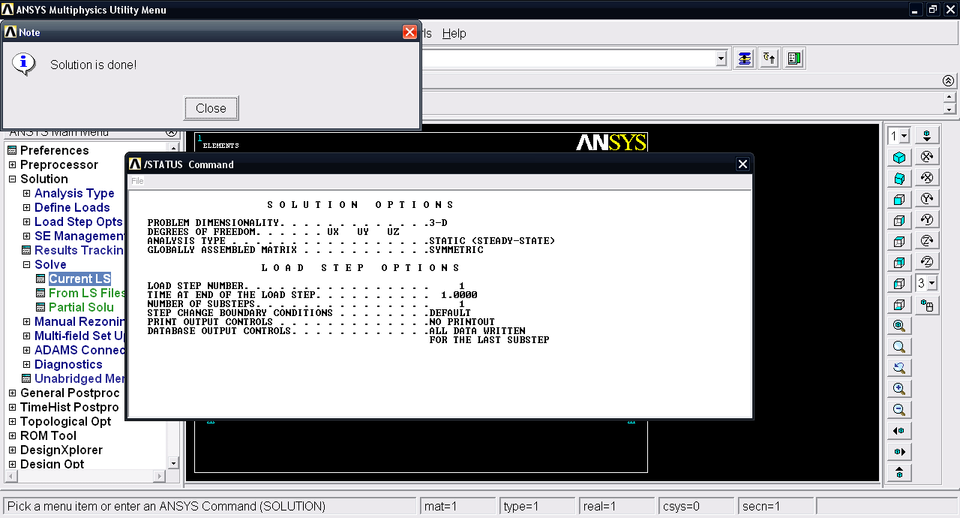

      Click OK.



  32. Step 32

      Click Close.
